AI Floor Plan Recognition: How Machines Read Your Blueprints

Upload a photo of a hand-drawn sketch, a scanned blueprint, or even a smartphone photo of a paper plan — and AI floor plan recognition converts it into a clean, editable digital floor plan in seconds. What used to require hours of manual redrawing in CAD software now happens automatically.

This article explains how the technology works, what it's actually good at, where its limits are, and how it fits into a modern design workflow.

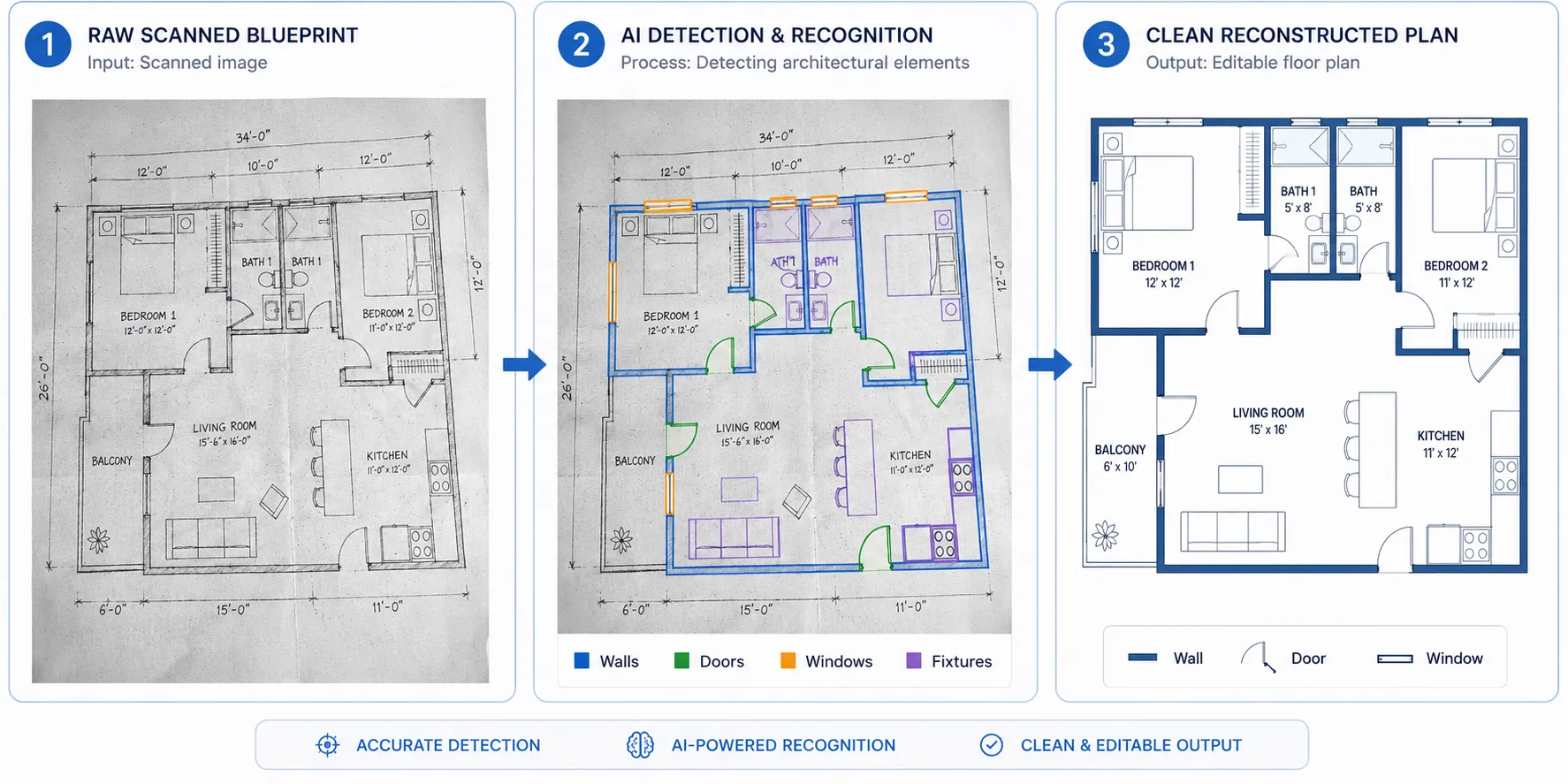

What AI Floor Plan Recognition Actually Does

AI floor plan recognition is a computer vision process that reads an image containing a floor plan and extracts its structural elements — walls, openings, room boundaries, and spatial dimensions — into a format that can be edited and built upon.

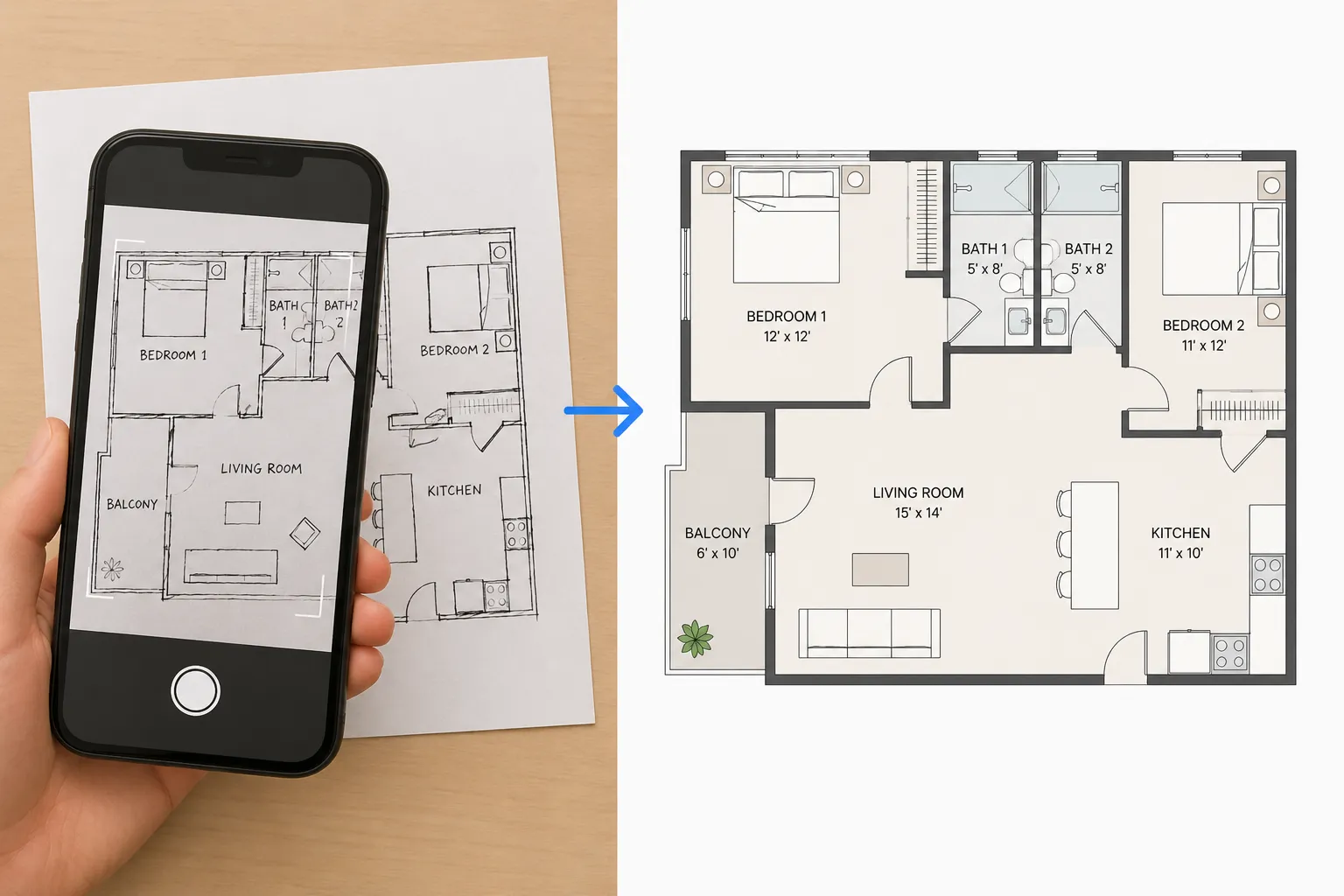

The input can be almost anything with a legible floor plan in it: a photograph of a paper sketch, a scanned architectural drawing, a PDF export from old design software, or a photo taken with a phone in an existing space. The AI processes the image and outputs an editable digital plan with walls placed as geometry, doors and windows identified as openings, and room labels where legible.

The result isn't a copy of the image. It's a reconstruction — a new, editable floor plan that captures the spatial logic of what the AI read, ready to be worked with in a design environment.

save pin

How the Technology Works: Three Stages

Stage 1: Image preprocessing. Before any recognition happens, the AI normalizes the input — correcting for perspective distortion (common in phone photos), increasing contrast, isolating the floor plan from surrounding elements on the page, and identifying the scale if dimension markers are present.

Stage 2: Element detection. Using a computer vision model trained on thousands of floor plan images, the AI identifies and classifies the structural elements it can see. Walls are detected as line segments with defined thickness and directionality. Openings — doors and windows — are detected by their characteristic symbols: a door swing arc, a double-line window break, a gap in a wall. Room boundaries are inferred from the enclosed spaces between wall segments.

This is the technically difficult part. Real-world floor plan images are messy: hand-drawn lines aren't perfectly straight, print scans have noise, old blueprints have faded markings, and different architectural conventions use different symbols for the same elements. Modern recognition models handle most of this through training on diverse inputs — but accuracy is directly tied to input quality.

Stage 3: Reconstruction and output. The detected elements are converted from image coordinates into actual geometry: walls become objects with length and position, openings are placed as functional elements in those walls, and the resulting structure is assembled into an editable floor plan. Dimensions are calculated from detected scale markers when present, or approximated from relative proportions when not.

The output lands in a design environment — not back as an image — so the recognized plan can be immediately modified, furnished, and rendered.

What Recognition Gets Right — and Where It Struggles

Modern AI floor plan recognition handles most clean inputs reliably. A scanned architectural drawing at reasonable resolution, a clear hand-drawn sketch on white paper, or a well-lit phone photo of a printed plan will typically produce an accurate reconstruction with minimal manual correction needed.

The technology's accuracy degrades with input quality. Heavily annotated drawings with overlapping dimension lines, sketches with multiple revisions drawn over each other, low-contrast images, or photos taken at steep angles all introduce recognition errors — walls missed, openings misidentified, room boundaries incorrectly inferred.

Specific elements that AI recognition handles less reliably:

1. Curved walls — most recognition models are optimized for rectilinear architecture and struggle with organic forms
2. Complex multi-level annotations — when structural drawings have extensive engineering annotations, separating the floor plan elements from the notation layer is difficult
3. Non-standard symbols — architectural drawing conventions vary by region and era; models trained predominantly on contemporary Western drawings may misread older or non-Western conventions
4. Scale when no reference is present — without dimension markers or a scale bar, the AI can recognize the layout but can't assign real-world dimensions accurately

For most practical use cases — converting a hand-drawn sketch, digitizing a paper plan from a renovation project, or tracing an existing layout before redesigning it — these edge cases don't come up. The technology is reliable for clean, standard inputs.

Where AI Floor Plan Recognition Fits in the Design Workflow

Recognition is an input technology, not a design technology. It solves the digitization problem — getting an existing plan from paper or image into an editable format — so that design work can begin.

The common workflows where it adds genuine value:

Renovation planning. You have an existing home with a floor plan that exists only as a paper document or a PDF in an old email. Instead of manually redrawing it, you upload it, let recognition create the editable base, and start designing the renovation directly on top of the actual existing layout.

Client intake. A client sends you a sketch they drew on paper describing what they want. Instead of translating it manually into your design tool, recognition converts it to a working digital plan immediately — a faster, less error-prone starting point for the first design session.

Working from agency drawings. Architectural or contractor drawings arrive as PDFs or scanned blueprints. Recognition extracts the floor plan geometry into your design environment, eliminating the redrawing step.

Site documentation. In combination with LiDAR or structured-light scanning tools, recognition can convert scan output into editable floor plans for spaces that have no existing documentation.

In all of these cases, the output of recognition is a starting point. The value is in eliminating the hours of manual digitization that used to precede design work — not in producing a finished design.

Recognition in an AI-Powered Design Platform

Standalone recognition tools exist — they convert images to floor plans and stop there. The workflow value compounds when recognition is part of a complete design environment: once the plan is recognized and editable, the next steps (furnishing, rendering, client presentation) happen in the same platform without an export/import step.

Coohom's AI-powered floor plan creator integrates recognition as part of a full design workflow. Upload a blueprint or sketch, and the recognized floor plan lands inside the complete Coohom design environment — walls are geometry you can adjust, the model library of 1,000,000+ 3D objects is immediately accessible, and the 3D view updates in real time as you make changes. From a photograph of an old paper plan to a furnished, photorealistic render of the redesigned space, the workflow stays in one place.

This matters because the manual step that recognition eliminates — redrawing the base plan — used to be where a lot of design session time went before any creative work could begin. Recognition compresses that setup time to near-zero.

Getting Accurate Results: Input Guidelines

The quality of the recognized output is largely determined by the quality of the input. A few practices that consistently improve results:

Use the highest resolution available. If scanning a document, 300 DPI or higher produces better recognition than a phone photo from across a room.

Photograph perpendicularly. When taking a phone photo of a plan, hold the camera directly above it, parallel to the page — not at an angle. Perspective distortion is the most common source of recognition errors.

Include a scale reference if possible. A ruler, a dimension marker, or a known-length element in the image allows the AI to assign real dimensions rather than approximating from proportions.

Clean drawings outperform annotated ones. If you're working from a heavily annotated engineering drawing, a simplified copy showing only the floor plan layer will recognize more accurately than the full document.

High contrast helps. Faded prints, pencil sketches on gray paper, and low-contrast photos all reduce detection accuracy. Increasing contrast before uploading improves results.

The Broader Picture

AI floor plan recognition is one part of a wider shift in how design workflows start. The blank-canvas problem — the friction of getting existing spatial reality into a digital design tool — is being systematically removed by computer vision. What used to be a half-day job of manual redrawing now happens before the designer makes their first creative decision.

The technology isn't finished. Curved walls, non-standard conventions, and poor input quality still require manual correction. But for the vast majority of practical renovation, redesign, and new-build planning workflows, AI recognition is already reliable enough to change how design sessions begin.

Try It

Upload a blueprint, sketch, or floor plan photo and see the recognized output in an editable 3D design environment — no redrawing required.

try AI floor plan recognition free →
