Executive Summary

An AI layout generator is a tool that produces editable 2D floor plans and room layouts from text prompts, hand-drawn sketches, precise room dimensions, or existing floor plan images. Unlike generic AI image generators that produce a single static room scene, an AI layout generator creates a structured, dimensioned floor plan you can modify — move walls, resize rooms, swap furniture, and adjust door swings — before taking the layout into 3D visualization or rendering.

The audience for this technology is broad: homeowners evaluating a renovation, renters planning furniture placement in a new apartment, real estate marketers who need listing floor plans, interior designers developing multiple concept options for clients, and small renovation teams wanting a fast starting point for client conversations. The common thread is that all of them benefit from seeing a spatial layout before committing time or money to a design direction.

The most practical workflow follows a layered approach: define the space (via text, sketch, or measurements), let the AI produce an editable 2D layout, review and refine the plan, then move into 3D visualization and rendering. This article covers how each input method works, what to expect from the output, common pitfalls, and why keeping your plan editable matters at every stage.

What Is an AI Layout Generator?

An AI layout generator uses machine learning models trained on thousands of residential and commercial floor plans to produce structured, dimensioned layout drawings from user input. The input can be a natural-language description, a photograph of a rough sketch, a set of room dimensions, or an uploaded existing plan. The output is a 2D floor plan with walls, doors, windows, room labels, and basic furniture placement — all editable.

This is fundamentally different from AI image generators that create a visually appealing room scene. Those tools produce a single rendered image. You cannot measure it, edit the wall position, or export it to a CAD workflow. An AI layout generator, by contrast, prioritizes spatial accuracy and editability over photorealism. The plan it produces is a working document, not a finished picture.

Another important distinction: an AI floor plan generator, an AI room layout generator, and an AI house layout generator are all variations of the same core technology. The difference is scope. A room layout generator focuses on a single space — say, a kitchen or living room. A floor plan generator typically covers an entire residential floor. A house layout generator spans multiple floors with consistent structural alignment. We explore these distinctions in detail later in this article.

The key thing to remember is that the goal is an editable plan. If you cannot adjust wall lengths, move doors, or reposition furniture after the AI produces its output, you are working with a visualization tool, not a layout generator. Make sure the platform you choose supports full post-generation editing.

When to Use AI Layout Generation

AI layout generation fits into several practical scenarios where a quick but dimensionally grounded space plan adds immediate value:

1. Early home planning. You have a lot or a rough square footage target and want to explore what a 3-bedroom, 2-bath layout could look like before hiring an architect. The AI gives you concrete options to react to.
2. Room rearrangement. You are keeping the same walls but want to test different furniture configurations. A room-specific AI layout lets you compare circulation paths without moving actual furniture.
3. Renovation planning. You have an existing floor plan and want to test removing a wall, expanding a kitchen, or adding a bathroom. Upload the current plan, describe the change, and let the AI propose the modified layout.
4. Listing visuals for real estate. A clear 2D floor plan helps buyers understand flow and square footage far better than photos alone. AI generation turns a rough measurement sketch into a clean listing-ready plan.
5. Design concept exploration. Interior designers and architects can generate multiple layout variations for the same brief in minutes, giving clients a range of directions before detailed work begins.

In all these cases, the AI layout is a starting point, not the final deliverable. The output accelerates the conversation — whether that conversation is with a contractor, a spouse, a client, or your own design instincts.

save pin

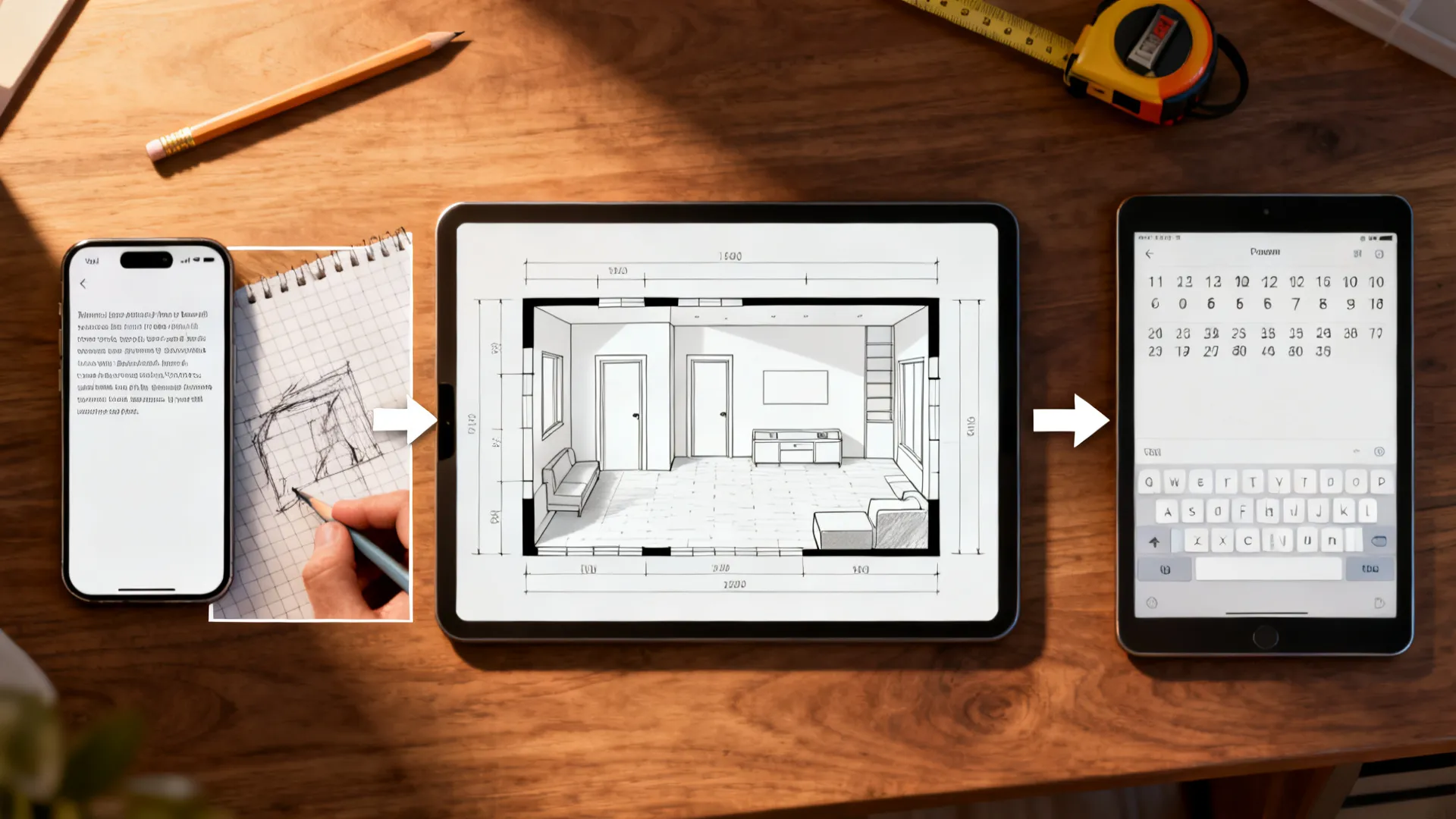

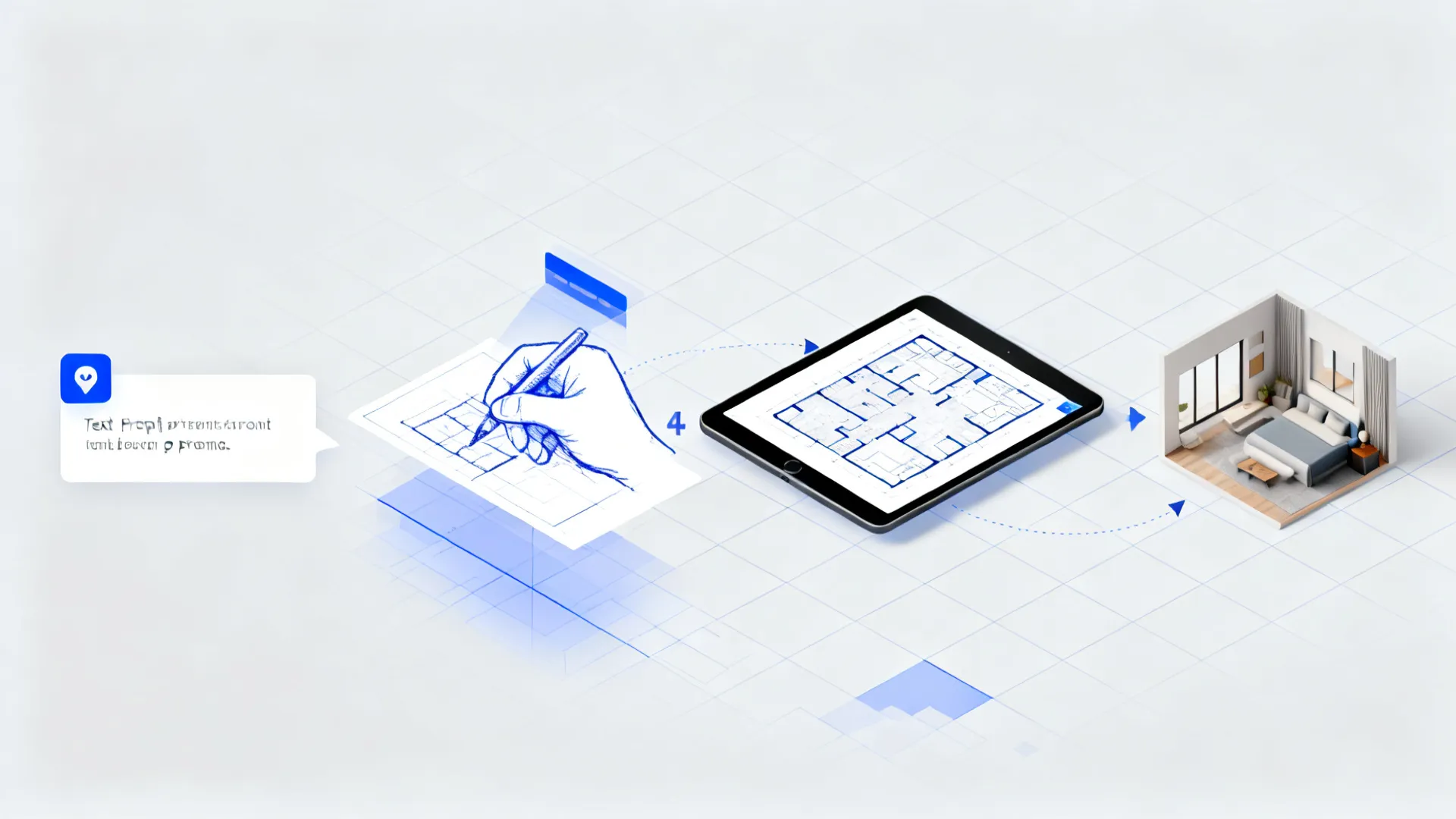

Four Ways to Start: Text, Sketch, Dimensions, or Existing Plans

Most AI layout generators accept multiple input types. Each has different strengths, and the best choice depends on what information you already have and how precise you need the output to be.

Text prompt is the fastest way to generate layout concepts. You describe the space in plain language: room type, approximate dimensions, key furniture, and any style preferences. The AI interprets your description and proposes a layout. This works well for brainstorming but produces the least precise output because the AI has to imagine the spatial envelope. Always follow up by applying real measurements to the generated plan.

Sketch or photo input uses computer vision to detect walls, doors, and windows from an image. You upload a photo of a hand-drawn sketch or even a room corner photo. The AI traces structural elements and builds a digital plan. The critical step is adding at least one known measurement — such as a door width or a wall length — so the AI can scale the entire plan correctly. Without a reference dimension, the output is proportionally correct but not dimensionally accurate.

Room dimensions is the most precise starting method. You enter actual wall lengths, door placements, and window positions. The AI creates a plan that matches your measurements and then places furniture logically within those constraints. This method requires more upfront work but produces the most reliable output and needs the least post-generation refinement.

Existing floor plan upload lets you use an AI layout generator to explore modifications to a current layout. Upload a PDF or image of your existing plan, describe the change you want — "remove the wall between kitchen and dining, add a pantry" — and the AI proposes the revised layout while keeping the unchanged portions intact.

Most practical workflows combine methods. For example: start with a text prompt to generate several rough concepts, then switch to dimension input to lock in accurate measurements once you have chosen a direction.

How to Create a Layout with AI: A Step-by-Step Workflow

Follow this numbered process to go from idea to an editable, review-ready floor plan:

1. Define the space and its purpose. Decide what you are designing — a single room, a full-floor apartment, or a multi-story house. List the rooms you need, their approximate sizes, and any must-have relationships (e.g., kitchen connected to dining, master bedroom away from street-facing windows).
2. Gather measurements or reference materials. If you have a tape measure, record wall lengths, door widths, and window positions. If you have a sketch, photograph it on a flat surface with even lighting. If you are working purely from a concept, write a clear text prompt that includes room type, square footage or dimensions, furniture needs, and style direction.
3. Choose your input method and generate. Select text, sketch, dimensions, or existing plan upload based on what you have. Good AI layout tools generate multiple options — aim for at least three variations so you can compare different approaches to circulation, zoning, and furniture placement.
4. Lock in scale and dimensions. This step is non-negotiable. If you started from a text prompt or sketch, measure your actual space and apply those numbers to the AI-generated plan. A layout that looks right but is at the wrong scale will cause problems at every later stage.
5. Edit walls, doors, and windows. Adjust wall lengths, correct door swing directions, verify window sizes. Pay attention to how doors open in relation to furniture and walkways. A door that swings into a dining chair's path is a problem that is easy to miss on screen but obvious in real life.
6. Place and adjust furniture. Move, resize, or swap the AI's default furniture for pieces that match what you own or plan to buy. Check that walkways between furniture are wide enough — 36 inches (about 90 cm) is a practical minimum for main circulation paths, and 30 inches works for secondary paths.
7. Review circulation and room relationships. Walk through the plan mentally. Can you get from the garage to the kitchen without crossing the living room? Does the bathroom open directly into a dining area? Are private spaces (bedrooms) adequately separated from public ones (living room, kitchen)?
8. Move into 3D visualization and rendering. Once the 2D layout is solid, take it into a 3D view. This is where you catch issues that are invisible in plan view: ceiling height, sightlines, natural light from window positions, and how furniture volume affects the feel of the space. This is also where you can design your home with AI to generate photorealistic renders and walkthroughs from your verified 2D plan.

What Makes a Good AI-Generated Layout?

After the AI produces a layout, review it against these practical criteria before you consider it ready for the next phase:

1. Scale and proportions. Doors should be roughly 32–36 inches wide in standard residential plans. Hallways should be at least 36 inches wide. Bedrooms should have at least one wall long enough for a bed plus side tables. If these basic dimensional checks fail, adjust before anything else.
2. Circulation paths. Can a person move naturally between key zones without cutting through furniture groupings? The path from the kitchen to the dining table should be direct. The entrance should not funnel visitors straight into a bedroom hallway.
3. Natural light. Check window placements against room usage. Bedrooms benefit from morning light; living rooms work well with afternoon and evening light. A kitchen with no window next to a dining room with floor-to-ceiling glass creates an unbalanced lighting condition.
4. Furniture clearance. Leave space to pull out dining chairs (allow roughly 36 inches from table edge to wall), open drawers and cabinets, and walk around beds. AI tools sometimes place furniture in a mathematically valid position that is functionally unusable.
5. Storage. Built-in closets, pantry space, and utility areas are often omitted in AI-generated plans unless you explicitly request them. Review the layout and add storage where it makes practical sense.
6. Room relationships. The kitchen should be adjacent to or open to the dining area. Bathrooms should be accessible from common areas without passing through private bedrooms. The laundry, if on a living floor, should not share a wall with the main bedroom.
7. Editability. The best AI-generated layout is one you can actually change. If the tool locks the output, you are stuck with whatever the AI decided. Choose a platform that lets you continue editing walls, furniture, and finishes after generation.

AI Layout Generator vs. AI Floor Plan Generator vs. AI Room Layout Generator

These terms are frequently used interchangeably, but they describe different scopes of the same underlying technology:

1. AI layout generator is the broadest term. It covers any AI tool that creates a spatial arrangement, whether for a single room, an apartment, an office floor, or an entire house. It is the most accurate term when you want to describe the category as a whole.
2. AI floor plan generator specifically refers to tools that produce full-floor residential layouts — typically with multiple rooms, labeled dimensions, door and window placements, and sometimes multi-story support. This is what most people search for when they want to design or renovate a home.
3. AI room layout generator focuses on a single space: a living room, bedroom, kitchen, bathroom, or home office. These tools optimize furniture arrangement within fixed room boundaries and are especially useful for rearrangement projects where the walls are not changing.
4. AI house layout generator extends the floor plan concept to multi-story homes, producing coordinated plans for each level with consistent stair placements, structural alignment, and overall footprint continuity.

In practice, a capable AI floor plan and home design solution handles all of these scopes within a single platform. You can generate a full-house plan, zoom into a single room for detailed furniture layout, and then take the entire project into 3D — all without switching tools. This is the difference between a point solution that generates one type of output and a platform that supports the full design workflow from layout to rendering.

Common Mistakes to Avoid a capable AI layout generator produces weak results when the user makes any of these common errors:

1. Vague prompts. A prompt like "design a nice house" gives the AI almost nothing to work with. Instead, specify room count, approximate square footage, and key relationships: "Design a single-story 1,800 sq ft home with 3 bedrooms, 2 bathrooms, an open kitchen-dining-living zone, and a separate laundry room near the garage entrance."
2. Skipping dimension verification. Text-prompted and sketch-based layouts are proportionally informed but not dimensionally accurate until you apply real measurements. Never assume the generated dimensions match your actual space.
3. Treating the output as construction-ready. No AI layout generator produces drawings that a building department will accept for permit review. The output is a schematic design aid — 70 to 75 percent of what goes into a full schematic package. Structural engineering, mechanical and electrical layouts, local code compliance, and soil conditions all require a licensed professional.
4. Accepting the first output without iteration. The first layout the AI generates is rarely the best. Generate at least three variations, compare how each handles circulation and zoning, then refine the strongest direction. Iteration is where the value of AI layout generation actually lives.
5. Ignoring circulation and accessibility. AI tools optimize for spatial efficiency but do not always account for practical movement. Check that hallways are wide enough, that bathroom layouts leave clearance for doors to swing, and that at least one entry path into the home is step-free.
6. Forgetting to add storage and utility spaces. AI layouts tend to maximize living areas and bedrooms while minimizing or omitting closets, pantries, utility rooms, and mechanical spaces. Add these explicitly in your input or during the editing phase.
7. Skipping the 3D check. A layout that looks flawless in 2D can reveal problems in 3D — a window placed directly behind a headboard, a kitchen island that blocks the work triangle, ceiling height issues in rooms with sloped roofs. Always review your 2D plan in 3D before finalizing.

From Layout to 3D Home Design

A 2D floor plan answers the question "what goes where." 3D visualization answers the question "how will it feel." This transition is where AI layout generation delivers its greatest return, because an editable 2D plan feeds directly into a 3D environment without rework.

Once your layout is verified — dimensions are correct, circulation works, room relationships make sense — you can take it into a 3D home design platform. The walls, doors, and windows carry over. Furniture that was a top-down rectangle in plan view becomes a textured, volumetric object you can see from any angle. You can test materials, lighting conditions at different times of day, and color schemes. You can generate photorealistic renders to share with contractors, clients, or family members.

This is where an integrated AI home design platform changes the workflow. Instead of generating a layout in one tool and then rebuilding it from scratch in a 3D tool, you stay in one environment where the 2D plan and the 3D model are synchronized. Changes you make in plan view update the 3D model, and issues you spot in 3D can be fixed by adjusting the plan — a continuous loop rather than a disconnected handoff.

For homeowners and designers alike, this integration means you spend less time on data entry and file conversion and more time on design decisions. The layout is the foundation; the 3D view is where the design comes to life.

FAQ

Can AI create a floor plan just from a text description?

Yes. Modern AI layout generators can interpret natural-language prompts and produce dimensioned floor plans. However, text-to-floor-plan output should be treated as a conceptual starting point. The AI estimates proportions based on your description, so you should verify and apply actual room measurements to the generated plan before using it for any real-world planning.

Can AI turn a hand-drawn sketch into a digital floor plan?

Yes. This is one of the most practical input methods. You photograph a sketch (drawn on plain paper with dark lines for best results), upload it to an AI layout generator, and the tool uses computer vision to detect walls, doors, and windows. The critical follow-up step is adding at least one known dimension so the AI can scale the entire plan correctly.

How accurate are AI-generated floor plans?

Accuracy depends on the input method. Dimension-based generation produces the most dimensionally accurate results because you supply the measurements directly. Sketch-based and text-based generation produce proportionally reasonable layouts, but the absolute dimensions are estimates until you verify and adjust them. In all cases, AI-generated plans are schematic design aids, not construction documents, and should be reviewed by a professional before any building work begins.

Can I use an AI layout generator for a renovation project?

Yes, and this is one of the strongest use cases. Upload your existing floor plan (as a PDF or image), describe the changes you want — removing walls, adding rooms, reconfiguring spaces — and the AI generates modified layouts. You can compare the current and proposed versions side by side, which makes it easier to communicate your vision to a contractor or architect.

Do I still need an architect or interior designer if I use an AI layout generator?

For anything beyond early-stage exploration, yes. AI layout generators accelerate the planning phase and help you arrive at a clear direction, but they do not replace the structural knowledge, code compliance expertise, and construction documentation skills that licensed professionals bring. Think of the AI as a tool that makes your conversations with architects and designers more productive — you show up with concrete options rather than vague ideas.

Can AI generate a complete multi-story house layout?

Most capable AI layout generators support multi-story designs. You design each floor separately, and the software maintains consistent footprints, stair placements, and structural alignment between levels. The output typically handles up to four stories for residential projects.

Are AI-generated layouts ready for building permits?

No. AI-generated floor plans are schematic design aids, not permit-ready construction documents. Building departments require drawings that include structural details, mechanical and electrical layouts, code compliance annotations, and professional stamps — none of which current AI tools produce. Always have a licensed architect or engineer prepare final construction drawings from the AI-generated starting point.

Start with an Editable AI Layout

An AI layout generator removes the blank-page problem. Instead of staring at an empty grid wondering where to place the first wall, you provide your requirements — in text, sketch, or measurements — and get a dimensioned, editable plan in return. That plan becomes the foundation for every design decision that follows: furniture selection, material choices, lighting design, and 3D visualization.

The value is not in replacing professional expertise but in compressing the exploration phase. You test more ideas, rule out weak directions faster, and arrive at a clear layout before engaging expensive professional time. Whether you are planning a whole-home renovation or simply rearranging a living room, starting with an AI-generated, editable layout gives you a faster, more confident path from concept to completed design.

For a complete AI floor plan and home design solution that carries your layout from 2D planning through to photorealistic 3D rendering — with full editability at every stage — explore what an integrated design platform can do.
