AI Open Living Dining Room Layout: Plan Connected Spaces with Better Flow Using AI Layout Tools

Executive Summary

An open living-dining layout offers light, connection, and flexibility — but without walls, every sofa placement, dining table position, and walkway decision shapes whether the space feels intentional or chaotic. Using an AI open living dining room layout approach, you can test multiple zoning strategies, compare traffic flow, and visualize furniture placement before committing to a single configuration. This article covers the core principles of open-plan zoning — sofa orientation, rug placement, lighting separation, circulation paths, storage integration, and visual continuity — and provides practical AI prompt examples for small apartments, family homes, rectangular rooms, and L-shaped open plans.

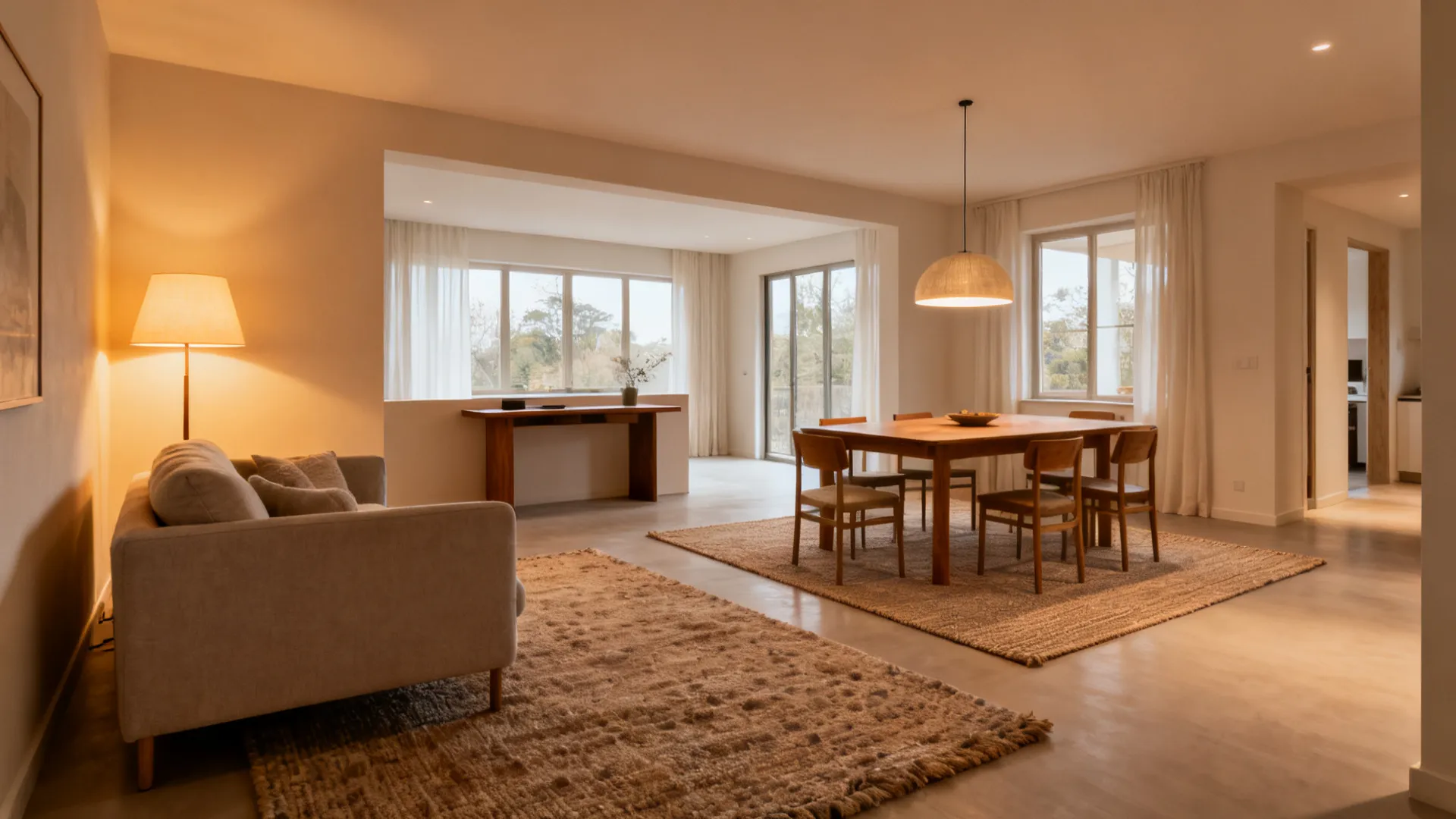

Why Open-Plan Zoning Matters

Open concept living-dining spaces are the defining layout of modern homes. They promote social connection, maximize natural light, and make square footage work harder. But when you remove walls, you inherit a design problem: everything is visible from everywhere, and nothing defines itself.

Without intentional zoning, an open plan can feel like a furniture showroom — pieces scattered across a continuous floor with no clear purpose. The solution is creating "rooms within the room," and that begins with understanding how each design element contributes to spatial definition.

The Six Core Principles of Open Living-Dining Layout

1. Sofa Orientation: Create the Living Zone Anchor

The sofa is the single most consequential piece in an open living-dining layout. Where it faces and how it sits relative to the dining area determines the entire spatial logic.

The most effective strategy for separating living and dining zones is positioning the sofa to face away from the dining area with a console table behind it. This creates a visual and functional barrier without closing off the space. An AI room design tool can generate this layout in seconds, showing you exactly how the console table behind the sofa doubles as a serving surface during meals.

2. Dining Table Placement: The Transition Zone

The dining table occupies a unique role — it's often the bridge between kitchen and living areas. Its placement should feel intentional, not like leftover space was filled.

Key placement rules:

1. Allow at least 36 inches (92 cm) of clearance from the table edge to walls or furniture for comfortable chair movement
2. In linear kitchen-living-dining layouts, place the dining table between the kitchen and living zones to serve as a natural transition
3. For kitchen-island-centric layouts, position the dining table adjacent to the island on its own rug — connected visually but spatially distinct
4. In L-shaped plans, the dining table works well on the shorter leg or at the junction of the two wings
5. Round or oval tables improve circulation flow in tighter open plans by eliminating sharp corners

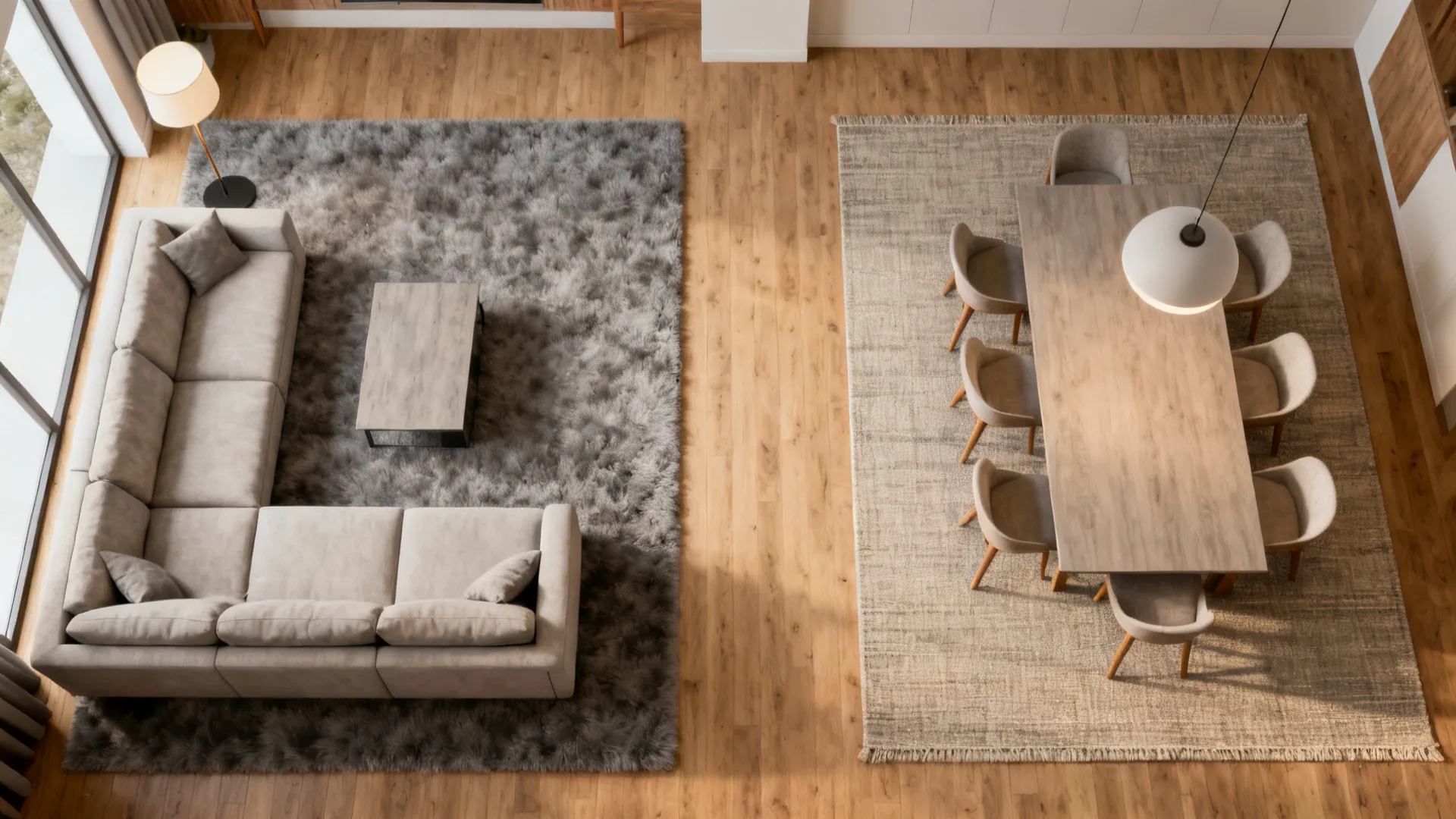

3. Rugs as Zone Boundaries

Rugs are the most accessible and effective zoning tool. They create visual boundaries without blocking light, sound, or movement.

1. Living room rug: Minimum 8×10 ft, ideally 9×12 ft — all front furniture legs should sit on it
2. Dining room rug: Large enough so chair legs remain on the rug even when pulled out — typically 8×10 ft minimum
3. Separation between rugs: Leave 12–18 inches of bare floor between living and dining rugs so each zone reads as distinct
4. Texture contrast: A plush rug in the living area and a flatweave under the dining table create tactile zone differentiation

save pin

4. Lighting Separation: Three Zones, Three Moods

Lighting is how professional designers make open plans feel composed. Each zone deserves its own primary light source and its own color temperature.

A pendant over the dining table hung 30–36 inches above the surface creates an unmistakable signal: this is a distinct room, even without walls. When all three zones are lit independently, the brain reads them as separate destinations.

5. Circulation Paths: Design for Movement

Traffic flow can make or break an open plan. The goal is clear, unobstructed paths between zones that don't cut through conversation areas or require navigating around furniture.

1. Maintain 36–48 inch (92–122 cm) primary walkways between zones
2. Keep the path from the entry to the kitchen clear and direct — this is the most-used route in any open plan
3. Arrange living room seating so that no one has to stand up to let someone pass through
4. Use an AI living room design generator to visualize where foot traffic naturally flows and adjust furniture placement before committing

6. Storage and Visual Continuity

Open plans expose everything. Storage must work harder — and look better — because it's always on display.

1. Buffet or sideboard between dining and living: Defines the transition while storing table linens, dinnerware, and entertaining pieces
2. Console table behind the sofa: Provides surface space and discreet storage without blocking sightlines
3. Open shelving as a partial divider: A low (3–4 ft) bookshelf between zones maintains visual connection while adding storage
4. Built-in or freestanding cabinets along one wall: Creates a continuous visual anchor across multiple zones

For visual continuity, repeat at least two materials or colors across zones — a wood tone that appears in both the living room coffee table and dining chairs, or a fabric texture shared between throw pillows and dining seat cushions. This repetition ties the open space together without making zones feel identical.

AI Prompts for Four Common Open-Plan Scenarios

The following prompts are designed for an open concept living dining AI layout generator. Each targets a specific room shape and use case.

Small Apartment Open Plan

"Generate a layout for a 400 sq ft open-plan studio apartment with combined living and dining. The living zone needs a compact 2-seat sofa, a round coffee table, and a media unit. The dining zone needs a round 4-person table near the kitchenette. Use one large area rug to anchor the living zone and a smaller flatweave under the dining table. Keep a 36-inch circulation path from the entry to the kitchen. Add a floor lamp in the living corner and a small pendant over the dining table. Include a slim console behind the sofa for storage. Style: warm Scandinavian with light wood and soft textiles."

Family Home with Kitchen Island Hub

"Generate an open-plan layout for a family home where the kitchen island is the central hub. The living area should be positioned behind the island, with an L-shaped sectional facing away from the kitchen. Place a rectangular 6-person dining table adjacent to the island on its own rug. Add a low open bookshelf between the living and dining zones as a partial divider. Use a 9×12 rug in the living zone and a 8×10 rug under the dining set. Include three pendant lights: one large over the island, one over the dining table, and two floor lamps in the living zone. Keep a 42-inch walkway from the entry past the island to the living area. Style: modern family-friendly with durable fabrics and warm neutrals."

Rectangular Room

"Generate a layout for a rectangular open living-dining room measuring 24 ft × 14 ft with windows on one short wall. Orient the sofa perpendicular to the long wall to split the space lengthwise into two zones. Place the dining table near the window on a rectangular rug rotated 90 degrees from the living room rug. Use the back of the sofa as a divider, with a console table behind it facing the dining area. Add two distinct pendant lights — one over the dining table and one over the coffee table zone. Keep circulation along the wall opposite the windows. Include a tall storage cabinet on the wall opposite the windows for continuity. Style: transitional with neutral greys, natural wood, and black metal accents."

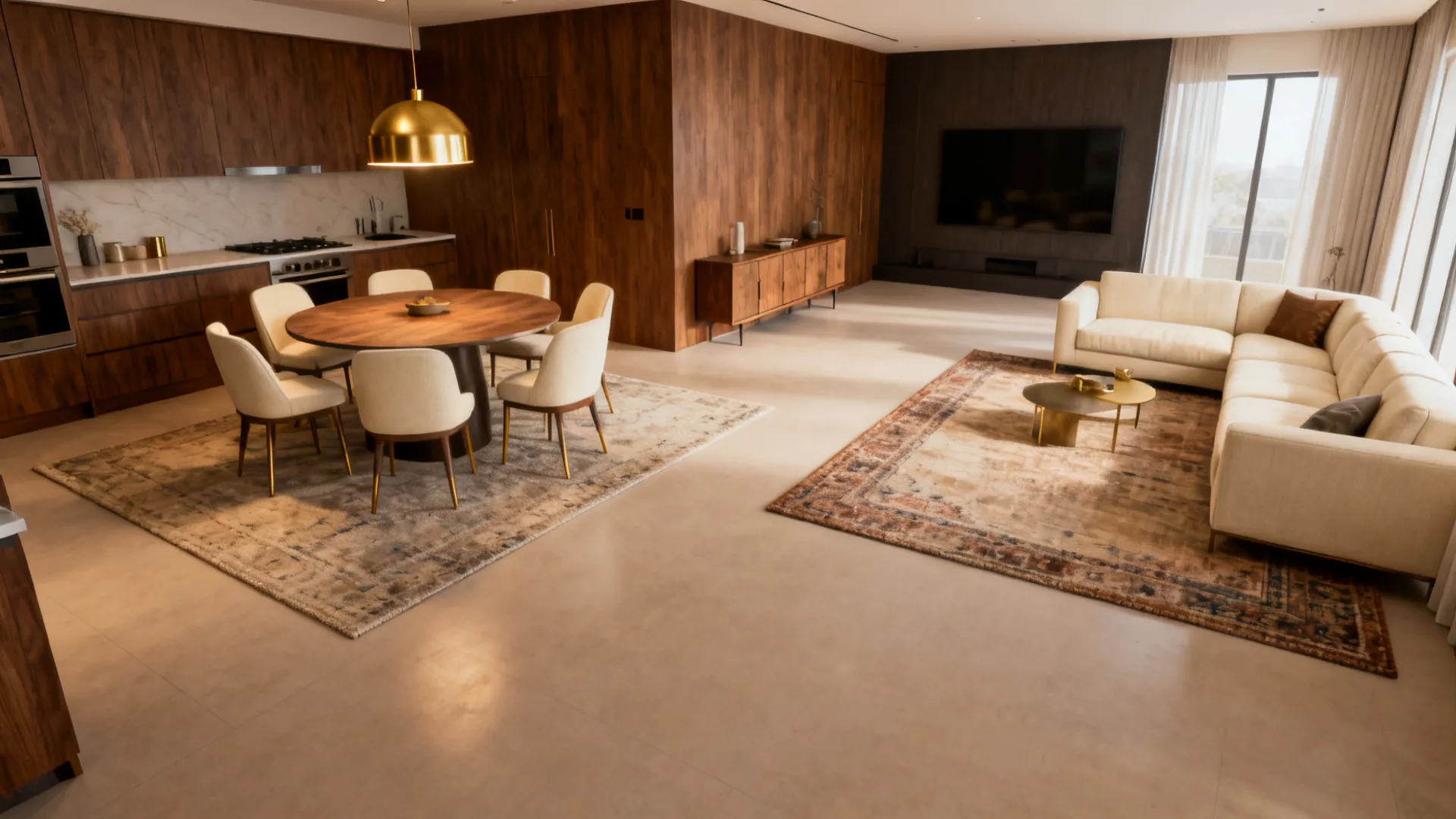

L-Shaped Open Plan

"Generate a layout for an L-shaped open living-dining plan where the kitchen occupies one wall on the short leg and the living/dining fills the long leg and junction. Place the dining table at the junction point — a round 4–6 person table bridging the two wings. Position an L-shaped sectional in the far corner of the long leg, facing a media wall. Use two large rugs — one defining the living corner, one under the dining table — with 12 inches of bare floor between them. Add a floor lamp in the living area, a pendant over the dining table, and recessed lighting in the kitchen leg. Place a sideboard along the wall between the dining table and kitchen for storage. Keep a clear 40-inch path from the kitchen through the junction into the living zone. Style: contemporary with warm walnut, cream upholstery, and brass accents."

save pin

Checklist: Evaluating Your AI-Generated Layout

Once your AI open living dining room layout is generated, run through this checklist before finalizing:

1. Zone clarity: Can you identify where the living room ends and the dining area begins in a single glance?
2. Sofa orientation: Does the sofa create a visual boundary, or does it blend into the dining zone?
3. Dining table clearance: Is there at least 36 inches around all sides of the dining table for chair pull-out and circulation?
4. Rug sizing: Are both rugs large enough to anchor their respective zones, and do they have visible separation?
5. Lighting independence: Does each zone have its own primary light source?
6. Traffic paths: Are the main walkways — especially entry-to-kitchen — unobstructed by furniture?
7. Storage visibility: Are storage pieces integrated into zone boundaries rather than pushed against far walls?
8. Visual thread: Do at least two materials or colors repeat across living and dining zones?
9. Furniture float: Is at least one major piece (sofa, bookshelf, console) floating away from walls to create structure?
10. Conversation grouping: Is seating arranged to face inward for conversation, not all facing a single TV wall?

Common Mistakes and How AI Helps Avoid Them

All furniture against walls. This is the most frequent error in open plans. Pushing the sofa, dining table, and storage against perimeter walls leaves a vast empty center and zero zone definition. AI layout tools show you how floating furniture creates rooms within rooms.

Undersized rugs. A 5×7 rug under a coffee table in a 300 sq ft open zone reads like a postage stamp. AI-generated layouts typically default to 8×10 or larger for living zones, preventing the bath-mat effect.

Single overhead light. One ceiling fixture illuminating 600+ sq ft of open space flattens everything. AI designs model layered lighting — floor lamps, pendants, and recessed lights operating independently per zone.

Matching everything across zones. When the sofa, dining chairs, and kitchen stools share the same color and material, zones visually collapse into each other. AI tools demonstrate coordinating (not matching) approaches that preserve distinct identities.

TV visible from the dining table. In many open plans, TV placement that works for the living room creates glare and distraction at the dining table. AI visualization reveals these sightline conflicts before installation.

Bringing It Together with an AI Home Design Workflow

The evolution of AI interior design makes open-plan zoning dramatically more accessible. Instead of sketching, guessing, and rearranging heavy furniture, you can generate multiple layout variations and compare them side by side.

A practical workflow using an AI home design platform:

1. Capture your space: Take 3–4 photos from opposite corners that show the full extent of your open plan, including all zones
2. Generate baseline layouts: Run 2–3 variations with different zoning strategies — rug-focused, furniture-divider approach, and lighting-heavy definition
3. Compare circulation: For each layout, trace the primary walkways and check that paths from entry to kitchen, kitchen to dining, and dining to living remain clear
4. Test sightlines: Check what's visible from each seating position — sofa, dining chair, kitchen counter — and adjust for privacy and focus
5. Refine with prompts: Add specific requirements for storage, color continuity, or traffic flow constraints based on how your household actually uses the space
6. Finalize and render: Once the layout satisfies all checklist items, generate a high-quality visualization to guide furniture purchasing and placement

This iterative approach — generate, evaluate, refine — mirrors how professional interior designers work but compresses weeks of back-and-forth into a single session.

FAQ

How does AI help with open living dining room layouts specifically?

AI layout generators analyze room dimensions and generate furniture placements that create distinct zones without walls. They model rug sizes, sofa orientation, dining table clearance, lighting placement, and circulation paths simultaneously — something that's difficult to coordinate manually. You can generate multiple configurations and compare traffic flow across them before moving furniture.

What's the best sofa orientation for separating living and dining zones?

Position the sofa so its back faces the dining area, ideally with a console table behind it. This creates a visual and functional barrier while maintaining the open feel. In rectangular rooms, placing the sofa perpendicular to the long wall splits the space lengthwise into two proportional zones.

Can I use an open concept living dining AI tool for a small apartment?

Yes. AI tools are especially valuable for small apartments where every inch matters. They can model compact furnishing options — apartment-sized sofas, round dining tables for better circulation, and multi-functional pieces like storage ottomans — while maintaining clear zone definition through rug placement and lighting.

What size rugs should I use in an open living dining layout?

For the living zone, at least 8×10 ft (ideally 9×12 ft) so all front furniture legs sit on the rug. For the dining zone, the rug should extend at least 24 inches beyond each side of the table so chairs remain on the rug when pulled out. Leave 12–18 inches between the two rugs for visual separation.

How do I maintain visual continuity across separate zones?

Repeat at least two materials, colors, or textures across living and dining zones. Examples: matching wood tones in the coffee table and dining table legs, coordinating upholstery fabric between throw pillows and dining seat cushions, or consistent metal finishes across light fixtures. The goal is harmony, not uniformity.

How many distinct lighting zones should an open living-dining plan have?

Three: living room (warm lamps, ~2700K), dining area (statement pendant, ~3000K), and adjoining kitchen (bright recessed + task, 3500–4000K). Each zone should be independently controllable — dimmers are essential for transitioning between daytime function and evening atmosphere.

What's the minimum circulation path width in an open plan?

Primary walkways between zones should be at least 36 inches (92 cm) wide. The path from the entry to the kitchen — the busiest route — should be 42–48 inches (107–122 cm) wide wherever possible. AI layout tools can visualize these paths so you can verify clearance before buying furniture.

How does AI prevent common open-plan layout mistakes?

AI tools flag undersized rugs, suggest floating furniture layouts instead of pushing everything against walls, model layered lighting per zone, and reveal sightline conflicts — like a TV reflecting glare onto the dining table. They let you catch these issues during planning rather than after furniture delivery.
