apartment building floor plans designs: Explore Innovative Designs for Apartment Building Floor Plans

Direct Answer

Effective apartment building floor plans balance livability, circulation efficiency, and rentable square footage. The best designs prioritize natural light, compact but functional layouts, and efficient vertical cores so more units receive windows and usable living space.

In practice, successful apartment building floor plans designs focus less on squeezing maximum units and more on creating layouts people actually want to live in.

Quick Takeaways

1. Efficient apartment floor plans start with a well positioned vertical core.
2. Natural light access often determines the success of a unit layout.
3. Overly long corridors reduce rentable efficiency and livability.
4. Compact units succeed when circulation space is minimized.
5. Balancing density and comfort improves long term building value.

Introduction

After working on dozens of multifamily projects over the past decade, I can say this confidently: apartment building floor plans designs fail more often because of circulation mistakes than unit size. Developers often focus on fitting more units per floor, but residents experience something very different day to day.

Poor daylight, awkward room shapes, and endless double loaded corridors quietly ruin otherwise attractive buildings.

Good floor plans solve these problems early. In this guide I will walk through the design decisions that separate efficient apartment buildings from layouts that look good on paper but perform poorly in real life.

save pin

Why Apartment Building Floor Plans Determine Long Term Property Value

Key Insight: The layout of a building determines its rental appeal far more than interior finishes.

In leasing data from many multifamily developments, units with better daylight, clearer room proportions, and logical circulation consistently outperform slightly larger but awkward layouts.

I have seen two buildings with identical square footage produce very different results simply because one prioritized window exposure and efficient living rooms.

1. Units with corner windows rent faster.
2. Open living kitchen layouts feel larger without increasing square footage.
3. Shorter corridors improve rentable efficiency.
4. Clear room geometry simplifies furniture placement.

Organizations like the Urban Land Institute regularly highlight layout efficiency as one of the main drivers of multifamily asset performance.

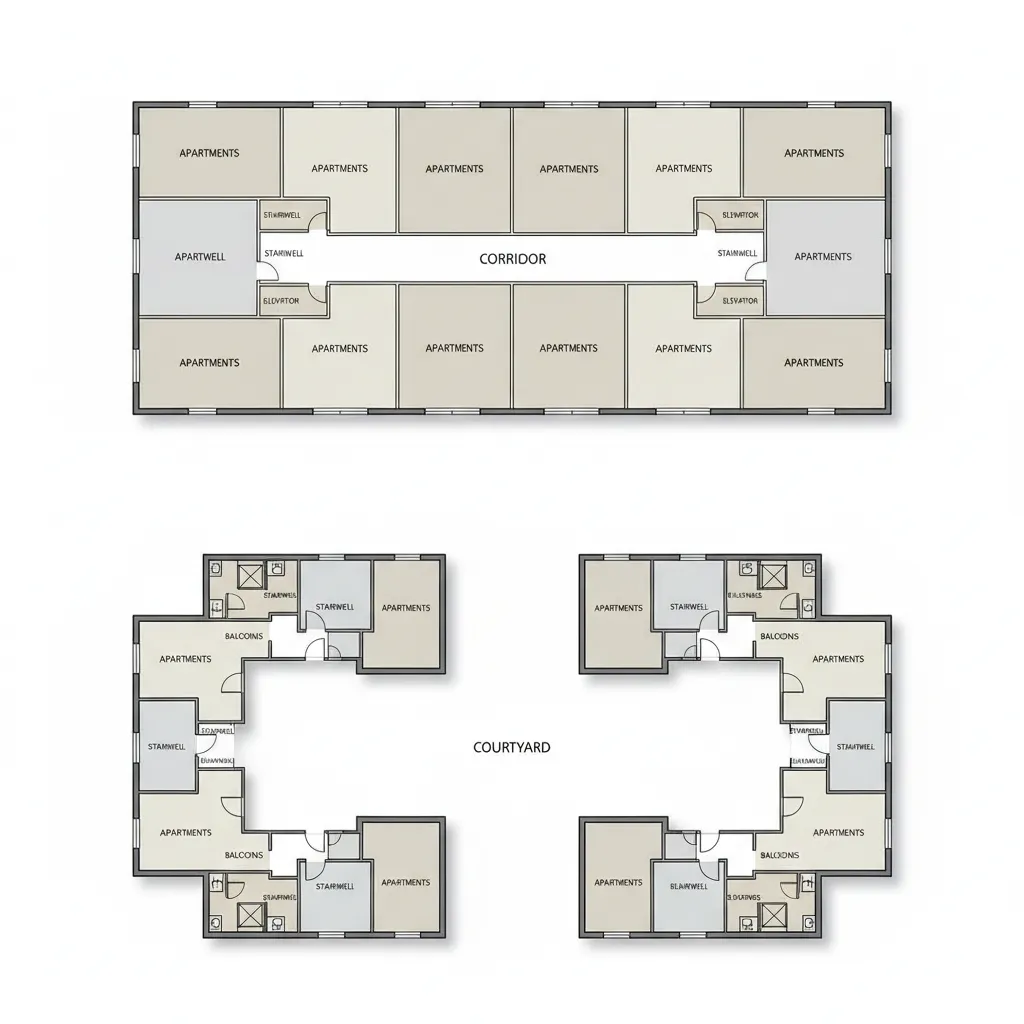

What Are the Most Efficient Apartment Building Layout Types

Key Insight: Double loaded corridor, single loaded corridor, and courtyard layouts dominate modern apartment building floor plans designs because they balance density and daylight.

Each layout type solves a different development constraint such as urban density, lot width, or zoning limits.

Common apartment building layouts include:

1. Double Loaded Corridor – Units on both sides of a central hallway. Highest density and most common in mid rise buildings.
2. Single Loaded Corridor – Units on one side only. Better light and ventilation but lower efficiency.
3. Courtyard Layout – Units arranged around an open central courtyard. Excellent daylight and community space.
4. Point Tower – Vertical tower with central core and perimeter units.

In dense urban projects, the double loaded corridor still wins because it maximizes rentable area while keeping construction costs manageable.

save pin

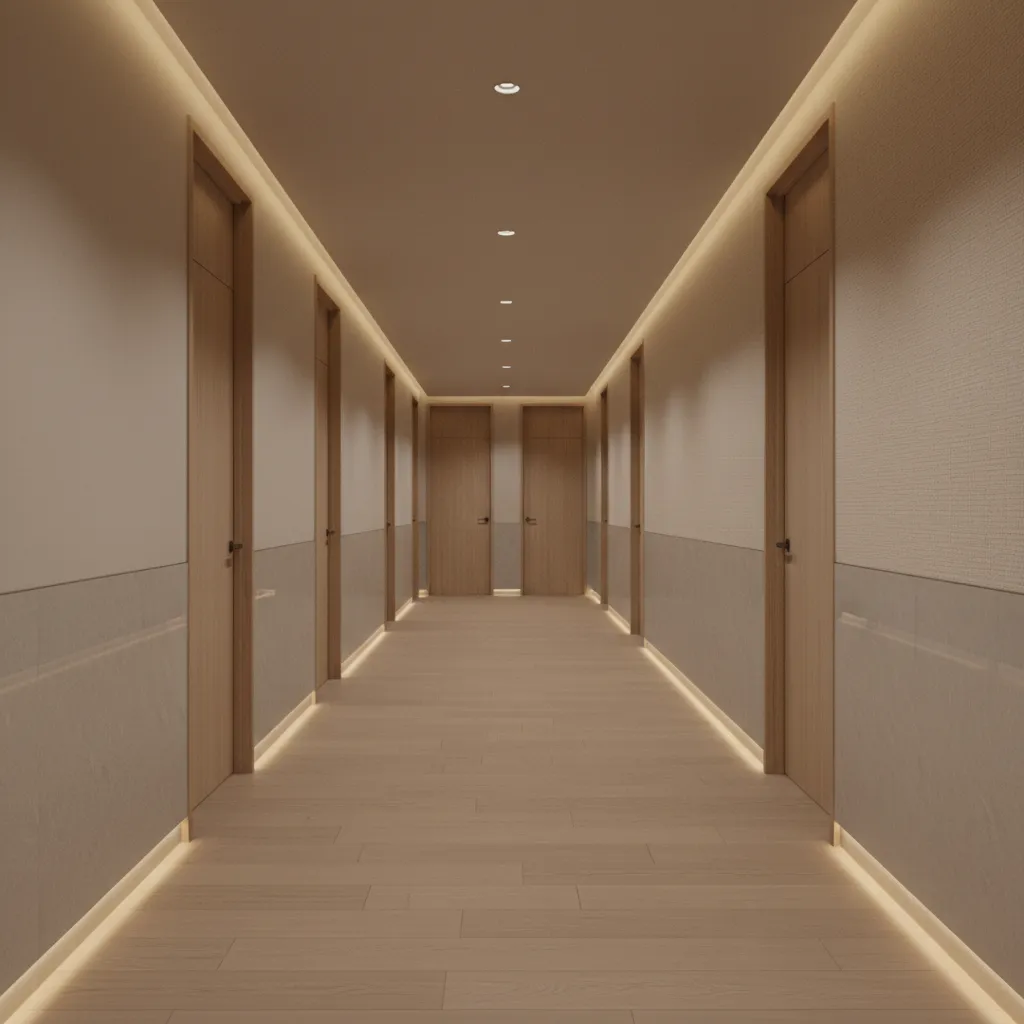

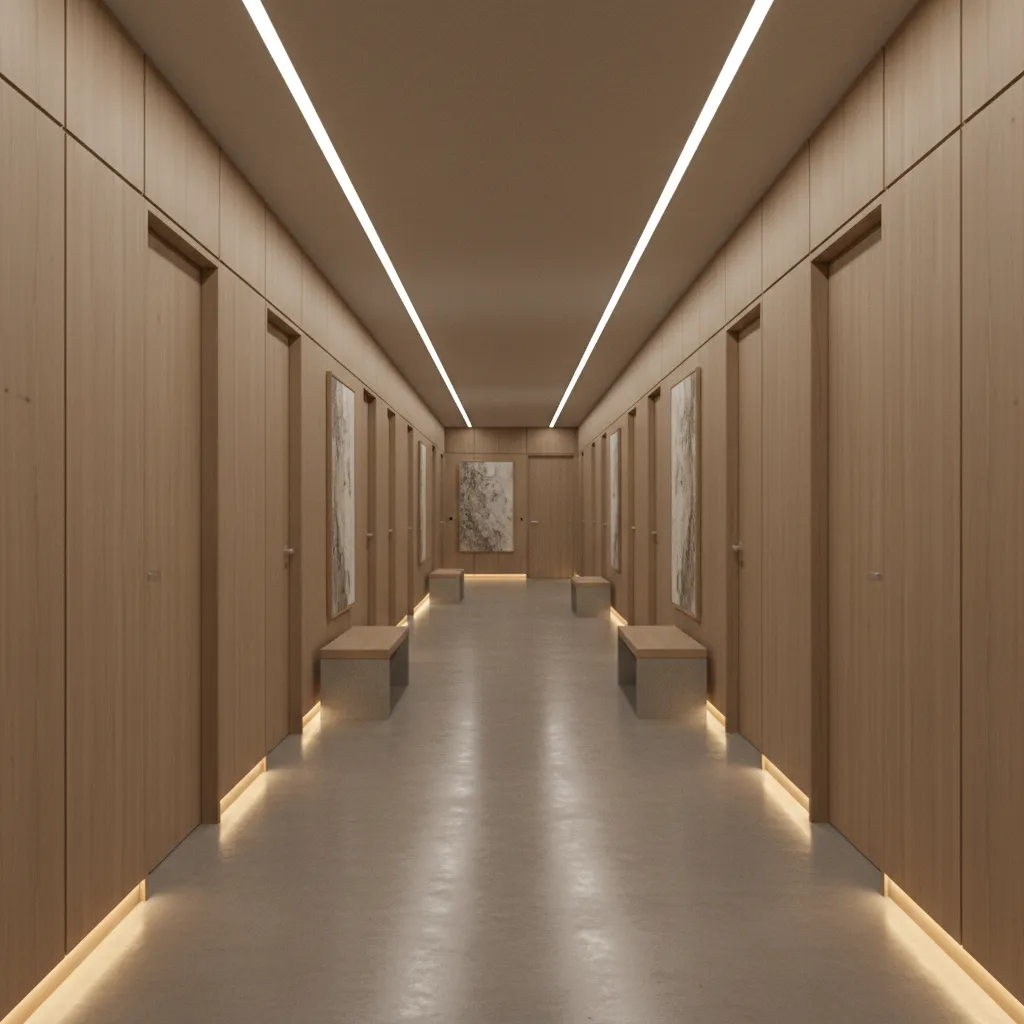

How Wide Should Apartment Corridors Be

Key Insight: Corridor width affects both code compliance and perceived building quality.

Many developers default to minimum code widths, but that decision often creates cramped circulation and a budget hotel feeling.

Typical corridor design guidelines:

1. Minimum code width often around 1.2 to 1.5 meters depending on jurisdiction
2. Comfortable residential corridors typically 1.6 to 1.8 meters
3. Luxury multifamily often exceeds 2 meters

From a design perspective, slightly wider corridors allow:

1. Better moving logistics
2. Natural light opportunities at corridor ends
3. Higher perceived building quality

save pin

Hidden Design Mistakes That Ruin Apartment Floor Plans

Key Insight: Many apartment layouts fail because of subtle geometry problems rather than obvious design errors.

These issues rarely appear in marketing drawings but become frustrating for residents after move in.

Common hidden mistakes include:

1. Long narrow living rooms that cannot fit furniture properly
2. Bedrooms with insufficient wall length for wardrobes
3. Too many structural columns inside units
4. Deep floor plates that block natural light
5. Oversized entry hallways wasting valuable square footage

I often redesign layouts by shifting bathrooms and kitchens toward the corridor wall. This frees the window side for living areas and dramatically improves daylight.

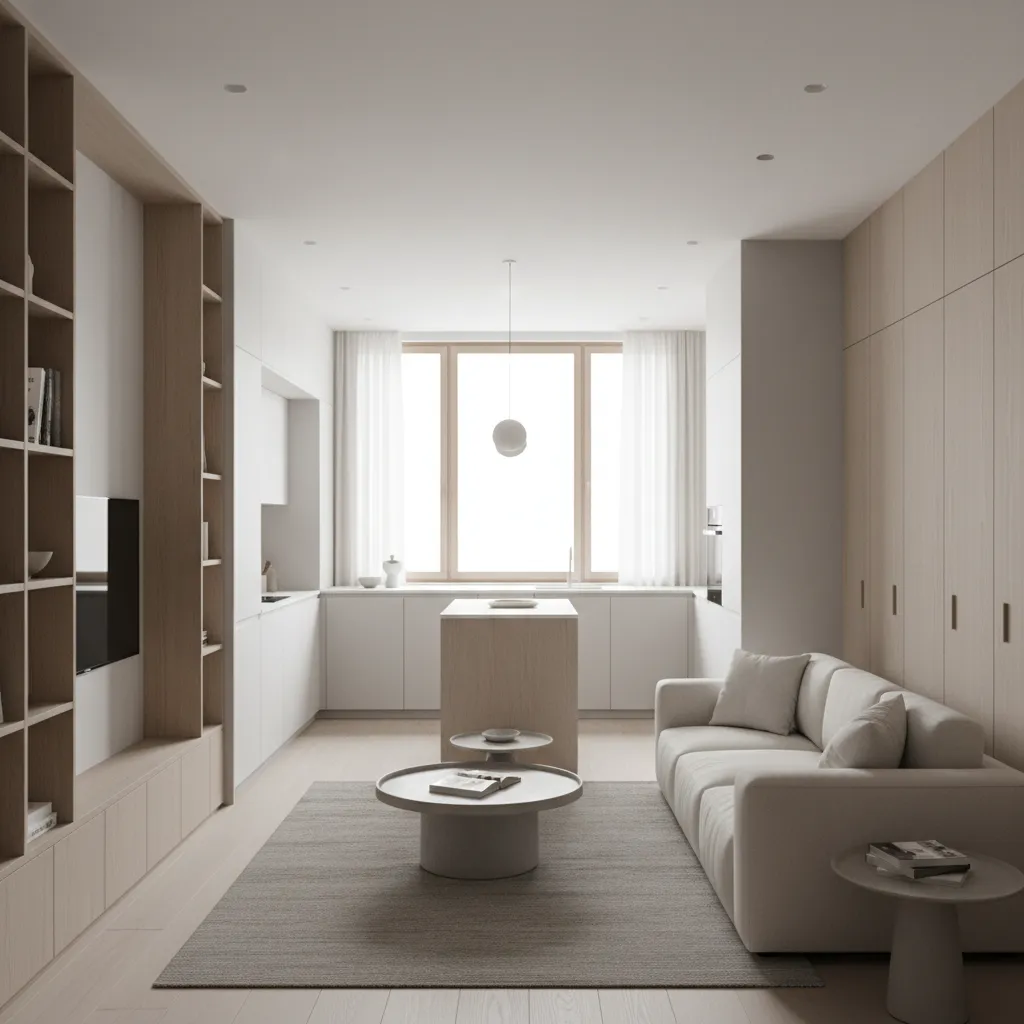

How Designers Maximize Small Apartment Units

Key Insight: Smart micro layouts depend on multi functional spaces rather than shrinking every room.

Small apartments succeed when circulation disappears into living areas.

Design strategies that work well:

1. Kitchen islands replacing dining tables
2. Sliding doors instead of swing doors
3. Built in storage walls
4. Combined living dining zones
5. Furniture aligned with window views

In several projects I worked on, reducing hallway space by just one meter allowed us to enlarge the living room enough to dramatically improve tenant satisfaction.

save pin

Answer Box

The most successful apartment building floor plans designs prioritize daylight, efficient circulation, and flexible living spaces. Buildings that balance density with livability consistently perform better in leasing and long term value.

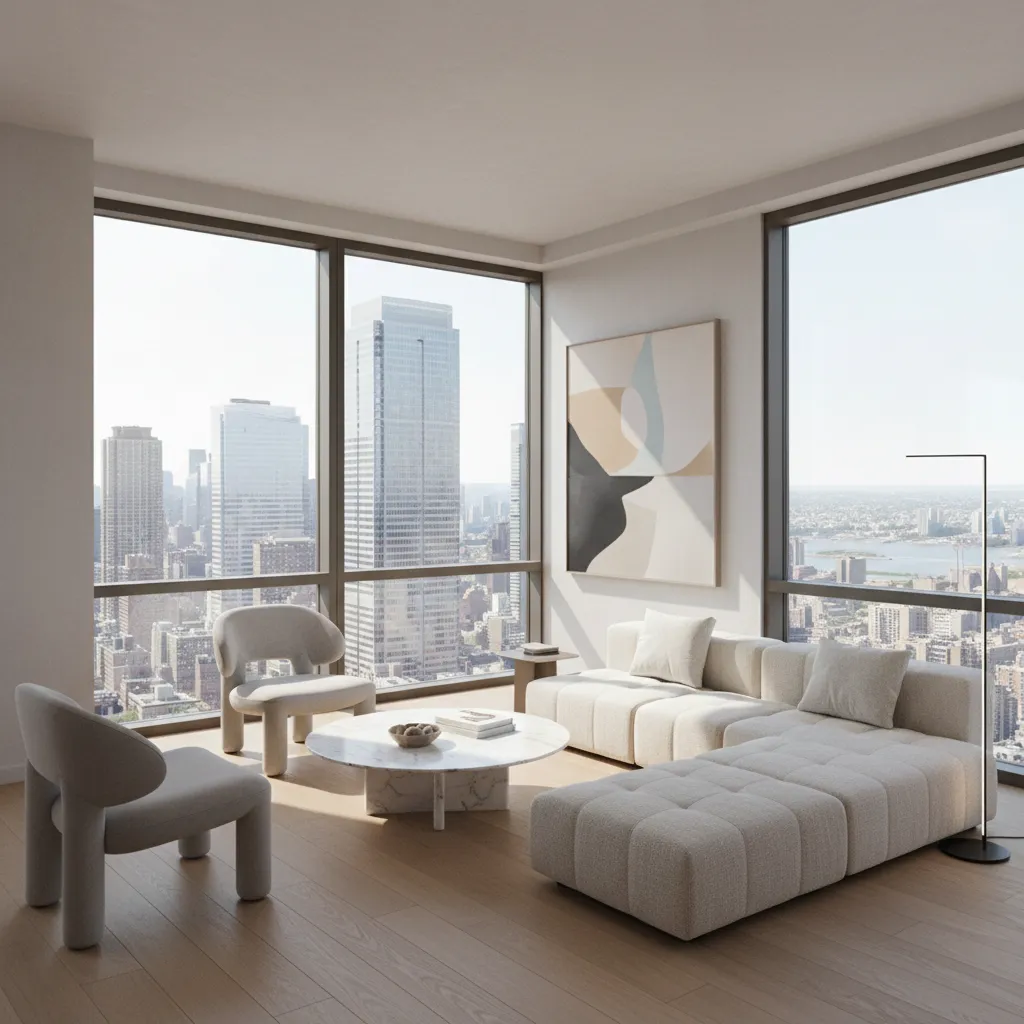

Should Every Apartment Unit Face a Window

Key Insight: Natural light access is one of the most important drivers of resident satisfaction.

While building codes already require windows in habitable rooms, the layout determines how much usable daylight actually enters the unit.

Best practices include:

1. Living rooms placed on exterior walls
2. Bedrooms positioned near windows
3. Bathrooms and kitchens near interior corridors
4. Corner units whenever possible

From a design perspective, daylight quality can increase perceived apartment size by as much as 20 percent according to several housing research studies.

save pin

Final Summary

1. Apartment building floor plans shape long term property value.
2. Efficient circulation improves both livability and rentable area.
3. Daylight access should guide unit placement decisions.
4. Hidden layout mistakes often reduce tenant satisfaction.
5. Flexible small unit design increases usability.

FAQ

What is the most common apartment building floor plan?

The double loaded corridor layout is the most common because it maximizes unit density while keeping construction costs efficient.

What makes good apartment building floor plans designs?

Good designs balance daylight access, efficient circulation, functional room proportions, and minimal wasted hallway space.

How wide should apartment hallways be?

Most codes require about 1.2 to 1.5 meters, but comfortable residential buildings typically use 1.6 to 1.8 meters.

What is the best layout for small apartments?

Open living kitchen layouts with built in storage and minimal hallways tend to perform best in compact units.

Do courtyard apartments provide better lighting?

Yes. Courtyard layouts allow more units to receive windows and natural ventilation compared with deep corridor buildings.

How do architects increase apartment density?

Density is increased through efficient cores, compact circulation, and optimized unit stacking across floors.

Are corner apartments more valuable?

Typically yes. Corner units provide more windows, better views, and improved daylight.

Why do some apartment floor plans feel cramped?

Cramped units often have long hallways, poor furniture layouts, and limited window access even if the square footage looks adequate.
