Archicad 3D View vs Floor Plan: Why Elements Appear in 2D but Not in 3D: Understand why objects visible in your Archicad floor plan disappear in the 3D window—and how to fix the visibility mismatch.

Direct Answer

In Archicad, elements may appear in the floor plan but not in the 3D window because the 2D documentation system and the 3D model visualization system use different visibility controls. Layer settings, renovation filters, partial structure display, and model view options often affect the 3D model independently from the floor plan. Adjusting these visibility filters usually restores missing elements.

Quick Takeaways

1. Floor plan visibility does not guarantee the element exists in the 3D model.
2. Layer combinations and renovation filters commonly hide elements in 3D.
3. Partial Structure Display may hide finishes or structural components.
4. The 3D window can be limited by marquee selection or element type filters.
5. Consistent model view settings keep 2D documentation aligned with 3D modeling.

Introduction

One of the most confusing situations for Archicad users is when an element appears perfectly fine in the floor plan but disappears completely in the 3D window. I’ve seen this issue dozens of times while reviewing models from architects and students. The first instinct is usually to assume the model is broken—but most of the time, the problem comes from how Archicad separates documentation views from the actual 3D model representation.

In practice, Archicad treats the floor plan as a documentation layer rather than a pure model view. That means symbols, projections, and filtered elements may still appear in 2D even when they are hidden or excluded from the 3D environment.

If you’ve ever tried switching between modeling workflows and visual planning tools, the difference becomes clearer. Many designers experiment with spatial tools like a visual floor planning workflow that generates quick layout conceptsbefore building full BIM models, which highlights how differently 2D layout systems and 3D modeling engines handle visibility.

In this guide, I’ll break down why Archicad elements show in plan but not in 3D, what settings typically cause it, and how experienced modelers quickly diagnose the problem.

save pin

How Archicad Handles 2D Documentation vs 3D Model Representation

Key Insight: Archicad floor plans are documentation views that can display symbolic representations even when the 3D model does not.

Many users assume the floor plan is simply a top-down view of the 3D model. In reality, Archicad treats it as a hybrid documentation environment.

This means elements may appear because of:

1. Symbolic 2D representations
2. Projected outlines from elements above or below
3. Filtered renovation states
4. Partial structural components

For example, a window may appear in plan even if the structural wall it belongs to is hidden in the 3D filter. The software still shows the symbol because documentation rules prioritize clarity over strict geometric accuracy.

Graphisoft’s official documentation confirms that floor plan representation depends heavily on Model View Options and display settings rather than pure model geometry.

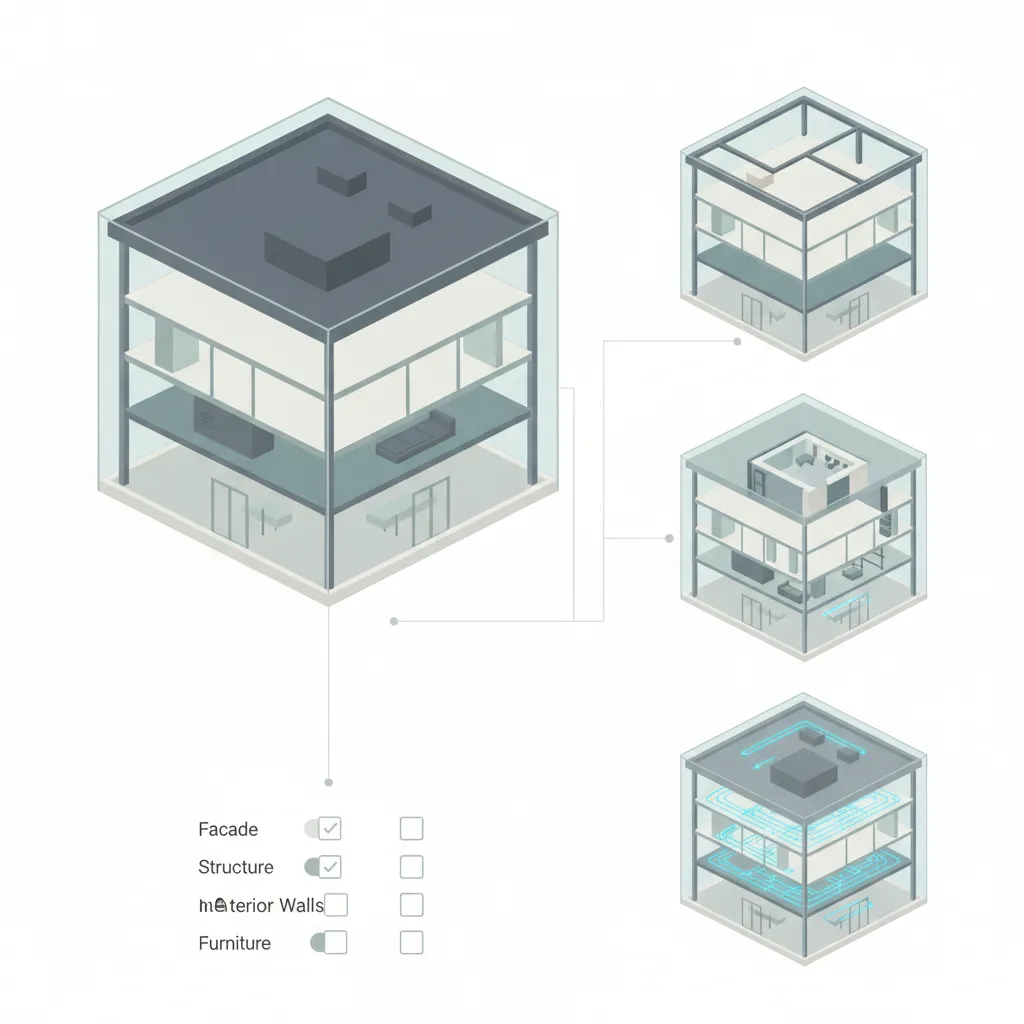

Common Cases Where Elements Show in Plan but Not in 3D

Key Insight: Most missing elements in Archicad 3D views are caused by visibility filters rather than modeling errors.

From reviewing project files across architecture studios, a few patterns appear repeatedly.

1. Walls shown as symbolic lines but hidden in 3D due to renovation filters
2. Objects placed on hidden layers in the 3D layer combination
3. Elements outside the active 3D marquee selection
4. Elements set to display only in plan representation
5. Objects above or below the active story range

A surprisingly common case occurs with imported library objects. Their 2D symbol remains visible even if the object’s 3D geometry fails to load correctly.

This mismatch becomes especially obvious when switching between modeling tools and spatial layout environments like a 3D floor planning interface used for quick architectural visualization, where every element is tied directly to visible geometry.

save pin

Why Do Layer, Filter, and Model View Options Affect the 3D Window?

Key Insight: The 3D window uses its own combination of layer settings and model view options that may differ from the floor plan.

Archicad’s visibility system is powerful but layered. Several independent settings can influence whether an element appears in 3D.

Key systems affecting visibility include:

1. Layer combinations – control which categories of elements are visible.
2. Model View Options – determine how architectural elements are displayed.
3. 3D filters and cutaways – restrict geometry based on criteria.
4. Marquee selection – limits the 3D window to a selected area.

One hidden trap I’ve seen repeatedly in professional workflows is when the 3D window uses a different layer combination than the floor plan. Everything appears correct in plan, but the 3D view hides key model layers.

This difference explains why new users often believe the software "lost" objects when the real issue is simply mismatched view settings.

How Do Renovation Filters and Partial Structure Display Change 3D Visibility?

Key Insight: Renovation filters and partial structure display frequently hide elements in 3D while leaving their plan representation visible.

These two systems are designed for construction documentation, but they often confuse new users.

Here’s how they affect visibility:

1. Renovation FiltersShow existing, new, or demolished elements
2. 3D views may hide demolished elements completely
3. Partial Structure DisplayCore Only
4. Without Finishes
5. Entire Model

If Partial Structure Display is set to Core Only, finishes such as cladding or wall surfaces may disappear from the 3D view while still appearing symbolically in plan.

save pin

Practical Steps to Sync 2D and 3D Visibility

Key Insight: A systematic visibility check usually resolves 3D missing element problems in under two minutes.

When reviewing project files from junior designers, I follow the same troubleshooting checklist every time.

1. Check if a marquee selection limits the 3D view.
2. Verify the active layer combination in 3D.
3. Confirm renovation filter settings.
4. Switch Partial Structure Display to Entire Model.
5. Reset the 3D filter and cutaway settings.
6. Check the element’s story range.

Many architects now test layout ideas first using simplified planning environments such as a digital room layout workflow for testing furniture placement and spatial flow, then rebuild the design in Archicad. This approach reduces visibility confusion because conceptual layouts focus purely on spatial geometry before documentation filters are introduced.

save pin

Answer Box

If elements appear in the Archicad floor plan but not in 3D, the issue is almost always caused by layer combinations, renovation filters, partial structure display settings, or a restricted 3D marquee. Aligning these visibility systems usually restores the missing elements instantly.

Final Summary

1. Archicad floor plans can show symbolic elements not present in the 3D model.
2. Layer combinations are the most common cause of missing 3D elements.
3. Renovation filters frequently hide elements in the 3D window.
4. Partial Structure Display may remove finishes from the model view.
5. A quick visibility checklist resolves most 3D view issues.

FAQ

Why are Archicad elements visible in plan but not in 3D?

This usually happens because layers, renovation filters, or model view options hide the elements in the 3D window while their symbolic representation remains visible in plan.

Why does an Archicad object not appear in the 3D window?

The object may be on a hidden layer, outside the 3D marquee, or filtered by renovation or structure display settings.

Does the floor plan always reflect the 3D model?

No. The floor plan is partly symbolic and can display elements differently from the actual 3D model geometry.

How do I fix Archicad elements visible in plan but not in 3D?

Check layers, reset the 3D filter, verify renovation filters, and switch Partial Structure Display to Entire Model.

Can renovation filters hide elements in 3D?

Yes. Elements marked as demolished or existing may be hidden depending on the active renovation filter.

What does Partial Structure Display do in Archicad?

It controls whether the model shows core structure only, finishes removed, or the entire construction.

Can a marquee selection hide parts of the model?

Yes. If a marquee is active, the 3D window only displays elements within that selected area.

Why does my Archicad model look different between views?

Different view settings, layers, filters, and structure display rules control what appears in each view.
