AutoCAD Drawing Standards for Architectural Floor Plans: Professional drafting rules, layer standards, and quality checks architects use to create reliable AutoCAD floor plans.

Direct Answer

AutoCAD drawing standards for architectural floor plans define how walls, dimensions, layers, symbols, and line weights must be organized to ensure drawings are readable, accurate, and consistent across teams. Most professional studios follow structured layer naming, standardized dimension styles, clear architectural symbols, and strict quality checks before issuing drawings.

Following these standards improves collaboration between architects, engineers, and contractors while preventing costly interpretation errors during construction.

Quick Takeaways

1. Professional floor plan drawings rely on consistent layers, line weights, and symbols.
2. Dimension rules prioritize clarity, hierarchy, and construction accuracy.
3. Standard architectural symbols ensure builders interpret drawings correctly.
4. Quality checks before delivery prevent expensive field mistakes.
5. Most drafting errors come from inconsistent layer and annotation standards.

Introduction

After reviewing hundreds of architectural floor plans across residential and commercial projects, one thing becomes obvious: the difference between a beginner drawing and a professional one is rarely the layout. It is the drafting standard.

AutoCAD drawing standards ensure that every architectural floor plan communicates clearly to contractors, engineers, and clients. Without them, even a beautifully designed plan can cause confusion on site. I have seen projects delayed simply because door symbols were inconsistent or dimension hierarchies were unclear.

Today many teams also combine traditional drafting workflows with visualization tools that help validate layouts earlier in the design phase. For example, architects often review spatial layouts using a professional workflow for visualizing architectural layouts in 3Dbefore finalizing their AutoCAD documentation.

In this guide, I’ll break down the drafting conventions professionals rely on when creating architectural floor plans in AutoCAD, including line weight hierarchy, layer naming standards, dimensioning rules, and the quality checks that prevent costly mistakes.

save pin

Why Drafting Standards Matter in Architectural Drawings

Key Insight: Drafting standards exist because construction drawings must communicate unambiguously across multiple disciplines.

Architectural drawings are not just illustrations. They are legal and technical documents used by contractors, engineers, and permitting authorities. Without standardized drafting methods, two people might interpret the same plan differently.

Common risks when standards are ignored include:

1. Incorrect wall thickness interpretation
2. Misread door swings or window locations
3. Conflicting dimensions
4. Layer confusion during consultant coordination

The American Institute of Architects (AIA) and National CAD Standard (NCS) both emphasize consistent drafting conventions to reduce these risks.

In my own projects, the biggest efficiency gain from strict standards is coordination. Structural and MEP engineers can import architectural drawings directly because the layers and annotation systems follow predictable rules.

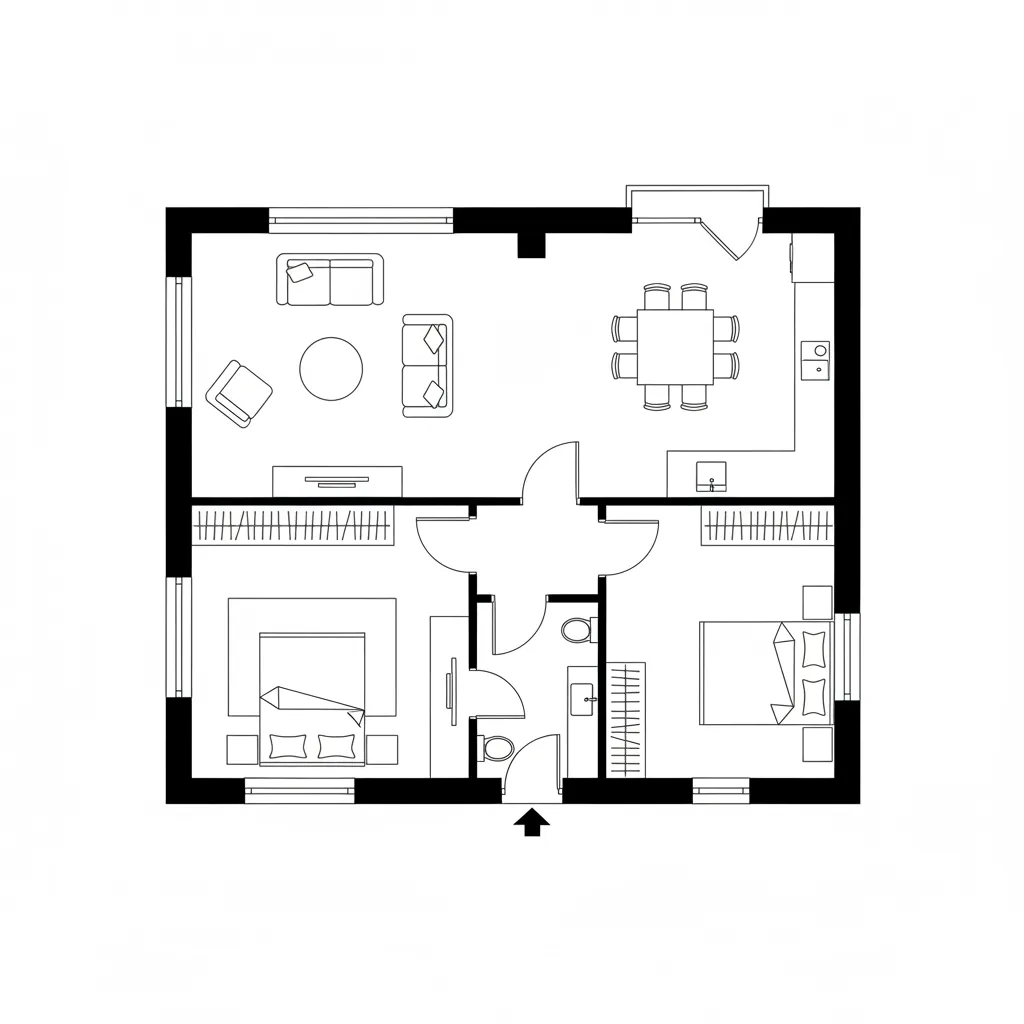

Common Architectural Floor Plan Conventions

Key Insight: Architectural floor plans follow visual hierarchy rules that help readers instantly recognize structure, openings, and circulation.

Professional plans use consistent visual conventions so builders can scan drawings quickly.

Typical architectural floor plan elements include:

1. Walls: Drawn with thick line weights
2. Doors: Swing arcs showing opening direction
3. Windows: Thin lines within wall openings
4. Fixtures: Simplified symbolic representation
5. Furniture: Light line weights for reference

One mistake beginners often make is over-detailing furniture. In professional construction drawings, furniture is usually simplified or omitted to keep focus on architectural elements.

save pin

Standard Line Weights and Layer Naming

Key Insight: Line weight hierarchy communicates spatial depth and importance in architectural drawings.

Professionals rarely draw everything with the same line thickness. Instead, they use a structured hierarchy.

Typical line weight hierarchy:

1. 0.50–0.70 mm — Cut walls and structural elements
2. 0.35 mm — Doors, windows, stairs
3. 0.25 mm — Fixtures and built‑ins
4. 0.18 mm — Furniture or secondary elements
5. 0.13 mm — dimensions and annotations

Layer naming also follows consistent conventions such as:

1. A-WALL
2. A-DOOR
3. A-WIND
4. A-FURN
5. A-DIMS

The National CAD Standard organizes layers by discipline prefix, where "A" represents architecture.

Consistent layer naming becomes critical when sharing files across large project teams.

Dimensioning Rules for Floor Plans

Key Insight: Dimensions should prioritize construction accuracy rather than visual symmetry.

Many beginners center dimensions for aesthetics. Professionals instead follow a layered dimensioning method that reflects how buildings are constructed.

Typical dimension hierarchy:

1. First line: openings (doors, windows)
2. Second line: wall segments
3. Third line: structural grid or major spacing
4. Outer line: overall building dimensions

Best practices for dimensioning include:

1. Never duplicate dimensions
2. Keep dimensions outside the floor plan whenever possible
3. Align dimension strings consistently
4. Avoid crossing dimension lines

Many teams now validate dimension accuracy by comparing drawings with layout models generated using a digital workflow that converts room layouts into structured floor plans. This helps catch spacing errors early.

save pin

Symbols Used in Professional Architectural Drawings

Key Insight: Standardized symbols allow anyone reading the drawing to understand it immediately.

Architectural symbols reduce the need for lengthy notes and improve drawing clarity.

Common architectural symbols include:

1. Door swing arcs
2. Window tags
3. Section markers
4. Elevation callouts
5. Grid bubbles
6. Stair direction arrows

These symbols follow conventions used across the architecture and construction industry. For example, section markers always point toward the viewing direction.

A common hidden mistake is inconsistent symbol scale. When blocks are inserted at incorrect scales, drawings quickly become confusing.

Answer Box

Professional AutoCAD floor plan standards rely on consistent layers, line weights, symbols, and dimension rules. These conventions ensure construction drawings remain readable, coordinated, and technically accurate across architecture and engineering teams.

Quality Checks Before Delivering Floor Plan Drawings

Key Insight: The final review process prevents the majority of real-world construction errors.

Before issuing architectural floor plans, experienced teams run a structured checklist.

Typical quality control checklist:

1. All layers follow naming standards
2. Line weights display correctly in plot preview
3. No overlapping or duplicate dimensions
4. Door swings face correct directions
5. Room sizes match program requirements
6. Text styles and annotation scales are consistent

Visualization tools can also help verify spatial relationships. Many designers review layouts using AI-assisted interior visualization workflows that simulate furniture layoutsbefore finalizing documentation.

save pin

Final Summary

1. AutoCAD floor plan standards ensure clear communication across design and construction teams.
2. Layer naming and line weight hierarchy improve drawing readability.
3. Dimension rules must reflect construction logic, not aesthetics.
4. Standard symbols allow universal interpretation of architectural drawings.
5. Quality checks before delivery prevent costly on-site errors.

FAQ

What are AutoCAD architectural drafting standards?

AutoCAD architectural drafting standards define rules for layers, line weights, dimensions, and symbols so floor plan drawings remain consistent and readable across project teams.

What is the standard layer naming system in AutoCAD architecture?

Many firms follow National CAD Standard naming such as A-WALL, A-DOOR, A-WIND, and A-DIMS, where the prefix identifies the discipline.

What line weights are used in architectural floor plans?

Cut walls usually use 0.50–0.70 mm lines, openings around 0.35 mm, fixtures about 0.25 mm, and annotations thinner than 0.18 mm.

Why are drafting standards important in AutoCAD floor plans?

They ensure construction teams interpret drawings correctly, preventing costly miscommunication during building.

What are common architectural floor plan symbols in AutoCAD?

Typical symbols include door swings, window tags, elevation markers, section indicators, grid bubbles, and stair direction arrows.

How should dimensions be organized in floor plans?

Dimensions usually follow a hierarchy: openings first, then wall segments, then structural spacing, and finally overall building dimensions.

Do beginners often break drafting standards?

Yes. Common mistakes include inconsistent layers, duplicate dimensions, and incorrect line weight hierarchy.

Can drafting errors affect construction?

Absolutely. Misinterpreted drawings can cause incorrect installations, delays, and costly rework.

References

1. National CAD Standard (NCS)
2. American Institute of Architects Documentation Guidelines
3. Architectural Graphic Standards, Ramsey & Sleeper
