AutoCAD Floor Plan Troubleshooting: Fix Common Drafting Errors: Practical fixes for scaling, snapping, wall alignment, and annotation mistakes in AutoCAD floor plan drawings.

Direct Answer

AutoCAD floor plan errors usually come from incorrect scale settings, snapping misconfiguration, inconsistent layers, or poorly managed blocks and dimensions. Fixing these issues requires checking units, verifying snap/grid settings, organizing wall layers, and standardizing annotation styles. Most drafting problems can be resolved quickly once the underlying drawing structure is corrected.

Quick Takeaways

1. Most AutoCAD floor plan mistakes come from incorrect units or scale mismatches.
2. Snapping and alignment errors often happen when OSNAP settings are misconfigured.
3. Wall thickness issues usually result from inconsistent layers or offset misuse.
4. Blocks and annotations break when inserted at the wrong scale.
5. Standardized layer and dimension styles prevent most drafting problems.

Introduction

AutoCAD floor plan troubleshooting is something every architectural drafter eventually faces. After working on residential design projects for more than a decade, I can say that the majority of drawing problems don't come from complicated geometry—they come from small setup mistakes made early in the drafting process.

I have seen perfectly good plans become unusable because walls were drawn on the wrong layer, dimensions were scaled incorrectly, or snapping settings caused elements to drift out of alignment. These errors often appear late in the workflow, when fixing them becomes time‑consuming.

Interestingly, many designers who struggle with drafting accuracy today often switch to hybrid workflows that combine CAD with visualization tools. Some teams even begin layout exploration using tools that allow them to generate quick floor plan layouts automatically before refining them in CAD, which helps reduce early structural mistakes.

In this guide, I'll walk through the most common AutoCAD floor plan problems I encounter in real projects—scaling errors, snapping issues, wall thickness mistakes, and annotation failures—and explain exactly how to fix them.

save pin

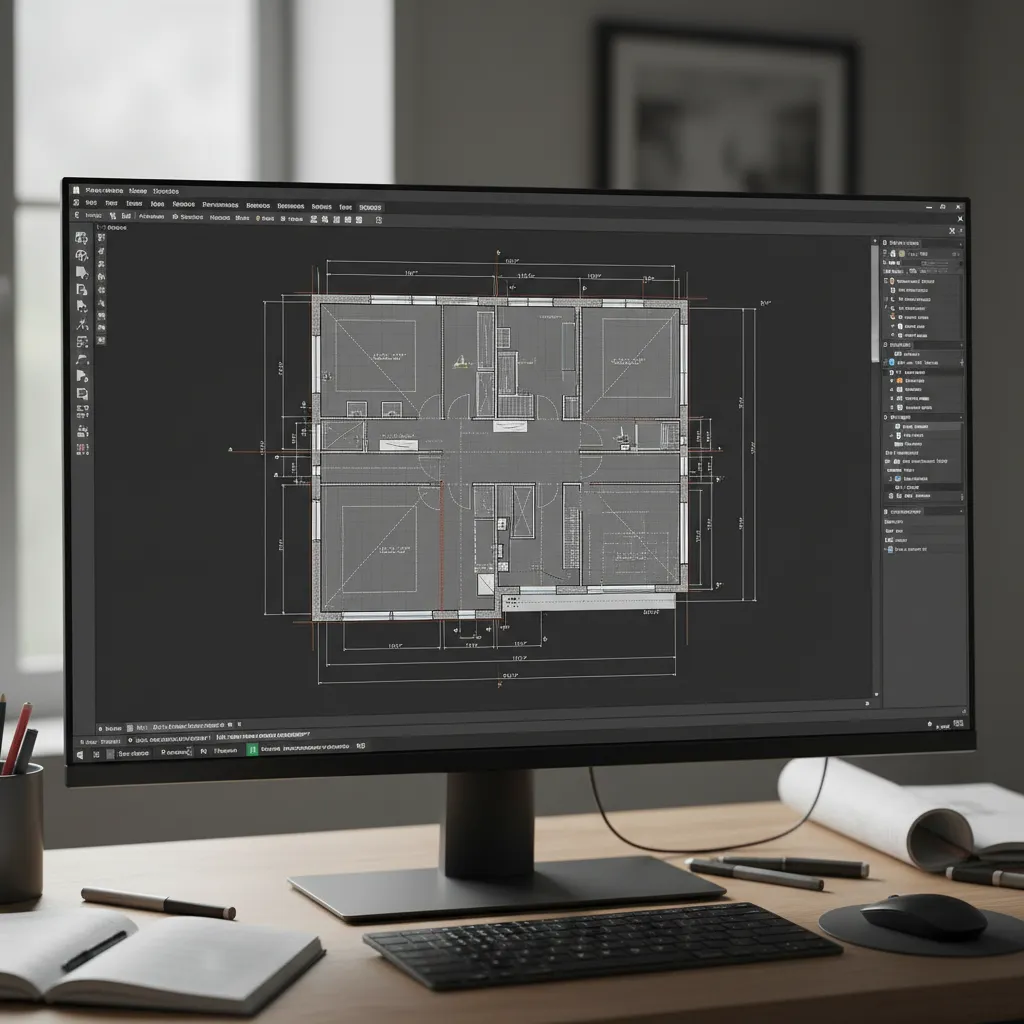

Why Floor Plan Drawings Go Wrong in AutoCAD

Key Insight: Most AutoCAD floor plan errors originate from incorrect drawing setup rather than drafting skill.

When I review broken floor plan files from junior designers, the problem is almost always the same: the drawing environment was never configured properly. Units, scale references, layers, and dimension styles must be defined before drawing begins.

Common causes of drafting failures include:

1. Incorrect unit settings (imperial vs metric)
2. Drawing at the wrong scale
3. Walls placed on inconsistent layers
4. Blocks inserted with incorrect scale factors
5. OSNAP settings partially disabled

According to Autodesk documentation, inconsistent units are one of the most frequent causes of dimension and block scaling errors in architectural drawings.

In practice, I always check three commands first when troubleshooting a file:

1. UNITS
2. DIMSTYLE
3. LAYER

If these are misconfigured, almost every other issue in the drawing will cascade from them.

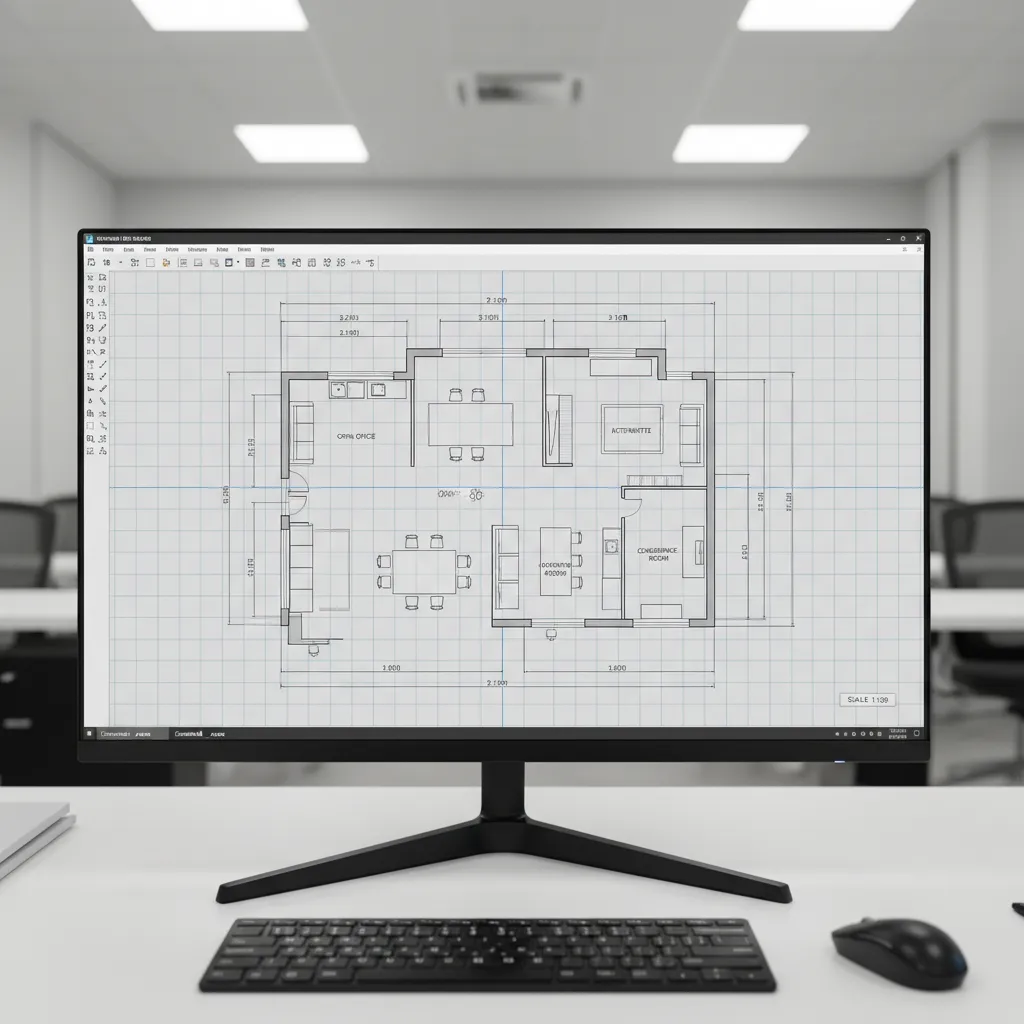

Fixing Scale and Dimension Problems

Key Insight: If dimensions look incorrect in a floor plan, the drawing units or annotation scale is almost always wrong.

One of the most common complaints I hear is: "My AutoCAD floor plan is not scaling correctly." In nearly every case, the drawing units were set incorrectly at the beginning of the project.

Steps to fix scale and dimension errors:

1. Type UNITS and confirm measurement system.
2. Verify drawing scale in layout viewport.
3. Check dimension style scale factor.
4. Confirm annotation scale matches layout scale.

A common hidden mistake is mixing architectural and decimal units. For example, walls drawn in decimal feet will display incorrect architectural dimensions later.

Professional teams usually standardize dimension styles across projects. This is why many firms maintain template files that include predefined layers, text styles, and dimension rules.

save pin

Resolving Snapping and Alignment Issues

Key Insight: Misconfigured OSNAP settings are the main cause of alignment problems in AutoCAD floor plans.

Snapping problems are frustrating because the drawing may look aligned visually but actually contains small coordinate inconsistencies. These become serious issues when measuring or exporting drawings.

Common snapping problems in floor plans:

1. Endpoints not connecting perfectly
2. Walls slightly offset from intersections
3. Doors floating away from wall lines
4. Rooms failing to close into polylines

Fix these settings first:

1. Enable Endpoint OSNAP
2. Enable Midpoint OSNAP
3. Enable Intersection OSNAP
4. Turn on Object Snap Tracking

Another tip from experience: avoid drawing walls as individual lines. Instead, convert them into polylines early. Polylines maintain cleaner geometry and reduce snapping inconsistencies.

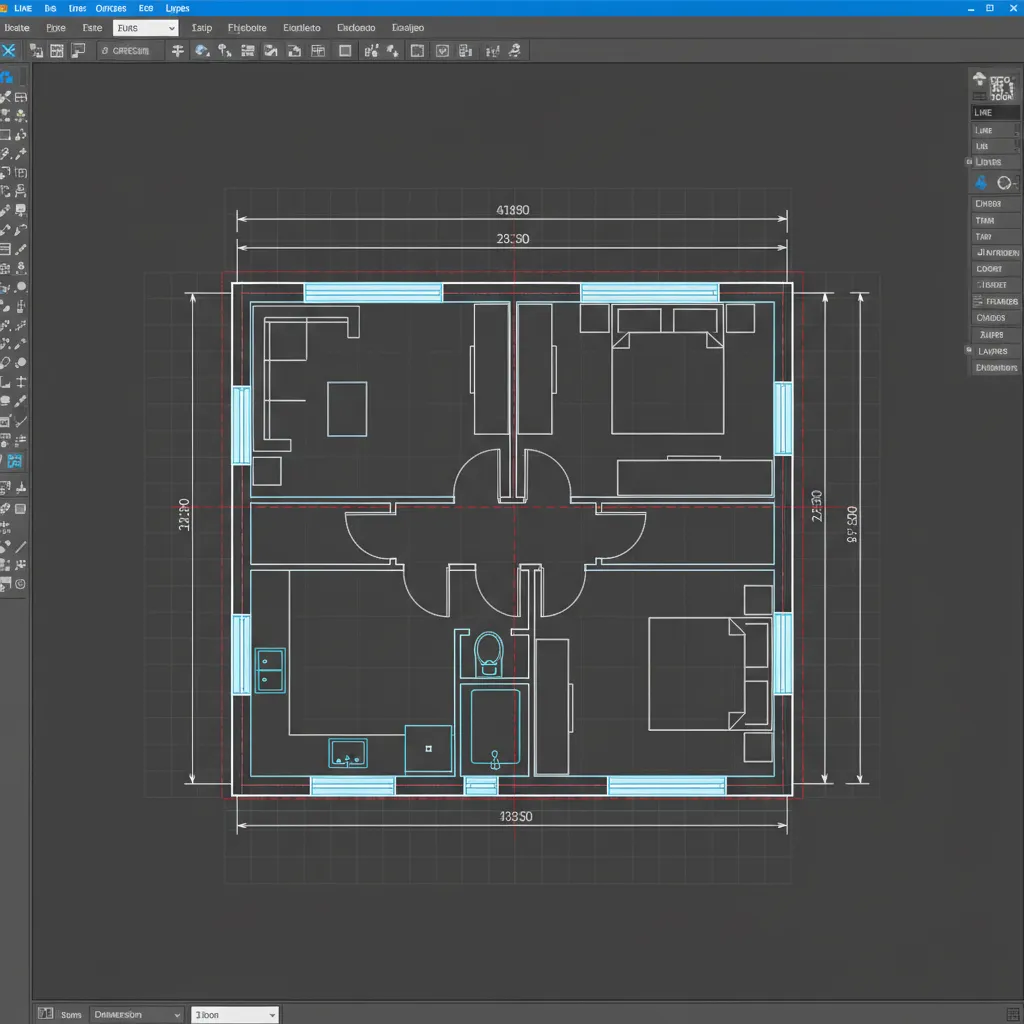

Correcting Wall Thickness and Layer Mistakes

Key Insight: Wall thickness errors typically come from improper offset use or inconsistent layer assignments.

Walls are the structural backbone of a floor plan, so when they are inconsistent, the entire drawing becomes unreliable.

I often see these mistakes:

1. Exterior walls drawn thicker than intended
2. Interior walls offset inconsistently
3. Walls placed on furniture or annotation layers

Best practice wall workflow:

1. Draw the main wall centerline.
2. Use OFFSET with a fixed thickness value.
3. Join wall segments using FILLET with radius 0.
4. Assign walls to a dedicated wall layer.

Some teams now visualize layouts using tools that let them preview floor plan structures in 3D before committing to final drafting. This helps catch proportion mistakes before construction documentation begins.

save pin

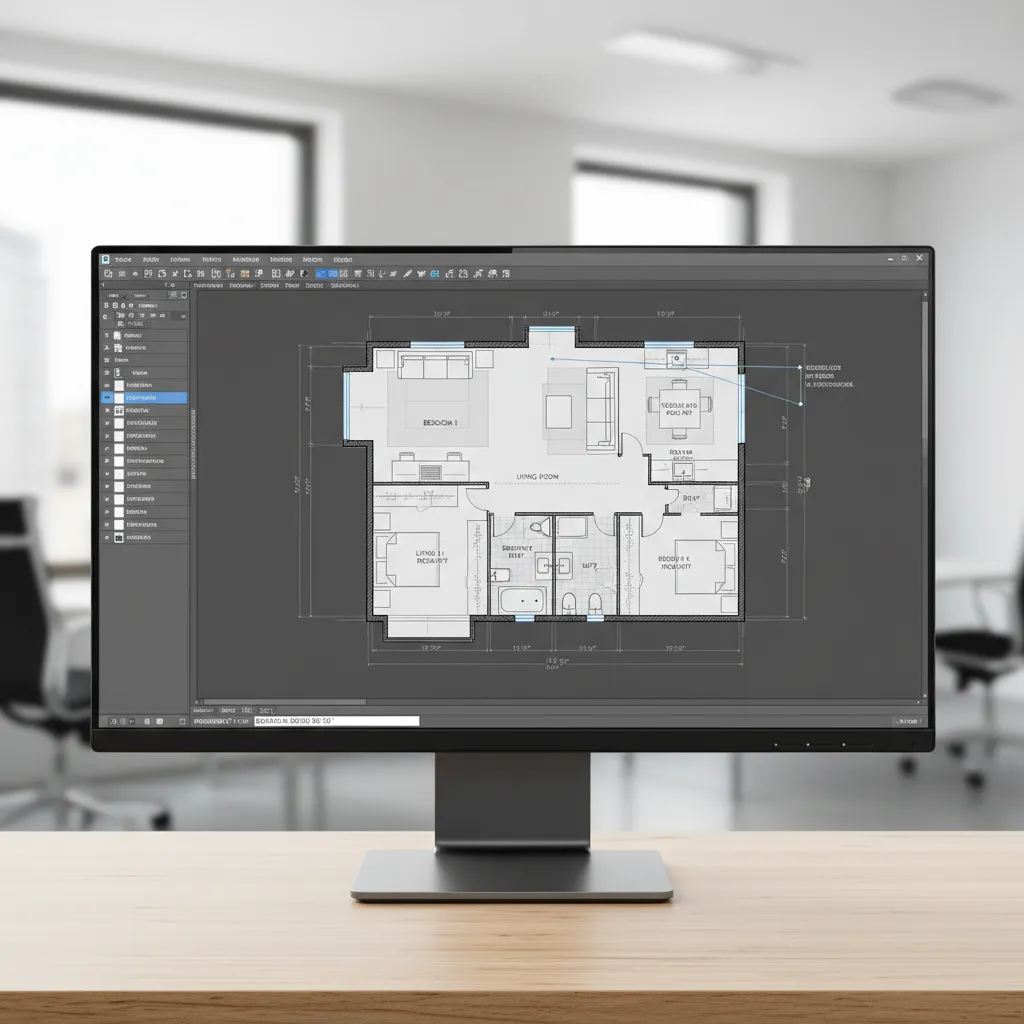

Fixing Block and Annotation Errors

Key Insight: Block scaling and annotation mismatches are usually caused by inconsistent insertion units.

Doors, windows, furniture symbols, and fixtures are typically inserted as blocks. If the insertion scale doesn't match the drawing units, everything becomes distorted.

Common block issues:

1. Doors appear extremely large or tiny
2. Furniture symbols don't align with walls
3. Annotation text appears too small in layouts

How to fix block problems:

1. Check block insertion units using the BLOCK command.
2. Verify drawing units match block units.
3. Reset annotation scale.
4. Explode and recreate corrupted blocks if needed.

Another mistake many beginners make is exploding blocks repeatedly during editing. This destroys their scalability and makes drawings harder to manage.

save pin

Best Practices to Prevent Drafting Mistakes

Key Insight: Most AutoCAD floor plan problems disappear when designers use standardized templates and disciplined drafting habits.

After managing multiple residential projects, I've found that the fastest teams are not necessarily the ones who draft faster—they are the ones who prevent errors from happening.

Professional drafting habits include:

1. Always start with a template file
2. Define layers before drawing
3. Use consistent wall offsets
4. Maintain dimension style standards
5. Check units before importing blocks

Some modern workflows even begin concept layouts with tools that allow designers to quickly create editable floor plan layouts before rebuilding them in CAD. This early-stage visualization often prevents structural drafting mistakes.

Answer Box

The fastest way to fix AutoCAD floor plan errors is to verify units, check dimension styles, confirm OSNAP settings, and organize layers properly. Most scaling, snapping, and alignment issues originate from incorrect drawing setup rather than drafting mistakes.

Final Summary

1. Incorrect units cause most AutoCAD floor plan scaling problems.
2. OSNAP configuration is essential for accurate wall alignment.
3. Walls should be created using offset workflows, not manual duplication.
4. Blocks must match drawing units to prevent scaling errors.
5. Standard templates eliminate most drafting mistakes.

FAQ

Why is my AutoCAD floor plan not scaling correctly?

The drawing units or annotation scale is likely incorrect. Use the UNITS command and verify dimension style scale factors.

How do I fix wall alignment in an AutoCAD floor plan?

Enable OSNAP settings such as endpoint and intersection. Then use FILLET with radius 0 to join wall lines precisely.

Why are my AutoCAD dimensions showing wrong values?

Dimension errors usually come from incorrect unit settings or an improperly configured dimension style.

What causes snapping problems in floor plans?

Snapping issues occur when OSNAP is partially disabled or when objects are drawn as separate lines instead of polylines.

Why do my door blocks appear huge in AutoCAD?

This happens when block insertion units don't match the drawing units.

How do professionals avoid AutoCAD drafting mistakes?

They use standardized templates with predefined layers, dimension styles, and scale settings.

Can corrupted blocks break a floor plan drawing?

Yes. Corrupted or exploded blocks can cause scaling and annotation issues across the drawing.

What is the fastest way to troubleshoot AutoCAD floor plan issues?

Check units, dimension styles, layer assignments, and OSNAP settings first.

References

1. Autodesk AutoCAD Documentation
2. American Institute of Architects (AIA) CAD Layer Guidelines
3. U.S. National CAD Standard (NCS)
