AutoCAD Hatch Patterns Comparison: Solid vs Gradient vs Pattern: Understand when to use solid, gradient, or pattern hatches in AutoCAD drawings for clarity, performance, and professional documentation.

Direct Answer

In AutoCAD, hatch types fall into three main categories: solid, gradient, and pattern. Solid hatches are best for clear filled areas, pattern hatches represent materials or textures, and gradient hatches are mainly used for visual presentation. Choosing the right type depends on drawing purpose, performance needs, and whether the drawing is technical documentation or visual presentation.

Quick Takeaways

1. Solid hatches provide the cleanest visual fill and perform well in most technical drawings.
2. Pattern hatches are essential when representing real materials like concrete, brick, or insulation.
3. Gradient hatches are primarily visual and rarely required for construction documentation.
4. Large drawings can slow down when overly complex hatch patterns are used.
5. The right hatch type improves drawing readability and plotting accuracy.

Introduction

When people search for an AutoCAD hatch patterns comparison, they usually expect a simple explanation of solid, gradient, and pattern hatches. But after working on architectural documentation sets and interior design plans for more than a decade, I can tell you the real challenge isn't understanding the definitions. It's knowing which hatch type actually works best in real-world drawings.

I’ve seen beautifully drafted plans become unreadable simply because the wrong hatch type was used. A heavy gradient fill might look great on screen but prints poorly. Meanwhile, overly dense pattern hatches can slow down large CAD files and frustrate entire project teams.

If you're still learning how hatches function inside a complete drafting workflow, it helps to first understand how layouts and spatial planning interact with drafting tools. A quick way to visualize that workflow is exploring how designers quickly generate accurate floor layouts before adding technical detailing.

In this guide, I’ll walk through the real differences between solid, gradient, and pattern hatches, where each one works best, and the hidden issues many tutorials never mention.

save pin

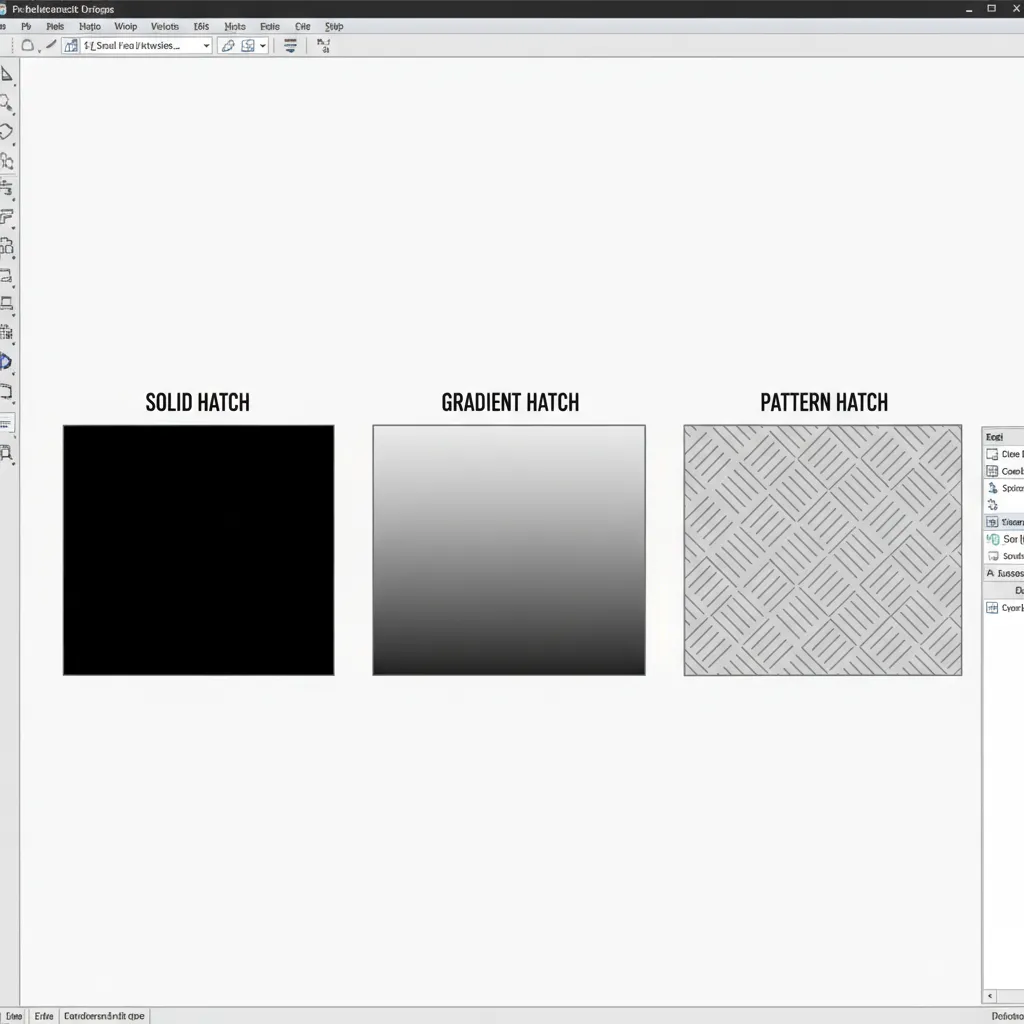

Overview of Hatch Types in AutoCAD

Key Insight: AutoCAD offers three primary hatch types—solid, gradient, and pattern—and each serves a different purpose in documentation and visualization.

Many beginners assume hatches are purely decorative. In professional drafting, however, hatches communicate meaning. They identify materials, clarify spatial boundaries, and help contractors interpret drawings quickly.

AutoCAD organizes hatches into three main categories:

1. Solid Hatch – A single uniform color fill.
2. Pattern Hatch – Repeating line or shape patterns representing materials.
3. Gradient Hatch – Color transitions used mainly for presentation graphics.

In architecture and interior design documentation, pattern hatches dominate because they convey material information. For example:

1. Concrete
2. Brick
3. Wood grain
4. Insulation
5. Tile layouts

The American Institute of Architects (AIA) drafting standards emphasize consistent hatch use so that construction teams can interpret materials quickly across sheets.

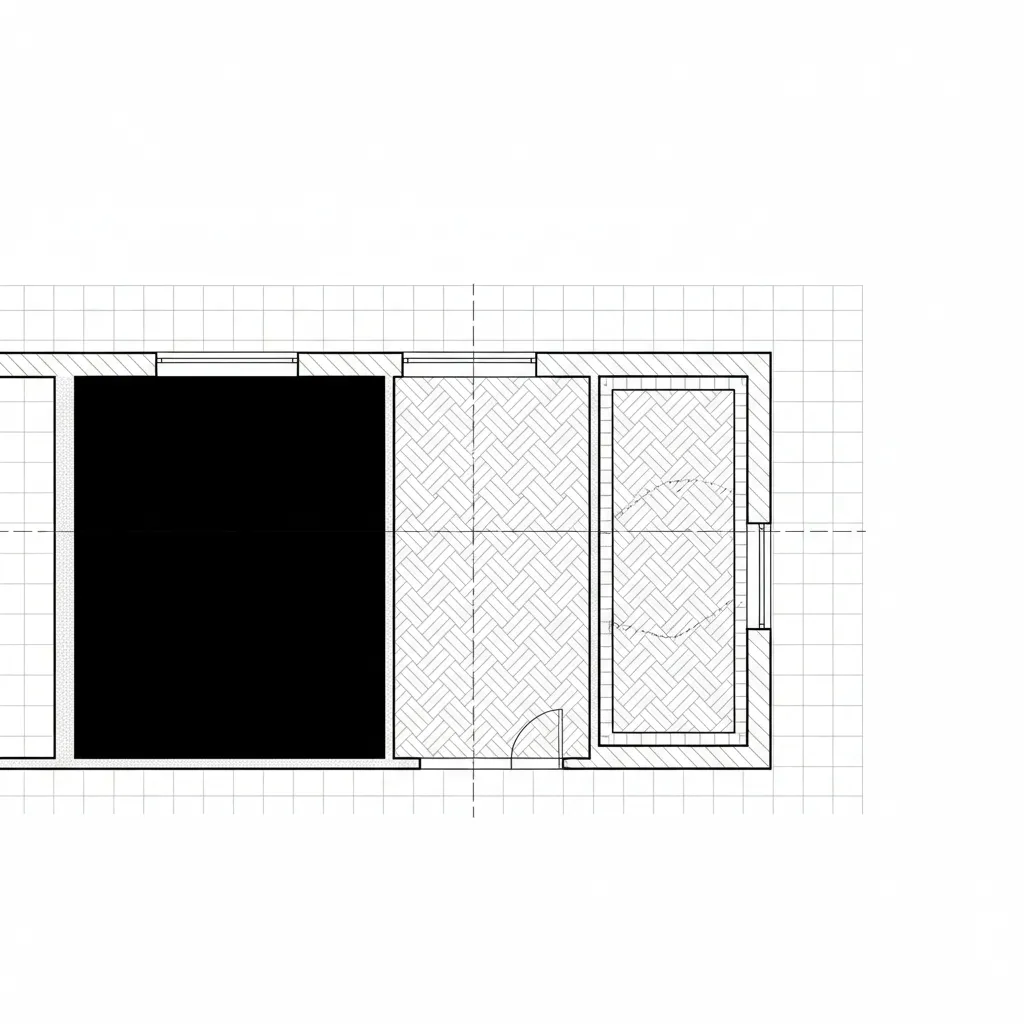

Solid Hatch vs Pattern Hatch

Key Insight: Solid hatches prioritize clarity and performance, while pattern hatches prioritize material communication.

This is the comparison that actually matters in most production drawings.

Here’s how they typically differ in practice:

1. Solid HatchFast to render
2. Minimal visual noise
3. Great for diagrams or zoning
4. Pattern HatchRepresents materials
5. Essential for construction documentation
6. Requires scaling adjustments

In real projects, I often combine both. For example:

1. Solid fills for furniture blocks or highlight zones
2. Pattern hatches for walls, insulation, and finishes

A common mistake is applying overly dense pattern hatches in large plans. When a building drawing includes thousands of patterned objects, regeneration time increases significantly.

In collaborative workflows, I often recommend simplifying patterns and using lighter densities to keep files responsive.

save pin

Gradient Hatches and When to Use Them

Key Insight: Gradient hatches are best for presentation drawings, not technical documentation.

Gradients look impressive in rendered diagrams, but they're rarely used in construction sets.

Why? Because gradients introduce three common problems:

1. Inconsistent printing on monochrome plotters
2. Larger file sizes
3. Reduced clarity in technical drawings

However, gradients do have legitimate uses.

Situations where gradients work well include:

1. Concept diagrams
2. Presentation boards
3. Landscape visualizations
4. Urban planning graphics

In one hospitality project I worked on, we used gradient hatches to visualize lighting zones for a presentation deck. It communicated mood effectively to stakeholders—but those gradients never made it into the final CAD construction drawings.

If your workflow blends CAD drafting with visualization, many designers also explore

save pin

interactive 3D layout visualization used during early design stages before finalizing technical hatch patterns.

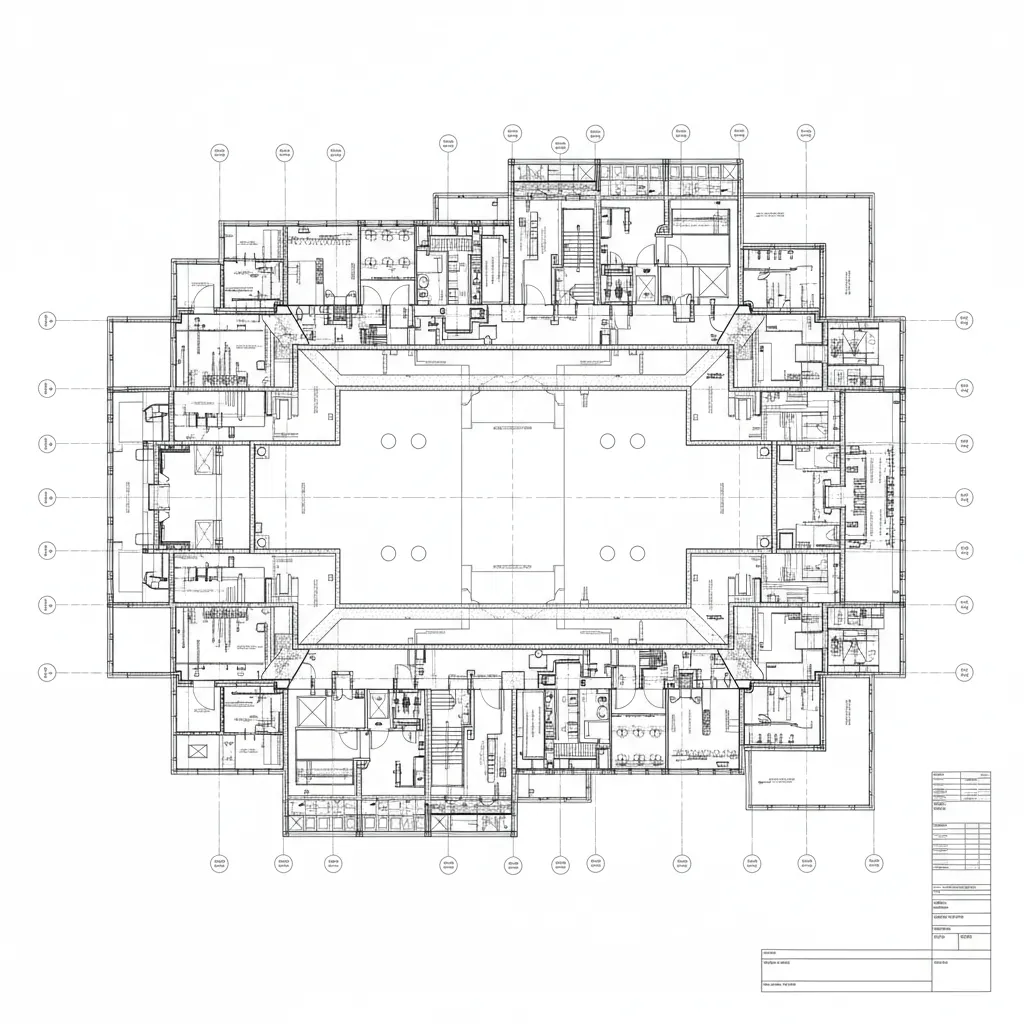

Performance Impact of Different Hatch Types

Key Insight: Hatch complexity directly affects drawing performance, especially in large architectural files.

This is the part most tutorials skip, but it becomes obvious once you work on large projects.

Heavy hatch usage can slow AutoCAD in several ways:

1. Screen regeneration time
2. Zoom and pan lag
3. Larger DWG file sizes

Pattern hatches are usually the biggest performance culprit, especially when:

1. The scale is extremely small
2. The hatch covers huge areas
3. The pattern geometry is complex

Practical performance tips many professionals follow:

save pin

1. Use solid hatches for large filled areas.
2. Adjust pattern scale to reduce density.
3. Avoid hatching extremely large regions with detailed patterns.
4. Freeze hatch-heavy layers when editing geometry.

Autodesk documentation also recommends simplifying hatch boundaries to reduce processing load.

Answer Box

For most AutoCAD drawings, solid hatches work best for clarity and performance, pattern hatches communicate materials, and gradient hatches are best reserved for presentations rather than technical documentation.

Choosing the Best Hatch Type for Your Drawing

Key Insight: The correct hatch type depends on whether the drawing's goal is communication, documentation, or visualization.

When selecting hatch types, I usually apply a simple decision framework.

Use Solid Hatches When:

1. Highlighting program zones
2. Creating diagrammatic plans
3. Filling furniture blocks

Use Pattern Hatches When:

1. Representing materials
2. Producing construction documentation
3. Creating section drawings

Use Gradient Hatches When:

1. Design presentations
2. Concept diagrams
3. Visual storytelling graphics

Many modern workflows actually move between CAD drafting and spatial planning tools. If you're experimenting with early layouts, it's useful to see how designers quickly sketch room layouts before refining technical CAD drawings.

Common Mistakes When Selecting Hatch Types

Key Insight: Most hatch problems come from overusing patterns or ignoring scale.

After reviewing hundreds of CAD drawings from junior designers, these mistakes appear repeatedly.

Common hatch mistakes include:

1. Pattern scale set too small
2. Using gradients in technical plans
3. Overlapping multiple hatch layers
4. Applying detailed patterns to massive areas

Another subtle issue is visual hierarchy. If every element in a drawing has a strong pattern hatch, nothing stands out.

Professional drafting typically uses a hierarchy:

1. Light patterns for background materials
2. Solid fills for highlights
3. Minimal gradients

That balance dramatically improves readability for contractors and consultants reviewing drawings.

Final Summary

1. Solid hatches offer the best clarity and performance for most CAD drawings.
2. Pattern hatches communicate materials in construction documentation.
3. Gradient hatches are primarily for visual presentations.
4. Dense patterns can slow large AutoCAD drawings.
5. Correct hatch scaling improves readability and plotting quality.

FAQ

What are the main types of hatches in AutoCAD?

AutoCAD includes three primary hatch types: solid, pattern, and gradient. Solid fills areas uniformly, pattern hatches represent materials, and gradient hatches create color transitions for visual presentations.

Which hatch type is best for construction drawings?

Pattern hatches are typically best for construction documentation because they communicate material types like concrete, insulation, or brick.

Is gradient hatch commonly used in AutoCAD plans?

No. Gradient hatches are rarely used in construction plans because they can print inconsistently and reduce technical clarity.

Does hatch type affect AutoCAD performance?

Yes. Dense pattern hatches can slow large drawings, especially when applied across large regions or complex boundaries.

What is the difference between solid hatch vs pattern hatch in AutoCAD?

Solid hatches create a uniform fill for clarity, while pattern hatches repeat lines or shapes to represent materials in technical drawings.

Can gradient hatches be printed correctly?

They can, but results depend on plotter settings. Many technical teams avoid gradients to ensure consistent prints.

What scale should AutoCAD hatch patterns use?

Hatch scale should match drawing scale. Patterns that are too small create visual noise and slow file performance.

Why do professionals avoid complex hatch patterns?

Complex patterns increase file size, reduce performance, and make drawings harder to read.
