Autodesk Inventor vs Revit vs AutoCAD for 3D Floor Plan Modeling: A practical comparison of Inventor, Revit, and AutoCAD to decide which tool actually works for creating accurate 3D floor plans.

Direct Answer

Autodesk Inventor can create 3D floor plans, but it is not designed specifically for architectural layouts. Revit is the most suitable option for full building modeling because it uses BIM workflows, while AutoCAD remains a strong choice for precise 2D drafting and basic 3D layouts. Inventor works best for facility layouts, industrial environments, and equipment-driven spaces rather than traditional residential architecture.

Quick Takeaways

1. Revit is purpose-built for architectural BIM and complex building systems.
2. AutoCAD excels at precise 2D floor plan drafting and simple 3D modeling.
3. Autodesk Inventor is better suited for mechanical layouts and facility planning.
4. Inventor can model building spaces but lacks native BIM workflows.
5. The best CAD software for 3D floor plans depends heavily on project type.

Introduction

Over the last decade working on residential interiors, commercial renovations, and digital layout planning, I’ve tested almost every major design platform available. One question that keeps coming up is whether Autodesk Inventor can replace tools like Revit or AutoCAD for creating 3D floor plans.

Technically, Inventor is powerful enough to model rooms, walls, and spatial layouts. But in practice, architectural workflows depend on systems Inventor wasn’t built around—things like BIM relationships, automatic documentation, and building component libraries.

This is why many designers who start experimenting with Inventor eventually move back to architecture-focused platforms or specialized planners. For example, designers exploring faster layout concepts often experiment with tools that let you generate a complete 3D floor layout from a simple planbefore committing to heavy CAD modeling.

In this guide, I’ll break down how Autodesk Inventor, Revit, and AutoCAD actually compare for floor plan modeling, where each tool excels, and when Inventor surprisingly becomes the better choice.

save pin

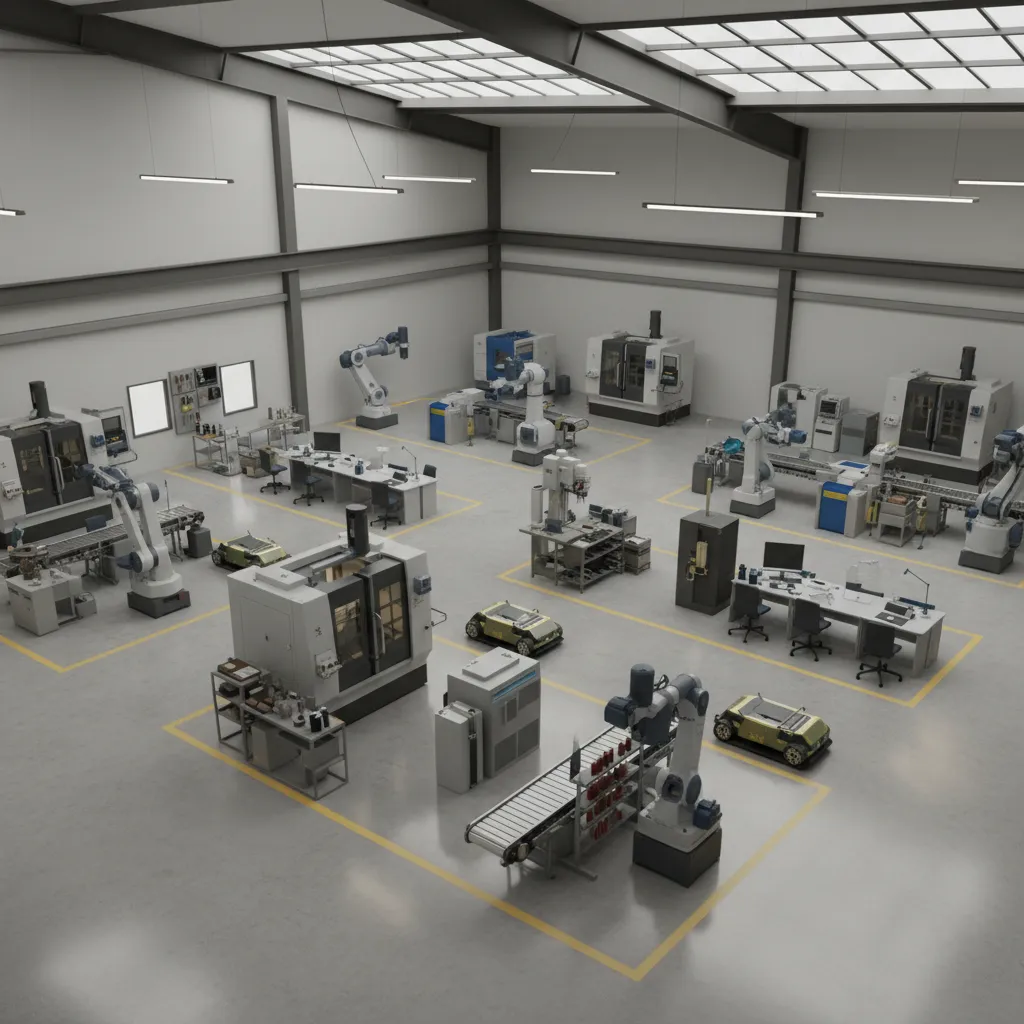

Overview of Autodesk Inventor for Spatial Modeling

Key Insight: Autodesk Inventor can build precise 3D spatial models, but it treats buildings like mechanical assemblies rather than architectural systems.

Inventor was designed primarily for mechanical engineering. That means every object is built as a parametric part or assembly. When you create walls, rooms, or building structures, Inventor interprets them as mechanical components.

This difference changes the workflow significantly.

Typical Inventor workflow for layout modeling:

1. Create base sketches representing room boundaries
2. Extrude walls as solid bodies
3. Insert doors, windows, or equipment as components
4. Manage relationships through parametric constraints

For industrial facilities, laboratories, factories, and equipment-heavy environments, this approach actually works well.

In one manufacturing project I worked on, we used Inventor to plan machine clearances and maintenance paths across a 30,000‑square‑foot facility. Revit struggled with mechanical precision, while Inventor handled assemblies perfectly.

The hidden limitation: Inventor doesn’t understand architectural elements. Walls aren’t automatically walls. Doors don’t automatically cut openings. That creates extra manual work.

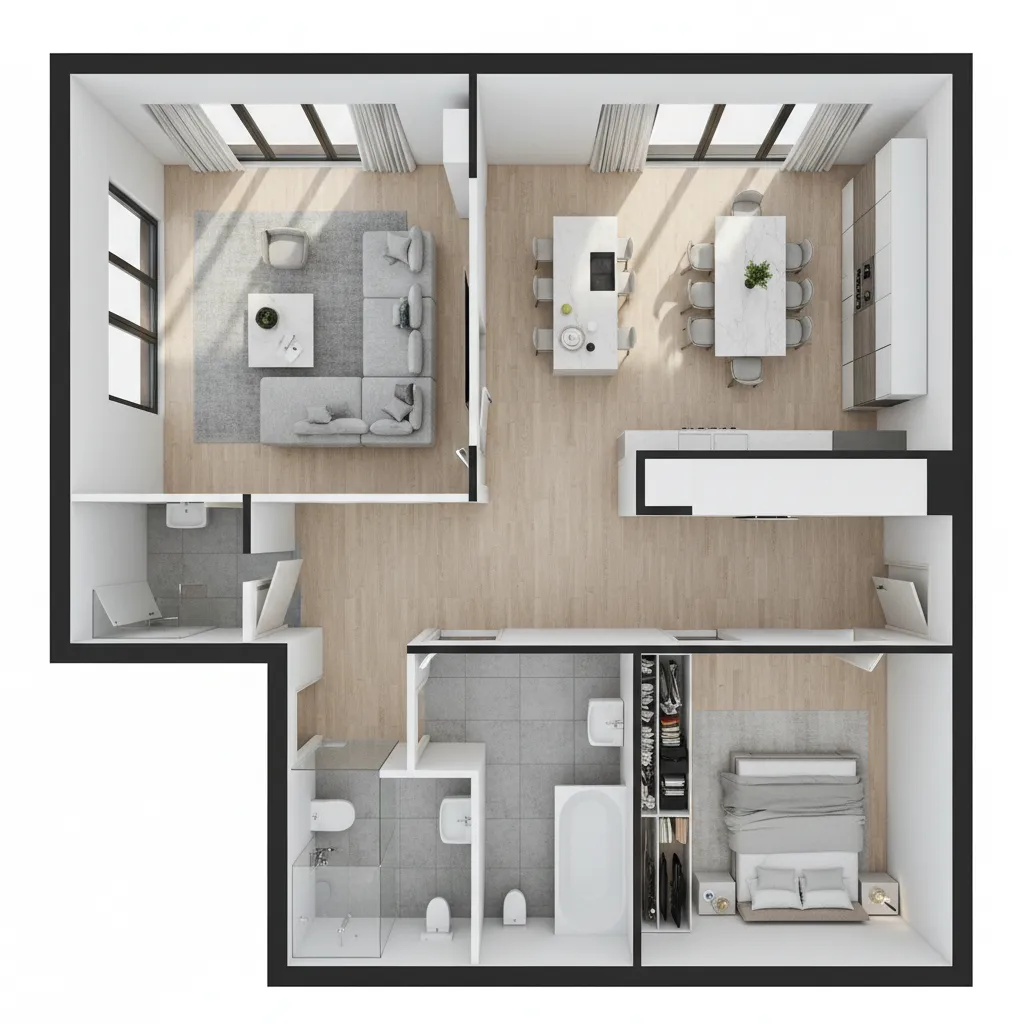

How Revit Handles Architectural Floor Plans

Key Insight: Revit is purpose-built for architecture because it uses BIM, where every element understands its role in the building.

In Revit, walls, floors, roofs, and doors are intelligent objects rather than simple geometry. That intelligence allows the entire building model to stay synchronized.

For example:

1. Changing wall thickness automatically updates sections
2. Moving a door updates schedules instantly
3. Floor plans, elevations, and 3D views remain connected

This is why most architecture firms rely on Revit.

Another major advantage is BIM data integration. Materials, thermal values, structural information, and cost estimates can all be embedded into the model.

Industry research from Autodesk shows BIM workflows reduce coordination errors by up to 40% during construction documentation phases, which is why Revit dominates large-scale projects.

But there’s a trade-off many beginners underestimate: Revit has a steep learning curve. For quick layout exploration, lighter tools or planning systems often work faster—especially when you just want to experiment with room layouts and furniture placement in 3Dbefore building a full BIM model.

save pin

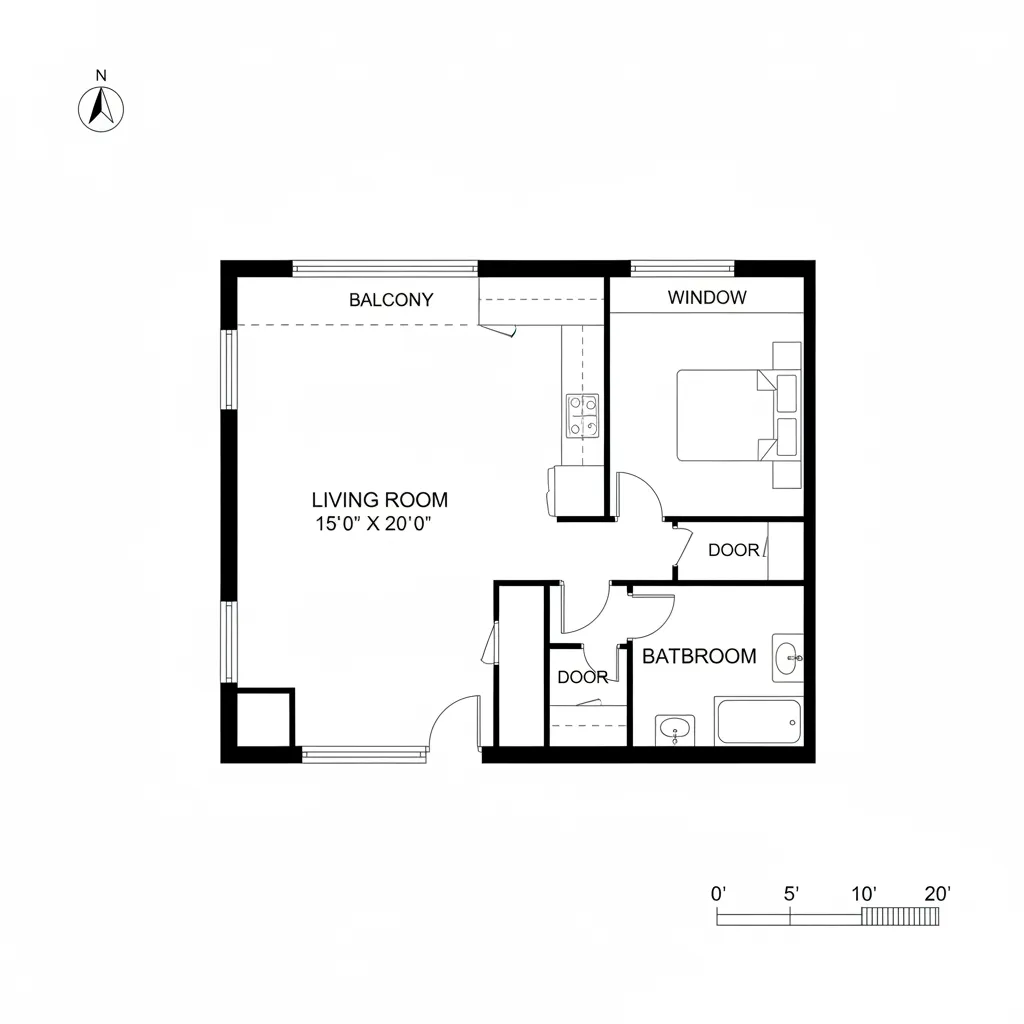

AutoCAD Workflows for 2D and 3D Floor Layouts

Key Insight: AutoCAD remains the most flexible drafting tool, but its 3D capabilities are rarely the fastest way to build architectural floor plans.

AutoCAD is still widely used for architectural drafting because it gives designers complete geometric control.

Typical AutoCAD floor plan workflow:

1. Draw walls with polylines
2. Create door and window blocks
3. Use layers to organize construction elements
4. Extrude or model basic 3D volumes if needed

The strength of AutoCAD is precision and compatibility. Almost every engineering, architecture, and construction workflow supports DWG files.

However, building complex 3D floor plans entirely in AutoCAD becomes time-consuming. Unlike Revit, the software doesn’t track relationships between building components.

This is why many designers draft the base plan in AutoCAD but move to other tools for visualization or layout iteration.

save pin

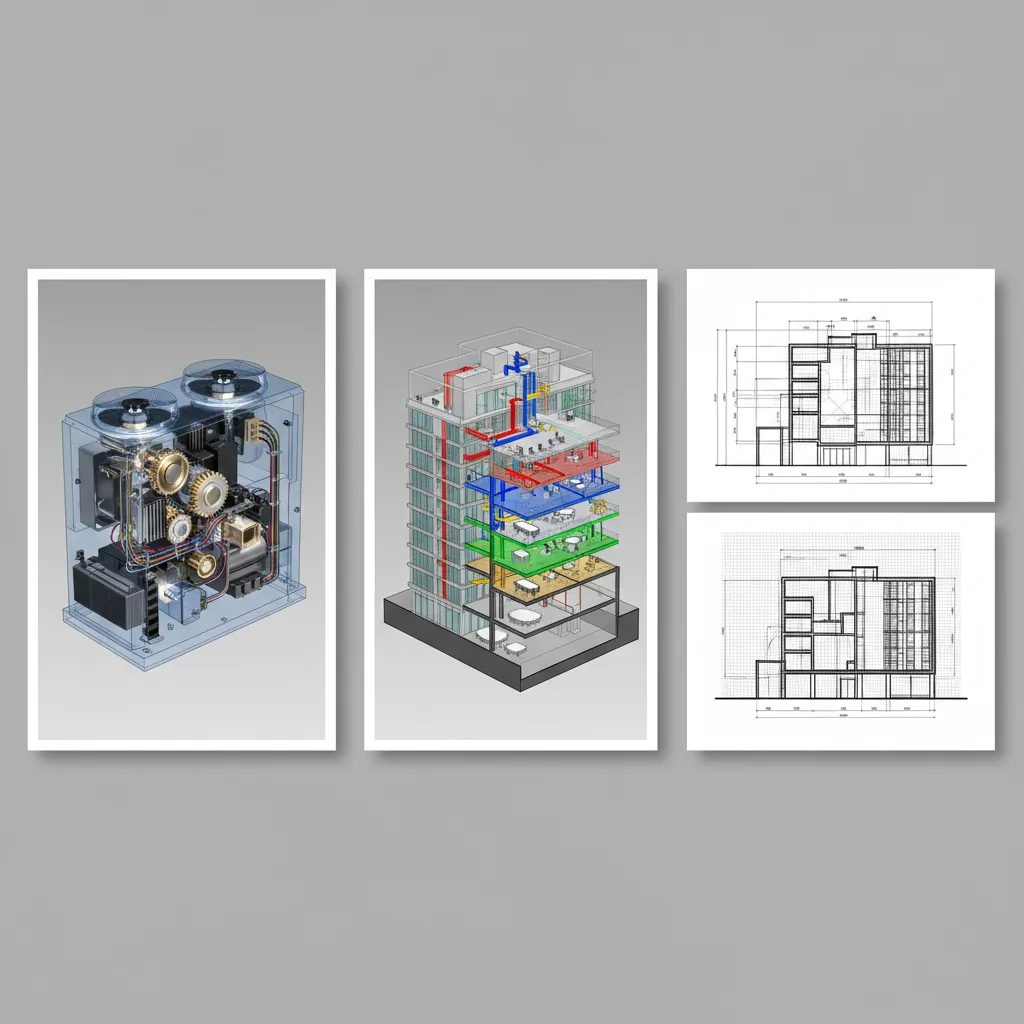

Key Differences in Modeling, Parametrics, and BIM

Key Insight: The real difference between Inventor, Revit, and AutoCAD lies in how they handle relationships between objects.

Here’s the simplest way to understand it:

1. Inventor: Mechanical parametric modeling
2. Revit: Building information modeling (BIM)
3. AutoCAD: Geometry-based drafting

Key workflow comparison:

1. Inventor controls geometry through engineering constraints.
2. Revit controls elements through building relationships.
3. AutoCAD gives manual control with minimal automation.

One overlooked issue I often see in early design workflows is overbuilding the model too soon. Designers jump straight into complex BIM modeling when they only need a spatial layout.

In those early concept phases, it’s often faster to sketch a quick editable floor plan layoutand then move into heavier CAD tools once the structure is finalized.

save pin

When Inventor Is the Right Choice for 3D Floor Plans

Key Insight: Inventor becomes the right tool when the space is driven by machinery, equipment, or engineering constraints.

Inventor is particularly effective in these scenarios:

1. Factory layout planning
2. Laboratory equipment placement
3. Warehouse automation systems
4. Manufacturing production lines
5. Mechanical facility layouts

In these environments, spatial planning revolves around machines, safety clearances, maintenance zones, and component assemblies rather than walls and architectural features.

That’s exactly where Inventor’s parametric modeling becomes valuable.

Pros and Limitations of Each Tool

Key Insight: Each software excels in a specific stage of the design process rather than replacing the others entirely.

Autodesk Inventor

1. Excellent mechanical precision
2. Powerful parametric assemblies
3. Weak architectural libraries
4. No BIM relationships

Revit

1. Full BIM architecture workflows
2. Automatic documentation
3. Industry standard for building design
4. Higher complexity and learning curve

AutoCAD

1. Highly flexible drafting environment
2. Industry-standard file compatibility
3. Limited automation for buildings
4. Manual coordination required

Answer Box

Revit is generally the best choice for architectural 3D floor plans because it uses BIM and intelligent building components. Autodesk Inventor can model spatial layouts but is better suited for mechanical environments like factories or equipment-heavy facilities.

Final Summary

1. Revit is the best CAD software for full architectural BIM workflows.
2. AutoCAD remains the most flexible drafting tool for floor plans.
3. Inventor works best for equipment-driven facility layouts.
4. Choosing the right tool depends on project complexity and industry.
5. Early layout exploration often benefits from faster planning tools.

FAQ

Can Autodesk Inventor be used for architectural floor plans?

Yes, but it requires manual modeling of walls and openings. Inventor lacks native architectural features found in BIM software.

Is Revit better than Inventor for floor plan modeling?

For architecture, yes. Revit uses BIM workflows that automate walls, doors, schedules, and documentation.

Is AutoCAD good for 3D floor plans?

AutoCAD can model 3D floor plans, but it’s usually used for 2D drafting because the 3D workflow is slower than BIM tools.

What is the best CAD software for 3D floor plans?

Revit is typically the best CAD software for 3D floor plans when working on architectural projects.

Inventor vs Revit for floor plan modeling — which is easier?

Revit is easier for architecture because building components are predefined and automatically interact.

Do architects use Autodesk Inventor?

Rarely. Inventor is mainly used by mechanical engineers and product designers.

Can Inventor replace AutoCAD?

Not completely. AutoCAD remains essential for drafting workflows and documentation across industries.

Is BIM necessary for small floor plan projects?

Not always. Smaller layouts often start with simple planning tools before moving into full BIM modeling.
