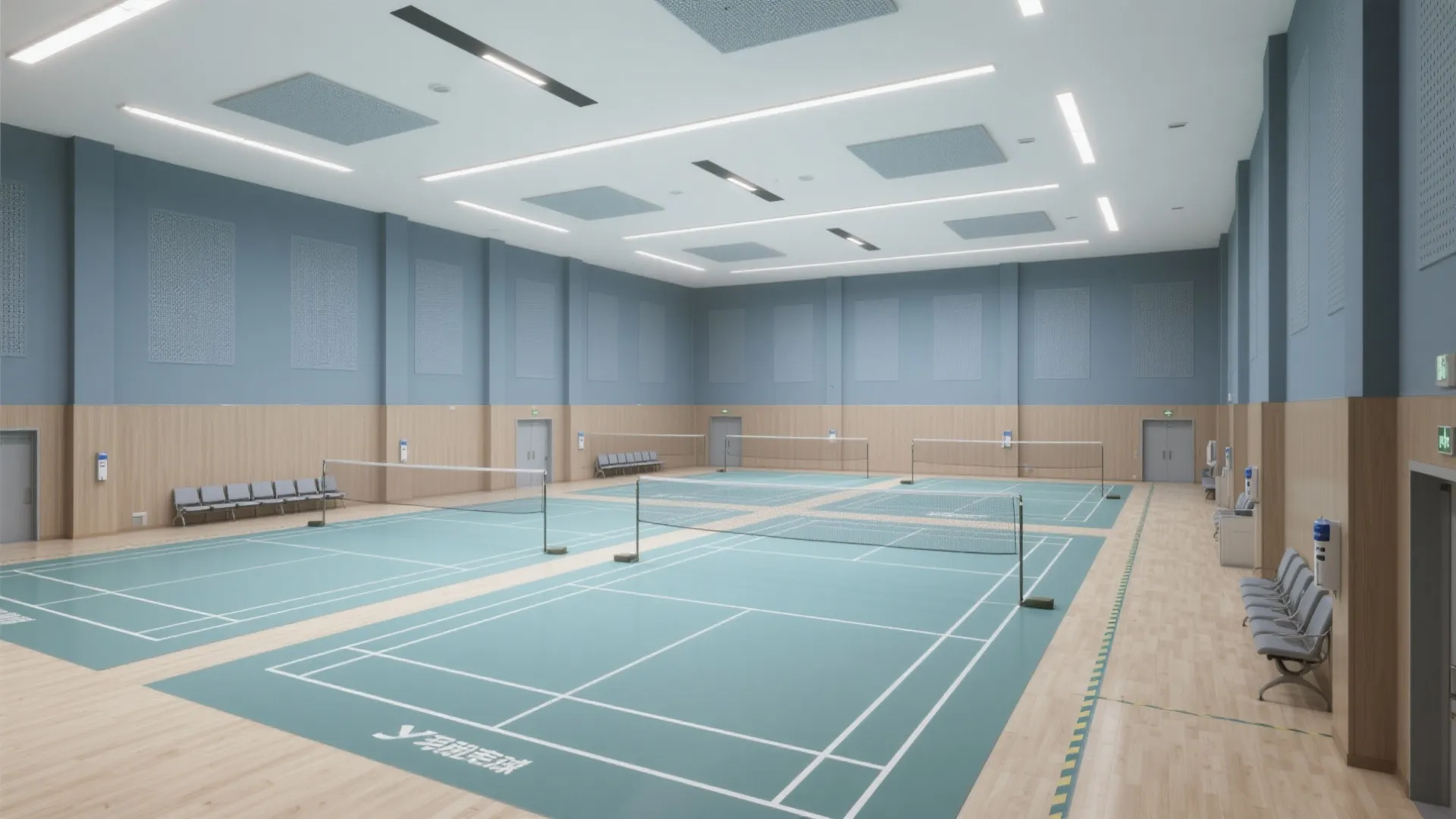

Badminton Hall Design Guide: CCI Standards & Smart Solutions: Fast-Track Guide to Badminton Hall Planning—CCI Rules Explained

Designing a badminton hall is a blend of precision and empathy. I look for exact compliance with court sizes, safety zones, and lighting criteria while shaping a space that feels intuitive, comfortable, and energizing. A single misstep—glare on the court, echoing noise, or cramped circulation—can erode play quality and safety. Steelcase reports that well-designed environments significantly influence focus and performance, with workplace research showing spatial quality directly affects human behavior and productivity. WELL v2 also emphasizes visual and acoustic comfort as determinants of user health and performance, reinforcing the need for calibrated lighting and noise control.

Lighting makes or breaks a badminton hall. The Illuminating Engineering Society recommends task illuminance in the range of 500–750 lux for fast-moving sports, paired with uniformity ratios no greater than 0.6–0.7 for consistent visibility. From my projects, anything below 500 lux starts to compromise shuttle tracking, while uncontrolled luminance contrast leads to debilitating glare. WELL v2’s Light concept underscores circadian support and glare mitigation; combining indirect luminaires, controlled beam angles, and matte finishes on ceilings has consistently improved playability and reduced visual fatigue. See the Light concept references at wellcertified.com and illuminance guidance at ies.org/standards.

Color selection should support perception and reduce visual noise. VerywellMind’s color psychology shows cool hues (greens and blues) can aid calm and focus, whereas saturated warm tones spike arousal—useful for spectator areas but distracting on playing surfaces. I prefer desaturated cool walls with a slightly darker value than the floor to avoid lost depth cues. Avoid glossy paint where light reflections can mask the shuttle’s trajectory.

Court Dimensions, Clearances, and Circulation

A regulation badminton court is 13.4 m x 6.1 m for doubles, with minimum side and back buffer zones to ensure safe play and umpire movement. For comfortable circulation, I target a minimum 1.5–2.0 m safety apron beyond boundary lines where feasible, expanding to 2.5 m behind baselines for competitive venues with judges and cameras. Vertical clearance is critical: a 9.0–12.0 m unobstructed height improves high clears and reduces visual interference. If you are testing multi-court layouts or aisle widths, a room layout tool can streamline scenario planning: room layout tool.

Lighting Strategy: Lux Levels, Glare Control, and Beam Geometry

I segment lighting into three layers—ambient, court task lighting, and accent. Ambient lighting establishes base uniformity at roughly 300–400 lux, while court task lighting raises the active zone to 500–750 lux. Indirect lighting with high reflectance ceilings (≥0.80) helps suppress glare and shadows. Avoid direct downlights centered over courts; instead, stagger luminaires laterally and aim beams to cross-light the shuttle’s flight path. Use unified glare rating (UGR) targets in the ≤19–22 range for sports tasks, coupled with shielding angles ≥30°. On refurbishments, adding linear indirect luminaires and microprismatic diffusers has reliably reduced squinting and misjudged shots.

Acoustic Comfort: Managing Reverberation and Impact Noise

Badminton halls often suffer from long reverberation times due to large volumes and hard finishes. Steelcase’s research on cognitive load points to acoustic comfort as a driver of performance; I aim for RT60 in the 1.2–1.8 s range for multi-court halls, balancing intelligibility with energy. Strategies include perforated acoustic ceilings, wall baffles on upper thirds, and impact-rated resilient flooring. Keep a mix of absorption and diffusion to avoid dead rooms; distribute treatment on parallel surfaces to minimize flutter echo.

Flooring, Safety, and Human Factors

Shock absorption and traction are non-negotiable. I specify sports vinyl or wood systems with controlled friction (slip resistance around 0.5–0.7 COF, project-specific testing required) and consistent shock absorption to reduce knee and ankle strain. Line markings must be crisp, non-glare, and color-separated from adjacent courts. From an ergonomic standpoint, I design clear spectator paths away from players’ blind spots and provide rest areas with supportive seating. WELL v2 encourages thermal and postural comfort; I place hydration points and storage near entry nodes to reduce clutter and micro-stress.

Color Psychology and Visual Balance

Neutral-cool palettes (blue-grey, soft green) stabilize perception, while a slightly darker wall than the floor improves contrast with the shuttle. Reserve saturated brand colors for entry portals, signage, and seating bands. Visual rhythm matters: consistent panel joints, luminaires in clean runs, and evenly spaced acoustic baffles keep the hall coherent and reduce cognitive friction.

Planning Multi-Court Halls

When laying out 4, 6, or 8 courts, circulation lanes of 1.8–2.4 m help prevent collisions. Provide storage alcoves between court blocks for quick equipment changes. I keep service corridors continuous to allow for umpire and medical access. For complex stacking (offset or staggered courts), an interior layout planner helps simulate aisle choices and emergency egress: interior layout planner.

HVAC, Thermal Comfort, and Airflow

Drafts disrupt shuttle trajectory. I favor displacement ventilation or low-velocity supply at high level, diffused through large-format grilles. Target temperatures around 20–24°C with relative humidity 40–60%, allowing seasonal adjustment. Avoid spot coolers that blast courts. Place intakes where they won’t create directional air currents across play zones.

Lighting Controls and Energy Efficiency

Layered dimming supports training versus competition modes. Zoned controls per court bank let you isolate lighting where needed. Occupancy sensors in circulation, daylight sensors near clerestories, and maintenance-friendly access catwalks reduce lifetime costs. Use flicker-free drivers (high PWM frequency or constant current) to prevent visual artifacts on fast-moving objects.

Safety, Egress, and Wayfinding

Emergency lighting should achieve code-required minimums with photoluminescent paths where helpful. Wayfinding must be legible from multiple vantage points—overhead banners, wall graphics, and floor icons. Keep first-aid and AED stations visible but outside play zones.

Smart Venue Features

Digitized booking boards, court status LEDs, and sensor-based occupancy can streamline usage. Cameras should be positioned to avoid player glare and sightline conflicts. Provide charging points near seating, and robust Wi-Fi zones for coaching analytics.

Material Selection and Sustainability

Opt for durable, low-VOC paints, recyclable acoustic panels, and FSC-certified timber where applicable. Minimize glossy finishes near courts. Modular components simplify maintenance and upgrades. Maintenance corridors and lift points should be mapped from day one.

Commissioning Checklist

- Verify court dimensions, line widths, and buffer zones

- Measure illuminance and uniformity; validate glare indices

- Test RT60 and correct reflections

- Confirm HVAC velocities and thermal comfort setpoints

- Validate controls logic (dimming, sensors, zoning)

- Inspect safety signage and egress lighting

- Trial multi-court circulation during a live session

FAQ

Q1: What illuminance levels are best for badminton?

A: Aim for 500–750 lux on courts with uniformity ≤0.7. Use indirect or cross-lighting and keep UGR around 19–22 to limit glare, drawing on IES guidance for sports tasks.

Q2: How high should the ceiling be?

A: A clear height of 9.0–12.0 m improves lobs and reduces visual obstruction. Avoid hanging fixtures or ducts within the shuttle’s flight envelope.

Q3: What flooring works best?

A: Sports vinyl or engineered wood systems with stable traction (approximately 0.5–0.7 COF, verify locally) and shock absorption designed for court sports. Ensure matte line markings to avoid glare.

Q4: How do I reduce echo in a large hall?

A: Add acoustic ceilings with perforations, wall baffles, and strategic diffusion. Target RT60 of roughly 1.2–1.8 s for multi-court halls; distribute treatment to prevent flutter echo.

Q5: What colors help shuttle visibility?

A: Desaturated cool walls slightly darker than the floor provide contrast. Avoid high-gloss paints and heavy warm saturations near courts.

Q6: How should multiple courts be arranged?

A: Keep 1.8–2.4 m circulation lanes, generous baseline buffers, and clear storage pockets. Use a layout simulation tool to test aisle widths and emergency egress before build-out.

Q7: What HVAC strategy avoids shuttle drift?

A: Use low-velocity, evenly distributed supply with displacement or high-level diffusers. Maintain 20–24°C and 40–60% RH; avoid localized jets across courts.

Q8: Are smart controls worth it?

A: Yes—zoned dimming, occupancy sensors, and daylight harvesting reduce energy and adapt to training vs. competition. Ensure flicker-free drivers to maintain visual comfort.

Q9: How do I plan safe egress?

A: Provide clear, non-overlapping exit routes, emergency lighting to code, and photoluminescent guidance. Keep first-aid stations visible but outside play paths.

Q10: What’s the role of WELL or IES references?

A: WELL v2 supports user health through light and acoustic comfort principles, while IES offers measurable lighting criteria. Integrating both yields safer, more comfortable play.
