Barn Door Mirror DIY: Transform Your Space with Style: 1 Minute to Your Own Barn Door Mirror—No Workshop Skills Needed

I’ve built and specified more sliding mirrors than I can count, from compact entryways to open-plan bedrooms. A barn door mirror is one of those upgrades that punches far above its weight: it reflects light, visually widens tight rooms, and doubles as a concealed storage or passage solution. In small homes, mirrors can make spaces feel up to one-third larger by extending sight lines; Steelcase’s workplace research also notes that brighter environments support higher perceived wellbeing and mental clarity—daylight and reflective surfaces help deliver that effect. WELL v2 further recommends lighting strategies that balance illuminance and glare to support visual comfort, which a large, properly placed mirror helps distribute across a room.

Function is as important as style. Gensler research has tied lighting quality to focus and satisfaction in both work and home settings, and the Illuminating Engineering Society (IES) recommends task illuminance in the 300–500 lux range for mirror-related grooming or dressing zones—achievable by combining a reflective surface with adjacent sconces or ceiling lighting, then verifying with a simple light meter. On the color front, neutral wall hues around the mirror (LRV 60–70) help bounce light without introducing glare.

What You’ll Build

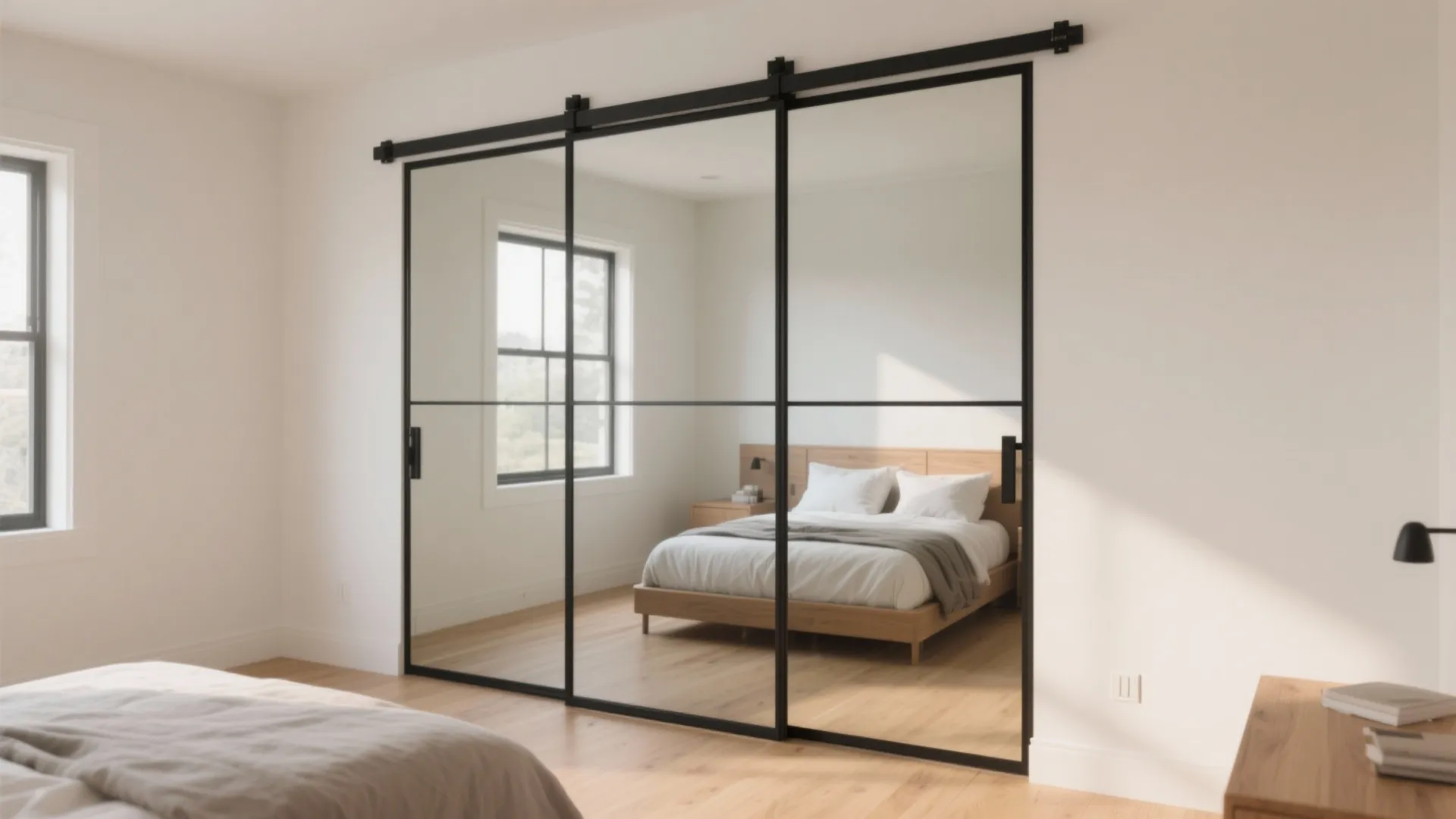

A full-height sliding mirror mounted on a barn-door track, framed in wood or metal, with soft-close hardware and concealed wall stops. You can scale this to fit closets, vanities, hallway niches, or as a statement panel over a shallow storage recess.

Materials and Tools

- Mirror: 5–6 mm tempered or laminated safety mirror, beveled optional

- Backer: 18 mm plywood or MDF panel cut to door size (moisture-resistant MDF for baths)

- Frame: 1x3 or 1x4 hardwood (oak, ash, maple) or slim steel angle for a modern look

- Track: Heavy-duty barn door hardware set with soft-close, rated 1.5× door weight

- Fasteners: Wood screws, construction adhesive, mirror mastic (non-bleeding), finish nails

- Safety: Cut-proof gloves, eye protection, suction cups for handling glass

- Finishes: Stain or paint, clear coat (waterborne poly), silicone for perimeter seal

- Optional: Felt guide, floor guide, anti-jump brackets, recessed pull

Plan the Size and Proportions

For comfortable use and visual balance, I typically size the mirror panel to 70–80% of the wall height and at least 60 cm (24 in) above floor to top of eye level for most adults; in bedrooms, 200–220 cm (79–87 in) height creates a sleek, full-length effect. Keep door width 1.1–1.25× the opening you plan to cover so sight lines are fully masked when closed. If you’re planning storage behind, allow a 20–30 mm cavity for handles and hinges to clear.

Working out clearances early prevents headaches. For tight apartments or studios, a sliding panel protects swing space and routes traffic cleanly; if you’re mapping different layout options, a quick interior layout planner can save time: room layout tool.

Step-by-Step Build

1) Frame and Backer

- Cut the backer panel to final size. Check flatness; a mirror telegraphs any warping.

- Rip and miter your frame stock. A 10–12 mm reveal around the mirror edge reads tailored and protects the glass corners.

- Dry-fit the frame to the backer. Pocket-screw or biscuit-join the frame for rigidity.

2) Mirror Mounting

- Seal the backer with primer to reduce moisture movement. Mark mirror location.

- Apply vertical beads of mirror mastic (manufacturer spacing, typically 200–250 mm). Never use standard construction adhesive directly on mirror backing—it can desilver the coating.

- Set the mirror using suction cups, resting on temporary 3–4 mm spacers at the bottom edge. Lightly press to bed the adhesive; don’t over-compress.

3) Frame Assembly and Edge Protection

- Install the frame around the mirror, using brads or screws from the backside. Add corner splines for longevity.

- Caulk the internal perimeter with a thin silicone bead to cushion the glass.

- Sand, then stain or paint. Two coats of waterborne polyurethane add abrasion resistance without yellowing.

4) Hardware and Hanging

- Choose a track rated for at least 1.5× door weight. A typical 900×2100 mm door with 18 mm backer and 6 mm glass can weigh 35–45 kg—confirm with your vendor.

- Anchor the track into studs or a ledger board. Follow the hardware’s standoff dimensions to ensure the door clears baseboards and handles.

- Add soft-close dampers to avoid shock on glass, and a floor guide to prevent sway. Felt on the back side reduces incidental impact and noise.

Lighting, Ergonomics, and Safety

- Lighting: For grooming or dressing, target 300–500 lux at face height, with 2700–3500 K color temperature to keep skin tones natural. Place sconces 150–165 cm (59–65 in) AFF or flanking the mirror to minimize shadows, aligning with IES task recommendations.

- Human factors: Keep handle or recessed pull at 90–105 cm (35–41 in) AFF for comfortable reach. Ensure at least 900 mm (36 in) of clear floor depth in front for dressing or door travel.

- Safety: Use tempered or laminated mirror in bedrooms and circulation paths. If kids are around, laminated glass with a PVB interlayer contains shards even if broken.

Style Directions

- Modern-minimal: Slim black powder-coated steel angle frame, warm white walls, and a pale oak floor. Pair with 3000 K linear LED uplight to graze the surface.

- Rustic-refined: Wire-brushed oak frame, matte black hardware, linen drapery for softness. A neutral palette keeps the mirror from feeling busy.

- Coastal light: Whitewashed ash, brushed nickel hardware, and pastel wall tones. High-LRV paints amplify daylight bounce.

Color Psychology and Visual Balance

Light neutrals and soft blues help lower arousal and reduce visual clutter—Verywell Mind’s color psychology overview notes blues are commonly associated with calm and focus. I avoid high-saturation accent walls directly opposite large mirrors; they can over-amplify color and distract. Keep a rhythm of solids and reflections: 50–60% matte surfaces, 20–30% semi-gloss, and a single reflective feature reads balanced.

Acoustics and Material Choices

A large glass plane can bounce sound. To temper echoes, add a wool rug or fabric panel opposite the mirror. For bathrooms, moisture-resistant MDF and marine-grade finish prevent swelling. Use low-VOC finishes for healthier indoor air; WELL v2 advocates for material choices that reduce VOC exposure and support occupant wellbeing.

Installation Tips from the Field

- Pre-drill metal hardware to avoid splitting frames, and verify plumb on both the door and receiving wall.

- If your wall is out of plane, shim the track ledger to keep the door from wobbling.

- Add anti-jump brackets if kids or pets may tug the panel.

- In rentals, consider a freestanding track system to avoid invasive fasteners.

Maintenance

Use ammonia-free glass cleaner and microfiber cloths. Re-wax wood frames every 6–12 months if exposed to humidity. Check hardware fasteners at seasonal changes—wood movement can loosen threads.

Where It Works Best

- Bedroom closets needing a full-length mirror without losing floor area

- Narrow hallways to stretch perceived width and bounce light

- Studio apartments to zone sleep and living areas while doubling as storage concealment

Cost and Timeline

DIY ranges widely by finish: expect $220–$600 for standard hardwood and quality hardware; custom metal fabrication will lift costs. With pre-finished frames and an off-the-shelf track, most builds complete over a weekend, allowing adhesive cure times.

FAQ

How high should I mount the track?

Mount the track so the finished door clears the floor by 10–12 mm (3/8–1/2 in). That usually places the track 40–60 mm above the door height, per hardware specs.

Can I install a barn door mirror in a bathroom?

Yes—use moisture-resistant MDF, corrosion-resistant hardware, and tempered or laminated mirror. Ventilation is key to keep humidity from swelling wood.

What’s the safest mirror type for bedrooms?

Laminated safety mirror offers the best containment; tempered is a close second. Both are suitable for sliding applications.

How do I avoid glare from lights?

Use diffused sconces at 2700–3500 K and position them slightly above eye level, angled to avoid direct reflection. Verify 300–500 lux at the task plane following IES guidance.

Will a large mirror make my room feel colder?

Visually, mirrors can feel cool if paired with stark whites. Add warm wood, textiles, and 3000 K lighting to balance the tone.

What wall colors pair best with a big mirror?

Mid-to-high LRV neutrals (60–70) like warm gray, sand, or soft taupe bounce light without creating harsh contrast. Blues for calm, per color psychology research.

Do I need soft-close hardware?

Highly recommended. It protects the glass from impact, reduces noise, and feels premium in daily use.

Can I cover an electrical panel or thermostat?

Check code. Many jurisdictions require clear access to panels. If allowed, maintain required clearances and use a lift-off or easily sliding panel.

How do I keep the door from wobbling?

Install a floor guide aligned with a groove on the door bottom and add anti-jump brackets on the hanger wheels.

What’s the ideal frame thickness?

1x3 lumber (actual ~19×64 mm) balances stiffness and weight. For a slimmer modern look, steel angle 20–25 mm works well.

Can I use adhesive only to hold the mirror?

Use mirror mastic plus perimeter framing or clips. Mastic alone can creep over time on vertical surfaces.

References and Further Reading

For lighting comfort targets and spatial wellbeing research, explore WELL v2 (v2.wellcertified.com) and Steelcase workplace findings (steelcase.com/research) for practical guidance that translates well to homes.
