Basement Parking Layout Types Grid Angled and Mixed Designs: Understand how different basement parking layouts affect capacity traffic flow and long term usability

Direct Answer

The three most common basement parking layout types are grid parking, angled parking, and mixed layouts. Grid layouts maximize structural alignment and simplicity, angled layouts improve driving convenience and circulation, while mixed designs balance efficiency and maneuverability in complex basements.

Quick Takeaways

1. Grid layouts are easiest to build because columns and parking align naturally.
2. Angled parking improves traffic flow but often reduces total parking count.
3. Mixed layouts are ideal for irregular basements or large residential developments.
4. The best basement parking layout depends on column spacing and ramp location.
5. Traffic circulation mistakes often reduce efficiency more than stall size does.

Introduction

In more than a decade of working on residential and mixed‑use developments, I have noticed one thing about basement parking layout types: the difference between a good plan and a frustrating one is rarely obvious on paper. Developers often focus on the number of stalls, but the real issue is circulation, turning radius, and how drivers actually move through the garage.

When I review early design proposals for apartment basements, I regularly see layouts that look efficient in CAD but become awkward once columns, ramps, and turning paths are considered. Choosing between grid parking, angled parking, or a mixed strategy changes how easily people park, how safely vehicles circulate, and how many usable spaces you ultimately get.

Before committing to a structural layout, I often recommend teams quickly visualize alternatives using a practical way to visualize underground parking circulation and stall placement. Seeing the turning paths in three dimensions immediately reveals problems that flat plans hide.

This guide compares the most widely used basement parking layout strategies and explains when each one works best in real buildings.

save pin

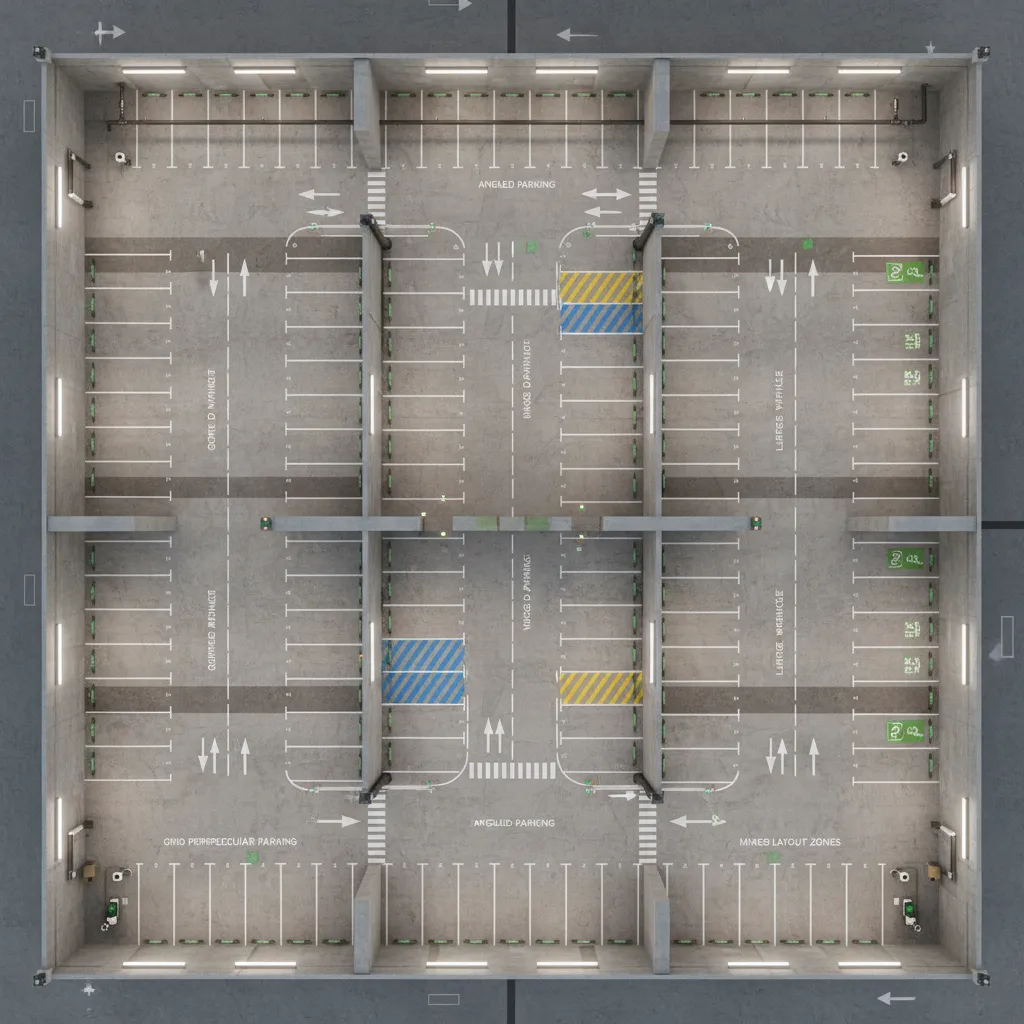

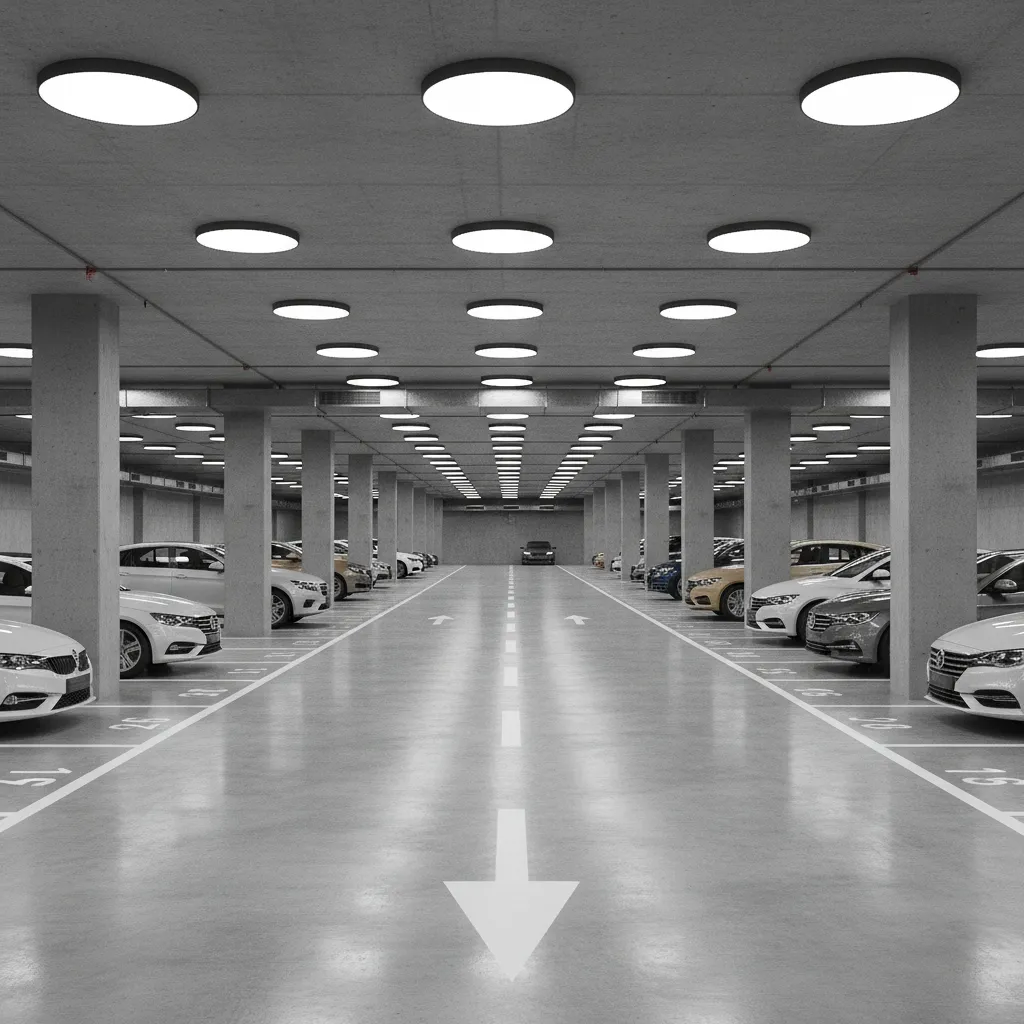

Overview of Common Basement Parking Layout Types

Key Insight: Most basement garages rely on three layout models, and each one prioritizes a different balance of construction simplicity, parking density, and driver comfort.

Across residential apartments, office buildings, and mixed‑use developments, designers typically choose between grid layouts, angled layouts, or hybrid configurations. Each approach responds differently to column spacing, ramp position, and circulation direction.

Here is how the three strategies generally compare:

1. Grid Layout (Perpendicular Parking)
2. Parking stalls sit at 90 degrees to the driving aisle. Columns and parking bays align with the structural grid.
3. Angled Layout
4. Stalls are positioned at 45 or 60 degrees, allowing easier entry and exit while requiring one‑way circulation.
5. Mixed Layout
6. Combines perpendicular and angled parking depending on available space, ramps, and structural constraints.

According to guidance from the Urban Land Institute and multiple parking design manuals, perpendicular layouts remain the most common for underground garages because they maximize space efficiency when column grids are regular.

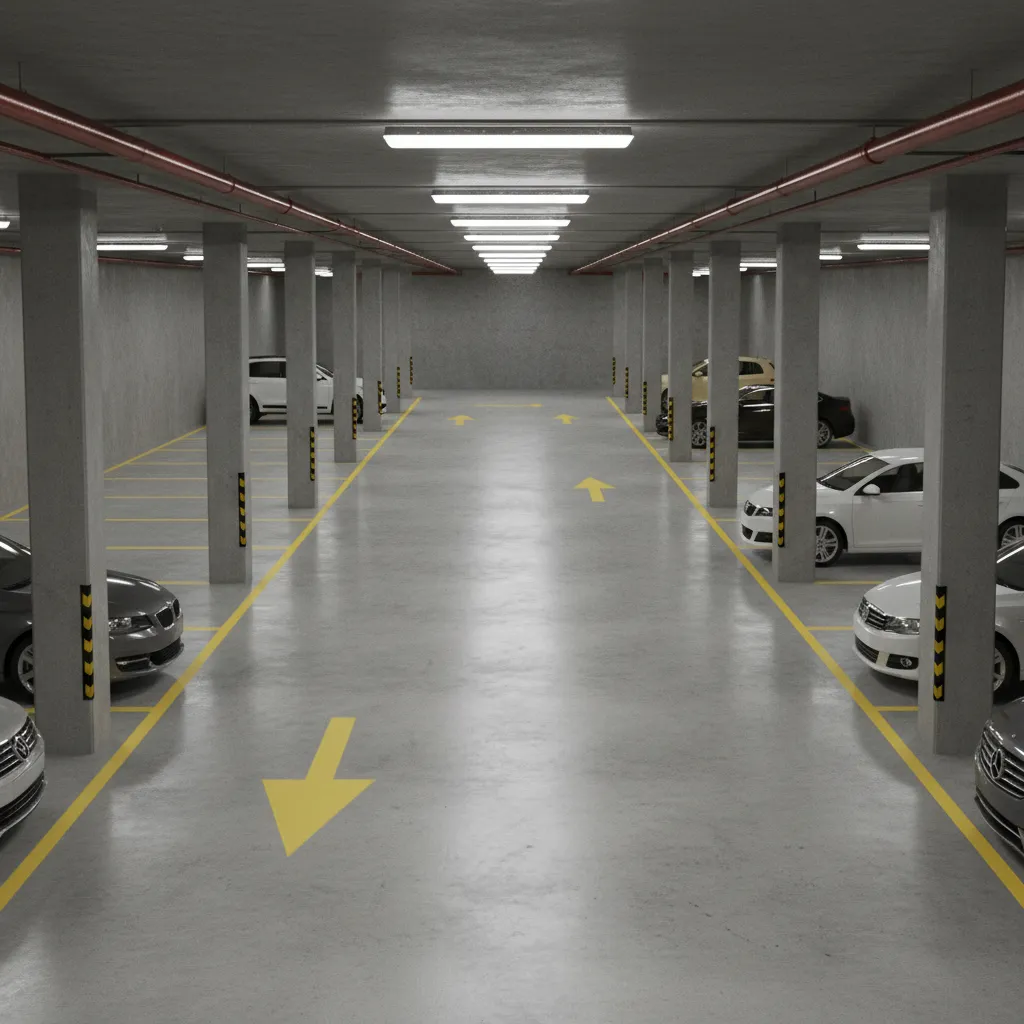

Grid Parking Layout Structure and Use Cases

Key Insight:Grid parking is the most space‑efficient layout for rectangular basements with regular column spacing.

This layout places parking spaces perpendicular to the driving aisle. It aligns naturally with structural grids, which makes it the preferred option for residential towers and apartment complexes.

save pin

Typical characteristics of grid parking layouts:

1. 90‑degree parking stalls
2. Two‑way traffic aisles
3. Parking rows aligned with structural columns
4. High parking density

Advantages

1. Maximizes number of parking spaces
2. Simplifies structural coordination
3. Works well with double‑loaded aisles

Limitations

1. Tighter turning radius for drivers
2. More reversing required
3. Traffic conflicts in narrow aisles

In several multifamily projects I worked on in Los Angeles, switching from angled parking to a clean perpendicular grid increased stall count by nearly 8–12%. However, it also required slightly wider aisles to maintain comfortable maneuvering.

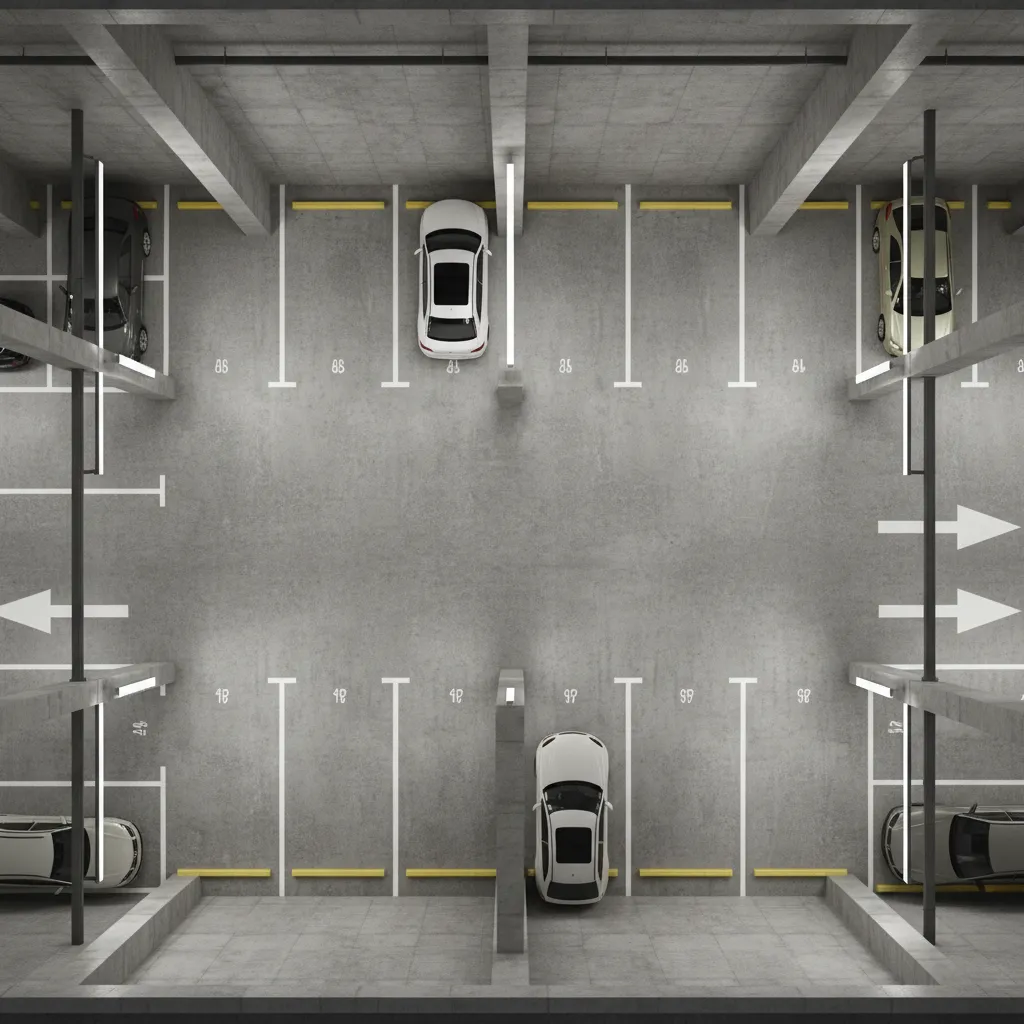

Angled Parking Layout Advantages and Limitations

Key Insight:Angled parking significantly improves maneuverability and traffic flow but typically sacrifices overall parking capacity.

Angled stalls are typically set at 45 or 60 degrees. Drivers enter spaces more easily because the turning motion is smoother and less reversing is required.

save pin

Where angled layouts work best:

1. Retail or public garages with frequent short visits
2. Narrow basement footprints
3. Garages designed with one‑way circulation

Advantages

1. Easier parking for drivers
2. Smoother traffic flow
3. Reduced reversing conflicts

Limitations

1. Lower parking density
2. Requires one‑way aisles
3. Harder to coordinate with column grids

In practice, angled parking is rarely used for entire residential basements. It shines in entry zones, visitor parking areas, or awkward corners where perpendicular parking would waste space.

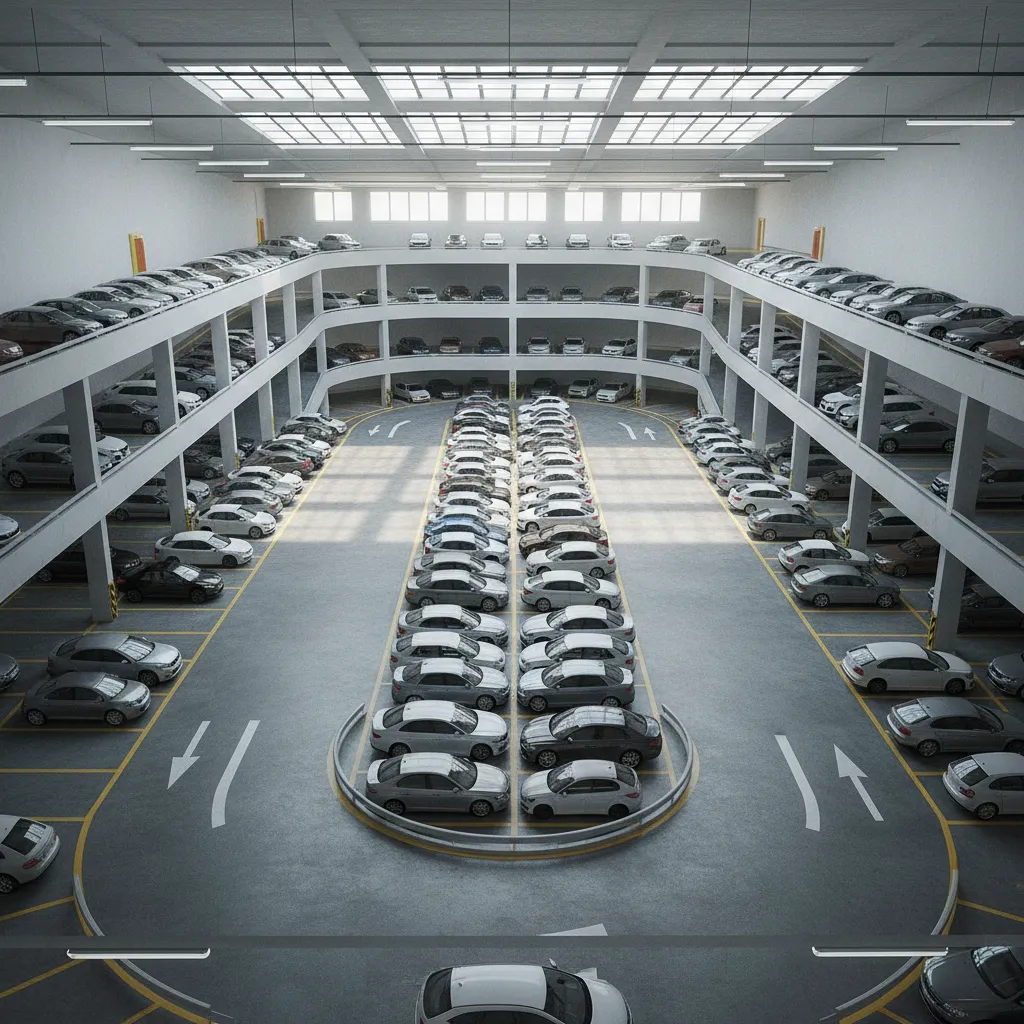

Mixed Layout Designs for Complex Basements

Key Insight:Mixed layouts often produce the highest real‑world efficiency because they adapt to irregular structural and circulation constraints.

Large developments rarely have perfectly rectangular basements. Ramps, elevators, mechanical rooms, and shear walls create irregular geometry that rigid layouts cannot handle.

A mixed parking layout might include:

save pin

1. Perpendicular parking in primary aisles
2. Angled stalls near ramps
3. Parallel parking along perimeter walls
4. Compact parking in leftover zones

During planning, designers often test multiple combinations using a simple workflow for drafting and testing parking bay layouts to see how circulation changes across iterations.

This flexible strategy is particularly common in:

1. Mixed‑use developments
2. Large apartment complexes
3. Irregular urban building footprints

Space Efficiency and Traffic Flow Comparison

Key Insight: Parking density alone does not determine efficiency; traffic flow and maneuvering space dramatically affect real usability.

Many developers assume the layout with the most stalls is automatically the best choice. In reality, poorly designed circulation can reduce functional capacity because drivers struggle to access spaces.

Layout TypeParking DensityTraffic FlowEase of Parking GridHighModerateModerate AngledMediumHighHigh MixedHighHighHigh One overlooked factor is column placement. If structural columns land inside turning paths, even a theoretically efficient grid layout becomes frustrating for drivers.

Answer Box

The best basement parking layout usually combines grid parking for density with angled or parallel spaces near ramps and irregular areas. This hybrid approach balances parking capacity with smoother vehicle circulation.

How to Choose the Right Layout for Your Building

Key Insight: The optimal basement parking layout is determined more by structure and ramp placement than by stall geometry.

When I evaluate a basement design, I usually review these factors first:

1. Column grid spacing
2. Large column spacing supports grid layouts efficiently.
3. Ramp entry location
4. Angled stalls near ramps reduce congestion.
5. Traffic circulation direction
6. One‑way systems allow angled layouts.
7. Local parking regulations
8. Some cities restrict compact or angled stall usage.

Early stage testing helps avoid costly redesigns later. Many architects now explore circulation options using a quick way to experiment with different garage circulation and parking configurations before finalizing structural drawings.

Final Summary

1. Grid parking maximizes stall count in regular rectangular basements.
2. Angled parking improves maneuverability but usually reduces total spaces.
3. Mixed layouts often deliver the best balance of capacity and usability.
4. Ramp placement and column grids influence layout success more than stall angles.
5. Early circulation testing prevents costly garage design mistakes.

FAQ

What is the most efficient basement parking layout?

Perpendicular grid layouts typically provide the highest parking density, making them one of the most efficient basement parking layout types for residential buildings.

Is angled parking better for basement garages?

Angled parking improves maneuverability and traffic flow but often reduces the number of parking spaces compared with perpendicular layouts.

What angle is best for angled parking?

Common angles are 45° and 60°. Sixty‑degree parking offers easier maneuvering while maintaining relatively good space efficiency.

Can you mix parking layout types in a basement garage?

Yes. Many modern garages use mixed layouts that combine perpendicular, angled, and parallel parking to maximize space in irregular areas.

Which basement parking layout is best for apartments?

Grid parking is typically the best basement parking layout for apartments because it fits well with structural column grids and maximizes parking capacity.

How wide should a basement parking aisle be?

Two‑way aisles for perpendicular parking are usually around 6–7 meters wide depending on local design standards.

Why do some garages use one‑way circulation?

One‑way systems allow angled parking and reduce conflicts between vehicles entering and exiting stalls.

What is the biggest mistake in basement parking design?

Ignoring turning paths around columns and ramps. Even well‑planned parking garage layout comparisons fail if vehicles cannot maneuver comfortably.
