Bathroom Design Standards for Small Residential Bathrooms: Professional layout rules and clearance guidelines that help small bathrooms stay functional, code compliant, and comfortable to use

Direct Answer

Small bathroom design standards focus on minimum clearances, fixture spacing, and safe movement zones around toilets, sinks, showers, and doors. Most residential guidelines require at least 30 inches of toilet clearance width, 21 inches of front clearance, and 24 inches of walking space in front of fixtures. Following these standards prevents cramped layouts and helps ensure renovations meet building code expectations.

Quick Takeaways

1. Most residential bathrooms require at least 21 inches of clearance in front of toilets and sinks.
2. Toilet centerlines should sit at least 15 inches from walls or nearby fixtures.
3. Standard shower stalls typically require a minimum interior size of 30 by 30 inches.
4. Door swing and walkway space often determine whether a small bathroom layout works or fails.
5. Following bathroom layout building code guidelines reduces renovation approval issues.

Introduction

After designing dozens of compact apartments and small home renovations, I can say one thing confidently: most small bathroom problems are not caused by lack of space. They happen because people ignore basic small bathroom design standards.

Homeowners often try to squeeze in a vanity, toilet, and shower without understanding the minimum bathroom clearance requirements that make the room actually usable. The result is a layout that technically fits on paper but feels uncomfortable in real life.

In several projects I reviewed last year, clients had layouts that violated simple spacing rules around toilets or door swings. Fixing those mistakes sometimes meant moving plumbing lines, which dramatically increased renovation costs.

Before choosing finishes or fixtures, I always recommend mapping the space with accurate dimensions using a simple way to generate a precise bathroom floor plan layout. Once the measurements are clear, the professional standards become much easier to apply.

This guide breaks down the most important residential bathroom design rules I rely on when planning compact spaces. These are the same dimensional guidelines used by architects, contractors, and building inspectors when evaluating small bathroom layouts.

save pin

Minimum Bathroom Size Standards in Residential Design

Key Insight: A functional small bathroom generally needs at least 30–36 square feet to fit standard fixtures without violating clearance rules.

There is no single universal minimum bathroom size, but most residential codes and design guidelines follow similar dimensional logic. The goal is to ensure people can safely move between fixtures.

In practice, designers usually work with these baseline dimensions.

1. Half bathroom (toilet + sink): about 18–20 sq ft minimum
2. Three-quarter bathroom (toilet + sink + shower): about 30 sq ft
3. Full bathroom (toilet + sink + bathtub/shower): about 35–40 sq ft

A common mistake is assuming fixture size determines the minimum room size. In reality, clearance space determines the layout.

For example, a 24-inch vanity might technically fit in a tight corner, but once you add the required standing space in front of it, the room dimension must increase.

The International Residential Code (IRC) and guidelines from the National Kitchen and Bath Association (NKBA) both emphasize clearance zones rather than room size alone.

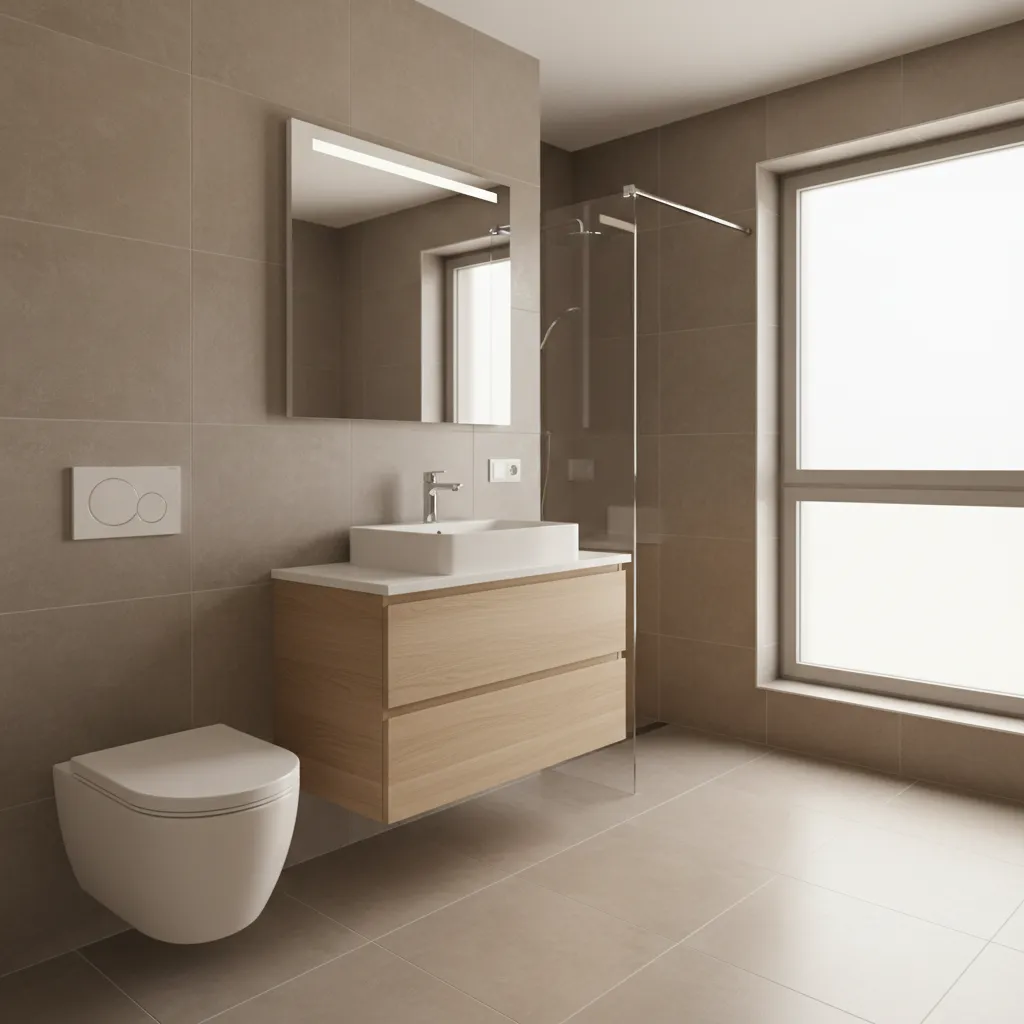

Clearance Requirements Around Toilets and Sinks

Key Insight: Proper toilet and sink spacing is the most critical factor affecting small bathroom usability.

These clearance rules exist for comfort, accessibility, and safety. Ignoring them is the fastest way to create a bathroom that feels cramped.

Typical residential standards include:

1. Minimum 15 inches from toilet centerline to wall or fixture
2. Recommended 18 inches for improved comfort
3. At least 21 inches of front clearance in front of the toilet
4. 21–30 inches of space in front of sinks or vanities

One detail many homeowners overlook is shoulder space around the toilet. If a vanity sits too close, users feel boxed in even if the layout technically meets minimum code.

In my experience, increasing toilet side clearance by just 2–3 inches dramatically improves comfort in small bathrooms.

save pin

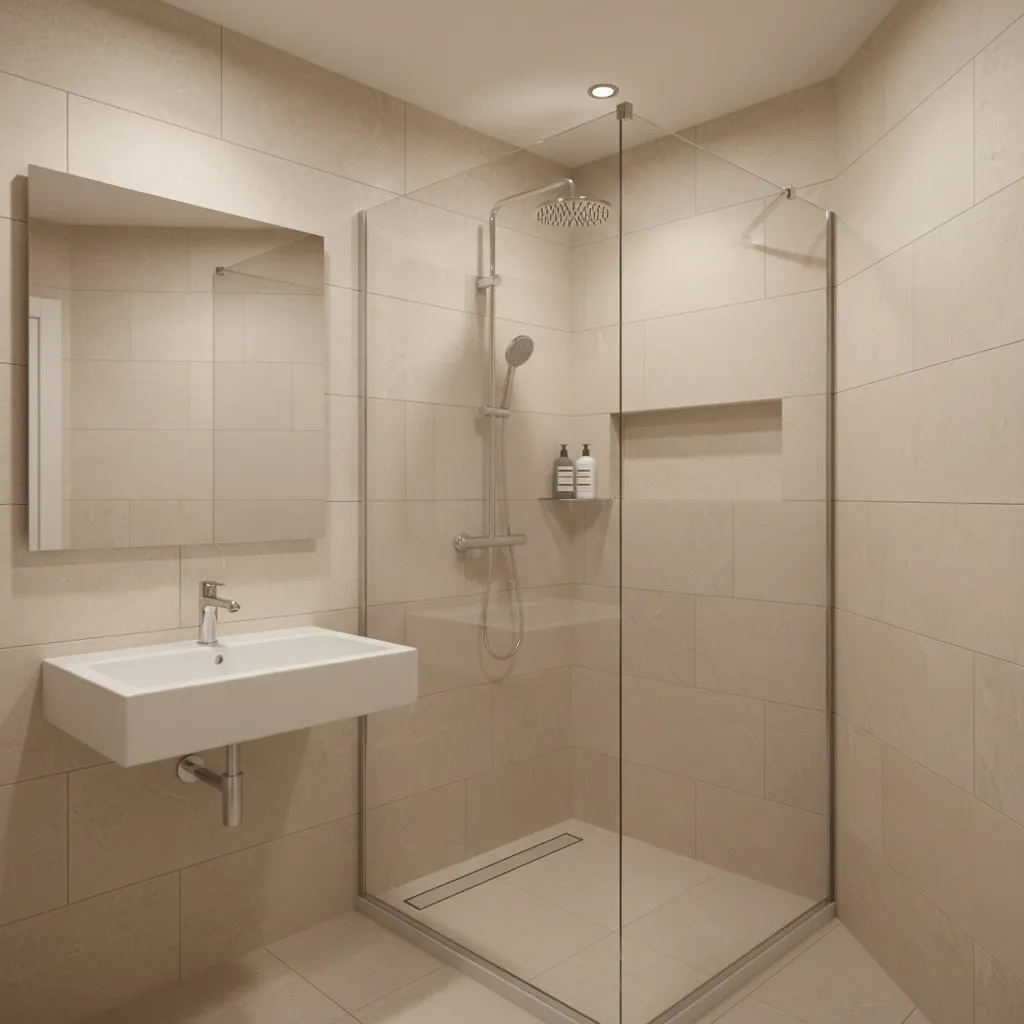

Shower and Bathtub Space Standards

Key Insight: Shower dimensions often determine whether a small bathroom feels functional or frustrating.

Standard shower requirements vary slightly by region, but most residential codes follow similar minimum dimensions.

Typical shower size guidelines:

1. Minimum interior shower size: 30 x 30 inches
2. Recommended comfortable shower size: 36 x 36 inches
3. Minimum entry clearance in front of shower: 24 inches

Bathtubs introduce additional planning constraints:

1. Standard bathtub length: 60 inches
2. Typical width: 30–32 inches
3. Front clearance: 24 inches minimum

For extremely compact layouts, switching from a bathtub to a corner or walk-in shower often solves spacing conflicts. I regularly test these options using a 3D floor planning workflow for tight bathroom layoutsbecause visualizing movement space helps catch design issues early.

save pin

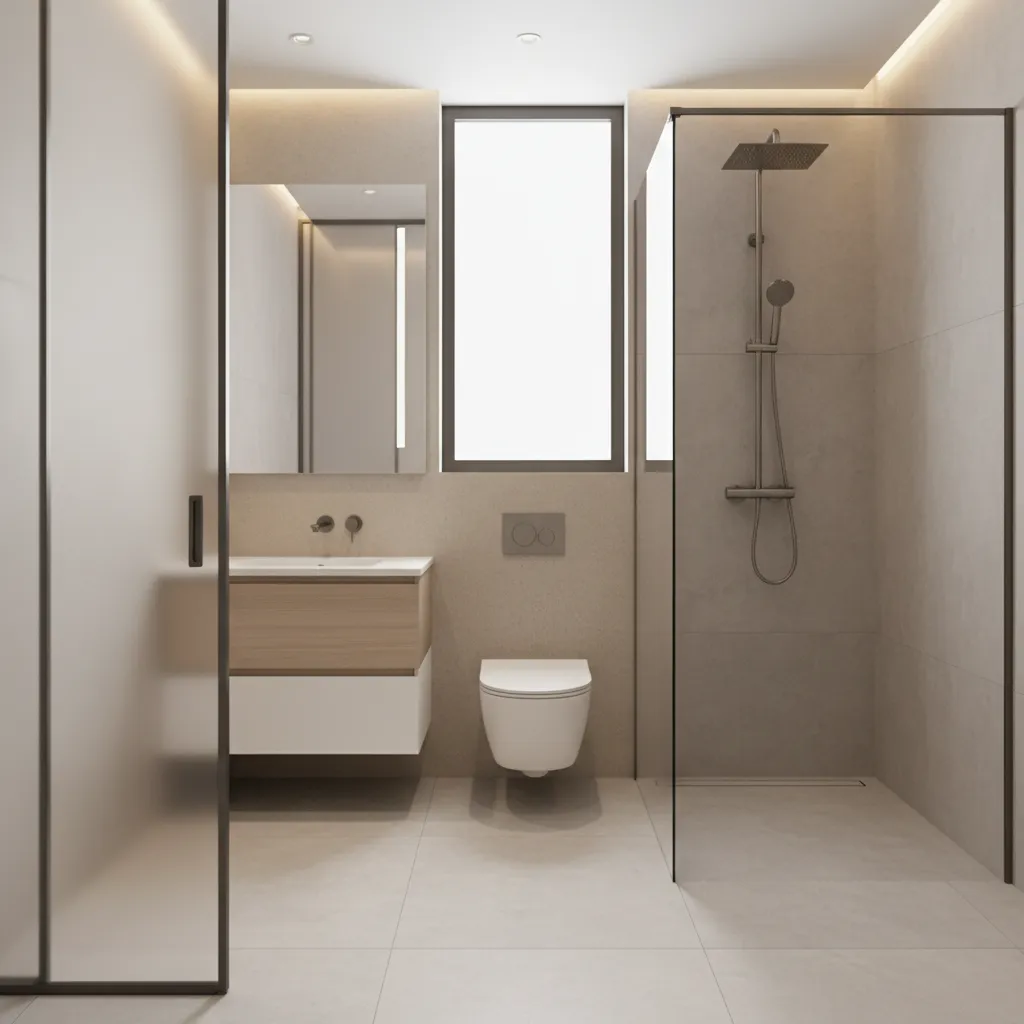

Door Clearance and Accessibility Rules

Key Insight: Bathroom door swings are one of the most overlooked causes of layout conflicts.

Many small bathrooms fail simply because the door blocks a fixture or walking path. Door placement should always be considered before finalizing the fixture layout.

Common door clearance rules include:

1. Minimum 32-inch door width for accessibility-friendly designs
2. At least 24 inches of clear floor space behind the door
3. Doors should not interfere with toilet clearance zones

Design strategies that work well in compact bathrooms:

1. Pocket doors
2. Sliding barn-style doors
3. Outward-opening doors

These solutions often free up several square feet of usable layout space.

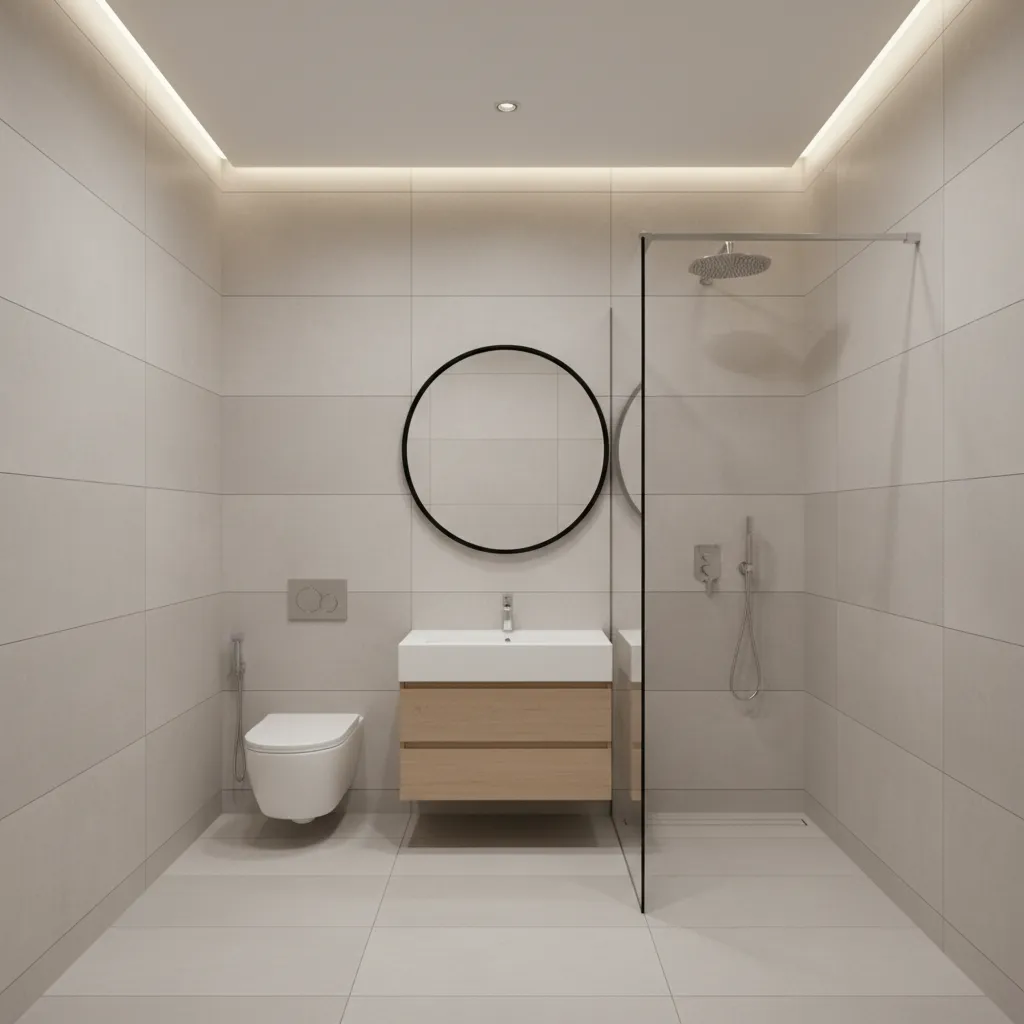

Recommended Layout Dimensions for Small Bathrooms

Key Insight: A well-balanced fixture layout matters more than maximizing fixture size.

Over the years, I have noticed that the most comfortable small bathrooms follow predictable spacing patterns.

Here is a practical layout guide I often use for compact residential bathrooms:

1. Vanity depth: 18–21 inches
2. Toilet clearance width: 30 inches minimum
3. Walkway between fixtures: 24–30 inches
4. Distance between vanity and toilet: about 30 inches

When homeowners want to explore variations, using a visual tool that helps experiment with small bathroom layoutsmakes it easier to test spacing before committing to construction.

Small adjustments in vanity depth or shower placement can completely change how open the room feels.

save pin

Building Code Considerations for Bathroom Renovations

Key Insight: Building codes protect safety and usability, but they often set minimums rather than ideal design standards.

Different regions follow slightly different regulations, but most residential bathroom codes cover similar topics.

Typical code considerations include:

1. Ventilation requirements for bathrooms
2. Minimum ceiling height (often around 80 inches)
3. Electrical outlet placement near sinks
4. Waterproofing rules for shower areas

One hidden issue many homeowners miss is inspection approval. If fixture spacing violates basic residential bathroom design rules, a renovation may fail inspection, delaying project completion.

That is why professional layout planning usually happens before plumbing relocation decisions are finalized.

Answer Box

The most important small bathroom design standards involve fixture clearances, toilet spacing, and safe walking areas. Following minimum bathroom clearance requirements early in the planning stage prevents expensive layout mistakes and ensures renovations meet building code expectations.

Final Summary

1. Clearance space determines bathroom usability more than fixture size.
2. Toilets need at least 15 inches of side clearance and 21 inches in front.
3. Most showers require a minimum 30 by 30 inch interior space.
4. Door swing planning often prevents layout conflicts.
5. Following residential bathroom design rules reduces renovation risks.

FAQ

What is the minimum size for a small bathroom?

A half bathroom typically needs about 18–20 square feet, while a full bathroom usually requires around 35–40 square feet to meet basic clearance standards.

What are the minimum toilet clearance requirements?

Most bathroom codes require at least 15 inches from the toilet centerline to walls or fixtures and 21 inches of clearance in front.

What is the minimum shower size allowed?

Most building codes require a minimum interior shower size of 30 by 30 inches.

How much space should be in front of a bathroom sink?

Design guidelines typically recommend 21–30 inches of clear floor space in front of a sink or vanity.

Do small bathrooms have to follow building codes?

Yes. Renovations must follow bathroom layout building code guidelines, especially when plumbing or electrical systems are modified.

What is the best layout for a very small bathroom?

A common solution places the sink near the entrance, the toilet in the middle, and a shower at the far wall.

Can a toilet be next to a vanity?

Yes, but toilet and sink clearance requirements must still be met to maintain usability and pass inspections.

Do pocket doors help small bathrooms?

Yes. Pocket doors eliminate door swing conflicts and can significantly increase usable floor space.

References

1. International Residential Code (IRC)
2. National Kitchen and Bath Association Planning Guidelines
3. U.S. Housing and Urban Development Residential Design Standards
