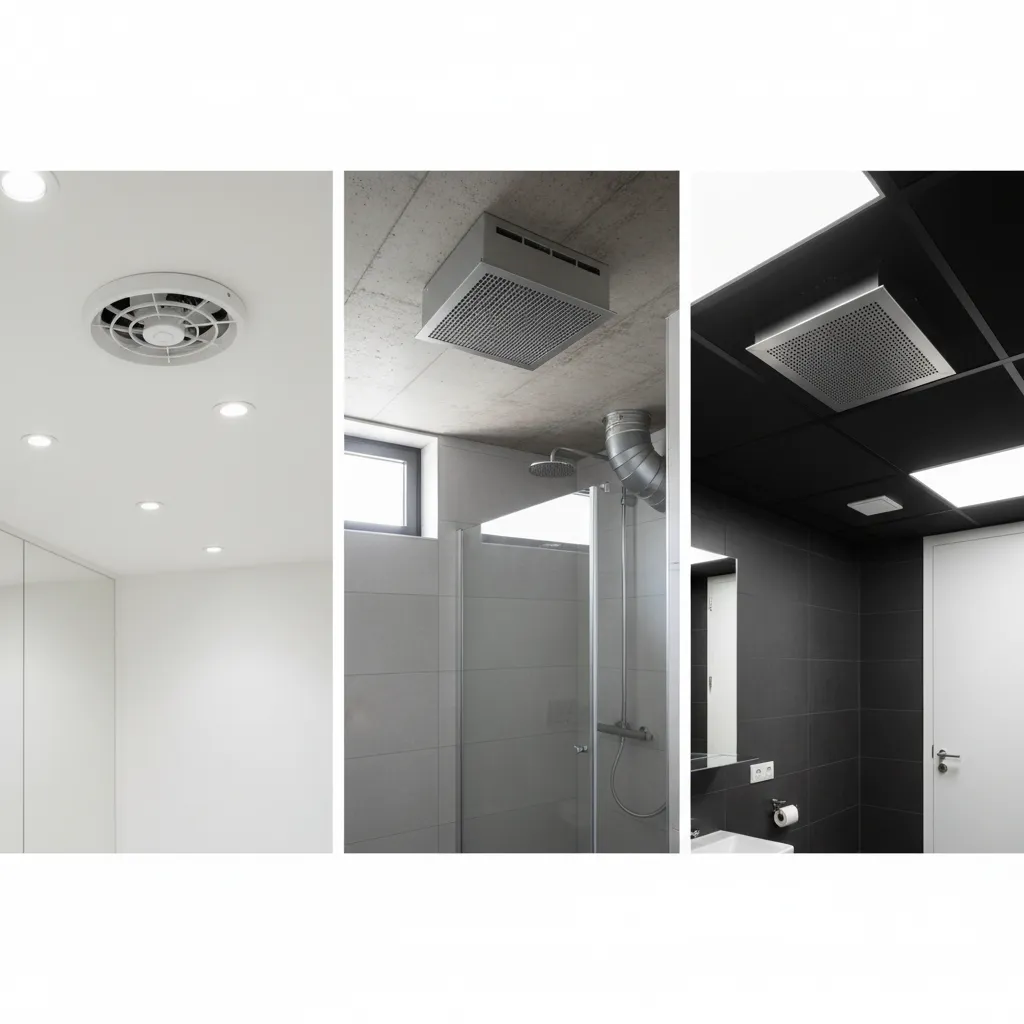

Bathroom Exhaust Fan Designs Used in Homes, Apartments, and Commercial Buildings: How ventilation systems differ across residential and commercial spaces—and why the fan design determines the type of cover you can remove or replace.

Direct Answer

Bathroom exhaust fan designs vary significantly between homes, apartments, and commercial buildings because each environment requires different ventilation capacity, duct routing, and maintenance access. These differences directly affect the fan housing, mounting method, and the style of removable covers used on the unit.

In residential bathrooms, fans are typically compact ceiling units with snap‑in or spring‑clip covers. Apartment and commercial systems often integrate centralized or high‑capacity ventilation systems that use more secure covers, grilles, or service panels.

Quick Takeaways

1. Most homes use small ceiling-mounted exhaust fans with removable spring‑clip covers.
2. Apartments often connect bathroom fans to shared vertical duct systems.
3. Commercial buildings rely on high‑capacity fans with durable service grilles.
4. The fan housing design determines how the cover attaches and how it can be removed.
5. Choosing the wrong replacement cover is a common mistake because housings vary widely.

Introduction

After working on residential remodels and multi‑unit projects for more than a decade, I've noticed that most people assume a bathroom exhaust fan is basically the same everywhere. In reality, the design of a bathroom exhaust fan changes dramatically depending on whether it's installed in a single‑family home, an apartment tower, or a commercial restroom.

This difference matters more than people think. The housing size, airflow capacity, and duct configuration all influence the cover design, which is why homeowners often struggle when replacing or removing a fan grille.

In several renovation projects I managed in Los Angeles condos, residents bought replacement covers that looked identical—but they simply didn't fit the fan housing installed by the building developer.

If you're planning a bathroom update or troubleshooting a fan cover, it helps to understand how ventilation systems differ. Tools that help visualize layouts—like those used to map bathroom layouts and ventilation zones during renovation planning—can make these system differences much easier to spot before installation.

Below is a practical breakdown of how bathroom exhaust fan designs vary across environments and why those differences affect fan covers, maintenance, and replacement parts.

save pin

Overview of Bathroom Ventilation Systems

Key Insight: Bathroom ventilation systems are designed around airflow requirements, and those requirements shape both the fan housing and the cover design.

Ventilation fans remove moisture, odors, and airborne contaminants. Building codes typically specify airflow in cubic feet per minute (CFM), and the required airflow determines the size and type of fan installed.

Typical airflow requirements:

1. Small residential bathroom: 50–80 CFM
2. Larger residential bathroom: 80–110 CFM
3. Apartment shared systems: 80–150 CFM equivalent per unit
4. Commercial restroom: 150–500+ CFM depending on occupancy

These airflow levels change the physical structure of the fan:

1. Housing size
2. Motor strength
3. Duct diameter
4. Mounting method
5. Cover attachment system

Organizations such as ASHRAE (American Society of Heating, Refrigerating and Air‑Conditioning Engineers) define ventilation recommendations that many building codes follow.

Residential Bathroom Exhaust Fan Designs

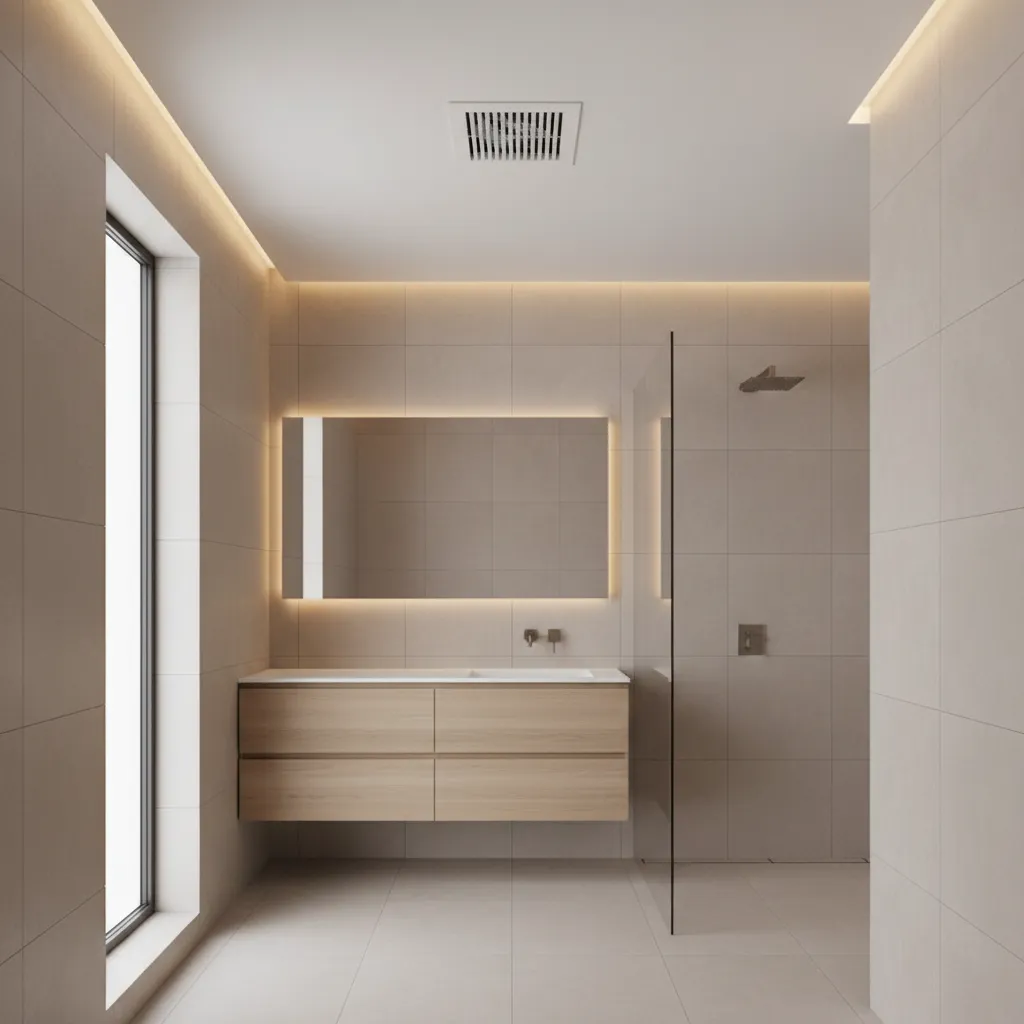

Key Insight: Residential bathroom fans prioritize simplicity and easy maintenance, which is why most use lightweight covers with spring clips.

In single‑family homes, bathroom fans are usually installed as compact ceiling units between joists. The housing contains the motor, fan blade, and duct outlet.

The most common residential cover designs include:

1. Spring‑clip grille covers
2. Snap‑fit plastic covers
3. Decorative fan/light combination covers
4. Magnetic retrofit covers

These covers are intentionally easy to remove because homeowners need to clean dust buildup regularly.

One hidden issue I see often in remodels: people assume decorative covers are universal. They aren't. Even a ½‑inch difference in housing width can prevent a cover from fitting.

When visualizing bathroom upgrades, designers often preview fan placements while planning cabinetry, lighting, and ventilation paths using tools that help plan bathroom layouts with ventilation and fixture placement.

save pin

Apartment and Multi‑Unit Ventilation Systems

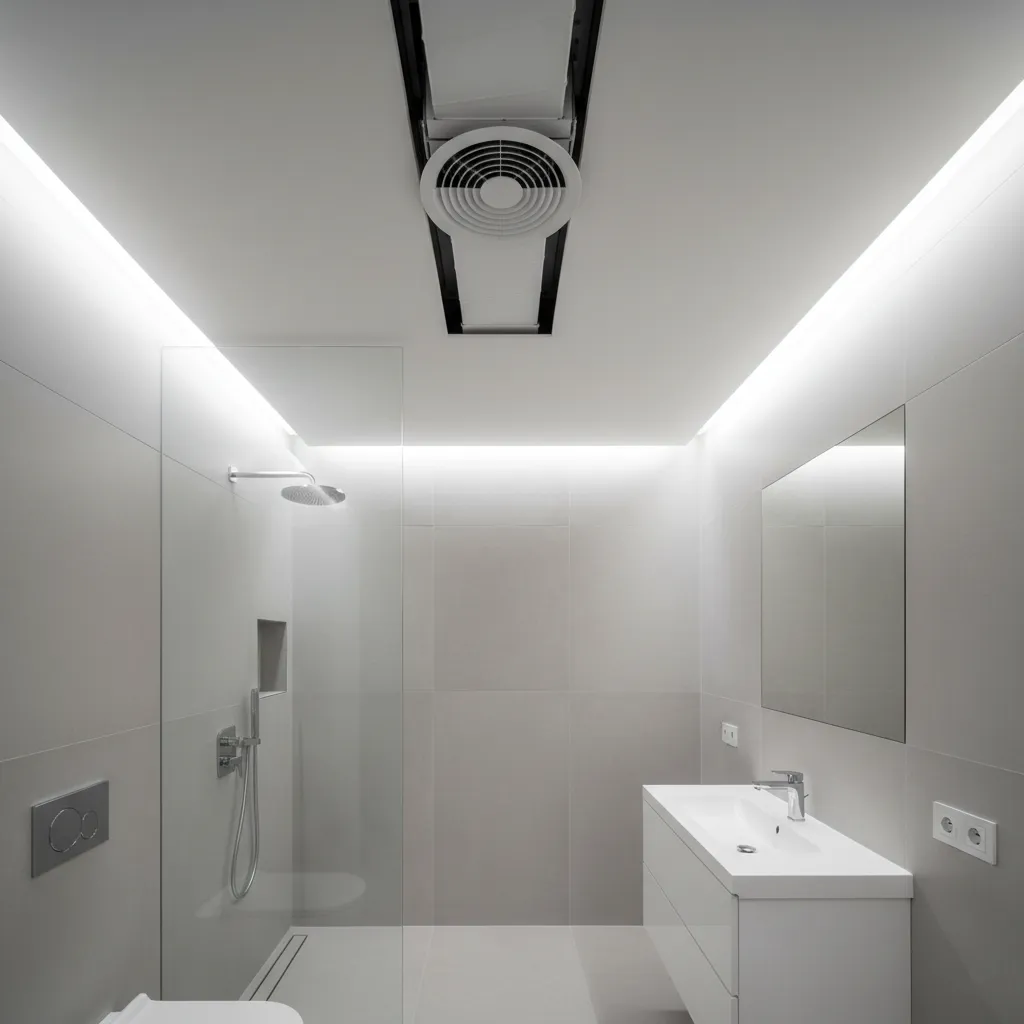

Key Insight: Apartment bathroom fans often connect to centralized vertical ventilation shafts, which changes both fan design and cover accessibility.

Unlike houses, many apartments rely on shared ventilation infrastructure. Instead of each unit venting directly outdoors, multiple bathrooms connect to a vertical duct system.

Common apartment ventilation configurations:

1. Ceiling fan connected to central exhaust shaft
2. Inline duct fan located in mechanical space
3. Continuous ventilation systems running at low speed

Because these systems serve multiple units, the fan grilles tend to be:

1. More secure
2. Standardized across units
3. Sometimes integrated with fire dampers

In high‑rise developments I've worked on, maintenance teams often specify one universal grille model across hundreds of bathrooms to simplify replacement parts.

save pin

Commercial Bathroom Ventilation Fans

Key Insight: Commercial bathroom fans are built for durability and high airflow, which leads to heavier metal grilles and service panels instead of lightweight covers.

Public restrooms in offices, malls, and restaurants operate under very different ventilation demands.

Commercial exhaust systems usually include:

1. High‑capacity roof exhaust fans
2. Large duct networks
3. Metal ceiling grilles
4. Service‑accessible ventilation panels

Instead of a small ceiling fan per room, many commercial restrooms rely on centralized mechanical ventilation systems.

This design reduces noise and simplifies maintenance but requires stronger grille materials such as aluminum or powder‑coated steel.

How Fan Design Influences Cover Removal Methods

Key Insight: The way a bathroom fan cover is removed depends almost entirely on the internal fan housing design.

Across projects, I've seen four common attachment systems:

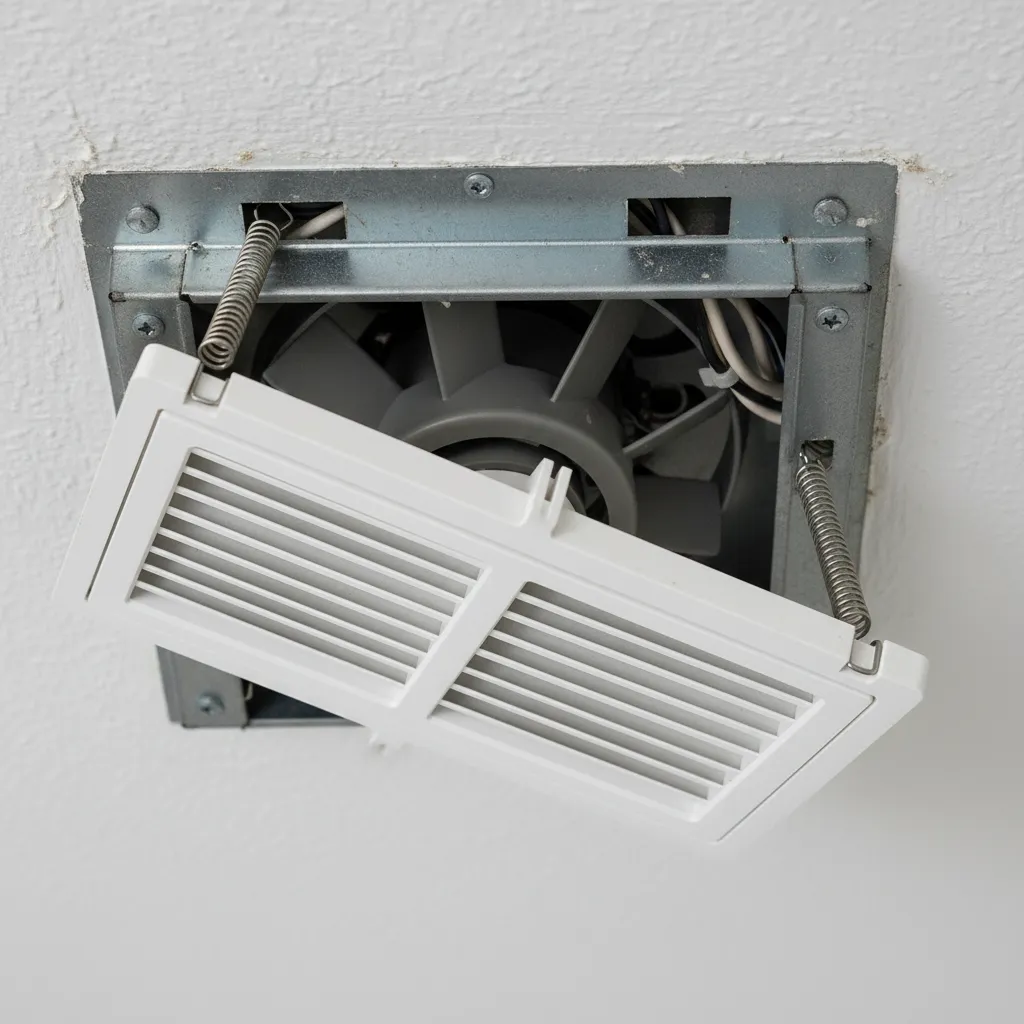

1. Spring clips: Most common in residential fans
2. Snap tabs: Used in newer plastic housings
3. Screw‑mounted grilles: Common in commercial systems
4. Magnetic panels: Used in modern decorative covers

A common mistake homeowners make is pulling down too hard on a cover without checking the mechanism. That can bend clips or crack plastic housings.

If you're unsure how your fan was installed, looking at housing dimensions and ceiling layout using visualization tools that preview ventilation fixtures inside a realistic bathroom layout can help identify compatible fan types.

Answer Box

Bathroom exhaust fan cover designs vary because the underlying ventilation systems differ across homes, apartments, and commercial buildings. Residential fans usually use spring‑clip covers, while multi‑unit and commercial systems rely on stronger grilles or service panels designed for centralized ventilation infrastructure.

Choosing Compatible Replacement Covers

Key Insight: The safest way to choose a replacement fan cover is by matching the fan housing model, not the appearance of the grille.

When replacing a cover, check these details first:

1. Fan manufacturer and model number
2. Housing width and height
3. Distance between spring clips
4. Ceiling opening dimensions
5. Whether the fan includes a light fixture

Hidden cost most homeowners overlook: buying multiple incorrect covers before realizing their housing is discontinued.

In older buildings, replacing the entire fan assembly can sometimes be cheaper than hunting for an outdated grille model.

Final Summary

1. Bathroom fan designs vary widely across homes, apartments, and commercial buildings.
2. Residential fans usually use spring‑clip covers for easy maintenance.
3. Apartment systems often connect to shared ventilation shafts.
4. Commercial restrooms rely on high‑capacity centralized exhaust systems.
5. Matching the fan housing model is essential when replacing covers.

FAQ

What are the main types of bathroom exhaust fans in homes?

The most common types are ceiling-mounted fans, fan/light combinations, and humidity‑sensing fans. These compact systems typically use removable spring‑clip covers.

Why do apartment bathroom fans look different?

Many apartments connect bathrooms to shared ventilation shafts. Because of this, the fan grille is often standardized and designed for centralized systems.

What is a commercial bathroom ventilation fan system?

Commercial systems usually use large roof-mounted exhaust fans connected to duct networks that ventilate multiple restrooms simultaneously.

Can all bathroom fan covers be replaced?

No. Replacement covers must match the fan housing model. Even small dimensional differences can prevent proper installation.

How does bathroom fan housing affect cover design?

The housing determines the clip placement, screw mounts, and cover size. That's why different bathroom ventilation fan models require different grilles.

Are bathroom fan covers universal?

No. While some decorative covers fit multiple models, most are manufacturer‑specific.

How often should a bathroom fan cover be cleaned?

Most experts recommend cleaning every 6–12 months to maintain airflow and prevent dust buildup.

What airflow is recommended for bathroom ventilation?

Many building codes recommend at least 50 CFM for small bathrooms and 80–100 CFM for larger bathrooms.
