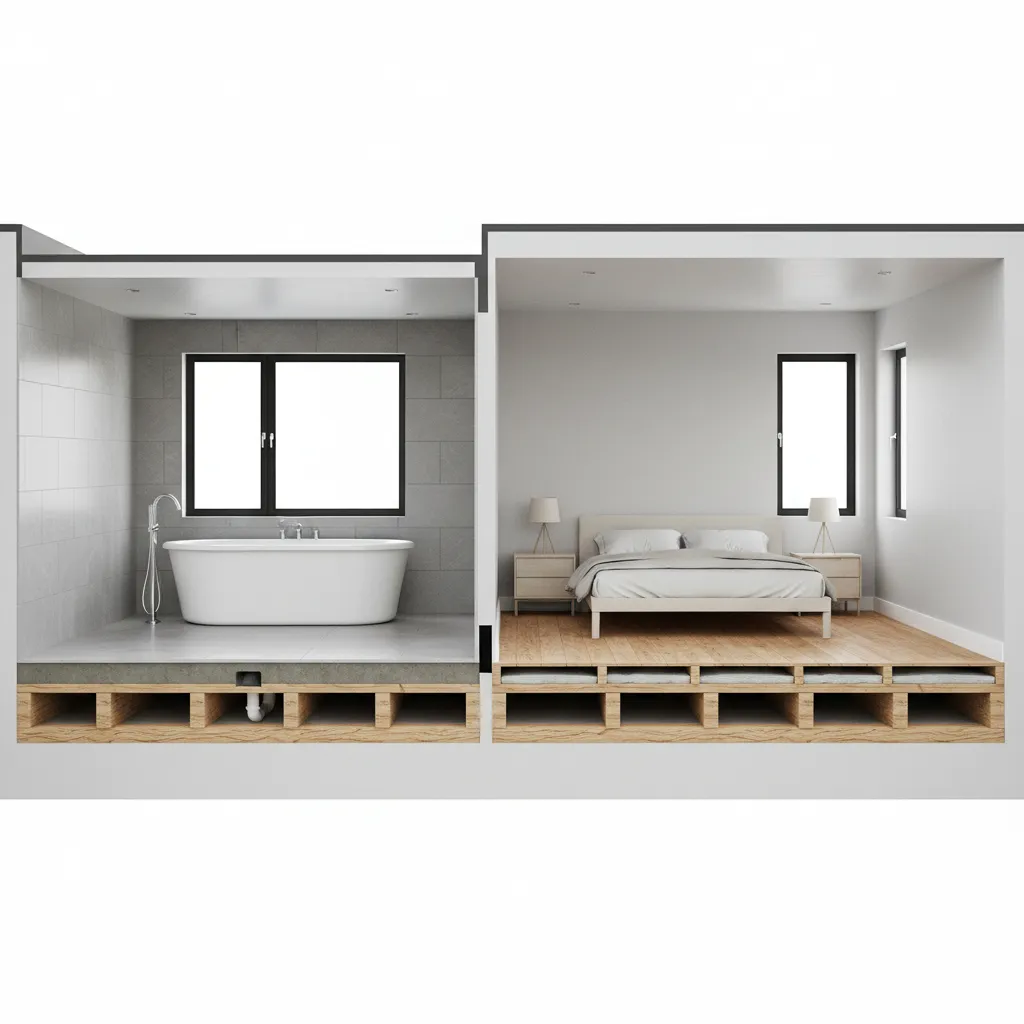

Bathroom Floor Load vs Standard Room Floor Load: Structural Differences Explained: Understand how bathroom floor loads differ from bedrooms and living spaces—and why water, fixtures, and materials change structural requirements.

Direct Answer

The bathroom floor load vs standard room floor load difference comes from concentrated weight and moisture risk. Bathrooms must support heavy fixtures like bathtubs, dense tile assemblies, and potential water loads, which often create higher localized structural demands than bedrooms or living rooms.

While many residential rooms are designed around similar baseline live loads, bathrooms frequently require stronger subfloors, closer joist spacing, or reinforcement to safely support plumbing fixtures and water-related materials.

Quick Takeaways

1. Bathrooms often experience higher concentrated loads due to tubs, tile, and water.
2. Standard residential rooms usually rely on uniform live load assumptions.
3. Heavy fixtures create structural stress points not common in bedrooms.
4. Bathroom subfloors typically require stronger stiffness to prevent tile cracking.
5. Renovations often reveal that bathroom framing needs reinforcement.

Introduction

In residential construction, the difference between bathroom floor load vs standard room floor load is more important than most homeowners realize. After working on dozens of remodels and structural layout projects, I’ve seen the same issue again and again: people assume every room in a house is designed to handle the same structural weight.

That assumption isn’t always true.

Bathrooms concentrate weight in ways that other rooms rarely do. A single cast‑iron bathtub filled with water can exceed 700–900 pounds. Add dense porcelain tile, mortar beds, cabinetry, and plumbing infrastructure, and the structural demands increase quickly.

During layout planning, designers and contractors often visualize these loads using digital planning tools. For example, many professionals start by mapping structural layouts with a visual 3D floor layout planning workflow used during early home design, which helps identify where heavy fixtures will concentrate loads before construction begins.

In this guide, I’ll break down how bathroom loads compare with other rooms, why bathrooms place unique stress on framing systems, and when additional reinforcement becomes necessary.

save pin

Typical Load Requirements for Residential Rooms

Key Insight: Most residential rooms are designed around standardized live load assumptions, which spread weight evenly across the floor structure.

Building codes in North America typically assume a uniform live load for common living areas. This simplifies structural engineering because furniture and occupants usually distribute weight across the floor.

Typical load assumptions used in residential design:

1. Bedrooms: ~30–40 pounds per square foot (psf)
2. Living rooms: ~40 psf
3. Hallways and stairs: ~40 psf or higher
4. Kitchens: ~40 psf with moderate equipment loads

The key idea is distribution. A sofa, bed, or table spreads its load over several square feet.

Bathrooms break that pattern because heavy fixtures concentrate hundreds of pounds into very small structural areas.

According to guidance derived from the International Residential Code (IRC), structural design must consider both uniform loads and concentrated loads when heavy fixtures are present.

Why Bathrooms Have Unique Structural Demands

Key Insight: Bathrooms create concentrated loads and moisture risks that standard room design assumptions do not fully address.

In real renovation projects, the most common structural surprises appear under bathrooms. The issue isn’t just total weight—it’s how that weight is applied.

Three structural factors make bathrooms different:

1. Fixture concentration – tubs, toilets, and vanities cluster in small zones.
2. Water weight – filled bathtubs or shower pans add temporary load.
3. Rigid finishes – tile assemblies require stiff subfloors to avoid cracking.

In many homes built before the early 2000s, bathroom floors were framed exactly the same as adjacent bedrooms. When heavier materials like stone tile were added later, the framing sometimes struggled to meet deflection standards.

That’s one reason modern planning often models fixture placement early using tools such as a visual bathroom layout design environment for planning fixtures and spacing. It allows designers to evaluate spatial constraints and structural implications simultaneously.

save pin

Bathtub, Tile, and Water Load Considerations

Key Insight: Bathtubs and tile assemblies create some of the heaviest concentrated loads in residential interiors.

A filled bathtub is one of the heaviest single loads commonly found in a house.

Example load breakdown:

1. Cast iron tub: 300–400 lbs
2. Water (50 gallons): ~417 lbs
3. Person bathing: 150–250 lbs

Total potential load: 900–1,000+ pounds concentrated over a relatively small footprint.

Tile systems add additional structural demand:

1. Mortar bed
2. Backer board
3. Porcelain or stone tile
4. Grout and adhesives

Together these materials may add 10–20 psf of dead load, which is far heavier than carpet or vinyl flooring used in bedrooms.

The Tile Council of North America (TCNA) also recommends stricter deflection limits for tile floors—typically L/360 or L/720 depending on material—meaning the floor must flex less than standard residential flooring.

save pin

Building Code Load Comparisons by Room Type

Key Insight: Many codes list similar baseline live loads for bathrooms and other rooms, but fixture loads require additional structural consideration.

At first glance, building code tables might suggest bathrooms and living rooms have identical load requirements. However, engineers interpret these tables alongside concentrated load rules.

Typical code-based comparison:

1. Bedrooms: ~30 psf live load
2. Living rooms: ~40 psf live load
3. Bathrooms: ~40 psf live load

The difference appears when concentrated loads are evaluated.

Examples include:

1. Bathtub point loads
2. Stone countertops on vanities
3. Tile or mortar assemblies
4. Large shower enclosures

In practice, engineers often add framing reinforcement around tubs or showers even if the base code numbers appear identical.

Answer Box

Bathrooms and standard residential rooms often share similar baseline live load values in building codes. However, bathrooms experience heavier concentrated loads from bathtubs, tile assemblies, and plumbing fixtures, which frequently require stronger framing or reinforcement.

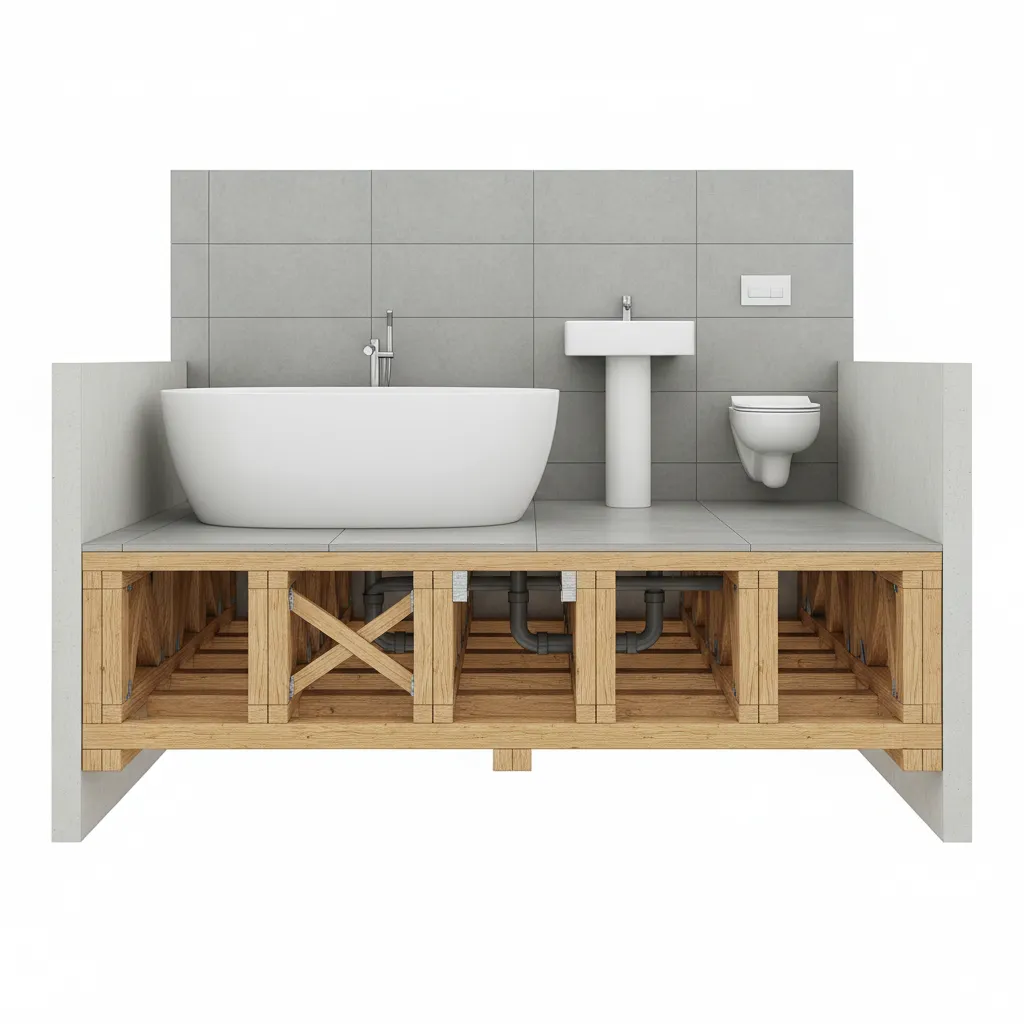

When Bathroom Floors Require Additional Reinforcement

Key Insight: Reinforcement becomes necessary when fixture weight, span length, or finishing materials exceed typical framing assumptions.

From my experience reviewing renovation drawings, several situations frequently trigger structural upgrades.

Common reinforcement triggers:

1. Installing a cast‑iron or freestanding soaking tub
2. Using natural stone tile flooring
3. Long joist spans beneath bathrooms
4. Second‑floor bathroom additions
5. Large curbless showers

Typical reinforcement solutions include:

1. Doubling floor joists
2. Reducing joist spacing
3. Adding blocking under tubs
4. Installing thicker subfloor panels

These upgrades improve stiffness and reduce deflection, which protects tile finishes and prevents structural movement.

save pin

Design Implications for Renovations and New Construction

Key Insight: Early planning prevents expensive structural corrections during bathroom remodeling.

One mistake I see repeatedly is designing bathroom layouts before considering structural loads. That approach often leads to mid‑project framing changes.

A better workflow is:

1. Map room layout and fixture placement.
2. Identify heavy fixtures such as tubs or stone surfaces.
3. Evaluate joist span and spacing.
4. Adjust framing before plumbing installation.

Many design teams now plan these decisions visually using a digital workflow for creating accurate residential floor plans before construction. This helps identify where structural loads and plumbing systems intersect.

The biggest hidden cost in bathroom projects isn’t tile or fixtures—it’s structural changes discovered too late.

Final Summary

1. Bathrooms often experience heavier concentrated loads than other residential rooms.
2. Bathtubs, tile assemblies, and water significantly increase structural demand.
3. Code live loads may appear similar but concentrated loads change design decisions.
4. Early layout planning helps avoid expensive structural retrofits.
5. Proper reinforcement protects both structure and tile finishes.

FAQ

Do bathrooms require stronger floors than bedrooms?

Often yes. While code live loads may be similar, bathrooms include heavy fixtures and tile assemblies that create higher concentrated loads.

What is the typical bathroom floor load?

Most residential codes assume about 40 psf live load, but fixture loads like bathtubs must be evaluated separately.

How heavy is a filled bathtub?

A filled bathtub with a person can weigh 900–1,000 pounds depending on tub material and water volume.

Why does tile require stronger floors?

Tile and stone require stiff subfloors to prevent cracking. Excess floor deflection can damage grout lines and tiles.

Is bathroom live load different from standard residential load?

The bathroom live load vs standard residential load may be similar in code tables, but bathrooms usually include heavier concentrated loads.

Can older homes support modern bathroom materials?

Not always. Older framing systems may require reinforcement before installing stone tile or large tubs.

Do second‑floor bathrooms need extra support?

Sometimes. Engineers evaluate joist span, spacing, and fixture weight to determine if reinforcement is required.

What is the main difference between bathroom and living room floor load?

The difference between bathroom and living room floor load usually comes from fixture weight and water loads concentrated in smaller areas.

References

International Residential Code (IRC) structural load tables.

Tile Council of North America (TCNA) Handbook for Ceramic Tile Installation.

American Wood Council – Residential floor framing guidance.
