Bathroom Floor Slope Standards and Building Codes in Modern Construction: Understand the exact slope ratios contractors follow to ensure safe, code‑compliant bathroom drainage.

Direct Answer

Most building codes require a bathroom or shower floor slope of approximately 1/4 inch per foot (about a 2% gradient) toward the drain. This ratio ensures efficient drainage without creating uncomfortable or unsafe walking surfaces. Contractors typically follow this standard for shower pans and wet areas to meet plumbing codes and prevent standing water.

Quick Takeaways

1. The most common shower floor slope is 1/4 inch per foot toward the drain.
2. Wet areas require stronger drainage slopes than the rest of the bathroom floor.
3. Poor slope installation is one of the top causes of bathroom water damage.
4. Contractors rely on screed guides, laser levels, and pre‑sloped pans.
5. Homeowners should always test drainage before signing off on renovations.

Introduction

After working on residential bathroom renovations for more than a decade, I’ve noticed one detail that homeowners rarely ask about but contractors obsess over: the bathroom floor slope. It’s invisible when done correctly, yet it determines whether your bathroom stays dry or slowly develops mold, leaks, and tile damage.

In modern construction, bathroom floor slope standards are tightly connected to plumbing codes and waterproofing practices. Builders don't just "eyeball" the slope—they follow precise ratios that ensure water moves efficiently toward drains.

If you're planning a renovation or evaluating contractor work, understanding these standards can save thousands in repairs. In fact, many homeowners use visual layout tools before construction to preview how drains and slopes interact. A good starting point is exploring interactive bathroom layout planning examples for drainage design, which illustrate how slopes relate to floor layout.

In this guide, I’ll break down the exact slope ratios used in the industry, the building codes contractors follow, and the hidden mistakes I see far too often on job sites.

save pin

Why Bathroom Floor Slope Standards Exist

Key Insight: Bathroom slope standards exist to move water quickly toward drains while keeping floors safe and comfortable to walk on.

Bathrooms are classified as wet environments in building science. Without a controlled gradient, water from showers, cleaning, or minor leaks will spread across the floor instead of flowing toward the drain.

From a design perspective, the slope must balance three competing factors:

1. Drainage efficiency
2. Slip safety
3. User comfort while standing or walking

Too little slope causes standing water. Too much slope makes the floor uncomfortable and can even violate accessibility standards.

According to International Residential Code (IRC) guidelines and plumbing standards used across North America, a consistent slope ensures water drains without pooling around tile grout lines.

Interestingly, one hidden issue I often encounter in renovations is "false slope." The tile surface looks angled, but the waterproof layer underneath is flat. Over time, water becomes trapped beneath the tile, which is a major cause of shower mold and subfloor rot.

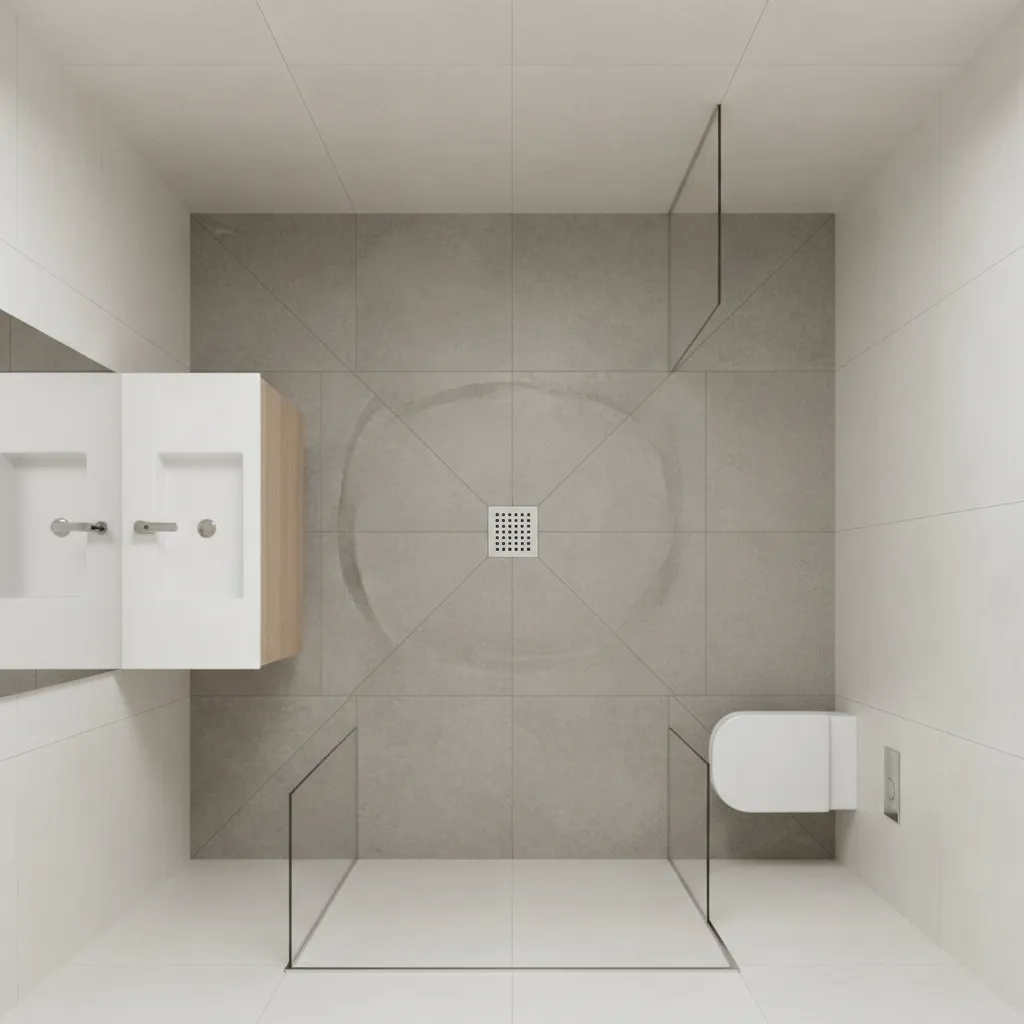

Common Slope Ratios Used in Residential Bathrooms

Key Insight: The industry standard for shower floors is a 1/4 inch per foot slope toward the drain.

Most contractors follow a simple rule when building shower bases or wet zones.

1. Standard shower slope: 1/4 inch per foot (2%)
2. Minimum acceptable slope: 1/8 inch per foot
3. Maximum comfortable slope: 1/2 inch per foot

Here is how that works in practice:

1. A 3‑foot shower requires about 3/4 inch of total drop toward the drain.
2. A 4‑foot shower requires about 1 inch of drop.

Professional tile installers usually create this slope using a "dry pack" mortar bed shaped with screed guides.

For modern renovations, many designers first visualize the drain location during the layout stage. Tools that demonstrate how drainage zones align with the overall bathroom floor plancan make slope planning easier before construction begins.

One misconception I often hear is that the entire bathroom must slope toward the drain. In reality, only the wet areas—like showers and curbless wet rooms—require a consistent gradient.

save pin

Building Code Requirements for Shower and Wet Areas

Key Insight: Building codes require slopes primarily in shower pans and wet rooms, not across the entire bathroom floor.

Although exact wording varies by region, several code frameworks influence bathroom construction:

1. International Residential Code (IRC)
2. Uniform Plumbing Code (UPC)
3. International Plumbing Code (IPC)

Typical requirements include:

1. Shower floors must slope toward the drain.
2. The slope must be at least 1/4 inch per foot.
3. The waterproof liner must follow the same slope.
4. No flat areas may trap water.

A common mistake during renovations is installing a flat waterproof membrane and relying on tile slope alone. Many inspectors will fail a shower installation if the sublayer doesn't slope properly.

European wet-room designs sometimes use linear drains along the wall, which allow the entire floor to slope in one direction instead of four. This simplifies installation and improves accessibility.

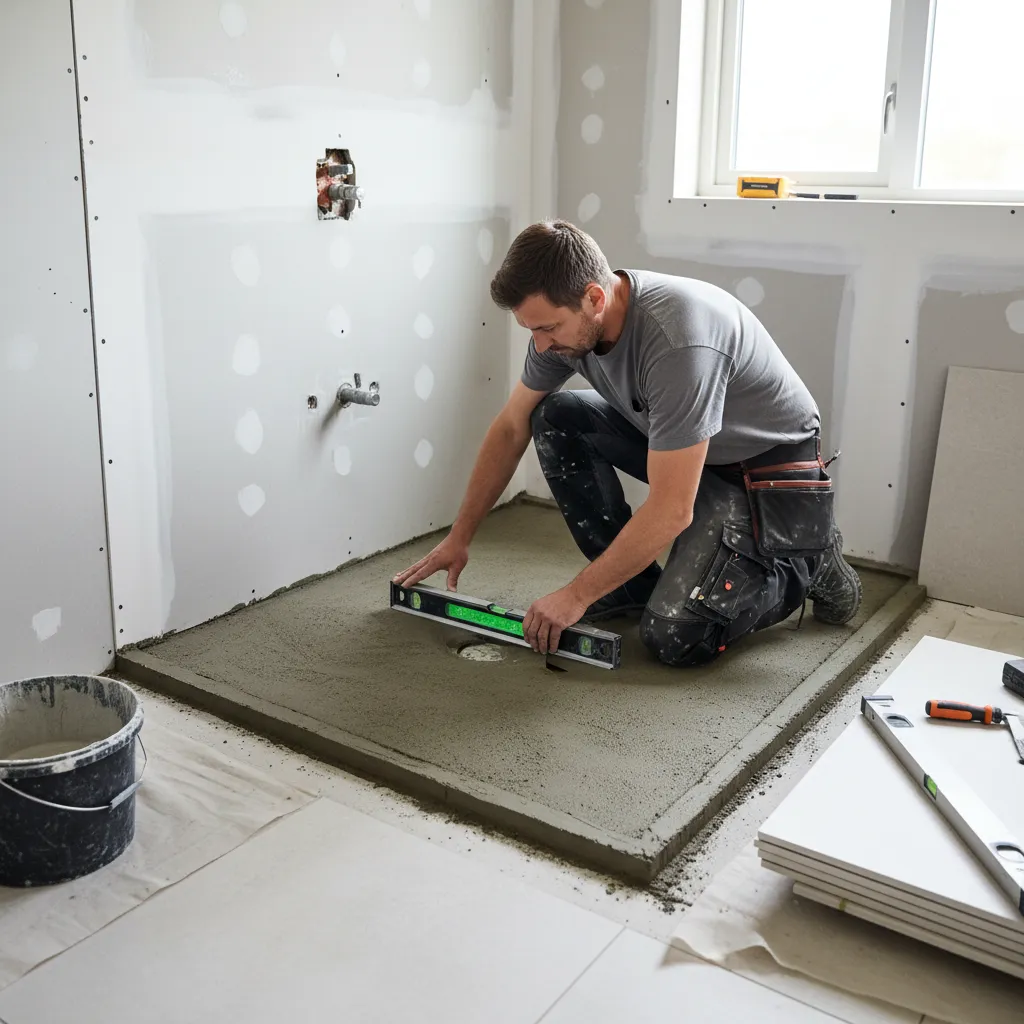

How Contractors Ensure Correct Slope During Installation

Key Insight: Professional installers rely on leveling tools, screed systems, and pre‑sloped pans to guarantee the correct drainage gradient.

Creating an accurate slope requires precise preparation before any tile is installed.

Typical contractor workflow:

1. Measure the distance from the wall to the drain.
2. Calculate the required drop using the 1/4 inch per foot rule.
3. Mark slope lines around the shower perimeter.
4. Build a mortar bed using screed guides.
5. Verify slope using a laser or digital level.

For complex layouts—like curbless showers or multiple drains—designers often preview the floor zones using planning software. Some builders visualize circulation and wet areas with 3D room layout simulations that show drain placement and traffic flowbefore construction starts.

This step reduces one of the most expensive renovation mistakes: realizing after tile installation that water flows away from the drain.

save pin

Inspection and Quality Control for Bathroom Drainage

Key Insight: Water testing is the most reliable way to verify a properly sloped bathroom floor.

Even when slopes look correct visually, professionals perform several quality checks before final approval.

Common inspection methods include:

1. Flood testing shower pans for 24 hours
2. Pouring water to observe drainage direction
3. Using digital levels to verify slope ratios
4. Checking waterproof membrane integrity

One overlooked problem is "micro pooling"—tiny depressions between tiles where water sits. While not a code violation, these spots often lead to mildew or mineral buildup over time.

Answer Box: What Is the Standard Bathroom Floor Slope?

The standard slope for a shower floor is 1/4 inch per foot toward the drain. This gradient is recommended by plumbing codes and used by most contractors to prevent standing water and maintain safe walking surfaces.

What Homeowners Should Verify After Bathroom Renovation

Key Insight: A simple water test can reveal drainage problems immediately after renovation.

Before approving final payment, homeowners should perform a few quick checks.

1. Pour a bucket of water in the shower corners.
2. Confirm water flows directly to the drain.
3. Look for puddles that remain after 60 seconds.
4. Check tile joints for consistent slope lines.

If water flows slowly or collects along walls, the slope may not meet recommended bathroom construction slope requirements.

I’ve seen cases where fixing a bad slope required removing the entire shower floor—an avoidable mistake if caught early.

Final Summary

1. The standard shower slope is 1/4 inch per foot toward the drain.
2. Only wet areas require consistent bathroom floor gradients.
3. Both tile and waterproof layers must follow the same slope.
4. Water testing is the easiest way to confirm proper drainage.
5. Incorrect slopes are a leading cause of bathroom water damage.

FAQ

What is the standard slope for a shower floor?

The industry standard is 1/4 inch per foot toward the drain, ensuring efficient water drainage.

Do building codes require bathroom floor slopes?

Yes. Plumbing codes require sloped shower floors so water flows directly into the drain.

Can the entire bathroom floor slope toward the drain?

Only in wet‑room designs. Standard bathrooms usually slope only inside the shower area.

What happens if a shower floor is flat?

Water pools on the surface, which can cause mold, grout damage, and structural moisture issues.

What is the minimum acceptable shower slope?

Most professionals consider 1/8 inch per foot the minimum, though 1/4 inch per foot is recommended.

Do linear drains change slope requirements?

Yes. Linear drains allow the floor to slope in a single direction instead of four.

How can homeowners test bathroom floor slope?

Pour water in multiple locations and observe if it flows smoothly toward the drain.

Are bathroom floor slope standards the same worldwide?

No. Codes vary by region, but the 1/4 inch per foot slope is widely accepted in residential construction.

References

International Residential Code (IRC)

International Plumbing Code (IPC)

Tile Council of North America (TCNA) Installation Guidelines
