Bathroom Light and Fan Switch Wiring Troubleshooting Guide: Step‑by‑step methods to diagnose wiring issues, restore power, and fix common bathroom fan and light switch problems safely.

Direct Answer

If a bathroom light and fan switch stops working, the most common causes are loose wiring connections, a tripped breaker, a faulty switch, or incorrectly connected hot and load wires. Start by confirming power at the breaker, then test the switch wiring and voltage to identify whether the issue comes from the switch, the fan/light unit, or the circuit.

Quick Takeaways

1. Loose neutral or load wires are the most common cause of bathroom fan and light switch failures.
2. A working light but non‑working fan usually indicates incorrect load wiring.
3. Always test voltage before assuming the switch itself is broken.
4. Dual switches often fail due to misidentified line and load terminals.
5. If breakers trip repeatedly, the issue may be inside the fan motor.

Introduction

Over the past decade working on residential renovation projects, I’ve seen a surprising number of homeowners struggle with the same problem: the bathroom fan and light switch suddenly stops working after installation, or one function works while the other doesn't.

This type of bathroom combo switch troubleshooting can be frustrating because the issue isn’t always obvious. Sometimes the wiring looks correct but a single misplaced load wire or loose neutral can disable the entire circuit. In older homes, the wiring colors may not even follow modern standards.

When clients remodel bathrooms or redesign layouts, electrical changes often happen alongside planning tools such as a visual bathroom layout planning workflow for renovation projects. But wiring errors tend to appear after installation, when switches start behaving unpredictably.

This guide walks through the exact process electricians and experienced remodelers use to diagnose bathroom fan and light switch problems. By the end, you'll know how to isolate power issues, identify incorrect wiring connections, and decide whether the switch, the fan, or the circuit is the real culprit.

save pin

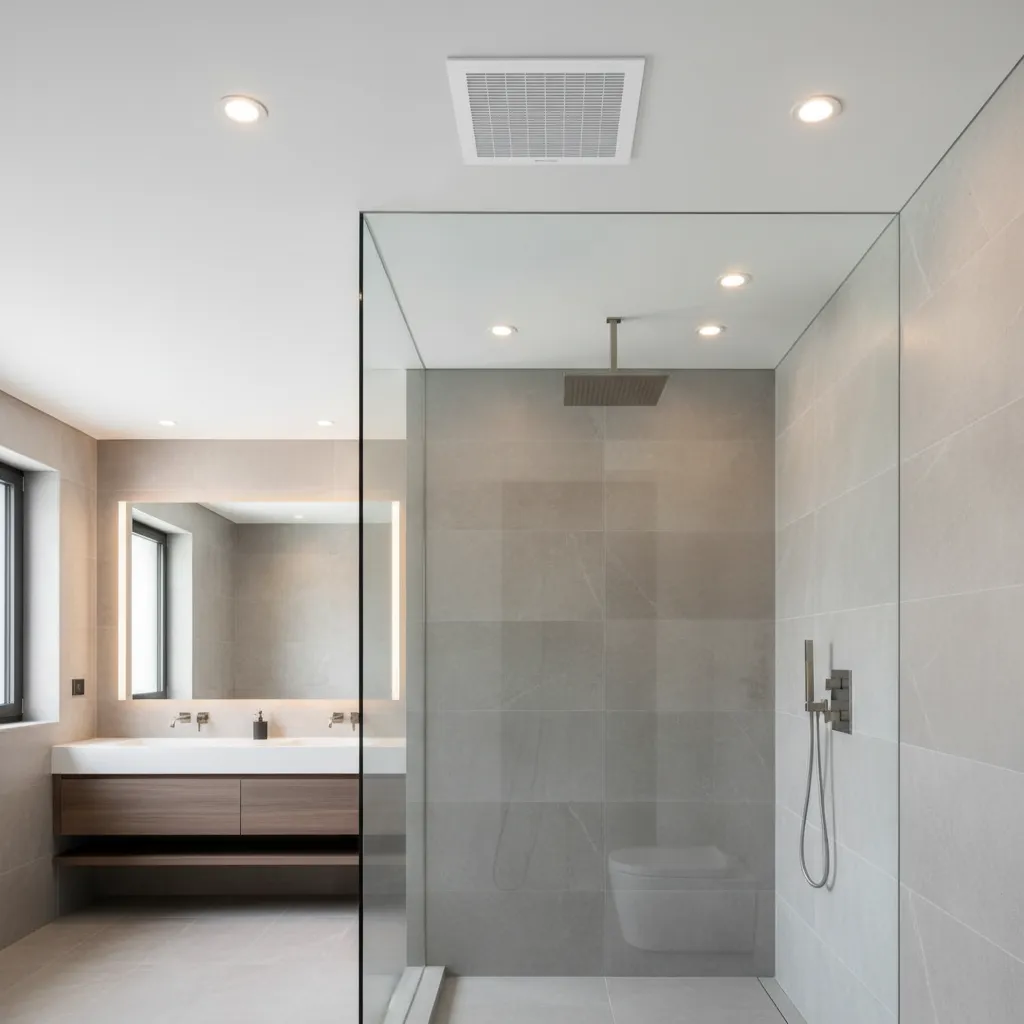

Common Symptoms When a Bathroom Light and Fan Switch Fails

Key Insight: The way a switch fails usually reveals where the wiring problem exists.

Before opening the switch box, pay attention to the behavior of the system. In most troubleshooting cases, symptoms fall into predictable patterns.

Typical bathroom exhaust fan switch problems include:

1. Light works but fan does not switch on
2. Fan runs but light will not turn on
3. Both fan and light stopped working
4. Switch works intermittently
5. Breaker trips when the fan is turned on

From experience, the "light works but fan does not" situation is almost always caused by load wires being swapped or disconnected during installation. When both devices fail, however, the issue usually lies with the power supply or the switch itself.

Electricians from the National Electrical Contractors Association often point out that combination switch devices fail more frequently than standard switches because they carry two loads through a single housing.

Checking Power Supply and Circuit Breakers

Key Insight: Always verify incoming power before touching the wiring—many "switch failures" are actually breaker issues.

One of the most overlooked steps in troubleshooting a bathroom fan switch wiring problem is confirming whether electricity is even reaching the switch box.

Follow this quick diagnostic sequence:

1. Turn off the switch and remove the wall plate.
2. Check the circuit breaker labeled for the bathroom.
3. Reset any tripped breaker.
4. Use a voltage tester to check the hot wire entering the switch.

If no power is detected, the problem may exist earlier in the circuit—often at a GFCI outlet protecting the bathroom circuit.

Modern bathroom layouts frequently share circuits between lighting and outlets, especially in compact designs. When planning wiring during renovation, tools like a 3D layout visualization for electrical and fixture placementhelp prevent these conflicts before construction begins.

save pin

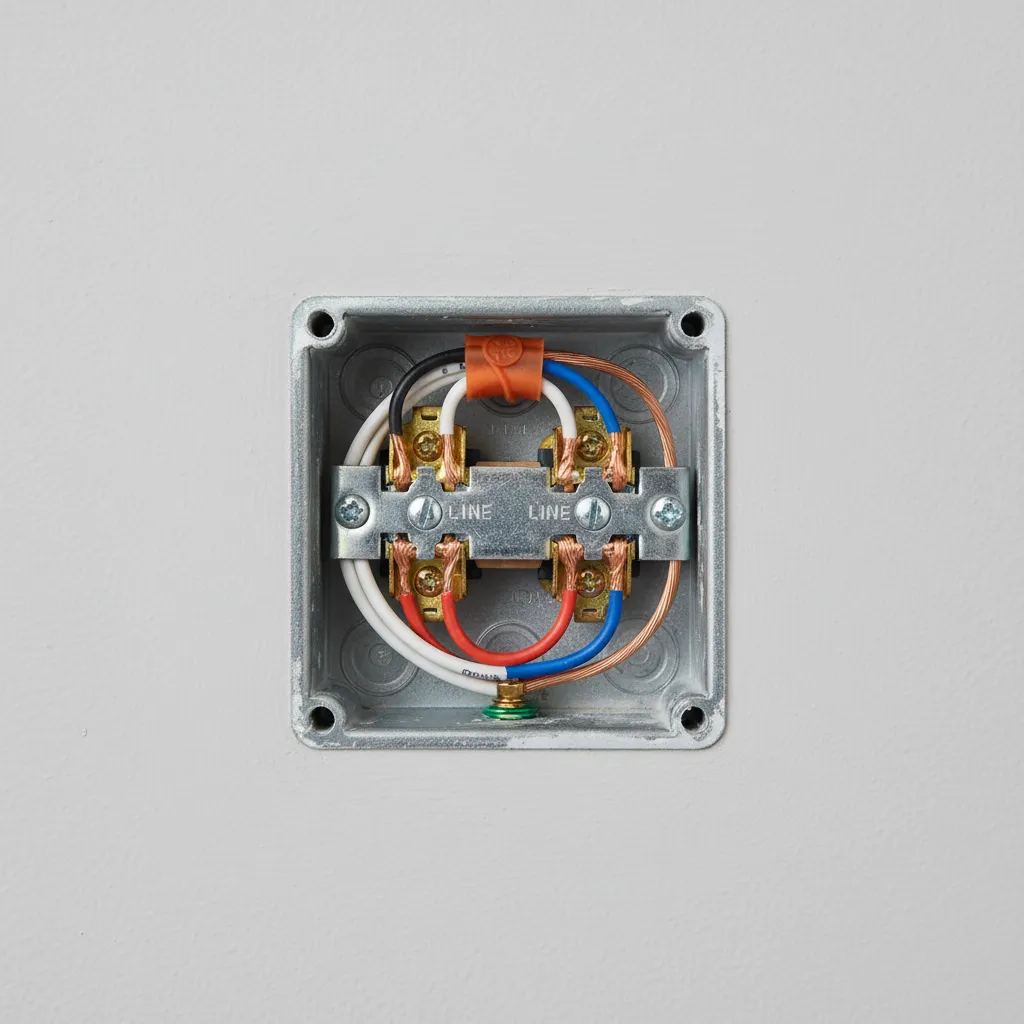

Identifying Incorrect Wiring Connections

Key Insight: Misidentified line and load wires cause more bathroom combo switch troubleshooting cases than faulty hardware.

A typical dual bathroom switch has three main wire groups:

1. Line (incoming power)
2. Load to the light
3. Load to the exhaust fan

Common wiring mistakes include:

1. Connecting the fan and light loads to the same terminal
2. Reversing line and load wires
3. Loose neutral wires inside the junction box
4. Ground wire not properly attached

In several renovation projects I've supervised, installers accidentally placed both load wires on the same switch terminal. The result: both devices turned on together or one device never received power.

The safest approach is to trace each wire physically rather than relying on color alone, especially in homes built before modern wiring standards.

save pin

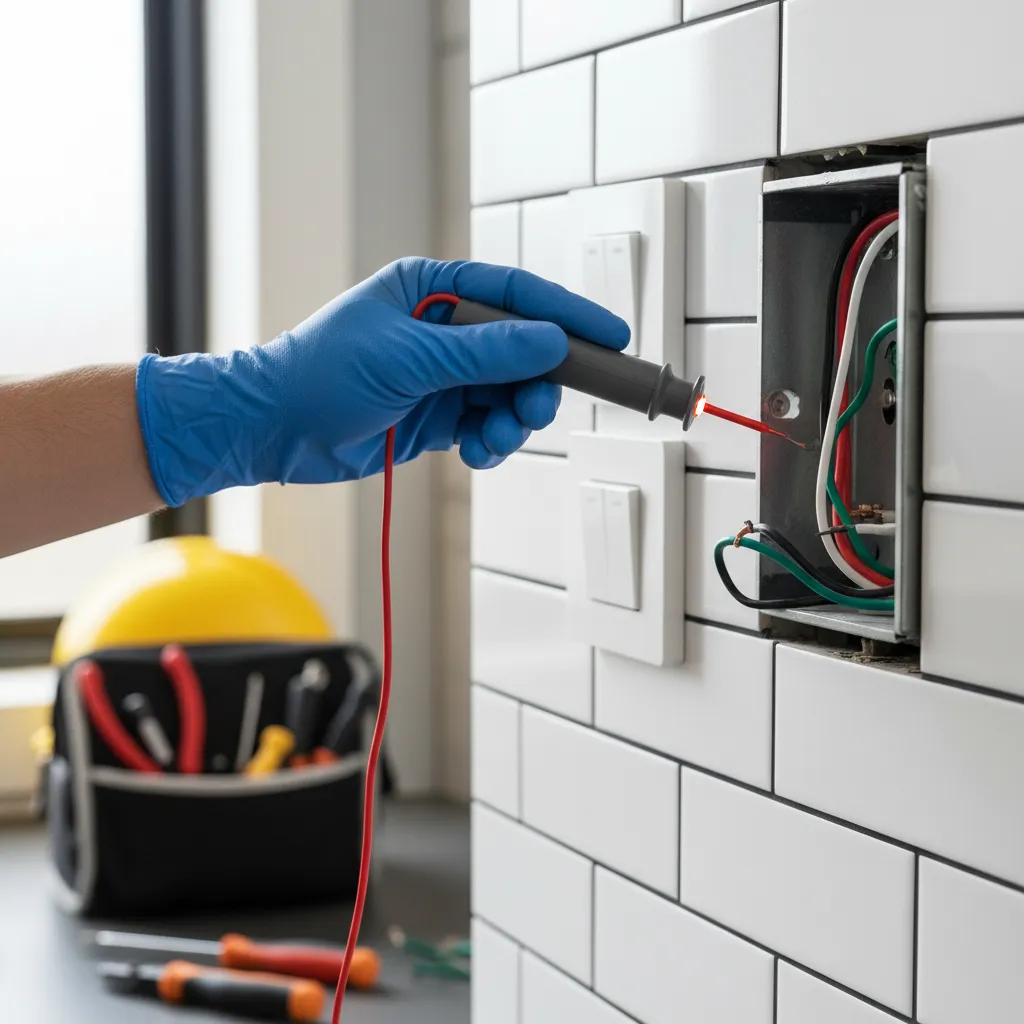

Testing the Switch with a Voltage Tester

Key Insight: A simple voltage test quickly reveals whether the switch or the device is failing.

Once wiring appears correct, the next step is testing the switch functionality itself.

Testing process:

1. Turn off the breaker and remove the switch.
2. Reconnect power temporarily.
3. Use a non‑contact or multimeter tester.
4. Check voltage between line and load terminals.

Results interpretation:

1. No voltage on line wire → power supply problem.
2. Voltage on line but not load → faulty switch.
3. Voltage on both → fan or light fixture issue.

This step alone resolves many "bathroom fan switch no power fix" cases because the switch contacts inside the unit simply wear out.

Answer Box

The fastest way to troubleshoot a bathroom fan and light switch is to verify power at the breaker, test the switch with a voltage tester, and confirm correct line‑to‑load wiring. Most failures occur due to loose connections or miswired load terminals rather than damaged fans.

Fixing Fan or Light That Works Independently

Key Insight: When one device works and the other doesn’t, the problem almost always sits between the switch and the fixture.

This scenario is extremely common in bathroom exhaust fan switch problems.

Typical causes include:

1. Disconnected load wire to the fan
2. Burned‑out fan motor
3. Loose wire nut in ceiling junction box
4. Incorrect switch terminal connection

In remodeling work, I’ve also seen fan motors fail after dust accumulation or improper duct installation restricts airflow. That mechanical failure can look like a wiring problem at first.

save pin

When to Replace the Switch or Call an Electrician

Key Insight: If wiring is correct and voltage is present, replacing the switch is usually faster than further diagnosis.

You should consider replacing the switch when:

1. The switch feels loose or overheats
2. Voltage enters but does not exit the switch
3. The switch intermittently works

However, call a licensed electrician if:

1. The breaker trips repeatedly
2. Multiple bathroom fixtures lose power
3. Wiring insulation appears damaged
4. The switch box contains aluminum wiring

When planning larger remodels, mapping electrical paths alongside the room layout using a step‑by‑step room planning tool for renovation layouts helps avoid wiring conflicts that later lead to switch failures.

Final Summary

1. Most bathroom fan and light switch problems come from loose or miswired load connections.
2. Always confirm power at the breaker before inspecting the switch.
3. A voltage tester quickly identifies faulty switches.
4. Independent device failure often points to fixture wiring.
5. Persistent electrical issues should be handled by a licensed electrician.

FAQ

Why does my bathroom fan work but the light does not?

The light load wire may be disconnected or attached to the wrong terminal. The switch may also have a burned internal contact.

Why is my bathroom fan and light switch not working?

A bathroom fan and light switch not working usually means a tripped breaker, a loose line wire, or a faulty switch.

Can a bad switch stop power to the fan?

Yes. If the internal contacts fail, power enters the switch but never reaches the fan load wire.

How do I know if the switch or fan is broken?

Use a voltage tester. If power leaves the switch but the fan does not run, the fan motor or wiring is likely the issue.

Do bathroom fan switches require a neutral wire?

Standard switches do not, but smart switches and timers often require a neutral connection.

Why does the breaker trip when I turn on the fan?

This usually indicates a short circuit in the fan motor or damaged wiring inside the ceiling junction box.

How long do bathroom switch combos last?

Most last 8–15 years depending on usage and electrical load.

What causes bathroom combo switch troubleshooting issues after installation?

Incorrect line/load identification and loose wire nuts are the most common installation mistakes.
