Bathroom Ventilation Standards and Building Code Requirements: Understand the official ventilation rules, minimum fan CFM requirements, and the building codes that govern bathroom exhaust systems in U.S. homes.

Direct Answer

Bathroom ventilation building code requirements in the United States typically mandate either an operable window or a mechanical exhaust fan that vents outdoors. Most residential codes require a bathroom exhaust fan rated at least 50 CFM for intermittent use or 20 CFM for continuous ventilation, following International Residential Code (IRC) and ASHRAE guidelines.

These standards exist to control humidity, prevent mold growth, and protect building materials from moisture damage.

Quick Takeaways

1. Most U.S. building codes require bathrooms to have either a window or mechanical exhaust ventilation.
2. Minimum exhaust fan capacity is typically 50 CFM intermittent or 20 CFM continuous.
3. Fans must vent outdoors, not into attics, crawl spaces, or wall cavities.
4. Bathrooms without windows almost always require mechanical exhaust.
5. Improper installation is one of the most common code violations.

Introduction

Bathroom ventilation building code requirements might sound like dry regulatory details, but after more than a decade working in residential design projects, I can tell you they influence real comfort, durability, and even indoor air quality.

In fact, poor bathroom ventilation is one of the most common issues I see when renovating homes built 10–20 years ago. Homeowners often assume a small fan automatically meets code, but many systems are undersized, poorly ducted, or vented incorrectly.

Design planning matters early. When I’m mapping layouts for renovation projects, I often start with airflow and moisture control before selecting finishes. If you're still working out the room layout, using a step‑by‑step bathroom layout planning approachcan make it much easier to place fans, ducts, and windows correctly from the start.

In this guide, I'll break down what major U.S. standards actually require, where many installations fail inspections, and how these rules influence practical fan usage in everyday homes.

save pin

Why Bathroom Ventilation Is Required in Building Codes

Key Insight: Building codes require bathroom ventilation primarily to control moisture, which is one of the biggest long‑term threats to residential structures.

Bathrooms generate high humidity in short bursts. Showers can push relative humidity above 90% within minutes. Without ventilation, that moisture migrates into drywall, insulation, and framing.

From a design perspective, the biggest risks include:

1. Mold growth in wall cavities
2. Paint and drywall deterioration
3. Wood framing rot
4. Indoor air quality issues

The International Residential Code (IRC Section R303) addresses this by requiring bathrooms to have either:

1. An operable window of at least 3 square feet
2. A mechanical ventilation system exhausting outdoors

In practice, modern homes rely heavily on mechanical ventilation because energy‑efficient construction makes natural airflow less reliable.

Minimum Exhaust Fan CFM Requirements

Key Insight: The minimum CFM for bathroom exhaust fan code requirements is typically 50 CFM intermittent or 20 CFM continuous.

CFM stands for cubic feet per minute — the amount of air a fan can move.

According to ASHRAE Standard 62.2 and IRC guidance:

1. 50 CFM minimum for intermittent bathroom fans
2. 20 CFM minimum for continuous ventilation

However, these numbers are widely misunderstood. In real homes, the effective airflow is often far lower due to duct length, bends, or poor installation.

In renovation projects I’ve worked on, a "50 CFM" fan frequently delivers closer to 25–35 CFM once installed. That’s why many designers now oversize fans slightly to compensate for duct resistance.

Typical sizing guidelines designers use:

1. Small bathroom: 50–70 CFM
2. Standard bathroom: 70–90 CFM
3. Large or luxury bathroom: 100–150+ CFM

save pin

ASHRAE and International Residential Code Guidelines

Key Insight: Most U.S. bathroom ventilation standards combine IRC structural requirements with ASHRAE indoor air quality recommendations.

The two major references professionals rely on are:

1. International Residential Code (IRC)
2. ASHRAE Standard 62.2

IRC focuses on construction compliance, while ASHRAE focuses on air quality performance.

Key requirements include:

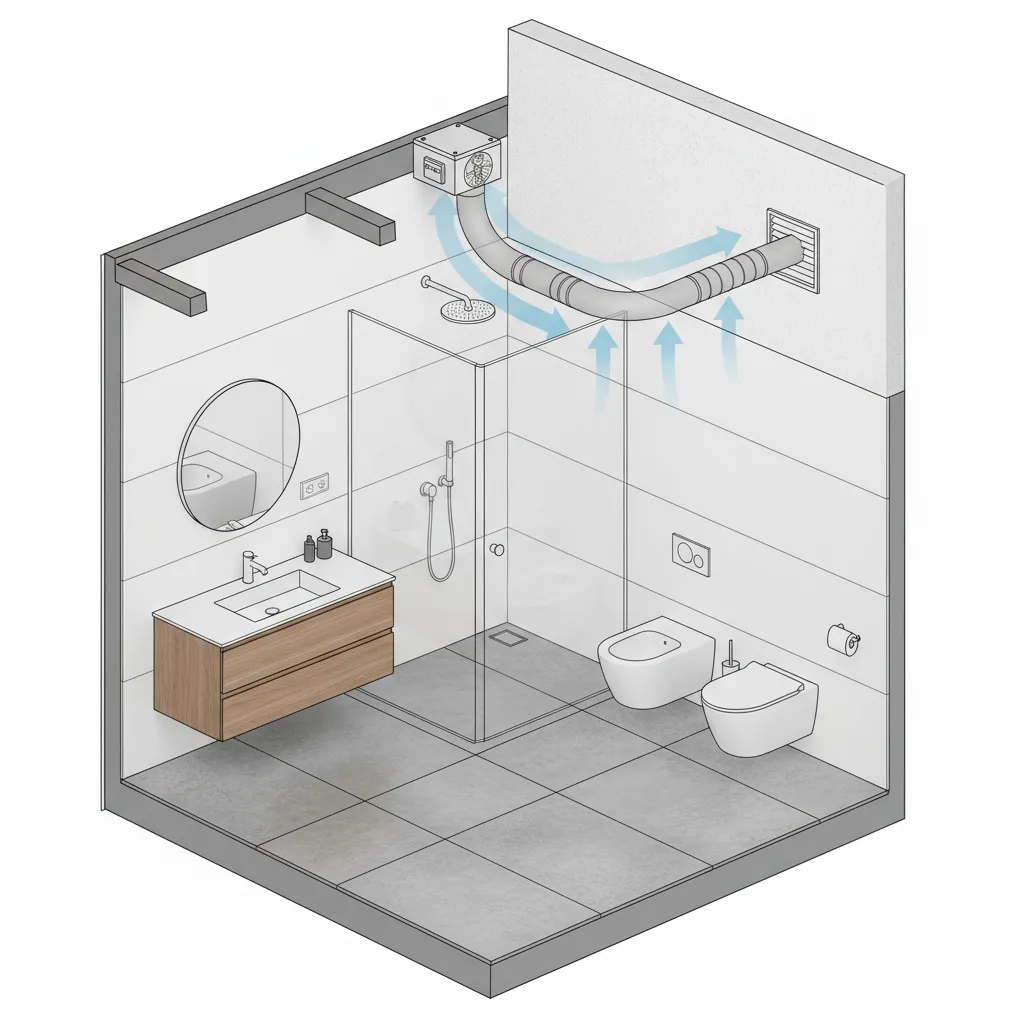

1. Mechanical ventilation must exhaust outdoors
2. Ducts should be smooth and properly sized
3. Fans must be rated for continuous or intermittent operation
4. Bathrooms without windows require mechanical ventilation

When designing new bathrooms, layout planning also affects ventilation efficiency. For example, placing the fan near the shower improves moisture capture. During early layout development, tools that help visualize room dimensions and airflow placement can reveal better fan positioning before construction begins.

Ventilation Requirements for Bathrooms Without Windows

Key Insight: Bathrooms without windows almost always require a mechanical exhaust fan that vents directly outdoors.

Windowless bathrooms are extremely common in modern homes and apartments. In these cases, codes become stricter because there is no passive ventilation.

Typical requirements include:

1. Mechanical exhaust fan installed
2. Minimum 50 CFM airflow
3. Direct ducting to exterior
4. Wall switch or automatic control

Many jurisdictions now encourage additional controls such as:

1. Humidity sensors
2. Timer switches
3. Continuous low‑speed ventilation

These features are not always required by code but are increasingly recommended by building science experts.

save pin

Answer Box

U.S. bathroom ventilation codes generally require either a window or an exhaust fan rated at least 50 CFM. The fan must vent outdoors and be sized properly for the room to effectively remove moisture and maintain indoor air quality.

Common Installation Compliance Mistakes

Key Insight: Most bathroom ventilation failures come from installation mistakes rather than incorrect fan ratings.

During renovation inspections, I regularly see fans that technically meet code on paper but fail in practice.

Common mistakes include:

1. Vent ducts terminating in the attic
2. Excessively long duct runs
3. Flexible ducts sagging and trapping condensation
4. Fans installed too far from the shower
5. No backdraft damper

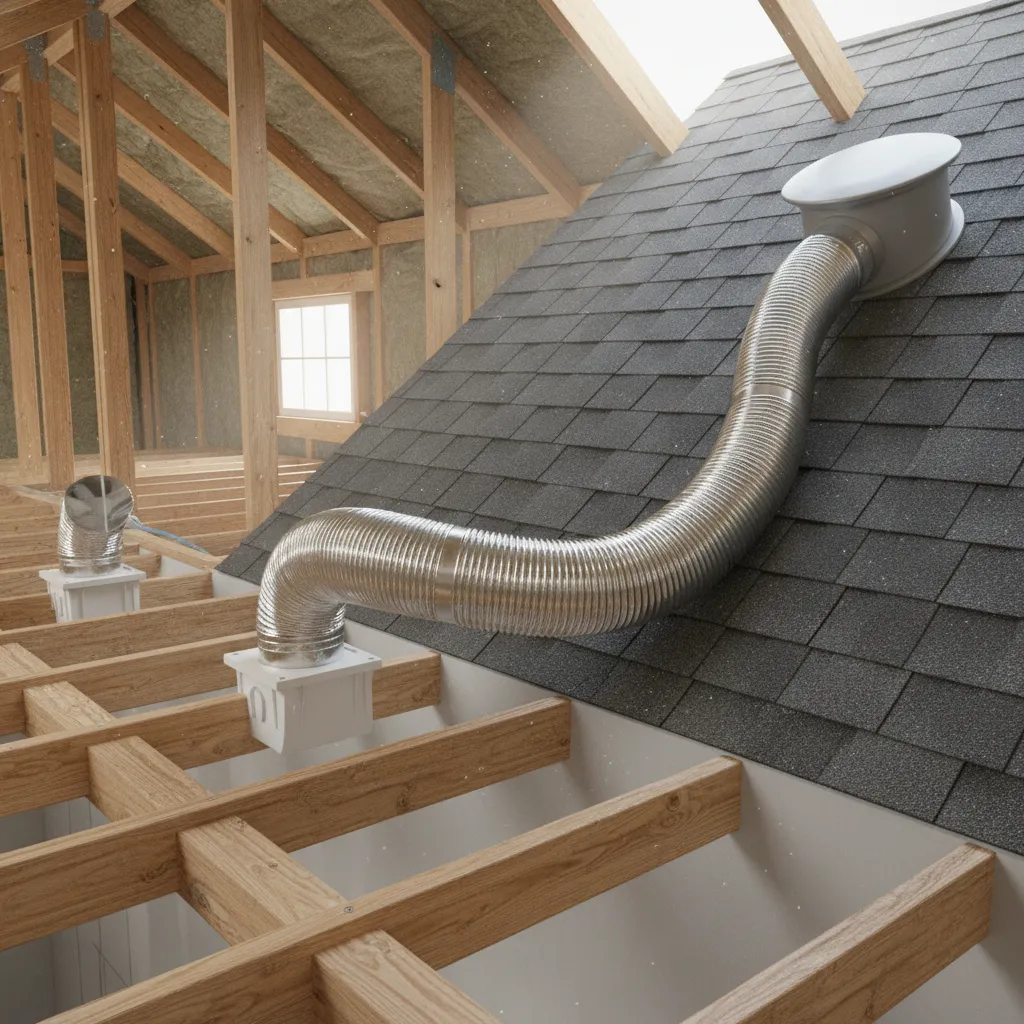

One of the most overlooked problems is duct routing. Every bend can reduce airflow significantly. Even a high‑capacity fan cannot overcome poorly designed ductwork.

save pin

How Codes Influence Fan Runtime Recommendations

Key Insight: Building codes define ventilation capacity, but real‑world moisture removal depends heavily on how long the fan runs.

Codes specify airflow levels but rarely dictate precise runtime. However, building scientists and HVAC engineers commonly recommend running fans longer than most homeowners expect.

Typical guidance includes:

1. Run fan during showers
2. Continue running 20–30 minutes afterward
3. Use humidity sensors for automatic control

In my renovation work, adding timer switches has been one of the simplest upgrades that dramatically improves moisture control.

If you want a deeper explanation of airflow performance and moisture removal, it's helpful to visualize how ventilation interacts with bathroom layout and airflow paths during the design stage.

Final Summary

1. Bathroom ventilation codes exist primarily to control moisture and protect building materials.
2. Most standards require 50 CFM intermittent or 20 CFM continuous airflow.
3. Fans must vent outdoors to meet residential code requirements.
4. Windowless bathrooms almost always require mechanical ventilation.
5. Installation quality often matters more than fan size.

FAQ

Do bathrooms require exhaust fans by code?

Most building codes require either an operable window or a mechanical exhaust fan. Bathrooms without windows must have a fan vented outdoors.

What is the minimum CFM for bathroom exhaust fan code?

The typical minimum is 50 CFM for intermittent operation or 20 CFM for continuous ventilation according to ASHRAE standards.

Can a bathroom fan vent into the attic?

No. Building codes require bathroom exhaust to vent outdoors. Venting into an attic can cause moisture buildup and mold.

Are humidity sensor fans required by code?

Usually not required, but many modern building guidelines recommend them because they improve moisture control.

Do small bathrooms still need ventilation?

Yes. Bathroom ventilation building code requirements apply regardless of room size if there is no operable window.

What happens if a bathroom has no ventilation?

Humidity accumulates quickly, increasing the risk of mold growth, paint damage, and poor indoor air quality.

Is a window enough ventilation for a bathroom?

Codes often allow an operable window instead of a fan, but mechanical ventilation is generally more reliable.

What ventilation standards apply in the USA?

The main references are the International Residential Code (IRC) and ASHRAE Standard 62.2 for residential ventilation.

References

1. International Residential Code (IRC) Section R303
2. ASHRAE Standard 62.2 Ventilation and Indoor Air Quality
3. U.S. Environmental Protection Agency – Indoor Air Quality Guidance
