Best 5x12 Bathroom Layouts Compared for Practical Small Space Design: See how tub, walk in shower, and wet room layouts perform in a narrow 5x12 bathroom before choosing your floor plan.

Direct Answer

The best 5x12 bathroom layout depends on priorities. A tub layout supports family use, a walk‑in shower layout maximizes daily comfort, and a wet room layout offers the highest space efficiency for narrow bathrooms. In most modern homes, a walk‑in shower configuration delivers the best balance between usability, storage, and circulation.

Quick Takeaways

1. A walk‑in shower layout usually provides the best usability in a 5x12 bathroom.
2. Tub layouts remain ideal for family homes with children.
3. Wet rooms maximize floor area but require careful waterproofing.
4. Proper fixture spacing matters more than fixture size in narrow bathrooms.
5. Planning plumbing locations early prevents costly layout compromises.

Introduction

After working on dozens of narrow bathroom renovations, I can say the 5x12 bathroom layout is one of the most misunderstood small‑space challenges. On paper, 60 square feet sounds workable. In reality, that long and narrow footprint creates traffic conflicts, awkward fixture spacing, and storage problems if the layout isn’t carefully planned.

Most homeowners I meet start with a single question: should they keep the tub or switch to a shower? But once we begin sketching floor plans, the conversation quickly expands into circulation space, door swings, vanity depth, and how plumbing locations limit layout flexibility.

Before committing to construction, I often recommend homeowners experiment with a digital planning tool like this interactive planner for testing small bathroom floor plans. Seeing the layout visually usually reveals problems that aren’t obvious in a simple sketch.

In this guide, I’ll compare three common 5x12 bathroom configurations I’ve used in real projects: the traditional tub layout, the walk‑in shower layout, and the wet room approach. Each works well in different situations, but the trade‑offs are rarely explained clearly.

save pin

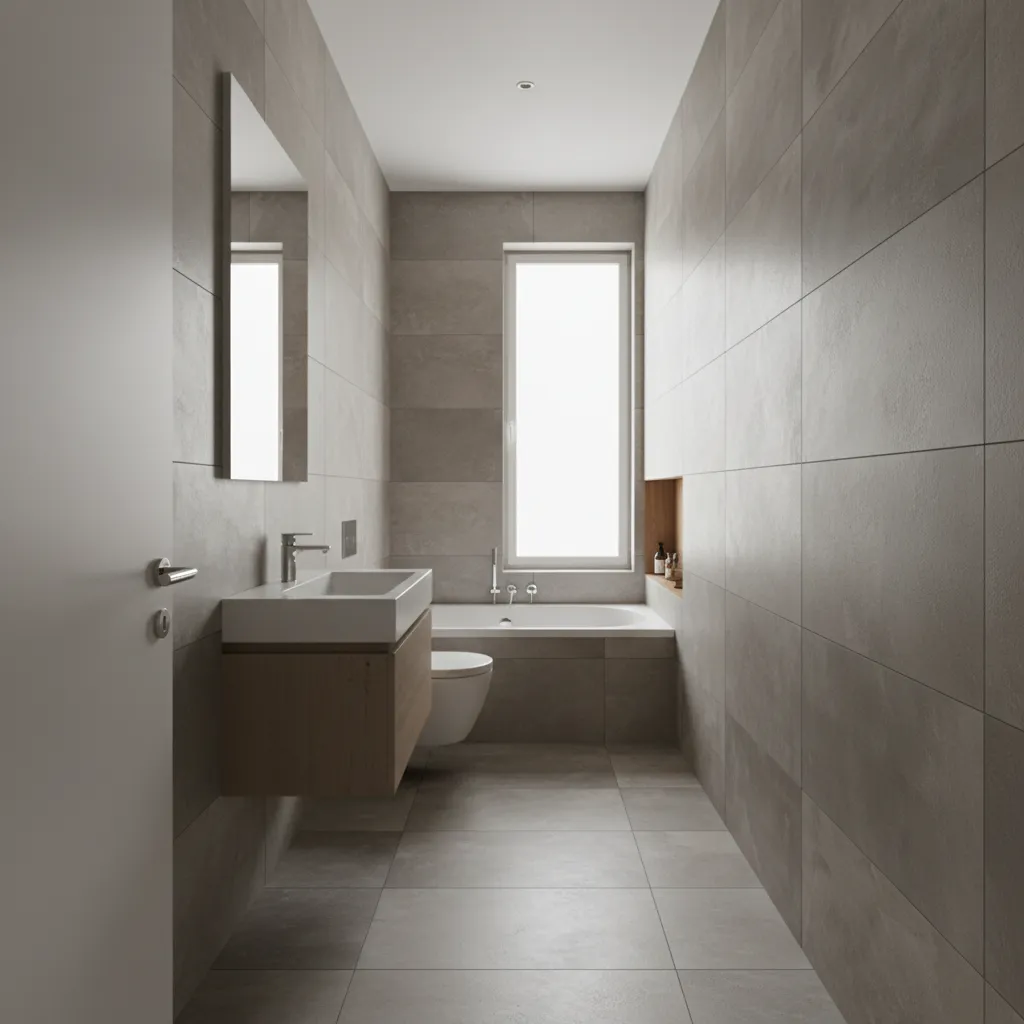

Overview of the 5x12 Bathroom Space Constraints

Key Insight: In a 5x12 bathroom, circulation space—not fixture size—is the real design constraint.

Most design mistakes happen because homeowners try to squeeze oversized fixtures into a narrow footprint. Building codes typically require about 21 inches of clearance in front of toilets and vanities, and showers usually need at least 30 inches of width for comfort.

In a 5‑foot‑wide room, those clearances quickly eat into usable space.

Typical dimensional realities:

1. Standard bathtub length: 60 inches
2. Comfortable shower width: 32–36 inches
3. Typical vanity depth: 20–22 inches
4. Toilet clearance: 30 inches minimum width

Because of these constraints, most efficient layouts place fixtures along one wall while maintaining a clear walking path on the opposite side.

In my experience, the most successful designs also minimize plumbing relocation. Moving a toilet drain even a few feet can significantly increase renovation costs.

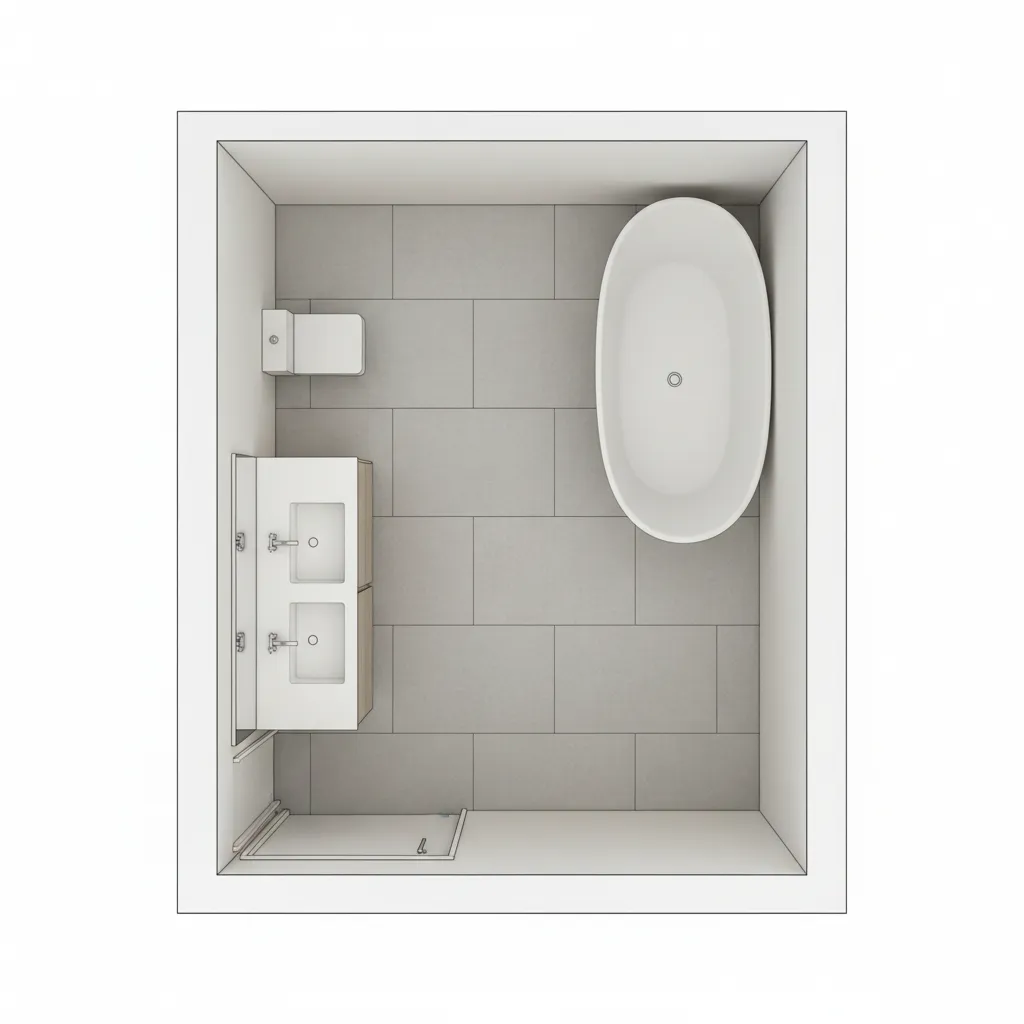

Traditional Tub and Vanity Layout

Key Insight:A classic tub layout fits well in a 5x12 bathroom but sacrifices flexibility for future upgrades.

This is the configuration found in many older homes: bathtub at the end wall, toilet beside it, and a single vanity near the door.

Typical layout sequence:

save pin

1. Bathtub across the 5‑foot end wall
2. Toilet next to the tub
3. Vanity near the entry door
4. Clear walking corridor along one side

Advantages:

1. Efficient plumbing alignment
2. Works well for family homes
3. Familiar layout for resale value

Hidden drawback most people overlook:

1. The tub consumes the entire width of the room
2. Storage opportunities become limited
3. The space often feels visually tight

According to remodeling industry reports, bathtubs remain important for resale in family‑oriented neighborhoods. However, in urban apartments, showers are now preferred by many buyers.

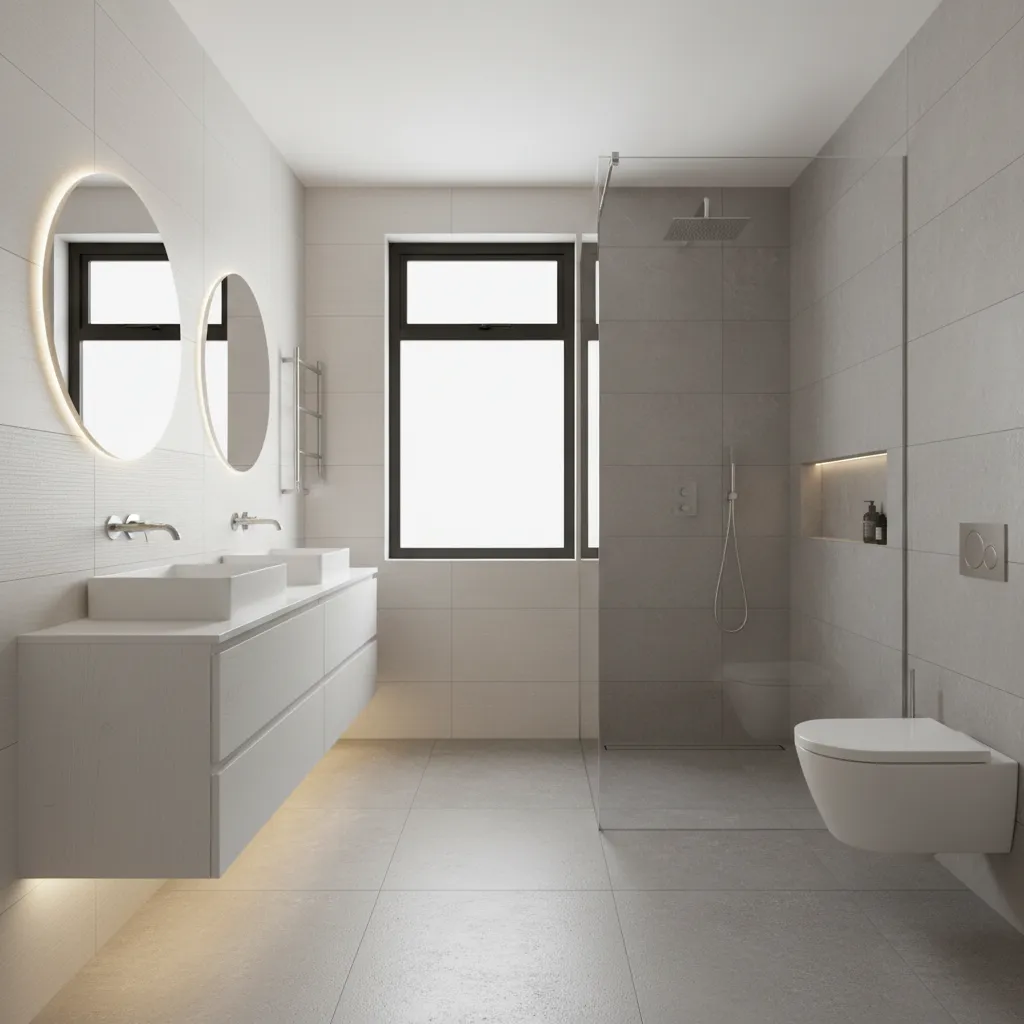

Walk In Shower Focused Layout

Key Insight: Replacing the tub with a walk‑in shower dramatically improves circulation and visual openness.

In most of my recent projects, this is the layout clients ultimately choose. By eliminating the full‑length tub, the design gains flexibility.

A typical configuration looks like this:

1. 36–48 inch walk‑in shower at the far end
2. Floating vanity along one wall
3. Toilet centered between vanity and shower

Why this layout works well:

save pin

1. More open floor area
2. Better natural light distribution
3. Easier accessibility for aging homeowners

One design trick I use frequently is a frameless glass partition instead of a full shower enclosure. It visually extends the room and prevents the “tunnel effect” common in narrow bathrooms.

If you want to visualize how this configuration fits your exact room dimensions, this interactive bathroom layout planning experience can quickly generate different shower‑based floor plans.

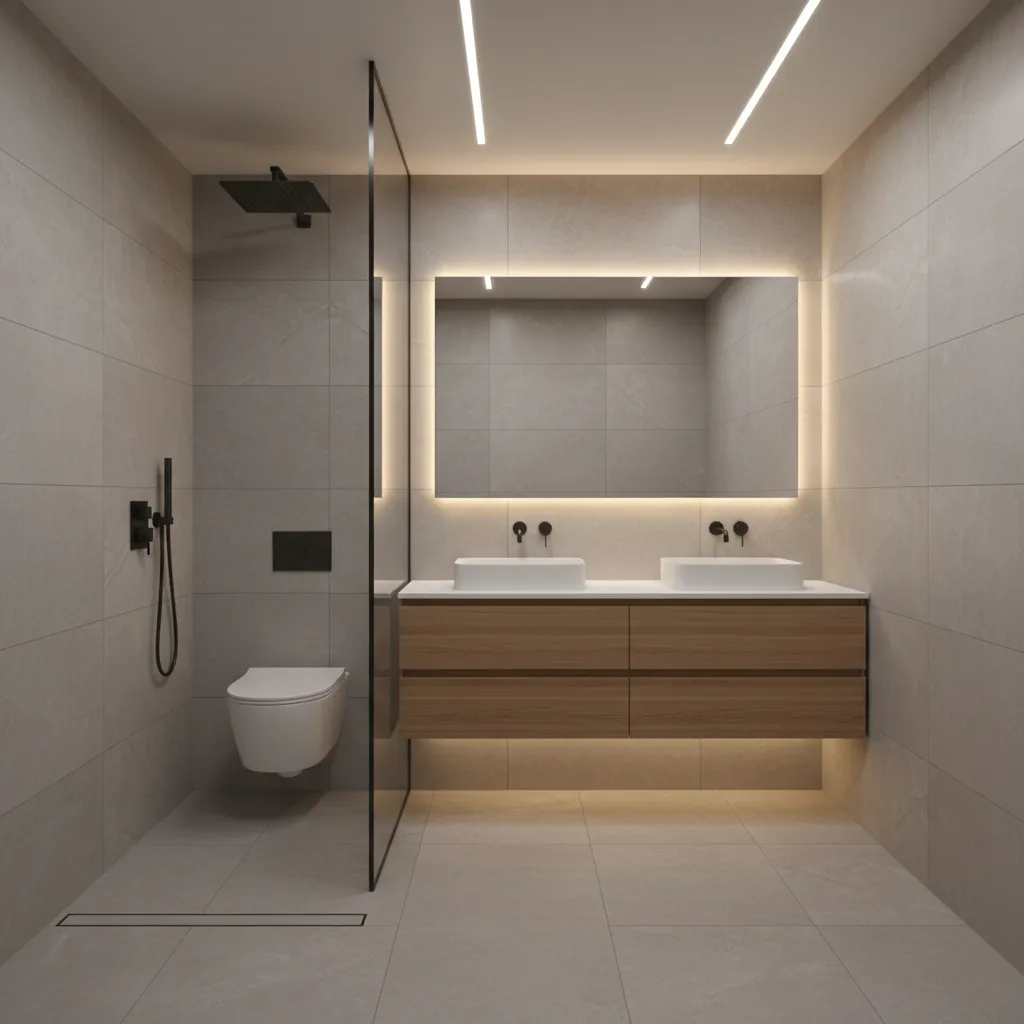

Wet Room Style Layout for Narrow Bathrooms

Key Insight:Wet room layouts maximize space but require careful drainage and waterproofing.

Wet rooms eliminate the traditional shower enclosure. Instead, the entire bathroom floor is waterproofed and slightly sloped toward a central drain.

Typical wet room setup:

save pin

1. Open shower zone at the far end
2. Glass screen instead of a full enclosure
3. Wall‑mounted toilet and vanity

Benefits:

1. Creates the most spacious visual effect
2. Reduces physical barriers
3. Ideal for ultra‑narrow bathrooms

However, there are two hidden costs many guides ignore:

1. Floor slope engineering and waterproofing
2. Higher installation complexity

Professional waterproofing membranes and precise drain placement are essential. Without them, water migration becomes a long‑term problem.

Answer Box

The most practical 5x12 bathroom layout for most homes is a walk‑in shower configuration. It improves circulation, increases visual openness, and adapts better to modern lifestyles than traditional tub layouts.

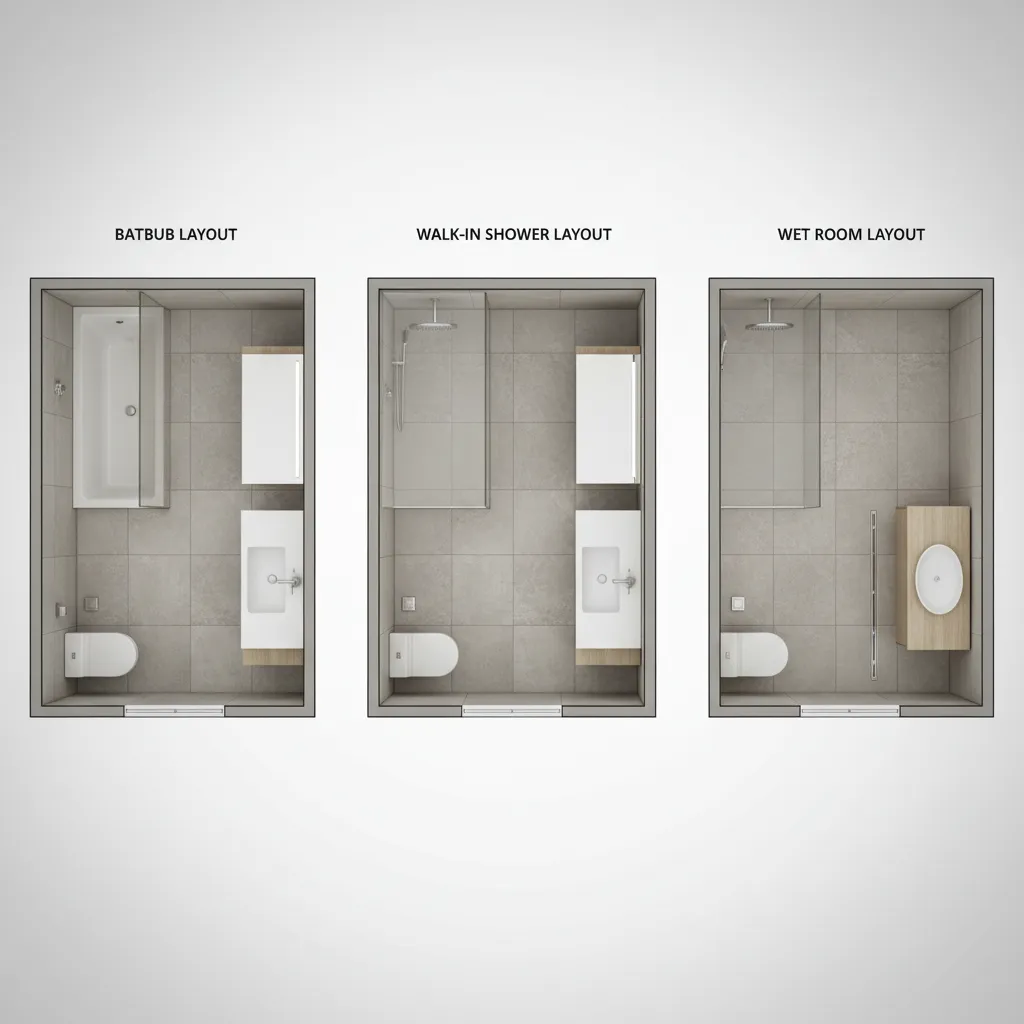

Space Efficiency Comparison of Each Layout

Key Insight: Layout efficiency is determined by usable floor area, not total square footage.

Here is a simplified comparison from typical renovation projects:

1. Tub layout: Best for families but visually tight
2. Walk‑in shower layout: Balanced usability and openness
3. Wet room layout: Maximum visual space but higher cost

Practical ranking for most homes:

1. Walk‑in shower layout
2. Tub layout
3. Wet room layout

The winner isn’t always the most spacious design—it’s the one that fits your lifestyle and plumbing constraints.

Which 5x12 Bathroom Layout Works Best for Different Homes

Key Insight: The ideal layout depends more on household needs than on room dimensions.

Here’s how I typically recommend choosing:

1. Families with young kids → Tub layout
2. Couples or small households → Walk‑in shower layout
3. Design‑focused renovations → Wet room layout

Another important factor is visualization before construction. Seeing the room in 3D often reveals circulation issues early. Many designers use tools like this visual simulator for realistic bathroom design previews to evaluate layouts before construction begins.

Final Summary

1. Walk‑in shower layouts offer the best balance for most 5x12 bathrooms.
2. Tub layouts remain valuable for family homes.
3. Wet rooms maximize openness but increase construction complexity.
4. Fixture placement and circulation space matter more than fixture size.
5. Testing layouts visually prevents expensive renovation mistakes.

FAQ

What is the best 5x12 bathroom layout?

A walk‑in shower layout is usually the best 5x12 bathroom layout because it improves circulation and opens up the narrow space.

Can a 5x12 bathroom fit both a tub and separate shower?

Typically no. The width of five feet makes it difficult to include both without compromising clearances and comfort.

Is a wet room good for a 5x12 bathroom?

Yes, wet rooms can work well in narrow bathrooms because they remove bulky enclosures and create a more open layout.

How wide should a shower be in a 5x12 bathroom?

Most designers recommend at least 32–36 inches of shower width for comfort.

Does removing the tub hurt resale value?

It depends on the neighborhood. Family markets often expect at least one bathtub in the home.

What vanity size works best in a narrow bathroom?

A 24–30 inch vanity with reduced depth (around 18 inches) often works best.

How do you make a 5x12 bathroom feel bigger?

Use glass shower panels, wall‑mounted fixtures, light colors, and continuous flooring to visually expand the space.

Is planning important for a 5x12 bathroom floor plan comparison?

Yes. A proper 5x12 bathroom floor plan comparison helps identify circulation issues before construction begins.
