Best 5x9 Bathroom Layout: How to Choose the Right Remodel Plan: A practical decision guide to choosing the most functional 5x9 bathroom layout for comfort, storage, and renovation cost control.

Direct Answer

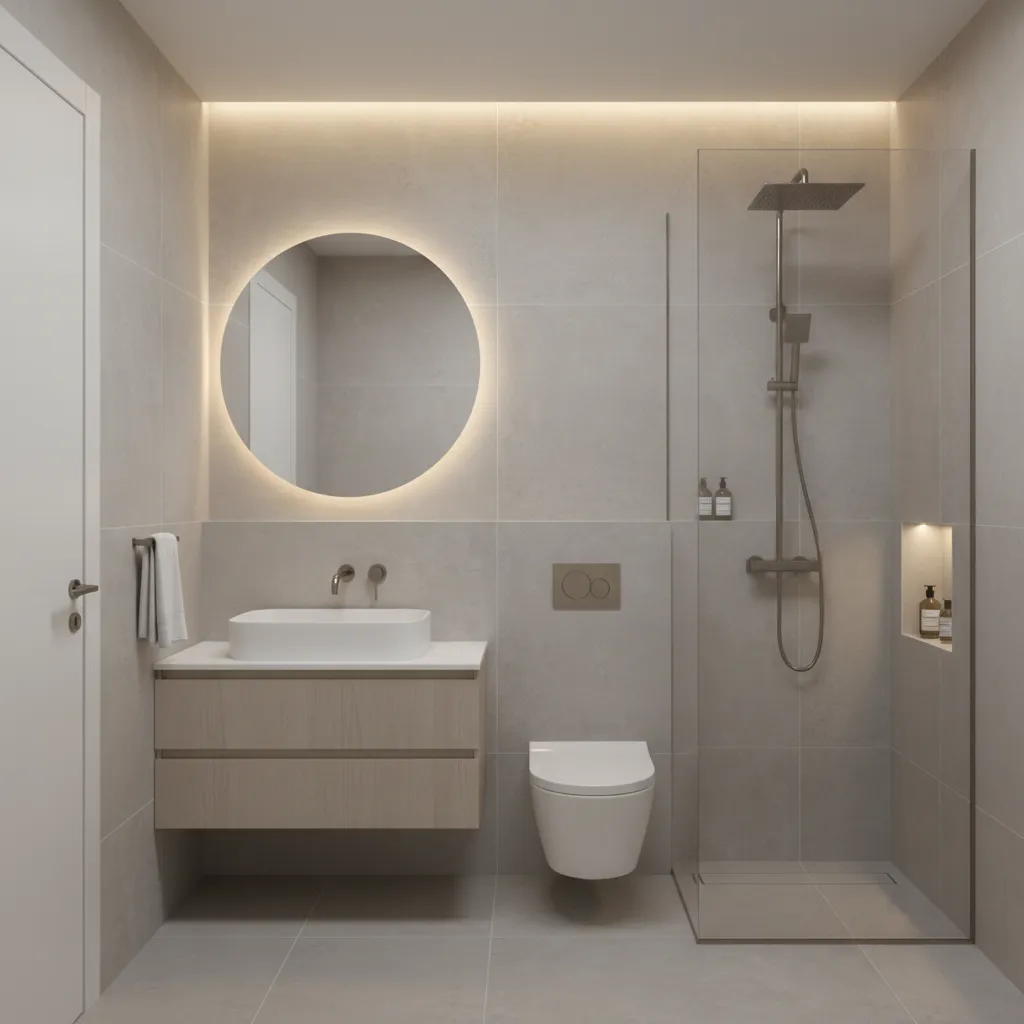

The best layout for a 5x9 bathroom usually places the vanity near the door, the toilet in the center, and a tub or shower along the back wall. This arrangement preserves walking space, simplifies plumbing, and keeps the room visually open.

However, the right configuration ultimately depends on plumbing location, whether you want a tub or shower, and how much storage the household needs.

Quick Takeaways

1. The most efficient 5x9 bathroom layout keeps plumbing fixtures aligned along one wall.
2. Replacing a tub with a walk‑in shower can free up valuable movement space.
3. Vanities between 24 and 36 inches usually balance storage and circulation best.
4. Moving plumbing is often the most expensive part of a small bathroom remodel.
5. Prioritize comfortable movement space before adding extra storage cabinets.

Introduction

After working on dozens of compact bathroom renovations, I've noticed something interesting: a 5x9 bathroom remodel looks straightforward on paper, but layout decisions quickly become complicated once fixtures, storage, and door swings enter the conversation.

Homeowners often ask the same question: what is the best 5x9 bathroom layout that balances comfort, cost, and storage? The challenge is that a small room gives you very little room for error. A vanity that's four inches too deep or a poorly positioned toilet can make the space feel cramped forever.

In many of my projects, the smartest approach begins with mapping the room carefully using a visual planning tool. If you want to experiment with different configurations before committing to construction, this interactive way to sketch a bathroom layout before renovationhelps homeowners see how fixture placement affects circulation.

In this guide, I'll break down how professionals actually evaluate a 5x9 bathroom layout—what matters, what most online guides miss, and how to avoid costly mistakes during a small bathroom remodel.

save pin

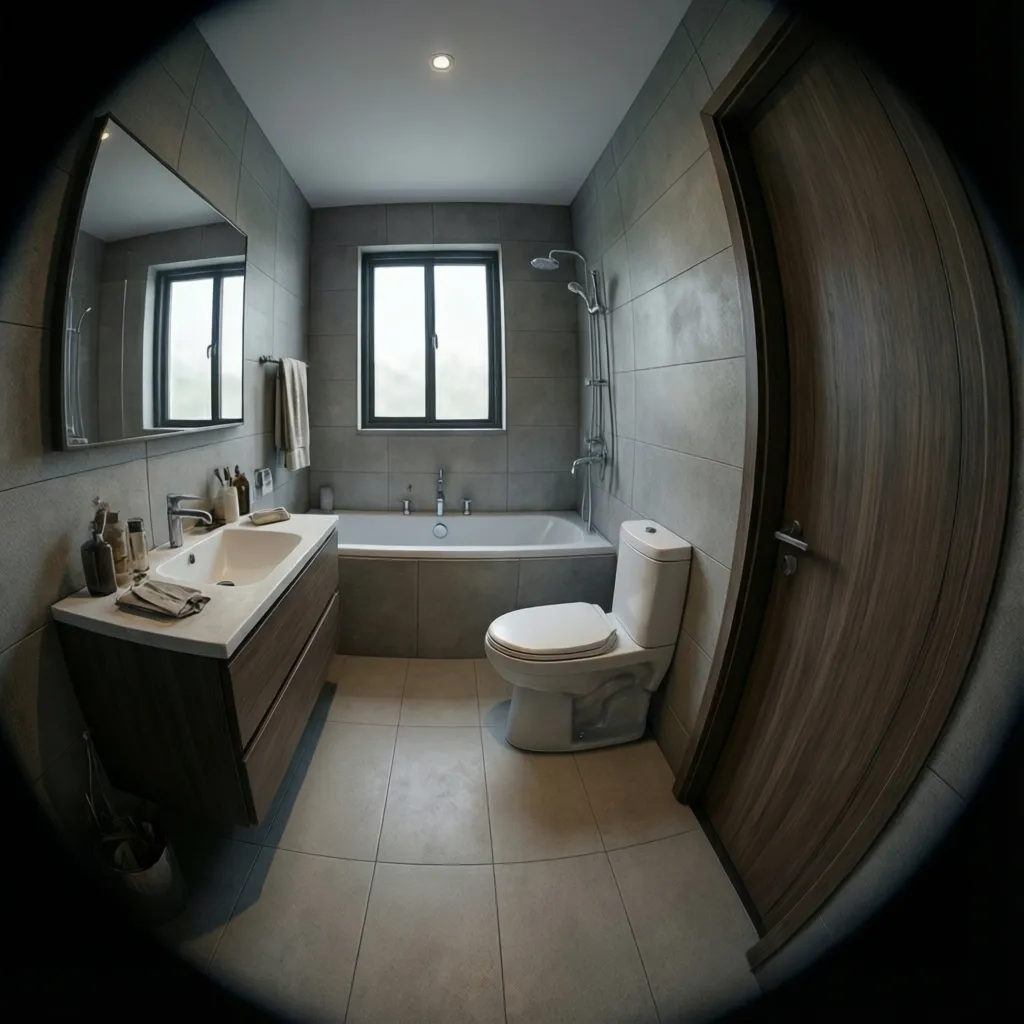

Key Factors When Planning a 5x9 Bathroom Remodel

Key Insight: The success of a small bathroom layout depends more on circulation space than fixture size.

A 5x9 bathroom gives you only 45 square feet. That means every inch of clearance matters. In real projects, the most common mistake I see is trying to squeeze too many features into a compact footprint.

Before choosing fixtures, I evaluate four constraints.

1. Door swing clearance – a swinging door can consume up to 9 square feet of usable space.
2. Fixture spacing – building codes typically require 15 inches from toilet centerline to wall.
3. Walkway width – 30 inches is the comfort threshold in narrow bathrooms.
4. Plumbing alignment – keeping fixtures along one wall dramatically reduces renovation cost.

According to the National Kitchen & Bath Association planning guidelines, maintaining proper clearance zones improves usability far more than increasing fixture size.

That’s why the most efficient layout usually runs fixtures along one side of the room rather than placing them opposite each other.

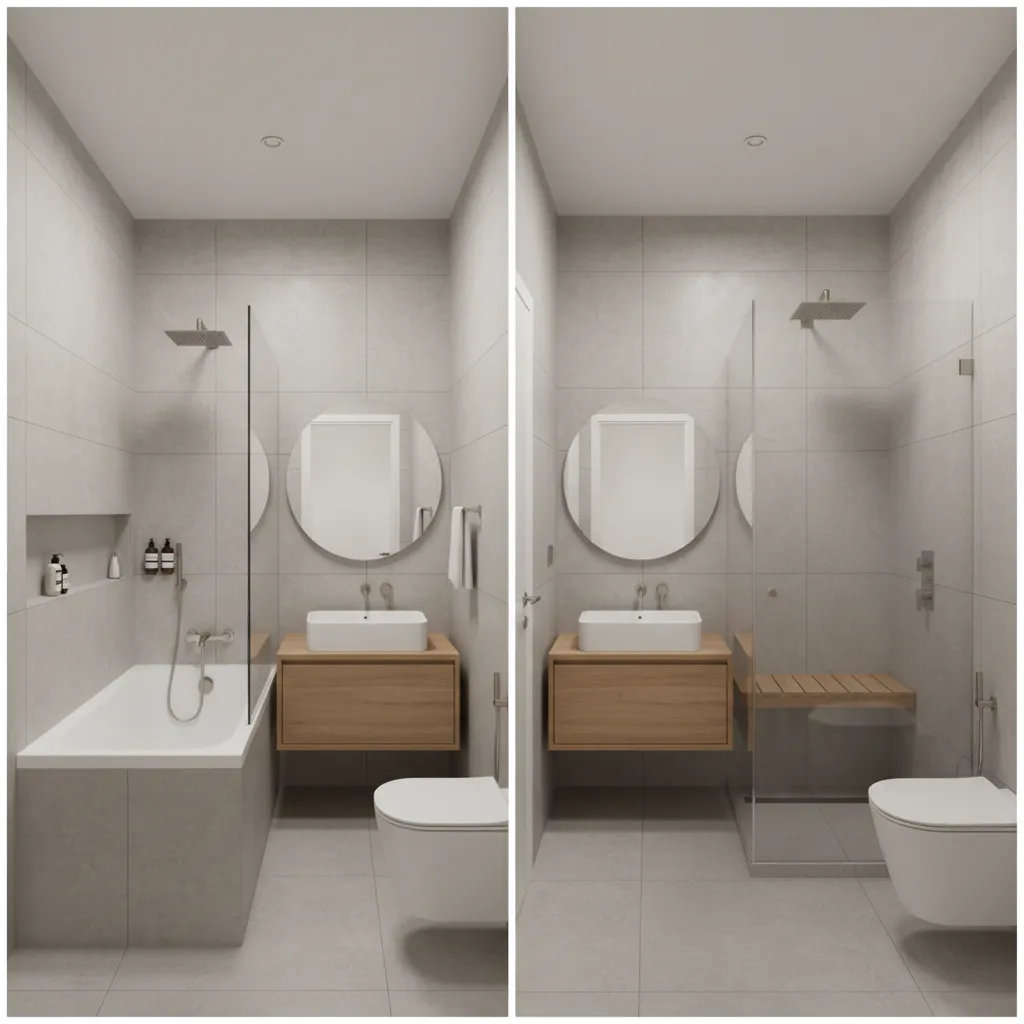

Choosing Between Tub, Shower, or Shower‑Tub Combo

Key Insight: The tub-versus-shower decision shapes the entire 5x9 bathroom layout.

In small bathrooms, the bathing fixture determines how the rest of the room works. A standard bathtub requires about 60 inches of length, which almost always occupies the full back wall of a 5x9 bathroom.

Here’s how the options compare in real renovations:

1. BathtubBest for homes with children
2. Helps resale value in family neighborhoods
3. Consumes the most space
4. Walk‑in showerCreates more open floor area
5. Easier accessibility
6. Popular in modern remodels
7. Shower‑tub comboMost flexible solution
8. Fits typical 5x9 layouts
9. Works for resale and daily practicality

In my experience, homeowners without kids often regret installing a bulky tub in a small bathroom they rarely use.

save pin

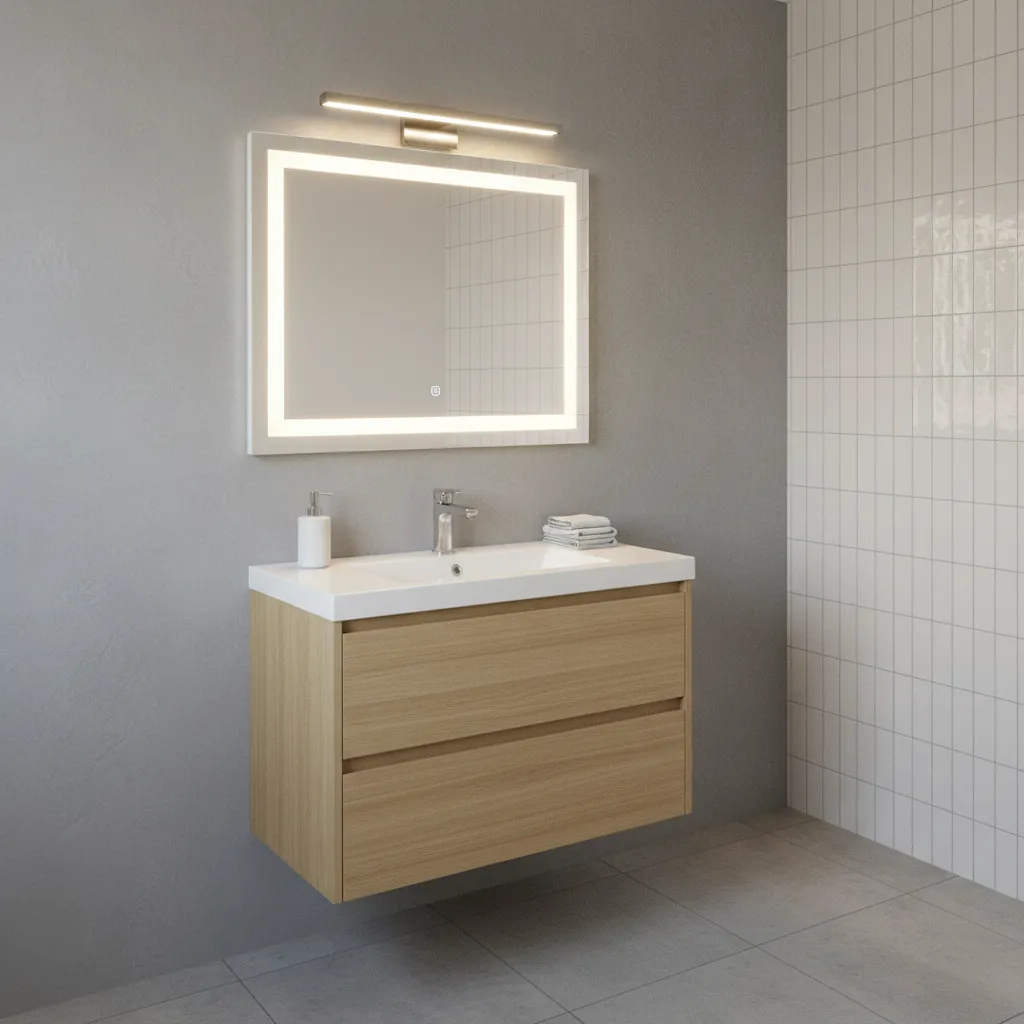

Vanity Size and Placement Decisions

Key Insight: A slightly smaller vanity often makes the entire bathroom feel significantly larger.

Many people instinctively choose the biggest vanity possible for storage. But in tight layouts, this can choke circulation space.

The most practical vanity sizes for a 5x9 bathroom are:

1. 24 inches – compact powder‑room style
2. 30 inches – balanced storage and comfort
3. 36 inches – maximum size before the room feels tight

Placement also matters. I usually recommend installing the vanity immediately next to the door wall. This prevents visual crowding deeper in the room.

If you want to experiment with fixture spacing visually, many homeowners test arrangements using a visual bathroom layout planner for small spacesbefore choosing cabinetry sizes.

save pin

Plumbing Location and Renovation Cost Considerations

Key Insight: Moving plumbing lines is often the hidden cost that doubles a small bathroom renovation budget.

One of the biggest misconceptions I see online is that layout changes are purely design decisions. In reality, plumbing locations strongly dictate what is practical.

Here’s a rough cost comparison from typical remodeling projects:

1. Keeping fixtures in original location – lowest cost
2. Moving a toilet a few feet – moderate cost
3. Relocating multiple plumbing lines – high cost

Contractors often explain that toilet drains require larger pipes and structural modifications. This makes them the most expensive fixture to relocate.

For many 5x9 remodels, the smartest strategy is improving layout efficiency while keeping plumbing aligned along the same wall.

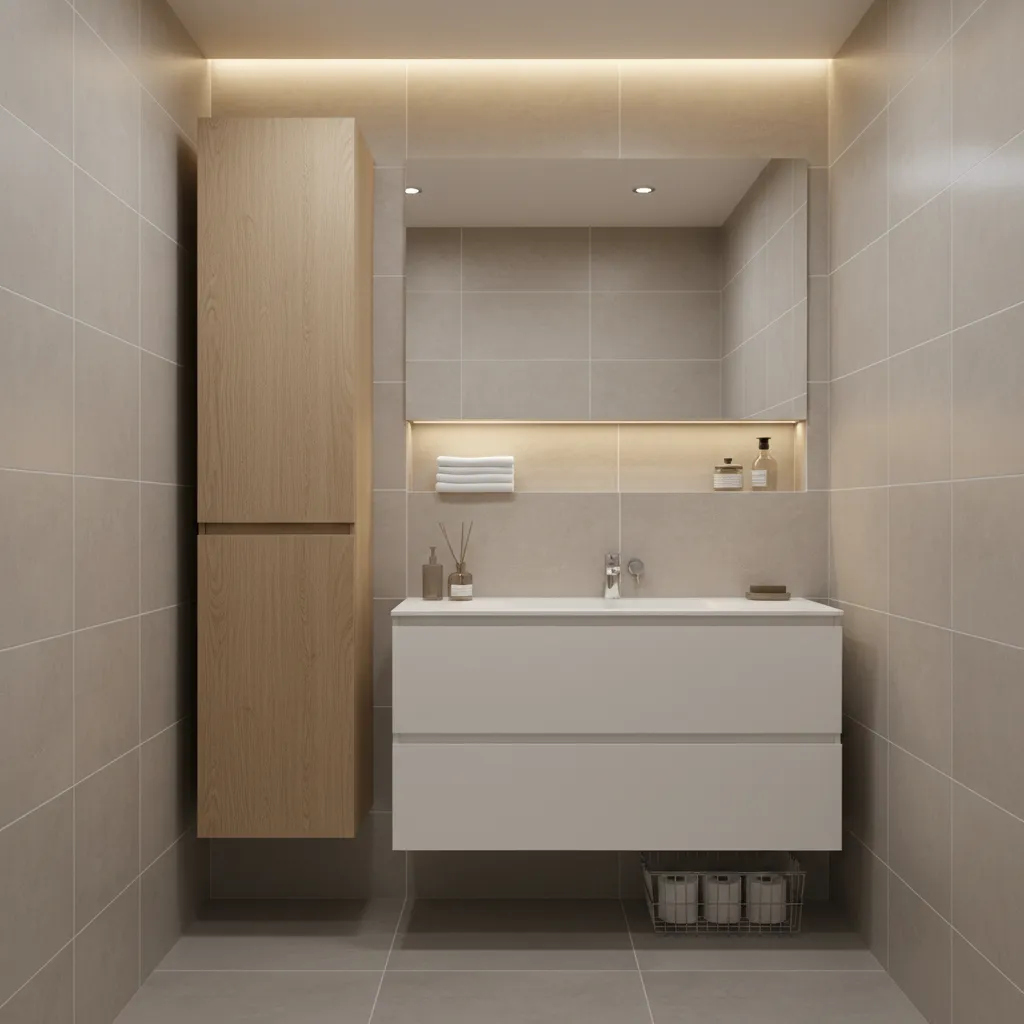

Balancing Storage, Comfort, and Space

Key Insight: Smart vertical storage solves most small bathroom clutter without shrinking floor space.

Instead of adding bulky cabinets, designers usually increase storage vertically.

Effective small-bathroom storage ideas include:

1. Recessed shower niches
2. Medicine cabinets with hidden shelving
3. Floating vanities with drawers
4. Tall linen cabinets in unused corners
5. Over‑toilet shelving

If you're exploring different ways to arrange these elements, reviewing examples of small bathroom room layout experimentscan help visualize how storage impacts circulation.

save pin

Step‑by‑Step Process to Finalize a 5x9 Layout

Key Insight: The most reliable bathroom layouts are developed through testing multiple configurations before construction begins.

When I design a compact bathroom, I follow a simple planning workflow.

1. Measure the room precisely, including door swings.
2. Mark existing plumbing positions.
3. Place the bathing fixture first (tub or shower).
4. Position the toilet with proper clearance.
5. Choose the largest vanity that preserves walkway space.
6. Add vertical storage instead of bulky cabinets.

This process prevents the most common mistake: designing around aesthetics before confirming spatial comfort.

Answer Box

The best 5x9 bathroom layout typically aligns the vanity, toilet, and tub or shower along one wall to maximize walking space and minimize plumbing changes. Prioritizing circulation and vertical storage makes a small bathroom feel significantly larger.

Final Summary

1. The most efficient 5x9 layout aligns plumbing fixtures along one wall.
2. Walk‑in showers often improve movement space in small bathrooms.
3. Vanities between 24–36 inches balance storage and circulation.
4. Moving plumbing is the most expensive layout decision.
5. Vertical storage solutions keep small bathrooms functional.

FAQ

What is the best 5x9 bathroom layout?

The most common layout places a vanity near the door, a toilet in the middle, and a tub or shower on the back wall.

Should a 5x9 bathroom have a tub or shower?

A shower improves space efficiency, but a tub may help resale value in family homes.

Is a 36 inch vanity too big for a 5x9 bathroom?

It can work, but circulation becomes tight. Many designers prefer 30 inches.

How much space is needed around a toilet?

Most building codes require 15 inches from the center of the toilet to any side wall.

Can you move plumbing in a small bathroom remodel?

Yes, but it increases cost significantly, especially when relocating toilet drains.

How do you design a 5x9 bathroom efficiently?

Start with fixture placement, maintain walkway clearance, and add vertical storage instead of bulky cabinets.

What are common mistakes in a 5x9 bathroom remodel layout?

Oversized vanities, poor door swing planning, and ignoring circulation space are frequent issues.

How do professionals plan small bathroom layouts?

Designers usually test multiple configurations with floor planning tools before finalizing construction drawings.
