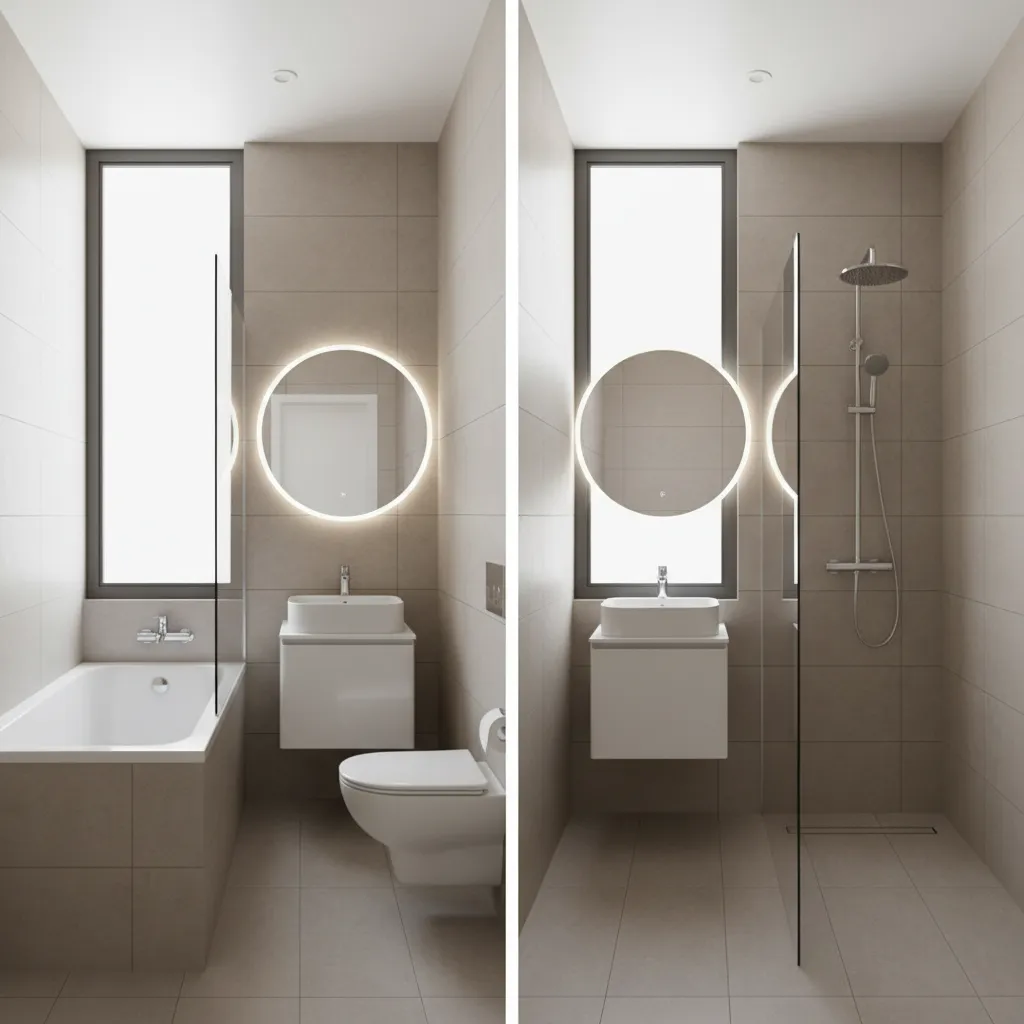

Best 9x5 Bathroom Layouts Compared Tub Shower and Walk In Options: See how different tub, shower, and walk in layouts actually work inside a standard 9x5 bathroom before planning a remodel.

Direct Answer

The best 9x5 bathroom layout depends on whether you prioritize bathing, open floor space, or accessibility. Most homeowners choose either a tub shower combo along the long wall or a walk in shower layout that frees up visual space. Each configuration fits the same footprint but changes usability, storage opportunities, and daily comfort.

Quick Takeaways

1. A tub shower combo is the most space efficient layout for a standard 9x5 bathroom.
2. Walk in showers make a 9x5 bathroom feel larger but reduce bathing flexibility.
3. Corner showers save floor space but can reduce usable interior shower width.
4. Clearance rules often determine layout success more than fixture size.
5. Door swing and vanity depth are the two most common layout mistakes.

Introduction

After designing dozens of compact bathrooms, I can say one thing with confidence: a 9x5 bathroom layout is deceptively tricky. On paper it looks straightforward. In practice, a few inches in the wrong place can make the room feel cramped, awkward, or surprisingly comfortable.

Many homeowners assume the layout is basically fixed. Tub on one side, toilet in the middle, vanity by the door. But when we start comparing options, there are actually several ways to configure a 9x5 footprint depending on priorities like storage, accessibility, or visual openness.

Before committing to a remodel, I usually recommend sketching a few layout variations using a simple floor plan creator that lets you test bathroom dimensions. Seeing clearances visually often prevents expensive mistakes later.

In this guide I'll walk through the most common 9x5 bathroom layouts I use in real projects, compare their strengths and weaknesses, and explain the hidden tradeoffs most remodeling guides skip.

save pin

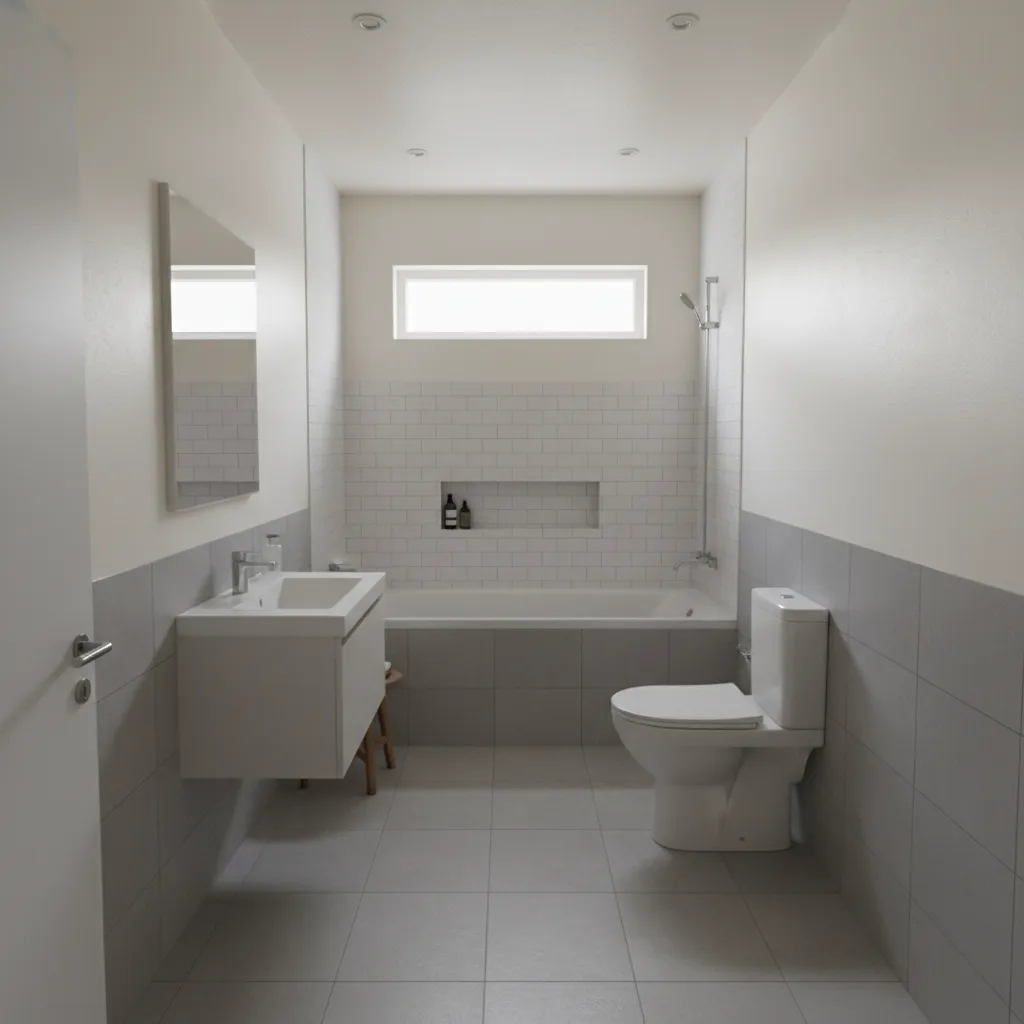

Standard 9x5 Bathroom Layout Basics

Key Insight: Most successful 9x5 bathrooms follow a linear fixture arrangement along the long wall to preserve walking clearance.

In a typical 9x5 bathroom, the long wall becomes the "plumbing wall" where the tub or shower sits, followed by the toilet and vanity. This configuration minimizes pipe relocation and maximizes the 30–32 inch circulation zone most people need to move comfortably.

Typical spacing rules I follow when planning this footprint:

1. Toilet clearance: at least 30 inches width
2. Front clearance for toilet: 21 inches minimum (30 inches ideal)
3. Vanity depth: usually 18–21 inches
4. Tub length: typically 60 inches

The hidden challenge is door placement. A poorly positioned swing door can consume as much usable space as an entire fixture.

According to recommendations referenced by the National Kitchen and Bath Association, maintaining adequate fixture clearance dramatically improves bathroom usability even in compact layouts.

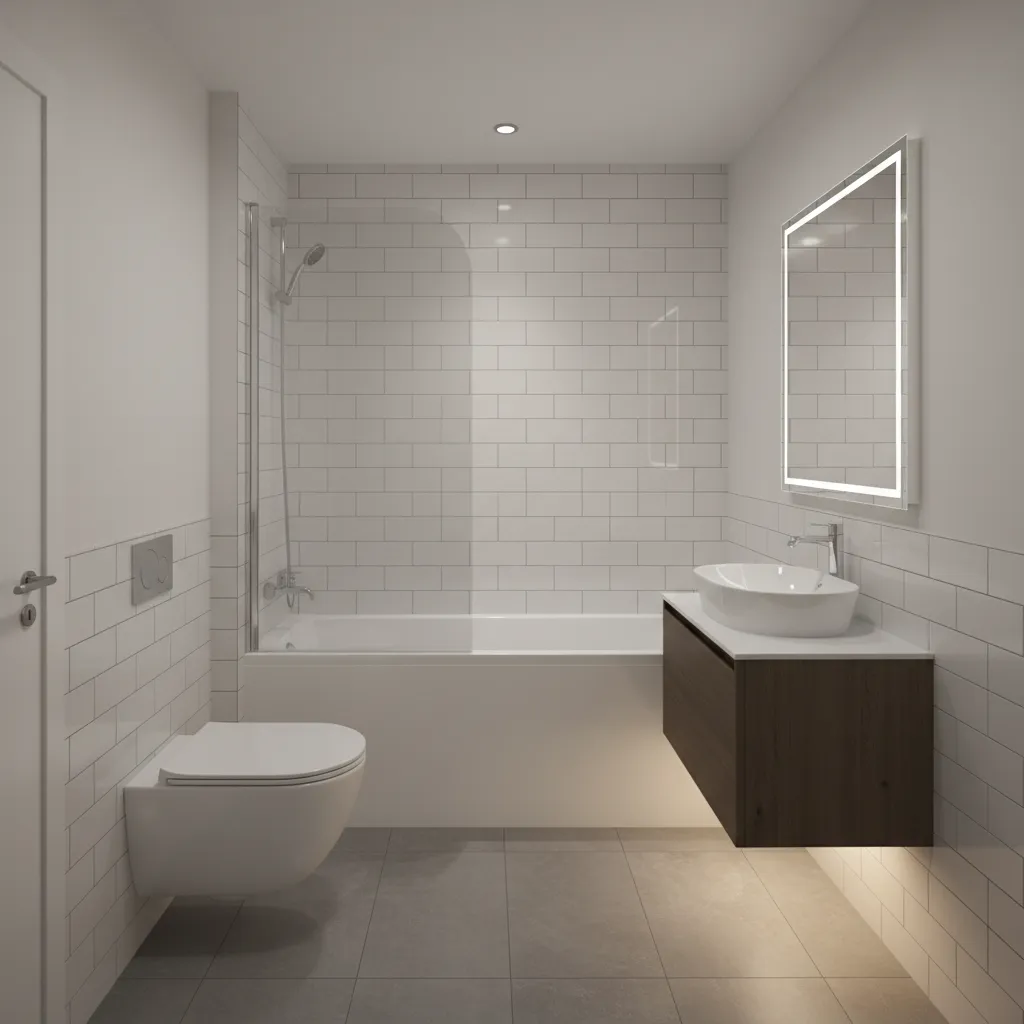

9x5 Layout With Bathtub and Shower Combo

Key Insight: A tub shower combo along the 5‑foot wall is the most space efficient and resale friendly 9x5 bathroom layout.

This layout places a 60 inch alcove tub at the back wall with the toilet and vanity aligned along the opposite side. It is the configuration I see in most apartments and older homes.

Typical arrangement:

1. 60 inch tub at end wall
2. Toilet centered along long wall
3. Compact vanity near the entry door

Why this works so well:

1. Uses the exact width of the room
2. Plumbing stays on one wall
3. Allows comfortable front clearance

However, one overlooked drawback is visual weight. A tub creates a large block in a small room, which can make the bathroom feel tighter than it actually is.

In projects where clients want the space to feel larger, I often compare this setup against digital models using a 3D floor planning tool for small bathroom layouts. Seeing the visual mass of fixtures helps people make better decisions.

save pin

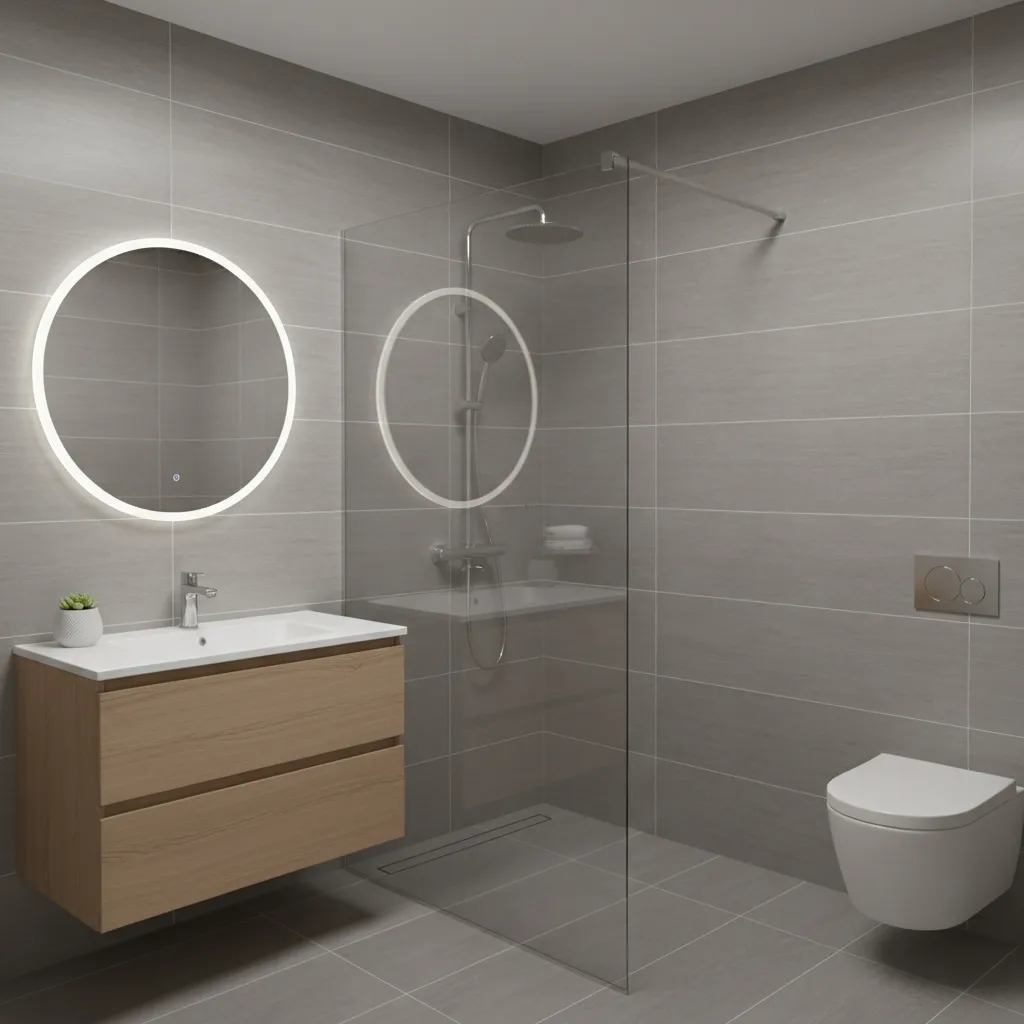

Walk In Shower Layout for a 9x5 Bathroom

Key Insight: Replacing the tub with a walk in shower dramatically improves perceived space even though the room dimensions stay the same.

Over the past five years, I have seen a noticeable shift toward walk in shower layouts for 9x5 bathrooms. Homeowners increasingly prioritize open space and modern aesthetics over bathtubs.

A typical layout includes:

1. 48–60 inch walk in shower along the end wall
2. Floating or compact vanity near entry
3. Wall mounted toilet or standard toilet mid room

Design advantages:

1. Creates longer sightlines
2. Improves accessibility
3. Makes lighting more effective

The tradeoff is resale flexibility. Many real estate agents still recommend keeping at least one bathtub in a home for family buyers.

save pin

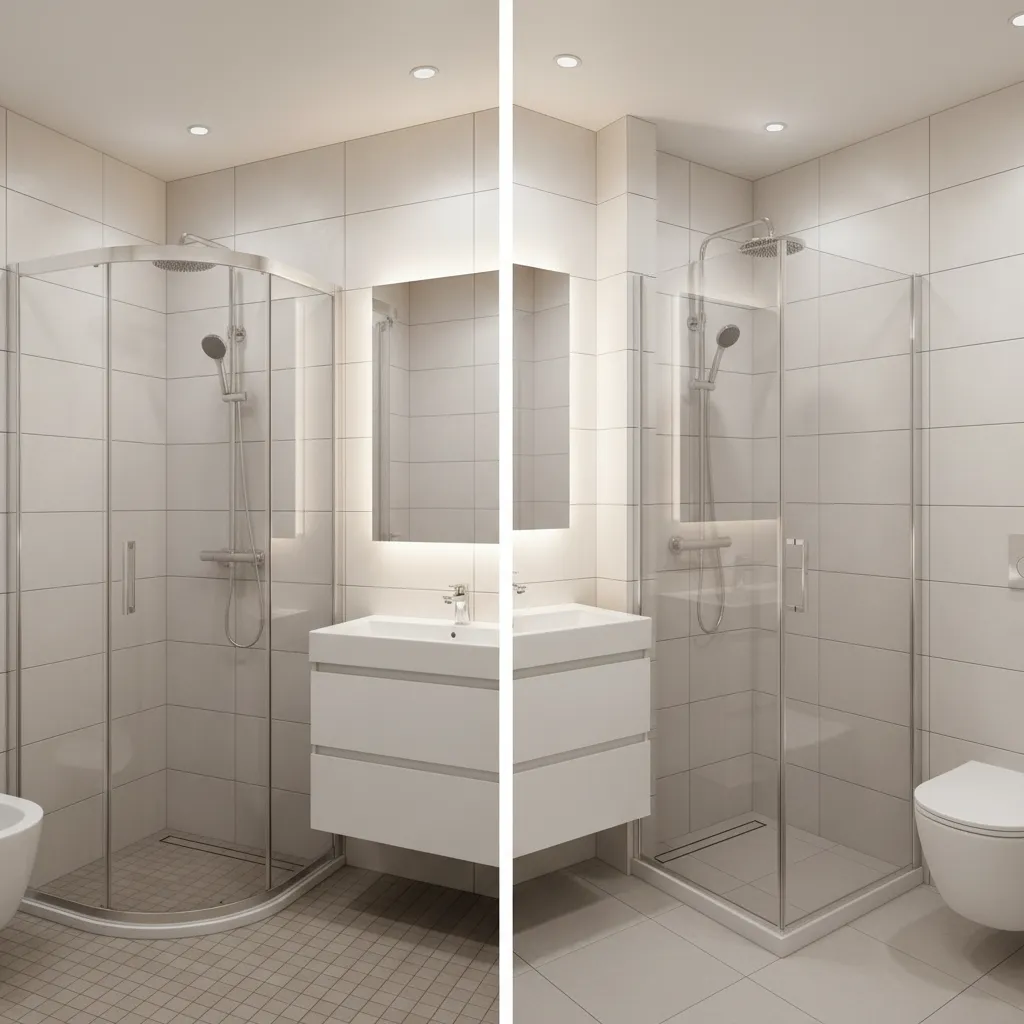

Corner Shower vs Alcove Shower in a 9x5 Space

Key Insight: Corner showers save floor area but often reduce usable shower comfort.

This is one of those decisions where the "space saving" option isn't always better in real life.

Here's how the two compare in a 9x5 bathroom:

1. Corner ShowerTypical size: 36x36 inches
2. Diagonal entry
3. Leaves more floor space near vanity
4. Alcove ShowerTypical size: 48–60 inches wide
5. Flat glass front
6. Much more comfortable showering space

In my projects, corner showers work best in extremely tight bathrooms under 40 square feet. In a 9x5 room, an alcove shower usually feels more balanced.

save pin

Pros and Cons of Each Layout Style

Key Insight: The "best" 9x5 bathroom layout depends more on household habits than room dimensions.

Here's a simplified comparison based on real renovation outcomes.

1. Tub Shower ComboPros: versatile, resale friendly, efficient plumbing
2. Cons: visually heavy, harder accessibility
3. Walk In Shower LayoutPros: modern look, open space feel, easier cleaning
4. Cons: removes bathtub option
5. Corner Shower LayoutPros: frees floor space
6. Cons: cramped showering area

A design detail many people overlook is storage. Small bathrooms quickly become cluttered if storage isn't integrated early in the layout stage.

Answer Box

The most practical 9x5 bathroom layout is usually either a tub shower combo along the back wall or a 48–60 inch walk in shower configuration. The right choice depends on whether bathing flexibility or open space matters more in your household.

Which 9x5 Layout Works Best for Your Home

Key Insight: The right layout depends on lifestyle patterns more than design trends.

When helping clients choose between layouts, I usually ask three simple questions:

1. Do you actually take baths?
2. Is this the only bathroom in the home?
3. Is accessibility important long term?

General recommendations I give clients:

1. Families with children → tub shower combo
2. Couples or guest bathrooms → walk in shower
3. Aging in place planning → barrier free shower

If you're exploring variations, experimenting with layouts in a visual room planner for testing small bathroom layouts makes it easier to compare fixture spacing before construction begins.

Key Clearance Rules That Affect Layout Choice

Key Insight: Clearance violations are the number one reason small bathroom remodels feel uncomfortable.

The most common mistakes I see in 9x5 bathrooms include:

1. Vanities deeper than 21 inches
2. Toilet too close to vanity
3. Shower doors colliding with entry doors
4. Insufficient walkway space

A quick rule of thumb I use during planning:

1. At least 30 inches walkway clearance
2. 15 inches from toilet centerline to obstacles
3. 24 inches minimum in front of vanity

Respecting these clearances usually matters more than the specific fixture style.

Final Summary

1. A tub shower combo remains the most versatile 9x5 bathroom layout.
2. Walk in showers create the most open visual space.
3. Corner showers save floor space but reduce shower comfort.
4. Clearance planning often determines layout success.
5. Testing layouts visually prevents expensive remodeling mistakes.

FAQ

What is the best 9x5 bathroom layout?

The best 9x5 bathroom layout usually places a tub or shower along the short wall with the toilet and vanity along the long wall for optimal clearance.

Can a 9x5 bathroom fit a walk in shower?

Yes. A 48 to 60 inch walk in shower can comfortably fit along the back wall while still leaving room for a toilet and vanity.

Is a bathtub necessary in a 9x5 bathroom?

Not always. Many homeowners replace tubs with walk in showers, especially in secondary bathrooms or adult households.

What size vanity works in a 9x5 bathroom?

Most layouts work best with a 24–30 inch vanity and a depth of 18–21 inches.

Is a corner shower good for a 9x5 bathroom?

A corner shower saves floor space but can feel cramped. Alcove showers often provide better comfort in this footprint.

How much clearance is needed around a toilet?

At least 15 inches from the centerline to each side and 21 inches in front, though more space improves comfort.

Does removing a tub hurt resale value?

It can if the home has no other bathtub. Keeping one tub somewhere in the house is usually recommended.

How do designers test a small 9x5 bathroom layout?

Designers usually model the room digitally to test fixture spacing, door swings, and walking clearance before construction.
