Best Base Preparation and Drainage for a Durable Paver Wall: Practical foundation and drainage techniques that prevent shifting, cracking, and early failure in freestanding landscape walls

Direct Answer

The best base preparation for a durable paver wall uses a compacted crushed‑gravel foundation combined with proper drainage behind and beneath the wall. Most freestanding landscape walls perform best with 4–8 inches of compacted aggregate base, layered compaction, and a drainage path that prevents water pressure from pushing the wall outward.

When base preparation and drainage are done correctly, a paver wall can remain stable for decades with minimal movement.

Quick Takeaways

1. A compacted crushed‑stone base distributes weight and prevents settlement.
2. Freestanding paver walls typically need 4–8 inches of compacted gravel foundation.
3. Poor drainage is the most common reason landscape walls lean or shift.
4. Compaction should be done in layers rather than one deep fill.
5. Edge restraints and reinforcement improve long‑term wall alignment.

Introduction

After working on residential landscape projects for more than a decade, I’ve noticed something interesting: most failing paver walls are not caused by bad blocks or poor design aesthetics. They fail because of invisible mistakes under the wall.

The durability of a paver wall depends heavily on base preparation and drainage. If the foundation shifts, the entire wall moves with it. And unfortunately, many DIY guides underestimate how much the base actually matters.

Before building any outdoor structure, I usually sketch layout options using a quick planning approach similar to this guide for visualizing outdoor layouts before construction begins. Mapping the wall alignment early helps determine drainage paths and where the gravel base needs reinforcement.

In this guide I’ll break down the exact base preparation techniques professionals use, including the gravel depth, compaction methods, and drainage strategies that dramatically extend the lifespan of a freestanding garden wall.

save pin

Why Base Preparation Determines Wall Stability

Key Insight: The base is the structural backbone of a paver wall, distributing weight evenly and preventing uneven settlement.

A paver wall is essentially a stacked structure relying on gravity and friction. If the ground beneath it shifts even slightly, the blocks above begin to lean or separate. This is why professional installers often spend more time preparing the base than stacking the wall itself.

Three critical functions of a proper base include:

1. Distributing the wall's weight across the soil
2. Preventing frost heave and seasonal soil movement
3. Creating a level platform for accurate block placement

Common hidden mistake: Many DIY builders place blocks directly on compacted soil. Soil alone expands when wet and contracts when dry, which leads to gradual movement.

According to the Interlocking Concrete Pavement Institute (ICPI), granular aggregate bases significantly improve load distribution and structural stability for segmental landscape installations.

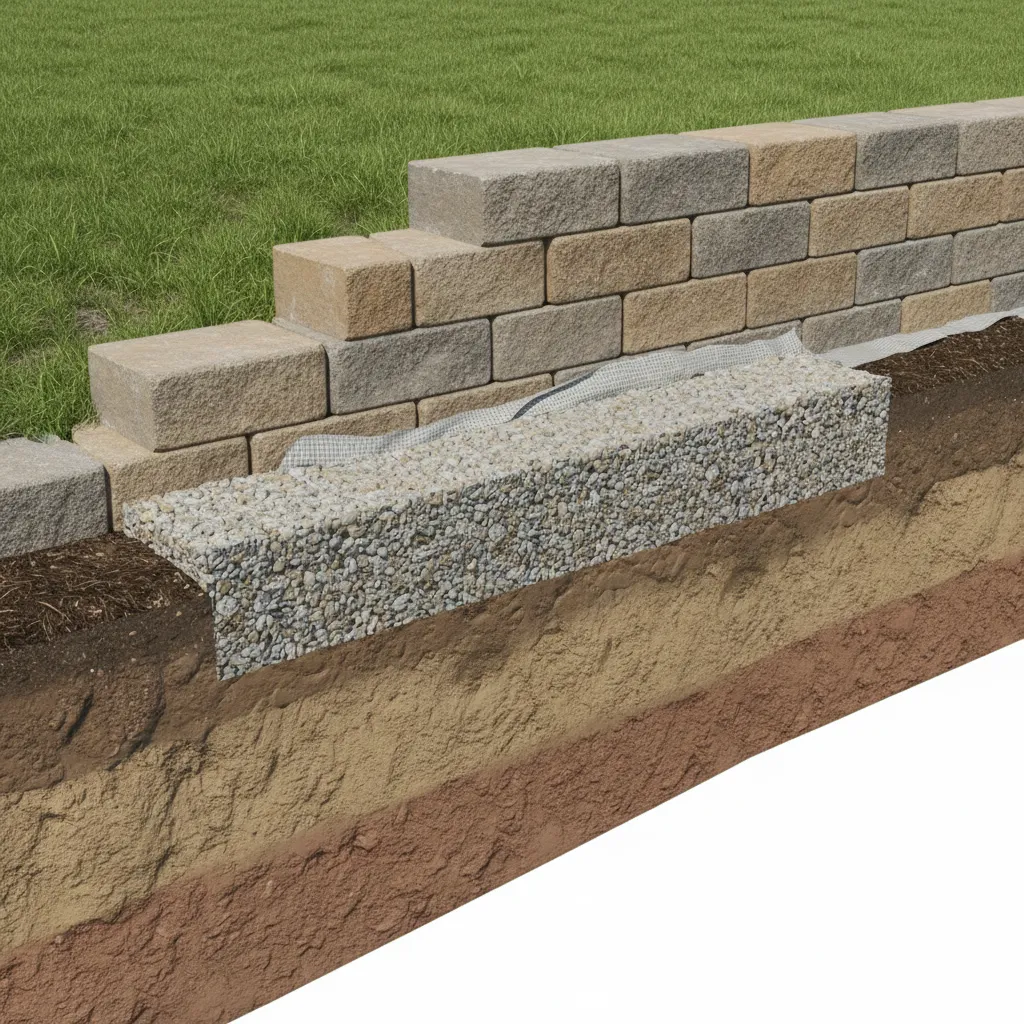

Recommended Gravel Base Depth for Freestanding Walls

Key Insight: Most freestanding paver walls require 4–8 inches of compacted crushed gravel, depending on soil conditions and wall height.

The correct gravel depth depends on several environmental factors. Overbuilding the base slightly is usually safer than underbuilding it.

Typical gravel base guidelines:

1. Walls under 2 ft tall: 4 inches compacted gravel
2. Walls 2–3 ft tall: 6 inches compacted gravel
3. Walls over 3 ft tall: 8 inches or engineered base

The type of gravel matters too. Use crushed angular aggregate (often called "road base" or "crusher run") rather than smooth river rock.

Angular stone interlocks when compacted, creating a much stronger foundation layer.

save pin

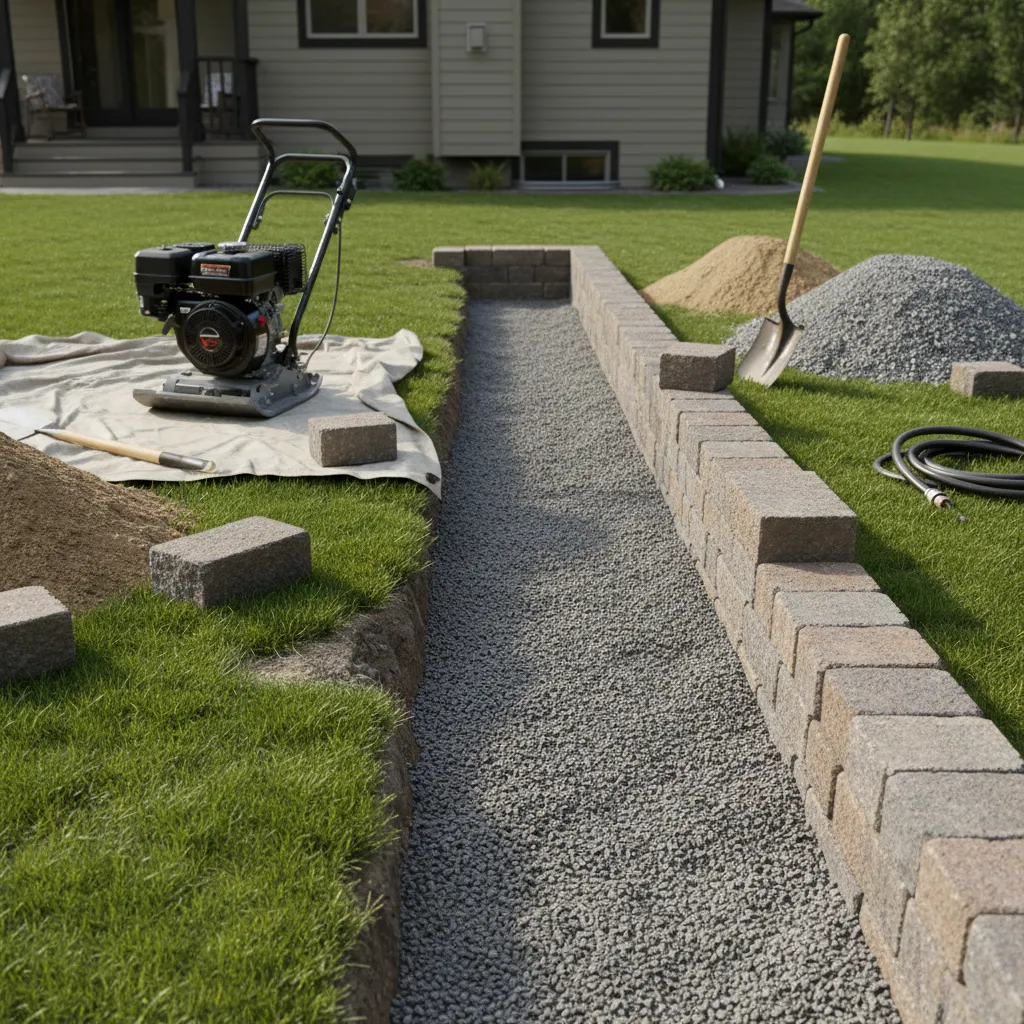

Proper Compaction Techniques for Paver Wall Foundations

Key Insight: Layered compaction is far more stable than compacting one thick gravel layer.

A common installation shortcut is dumping all gravel into the trench and compacting it once. That approach almost guarantees uneven density.

Instead, professionals compact the base in layers.

Recommended compaction process:

1. Excavate the trench 10–12 inches deep.
2. Add 2–3 inches of crushed gravel.
3. Compact using a plate compactor.
4. Repeat layering until target depth is reached.
5. Check level after every layer.

Each compacted layer increases structural density and prevents future settlement.

When planning outdoor layouts or structural placement, many designers also visualize terrain flow and spacing first. A structured planning workflow similar to mapping functional outdoor zones and wall placement often reveals drainage problems before construction even begins.

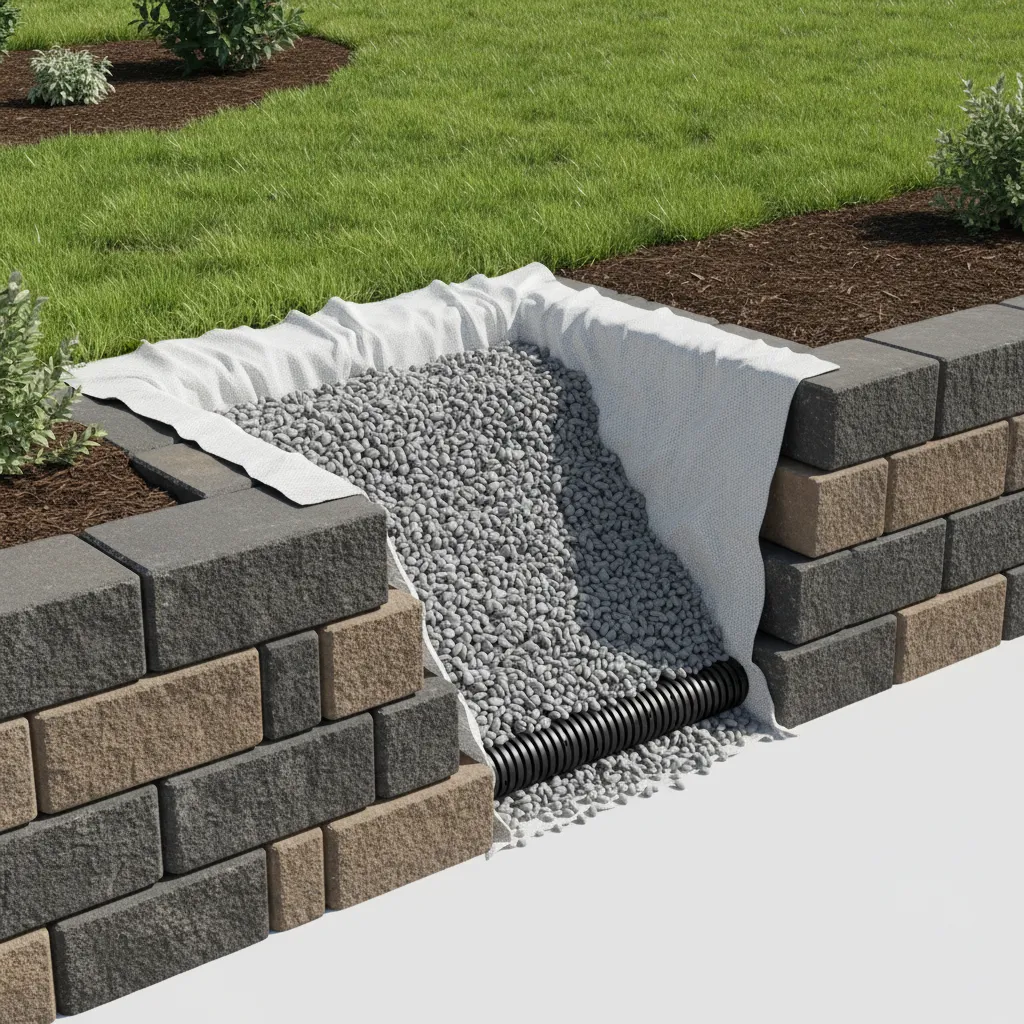

Drainage Solutions to Prevent Soil Pressure

Key Insight: Poor drainage creates hydrostatic pressure that can push even heavy paver walls out of alignment.

Water buildup behind a wall is one of the most underestimated causes of structural failure. When soil becomes saturated, its weight increases dramatically.

Effective drainage methods include:

1. Gravel drainage layer behind the wall
2. Perforated drain pipe at the base
3. Geotextile fabric separating soil and gravel
4. Slight grading away from the wall

In many professional builds, a 6–12 inch drainage zone filled with gravel is installed directly behind the wall blocks.

save pin

Edge Restraints and Reinforcement Options

Key Insight: Reinforcement elements reduce long‑term movement even when the wall is freestanding.

Freestanding landscape walls rely primarily on mass and friction. However, additional reinforcement can greatly improve durability.

Common reinforcement options:

1. Concrete adhesive between cap blocks
2. Buried base course blocks
3. Geogrid reinforcement for taller walls
4. Concrete footing for heavy structures

The right reinforcement depends on wall height, soil type, and climate conditions.

Answer Box

The most durable paver walls combine three elements: a properly compacted gravel base, layered compaction during installation, and drainage that prevents water pressure behind the wall. Ignoring any one of these dramatically increases the risk of movement or leaning.

Long Term Maintenance for Optimized Wall Performance

Key Insight: Even well‑built paver walls benefit from occasional inspection and small adjustments.

Outdoor structures constantly deal with weather cycles, soil shifts, and water flow. Minor maintenance prevents small issues from turning into structural problems.

Simple maintenance checklist:

1. Inspect drainage outlets after heavy rain
2. Check for small block movement each season
3. Remove soil buildup behind the wall
4. Replace displaced joint sand if needed

For homeowners planning broader outdoor upgrades, it helps to first visualize the entire landscape layout using a workflow similar to experimenting with different outdoor design concepts before construction. Seeing the wall within the full space often reveals grading and drainage improvements early.

save pin

Final Summary

1. A durable paver wall always begins with a compacted crushed‑gravel base.
2. Most freestanding walls require 4–8 inches of layered gravel foundation.
3. Drainage systems prevent soil pressure that causes leaning walls.
4. Layered compaction significantly increases structural stability.
5. Routine inspection helps maintain long‑term wall performance.

FAQ

How deep should the base be for a paver wall?

Most freestanding paver walls require 4–8 inches of compacted gravel base, depending on wall height and soil conditions.

What is the best base material for a paver wall?

Crushed angular gravel such as crusher run or road base works best because the particles interlock when compacted.

Do freestanding paver walls need drainage?

Yes. Even freestanding paver walls benefit from gravel drainage zones to prevent water buildup and soil pressure.

Can I build a paver wall directly on soil?

No. Soil expands and contracts with moisture. Without a gravel base, the wall will likely shift or sink over time.

How do you compact a paver wall base properly?

Compact the base in 2–3 inch gravel layers using a plate compactor until the required depth is reached.

Why do paver walls start leaning?

Leaning usually occurs because of poor drainage, inadequate base preparation, or uneven soil settlement.

What prevents movement in freestanding garden walls?

A stable gravel base, proper compaction, and good drainage are the most effective ways to prevent movement.

How long should a properly built paver wall last?

With proper base preparation and drainage, a well‑built paver wall can last several decades.

References

Interlocking Concrete Pavement Institute (ICPI) Installation Guidelines

National Concrete Masonry Association Landscape Wall Design Manual
