Best Floor Slope and Waterproofing Methods for Second-Floor Laundry Rooms: How proper slope, waterproof membranes, and drain integration prevent costly water damage in upstairs laundry spaces

Direct Answer

The best floor slope for a second-floor laundry room with a drain is typically 1/4 inch per foot directed toward the drain, combined with a continuous waterproof membrane under the finished flooring. This combination ensures water flows efficiently to the drain while protecting the structural floor below from leaks and long‑term moisture damage.

Quick Takeaways

1. A 1/4 inch per foot slope provides reliable drainage without creating uncomfortable floor angles.
2. Continuous waterproof membranes prevent hidden structural damage under laundry floors.
3. Tile, sheet vinyl, and epoxy coatings perform best with floor drains.
4. Improper transitions around drains are a major cause of upstairs water leaks.
5. Drain design must be coordinated with slope and waterproofing from the start.

Introduction

Designing a second-floor laundry room always raises one question from homeowners: how do you prevent water damage if something leaks? Over the past decade working on residential renovations and new builds, I’ve seen more upstairs laundry rooms fail because of poor floor slope and incomplete waterproofing than because of appliance problems.

The biggest misconception is that installing a floor drain alone solves the risk. In reality, without proper slope and a sealed waterproof layer, water often spreads across the subfloor long before it reaches the drain. That’s why professionals treat upstairs laundry rooms more like small wet rooms than ordinary utility spaces.

If you're planning layout changes, it helps to first visualize the room flow and drainage points. I often recommend reviewing practical layout examples for planning functional laundry room zonesbefore deciding where the drain should sit.

This guide explains the slope ratios, flooring systems, and waterproofing strategies that actually protect second‑floor structures. I’ll also highlight several installation mistakes I repeatedly see during inspections.

save pin

Why Floor Slope Matters in Second-Floor Laundry Rooms

Key Insight: Without intentional floor slope, water rarely reaches a drain quickly enough to prevent structural damage.

Most laundry leaks happen slowly. A loose hose fitting, a cracked pump seal, or a machine overflow can release small amounts of water over time. On a flat floor, water spreads outward, seeping into seams and walls before ever finding the drain.

In several renovation projects I’ve worked on, upstairs laundry rooms had drains installed but completely level floors. When leaks occurred, water migrated under cabinets and through floor penetrations, bypassing the drain entirely.

Proper slope does three critical things:

1. Directs water immediately toward the drain
2. Reduces standing water that damages flooring
3. Limits moisture migration into adjacent rooms

Building professionals often borrow slope standards from shower design because the physics are the same: water must be guided deliberately, not left to chance.

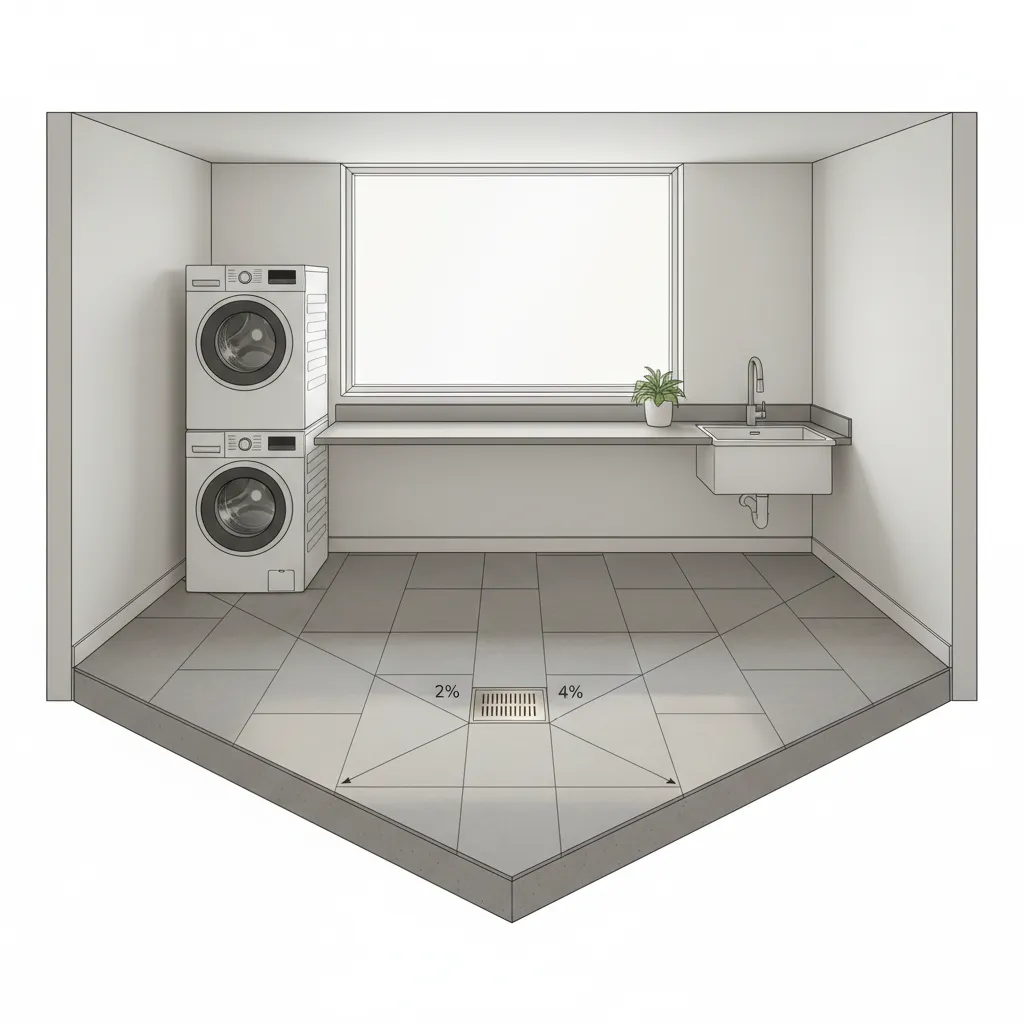

Recommended Floor Slope for Effective Drainage

Key Insight: The industry standard slope for laundry room floor drains is about 1/4 inch per foot toward the drain.

This slope ratio balances two competing priorities: effective drainage and comfortable walking surfaces. Anything flatter than 1/8 inch per foot tends to drain slowly. Anything steeper than 3/8 inch per foot begins to feel uneven under appliances.

Typical slope guidelines:

1. 1/4 inch per foot: Ideal for most laundry rooms
2. 3/16 inch per foot: Acceptable for small rooms
3. 3/8 inch per foot: Maximum before usability issues

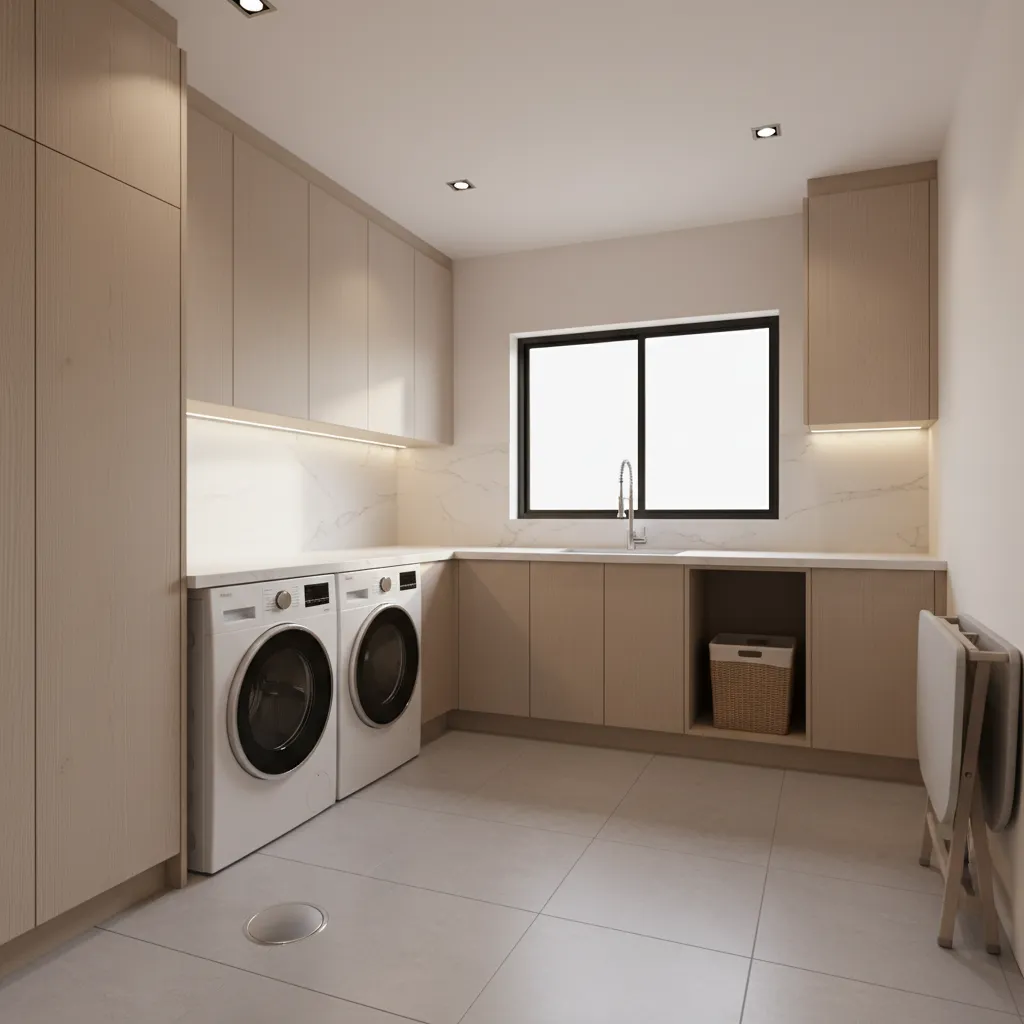

Another overlooked factor is drain placement. Central drains often require compound slopes from multiple directions, which increases installation complexity. In practice, many builders position the drain slightly offset behind the washer to simplify grading.

save pin

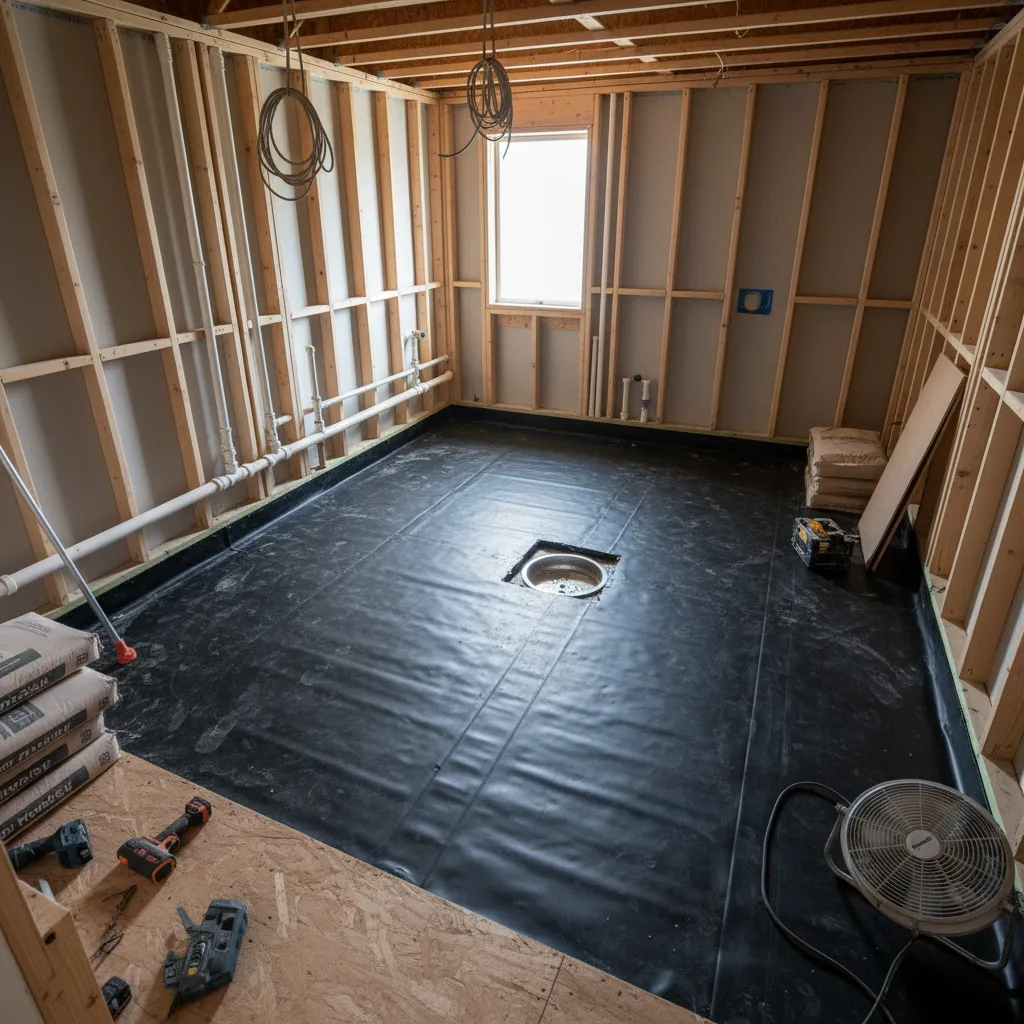

Waterproof Membranes for Laundry Room Floors

Key Insight: A waterproof membrane beneath the finished floor is the real barrier protecting the structure below.

Even with proper slope, some water inevitably penetrates grout lines, seams, or flooring edges. That’s why professionals install a continuous waterproof layer directly above the subfloor.

Common membrane options include:

1. Liquid-applied waterproof membranes
2. Sheet membranes with sealed seams
3. Bonded waterproof underlayment systems

In my experience, sheet membranes tend to produce the most consistent results because thickness and coverage are controlled. Liquid membranes work well too, but only when installers apply the correct thickness.

One important detail: the membrane must run several inches up the wall, forming a shallow "waterproof pan." This prevents water from escaping at the floor edges.

Tile, Vinyl, and Epoxy Flooring for Drain-Compatible Surfaces

Key Insight: The best flooring for laundry rooms with drains combines water resistance with flexibility for sloped surfaces.

Not all flooring materials handle slope well. Hardwood and laminate floors, for example, struggle with both moisture exposure and slope transitions.

Materials that perform reliably include:

1. Porcelain or ceramic tile
2. Commercial sheet vinyl
3. Epoxy or resin floor coatings

Tile remains the most common option because it easily accommodates gradual slopes toward a drain. The key is using smaller tiles or mosaic formats near the drain to follow the floor angle smoothly.

For homeowners experimenting with layouts or drainage placement, tools that allow you to visualize floor drainage layouts in a detailed 3D floor plancan help prevent awkward slope geometry before construction begins.

save pin

Integrating Waterproofing With Floor Drains

Key Insight: The connection between the waterproof membrane and the drain flange is the most critical leak point.

A perfectly sloped floor still fails if the waterproof layer does not seal tightly around the drain assembly.

Professional installations typically follow this sequence:

1. Install sloped mortar bed or sloped underlayment
2. Apply waterproof membrane over entire floor
3. Bond membrane directly to drain flange
4. Install final tile or surface finish

This method ensures that any water reaching the membrane layer is guided directly into the drain rather than spreading beneath the floor.

When designing drainage systems, it's also worth reviewing examples of complete floor plan layouts that include built‑in drainage planning to understand how professionals position slopes and drains together.

Common Installation Mistakes That Reduce Drain Effectiveness

Key Insight: Most upstairs laundry failures occur because slope, waterproofing, and drains were designed separately instead of as a single system.

These problems show up repeatedly during inspections:

1. No slope at all around the drain
2. Membrane not sealed to the drain flange
3. Waterproofing stops at floor edges
4. Drain installed higher than surrounding floor
5. Appliance vibration cracking grout lines

Another hidden issue is structural deflection. If the floor framing flexes under washer vibration, tiny cracks can form in grout or membranes over time. Reinforcing the subfloor or adding cement board layers helps prevent this.

Answer Box

The most reliable second‑floor laundry room drainage system combines a 1/4 inch per foot floor slope, a continuous waterproof membrane beneath the surface flooring, and a properly sealed drain flange connection. When these three elements work together, small leaks are safely directed into the drain instead of damaging the structure below.

Final Summary

1. 1/4 inch per foot is the most reliable slope for laundry room floor drains.
2. Waterproof membranes protect the structure beneath the floor.
3. Tile, vinyl, and epoxy surfaces work best with sloped floors.
4. Drain-to-membrane sealing is the most critical installation detail.
5. Most failures occur when drainage and waterproofing are designed separately.

FAQ

What is the recommended slope for a laundry room floor drain?

Most builders recommend about 1/4 inch per foot toward the drain to ensure water flows efficiently without creating an uneven floor.

Do second-floor laundry rooms need waterproofing?

Yes. Waterproofing a second floor laundry room floor helps prevent hidden moisture damage if hoses leak or appliances overflow.

What is the best flooring for a laundry room with a floor drain?

Porcelain tile, sheet vinyl, and epoxy coatings perform best because they tolerate moisture and can follow sloped surfaces.

Can vinyl flooring be used with a laundry floor drain?

Yes, especially commercial sheet vinyl. Seamless installation helps prevent water from reaching the subfloor.

How do you slope a floor to a drain in a laundry room?

Install a sloped mortar bed or tapered underlayment that gradually directs water toward the drain.

Should a drain be in the center of the laundry room?

Not necessarily. Many installers place drains near the washer to simplify slope geometry.

Is waterproof membrane required under tile?

For upstairs laundry rooms, professionals strongly recommend it to prevent structural moisture damage.

How do you prevent water damage in an upstairs laundry?

Use proper floor slope, waterproof membrane systems, reinforced subfloors, and well‑sealed drain connections.
