Best Kitchen Cabinet Design Tool: Discover the Top Tools for Kitchen Cabinet Design

Direct Answer

The best kitchen cabinet design tool depends on your goal. For most homeowners and designers, SketchUp, IKEA Kitchen Planner, and Planner 5D offer the best balance of layout accuracy, cabinet libraries, and realistic visualization. Professionals often prefer SketchUp because it allows precise cabinet dimensions and custom configurations.

Quick Takeaways

1. SketchUp is the most flexible kitchen cabinet design tool for precise cabinet layout planning.
2. IKEA Kitchen Planner is the easiest free option for beginners designing cabinet systems.
3. Planner 5D offers the most beginner friendly 3D visualization for kitchen cabinets.
4. Most cabinet design mistakes happen during layout planning rather than style selection.
5. A good cabinet tool should support exact measurements, appliance spacing, and workflow planning.

Introduction

After designing kitchens for more than a decade, I can say that cabinet layout decisions make or break a kitchen renovation. People often spend weeks choosing door styles and finishes, but the real problem usually starts earlier: they never test their cabinet layout properly.

A reliable kitchen cabinet design tool helps you visualize spacing, storage capacity, appliance clearance, and workflow before anything gets built. In many of my projects, a simple digital layout prevented expensive installation mistakes like blocked drawers, cramped islands, or misaligned appliances.

In this guide, I'll walk through the kitchen cabinet design tools I’ve actually seen work well in real projects, where each one shines, and the hidden limitations most online reviews never mention.

save pin

Why Do You Need a Kitchen Cabinet Design Tool Before Renovating?

Key Insight: Most costly kitchen mistakes happen during layout planning, not material selection.

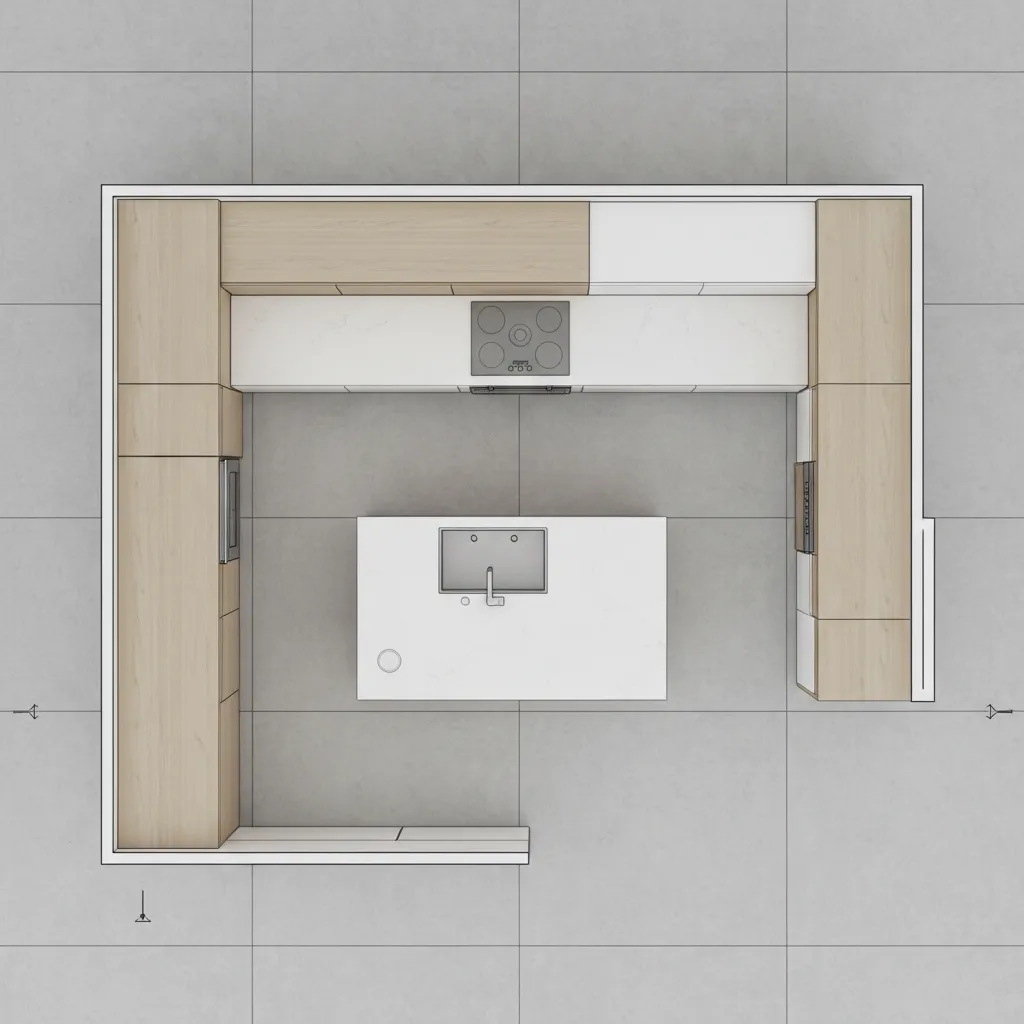

In real projects, cabinet layout affects everything: walking paths, storage efficiency, appliance placement, and lighting. Without a design tool, it's extremely hard to visualize how cabinets interact with the room.

Common layout problems I see during remodel consultations include:

1. Dishwasher doors blocking walkways
2. Corner cabinets that cannot fully open
3. Islands placed too close to base cabinets
4. Upper cabinets installed too low

According to the National Kitchen and Bath Association planning guidelines, kitchens need at least 36–48 inches of clearance between opposing cabinets for comfortable movement. Digital cabinet planning tools help verify those measurements before installation.

What Features Make a Good Kitchen Cabinet Design Tool?

Key Insight: The best tools simulate real cabinet dimensions instead of relying on decorative templates.

Many online planners look impressive visually but fail when you try to design a realistic kitchen layout. In practice, cabinet accuracy matters more than graphics.

Features professionals look for:

1. Precise cabinet sizing down to inches or millimeters
2. Custom cabinet configuration
3. Appliance placement tools
4. 3D visualization
5. Exportable layout plans

One hidden limitation of many beginner tools is that they lock cabinet sizes into preset modules. That works for modular brands but becomes frustrating when designing custom cabinetry.

save pin

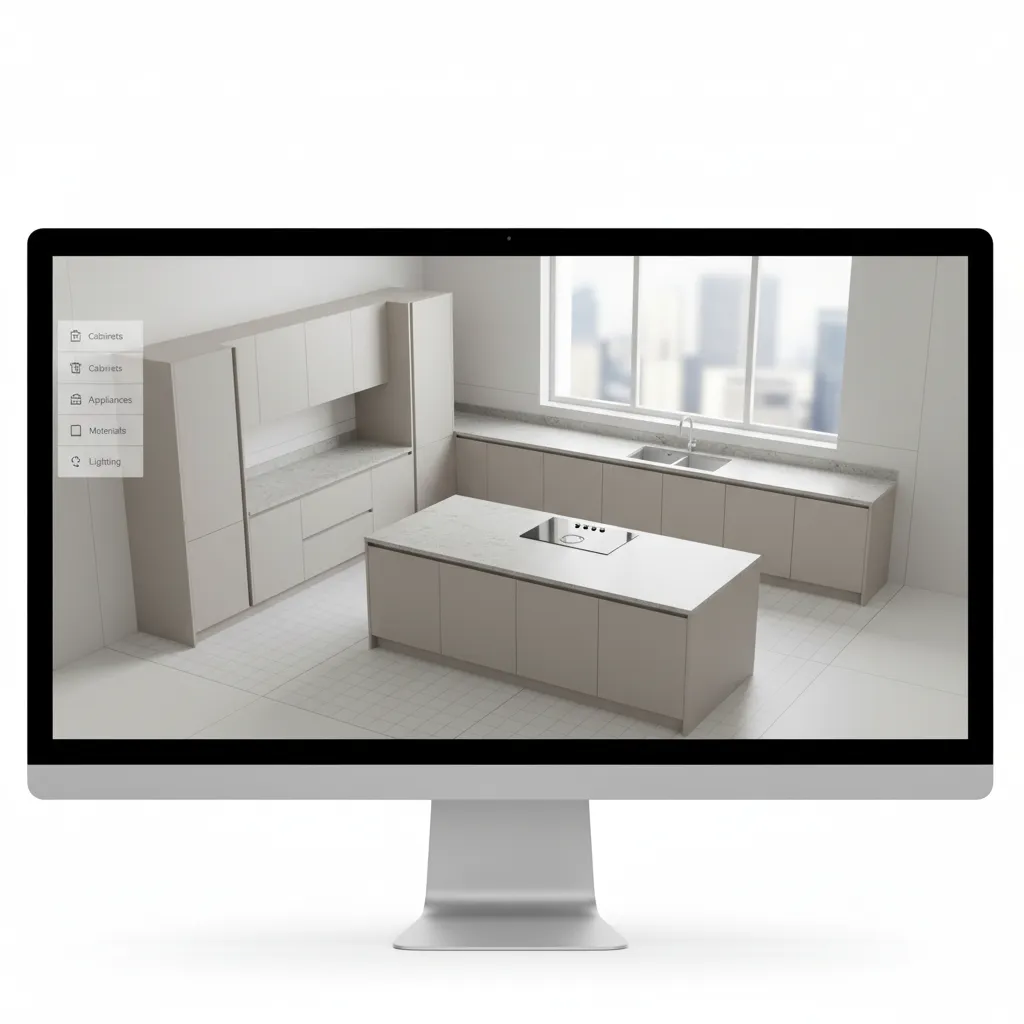

Best Kitchen Cabinet Design Tools Designers Recommend

Key Insight: No single tool fits every project; the right choice depends on experience level and cabinet complexity.

Here are the tools I consistently see producing the most reliable kitchen layouts.

SketchUp

1. Best for professional designers
2. Extremely precise cabinet modeling
3. Large library of cabinet components

IKEA Kitchen Planner

1. Best for simple modular kitchens
2. Very beginner friendly interface
3. Instant cost estimation

Planner 5D

1. Best for visualizing kitchen concepts
2. Easy drag and drop cabinet placement
3. Strong 3D rendering

HomeByMe

1. Balanced tool for homeowners
2. Good appliance library
3. Simple learning curve

In my studio, SketchUp is still the default choice because we often need custom cabinet widths and detailed millwork modeling.

save pin

Can Free Kitchen Cabinet Design Tools Produce Professional Results?

Key Insight: Free tools can produce excellent layouts, but only if measurements are entered accurately.

Many homeowners assume paid software is required for professional results. In reality, free planners can work extremely well if used carefully.

The real limitation is usually not the software but measurement accuracy.

Three mistakes homeowners often make:

1. Measuring wall length without including drywall thickness
2. Ignoring appliance door clearance
3. Forgetting filler panels between cabinets

Even a half inch error can affect cabinet installation, which is why professionals always double check measurements before final ordering.

Hidden Limitations Most Kitchen Planning Tools Do Not Show

Key Insight: Many tools display cabinets beautifully but ignore real installation constraints.

This is something most online reviews never mention. Design software often shows cabinets fitting perfectly against walls, but real kitchens rarely behave that way.

Common real world factors tools rarely simulate:

1. Uneven walls
2. Floor level differences
3. Electrical outlet conflicts
4. Ventilation duct positioning

During a Los Angeles remodel I worked on, the digital cabinet plan looked perfect until we opened the wall and discovered a structural beam blocking the hood vent route.

Design tools are powerful, but they should always be combined with a professional site check.

Answer Box

The best kitchen cabinet design tool is one that allows accurate cabinet sizing, appliance placement, and realistic kitchen workflow testing. SketchUp offers the most flexibility, while IKEA Kitchen Planner and Planner 5D are excellent beginner friendly options.

How Do Professionals Plan Kitchen Cabinet Layouts?

Key Insight: Designers prioritize workflow and storage zones before choosing cabinet styles.

Professional kitchen planning usually follows a structured process:

1. Measure the room precisely
2. Place appliances first
3. Define the work triangle
4. Add base cabinets
5. Plan upper cabinet storage
6. Test walking clearance

The famous kitchen work triangle guideline suggests the distance between the sink, refrigerator, and cooktop should total between 13 and 26 feet. Cabinet design tools help visualize this balance before construction begins.

save pin

Final Summary

1. SketchUp remains the most powerful kitchen cabinet design tool for professionals.
2. IKEA Kitchen Planner is ideal for beginners using modular cabinets.
3. Accurate measurements matter more than software complexity.
4. Most design tools cannot predict real construction constraints.
5. Testing cabinet workflow early prevents expensive renovation mistakes.

FAQ

What is the easiest kitchen cabinet design tool for beginners?

IKEA Kitchen Planner and Planner 5D are two of the easiest tools. Both allow drag and drop cabinet placement and simple 3D previews without needing design experience.

Is there a free kitchen cabinet design tool?

Yes. SketchUp Free, IKEA Kitchen Planner, and Planner 5D all offer free versions suitable for planning kitchen cabinet layouts.

Do professionals use kitchen cabinet design software?

Yes. Many designers use SketchUp, AutoCAD, or specialized cabinet design software to create accurate layouts before fabrication.

Can I design kitchen cabinets online?

Yes. Many kitchen cabinet design tools are browser based and allow you to create layouts directly online without installing software.

What is the most accurate kitchen design software?

SketchUp and professional CAD tools provide the most precise measurements and customization for kitchen cabinet planning.

How long does it take to design kitchen cabinets?

A basic layout can take 1–2 hours, but detailed cabinet planning for renovations often takes several revisions over several days.

Do kitchen cabinet planners include appliances?

Most modern kitchen cabinet design tools include appliance models such as refrigerators, dishwashers, and ovens.

Can a kitchen cabinet design tool help estimate cost?

Yes. Some tools like IKEA Kitchen Planner generate automatic price estimates based on selected cabinets and accessories.
