Best Placement for Heat Detectors in Laundry Rooms: Practical installation guidance that helps heat detectors respond faster and avoid false triggers in laundry environments.

Direct Answer

The best placement for a heat detector in a laundry room is on the ceiling, centered or slightly offset between the dryer and the room exit, at least 12–36 inches away from vents or appliances. This location allows rising heat from a developing fire to reach the sensor quickly while avoiding steam and airflow interference. Proper spacing from dryers and ventilation dramatically improves detection speed.

Quick Takeaways

1. Ceiling mounting usually detects heat faster because hot air rises.
2. Install detectors at least 12–36 inches away from dryers and vents.
3. Avoid placing detectors directly above dryers or steam sources.
4. Central ceiling placement improves response time in most laundry layouts.
5. Poor airflow positioning can delay detection even with high‑quality devices.

Introduction

After designing and reviewing dozens of residential utility spaces, one thing I consistently see overlooked is proper heat detector placement in laundry rooms. Homeowners install a detector somewhere on the ceiling and assume it will work perfectly during a fire event. In reality, placement has a huge impact on detection speed.

Laundry rooms create a tricky environment: dryers generate bursts of heat, vents move air unpredictably, and humidity from washing machines can affect sensor response. A poorly positioned detector may react late—or worse, miss the earliest stages of overheating.

When planning layouts for compact utility spaces, I often map airflow and appliance spacing using simple visualization tools like this guide for visualizing small utility room layouts before installation. Seeing where heat naturally accumulates makes detector placement far more intuitive.

In this guide, I’ll walk through the placement rules professionals actually follow: ceiling vs wall mounting, spacing from appliances, airflow considerations, and the mistakes that slow down fire detection.

save pin

Why Placement Matters for Heat Detection Accuracy

Key Insight: Heat detectors respond to rising temperature, so positioning them where hot air naturally accumulates dramatically improves detection speed.

Unlike smoke detectors, heat detectors rely on thermal buildup. That means airflow patterns matter more than most homeowners expect. In laundry rooms, dryers push warm air outward while vents and door gaps create moving air currents.

From my project experience, delayed alerts often happen when detectors are installed in "dead airflow zones"—areas where heat disperses instead of concentrating.

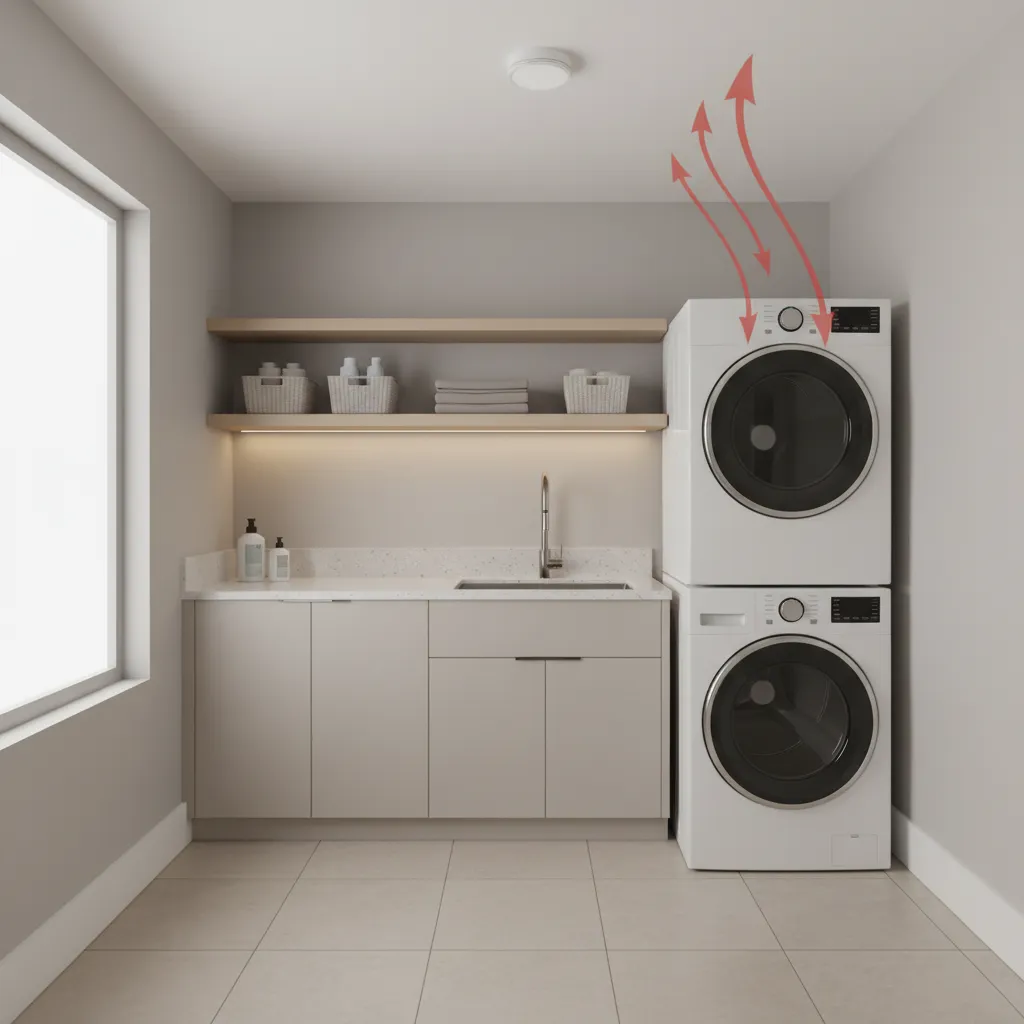

Typical heat movement pattern in laundry rooms:

1. Heat rises vertically from dryers and motors
2. Vent systems push warm air sideways
3. Ceiling corners collect heat faster than walls
4. Doorways often pull warm air outward

The National Fire Protection Association (NFPA 72) notes that heat detectors should be placed where heat buildup occurs naturally rather than where airflow disperses it.

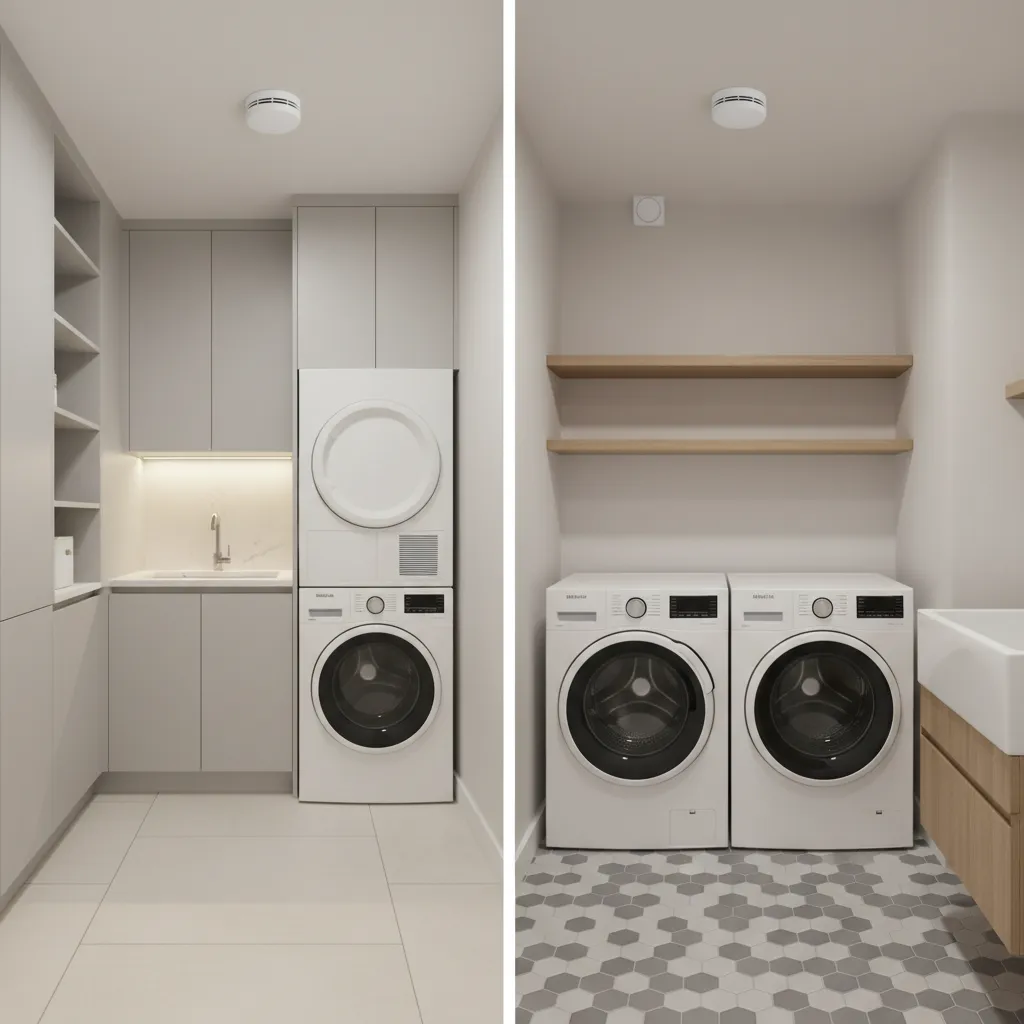

Ceiling vs Wall Mounting for Laundry Rooms

Key Insight: Ceiling-mounted detectors detect heat faster than wall-mounted units in most laundry room fire scenarios.

Hot air rises quickly during overheating events—especially dryer fires caused by lint ignition. Because of this, ceiling placement usually provides the earliest warning.

Comparison of mounting positions:

1. Ceiling mount: fastest detection and most consistent performance
2. High wall mount: acceptable when ceiling installation isn't possible
3. Mid-wall mount: significantly slower detection response

In compact laundry rooms under 100 square feet, I typically recommend positioning the detector slightly closer to the dryer side of the room—but never directly above it.

save pin

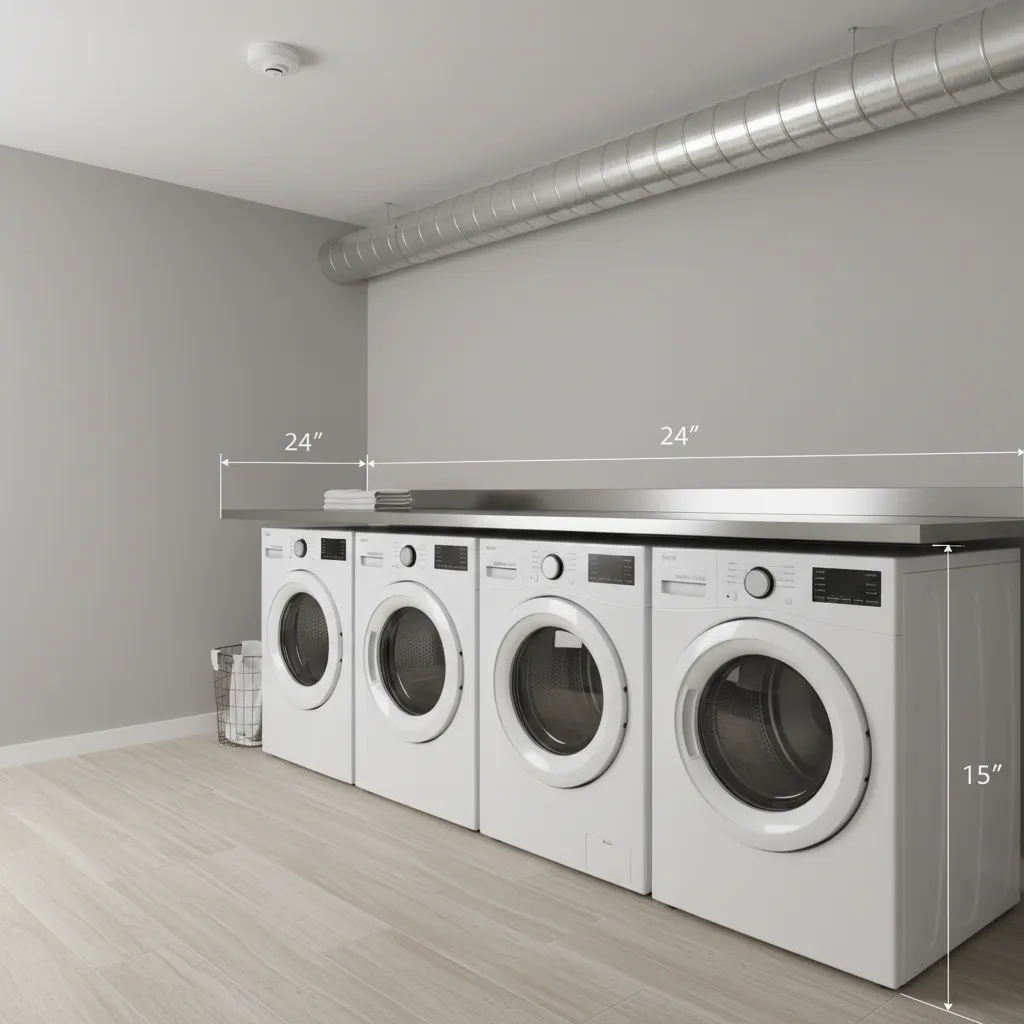

Distance from Washers, Dryers, and Vents

Key Insight: Heat detectors should be close enough to sense early overheating but far enough away to avoid normal appliance heat.

Dryers produce short bursts of high temperature that can confuse poorly positioned detectors. Installing a sensor directly above the appliance is one of the most common mistakes.

Recommended distance guidelines:

1. 12–36 inches away from dryers
2. At least 12 inches from ceiling corners
3. 3 feet away from HVAC vents
4. Not directly above washer or dryer motors

If you're planning appliance spacing during a renovation, tools like a 3D floor layout planner for utility and laundry spaces can help visualize safe detector spacing before installation.

Avoiding Steam, Humidity, and Airflow Interference

Key Insight: Airflow from vents and humidity bursts from washers can delay heat buildup around the sensor.

Many installers focus only on distance from the dryer, but airflow patterns are often the bigger issue.

Common interference sources include:

1. Dryer exhaust ducts
2. HVAC ceiling vents
3. Bathroom exhaust fans nearby
4. Open doors causing air drafts

In several laundry remodels I’ve reviewed, simply relocating the detector 18 inches away from a supply vent improved heat concentration enough to meet recommended response times.

save pin

Answer Box

The optimal heat detector placement in a laundry room is ceiling-mounted, centrally positioned, and at least 12–36 inches from dryers or vents. Avoid steam sources and airflow paths that disperse heat before it reaches the sensor.

Recommended Height and Spacing Guidelines

Key Insight: Consistent height and spacing improve coverage and reduce delayed detection.

While laundry rooms are small, following professional spacing standards still matters.

Common residential placement guidelines:

1. Install directly on the ceiling when possible
2. Wall-mounted units should be within 12 inches of the ceiling
3. Maintain at least 4 inches from ceiling corners
4. Use one detector for rooms under 250 square feet

These recommendations align with NFPA guidance for residential heat detection devices.

Placement Mistakes That Reduce Fire Detection Speed

Key Insight: Most slow detection problems come from three avoidable placement mistakes.

Over the years, I've noticed the same issues repeated in residential laundry installations.

Frequent installation mistakes:

1. Mounting directly above the dryer drum
2. Installing beside HVAC vents
3. Placing detectors in corners where airflow stalls
4. Mounting too low on walls
5. Installing behind cabinets or shelving

Even high-end detectors cannot compensate for poor airflow placement.

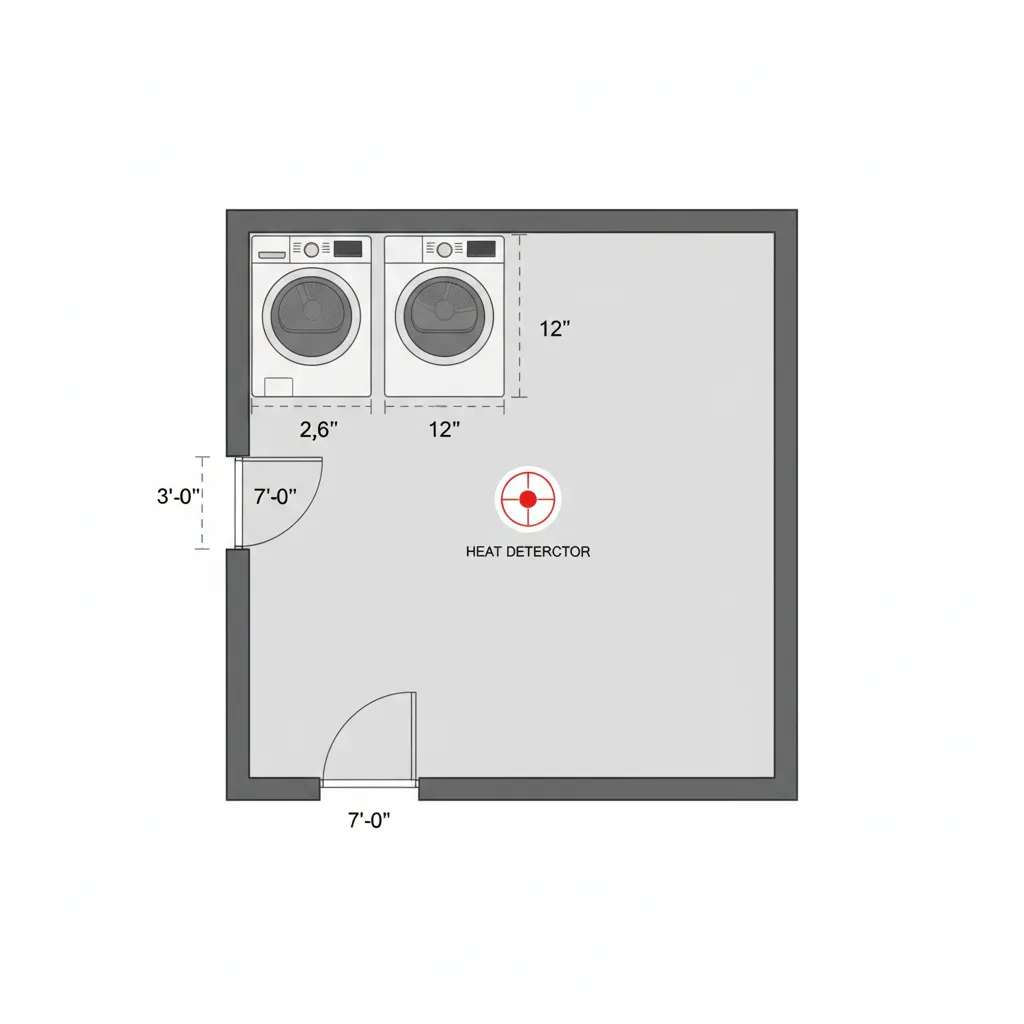

Example Layout for Typical Residential Laundry Rooms

Key Insight: In most homes, the ideal heat detector location sits on the ceiling between the appliances and the doorway.

Here is a simplified layout approach I often recommend during residential design consultations.

Typical placement layout:

1. Dryer and washer positioned along one wall
2. Detector centered on the ceiling
3. Offset 18–24 inches from the dryer
4. Minimum 3 feet from ventilation outlets

When mapping layouts for new builds, designers sometimes test detector positions using a simple floor plan creator to visualize appliance spacingbefore electrical installation begins.

save pin

Final Summary

1. Ceiling placement provides the fastest heat detection response.
2. Keep detectors 12–36 inches away from dryers and heat sources.
3. Avoid HVAC vents, ducts, and heavy airflow zones.
4. Central ceiling positioning works best in most residential laundry rooms.
5. Incorrect placement is the main cause of delayed fire alerts.

FAQ

Where should a heat detector be installed in a laundry room?

On the ceiling near the center of the room but at least 12–36 inches away from the dryer or ventilation ducts.

Can a heat detector be placed directly above a dryer?

No. Normal dryer heat can cause inaccurate readings or delayed response. Install the detector slightly offset from the appliance.

Is ceiling placement always better than wall placement?

Yes in most cases. Because hot air rises, ceiling placement usually detects fires faster than wall mounting.

How far should a heat detector be from a dryer vent?

A minimum of about 3 feet is recommended to prevent airflow from dispersing heat before it reaches the sensor.

Do laundry rooms need heat detectors instead of smoke detectors?

Often yes. Heat detectors handle humidity and lint better than smoke detectors in laundry environments.

What is the ideal height for heat detector installation?

Ceiling installation is best. If wall mounted, place the detector within 12 inches of the ceiling.

How many heat detectors are needed for a laundry room?

Most residential laundry rooms under 250 square feet only require one properly positioned detector.

Does laundry room humidity affect heat detector placement?

Yes. Avoid installing the detector near washers or steam sources where humidity may interfere with heat buildup.

References

1. National Fire Protection Association (NFPA 72) National Fire Alarm and Signaling Code
2. U.S. Fire Administration Home Fire Detection Recommendations
3. International Association of Fire Chiefs Residential Fire Safety Guidance
