Best Placement Practices for ODU in Building Floor Plans: How smart outdoor unit placement improves HVAC efficiency, reduces noise, and simplifies maintenance in residential buildings

Direct Answer

The best placement for an HVAC outdoor unit (ODU) in building floor plans is a well‑ventilated exterior area with sufficient clearance, short refrigerant line distance to indoor units, low noise impact on living spaces, and easy maintenance access. Proper positioning improves system efficiency, prevents overheating, and reduces long‑term maintenance issues.

Quick Takeaways

1. Outdoor units perform best when airflow around the condenser is unobstructed.
2. Shorter piping distance between indoor and outdoor units improves efficiency.
3. Noise and vibration should be isolated from bedrooms and quiet areas.
4. Maintenance clearance is often ignored but critical for long‑term service.
5. Strategic placement prevents overheating caused by heat recirculation.

Introduction

After working on residential HVAC planning for more than a decade, I can say this confidently: most efficiency problems don’t come from the equipment itself—they come from poor ODU placement.

In many building floor plans, the outdoor unit is treated like an afterthought. Designers finish the interior layout first and then try to "fit" the condenser somewhere outside. That approach often creates airflow problems, excessive noise, and longer refrigerant piping runs.

Smart ODU placement in building floor plans should be considered early in the design stage. It directly affects cooling efficiency, installation cost, and long‑term reliability. I’ve seen systems lose 10–15% performance simply because the outdoor unit was trapped in a poorly ventilated corner.

If you're working on HVAC planning or reviewing architectural drawings, understanding how mechanical systems interact with layout decisions is critical. When designers start experimenting with layouts using a visual 3D floor planning workflow for early layout testing, it becomes much easier to anticipate these placement constraints before construction begins.

In this guide, I’ll walk through the real design considerations professionals use when deciding where an outdoor unit should go—and the mistakes I see most often in residential projects.

save pin

Why ODU Placement Matters in HVAC System Design

Key Insight: Outdoor unit placement directly impacts cooling efficiency, compressor lifespan, and overall system reliability.

The outdoor unit is responsible for releasing heat absorbed from inside the building. If the surrounding air cannot circulate properly, the condenser struggles to dissipate heat, forcing the compressor to work harder.

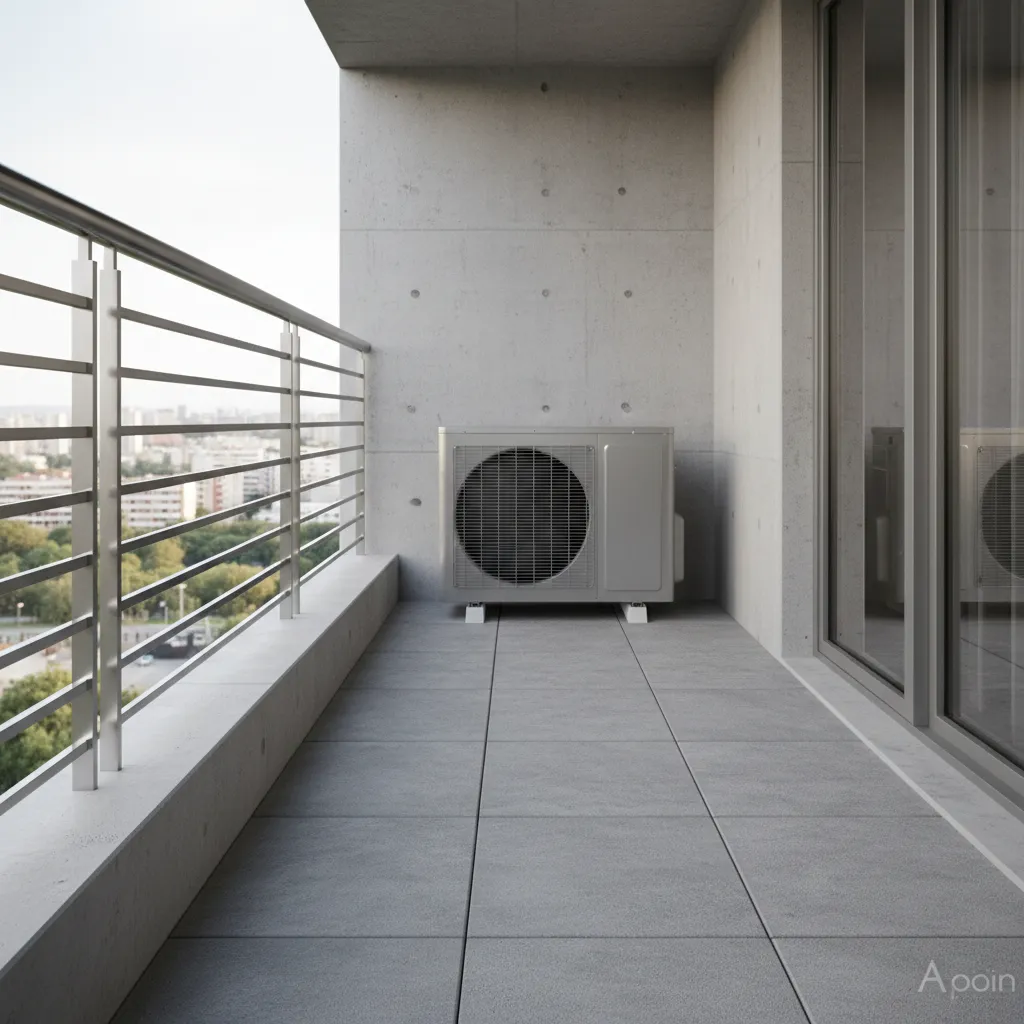

In poorly designed layouts, I often see outdoor units placed in enclosed shafts, tight balconies, or corners surrounded by walls. These spaces trap hot air, causing temperature buildup around the condenser.

Common consequences include:

1. Reduced cooling efficiency
2. Higher electricity consumption
3. Compressor overheating
4. Shortened equipment lifespan

According to ASHRAE HVAC design guidelines, condenser airflow obstruction is one of the leading causes of reduced system performance in residential installations.

Another overlooked factor is heat recirculation. If the hot discharge air loops back into the condenser intake, the system essentially tries to cool already heated air—a design flaw that dramatically reduces efficiency.

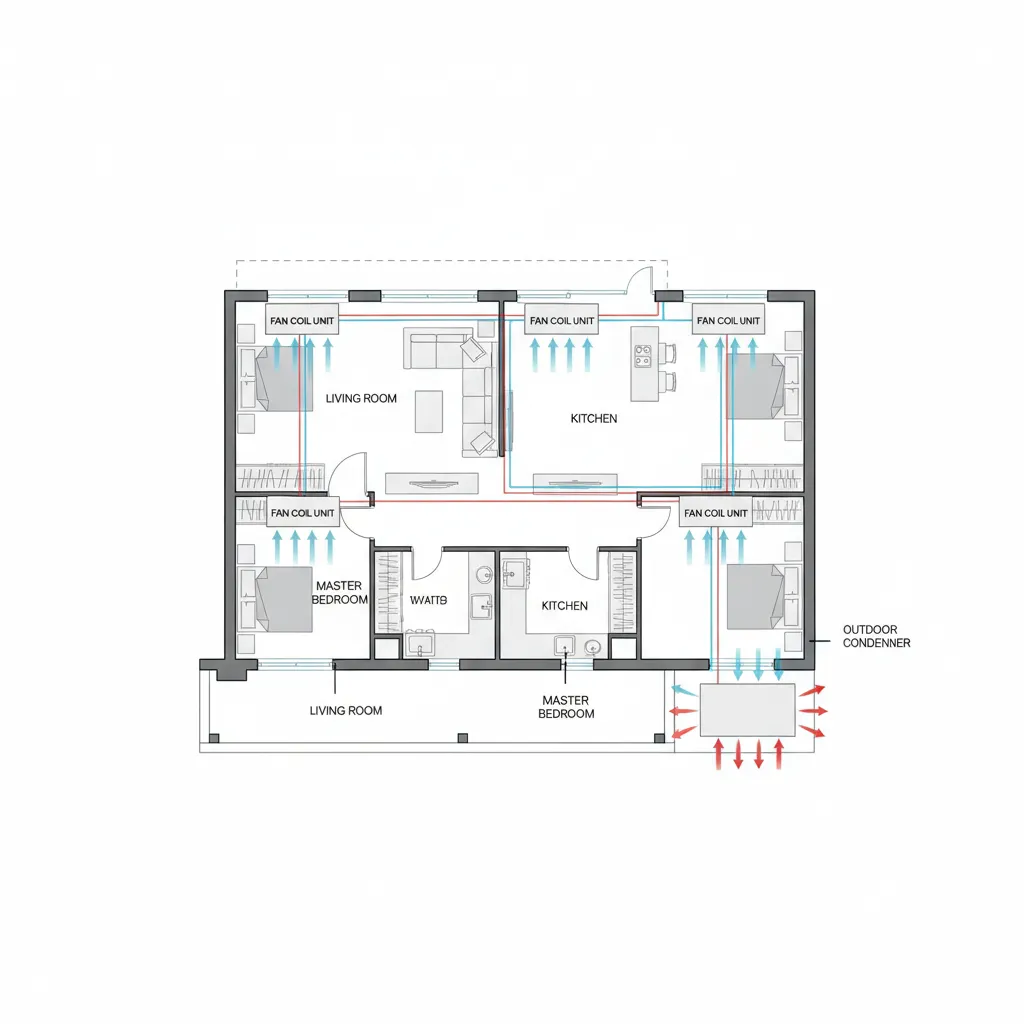

Distance Between Indoor Units and Outdoor Units

Key Insight: Shorter refrigerant piping between indoor and outdoor units improves performance and reduces installation complexity.

Every HVAC manufacturer specifies maximum and recommended pipe lengths between indoor evaporators and the outdoor condenser. While systems can technically operate at longer distances, efficiency drops as the line length increases.

In residential design, I usually aim for these practical ranges:

1. Ideal distance: under 15 meters (50 ft)
2. Acceptable range: 15–30 meters
3. Beyond 30 meters requires careful design adjustments

Long refrigerant lines create several issues:

1. Pressure drops in refrigerant circulation
2. Higher installation cost
3. More potential leak points
4. Reduced cooling capacity

When planning layouts, I often recommend locating outdoor units near service balconies or utility terraces that sit close to major indoor equipment zones.

Architects experimenting with mechanical placement often prototype these relationships using a simple floor plan layout tool for early mechanical zoningto verify realistic routing distances.

save pin

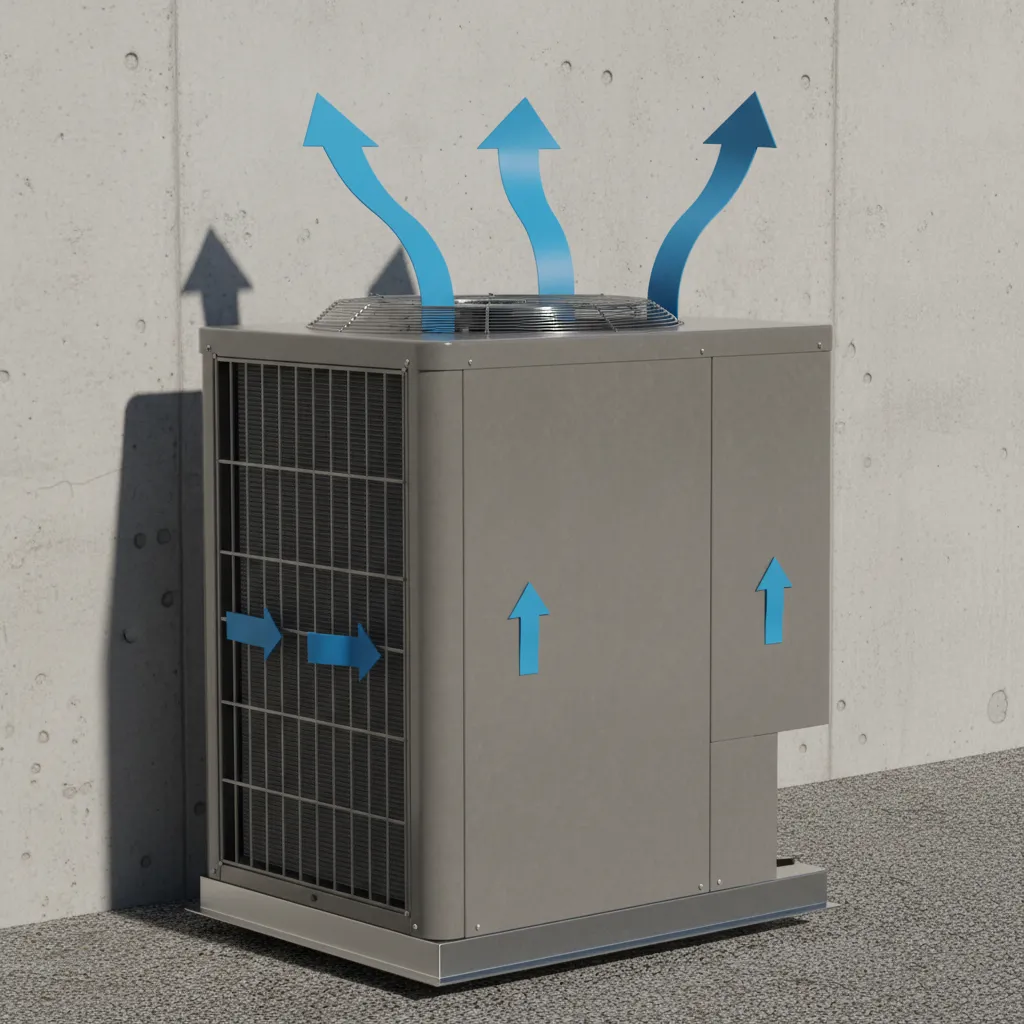

Ventilation and Airflow Considerations

Key Insight: Outdoor units require clear airflow paths on all sides to prevent heat buildup and maintain condenser efficiency.

Manufacturers typically specify minimum clearance requirements around outdoor units. These distances allow air to circulate through the condenser coils and exhaust heat effectively.

Typical clearance recommendations:

1. Rear clearance: 12–24 inches
2. Side clearance: 12–24 inches
3. Front service clearance: 36 inches or more
4. Top clearance: at least 60 inches

However, compliance with minimum clearance doesn’t always mean optimal performance. In real projects, airflow direction and surrounding structures matter just as much.

Good ventilation strategies include:

1. Open balconies instead of enclosed shafts
2. Perforated mechanical screens instead of solid walls
3. Avoiding corners that trap exhaust air
4. Ensuring prevailing wind can assist airflow

A mistake I frequently see in dense housing developments is stacking multiple condensers tightly together. This creates a "heat island" effect where all units discharge hot air into the same confined space.

save pin

Noise and Vibration Control in ODU Placement

Key Insight: Poor ODU placement can amplify noise transmission into living spaces, especially bedrooms.

Modern HVAC outdoor units are quieter than older models, but they still produce vibration and compressor noise.

The problem becomes noticeable when condensers are placed directly outside bedroom walls or near windows.

Effective noise mitigation strategies include:

1. Placing units near service areas or bathrooms
2. Using vibration isolation pads
3. Keeping units away from bedroom windows
4. Installing acoustic barriers when necessary

In multi‑unit residential buildings, thoughtful layout coordination between architects and mechanical engineers helps avoid stacking condensers near quiet zones.

Answer Box

The best ODU placement balances three factors: strong ventilation, short piping distance, and minimal noise impact on living areas. Ignoring any one of these often leads to long‑term HVAC performance problems.

Maintenance Access and Service Clearance

Key Insight: Outdoor units must be accessible for maintenance, otherwise routine servicing becomes expensive or unsafe.

This is one of the most overlooked design issues I encounter when reviewing residential floor plans.

Designers sometimes hide outdoor units behind decorative screens or squeeze them into narrow corners to improve aesthetics. Unfortunately, this makes routine service extremely difficult.

HVAC technicians typically require:

1. Front access for coil cleaning
2. Clear space for electrical servicing
3. Room to remove compressor components
4. Safe technician access without ladders

When service access is ignored, homeowners often face higher repair costs because technicians need extra time—or specialized equipment—to reach the unit.

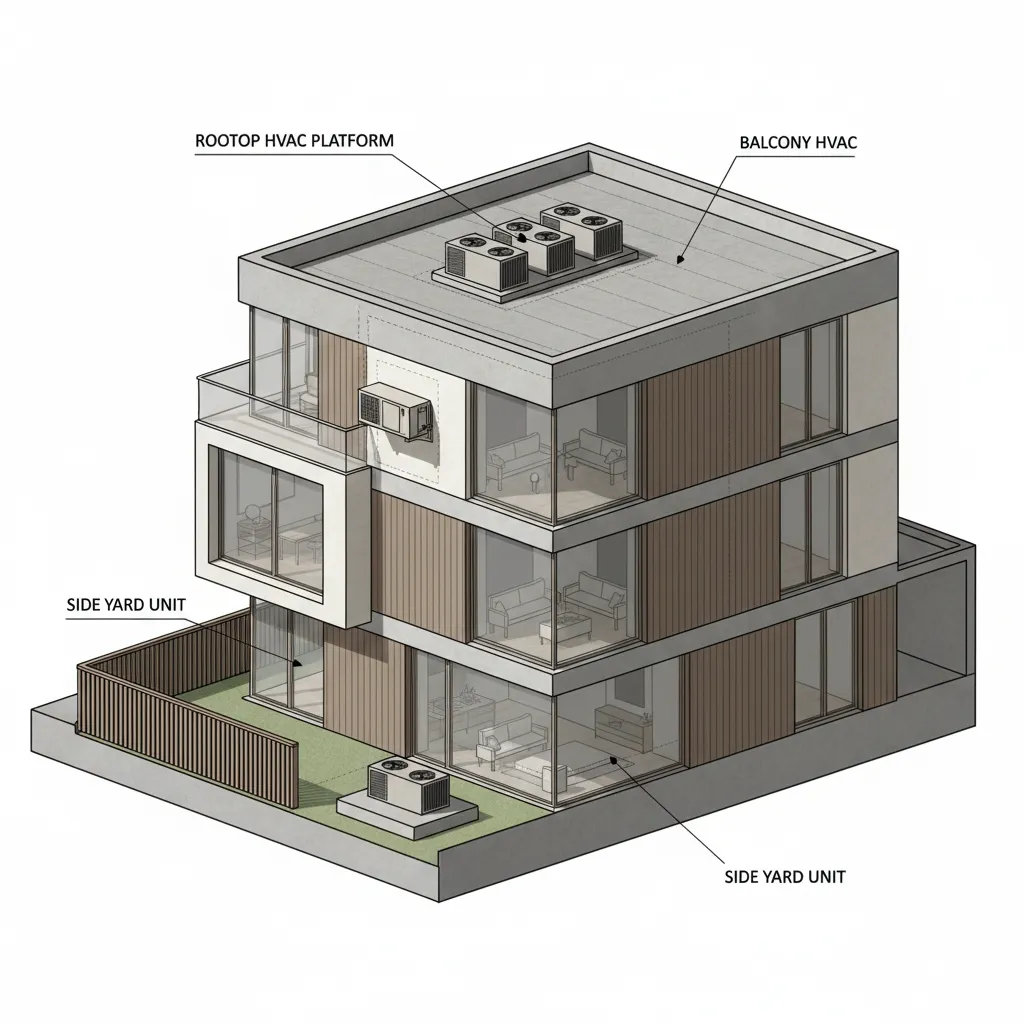

Common Layout Strategies in Residential Buildings

Key Insight: Most residential HVAC designs use predictable placement zones that balance airflow, accessibility, and visual impact.

Across hundreds of projects, I see several placement patterns appear repeatedly in successful residential designs.

Common outdoor unit layout strategies:

1. Service balcony installation
2. Ground‑level side yard placement
3. Dedicated mechanical terrace
4. Roof‑mounted condenser platforms

Each option has trade‑offs.

1. Balcony placement simplifies piping but requires strong airflow design.
2. Ground placement offers good ventilation but may require longer piping.
3. Roof placement reduces noise impact but increases installation cost.

During early design exploration, architects often test multiple HVAC layouts while visualizing exterior equipment zones using a room‑by‑room layout visualization workflowthat helps balance interior design with mechanical requirements.

save pin

Final Summary

1. Outdoor unit placement strongly affects HVAC efficiency and lifespan.
2. Short refrigerant piping improves performance and reduces cost.
3. Proper ventilation prevents heat recirculation and overheating.
4. Noise control requires distance from bedrooms and quiet areas.
5. Maintenance access should always be planned early in the layout.

FAQ

What is the best location for an HVAC outdoor unit?

Open exterior areas with strong airflow, minimal noise impact, and short refrigerant piping distance to indoor units are ideal.

How far should an ODU be from indoor units?

Most systems perform best when the distance stays under 15 meters (50 ft), although manufacturer limits vary.

Can outdoor units be installed on balconies?

Yes, but the balcony must allow sufficient airflow and meet clearance requirements around the condenser.

What clearance is required around an HVAC outdoor unit?

Most manufacturers recommend 12–24 inches on sides and rear, and about 36 inches of service clearance in front.

Does poor ODU placement affect cooling efficiency?

Yes. Restricted airflow or excessive piping distance can significantly reduce HVAC efficiency.

Should outdoor units be placed near bedrooms?

It is better to avoid bedroom walls or windows because compressor noise and vibration may become noticeable.

Where should ODU be placed in residential floor plans?

Typical locations include service balconies, side yards, rooftops, or dedicated mechanical terraces.

Can multiple outdoor units be placed together?

Yes, but spacing is critical to prevent heat recirculation between units.
