Best Practices for Accurate Scale Bars in CAD Floor Plans: Professional CAD workflows that keep floor plan scale bars accurate across layouts, viewports, and exports

Direct Answer

The most reliable way to create accurate scale bars in CAD floor plans is to set drawing units correctly, build a reusable scale bar block, and control scale through layout viewports instead of model space resizing. This approach ensures the graphic scale remains accurate even when drawings are printed, exported, or viewed digitally.

Quick Takeaways

1. Graphic scale bars remain essential because printed drawings can change size during reproduction.
2. Incorrect drawing units are the most common reason scale bars become inaccurate.
3. Reusable CAD blocks dramatically reduce drafting errors and speed up workflow.
4. Viewport scaling is safer than resizing geometry when preparing layouts.
5. Export settings can unintentionally break scale accuracy if not verified.

Introduction

After working on hundreds of residential and commercial projects, one detail I still see designers overlook is the scale bar in CAD floor plans. It seems minor until a contractor prints the drawing at the wrong size and suddenly every dimension becomes questionable.

A properly constructed graphic scale bar acts as a safety net. Even if the drawing is resized, the scale reference remains visually accurate. That’s why professional construction documents still include them, even when dimensions are clearly labeled.

Interestingly, many designers who move from concept planning tools into CAD drafting struggle with this transition. When someone starts by experimenting with layout concepts using tools like a step by step interactive floor plan layout workflow, scale feels automatic. But CAD demands deliberate setup.

In this guide, I’ll walk through the exact methods professional drafting teams use to create accurate, reusable, and export‑safe scale bars inside CAD floor plans.

save pin

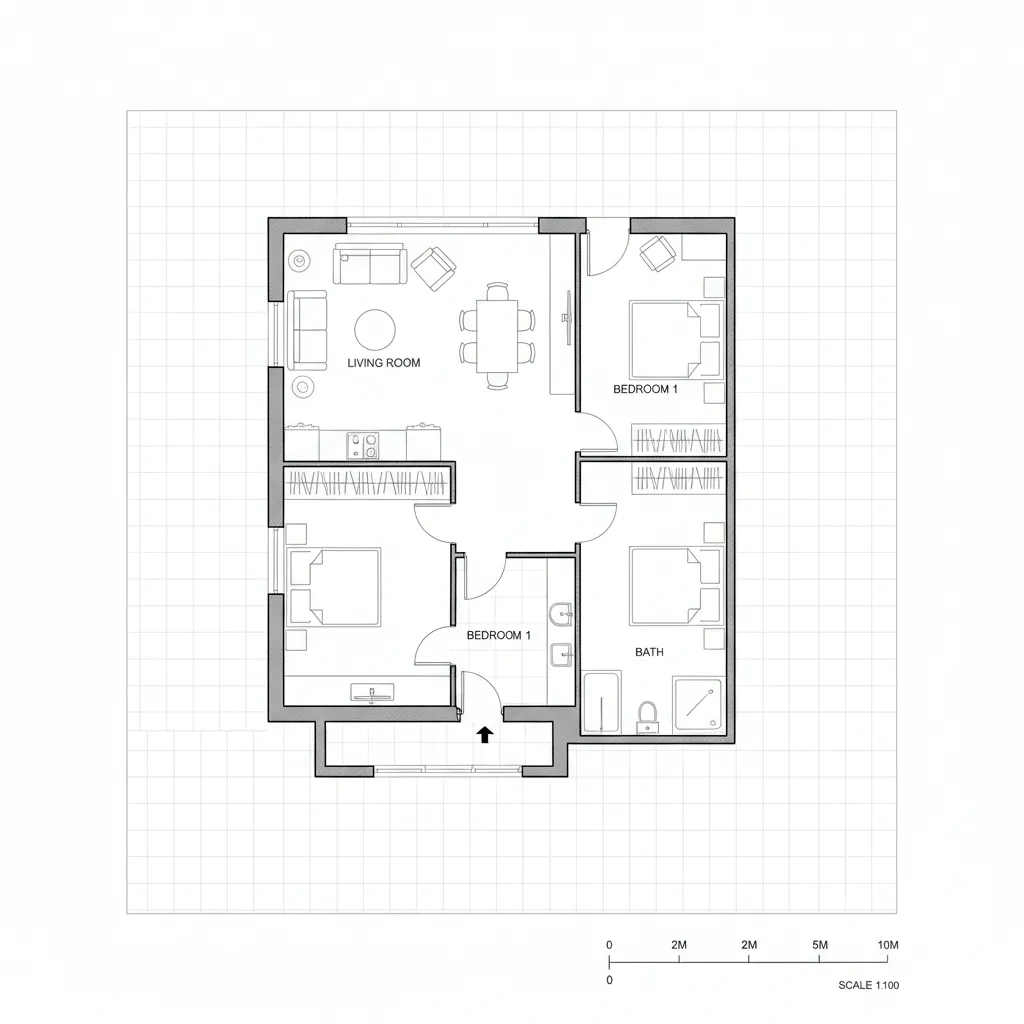

Why Digital Floor Plans Still Require Graphic Scale Bars

Key Insight: A graphic scale bar protects scale accuracy when drawings are resized, printed incorrectly, or exported across different formats.

Many designers assume dimensions alone make scale bars unnecessary. In practice, that assumption causes real problems. Contractors often print PDFs using "fit to page" without realizing it changes the scale.

When that happens, the numeric dimensions remain correct—but the physical scale of the drawing no longer matches the printed output.

A graphic scale bar solves this because it scales proportionally with the drawing.

1. If the drawing shrinks 10%, the scale bar shrinks 10%
2. If the drawing enlarges, the scale bar enlarges equally
3. Users can visually verify scale regardless of print settings

Architectural documentation standards from organizations like the American Institute of Architects continue recommending graphic scales for precisely this reason.

Hidden mistake many beginners make:

1. Using only numeric scales such as "1/4" = 1'-0"" without a graphic bar
2. Placing scale bars drawn manually instead of generated from measured geometry

Both increase the risk of scale errors once drawings leave the CAD environment.

Setting Correct Drawing Units Before Creating a Scale Bar

Key Insight: If drawing units are wrong at the beginning, every scale bar created later becomes unreliable.

Over the years reviewing junior designers' drawings, I’ve noticed one recurring issue: incorrect base units.

Before creating a scale bar in any CAD floor plan, confirm the drawing units.

Typical architectural setup:

1. Units: Architectural
2. Insertion scale: Inches or millimeters depending on region
3. Precision: 1/16" or 1 mm

Verification checklist:

1. Confirm a 12‑inch line measures exactly 1 foot
2. Ensure imported references match the same unit system
3. Check scale factors of any external references

One subtle issue many tutorials ignore: imported DWG files often carry hidden scaling factors. When that happens, a scale bar created from model measurements will technically be correct—but the building geometry won't be.

save pin

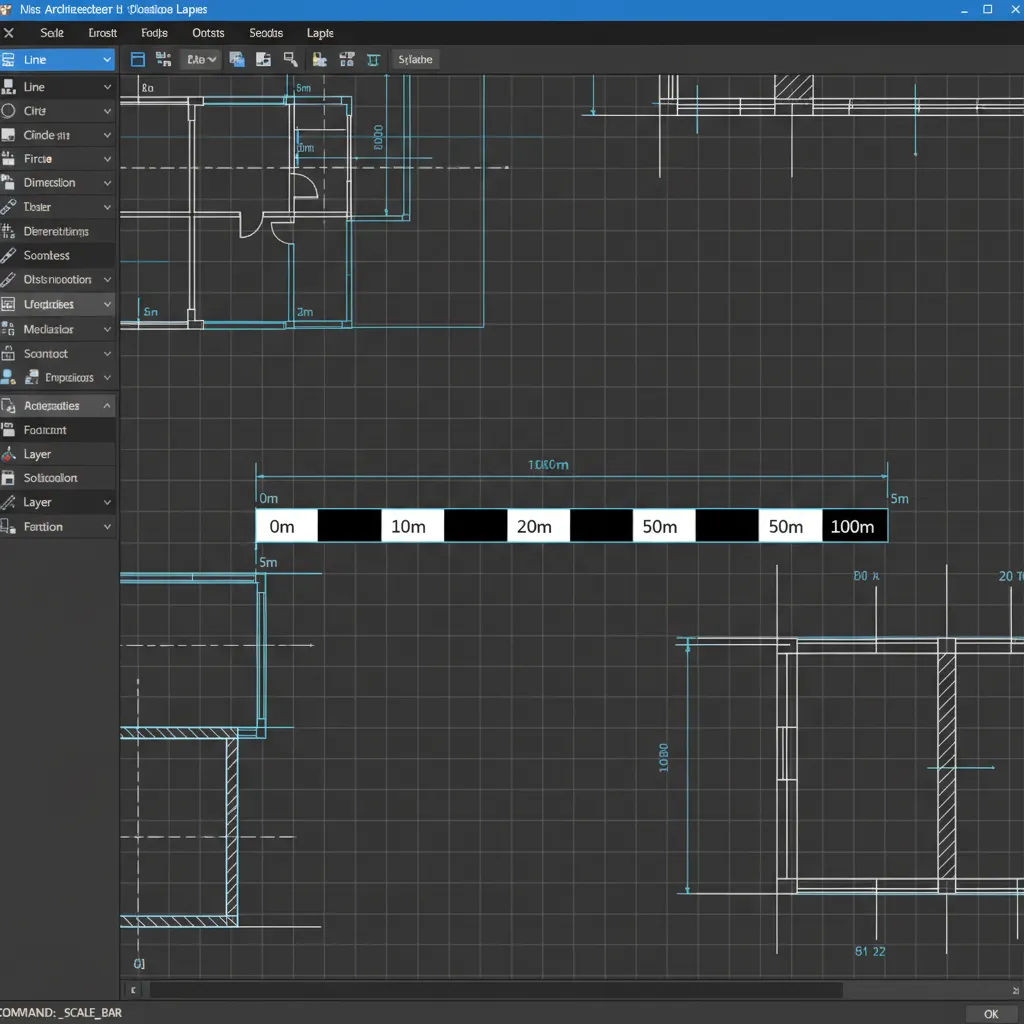

Creating a Reusable Scale Bar Block in CAD

Key Insight: Turning a scale bar into a reusable block eliminates repeated drafting work and prevents inconsistent graphic scales.

On most professional teams, nobody redraws scale bars from scratch. Instead, we create a standardized CAD block library.

Typical scale bar block structure:

1. Segmented rectangles representing distance intervals
2. Text labels for each increment
3. A defined base length in model units

Example configuration for a 1/4" scale drawing:

1. Each segment = 4 feet
2. Total bar length = 16 feet
3. Alternating black and white segments for readability

Block creation workflow:

1. Draw the scale bar in model space using real measurements.
2. Group geometry and labels.
3. Create a named block.
4. Save it into your CAD template.

For teams producing many layouts, this becomes even more efficient when combined with planning tools such as a simple workflow for generating scaled floor plan layouts before final CAD drafting.

Another overlooked benefit: consistent graphic standards across all project sheets.

Automating Scale Bars for Different Drawing Scales

Key Insight: The most efficient CAD workflow uses annotative blocks or dynamic scaling so one scale bar adapts to multiple drawing scales.

Large projects often contain several drawing scales:

1. 1/8" = 1'-0" overall floor plans
2. 1/4" = 1'-0" enlarged plans
3. 3/4" = 1'-0" interior details

Instead of managing separate scale bars for each, many offices use:

1. Annotative blocks
2. Dynamic block parameters
3. Layout-specific visibility states

Benefits of automation:

1. Scale bars automatically match viewport scale
2. Less manual editing during sheet setup
3. Reduced documentation errors

Hidden cost most teams discover too late: manually maintained scale bars often become outdated when viewport scales change during late design revisions.

Answer Box

The most reliable CAD scale bar workflow uses correct base units, reusable blocks, and viewport scaling. When these three elements work together, graphic scale bars remain accurate across prints, PDFs, and exported drawings.

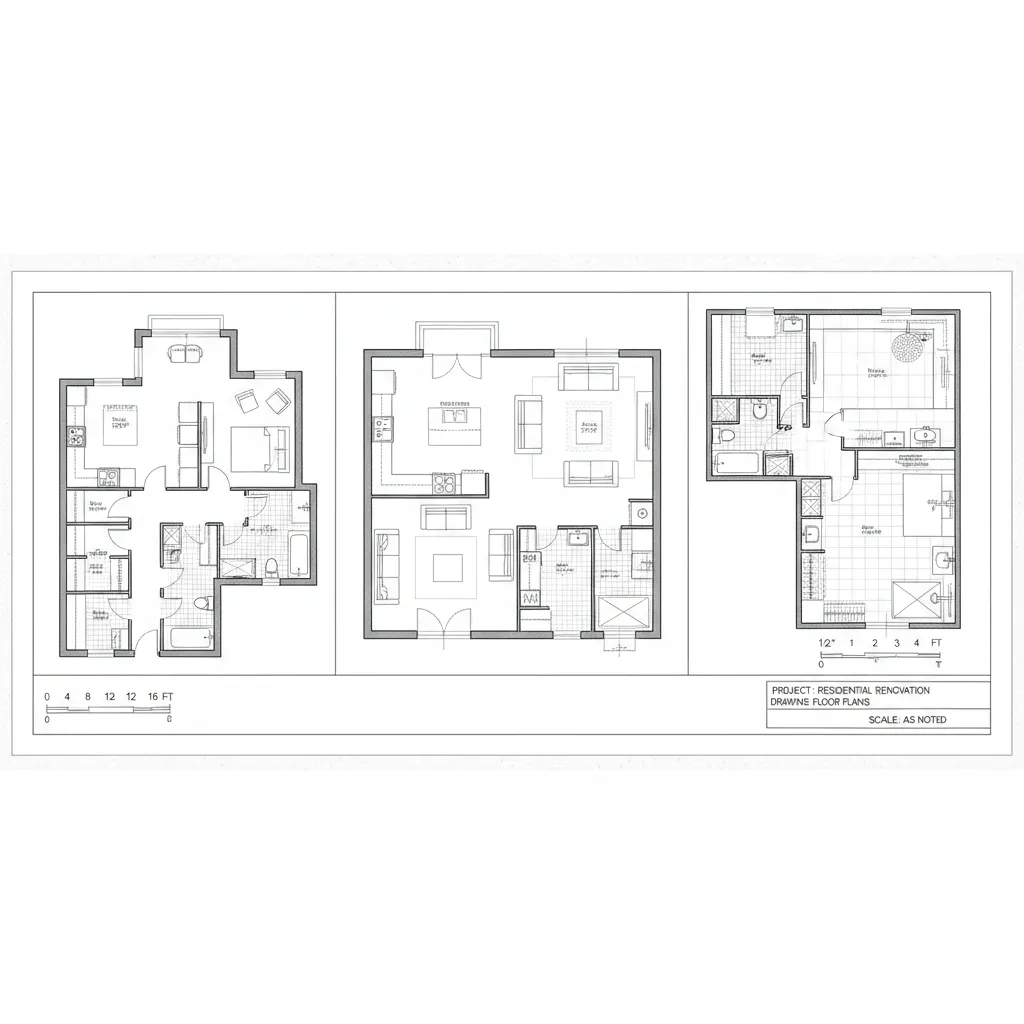

Ensuring Scale Accuracy Across Layouts and Viewports

Key Insight: Scale bars should always live in paper space while model geometry stays in model space.

This separation is one of the biggest professional drafting habits beginners overlook.

Correct layout workflow:

1. Draw the building in model space at full size.
2. Create viewports in paper space.
3. Set viewport scale.
4. Insert scale bar aligned to that viewport scale.

Common mistakes to avoid:

1. Scaling model geometry instead of viewport
2. Placing scale bars inside model space
3. Stretching scale bars to visually match drawings

Experienced drafters know the rule: model space equals real dimensions, paper space equals presentation.

save pin

Exporting CAD Drawings Without Breaking the Scale

Key Insight: Most scale errors occur after drawings leave CAD, especially during PDF export or image conversion.

Even perfect CAD scale bars can break during file export if settings are incorrect.

Export checklist used in many offices:

1. Plot scale set to 1:1
2. Disable "fit to page"
3. Use vector PDF output
4. Verify page size matches drawing sheet

Another practical trick I recommend: open the exported PDF and measure the scale bar using a digital ruler tool.

Designers who regularly move between visualization tools and CAD environments—such as workflows that include AI assisted floor planning for early layout concepts—should double‑check export settings every time drawings reenter the CAD documentation stage.

save pin

Final Summary

1. Graphic scale bars remain essential protection against print resizing.
2. Correct drawing units are the foundation of reliable CAD scaling.
3. Reusable blocks standardize scale bars across projects.
4. Viewport scaling prevents geometry distortion.
5. Export settings frequently cause hidden scale errors.

FAQ

1. How do you create a scale bar in a CAD floor plan?

Draw measured segments in model units, convert them into a reusable block, and insert the block in layout space aligned with viewport scale.

2. Why is my CAD scale bar inaccurate?

The most common causes are incorrect drawing units, viewport scaling errors, or PDF export settings altering the final output.

3. Should scale bars be in model space or paper space?

Scale bars should normally be placed in paper space so they correspond directly with the viewport scale used in layout sheets.

4. Can AutoCAD automate scale bars?

Yes. Annotative blocks or dynamic blocks allow scale bars to automatically adapt to different viewport scales.

5. What is the best scale bar length for floor plans?

Many architects use 16‑foot or 20‑foot bars with evenly divided increments for readability.

6. How do you keep scale accurate in CAD drawings?

Always draw geometry at full size, control scale through viewports, and confirm export settings before distributing drawings.

7. Do contractors actually use scale bars?

Yes. They are commonly used when verifying measurements from printed drawings on job sites.

8. What is the difference between an architectural scale and a graphic scale bar?

An architectural scale is a measurement tool. A graphic scale bar is printed directly on the drawing to visually represent scale.
