Best Software Tools for Building ECM Machine Tool 3D Models: A practical guide for engineers choosing CAD and simulation platforms for accurate electrochemical machining machine models

Direct Answer

The best software tools for building ECM machine tool 3D models combine robust mechanical CAD design with simulation capabilities that can represent electrolyte flow, electrode geometry, and current distribution. In practice, engineers usually rely on a combination of platforms such as SolidWorks, Siemens NX, CATIA, and multiphysics simulation tools like COMSOL to model and validate ECM systems.

No single tool covers everything. Most professional ECM modeling workflows use a CAD platform for geometry and assembly, then connect it to simulation environments that handle electrochemical and fluid dynamics behavior.

Quick Takeaways

1. ECM machine tool modeling usually requires both CAD design software and multiphysics simulation tools.
2. Platforms like Siemens NX and SolidWorks dominate mechanical structure modeling for ECM equipment.
3. Electrochemical behavior often requires COMSOL or similar multiphysics simulation environments.
4. Integration between CAD, CAM, and simulation tools significantly improves ECM model accuracy.
5. The best software choice depends on whether your focus is mechanical design, simulation, or full system validation.

Introduction

Designing an accurate ECM machine tool 3D model is very different from modeling a typical CNC machine. After working on multiple industrial equipment layouts and digital modeling workflows, one pattern is clear: ECM modeling is less about pure geometry and more about how the machine interacts with chemistry, flow, and electrical fields.

Many engineers start with traditional CAD tools, only to discover later that their model cannot support simulation or electrode behavior analysis. The result is often wasted redesign cycles.

In complex equipment projects, visualization and layout planning also play a role early in development. For example, teams often begin with conceptual spatial layouts similar to workflows used in visualizing equipment layouts in a 3D planning environmentbefore refining the mechanical assemblies.

In this guide, I'll walk through the software platforms that actually work for ECM machine tool modeling, explain where each tool fits in the workflow, and highlight a few hidden pitfalls most engineers only discover halfway through a project.

save pin

Key Requirements for ECM Machine Tool Modeling Software

Key Insight: Effective ECM machine modeling software must support precise mechanical assemblies while allowing integration with electrochemical and fluid simulation environments.

Unlike conventional machine tools, ECM systems involve several tightly coupled systems: electrodes, electrolyte channels, pumps, power supplies, and precision positioning axes. If your modeling platform can't handle both assembly complexity and simulation integration, the model quickly becomes useless beyond visualization.

From experience, the most important capabilities include:

1. Parametric 3D modeling for electrodes and fixtures
2. Large assembly management for machine structure
3. Integration with simulation tools
4. Accurate tolerance and clearance modeling
5. Export compatibility for multiphysics environments

A common hidden mistake is ignoring electrolyte channel geometry during the early design phase. In ECM systems, flow paths affect machining stability, so the model must represent them precisely.

What CAD Platforms Are Most Common for ECM Machine Design?

Key Insight: Most ECM machine tools are designed using mainstream mechanical CAD systems such as Siemens NX, SolidWorks, or CATIA.

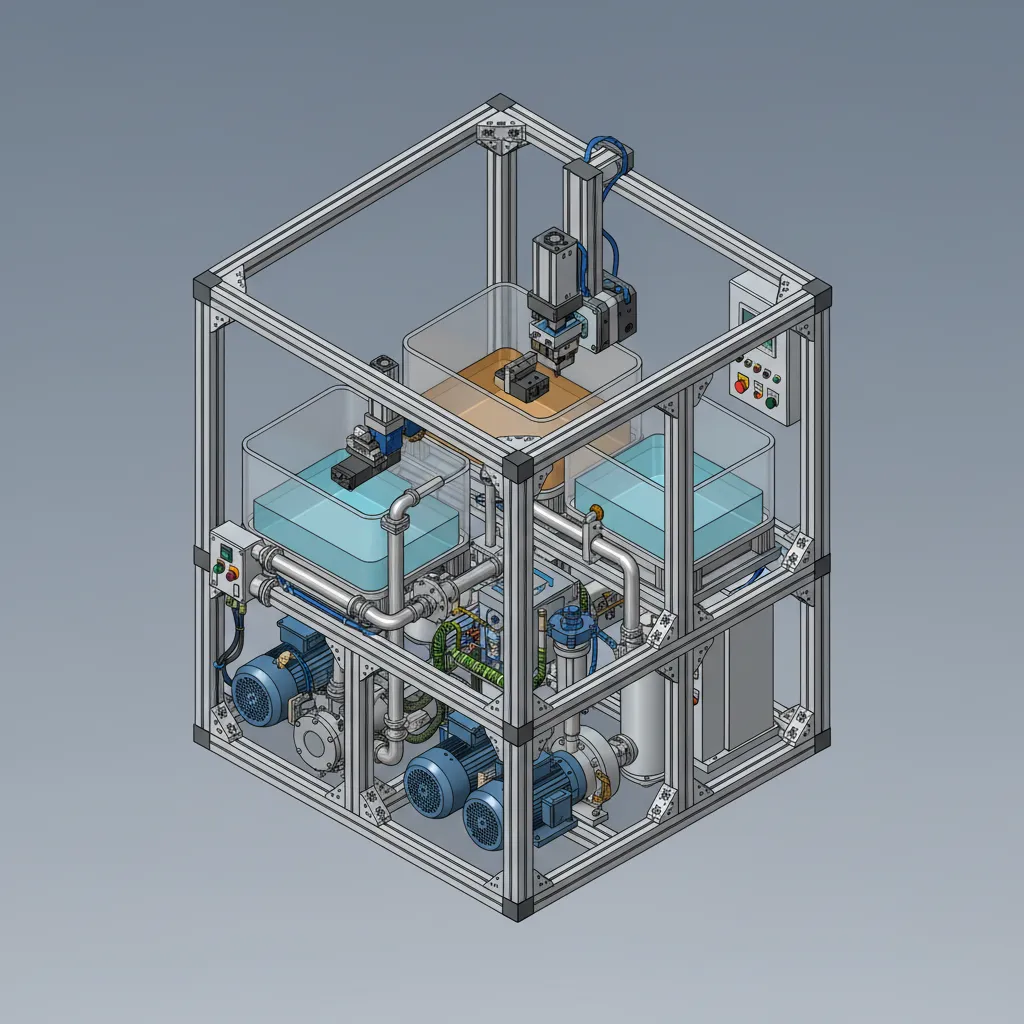

These platforms dominate industrial equipment design because they manage complex assemblies extremely well. An ECM machine may contain hundreds or thousands of components including pumps, tanks, structural frames, tooling modules, and electrode systems.

Common CAD platforms used in ECM projects:

1. Siemens NX – widely used in aerospace and high‑end machine tool design
2. SolidWorks – common in mid‑size manufacturing companies
3. CATIA – preferred for complex industrial systems and large assemblies
4. PTC Creo – strong parametric modeling and configuration control

In my experience, Siemens NX tends to perform best for very large machine assemblies, while SolidWorks offers faster iteration during early concept development.

Another overlooked factor is spatial planning. Before building the detailed machine structure, many engineering teams map equipment zones and maintenance clearances using methods similar to planning complex room‑scale layouts for equipment positioning. This prevents costly redesigns later.

save pin

Which Simulation Tools Support Electrochemical Machining?

Key Insight: ECM performance cannot be validated using CAD alone; multiphysics simulation tools are required to model electrochemical reactions and electrolyte flow.

Electrochemical machining involves interactions between electricity, chemistry, and fluid dynamics. Standard mechanical simulation tools are not sufficient.

The most widely used environments include:

1. COMSOL Multiphysics – excellent for electrochemical and fluid interaction simulation
2. ANSYS Multiphysics – strong CFD and thermal modeling capabilities
3. OpenFOAM – open‑source option for custom simulation workflows

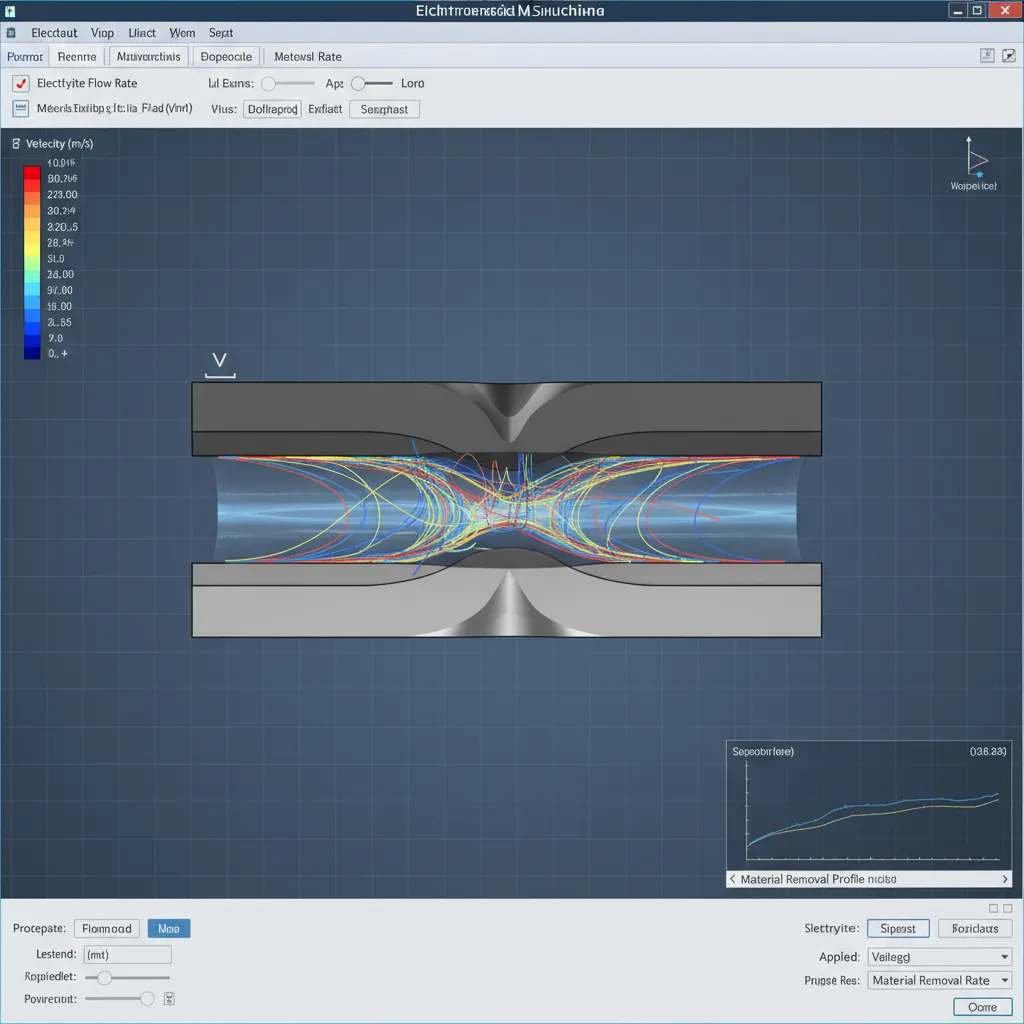

For example, in one ECM tooling project I reviewed, the mechanical model looked perfect in CAD. But once imported into COMSOL, the electrolyte velocity distribution revealed dead zones near the electrode. That discovery forced a redesign of the flow channel geometry.

This type of issue rarely appears in early CAD design but becomes critical once simulation begins.

save pin

Integration Between CAD, CAM, and ECM Simulation Systems

Key Insight: The most efficient ECM modeling workflows rely on smooth data transfer between CAD design and simulation tools.

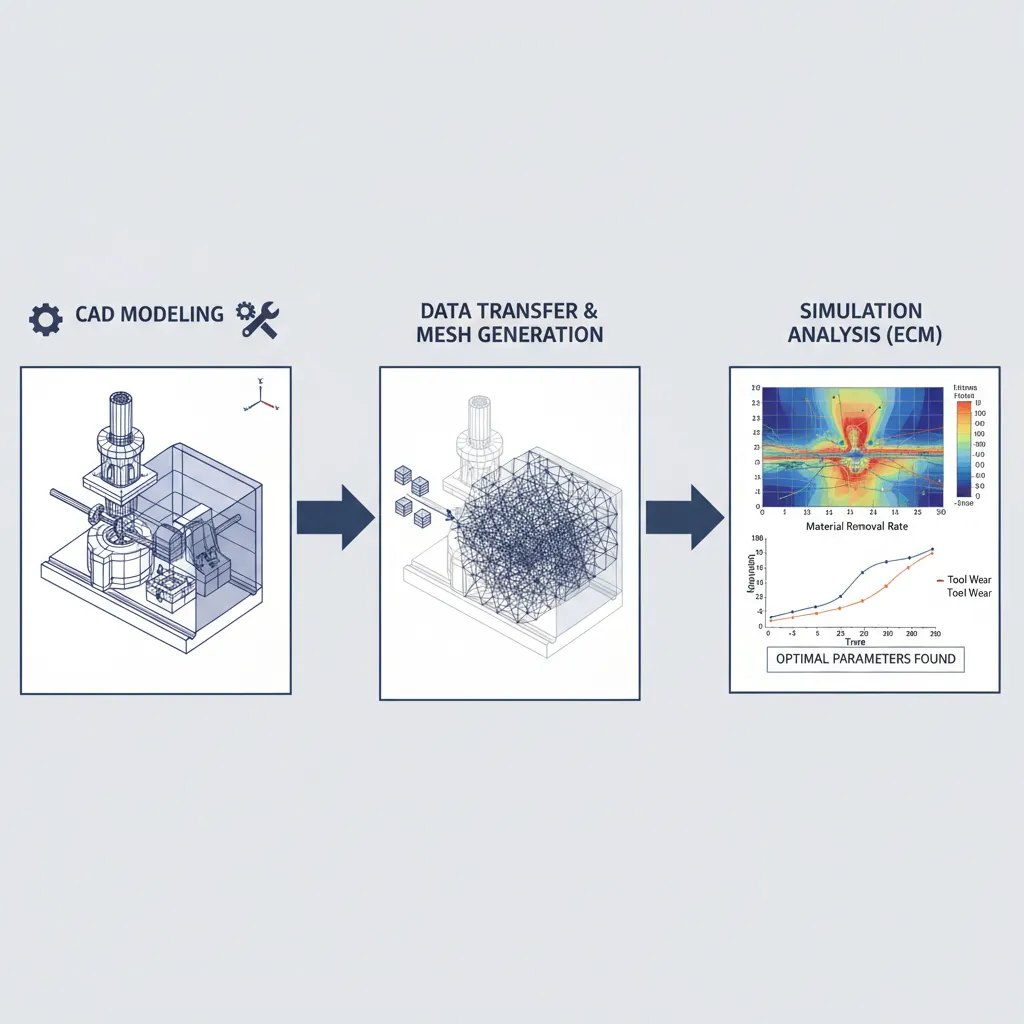

In real engineering environments, models move through several stages:

1. Concept machine layout
2. Detailed mechanical assembly
3. Electrode geometry modeling
4. Simulation and optimization
5. Manufacturing preparation

Problems usually appear during geometry transfer. Complex assemblies often contain surfaces or features that break simulation meshes.

Best practices for integration:

1. Simplify assemblies before exporting to simulation tools
2. Separate electrode models from machine structure
3. Use neutral formats like STEP or Parasolid
4. Validate geometry before running multiphysics simulations

Answer Box

The best workflow for building ECM machine tool 3D models combines mechanical CAD platforms such as Siemens NX or SolidWorks with multiphysics simulation tools like COMSOL. CAD handles machine structure and assemblies, while simulation software evaluates electrochemical behavior and fluid flow.

How Do You Choose the Right Software for ECM Machine Modeling Projects?

Key Insight: The right ECM modeling software depends on whether the project prioritizes mechanical design, electrochemical simulation, or full system optimization.

After observing multiple ECM development projects, I usually suggest selecting software based on project stage.

Recommended selection logic:

1. Early machine concept – flexible CAD modeling tools
2. Detailed machine assembly – enterprise CAD platforms
3. Electrochemical process simulation – multiphysics simulation environments
4. Manufacturing preparation – CAM integration

Another underestimated factor is visualization. Engineers often underestimate how helpful spatial previews are when planning maintenance access and operator zones. Some teams even prototype layouts using tools designed for creating realistic 3D environment previews for spatial planningbefore finalizing industrial CAD models.

save pin

Final Summary

1. ECM machine tool 3D models require both mechanical CAD and multiphysics simulation tools.
2. Siemens NX, SolidWorks, CATIA, and Creo dominate ECM machine structure modeling.
3. COMSOL and ANSYS are commonly used for electrochemical and fluid simulation.
4. Workflow integration between CAD and simulation tools determines modeling efficiency.
5. Ignoring electrolyte flow geometry early often causes expensive redesigns.

FAQ

What software is best for ECM machine tool 3D modeling?

Most engineers use CAD platforms such as Siemens NX, SolidWorks, or CATIA to build the ECM machine tool 3D model, then use multiphysics tools like COMSOL for electrochemical simulation.

Can SolidWorks be used for ECM machine modeling?

Yes. SolidWorks works well for mechanical structures and assemblies, but electrochemical process simulation usually requires additional multiphysics tools.

Why is simulation important in ECM machine models?

Simulation helps evaluate electrolyte flow, current density, and material removal behavior, which cannot be analyzed using geometry alone.

What makes ECM machine models different from CNC machine models?

ECM machines involve electrochemical reactions and fluid flow systems, which require simulation of physics beyond mechanical motion.

Is COMSOL commonly used for ECM simulation?

Yes. COMSOL Multiphysics is widely used because it supports electrochemistry, fluid dynamics, and electric field simulation in one environment.

Do ECM machine models require high geometric accuracy?

Yes. Small variations in electrode geometry or flow channel design can significantly affect machining accuracy.

What file formats are typically used between CAD and simulation tools?

STEP, Parasolid, and IGES formats are commonly used to transfer ECM machine geometry between CAD and simulation environments.

How detailed should an ECM machine tool 3D model be?

The ECM machine tool 3D model should include electrodes, electrolyte channels, and structural components but may simplify noncritical hardware to improve simulation performance.
