The best software tools for creating circular and radial floor plans are CAD, BIM, and modern 3D floor planning platforms that support curved walls, polar coordinates, and parametric geometry. Programs such as AutoCAD, Revit, Rhino, and modern browser-based planners make it far easier to draw accurate arcs, circular rooms, and radial layouts without distortion.

For beginners or residential designers, visual floor planning platforms with curved-wall support are often faster than traditional CAD tools.

Quick Takeaways

1. Most basic floor plan tools struggle with curved walls and radial geometry.
2. CAD and BIM software offer the most precision for circular architecture.
3. Parametric modeling tools are best for complex circular structures.
4. Modern 3D floor planners make curved layouts easier for beginners.
5. Choosing the right software depends on project complexity and scale.

Introduction

Circular architecture looks beautiful on paper—but designing it digitally can quickly become frustrating if your software isn't built for it. Over the past decade working on residential and boutique hospitality projects, I've seen designers try to force round layouts into tools that were clearly designed for rectangles.

The result? Warped walls, broken measurements, and hours spent correcting geometry.

Good software for circular floor plan design handles arcs, radial measurements, and curved partitions as native geometry instead of awkward workarounds. When those features exist, the entire workflow becomes dramatically faster.

If you're trying to create round houses, curved offices, domes, or radial museums, the choice of design tool matters more than most people realize.

Before comparing professional software, it's worth seeing how modern platforms handle curved layouts visually. You can explore examples of AI-assisted interior layouts for unconventional floor plan shapesto understand how curved spaces are organized in real projects.

In this guide, I'll walk through the best software options for radial architecture, when to use each type of tool, and the hidden limitations that many designers only discover mid‑project.

save pin

Why Standard Floor Plan Tools Struggle with Circular Layouts

Key Insight: Most floor plan software fails with circular layouts because it was built around rectangular geometry and orthogonal walls.

Traditional floor planning tools assume that rooms meet at 90‑degree angles. That assumption simplifies measurements, snapping, and furniture placement—but it completely breaks down when walls become arcs.

Common problems designers encounter include:

1. Walls snapping incorrectly when drawing curves
2. Rooms failing to close when arcs intersect
3. Furniture aligning to straight axes instead of radial walls
4. Inaccurate dimensioning of curved walls

In several projects involving circular galleries and curved retail stores, I've seen designers rebuild entire floor plans because their original tool couldn't export correct curved geometry.

Professional design environments solve this using:

1. True arc geometry
2. Polar coordinate drawing systems
3. Parametric wall curvature
4. Radial dimension tools

Without these features, circular floor plans quickly become inaccurate.

Key Features Needed for Radial Floor Plan Design

Key Insight: The best software for curved layouts includes native arc drawing, parametric walls, and radial measurement tools.

When evaluating software for circular architecture, there are several features I always check first.

1. Arc‑based wall tools – allows walls to be drawn as curves instead of straight segments.
2. Radial dimensioning – measures radius, diameter, and arc length accurately.
3. Center‑point referencing – essential for symmetrical circular layouts.
4. Flexible furniture rotation – objects should align to curved walls.
5. 3D visualization – helps detect awkward circulation paths.

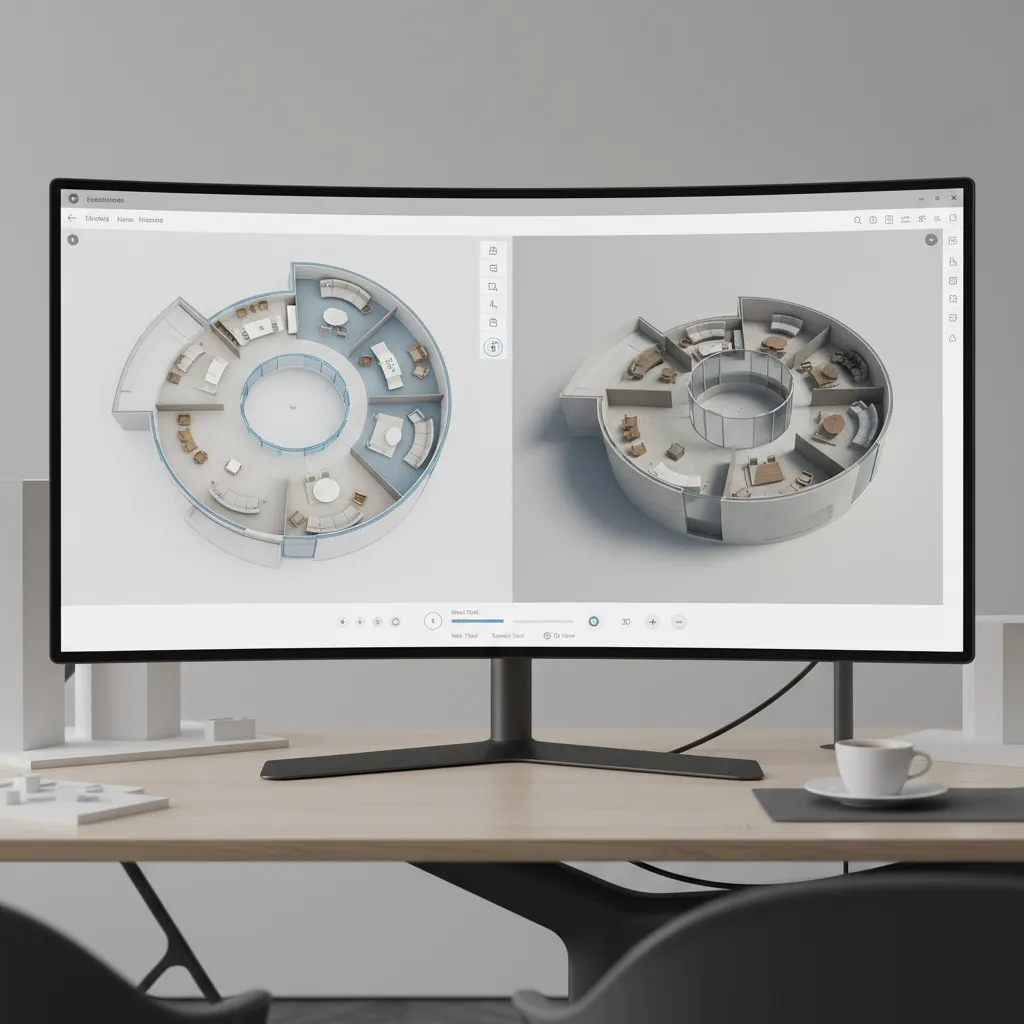

Modern visualization tools have become surprisingly powerful for early-stage planning. For example, platforms that allow designers to visualize curved layouts in an interactive 3D floor planning environmentmake it easier to catch spatial issues before construction documents begin.

save pin

CAD Software That Supports Circular Architecture

Key Insight: CAD software remains the most reliable solution for accurately drafting circular buildings and curved wall geometry.

For professional architectural documentation, CAD programs are still the gold standard.

These tools provide precision drawing capabilities that handle complex geometry without distortion.

Common CAD tools used for circular floor plans:

1. AutoCAD
2. DraftSight
3. BricsCAD

Advantages of CAD for radial design:

1. Precise arc and spline drawing
2. Layer‑based drafting
3. Accurate dimensions for construction drawings
4. Reliable export formats

However, CAD also has limitations. It is powerful but not particularly intuitive, especially for beginners trying to visualize spatial flow inside a circular building.

Beginner-Friendly Floor Plan Design Tools

Key Insight: Modern 3D floor planners are often the fastest way for beginners to design curved layouts without learning complex CAD workflows.

Many homeowners, real estate developers, and interior designers don't need construction‑grade drafting tools. They need visual planning tools that allow fast experimentation.

Beginner‑friendly platforms typically provide:

1. Drag‑and‑draw curved walls
2. Instant 3D previews
3. Furniture libraries
4. Real‑time space adjustments

In early design phases, this type of software can dramatically speed up concept development. If you're experimenting with curved homes or circular apartments, trying a visual floor plan creator designed for flexible room shapescan save hours compared with traditional drafting tools.

save pin

Parametric and BIM Tools for Complex Circular Structures

Key Insight: Parametric and BIM software excels when circular floor plans become structurally complex or multi‑level.

When a project moves beyond simple curved walls—think domes, circular stadiums, or radial office towers—parametric modeling becomes essential.

These tools allow designers to control geometry mathematically instead of manually drawing every curve.

Popular BIM and parametric tools include:

1. Revit
2. Rhino with Grasshopper
3. ArchiCAD

Advantages include:

1. Parametric control over curved surfaces
2. Structural coordination
3. Multi‑level building modeling
4. Integrated documentation

Large circular buildings—such as airports or museums—almost always rely on parametric modeling because manual drafting becomes unmanageable.

save pin

Choosing the Right Software for Your Project Scale

Key Insight: The best circular floor plan software depends less on popularity and more on the complexity of your project.

After working on both residential and commercial projects, I've found that software choice usually falls into three tiers.

1. Concept design: visual floor planners and 3D layout tools
2. Architectural drafting: professional CAD software
3. Large or complex structures: BIM and parametric platforms

A small circular home might only need a visual planning tool, while a curved office building will almost certainly require BIM coordination.

Answer Box

The best software for circular floor plans depends on project complexity. Visual planners work well for early design and small homes, while CAD and BIM platforms provide the precision needed for professional architectural documentation and complex radial structures.

Final Summary

1. Standard floor plan tools struggle with curved geometry.
2. CAD software offers the most precise circular drafting.
3. Visual floor planners simplify curved layout experimentation.
4. BIM tools handle complex multi‑level circular buildings.
5. The best software depends on project scale and accuracy needs.

FAQ

What software is best for circular floor plan design?

CAD tools like AutoCAD and BIM platforms like Revit are best for precision. Visual planners work well for conceptual circular layouts.

Can floor plan software draw curved walls?

Yes. Many modern tools support curved or arc walls, though simpler planners may offer limited control compared to CAD software.

Is CAD required for circular house plans?

No. CAD helps with precise documentation, but early design stages can often be done with visual floor planning software.

What are radial floor plans?

Radial floor plans organize rooms around a central point, often using curved walls or circular geometry.

Which software supports curved wall architecture?

Programs like Rhino, Revit, and AutoCAD support advanced curved geometry for architectural design.

Are circular houses harder to design?

Yes. Circular homes require careful planning for furniture placement, circulation, and structural support.

Can BIM tools design circular buildings?

Yes. BIM platforms such as Revit and ArchiCAD can model curved structures and coordinate building systems.

Is there beginner software for circular floor plans?

Yes. Some modern planning platforms include simple curved‑wall tools that make radial layouts easier to experiment with.
