Best Software Tools for Designing Mechanical Keyboards in 3D: A practical guide to choosing the right 3D modeling and CAD software for custom keyboard projects, keycaps, and hardware prototypes.

Direct Answer

The best software tools for designing mechanical keyboards in 3D depend on your goal. Beginners usually succeed with Blender or SketchUp, while serious hardware designers prefer Fusion 360 or SolidWorks for precise CAD modeling. The right choice balances learning curve, parametric control, and how detailed your keyboard prototype needs to be.

Quick Takeaways

1. Fusion 360 is the most balanced option for hobbyists building functional keyboard prototypes.
2. Blender excels at keycap visualization and rendering but lacks engineering precision.
3. Professional keyboard manufacturers typically rely on parametric CAD software.
4. Free tools can handle most hobby projects if tolerances are not extremely strict.
5. The best software depends on whether you're designing a case, PCB layout, or keycaps.

Introduction

Designing a mechanical keyboard in 3D sounds simple until you actually try to model one. A keyboard contains dozens of repeating components, strict switch tolerances, and tiny alignment details that quickly expose the limits of basic modeling tools.

After working with hundreds of product visualization and hardware modeling projects, I've learned that choosing the right software for mechanical keyboard design often matters more than modeling skill. The wrong tool slows everything down. The right one makes switch spacing, case angles, and plate tolerances surprisingly manageable.

If you're exploring software for mechanical keyboard design, the real question isn't just "which program is best." It's which program matches your project stage—concept visualization, keycap creation, or full hardware prototyping.

For readers who want to first understand the overall modeling workflow, you can also follow a step‑by‑step approach used when building structured 3D layouts for complex objects. Many of the same planning principles apply when modeling keyboards.

In this guide I'll break down beginner tools, professional CAD software, and the often‑overlooked tradeoffs between them.

save pin

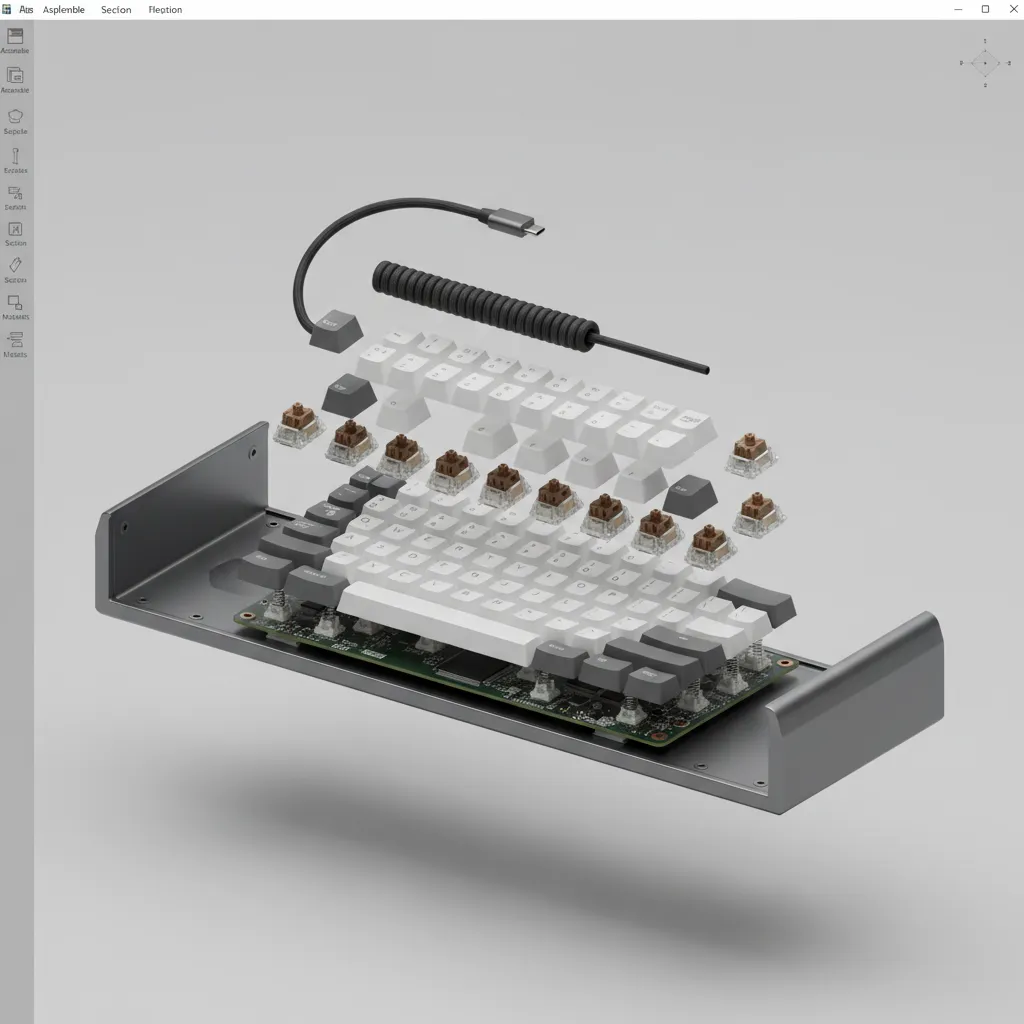

Key Requirements for Keyboard 3D Design Software

Key Insight: Mechanical keyboards require software that supports precise spacing, parametric editing, and component duplication.

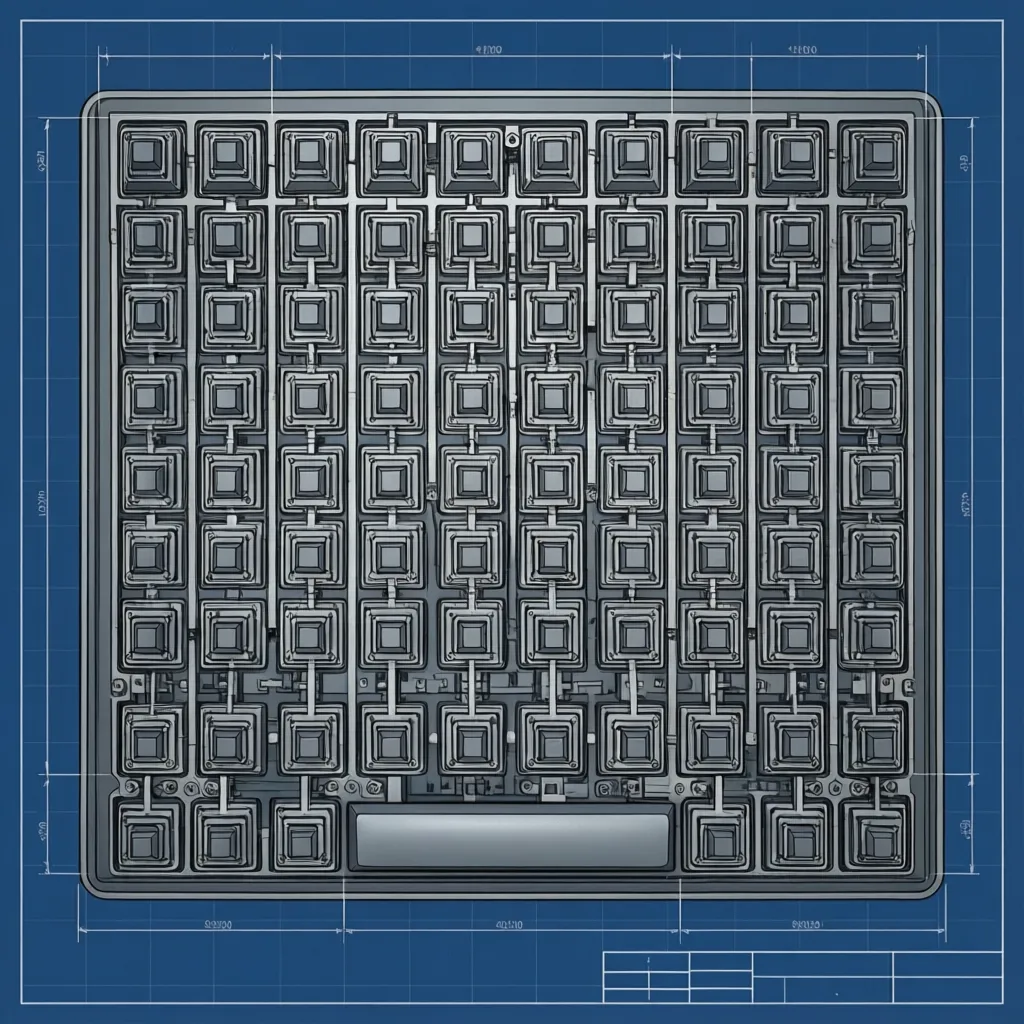

Unlike many consumer products, keyboards are extremely grid‑dependent. Switches typically follow a 19.05 mm pitch, stabilizers require precise alignment, and the case must match the plate exactly.

If the software cannot manage exact constraints, small errors accumulate quickly.

From my experience designing hardware mockups, the best 3D modeling software for keyboards usually includes:

1. Parametric modeling for easy dimension adjustments
2. Precise measurement tools and snapping
3. Pattern or array duplication for key layouts
4. Export formats for 3D printing or CNC
5. Decent rendering for prototype visualization

Common mistake beginners make: choosing artistic modeling tools without dimension control. They look great in renders but fail when you try to manufacture the design.

Top Beginner-Friendly 3D Modeling Tools

Key Insight: Blender is the most accessible entry point for keyboard modeling, especially for visualization and keycap experiments.

Many hobbyists start with Blender because it's free and extremely capable. For keyboard design, Blender shines in:

1. Rendering custom keycap sets
2. Visualizing keyboard layouts
3. Creating concept designs
4. Learning general 3D modeling skills

However, Blender has a hidden limitation: it isn't parametric. That means changing switch spacing later can require major remodeling.

Another approachable option is SketchUp, which allows faster geometry creation but still lacks deeper engineering precision.

In practice, I often recommend beginners start in Blender for visual experimentation before moving to CAD tools once they begin designing real hardware.

save pin

Professional CAD Software for Hardware Design

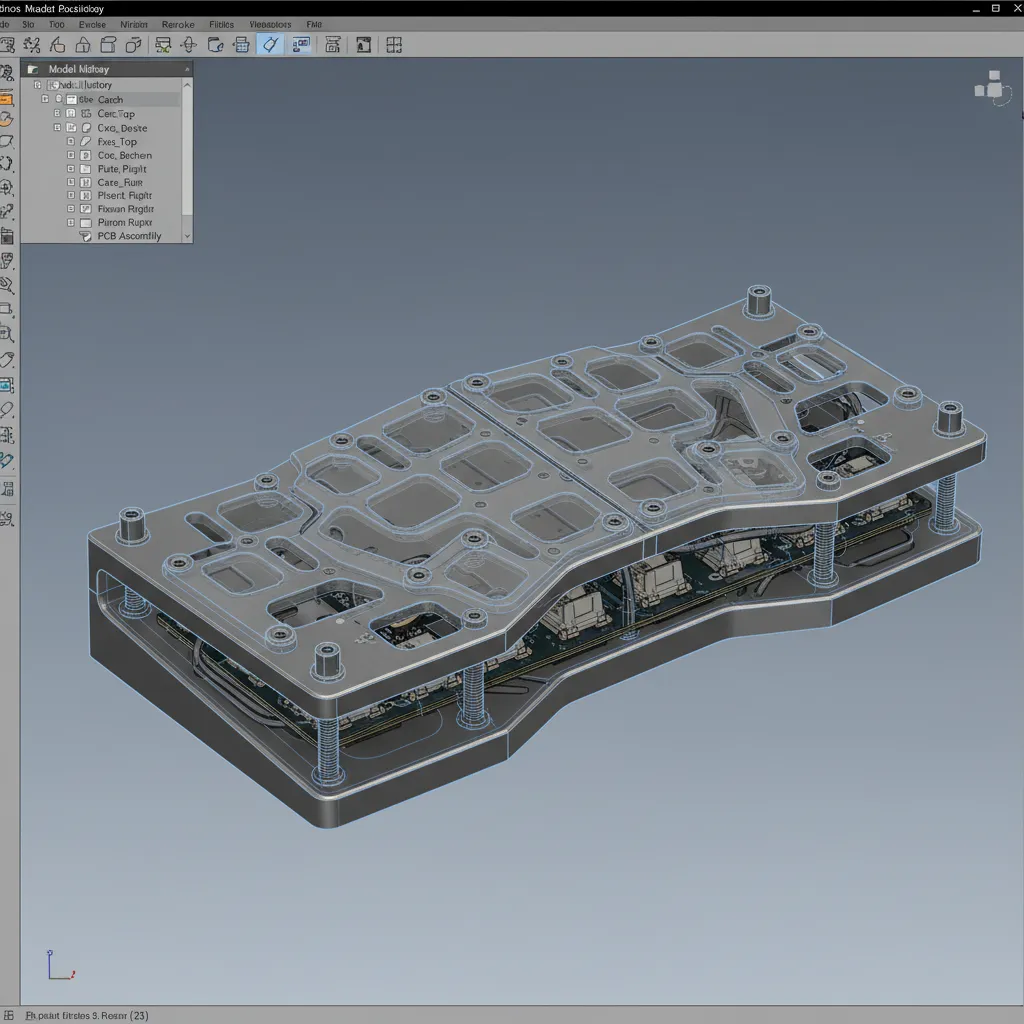

Key Insight: If you're designing an actual keyboard case or PCB enclosure, parametric CAD software is almost always required.

This is where tools like Fusion 360 and SolidWorks dominate.

Unlike artistic modeling software, CAD programs define geometry through dimensions and constraints. Change one parameter and the entire design updates automatically.

For keyboards, this is incredibly useful.

1. Adjust switch spacing
2. Modify case wall thickness
3. Update mounting points
4. Adapt layouts like 60%, 75%, or TKL

Among the major options:

1. Fusion 360 – excellent balance of power and accessibility
2. SolidWorks – industry standard for manufacturing
3. Onshape – browser‑based collaborative CAD

In professional product design studios, keyboard housings and plates are almost always built using parametric CAD systems.

Tools for Keycap and Switch Modeling

Key Insight:Keycaps and switches benefit from sculpting tools and subdivision modeling more than strict CAD constraints.

Designing a keycap is different from designing a keyboard case. The focus shifts toward surface shape, ergonomics, and visual detail.

This is where tools like Blender or ZBrush become extremely effective.

Typical keycap modeling workflow:

save pin

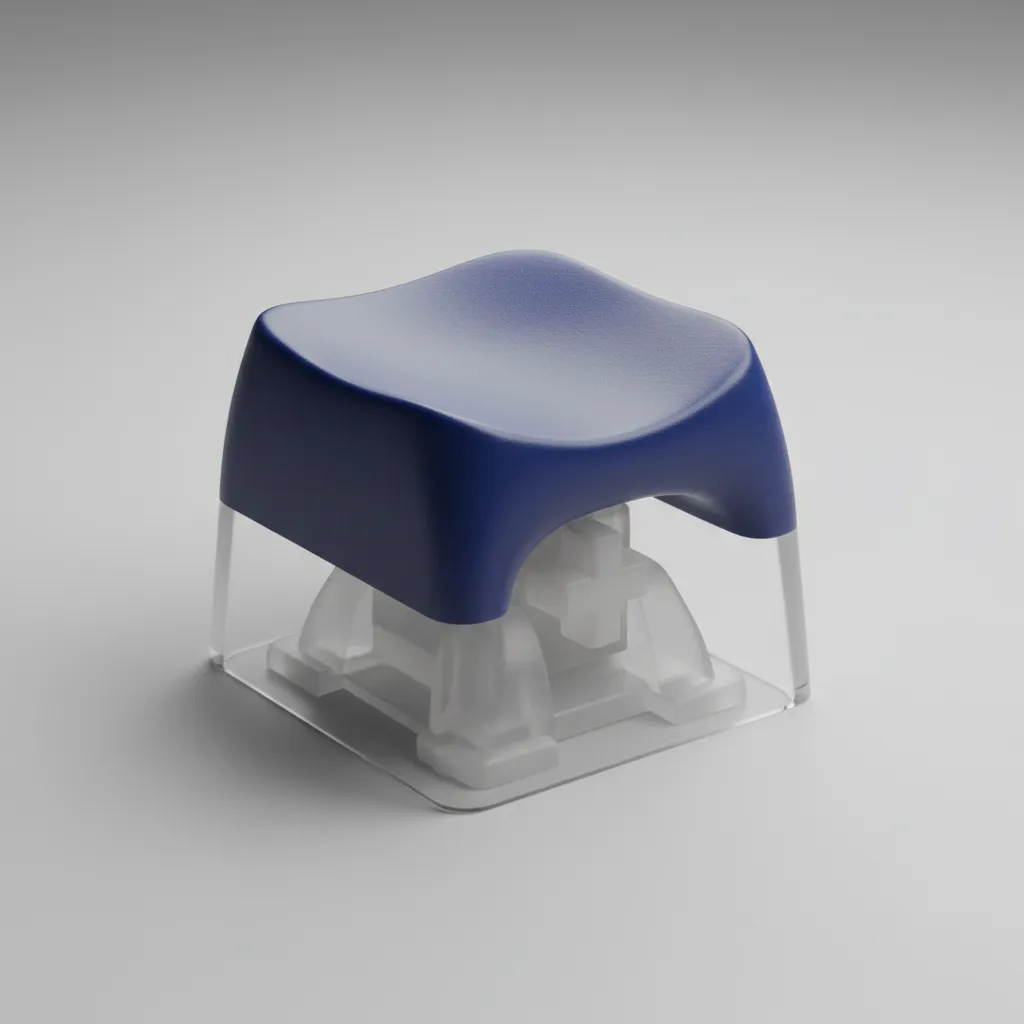

1. Create base profile and stem slot
2. Shape surface curvature
3. Add legends or engraving
4. Export for resin printing

For realistic previews, many designers also rely on high‑quality rendering pipelines similar to those used in architectural visualization. If you're curious how structured rendering workflows improve visual clarity, you can see how professionals generate polished 3D renders that communicate product form clearly.

Free vs Paid Software for Keyboard Modeling

Key Insight: Free software can handle most hobby keyboard projects, but paid CAD tools dramatically reduce iteration time.

Cost often becomes the deciding factor when choosing 3D tools.

Here's the practical difference I see in real projects:

1. Free tools – great for learning and concept modeling
2. Mid‑tier CAD – ideal for hobby product designers
3. Professional CAD – required for manufacturing pipelines

The hidden cost many creators overlook is iteration speed. If every layout change takes hours, design experimentation slows dramatically.

That's why many experienced keyboard designers eventually migrate to parametric systems.

save pin

Choosing the Right Tool Based on Your Project

Key Insight: The best 3D modeling software for keyboards depends entirely on whether you're visualizing, prototyping, or manufacturing.

Here is a practical decision framework I often recommend:

1. Concept keyboard renders → Blender
2. Custom keycap sculpting → Blender or ZBrush
3. Keyboard case prototyping → Fusion 360
4. Manufacturing‑ready design → SolidWorks

If your goal is learning how structured layouts translate into functional 3D models, you can also experiment with layout‑driven modeling workflows that simplify complex object structures. That mindset is surprisingly useful when building keyboard grids.

Answer Box

The best software for mechanical keyboard design depends on precision requirements. Blender works for visualization and keycap design, while Fusion 360 or SolidWorks are better for accurate keyboard cases and hardware prototypes.

Final Summary

1. Mechanical keyboard modeling requires precise spacing and repeatable components.
2. Blender is excellent for visual design and keycap experiments.
3. Fusion 360 offers the best balance for functional keyboard prototypes.
4. Professional manufacturing typically uses SolidWorks.
5. Your project stage should determine the software you choose.

FAQ

1. What is the best software for mechanical keyboard design?

Fusion 360 is widely considered the best balance of precision, usability, and affordability for designing keyboard cases and plates.

2. Can Blender be used to design mechanical keyboards?

Yes. Blender works well for visual models and keycaps, but it lacks parametric tools needed for engineering‑level keyboard hardware.

3. Is there free keyboard 3D modeling software?

Yes. Blender, FreeCAD, and SketchUp Free are popular options for free keyboard 3D modeling software.

4. What software do keyboard manufacturers use?

Most manufacturers use SolidWorks or other parametric CAD tools to maintain precise tolerances and manufacturing compatibility.

5. Can I design custom keycaps with CAD software?

Yes, but sculpting software like Blender often provides smoother surface control for ergonomic keycap shapes.

6. Is Fusion 360 good for keyboard product design?

Yes. Fusion 360 is one of the most popular CAD tools for keyboard case design and hardware prototyping.

7. What file formats are used for keyboard prototypes?

Common formats include STL for 3D printing and STEP files for manufacturing workflows.

8. How long does it take to learn keyboard 3D modeling?

Basic keyboard layouts can be modeled in a few days, but mastering parametric design may take several weeks of practice.
