Best Tools for Extracting 3D Models from PSP Games: Noesis vs QuickBMS vs Custom Scripts: A practical comparison of the most reliable PSP model extraction tools based on real modding workflows and compatibility with modern 3D pipelines.

Direct Answer

The best tools for extracting 3D models from PSP games are Noesis, QuickBMS, and community-built custom scripts. Noesis is typically the easiest option for viewing and exporting models, QuickBMS excels at unpacking complex game archives, and custom scripts are often required for proprietary formats used by specific titles.

Most successful PSP model extraction workflows combine QuickBMS for archive unpacking with Noesis for previewing and exporting meshes.

Quick Takeaways

1. Noesis is the fastest way to preview and export PSP models once files are unpacked.
2. QuickBMS is the most powerful tool for extracting assets from encrypted or proprietary PSP archives.
3. Many PSP games require custom scripts created by the modding community.
4. The best workflow usually combines multiple tools rather than relying on one program.
5. Tool compatibility depends heavily on the specific game engine used.

Introduction

If you're trying to extract assets from PSP titles, choosing the right PSP model extraction tools makes the difference between a quick export and days of frustration. Over the past decade I've worked with modders, technical artists, and preservation teams who routinely rip assets from older console games for research, modding, or engine testing. PSP games are especially tricky because many of them use proprietary container formats and heavily compressed archives.

The mistake I see beginners make most often is assuming there's a single universal extractor. There isn't. PSP titles often require a combination of archive unpackers, model viewers, and custom scripts. A workflow mindset works better than searching for a magic tool.

If you're new to asset extraction workflows, it also helps to understand how extracted models will eventually be used inside modern design or visualization pipelines. For example, many creators move assets into structured environments such as a visual 3D layout workflow for complex environmentsto test scale and structure before final editing.

In this guide I'll break down the three most important PSP asset extraction tools—Noesis, QuickBMS, and custom scripts—based on real-world use cases, compatibility, and reliability.

save pin

Overview of PSP Model Extraction Tools

Key Insight: PSP model extraction usually requires two stages: unpacking game archives and converting proprietary model formats.

Unlike PC games, PSP titles rarely store assets as directly readable files. Most content is packed inside container formats like ISO archives, custom DAT bundles, or engine‑specific packages.

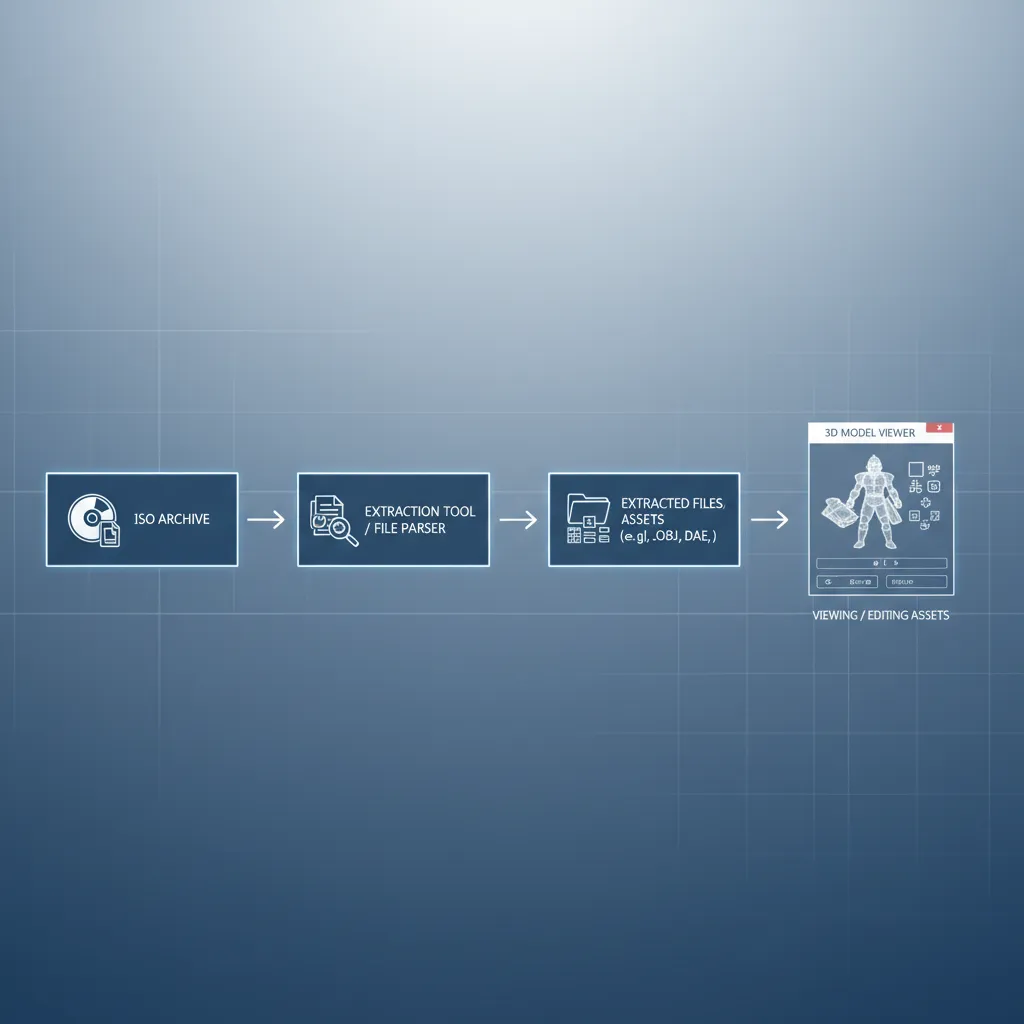

That means the workflow typically looks like this:

1. Step 1: Extract archives (QuickBMS or similar tools)
2. Step 2: Identify model formats
3. Step 3: View and export models (Noesis)
4. Step 4: Convert or repair meshes using scripts

Common PSP model formats include:

1. GMO (used in several Japanese titles)
2. GIM textures
3. Custom engine mesh formats
4. Embedded geometry inside archive containers

Because every engine handles assets differently, experienced modders treat extraction tools like a toolkit rather than a single solution.

How Noesis Handles PSP Model Formats

Key Insight: Noesis is the most reliable tool for viewing and exporting PSP models once the raw files are extracted.

Noesis, created by Rich Whitehouse, has become the standard viewer for hundreds of legacy game formats. For PSP extraction, its strength lies in plugin support.

Many PSP formats are readable through built‑in plugins or community extensions. Once a model loads successfully, exporting it to OBJ, FBX, or other formats is usually straightforward.

Typical Noesis workflow:

1. Load extracted mesh file
2. Verify geometry and skeleton
3. Export to OBJ/FBX
4. Rebuild materials manually if needed

Advantages of Noesis:

1. Supports hundreds of legacy game formats
2. Quick preview of meshes and skeletons
3. Exports directly to common 3D formats

Limitations:

1. Cannot unpack most PSP archives
2. Some games require custom plugins
3. Textures may need manual reconstruction

save pin

Using QuickBMS with PSP Game Archives

Key Insight: QuickBMS is the most powerful tool for unpacking PSP game archives and proprietary containers.

QuickBMS works differently from Noesis. Instead of viewing models, it focuses on unpacking structured archives using small scripts called BMS files.

This approach is extremely flexible. If someone has written a script for a specific game archive, QuickBMS can usually unpack it completely.

Typical QuickBMS process:

1. Identify the game archive format
2. Download or write a matching BMS script
3. Run extraction on the ISO or archive file
4. Analyze extracted model and texture files

Advantages:

1. Handles thousands of archive formats
2. Extremely flexible script system
3. Essential for proprietary PSP containers

Weaknesses:

1. No visual preview of assets
2. Requires correct scripts
3. Less beginner‑friendly

Answer Box

The most reliable PSP model extraction workflow combines QuickBMS for archive unpacking and Noesis for model viewing and exporting. Custom scripts fill the gaps when games use proprietary formats.

Custom Scripts and Community Tools

Key Insight: Some PSP games can only be extracted using community-built scripts tailored to specific engines.

This is where experienced modding communities become essential. Tools alone rarely solve every format problem.

Common sources of custom extraction tools include:

1. ZenHAX forums
2. Xentax archives
3. GitHub reverse‑engineering projects
4. Game‑specific modding communities

Examples of custom extraction solutions:

1. Python scripts for proprietary mesh formats
2. Noesis plugins for unsupported model types
3. Texture reconstruction utilities

Once models are exported, many creators test them inside spatial layout environments similar to a 3D room layout environment used for asset placementbefore moving them into production pipelines.

save pin

Feature Comparison: Speed, Compatibility, and Ease of Use

Key Insight:Noesis is best for usability, QuickBMS for compatibility, and custom scripts for edge cases.

ToolPrimary PurposeEase of UseCompatibility NoesisModel viewing and exportHighMedium–High QuickBMSArchive extractionMediumVery High Custom ScriptsSpecialized formatsLowGame‑specificThe biggest hidden challenge is format fragmentation. Two PSP games released the same year may use completely different engines and asset structures.

save pin

Which Tool Should You Choose for Different PSP Games

Key Insight: The correct tool depends less on the tool itself and more on the game engine used by the PSP title.

Practical recommendations:

1. Japanese RPGs – Often require custom scripts plus Noesis plugins.
2. Western PSP ports – Frequently unpack with QuickBMS scripts.
3. Capcom / Bandai titles – Usually partially supported in Noesis.

A good rule is to start with QuickBMS to extract archives, then open model files with Noesis. If neither works, search for a game‑specific script.

Once models are converted, artists typically bring them into modern pipelines for rendering or environment reconstruction. Many visualization teams use structured design workflows like a high‑quality 3D rendering environment for rebuilding scenes when preparing extracted assets for modern engines.

Final Summary

1. Noesis is the best viewer and exporter for PSP model formats.
2. QuickBMS is essential for unpacking PSP game archives.
3. Custom scripts solve engine‑specific extraction challenges.
4. Most successful workflows combine multiple tools.
5. Compatibility depends primarily on the game's engine.

FAQ

What is the best tool to extract PSP 3D models?

Noesis and QuickBMS together form the most reliable PSP model extraction workflow. QuickBMS unpacks archives, while Noesis converts and exports models.

Can Noesis extract files directly from PSP ISO images?

No. Noesis typically cannot unpack full game archives. Use QuickBMS or an ISO extractor first.

Is QuickBMS difficult for beginners?

It can be confusing initially because it relies on scripts. Once you find the correct BMS script, extraction becomes straightforward.

Are all PSP models supported by Noesis?

No. Some games use proprietary formats that require plugins or custom scripts.

Where can I find QuickBMS scripts for PSP games?

Communities such as ZenHAX, GitHub repositories, and legacy Xentax archives host many extraction scripts.

Do PSP model ripping tools extract textures as well?

Yes, but textures may appear as GIM or other console formats that require conversion.

What format do extracted PSP models usually export to?

Most users export to OBJ or FBX after conversion.

Can extracted PSP models be used in Blender or Unity?

Yes. After conversion with PSP 3D model extractor tools like Noesis, assets import easily into Blender or Unity.

References

1. ZenHAX Reverse Engineering Community
2. Noesis Tool Documentation
3. QuickBMS Official Documentation
