Best Tools for Hand Rendering Architectural Floor Plans: A practical guide to pens, markers, and materials architects actually use for clear, professional floor plan renderings.

Direct Answer

The best tools for hand rendering architectural floor plans include technical pens with multiple line weights, alcohol‑based markers for materials, colored pencils for subtle shading, and smooth heavyweight paper. A well‑chosen toolkit improves line clarity, speeds up rendering, and prevents smudging or bleeding.

Professionally rendered floor plans usually rely on a small, reliable set of drawing tools rather than dozens of supplies.

Quick Takeaways

1. Use technical pens with 0.1–0.5 mm tips to control line hierarchy in floor plans.
2. Smooth heavyweight paper prevents marker bleeding and preserves sharp lines.
3. Alcohol markers create fast material shading for wood, concrete, and tiles.
4. A minimal toolkit often produces cleaner drawings than overly complex supplies.
5. Organized tools significantly speed up manual rendering workflows.

Introduction

After more than a decade working on residential and interior architecture projects, I’ve noticed something interesting: the quality of a hand‑rendered floor plan often depends less on drawing talent and more on the tools being used. The right tools for hand rendering floor plans make lines clearer, materials easier to read, and the entire drawing more professional.

Students often assume they need dozens of markers and expensive equipment. In reality, most architects rely on a compact kit—usually a few technical pens, a couple of neutral markers, good paper, and a few colored pencils for accents.

Another reason tools matter today is that hand rendering often complements digital workflows. Many designers sketch concepts manually and later convert them into digital layouts. If you want to see how modern workflows combine sketching with digital planning, this guide on creating a detailed architectural layout using a 3D floor planning workflowexplains how professionals move from concept sketches to accurate spatial models.

In this article, I’ll walk through the exact tools I recommend for architectural floor plan rendering, including pens, paper, shading materials, and starter kits that actually work in practice.

save pin

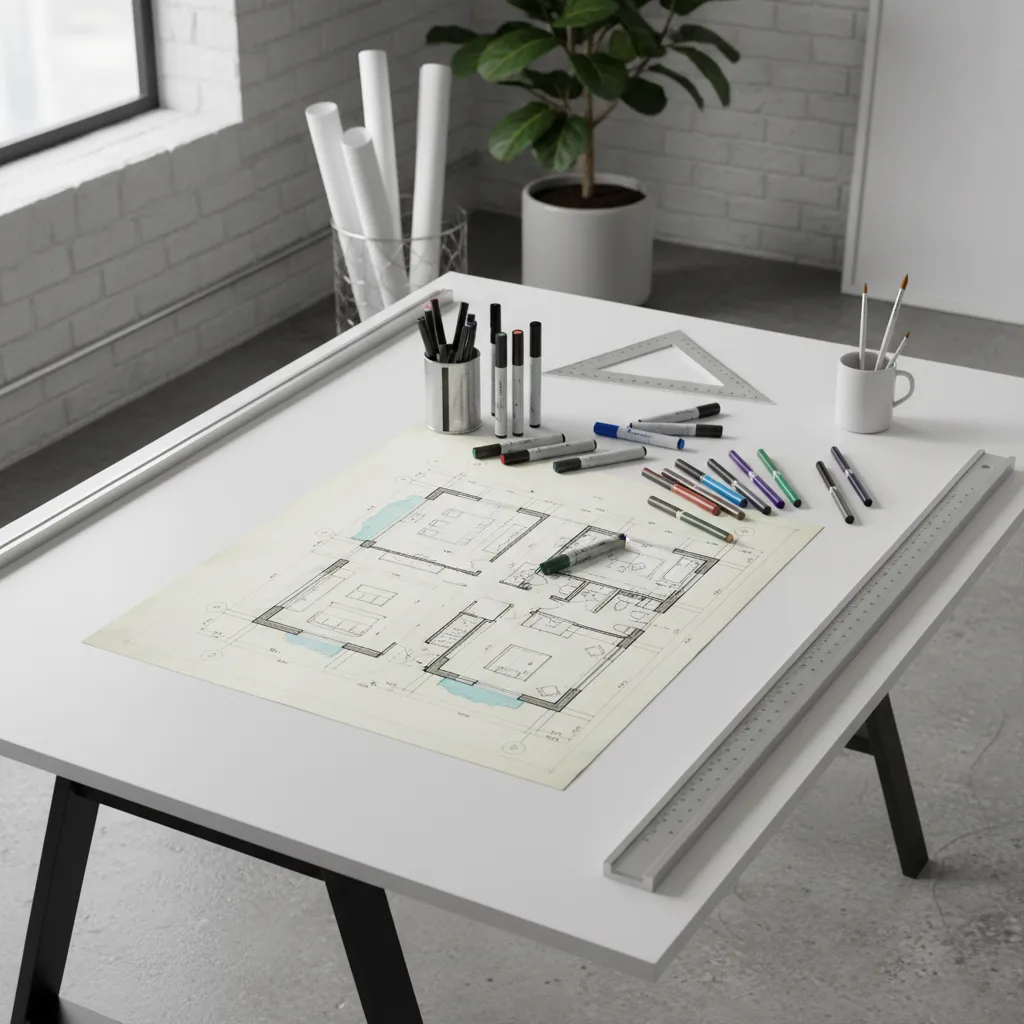

Essential Drawing Tools for Floor Plan Rendering

Key Insight: Professional floor plan rendering usually relies on a small toolkit designed for precision, clarity, and consistent line hierarchy.

In studio environments and architecture offices, most designers use a similar core set of tools. The goal isn't artistic freedom—it’s communication. Floor plans must clearly show walls, furniture, circulation, and materials.

The essential toolkit typically includes:

1. Technical drawing pens (multiple line weights)
2. Alcohol‑based markers
3. Colored pencils for accents
4. Mechanical pencils for drafting
5. Smooth architectural paper
6. Scale ruler and eraser

A common mistake I see with beginners is overusing color or decorative elements. In professional drawings, contrast and line clarity matter far more than artistic flourish.

According to architectural drafting standards used in many design schools, consistent line hierarchy improves readability of plans and reduces interpretation errors during construction documentation.

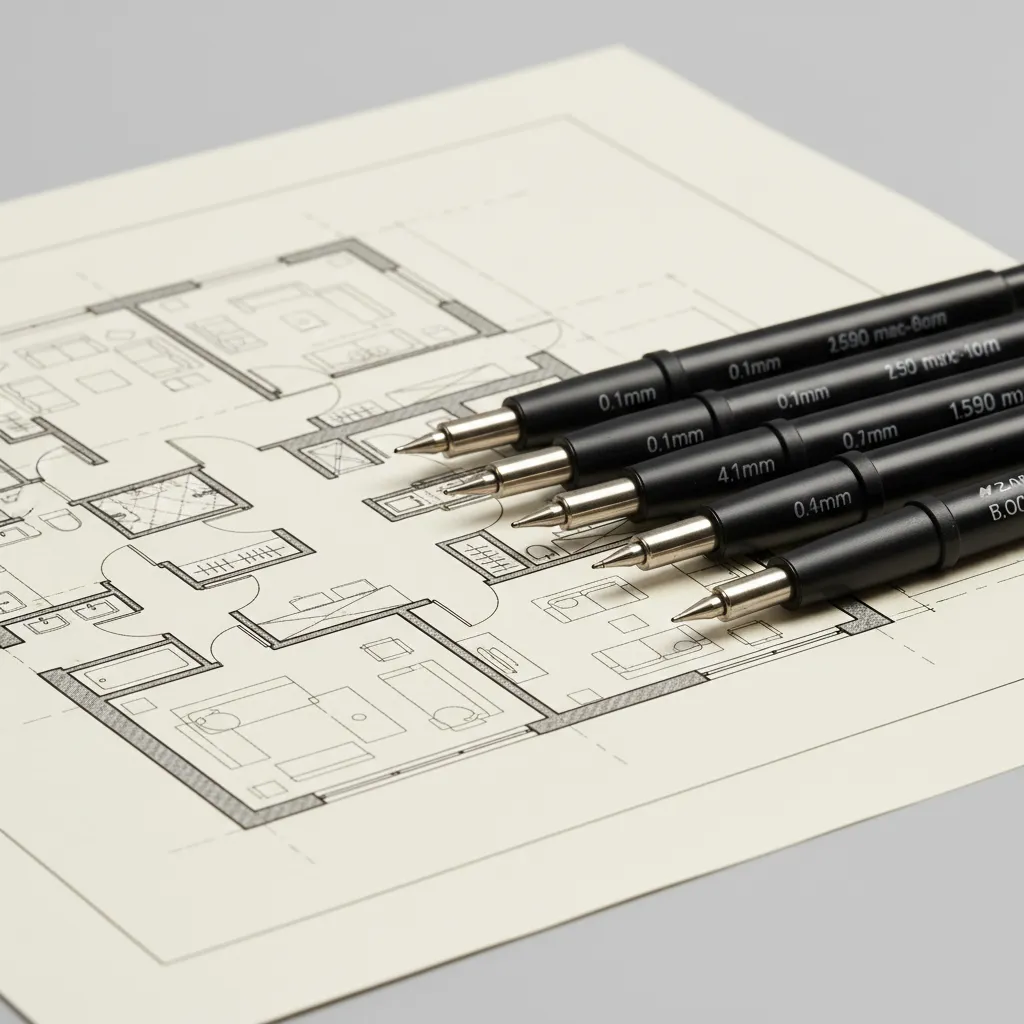

Choosing the Right Pens and Line Weight Markers

Key Insight: Line weight is the single most important visual tool in a hand‑rendered floor plan.

Different line thicknesses help viewers instantly distinguish structural elements from furniture or fixtures. Without this hierarchy, floor plans look flat and confusing.

Typical line weight setup used in architectural rendering:

1. 0.5 mm – exterior walls and cut elements
2. 0.3 mm – interior walls
3. 0.2 mm – furniture outlines
4. 0.1 mm – textures, dimensions, details

Fineliner pens or technical pens with pigment ink work best because they resist smudging and remain crisp when markers are applied afterward.

In many architecture studios I’ve worked with, designers limit themselves to just three pen sizes. That constraint actually produces cleaner drawings because every line has a clear visual role.

save pin

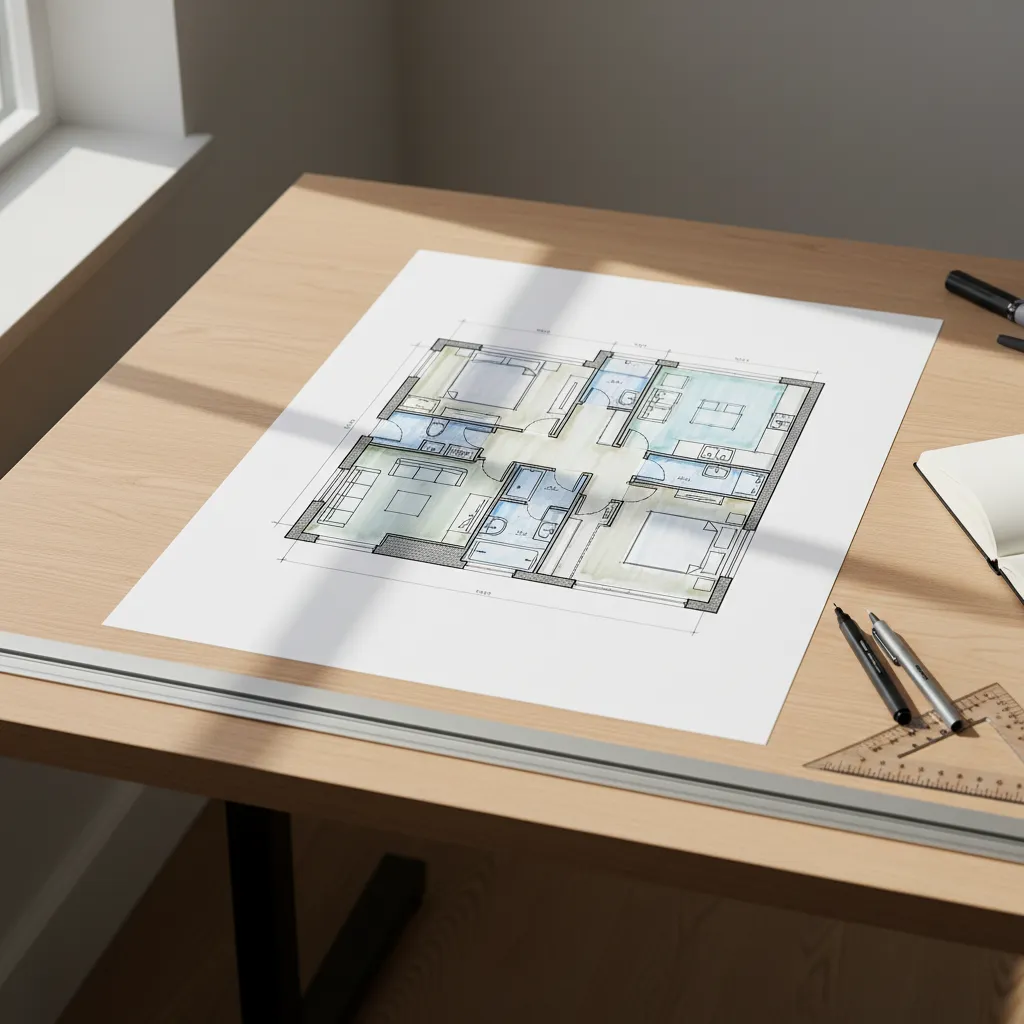

Best Papers for Architectural Hand Rendering

Key Insight: Paper quality directly affects line sharpness, marker blending, and durability during rendering.

Using the wrong paper is one of the most common mistakes students make. Thin paper absorbs too much ink and causes feathering along lines.

Recommended paper characteristics:

1. Weight: 120–200 gsm
2. Surface: smooth or semi‑smooth
3. Low absorbency to prevent marker bleeding
4. Bright white for clear contrast

Popular options in architecture studios include marker paper, layout bond, and heavyweight sketch paper.

A small professional trick: place a scrap sheet beneath your drawing while rendering with markers. This prevents ink transfer and keeps edges crisp.

save pin

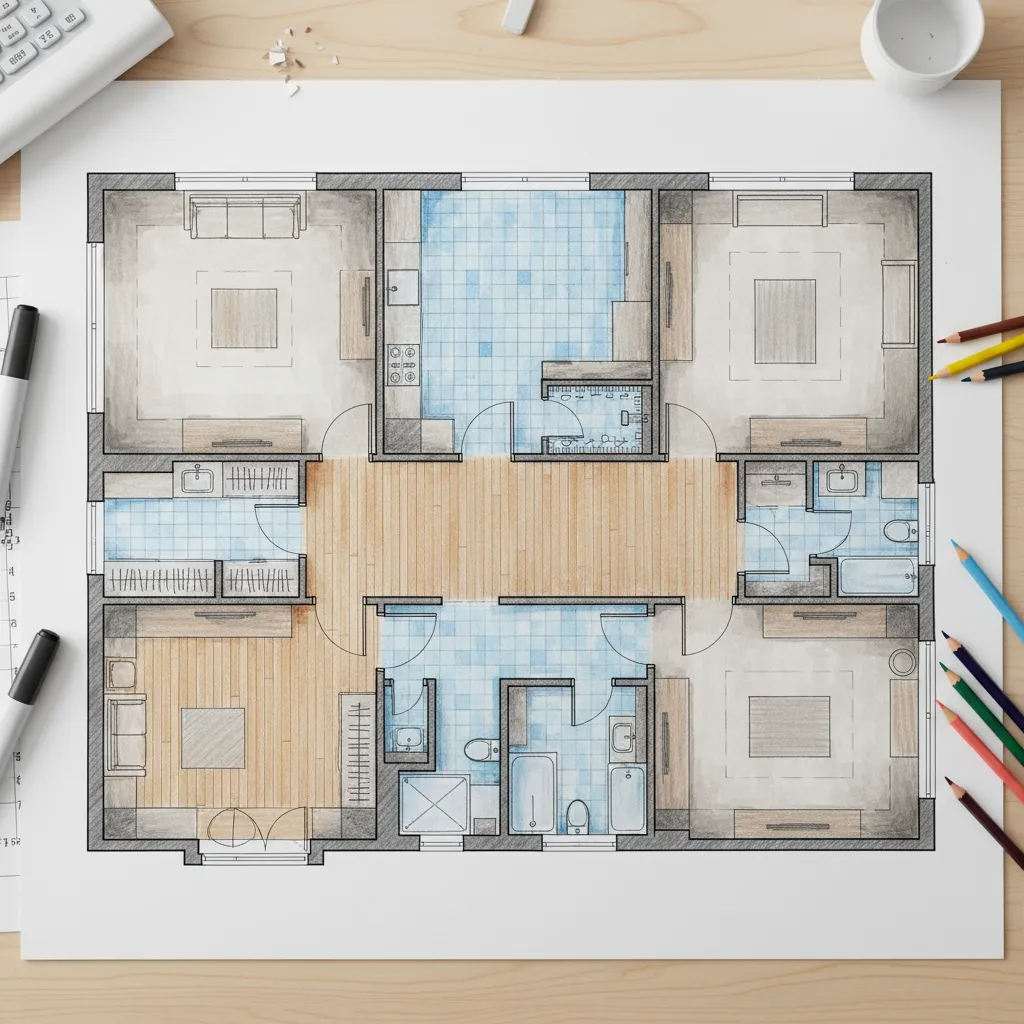

Using Colored Pencils and Markers for Materials

Key Insight: Material rendering should clarify spatial information, not decorate the drawing.

Color is often overused in student floor plans. In professional presentations, color is typically applied selectively to highlight materials and functional zones.

Common material rendering techniques:

1. Light gray marker for concrete or stone flooring
2. Warm beige or brown pencils for wood floors
3. Soft blue accents for bathrooms or water elements
4. Neutral shading to separate circulation areas

Alcohol‑based markers are particularly useful because they blend smoothly and dry quickly.

Design teams increasingly combine hand rendering with digital planning tools. Many architects now sketch material ideas by hand and then refine layouts using platforms like AI‑assisted floor plan layout generation for rapid spatial testing.

save pin

Recommended Starter Toolkits for Students

Key Insight: Beginners improve faster with a simple, well‑balanced toolkit rather than an oversized set of supplies.

After mentoring architecture interns for years, I usually recommend starting with this minimal kit:

1. Mechanical pencil (0.5 mm)
2. Technical pens: 0.1, 0.3, 0.5
3. 3–5 neutral alcohol markers
4. Small set of colored pencils (12 colors)
5. Smooth 150 gsm drawing paper
6. Architectural scale ruler

This setup keeps the workflow efficient while covering all major rendering tasks.

Another hidden benefit: fewer tools force you to focus on clarity, line hierarchy, and composition—skills that matter far more than artistic decoration.

Maintaining and Organizing Rendering Tools

Key Insight: Organized tools significantly speed up rendering and prevent interruptions during detailed drawing work.

When rendering complex plans, constantly searching for pens or markers breaks concentration and slows productivity.

Practical organization tips:

1. Store pens vertically to maintain ink flow
2. Group markers by color families
3. Keep a dedicated rendering pouch for studio work
4. Replace worn pen tips regularly

In many architecture offices, designers also keep digital references alongside hand sketches. For example, after sketching circulation or zoning ideas manually, they often verify proportions using tools like a visual room layout planner for testing furniture placement and spatial balance.

Answer Box

The best tools for hand rendering architectural floor plans include technical pens for line hierarchy, alcohol markers for materials, colored pencils for shading, and smooth heavyweight paper. A minimal toolkit usually produces clearer and more professional drawings than oversized art sets.

Final Summary

1. Technical pens control the line hierarchy that makes floor plans readable.
2. Heavyweight smooth paper prevents bleeding and preserves line clarity.
3. Alcohol markers quickly communicate materials and zoning.
4. A minimal toolkit improves focus and drawing consistency.
5. Organized tools significantly accelerate rendering workflows.

FAQ

What are the best pens for architectural floor plan rendering?

Technical fineliner pens with 0.1, 0.3, and 0.5 mm tips are widely considered the best pens for architectural floor plan rendering because they create clear line hierarchy.

What tools are needed for hand rendering floor plans?

Essential tools for hand rendering floor plans include technical pens, mechanical pencils, alcohol markers, colored pencils, smooth paper, and an architectural scale ruler.

Is marker or colored pencil better for floor plans?

Markers work best for large surfaces and materials, while colored pencils are better for subtle textures and precise accents.

What paper is best for hand rendered floor plans?

Smooth marker paper or layout paper between 120–200 gsm is ideal because it prevents bleeding and keeps lines sharp.

Do architects still render floor plans by hand?

Yes. Many architects still sketch floor plans manually during concept development before converting them into digital models.

How many markers do you need for architectural rendering?

Most professionals use only 5–10 neutral markers rather than large sets.

What is the most common mistake when rendering floor plans?

The most common mistake is inconsistent line weight, which makes walls, furniture, and details difficult to distinguish.

Can beginners learn floor plan rendering quickly?

Yes. With the right tools and consistent practice, beginners can learn basic architectural rendering techniques within a few weeks.
