Best Underlayment and Subfloor Preparation for Shaw Vinyl Plank Flooring: How to choose the right underlayment, prevent moisture issues, and prepare a perfectly level subfloor before installing Shaw vinyl plank flooring.

Direct Answer

The best subfloor preparation for Shaw vinyl plank flooring involves a clean, dry, and level surface with minimal height variation. Most Shaw luxury vinyl planks already include an attached backing, so additional underlayment is usually unnecessary unless installing over concrete or addressing moisture and sound concerns.

Proper moisture testing, subfloor leveling, and selecting compatible materials will significantly improve durability, stability, and long‑term performance.

Quick Takeaways

1. Shaw vinyl plank flooring typically includes an attached pad, so extra underlayment is rarely required.
2. Subfloors must be flat within 3/16 inch over 10 feet to prevent plank separation.
3. Moisture testing is essential before installing over concrete subfloors.
4. Plywood and concrete are the most common compatible subfloors for vinyl plank flooring.
5. Leveling compounds solve most uneven subfloor issues before installation.

Introduction

In my experience designing and renovating residential interiors, the success of Shaw vinyl plank flooring rarely depends on the planks themselves. It almost always comes down to what’s underneath them. I’ve walked into plenty of homes where beautiful vinyl floors failed within a year—not because the product was bad, but because the subfloor preparation was rushed.

Homeowners often ask whether they need extra padding, a moisture barrier, or special subfloor treatment before installing Shaw vinyl plank flooring. The answer depends heavily on the existing floor structure, moisture conditions, and installation method.

If you're still planning the overall layout of your renovation, it's helpful to map out a detailed floor layout before flooring installationso transitions, materials, and room flow are fully planned.

After working on dozens of vinyl flooring installations, I’ve found that three factors matter most: subfloor flatness, moisture control, and realistic expectations about underlayment. Let’s break down what actually matters before installing Shaw vinyl plank flooring.

save pin

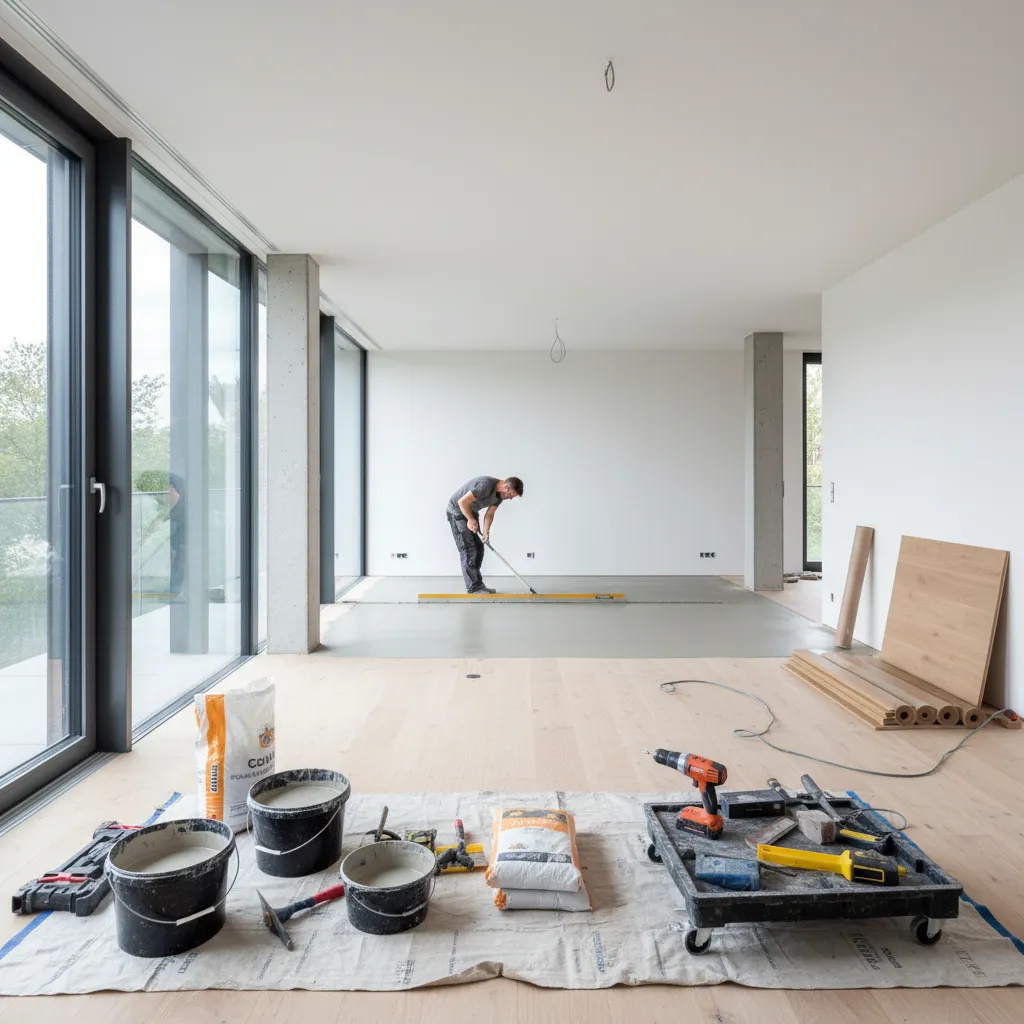

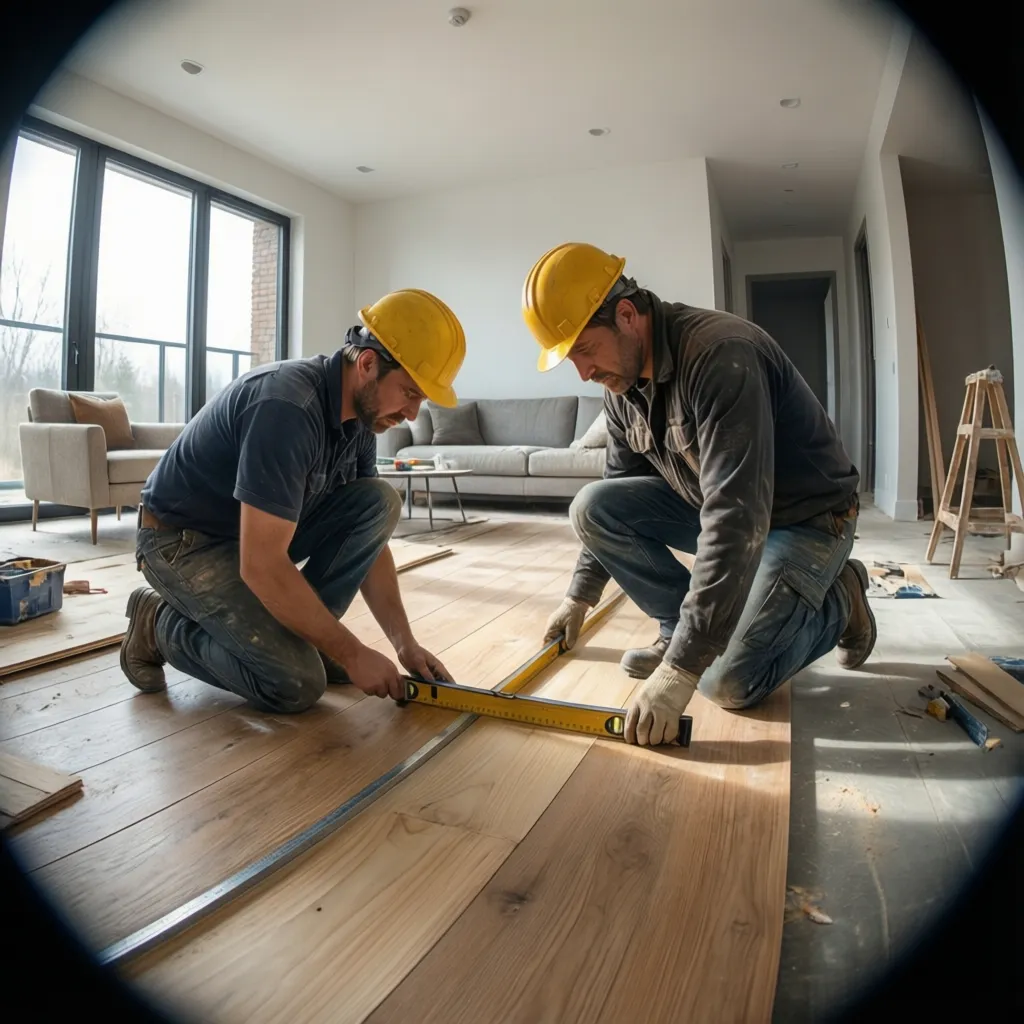

Why Subfloor Preparation Is Critical for Vinyl Plank Flooring

Key Insight: Even premium vinyl plank flooring will fail early if installed on an uneven or poorly prepared subfloor.

Luxury vinyl planks are flexible by design. That flexibility makes them comfortable and quiet underfoot, but it also means they follow the shape of the surface beneath them. If the subfloor has dips, bumps, or soft spots, those imperfections eventually show up in the finished floor.

In several projects I managed in Southern California, homeowners blamed the flooring brand for clicking sounds and plank separation. In every case, the issue traced back to poor subfloor leveling.

Common subfloor preparation mistakes include:

1. Ignoring height variation greater than 3/16 inch over 10 feet
2. Installing over old adhesive residue
3. Skipping moisture testing on concrete
4. Leaving small debris that prevents planks from locking properly

According to the National Wood Flooring Association and most vinyl manufacturers, subfloor flatness is the single most important installation requirement.

save pin

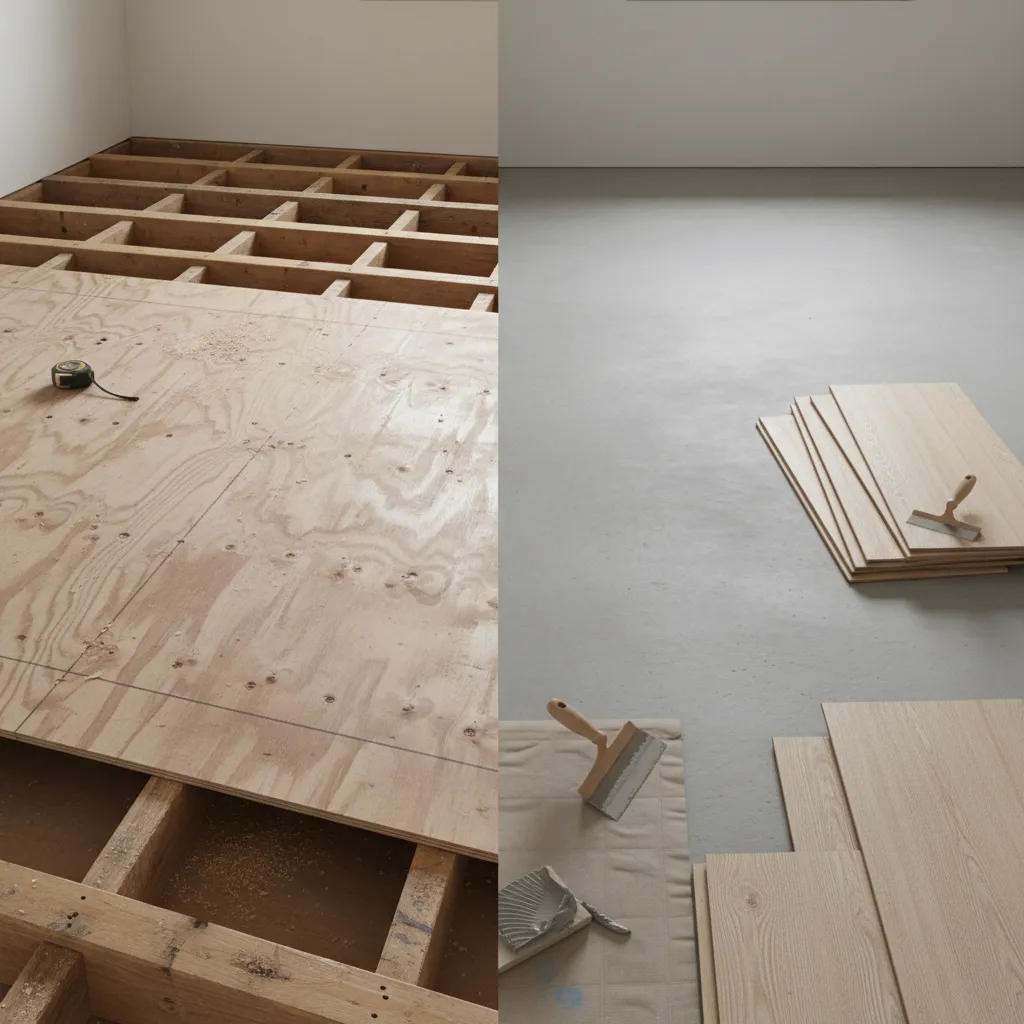

Types of Subfloors Compatible with Shaw Vinyl Planks

Key Insight: Shaw vinyl plank flooring performs best over stable, rigid subfloors like plywood, OSB, and concrete.

Not all surfaces provide the same level of stability. Some materials support vinyl plank installations easily, while others require preparation or removal.

Most compatible subfloor types include:

1. Plywood
2. Oriented Strand Board (OSB)
3. Concrete slabs
4. Existing tile (if level and well bonded)

Surfaces that typically require extra preparation:

1. Old sheet vinyl
2. Carpet or carpet padding
3. Uneven hardwood floors

For renovation projects involving multiple rooms, I often visualize transitions and floor structures using tools that allow homeowners to preview realistic floor plans before choosing flooring materials. This helps identify subfloor changes between spaces that could affect installation.

When Underlayment Is Required

Key Insight: Most Shaw vinyl planks already include attached padding, so adding another underlayment layer can sometimes cause installation problems.

This is one of the most misunderstood parts of vinyl flooring installation. Many homeowners assume that more padding automatically improves comfort and durability. In reality, double underlayment can weaken the locking system.

Situations where additional underlayment may still be used:

1. Concrete slabs needing moisture protection
2. Multi‑story buildings requiring sound reduction
3. Minor subfloor smoothing

Situations where underlayment should usually be avoided:

1. Planks with attached acoustic backing
2. Floating floor systems requiring rigid support
3. Rooms where manufacturer guidelines prohibit extra padding

The hidden mistake I often see is installers adding foam underlayment out of habit. Over time, that soft layer can cause joint flexing and visible gaps between planks.

save pin

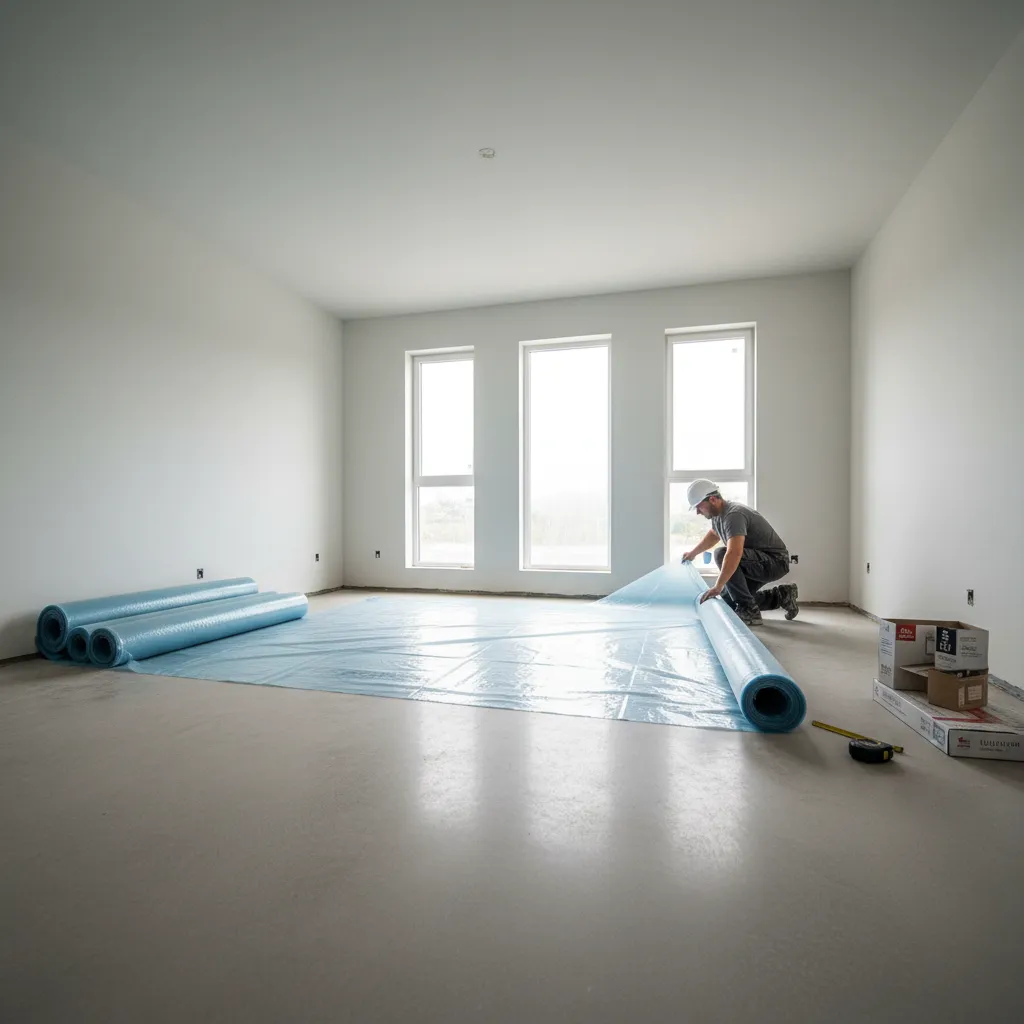

Moisture Testing and Prevention Methods

Key Insight: Moisture is the most common hidden cause of vinyl plank flooring failure, especially over concrete.

Even though vinyl itself is waterproof, the subfloor beneath it can still trap moisture. That moisture can weaken adhesives, promote mold, and cause planks to shift.

Professional installers typically use two main testing methods:

1. Calcium chloride moisture tests
2. Relative humidity (RH) in‑slab probes

Recommended moisture prevention strategies:

1. Polyethylene vapor barriers for concrete slabs
2. Moisture‑resistant underlayment when required
3. Sealing cracks before installation
4. Allowing new concrete to cure fully

Many flooring manufacturers recommend moisture emission rates below 5 lbs per 1,000 sq ft over 24 hours for safe installation.

Answer Box

The best preparation for Shaw vinyl plank flooring is a clean, level, and dry subfloor. In most cases, additional underlayment is unnecessary because Shaw planks already include attached backing.

Moisture testing and proper leveling are the two steps that most directly determine long‑term flooring performance.

save pin

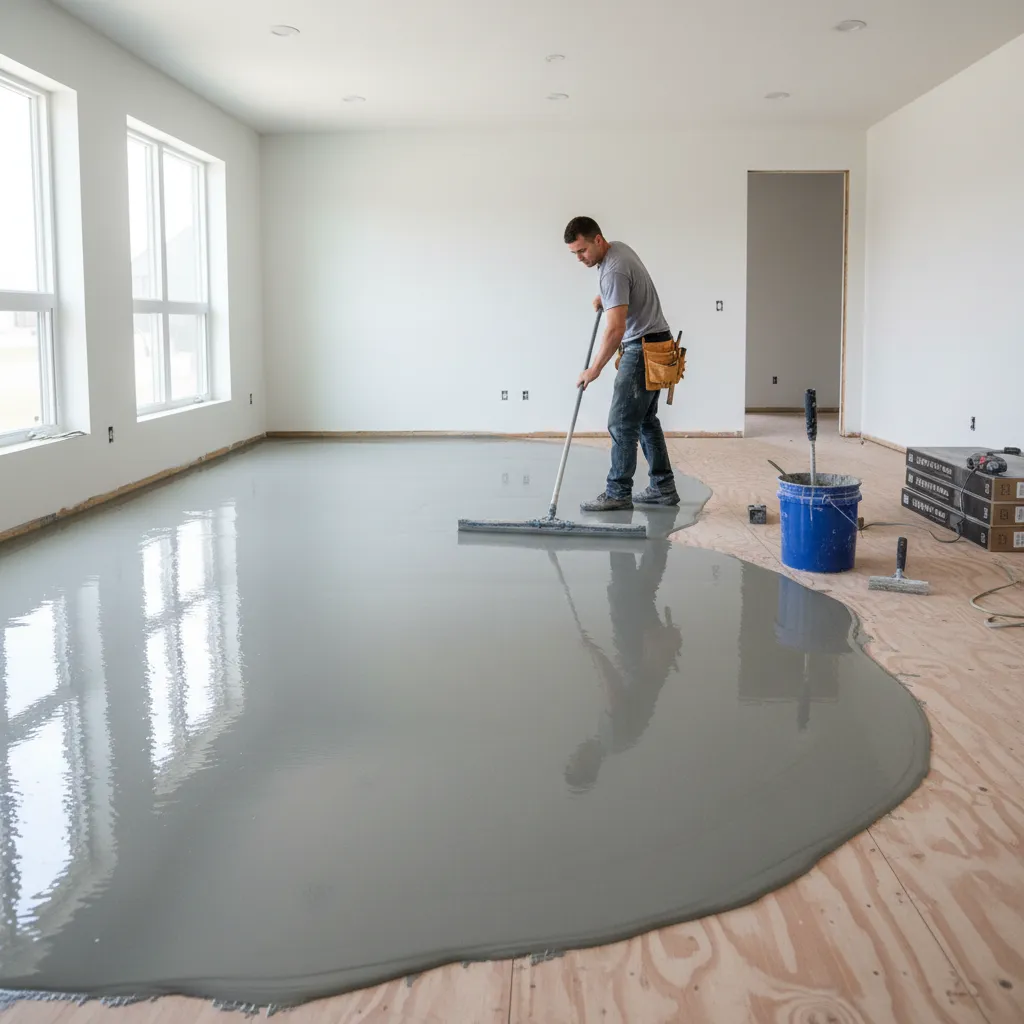

How to Level a Subfloor Before Installation

Key Insight: Leveling compounds solve most vinyl flooring issues before they start.

In practice, even newly built homes rarely have perfectly flat subfloors. Small dips, especially near framing joints, can cause floating planks to flex and click.

Typical leveling workflow:

1. Clean and vacuum the entire subfloor
2. Check flatness using a 6‑ or 10‑foot straightedge
3. Mark low spots and high ridges
4. Sand down high areas
5. Apply self‑leveling compound in dips

Self‑leveling compounds have become the industry standard because they create extremely smooth surfaces with minimal labor.

Recommended Underlayment Materials for Vinyl Plank Flooring

Key Insight: If underlayment is required, thin high‑density materials perform better than thick foam padding.

From a design and performance standpoint, thinner and denser layers maintain the integrity of click‑lock flooring systems.

Common underlayment materials include:

1. High‑density foam
2. Cork acoustic underlayment
3. Rubber sound‑control layers
4. Polyethylene vapor barrier films

When planning full renovations, I often encourage homeowners to experiment with different flooring layouts and room designs before installation. It helps identify areas where subfloor preparation might vary between rooms.

Final Summary

1. A flat and dry subfloor is the foundation of successful vinyl plank installation.
2. Most Shaw vinyl plank flooring does not require additional underlayment.
3. Concrete installations must include moisture testing.
4. Self‑leveling compounds solve most subfloor irregularities.
5. Dense, thin underlayment performs better than thick foam layers.

FAQ

Do you need underlayment for Shaw vinyl plank flooring?

Usually no. Most Shaw vinyl plank flooring includes an attached pad designed to replace traditional underlayment.

What is the best subfloor for vinyl plank flooring?

Plywood, OSB, and concrete are the most common and stable subfloors for vinyl plank flooring installation.

How flat should a subfloor be for vinyl plank flooring?

Most manufacturers require no more than 3/16 inch variation across a 10‑foot span.

Can you install Shaw vinyl plank flooring over tile?

Yes, if the tile is firmly bonded and the surface is level.

Do vinyl plank floors need a moisture barrier?

Concrete installations often require a vapor barrier to prevent moisture migration.

What happens if a subfloor is uneven?

Uneven subfloors can cause plank flexing, joint separation, and premature wear.

Can self‑leveling compound be used under vinyl plank flooring?

Yes. It is one of the most common solutions for correcting dips and low areas.

Is cork underlayment good for vinyl plank flooring?

Cork can provide sound reduction, but it must be thin and manufacturer‑approved.
