Building Code and Structural Requirements for Glass Enclosed Upper Level Patios: Understand permits, structural loads, and safety rules before enclosing a second floor patio with glass

Direct Answer

Building codes for glass‑enclosed upper‑level patios focus on structural load capacity, guardrail safety, wind resistance, and permitting. Most jurisdictions require engineered framing capable of supporting additional dead loads from glass panels and roofs, plus compliance with local wind and fall‑protection regulations.

Before enclosing a second‑floor patio, homeowners typically must obtain permits and verify that the existing structure can safely support the weight and wind pressure created by glass walls or roofs.

Quick Takeaways

1. Glass patio enclosures significantly increase structural load compared with open balconies.
2. Most cities require permits and engineering approval for second‑floor patio enclosures.
3. Wind loads and railing codes are the two most common reasons projects fail inspection.
4. Older decks often require reinforcement before supporting glass walls.
5. Professional structural review reduces costly redesigns during permitting.

Introduction

After working on dozens of residential remodels across California and Arizona, I can tell you that a glass‑enclosed upper‑level patio is one of the most misunderstood upgrades in residential design. Homeowners often assume they’re simply adding windows to an existing balcony. In reality, the moment you enclose that space, the structure is treated much closer to a sunroom or conditioned living area.

That means the building code for a glass patio enclosure suddenly becomes much stricter. Structural loads change, wind pressure behaves differently, and fall‑protection rules can apply even if the original balcony was already permitted.

I’ve seen projects stall for months because the structure couldn’t handle the additional weight of glass framing. In other cases, a patio enclosure failed inspection because the original railing system didn’t meet updated safety standards.

If you're still early in the planning phase, it helps to visualize layout and enclosure options before engineering begins. Many designers start by mapping the footprint using tools that let you experiment with different patio enclosure layouts in a realistic 3D floor plan, which quickly reveals structural limitations.

In this guide, I’ll walk through the real building code and structural requirements for enclosing an elevated patio, including the issues that most online guides overlook.

save pin

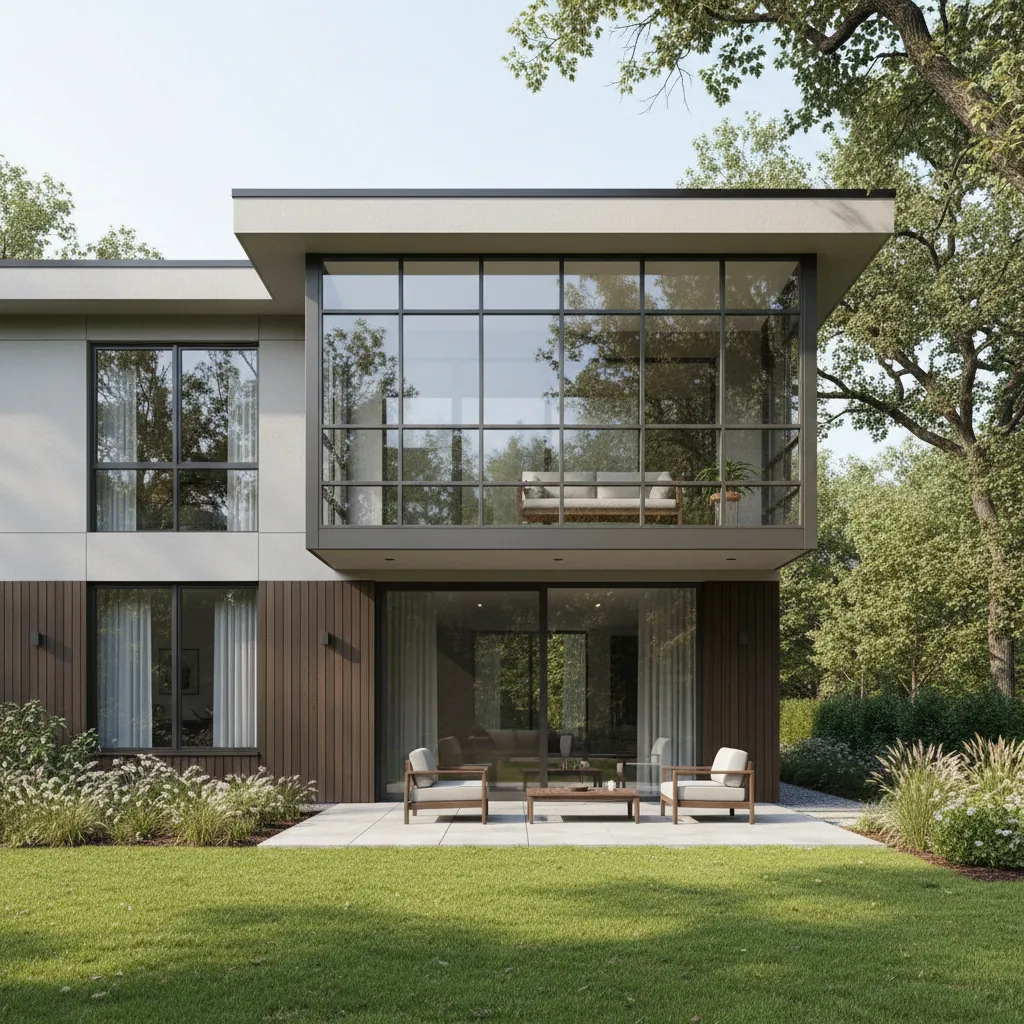

Why Building Codes Matter for Elevated Patio Enclosures

Key Insight: Once a patio is enclosed with glass, building departments typically treat it as an enclosed structure rather than an outdoor balcony.

This change matters because open patios are designed for different load assumptions. When walls and roofing are added, the structure must handle new forces including glass weight, wind pressure, and sometimes snow loads.

Common code categories affecting upper‑level patio enclosures include:

1. Dead load from glass panels, framing, and roof materials
2. Live load requirements for occupied balconies
3. Wind load calculations for enclosed walls
4. Guardrail safety standards
5. Egress and ventilation requirements

Most U.S. municipalities reference the International Residential Code (IRC) as their baseline. According to the IRC, residential decks and balconies typically must support at least 40 pounds per square foot live load, but enclosure systems can add substantial additional weight that must be engineered.

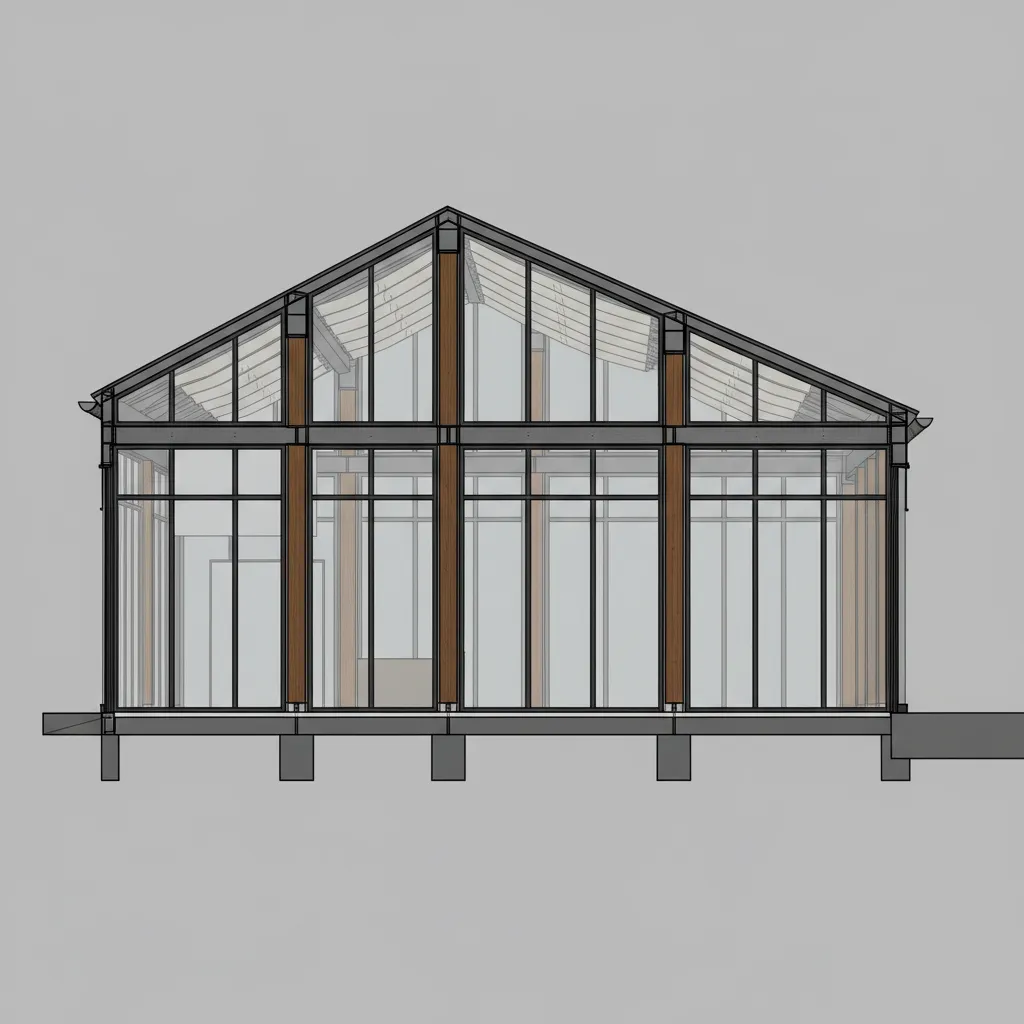

Structural Load Considerations for Glass Walls and Roofs

Key Insight: Glass enclosure systems can add hundreds of pounds of dead load to a patio structure that was originally engineered as a lightweight balcony.

Glass walls, aluminum framing systems, and insulated roof panels all contribute to structural load. Designers often underestimate this during early planning.

Typical weight comparisons:

1. Open railing system: 10–15 lbs per linear foot
2. Glass wall system: 35–60 lbs per linear foot
3. Insulated glass roof panels: 8–12 lbs per square foot

This difference explains why many second‑floor sunrooms require structural reinforcement.

In my own projects, the most common reinforcements include:

1. Additional support beams beneath the deck
2. Steel posts integrated into exterior framing
3. Upgraded ledger connections to the house structure

Homeowners exploring different enclosure shapes often prototype their layout first. Some clients use tools that allow them to visualize enclosed patio layouts inside a full room planning modelbefore structural engineers finalize calculations.

save pin

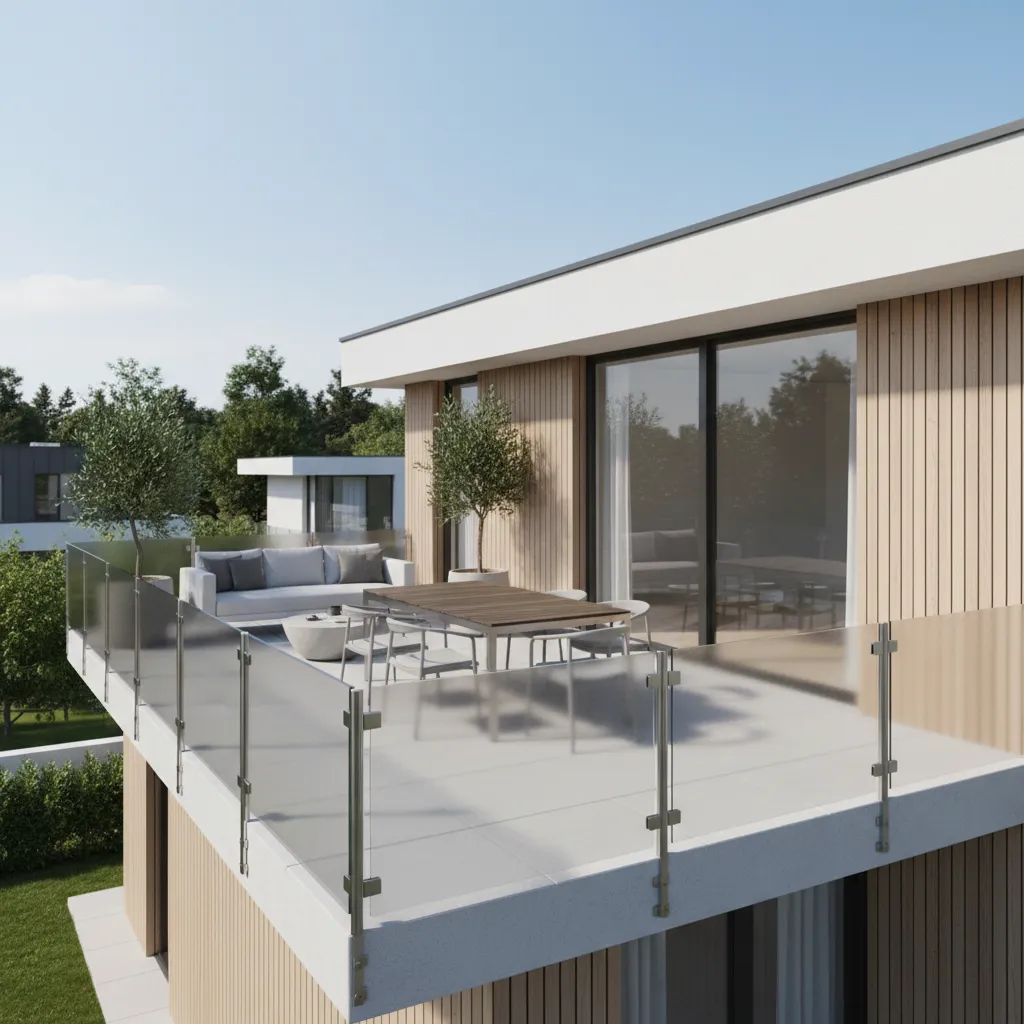

Railing and Safety Requirements for Second Floor Patios

Key Insight: Enclosing a patio with glass does not automatically eliminate the requirement for code‑compliant guardrails.

This surprises many homeowners. Even with full‑height glass walls, building inspectors may still require guardrails depending on the enclosure system.

Typical U.S. guardrail rules include:

1. Minimum guardrail height: 36–42 inches depending on jurisdiction
2. No opening greater than 4 inches
3. Guardrails required when floor height exceeds 30 inches above grade

If the enclosure glass is structural and engineered as a guard system, it may replace the railing. However, that glass must be laminated safety glass designed to withstand lateral loads.

According to the International Code Council, guard systems must resist a 200‑pound concentrated loadapplied in any direction.

save pin

Wind Load and Weather Resistance Standards

Key Insight: Wind pressure is often the most overlooked engineering factor for upper‑level glass enclosures.

An open balcony allows wind to pass through. Once enclosed, that same wind pressure pushes directly against the glass wall system.

Key wind‑related requirements include:

1. Wind load calculations based on local climate zone
2. Impact‑rated glass in hurricane regions
3. Anchoring systems designed to resist uplift forces

For example, Florida building codes require enclosure systems to meet stringent wind resistance standards due to hurricane exposure.

The American Society of Civil Engineers (ASCE 7) provides widely used guidelines for structural wind load calculations.

Permit Requirements for Patio Enclosures

Key Insight: Nearly every city requires a permit for enclosing a second‑floor patio, even if the deck itself was previously permitted.

The permit process typically involves:

1. Structural drawings
2. Engineering calculations
3. Site plan updates
4. Energy compliance review (in some regions)

Some jurisdictions also require inspections at multiple phases:

1. Framing inspection
2. Structural anchor inspection
3. Final enclosure inspection

Skipping permits may cause problems during home resale. Unpermitted patio enclosures often trigger appraisal issues or insurance complications.

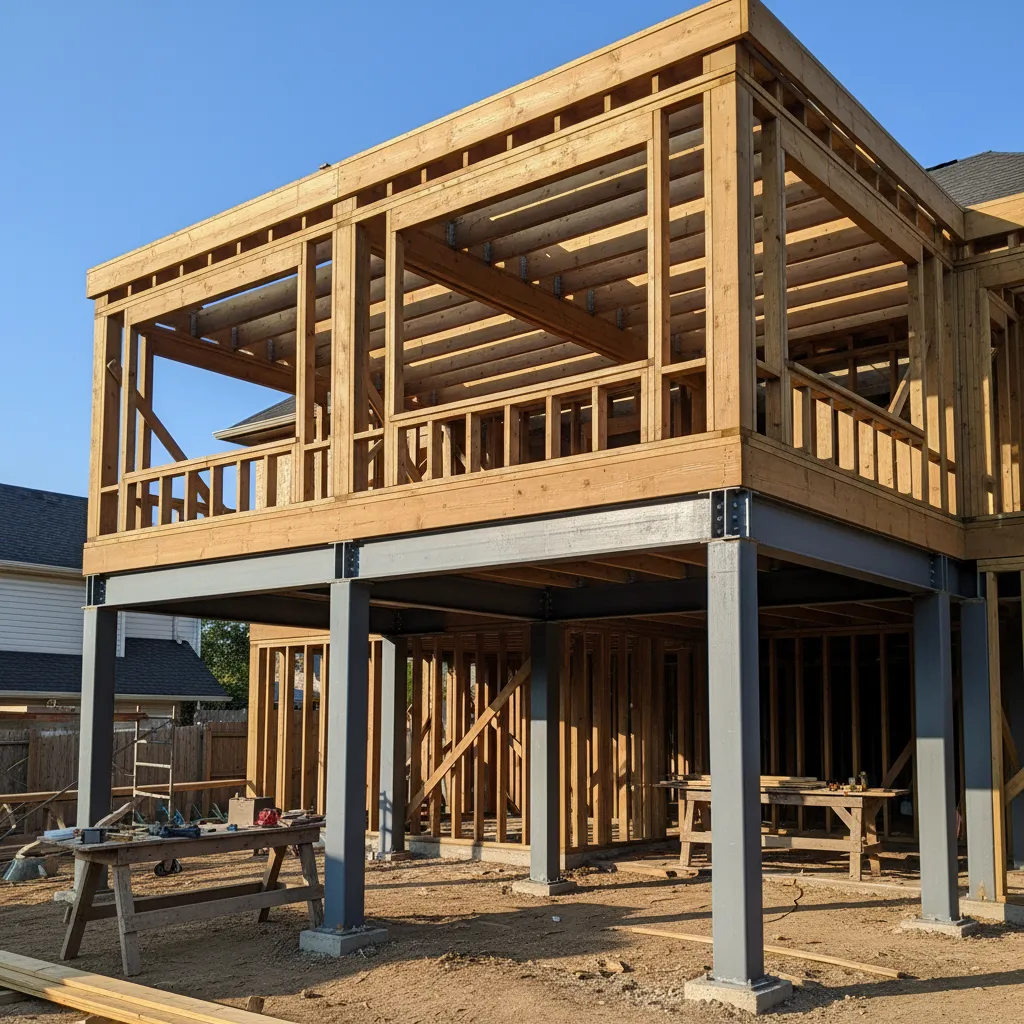

When Structural Reinforcement Is Necessary

Key Insight: Older patios and wood‑frame decks frequently need reinforcement before supporting glass walls or roofs.

Signs reinforcement may be required:

1. Deck joists smaller than modern code standards
2. Long unsupported spans
3. Ledger boards attached only with nails
4. Visible deck deflection when walked on

Common reinforcement solutions include:

1. Steel beam installation
2. Additional support columns
3. Reinforced joist framing
4. Concrete footing upgrades

Visualizing how reinforcement interacts with the enclosure design can be helpful early in planning. Many homeowners review concept visuals by generating realistic exterior renders of a glass enclosed patio attached to the homebefore final construction drawings are prepared.

save pin

Working With Contractors and Engineers

Key Insight: The safest and fastest patio enclosure projects start with structural engineering before design details.

In practice, the ideal workflow looks like this:

1. Measure and document the existing patio structure
2. Consult a structural engineer
3. Create preliminary enclosure designs
4. Submit engineered drawings for permits
5. Hire a licensed contractor experienced with sunrooms or patio enclosures

Professionals involved may include:

1. Structural engineers
2. Residential architects
3. Licensed contractors
4. Building inspectors

In my experience, skipping the engineering step to "save time" almost always delays the project later.

Answer Box

Glass‑enclosed upper‑level patios must meet structural load, guardrail, wind resistance, and permitting requirements. Most projects require engineering review because the added weight and wind pressure exceed what typical balcony structures were originally designed to handle.

Final Summary

1. Glass enclosures change how building codes classify second‑floor patios.
2. Structural load calculations are critical before installing glass walls or roofs.
3. Wind pressure is a major engineering factor for elevated enclosures.
4. Permits and inspections are required in most municipalities.
5. Older decks frequently require structural reinforcement.

FAQ

Do I need a permit to enclose a second‑floor patio?

Yes. Most municipalities require a permit because enclosing a patio changes structural loads and building classification.

What is the building code for glass patio enclosure structures?

Codes typically require structural framing capable of supporting additional dead loads, wind resistance compliance, and guardrail safety standards.

Can an existing balcony support glass walls?

Sometimes, but many decks require reinforcement due to the added weight of glass panels and framing systems.

How much weight does a glass patio enclosure add?

Depending on the system, glass walls can add 35–60 pounds per linear foot plus roof panel weight.

Do glass walls replace railings on second‑floor patios?

Only if the glass system is engineered and approved as a structural guardrail.

Are wind load rules important for upper‑level patio enclosures?

Yes. Wind pressure increases significantly once a patio becomes enclosed with solid walls.

What professionals should review patio enclosure plans?

Structural engineers, architects, and licensed contractors should review the design before permit submission.

What are the structural requirements for second floor sunroom conversions?

They typically include upgraded beams, engineered anchoring systems, and compliance with local wind load rules.

References

1. International Residential Code (IRC)
2. International Code Council Guardrail Standards
3. ASCE 7 Minimum Design Loads for Buildings
4. Local municipal building departments
