Building Code Insulation Requirements for Residential Homes: Understand insulation R value standards, climate zone rules, and how modern energy codes affect residential construction decisions.

Direct Answer

Building code insulation requirements for residential homes are defined by energy codes such as the International Energy Conservation Code (IECC). These codes specify minimum R‑value levels for attics, walls, floors, and foundations based on climate zone. Most homes in the United States must meet attic insulation levels between R‑30 and R‑60 and wall insulation between R‑13 and R‑21 depending on location.

Quick Takeaways

1. Residential insulation codes are primarily determined by climate zone and energy efficiency standards.
2. Attics usually require the highest insulation levels in a home.
3. Building codes define minimum insulation levels, not optimal performance levels.
4. Energy codes like IECC update regularly to improve efficiency and reduce energy waste.
5. Inspections verify insulation type, installation quality, and R‑value compliance.

Introduction

Building code insulation requirements are one of the most misunderstood parts of residential construction. After working on dozens of home renovation and new‑build projects, I’ve noticed the same pattern: homeowners assume insulation choices are purely design decisions. In reality, most of those decisions are dictated by energy codes.

These codes exist for a simple reason—poor insulation dramatically increases energy loss. The U.S. Department of Energy estimates that heating and cooling account for roughly half of household energy consumption. That’s why building regulations focus heavily on thermal performance.

When planning layouts for new homes or remodels, I often review insulation needs alongside spatial planning. Tools that allow you to visualize and structure residential layouts before construction beginsmake it much easier to understand where insulation layers will sit within walls, ceilings, and floors.

In this guide, I’ll break down how insulation codes actually work, where most homes fall short, and what homeowners should understand before construction or renovation begins.

save pin

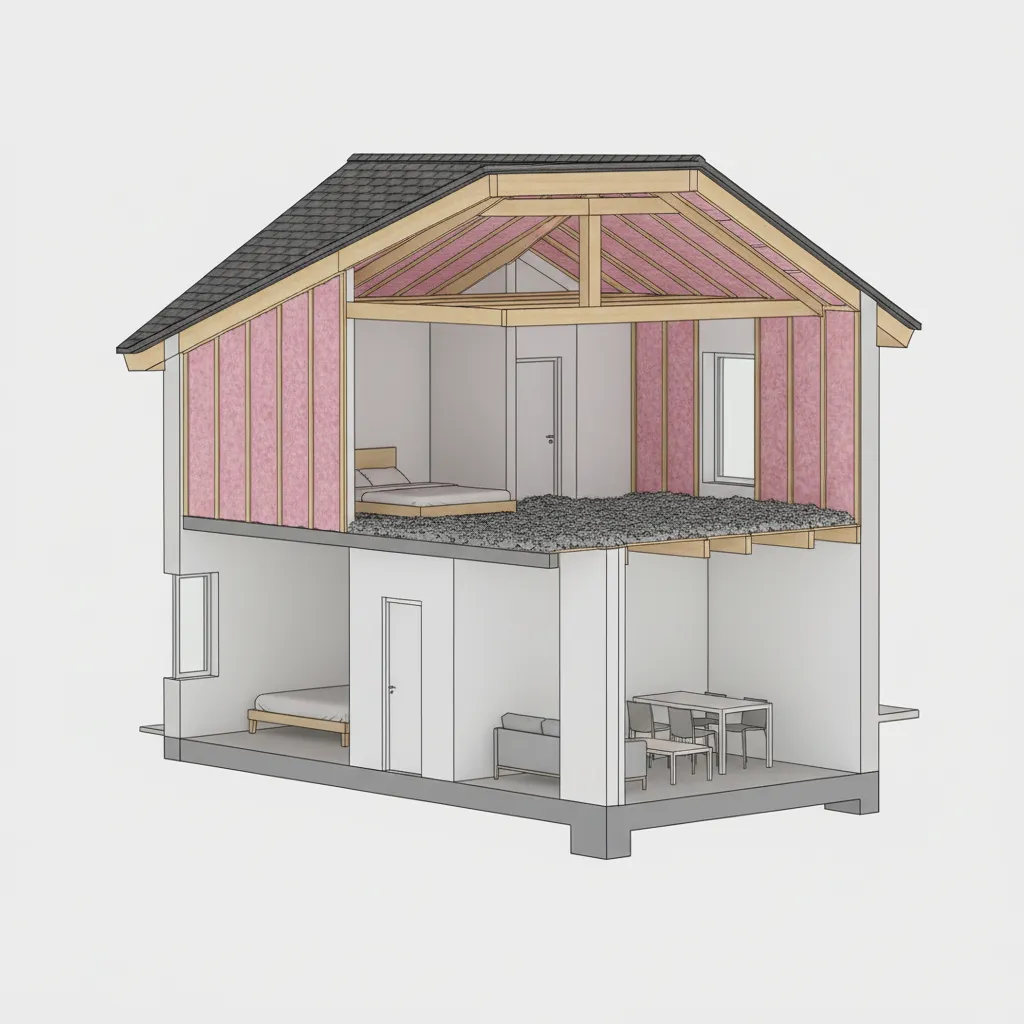

Overview of Residential Insulation Building Codes

Key Insight: Residential insulation rules come primarily from national energy codes that local governments adopt and modify.

In the United States, the most influential framework is the International Energy Conservation Code (IECC). States and municipalities adopt versions of the IECC and sometimes adjust requirements based on regional climate conditions.

Other standards also influence insulation requirements:

1. International Residential Code (IRC)
2. ASHRAE 90.2 residential energy standards
3. State-specific energy codes (California Title 24, for example)

One mistake I frequently see in renovation projects is assuming older homes can ignore current energy standards. In reality, major remodels often trigger updated compliance requirements.

Evidence Layer: The U.S. Department of Energy confirms that modern energy codes can reduce residential energy use by roughly 30% compared with homes built before 2006.

Minimum R-Value Requirements by Climate Zone

Key Insight: Climate zone determines almost every insulation requirement in residential building codes.

The United States is divided into eight climate zones. Each zone defines minimum insulation performance based on heating and cooling demands.

Typical insulation requirements look like this:

1. Zone 1–2 (warm climates): attic R‑30 to R‑38
2. Zone 3–4 (mixed climates): attic R‑38 to R‑49
3. Zone 5–7 (cold climates): attic R‑49 to R‑60
4. Zone 8 (extreme cold): attic R‑60 or higher

Wall insulation typically ranges from:

1. R‑13 for warmer regions
2. R‑20 or R‑21 for colder climates

According to the International Code Council, these values represent minimum thermal resistance needed to prevent excessive heat transfer through building envelopes.

save pin

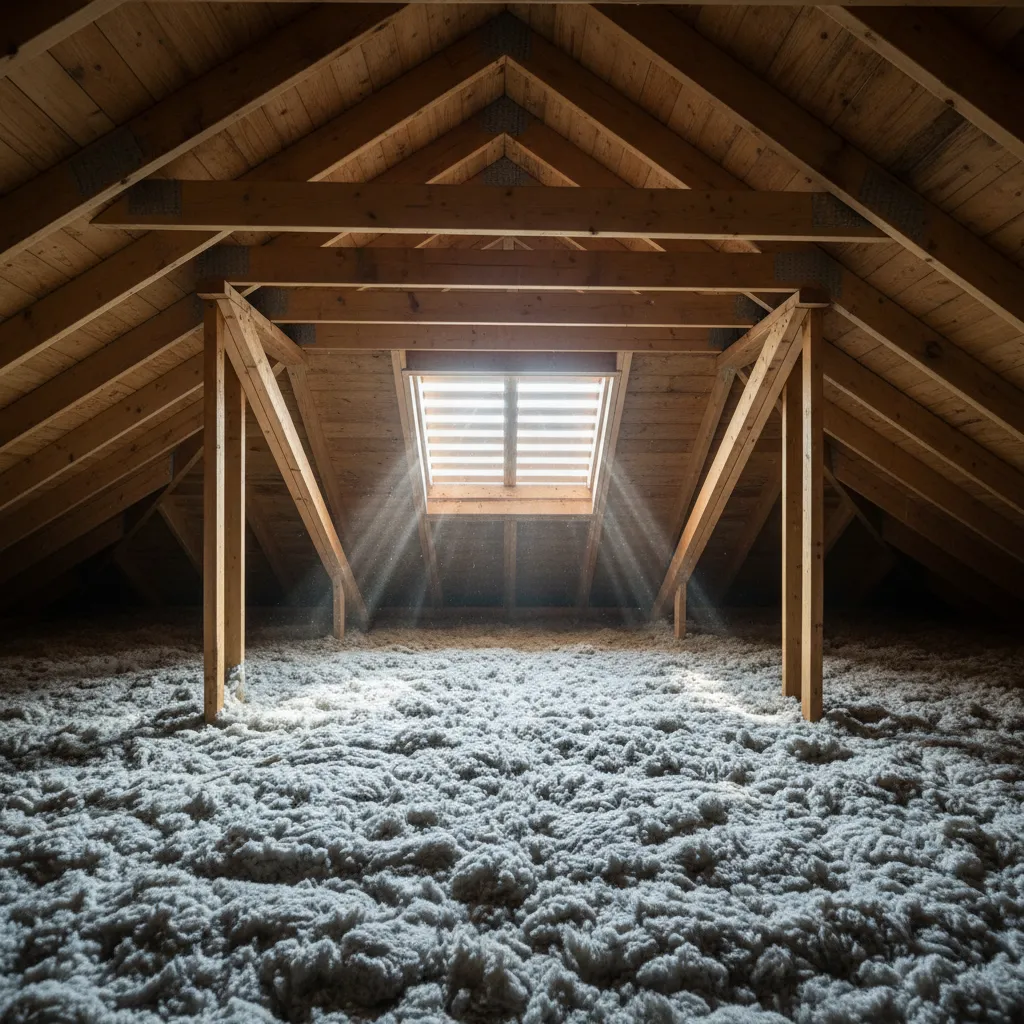

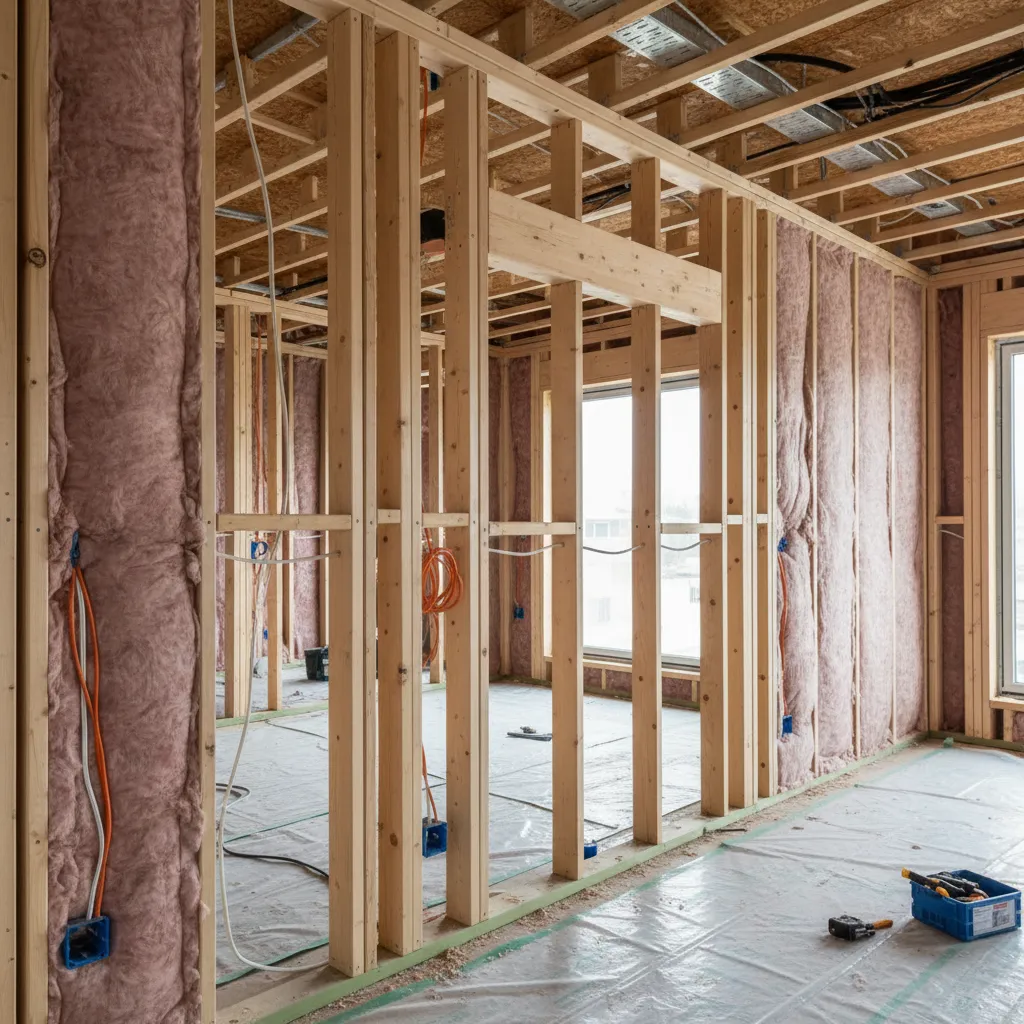

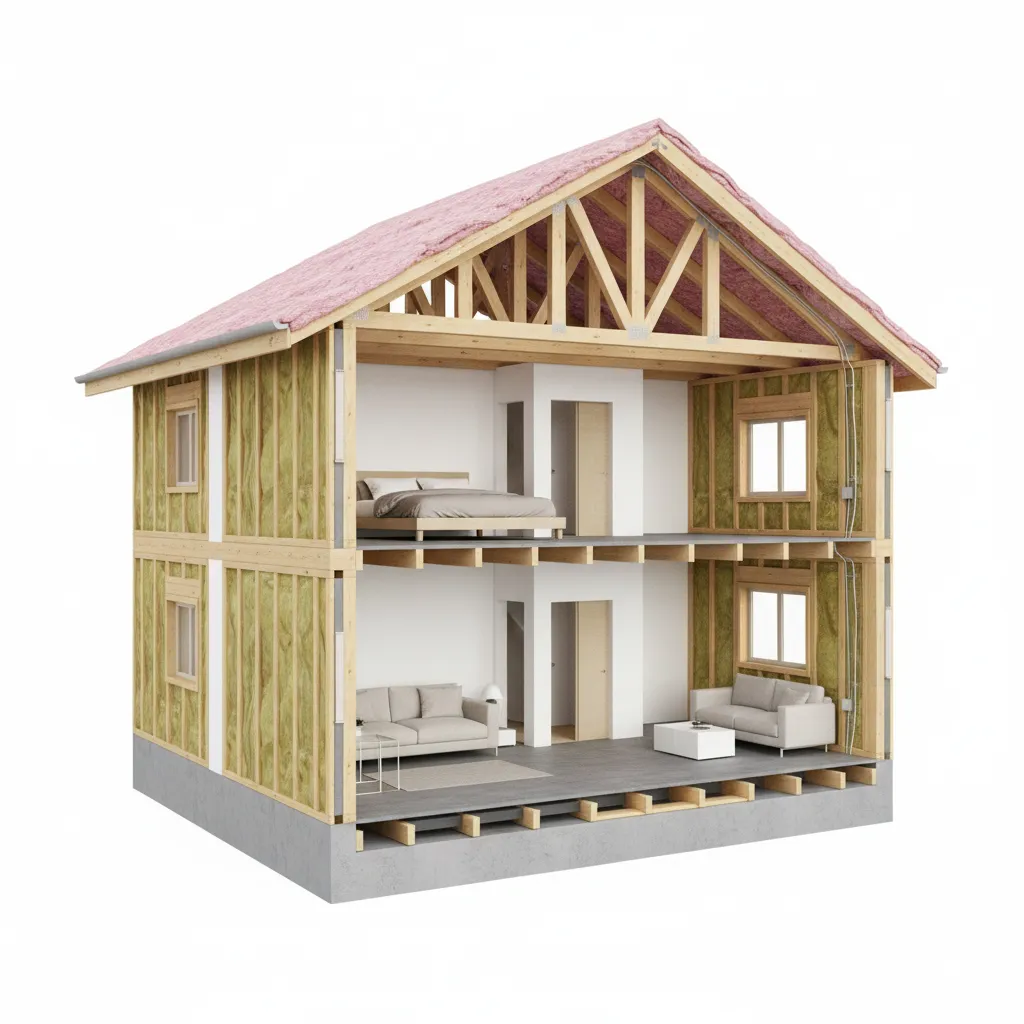

Attic, Wall, and Floor Insulation Code Standards

Key Insight: Attics typically have the highest code‑mandated insulation levels because heat loss occurs primarily through the roof.

When evaluating a home's energy performance, inspectors focus on three main areas:

1. Attic insulation – Usually blown fiberglass or cellulose between R‑38 and R‑60.
2. Wall insulation – Often fiberglass batts or spray foam ranging from R‑13 to R‑21.
3. Floor insulation – Required for homes over crawl spaces or unheated basements.

In practice, the installation quality matters as much as the rated R‑value. Poorly installed insulation with gaps or compression can reduce effectiveness by 20–30%.

This is why many modern home planners review wall assemblies in 3D before construction. Being able to map out wall cavities and structural layers in a detailed floor planning workflow helps identify insulation conflicts early.

Hidden issue many guides miss: mechanical systems often reduce insulation coverage. HVAC ducts, recessed lighting, and plumbing lines frequently interrupt insulation layers.

Answer Box

Building code insulation requirements establish minimum R‑values for each part of the building envelope based on climate zone. Meeting these standards ensures energy efficiency, regulatory compliance, and lower long‑term heating and cooling costs.

How Building Codes Affect a 1200 Sq Ft Home

Key Insight: Smaller homes still face the same insulation performance requirements as large homes.

In fact, insulation planning is often more critical in compact homes because thermal loss per square foot can be higher.

For a typical 1200 sq ft home in Climate Zone 4, codes might require:

1. Attic insulation: R‑49
2. Exterior wall insulation: R‑20 or R‑13 + continuous insulation
3. Floor insulation: R‑30 over crawl spaces

During several small‑home projects I worked on in California and Nevada, we discovered an overlooked issue: tighter floor plans often leave less room for thicker wall assemblies. That forces builders to choose higher‑performance materials like spray foam or rigid board insulation.

save pin

Inspection and Compliance Considerations

Key Insight: Passing inspection requires both correct R‑values and proper installation.

Most residential inspections evaluate insulation in three phases:

1. Pre‑drywall inspection of wall cavities
2. Attic inspection after insulation installation
3. Final energy compliance verification

Inspectors typically look for:

1. Continuous insulation coverage
2. Correct insulation thickness
3. Proper vapor barriers in cold climates
4. No compression around wiring or plumbing

According to Energy Star guidelines, poorly installed insulation can reduce thermal performance by up to 50% in extreme cases.

Updates in Modern Energy Efficiency Standards

Key Insight: Energy codes are becoming stricter every few years as governments push toward net‑zero housing.

Recent updates in energy regulations emphasize:

1. Higher attic R‑value targets
2. Continuous exterior insulation
3. Air sealing requirements
4. Whole‑home energy performance testing

Modern building planning increasingly integrates insulation decisions during design rather than construction. Many professionals now review energy performance visually using tools that help preview realistic residential spaces before building begins.

Industry trend: The 2021 and 2024 IECC versions push significantly toward electrification and high‑performance envelopes, which means insulation standards will likely continue increasing.

save pin

Final Summary

1. Building code insulation requirements depend primarily on climate zone.
2. Attics usually require the highest R‑value in residential construction.
3. Installation quality affects insulation performance as much as material choice.
4. Modern energy codes are steadily increasing insulation requirements.
5. Planning insulation during early design prevents compliance problems.

FAQ

1. What are typical building code insulation requirements for homes?

Most homes require attic insulation between R‑30 and R‑60 and wall insulation between R‑13 and R‑21 depending on climate zone.

2. Do insulation codes vary by state?

Yes. States adopt versions of national energy codes and may modify requirements based on regional climate conditions.

3. What is the minimum attic insulation required by code?

Minimum attic insulation usually ranges from R‑30 in warm regions to R‑60 in very cold climates.

4. Are building code insulation requirements mandatory?

Yes. New construction and major renovations must comply with local building and energy codes.

5. Can older homes ignore modern insulation codes?

Existing homes often follow older standards, but major renovations may require upgrades to current energy code levels.

6. Why do attics need more insulation than walls?

Heat naturally rises, so the roof is a primary area of heat loss during winter and heat gain during summer.

7. What happens if insulation fails inspection?

Builders must correct installation issues or increase insulation levels before construction can proceed.

8. Do building code insulation requirements reduce energy bills?

Yes. Meeting energy code insulation guidelines can significantly reduce heating and cooling costs.
