Ceiling Fan Wiring Standards and Color Codes in the Electrical Industry: A practical industry guide to understanding ceiling fan wire colors, lighting circuits, and how electricians interpret wiring standards.

Direct Answer

Ceiling fan wiring color codes typically follow residential electrical standards where black carries fan power, blue powers the light kit, white is neutral, and green or bare copper is ground. These colors help electricians quickly identify separate circuits for the fan motor and lighting. While manufacturers sometimes vary slightly, the overall logic aligns with broader residential wiring color conventions.

Quick Takeaways

1. Black wires usually control the fan motor, while blue wires typically power the light kit.
2. White wires represent the neutral return path in most residential wiring systems.
3. Green or bare copper wires are always dedicated to grounding for safety.
4. Manufacturers may vary slightly, but most follow standard U.S. residential electrical color conventions.
5. Separating fan and light circuits allows independent control from wall switches.

Introduction

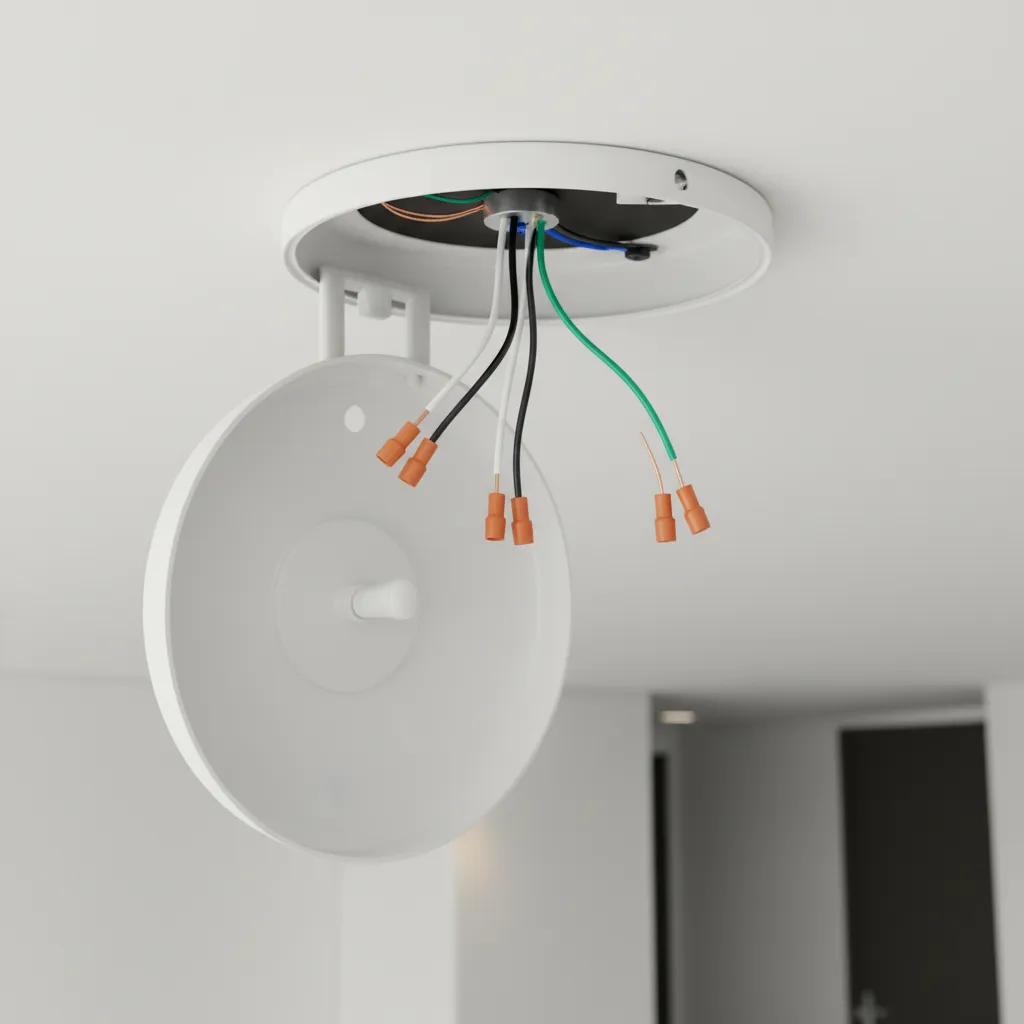

After working on residential interior projects for more than a decade, I’ve noticed that ceiling fan wiring color codes confuse homeowners more than almost any other small electrical detail. It’s not surprising. Open a ceiling fan canopy and you might see black, blue, white, and green wires bundled together, often without obvious labels.

From a design perspective, ceiling fans seem simple. But behind the scenes, manufacturers follow electrical industry conventions so electricians can instantly understand how power flows through the fan motor and lighting kit. Those color choices aren’t random — they reflect decades of residential wiring standards.

If you’ve ever wondered why the blue wire exists, or why two hot wires appear inside a fan, the answer usually comes down to circuit separation. I often explain this during renovation projects when clients want separate switches for airflow and lighting.

For a visual breakdown of how fan wiring layouts look inside real installations, this guide on visualizing electrical layouts inside a 3D room planhelps many homeowners understand how ceiling connections relate to overall room design.

In this article, I’ll walk through how electricians interpret ceiling fan wiring color codes, why blue is commonly used for light kits, and where manufacturer variations sometimes cause confusion.

save pin

Standard Electrical Wire Colors Used in Ceiling Fans

Key Insight: Most ceiling fans follow a predictable color scheme where black powers the motor, blue powers the light, white is neutral, and green is ground.

This structure exists so electricians can quickly identify circuits without tracing every wire individually. In most installations, the ceiling box provides a hot supply from a wall switch, and the fan separates that power internally.

Typical ceiling fan wiring colors include:

1. Black – fan motor power
2. Blue – light kit power
3. White – neutral return
4. Green or bare copper – ground

The key advantage of this configuration is flexibility. When a room uses two wall switches, the black wire may connect to one switch while the blue wire connects to another, giving independent control.

According to the National Electrical Code (NEC) guidelines followed across the United States, hot conductors are commonly black or red, while white remains reserved for neutral conductors.

Why Manufacturers Use Blue for Fan Light Circuits

Key Insight: Blue wires separate the lighting circuit from the fan motor so each function can be controlled independently.

In practice, the blue wire exists because fans often serve two electrical devices: a motor and a light fixture. Using a distinct color avoids miswiring and makes troubleshooting easier.

Here’s how electricians typically interpret it:

1. Black connected → fan motor receives power
2. Blue connected → light kit receives power
3. Both tied together → fan and light controlled by one switch

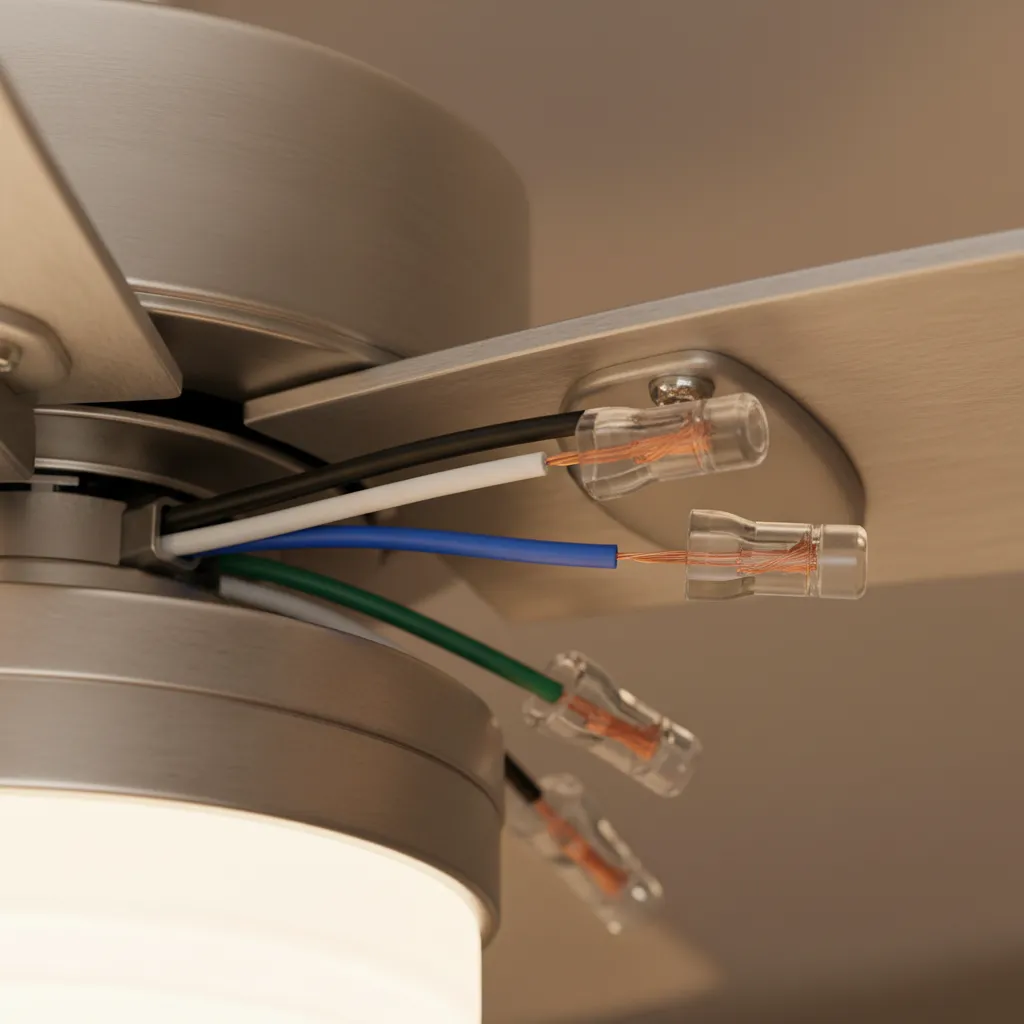

This system has been widely adopted by manufacturers like Hunter, Harbor Breeze, and Hampton Bay. The color choice itself isn’t mandated by code, but industry practice has standardized it over time.

One subtle mistake I’ve seen during remodels is homeowners assuming the blue wire is optional. It isn’t. It’s simply the switched hot for the light kit.

save pin

Differences Between Manufacturer Wiring Schemes

Key Insight: While most ceiling fans follow the same color conventions, small manufacturer differences can still create confusion during installation.

In some fans, especially those with remote receivers or smart controllers, internal wiring can add extra colors. These are usually part of the receiver module rather than the fan itself.

Common variations electricians encounter include:

1. Red wire used instead of blue for light kits
2. Additional wires for remote receiver modules
3. Pre-connected internal wiring harnesses
4. Integrated LED driver wiring

This is why professionals rely on wiring diagrams rather than colors alone. Even when colors follow industry conventions, the internal configuration can vary.

When planning lighting and airflow placement during a renovation, visual planning tools such as mapping ceiling fixtures inside a full room layout help designers coordinate switch placement and wiring access points.

U.S. Residential Electrical Color Code Basics

Key Insight: Ceiling fan wiring follows the same foundational color conventions used throughout residential electrical systems.

Understanding the broader wiring system helps explain why fan wiring colors look the way they do.

Common U.S. residential wire colors:

1. Black – primary hot wire
2. Red – secondary switched hot
3. White – neutral
4. Green or bare copper – ground

Because ceiling fans often contain both a motor and a light fixture, manufacturers use the blue wire as an additional switched hot conductor.

The Electrical Safety Foundation International emphasizes that color coding helps reduce installation errors and improves troubleshooting speed for electricians.

save pin

How Electricians Interpret Ceiling Fan Wiring Diagrams

Key Insight: Professional electricians prioritize wiring diagrams and circuit logic over wire colors alone.

In real-world installations, electricians interpret three things simultaneously:

1. Supply wires from the ceiling box
2. Fan motor wiring
3. Light kit wiring

A typical installation process looks like this:

1. Identify hot supply wire from the switch.
2. Connect neutral wires together.
3. Attach ground wires to the grounding screw.
4. Connect fan motor wire (usually black).
5. Connect light wire (usually blue).

When rooms include multiple switches or smart controls, circuit planning becomes more important. Many homeowners experimenting with smart lighting setups first explore AI-assisted room planning for lighting and fixture placement to visualize how switches, fixtures, and ceiling fans interact within the overall design.

Industry Best Practices for Fan and Light Circuit Separation

Key Insight: Separating fan and light circuits provides better control, easier troubleshooting, and greater compatibility with smart switches.

From an installation standpoint, electricians strongly prefer separating these circuits whenever possible.

Benefits include:

1. Independent fan and light control
2. Better compatibility with smart switches
3. Easier troubleshooting
4. Reduced switch wear

One hidden issue I’ve seen repeatedly is homes wired with a single switch controlling both functions. While convenient initially, it limits flexibility later when homeowners add dimmers, occupancy sensors, or smart controls.

Designing electrical layouts with future flexibility in mind is something experienced electricians and designers always prioritize.

Answer Box

Ceiling fan wiring color codes generally follow residential electrical standards: black powers the fan motor, blue powers the light kit, white serves as neutral, and green or bare copper is ground. These conventions allow electricians to quickly separate lighting and motor circuits while maintaining safe installations.

Final Summary

1. Ceiling fan wiring colors help electricians quickly identify motor and light circuits.
2. Black typically powers the fan motor while blue powers the light kit.
3. White wires provide the neutral return path.
4. Ground wires are always green or bare copper.
5. Separating fan and light circuits improves long-term control flexibility.

FAQ

What does the blue wire on a ceiling fan do?

The blue wire usually powers the fan’s light kit. It allows the lighting circuit to operate separately from the fan motor.

Are ceiling fan wiring color codes standardized?

Most follow common residential electrical wiring standards, but manufacturers may introduce minor variations depending on fan features.

Can a ceiling fan work without connecting the blue wire?

Yes. The fan motor can run using only the black wire. The blue wire is only required if the light kit is used.

What is the neutral wire in ceiling fan wiring?

The white wire is almost always the neutral conductor returning current to the electrical panel.

Why are there two hot wires in ceiling fan wiring?

One powers the fan motor and the other powers the light. This allows separate switching.

Is the ceiling fan wiring color code the same in all homes?

Modern homes usually follow the same conventions, but older homes may use different wiring methods.

Do electricians rely only on wire colors?

No. Professionals always confirm wiring diagrams and test circuits before making connections.

What is the safest way to identify ceiling fan wires?

Turn off power, check the wiring diagram, and verify wires with a voltage tester before connecting anything.
