Central AC vs Mini Split for a 1600 Sq Ft Home: A practical comparison to help homeowners choose the most efficient cooling system for a medium sized house.

Direct Answer

For a 1600 sq ft home, central AC works best if the house already has well designed ductwork and a relatively open layout. A mini split system is usually the better option when the home lacks ducts, has multiple temperature zones, or includes additions that traditional ducts struggle to reach.

In many remodeling projects I’ve worked on, the deciding factor isn’t just cooling power. It’s installation complexity, zoning flexibility, and long term energy use.

Quick Takeaways

1. Central AC is usually cheaper if ductwork already exists and the home layout is open.
2. Mini splits provide superior zoning and often reduce energy waste in multi room homes.
3. Installation cost is typically higher for central air when ducts must be added.
4. Mini splits often achieve higher efficiency ratings than traditional central systems.
5. Home layout matters as much as square footage when choosing between systems.

Introduction

When homeowners ask me whether central AC or a mini split is better for a 1600 sq ft home, they’re usually expecting a simple answer. But after designing HVAC layouts for dozens of mid sized homes, I’ve learned that square footage alone rarely determines the best cooling system.

A 1600 square foot house sits in a middle zone. It’s large enough that cooling performance matters, but still small enough that zoning strategies can dramatically change efficiency. I’ve seen homes with identical size perform completely differently depending on ceiling height, insulation, and room layout.

Another overlooked factor is spatial planning. When homeowners visualize airflow and room connections using tools like a floor plan creator that helps map room sizes and layouts, it becomes much easier to understand why some systems distribute cooling better than others.

In this guide, I’ll break down how central air conditioning compares with mini split systems for a 1600 sq ft house, including cost, efficiency, and layout compatibility. More importantly, I’ll highlight the tradeoffs that most comparison articles completely skip.

save pin

Cooling Needs of a 1600 Sq Ft Home

Key Insight: Most 1600 sq ft homes require roughly 2.5 to 3 tons of cooling capacity, but layout and insulation often matter more than raw square footage.

In HVAC planning, square footage gives us a starting point, not the final answer. Industry guidelines from the U.S. Department of Energy suggest roughly 20 BTUs per square foot in moderate climates. That places most 1600 sq ft homes around 30,000 to 36,000 BTUs.

However, in real projects I’ve worked on, three hidden variables regularly change the required capacity:

1. Ceiling height above 9 feet increases cooling load significantly.
2. Large south facing windows introduce additional heat gain.
3. Older insulation forces systems to work harder.

Typical cooling capacity estimates:

1. Well insulated modern home: about 2.5 tons
2. Average suburban home: about 3 tons
3. Older homes or hot climates: 3 to 3.5 tons

This capacity can be delivered either through a central system or several mini split indoor units.

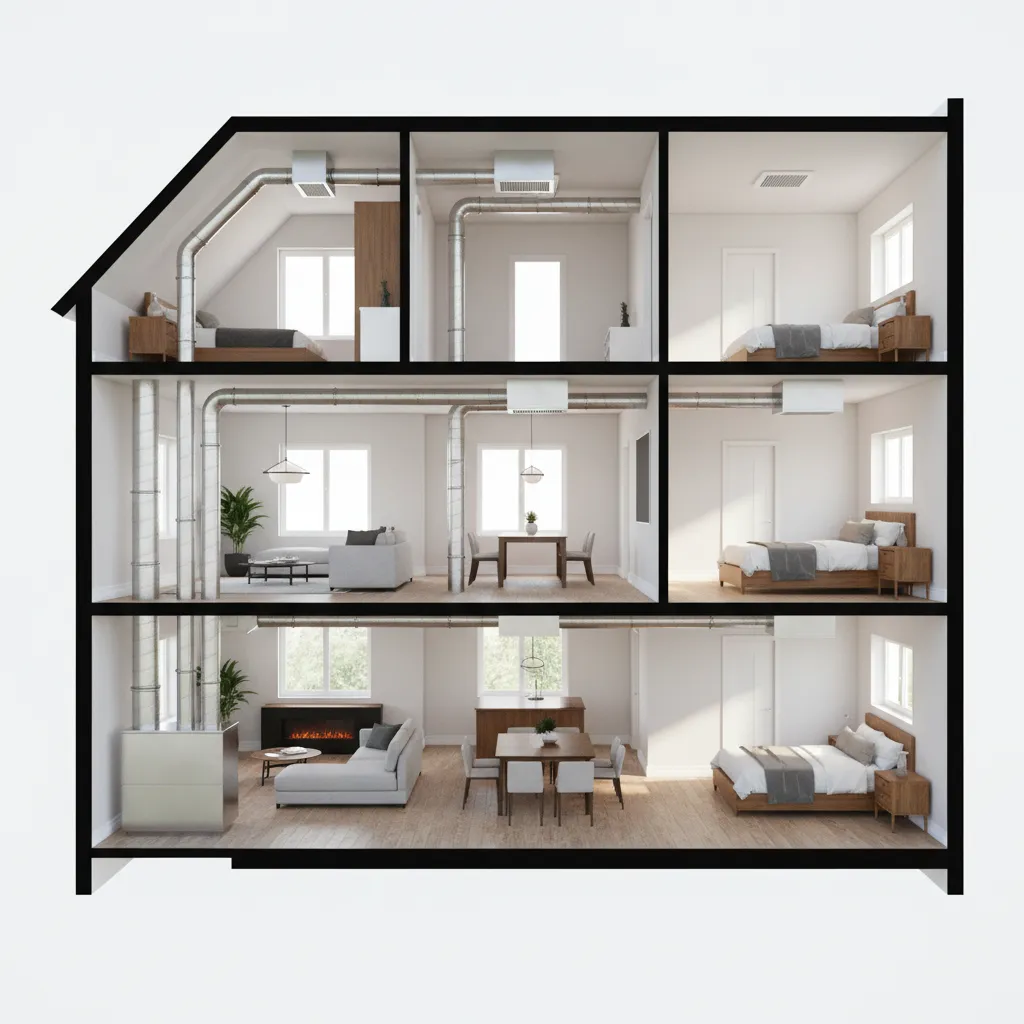

How Central Air Conditioning Systems Work

Key Insight: Central AC cools an entire home from a single system using ducts that distribute conditioned air to each room.

A central air conditioning system consists of an outdoor condenser, an indoor evaporator coil, and a network of ducts that distribute air throughout the house.

In homes that already have ductwork, this setup is extremely efficient from an installation perspective. Many suburban homes built after the 1990s were designed around central HVAC systems.

Main components include:

1. Outdoor compressor and condenser
2. Indoor evaporator coil connected to furnace or air handler
3. Supply and return duct network
4. Thermostat control

Advantages of central AC:

1. Consistent cooling throughout the home
2. Cleaner wall aesthetics since no indoor units are visible
3. Lower upfront cost if ducts already exist

Hidden drawback many homeowners discover later: ducts lose energy. According to the U.S. Department of Energy, poorly sealed ducts can waste 20–30% of cooling energy.

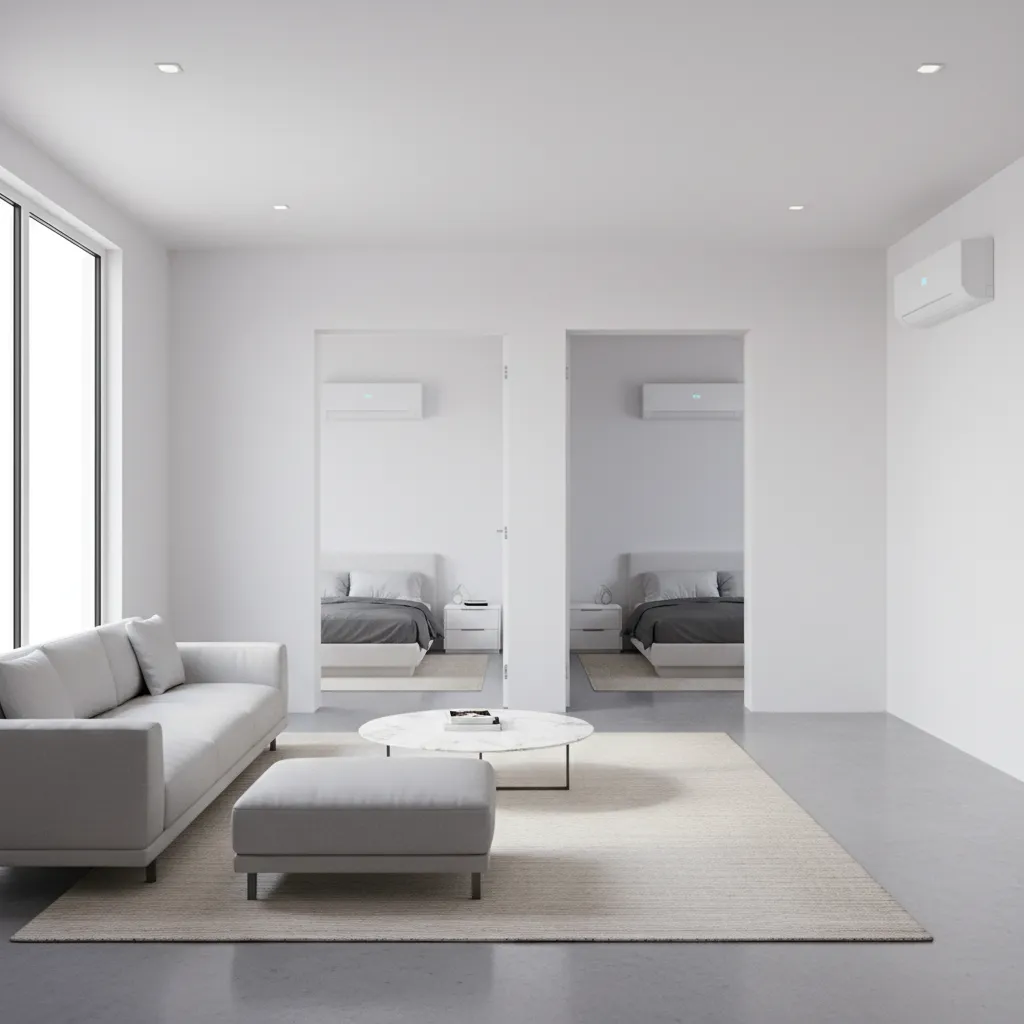

How Mini Split Systems Cool Medium Sized Homes

Key Insight:Mini splits cool rooms individually, eliminating duct losses while giving each area independent temperature control.

Ductless mini split systems use one outdoor compressor connected to several indoor air handlers. Each indoor unit cools a specific zone of the house.

This configuration has become extremely popular in renovations and modern energy efficient homes.

Typical mini split setup for a 1600 sq ft home:

save pin

1. Outdoor condenser sized around 3 tons
2. 3 to 5 indoor wall mounted units
3. Individual room temperature controls

Major advantages include:

1. No duct energy loss
2. Room by room temperature control
3. Flexible installation for additions or older homes

But there’s a tradeoff many comparison guides ignore: visual presence. Indoor units are mounted on walls or ceilings, which some homeowners dislike aesthetically.

Cost Comparison Installation and Long Term Operation

Key Insight: Central AC is often cheaper initially if ducts already exist, while mini splits usually win in long term energy efficiency.

Based on contractor quotes I’ve seen across several residential projects, here is a realistic cost comparison.

Typical installation costs

1. Central AC with existing ducts: $6,000–$9,000
2. Central AC with new ductwork: $12,000–$18,000
3. Multi zone mini split system: $9,000–$16,000

Operating costs also vary significantly.

1. Central AC SEER ratings typically range from 14–18
2. Mini split systems often reach SEER ratings of 20–30

That efficiency difference is why mini splits are becoming more common in high performance homes.

Visualizing airflow paths and room connections using a room layout planning tool that models furniture and space flow can reveal whether ducts will distribute air evenly or create hot spots.

Energy Efficiency and Zoning Differences

Key Insight: Mini splits dramatically outperform central systems when homes require different temperatures in different rooms.

Central air conditioning treats the house as one large zone. Even if one room is empty, the system continues cooling the entire structure.

Mini splits operate differently.

Zoning advantages include:

1. Bedrooms can stay cooler at night
2. Unused rooms can remain off
3. Home offices or sunrooms can receive extra cooling

In energy modeling studies by the National Renewable Energy Laboratory, zoned HVAC systems frequently reduce cooling energy by 20% or more depending on occupancy patterns.

save pin

Answer Box

For a 1600 sq ft home, central AC is ideal when ductwork already exists and the floor plan is open. Mini split systems perform better in homes needing zoning, retrofits, or higher efficiency without installing ducts.

Which System Is Better for Different Home Layouts

Key Insight: Home layout often determines the winner more than square footage.

After working with many mid sized homes, I’ve noticed a consistent pattern.

Central AC works best for:

1. Open floor plans
2. Two story homes with existing ducts
3. New construction designed for duct routing

Mini splits work best for:

1. Older homes without ducts
2. Homes with additions or converted garages
3. Houses where rooms need different temperatures

When homeowners model the entire house using a 3D visualization that shows the full home layout, the airflow and zoning differences between systems become much clearer.

Final Summary

1. Most 1600 sq ft homes need about 2.5–3 tons of cooling capacity.
2. Central AC is ideal when existing ducts are efficient.
3. Mini splits eliminate duct losses and allow room by room control.
4. Installation cost depends heavily on whether ducts already exist.
5. Home layout often determines which system performs better.

FAQ

Is central AC or mini split better for a 1600 sq ft home?

Central AC is better if ducts already exist. Mini splits are usually better for zoning, energy efficiency, and homes without ductwork.

How many mini split units are needed for 1600 sq ft?

Most homes require three to five indoor units depending on room size and layout.

What size central AC unit is needed for a 1600 sq ft home?

Most homes require a 2.5 to 3 ton system, though insulation and climate can change the calculation.

Are mini splits more energy efficient than central AC?

Yes. Many mini split systems reach SEER ratings above 20, while typical central systems range from 14–18.

Does a mini split cool an entire house?

Yes, if multiple indoor units are installed. Multi zone systems can easily cool a 1600 sq ft home.

Is mini split installation expensive?

It can be higher upfront than central AC with existing ducts but cheaper than installing new ductwork.

Do mini splits increase home value?

In many energy efficient markets they do, especially when replacing inefficient window units.

Which AC system works better for a 1600 sq ft house with multiple rooms?

Mini splits usually perform better because each room can be cooled independently.
