Chapel Floor Plan Code Requirements Comparison Guide: Understand how major building regulations shape safe and compliant chapel layouts before designing your worship space

Direct Answer

Chapel floor plan code requirements vary primarily across three areas: occupant load calculations, fire safety provisions, and accessibility standards. While the International Building Code (IBC) often provides the baseline for chapel design, local municipal codes and fire regulations frequently modify requirements that directly affect layout, seating density, exits, and circulation paths.

Understanding how these regulations interact is essential before finalizing a chapel floor plan, because even small differences in code interpretation can change aisle widths, door placement, or maximum seating capacity.

Quick Takeaways

1. IBC standards usually set the baseline rules for chapel layout and safety.
2. Local jurisdictions often modify occupant load and fire exit requirements.
3. Accessibility regulations frequently dictate aisle spacing and entry layout.
4. Fire safety codes strongly influence exit quantity and travel distance.
5. Code interpretation can significantly change chapel seating capacity.

Introduction

In more than a decade of designing worship spaces, I’ve learned that chapel floor plan code requirements are rarely as simple as reading a single rulebook. Most architects assume the International Building Code will give them everything they need. In reality, the final layout of a chapel is shaped by overlapping standards: building codes, fire regulations, and accessibility requirements that are often enforced differently by local jurisdictions.

This is where many chapel projects run into trouble. A layout that technically meets IBC rules may still fail a municipal review because of local fire marshal interpretations or accessibility adjustments. I’ve seen projects lose weeks in revisions simply because the seating layout pushed occupant load slightly beyond what the exit configuration allowed.

Before drawing walls and seating rows, it helps to visualize how capacity and circulation will actually work in the space. Many design teams start by experimenting with seating density using tools that help generate preliminary layouts for worship spaces and seating capacity planning. This early step often reveals code conflicts long before permit review.

In this guide, I’ll break down the major regulatory frameworks that influence chapel layouts, compare how they differ, and highlight the subtle design tradeoffs most articles ignore.

save pin

Overview of Building Codes Affecting Chapel Design

Key Insight: Chapel floor plan code requirements are typically governed by three overlapping systems: building codes, fire codes, and accessibility regulations.

Places of worship fall under the Assembly occupancy category in most building standards. That classification brings specific requirements related to crowd safety, evacuation, and accessibility.

The three main regulatory layers include:

1. International Building Code (IBC) – Defines occupancy classifications, occupant load calculations, and minimum egress requirements.
2. National Fire Protection Association (NFPA) standards – Focus on life safety, fire protection systems, and emergency egress.
3. Accessibility regulations (ADA or local equivalents) – Ensure equal access, including wheelchair seating areas and circulation clearances.

In practice, these systems do not operate independently. A change in occupant load under IBC may trigger additional exit requirements under fire codes, which then affects aisle layout and seating configuration.

The National Fire Protection Association’s Life Safety Code (NFPA 101) is frequently referenced alongside IBC when reviewing assembly occupancies, particularly for egress design and evacuation safety.

International Building Code vs Local Municipal Regulations

Key Insight: The IBC sets the structural framework for chapel design, but local jurisdictions frequently modify these rules in ways that significantly affect floor plans.

Architects often assume IBC compliance automatically guarantees permit approval. In reality, municipalities frequently adopt modified versions of the code or enforce stricter provisions.

Common local variations include:

1. Reduced allowable travel distance to exits
2. Additional fire suppression requirements
3. Stricter occupant load calculations
4. Expanded accessibility seating requirements

For example, some cities reduce maximum travel distance for assembly spaces from the standard 250 feet to closer to 200 feet. That seemingly small change can require adding another exit door or reconfiguring the entire seating arrangement.

When testing different layout configurations, I often simulate circulation routes early using tools that help visualize evacuation paths and spatial flow in three dimensional chapel layouts. It quickly reveals whether code constraints will restrict seating capacity.

save pin

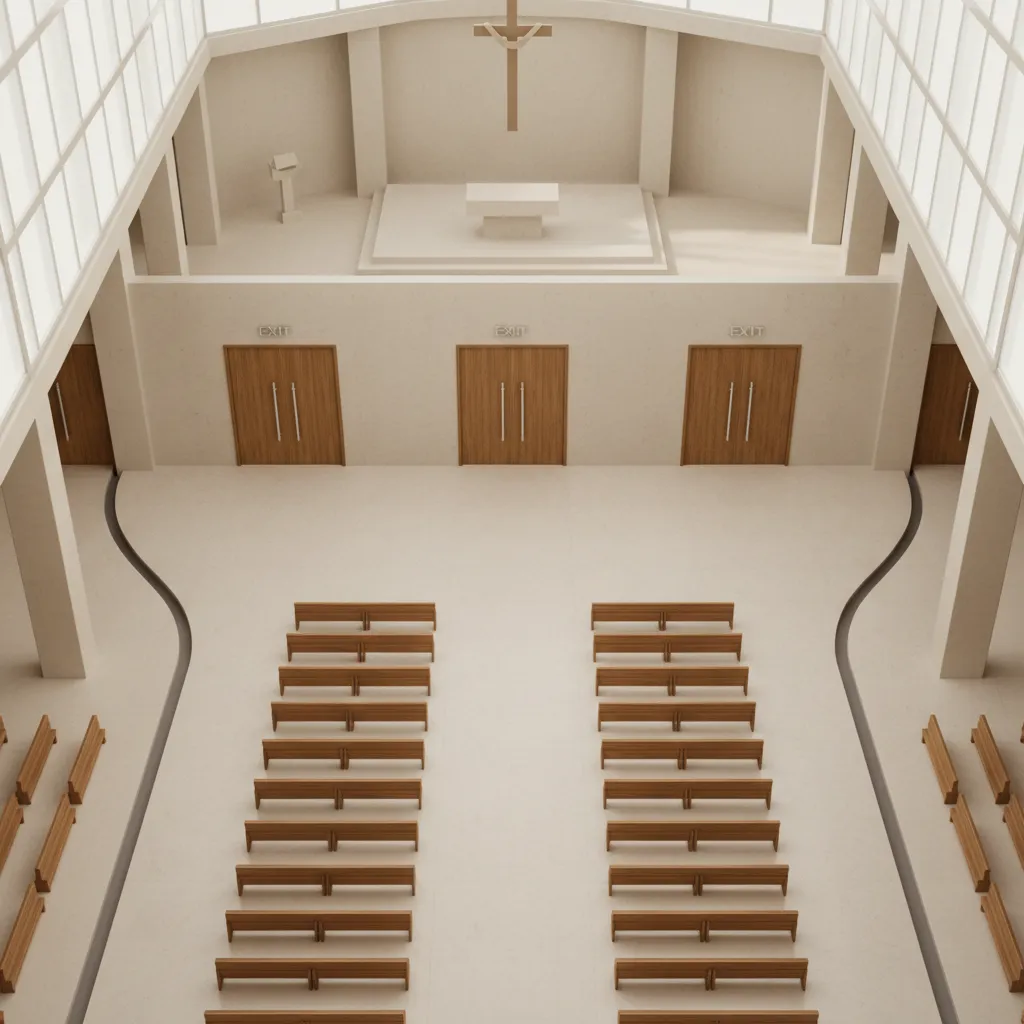

Fire Safety Requirements for Worship Spaces

Key Insight: Fire safety codes often influence chapel layouts more than structural regulations because they determine exit placement and aisle geometry.

Assembly spaces like chapels must be designed so occupants can evacuate quickly during emergencies. Fire safety regulations therefore impose strict rules on aisle widths, exit locations, and maximum travel distances.

Typical fire safety requirements include:

1. Minimum number of exits based on occupant load
2. Maximum travel distance to an exit
3. Minimum aisle width requirements
4. Emergency lighting and exit signage

One overlooked issue I see often is the "aisle compression" problem. Designers maximize seating rows but unintentionally narrow the aisle path near the altar or platform area. Fire reviewers frequently flag this because aisle width must remain consistent along the entire path of egress.

NFPA guidelines also recommend that assembly seating layouts avoid dead-end corridors and provide clear directional flow toward exits.

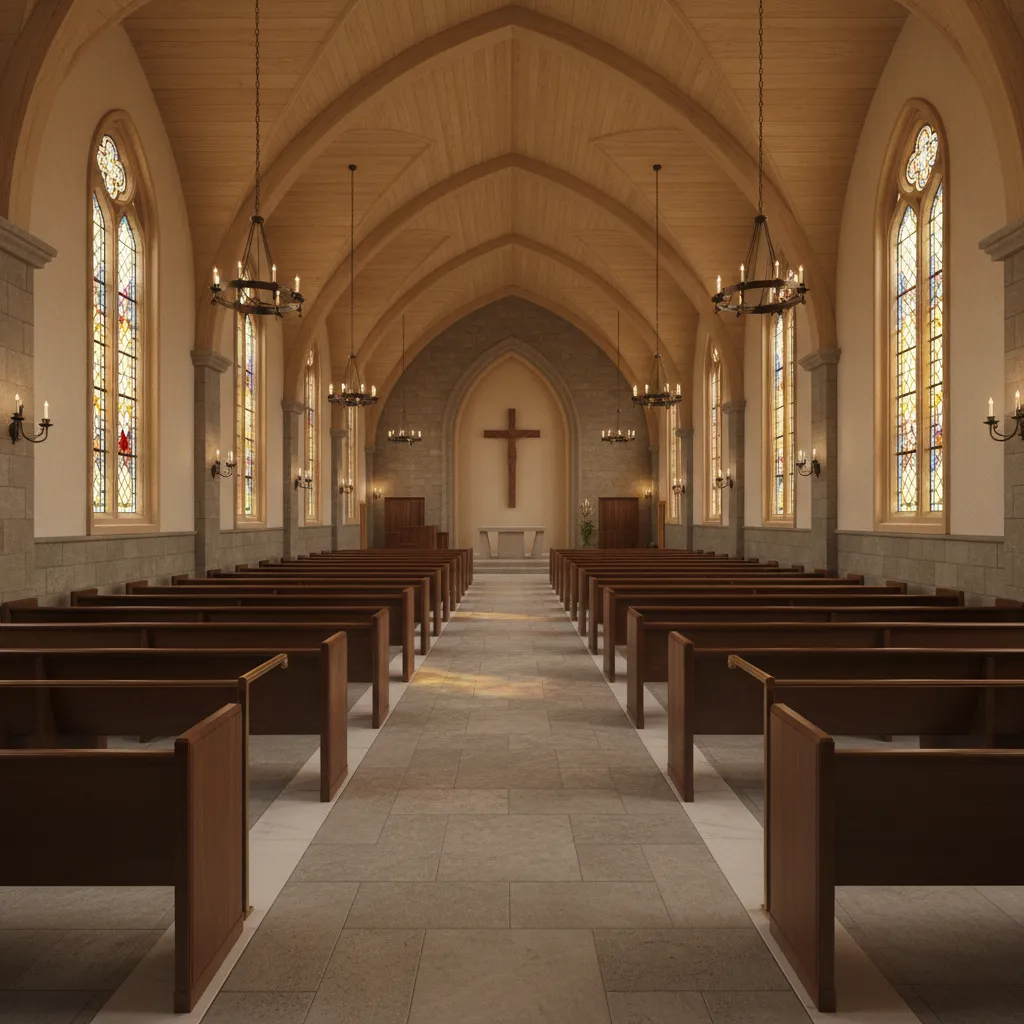

Accessibility Compliance Across Major Standards

Key Insight: Accessibility requirements influence not just entrances but also seating distribution and circulation inside the chapel.

Many designers treat accessibility as a doorway requirement, but ADA compliance affects the entire interior layout.

Important accessibility provisions include:

1. Wheelchair seating integrated with general seating areas
2. Minimum turning radius for mobility devices
3. Accessible routes connecting entrances, seating, and restrooms
4. Companion seating adjacent to accessible positions

A common mistake is grouping all accessible seating at the back of the chapel. While technically compliant in some jurisdictions, modern accessibility guidance encourages distributing accessible seating throughout the space.

When planning these zones, designers often map circulation using digital layout tools that help test seating arrangements and accessible pathways inside religious gathering spaces.

save pin

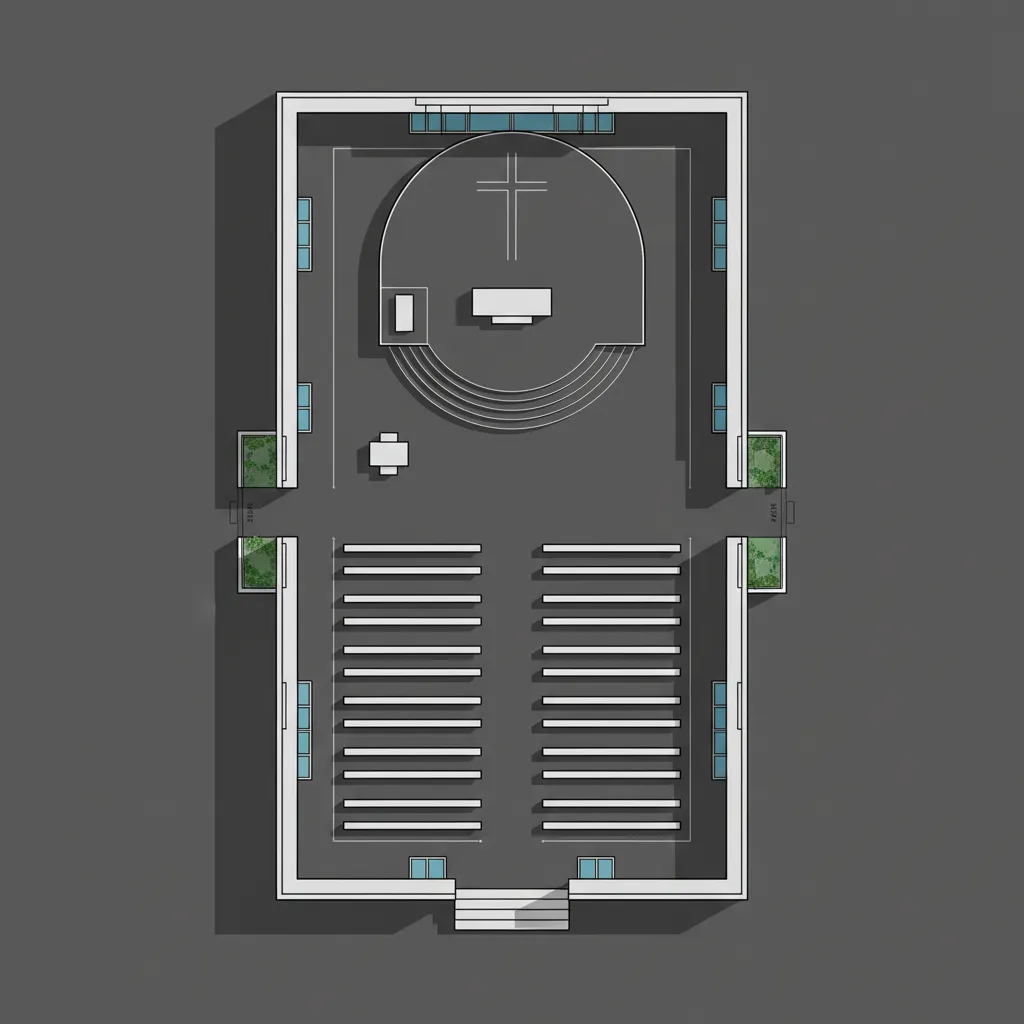

Occupant Load Calculation Differences

Key Insight: Small differences in occupant load formulas can drastically change the legal seating capacity of a chapel.

Occupant load determines how many people can legally occupy the space, which directly impacts seating density and exit requirements.

Typical calculation methods include:

1. Fixed seating count for pews or chairs
2. Square footage divided by occupant load factors
3. Hybrid calculations for mixed seating arrangements

Under IBC guidelines, assembly seating without fixed chairs often uses an occupant load factor of 7 square feet per person. However, local codes sometimes modify this number depending on the space type.

Even a small change from 7 square feet to 10 square feet per person can reduce seating capacity by more than 30% in smaller chapels.

How Code Variations Affect Chapel Floor Layout Decisions

Key Insight: Code differences rarely change the building shell, but they frequently reshape internal circulation and seating density.

From a design standpoint, the biggest code-driven changes typically affect:

1. Aisle spacing between seating rows
2. Number and location of exit doors
3. Clear paths from altar to exits
4. Accessible seating distribution

The hidden tradeoff many designers overlook is that increasing seating density often triggers additional exit requirements. That means the layout must sacrifice wall space for doors and circulation corridors.

save pin

Answer Box

Chapel floor plan code requirements differ mainly in occupant load calculations, exit design rules, and accessibility provisions. While the International Building Code provides the main framework, local regulations and fire codes often modify seating capacity, aisle widths, and evacuation routes.

Final Summary

1. IBC rules establish the baseline for chapel design.
2. Local codes often impose stricter safety requirements.
3. Fire regulations heavily influence exit placement and aisle design.
4. Accessibility standards affect seating distribution.
5. Occupant load calculations directly impact chapel capacity.

FAQ

What building code applies to chapels?

Most chapels follow the International Building Code under Assembly occupancy classifications, though local jurisdictions may modify requirements.

What are the main chapel building code requirements?

Typical chapel building code requirements cover occupant load calculations, fire exits, aisle widths, accessibility seating, and travel distance limits.

How many exits does a chapel need?

The number of exits depends on occupant load. Assembly spaces with higher capacity usually require at least two remote exits.

Do small chapels follow the same regulations?

Yes, but smaller occupancy levels may reduce exit or fire protection requirements depending on local codes.

How is chapel seating capacity calculated?

Capacity is determined either by fixed seating counts or by dividing floor area by occupant load factors defined in building codes.

What is the fire code for places of worship?

Fire code for places of worship generally follows NFPA Life Safety Code standards covering evacuation routes, fire alarms, and emergency lighting.

Do accessibility rules apply to older chapels?

Yes. Renovations or significant alterations typically require updated accessibility compliance.

Can chapel layouts change after permit approval?

Minor changes are possible, but major seating or exit modifications usually require additional code review.
