Checkerboard Tile Layout vs Grid and Diagonal Patterns in Bathroom Design: Understand how checkerboard, grid, and diagonal tile patterns change bathroom space perception, installation cost, and overall design impact.

Direct Answer

A checkerboard tile layout creates strong visual contrast and classic character, while a grid layout feels calm and structured, and a diagonal pattern adds movement and can visually enlarge a space. The best bathroom tile layout depends on room size, style goals, and installation complexity.

In most residential projects, checkerboard works best for style impact, grid layouts offer simplicity and lower installation cost, and diagonal layouts help small bathrooms feel less boxy.

Quick Takeaways

1. Checkerboard tile layouts create the strongest visual statement in bathroom floors.
2. Grid layouts are the simplest and cheapest pattern to install.
3. Diagonal tile layouts can visually expand narrow or small bathrooms.
4. Checkerboard patterns require careful tile sizing to avoid overwhelming small rooms.
5. Installation complexity increases from grid to checkerboard to diagonal layouts.

Introduction

In more than a decade designing bathrooms, one detail consistently changes the entire feel of a space: the tile pattern. Many homeowners focus on color or material, but the checkerboard tile layout versus a standard grid or diagonal pattern often has a bigger visual impact than the tile itself.

I’ve seen identical tiles produce completely different results depending on layout. A simple porcelain tile installed in a checkerboard pattern can instantly feel classic and dramatic. Install that same tile in a grid, and the room becomes calm and minimal.

Most homeowners ask the same questions during planning: Which tile layout makes a bathroom look bigger? Which pattern is easier to install? And which style actually holds up over time instead of looking trendy?

When I'm testing layout options with clients, I often start by visualizing the space using a 3D floor layout preview for bathroom remodeling ideas. Seeing patterns applied to the same room instantly reveals how dramatically layout affects perception.

In this guide, I’ll compare checkerboard, grid, and diagonal tile patterns using real design experience, installation considerations, and spatial psychology so you can confidently choose the right layout for your bathroom.

save pin

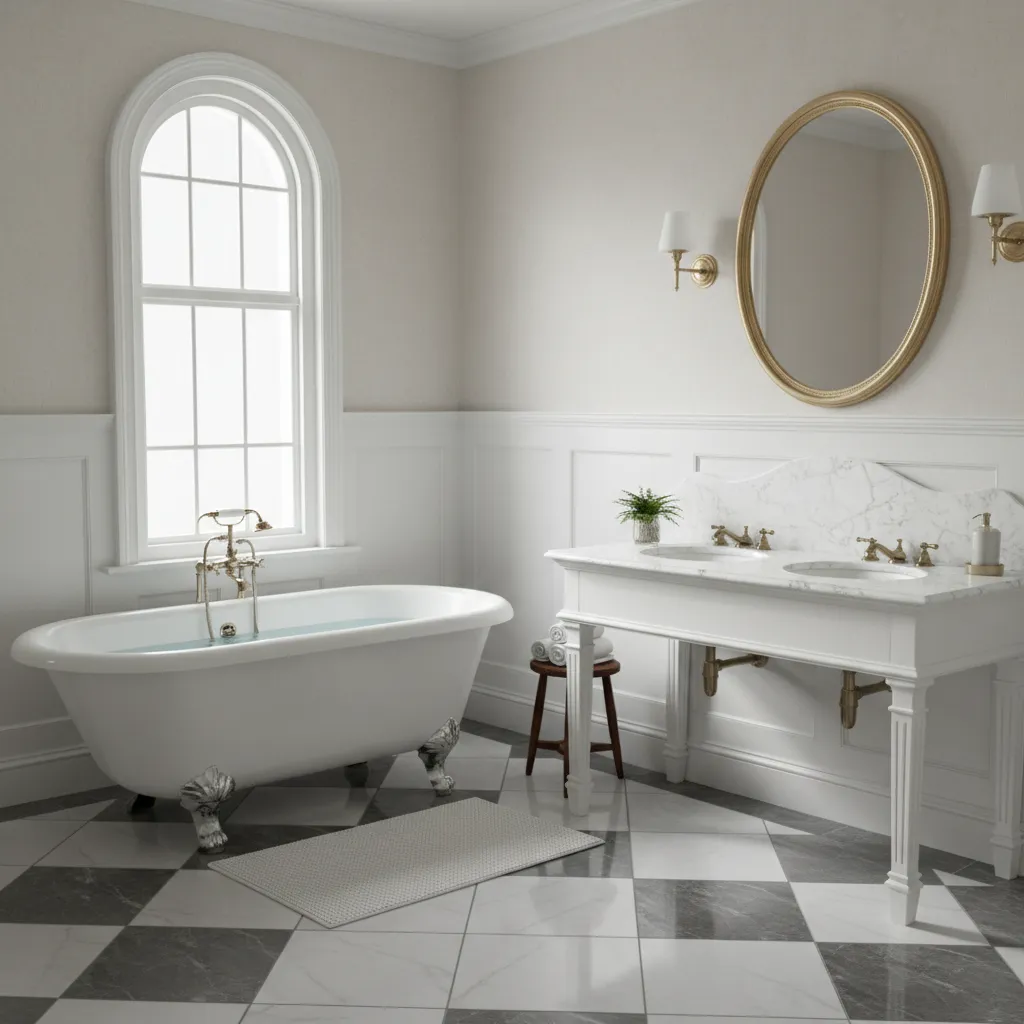

What Defines a Checkerboard Tile Layout

Key Insight: A checkerboard tile layout alternates two contrasting tile colors to create a rhythmic pattern that immediately becomes the focal point of a bathroom floor.

Traditionally, checkerboard patterns use black and white tiles, but modern bathrooms often use softer combinations such as charcoal and limestone, beige and cream, or even muted green and white.

What makes checkerboard unique is not just color contrast but pattern repetition. Because every tile interacts visually with the one beside it, the floor becomes an active design element rather than a background surface.

In many of my renovation projects, homeowners underestimate how dominant this pattern becomes. The floor essentially becomes a graphic feature.

Typical Checkerboard Layout Characteristics

1. Alternating light and dark tiles
2. Usually square tiles
3. Often installed straight or rotated 45 degrees
4. Strong visual rhythm across the entire floor

Common Hidden Mistake

A frequent design error is using tiles that are too large in small bathrooms. Large checkerboard squares can overwhelm tight spaces and visually shrink the room.

In bathrooms under 50 square feet, I usually recommend tiles between 6" and 10" to maintain balance.

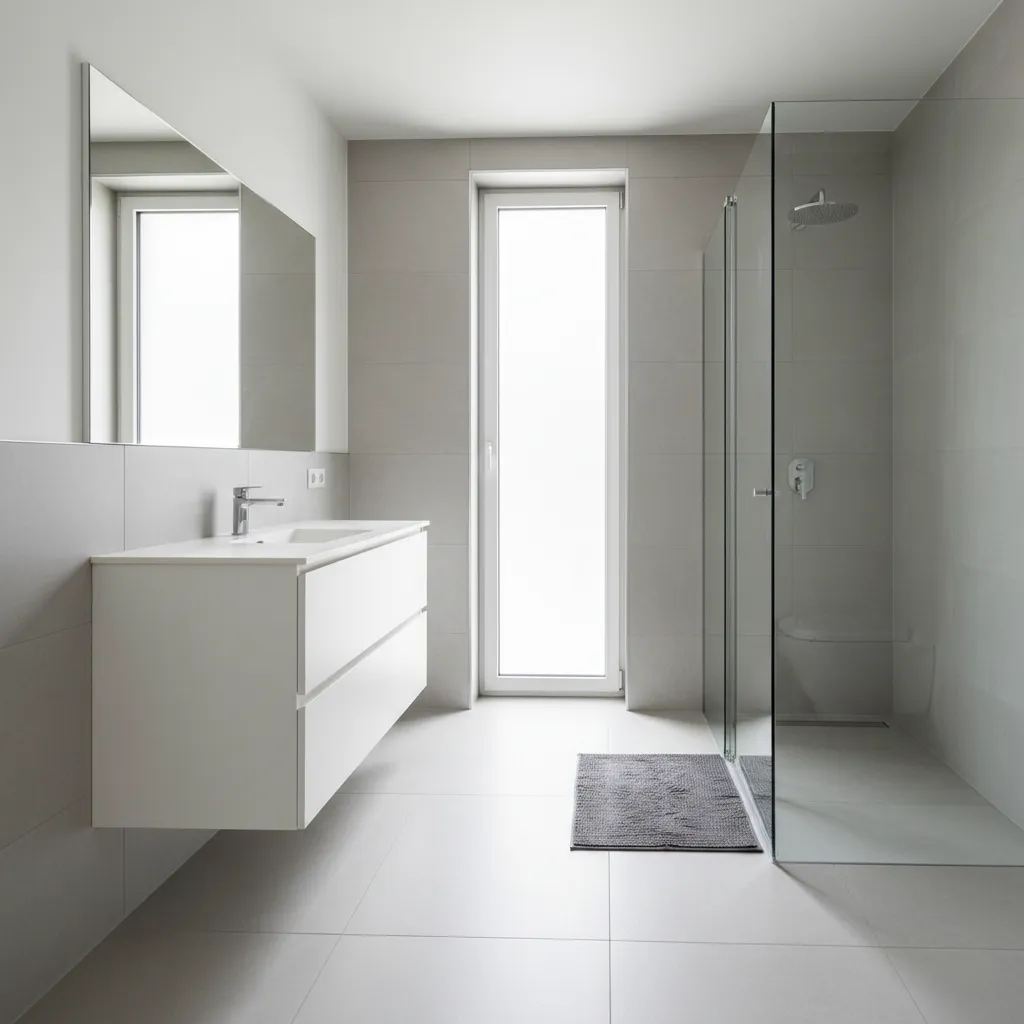

Standard Grid Tile Layout in Bathrooms

Key Insight: A grid tile layout prioritizes simplicity, symmetry, and cost efficiency, making it the most practical option for many bathrooms.

The grid pattern places tiles in straight rows and columns aligned with the room walls. Because there are no rotations or alternating colors required, it is the fastest pattern for installers and the easiest to plan.

From a design perspective, grid layouts act as a neutral background rather than a visual feature. This makes them ideal when the focus should be elsewhere, such as a statement vanity or bold wall tile.

Why Designers Still Use Grid Layouts

1. Lowest installation complexity
2. Minimal tile waste
3. Clean modern appearance
4. Works with any tile shape

According to the National Kitchen and Bath Association trend reports, straight grid tile installations remain the most common residential bathroom flooring pattern because of their practicality and cost control.

save pin

Diagonal Tile Layout and Its Visual Effect

Key Insight: A diagonal tile layout breaks the rigid alignment of walls, helping bathrooms feel wider and less constrained.

Instead of aligning tiles with the walls, the entire pattern rotates 45 degrees. This subtle change disrupts the visual box shape that small bathrooms often suffer from.

In tight powder rooms or narrow bathrooms, diagonal layouts can make the space feel more dynamic and less corridor-like.

Visual Impact of Diagonal Layouts

1. Creates movement across the floor
2. Reduces visual emphasis on room boundaries
3. Makes narrow rooms appear wider
4. Adds design interest without contrasting colors

The trade-off is installation complexity. Diagonal layouts require more precise cutting along walls, which increases both labor time and material waste.

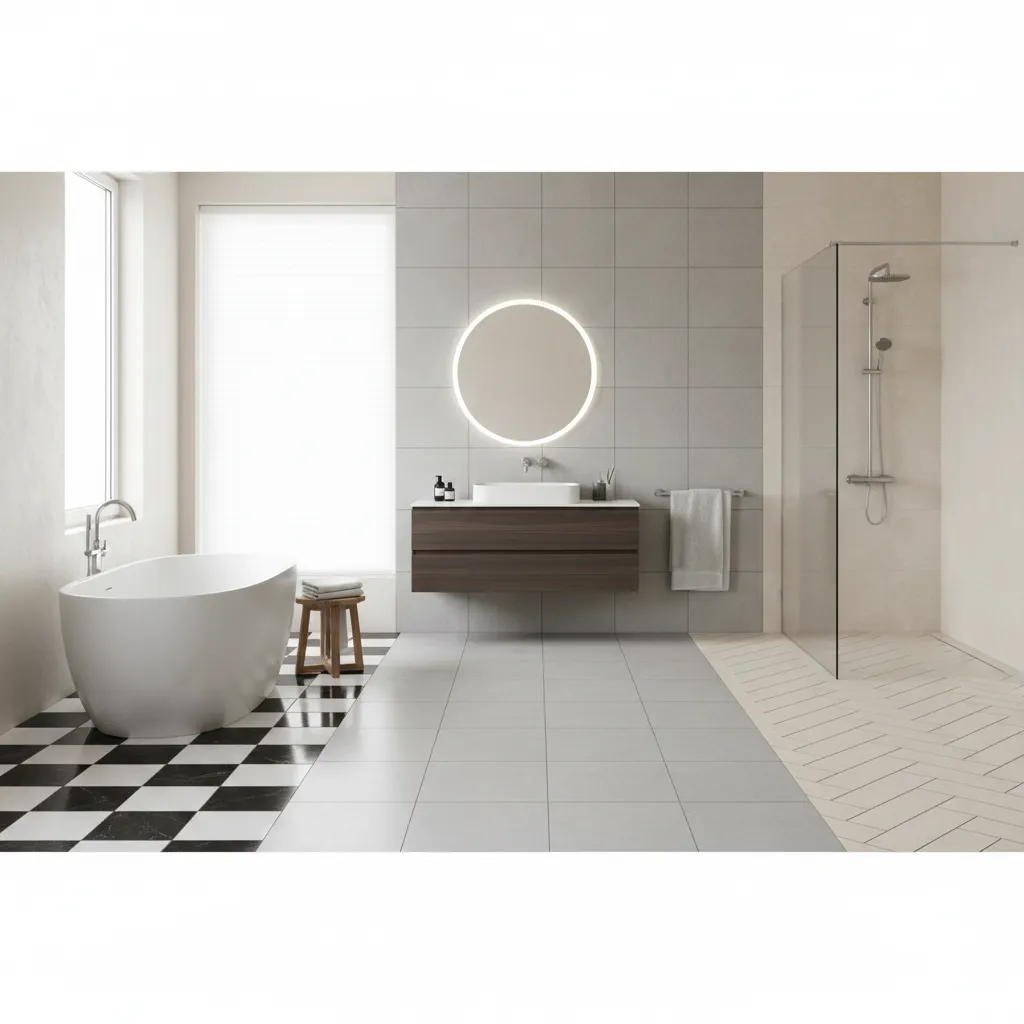

Space Perception Differences Between the Three Layouts

Key Insight: Tile layout affects spatial perception as much as color or lighting.

Over the years I've noticed homeowners often choose patterns based purely on style. But layout actually influences how large or small the room feels.

Visual Perception Comparison

1. Checkerboard: draws attention to the floor and creates strong rhythm.
2. Grid: maintains visual calm and simplicity.
3. Diagonal: softens room boundaries and adds spatial movement.

When planning layouts with clients, I usually map patterns using a bathroom space planning workflow for tile layout testing. Seeing the same room with different patterns quickly reveals how perception shifts.

Hidden Design ConsiderationCheckerboard patterns emphasize symmetry. If your bathroom has awkward angles or off-center fixtures, the pattern can unintentionally highlight those imperfections.

save pin

Installation Complexity and Cost Comparison

Key Insight: The more visually dynamic the tile pattern, the more expensive the installation usually becomes.

Layout complexity directly affects labor hours, tile cutting, and material waste.

Typical Installation Difficulty Ranking

1. Grid layout – easiest
2. Checkerboard layout – moderate difficulty
3. Diagonal layout – most complex

Why Diagonal Layout Costs More

1. More perimeter tile cutting
2. Higher tile waste percentage
3. More precise alignment required

Contractors often estimate 10–15% extra tile for grid patterns, but diagonal layouts may require up to 20% extra depending on the room shape.

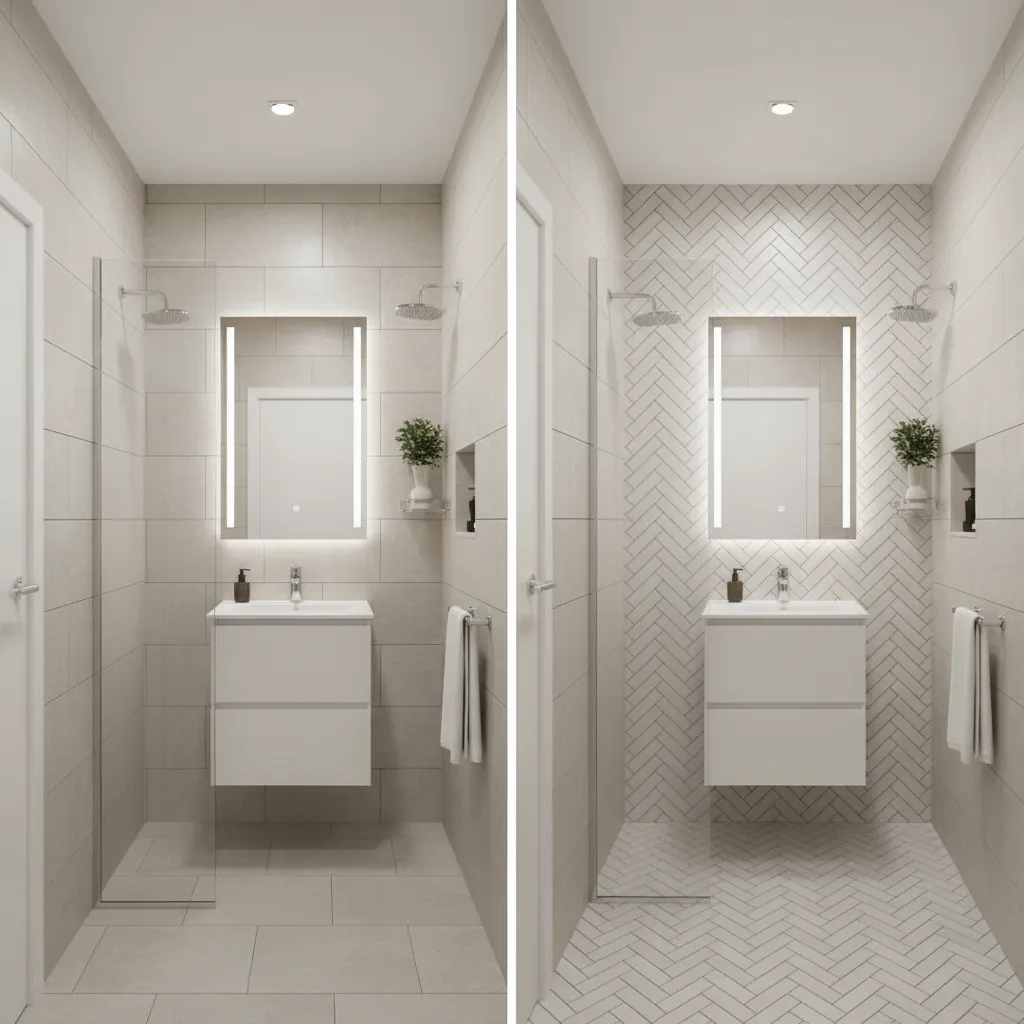

Which Layout Works Best for Small Bathrooms

Key Insight: Diagonal layouts usually make small bathrooms feel larger, while checkerboard patterns work best when tile sizes stay modest.

Small bathrooms present unique challenges. Large bold patterns can easily overpower the space.

Best Strategies for Compact Bathrooms

1. Use smaller checkerboard tiles for balance
2. Consider diagonal layouts for narrow rooms
3. Avoid overly large grid tiles in tight spaces
4. Keep grout color subtle to avoid visual clutter

If you’re planning a compact layout, experimenting with a simple bathroom floor plan visual layout creatorhelps test tile scale before installation.

save pin

Design Style Compatibility for Each Pattern

Key Insight: Each tile layout naturally aligns with certain interior design styles.

Choosing a pattern that matches the broader style of the bathroom prevents the floor from feeling disconnected from the rest of the design.

Style Compatibility Overview

1. Checkerboard: classic, vintage, Parisian, Art Deco
2. Grid: modern, minimalist, Scandinavian
3. Diagonal: transitional, contemporary

Interestingly, checkerboard floors have resurfaced in modern bathrooms not as retro nostalgia but as a graphic contrast element within otherwise minimal spaces.

Answer Box

The checkerboard tile layout creates the strongest visual impact and suits classic or statement bathrooms. Grid layouts are the most practical and affordable. Diagonal layouts improve spatial perception and often make small bathrooms feel larger.

Final Summary

1. Checkerboard layouts deliver bold visual character.
2. Grid patterns remain the easiest and most cost‑effective.
3. Diagonal layouts can visually expand narrow bathrooms.
4. Tile size greatly affects how checkerboard patterns feel in small rooms.
5. Choose layout based on style, room size, and installation complexity.

FAQ

Is a checkerboard tile layout good for small bathrooms?

Yes, if smaller tiles are used. Large checkerboard squares can overwhelm tight spaces and make the bathroom feel crowded.

Which tile layout makes a bathroom look bigger?

Diagonal layouts usually make bathrooms appear larger because they disrupt the rigid alignment of walls.

Is checkerboard tile layout more expensive?

It can cost slightly more than grid layouts because installers must carefully alternate tiles and maintain pattern alignment.

Do grid tile patterns look outdated?

No. Grid layouts remain popular in modern minimalist bathrooms because they feel clean and simple.

What tile size works best for checkerboard floors?

Tiles between 6 and 12 inches typically provide balanced proportions for most residential bathrooms.

Can checkerboard tiles work in modern bathrooms?

Yes. Many modern interiors use subtle color combinations like gray and white instead of traditional black and white.

Is diagonal tile layout harder to install?

Yes. Diagonal patterns require more tile cutting along edges and careful alignment.

Which tile layout is easiest for installers?

The standard grid layout is the easiest and fastest pattern to install.

References

National Kitchen and Bath Association Design Trends Report

Tile Council of North America Installation Guidelines
