Chess Floor Installation Mistakes vs Proper Installation Methods: A side‑by‑side look at common checkerboard flooring errors and the professional techniques that prevent pattern failures.

Direct Answer

Chess floor installation mistakes usually come from poor layout planning, uneven subfloors, and inconsistent tile spacing. A proper checkerboard installation uses precise grid planning, level subfloor preparation, and controlled tile alignment so the pattern stays perfectly square and visually balanced.

When these fundamentals are ignored, the checkerboard pattern quickly exposes even small errors.

Quick Takeaways

1. Most checkerboard flooring failures start with inaccurate layout planning.
2. Even a 2–3 mm alignment drift can visually distort a chess pattern.
3. Subfloor flatness matters more for checkerboard layouts than standard tile grids.
4. Consistent spacers and reference lines are critical for maintaining symmetry.
5. Professional installers dry‑layout tiles before applying adhesive.

Introduction

After working on dozens of renovation projects involving checkerboard and chess floor layouts, I can tell you something most guides never mention: this pattern is brutally honest. A standard tile layout can hide small installation errors, but a chess floor installation exposes them immediately.

Homeowners often search for "chess floor installation mistakes vs correct methods" after noticing crooked lines, uneven tile gaps, or a pattern that somehow feels "off" even if they can't explain why. In almost every project I’ve inspected, the problem traces back to early installation decisions—usually layout planning or subfloor preparation.

If you're still in the planning phase, I strongly recommend reviewing a visual layout first. Tools that let you experiment with checkerboard layouts before installationhelp reveal spacing and alignment issues long before tile touches adhesive.

In this guide, I'll walk through the most common chess floor installation mistakes and compare them directly with the professional methods that prevent them.

save pin

Common Chess Floor Installation Mistakes

Key Insight: Most checkerboard flooring problems begin before the first tile is even installed.

When I inspect failed installations, the same mistakes appear repeatedly. These errors seem small during installation but compound across the floor.

Typical mistakes installers make:

1. Starting tile placement from a wall instead of the room center
2. Skipping a full dry layout before applying adhesive
3. Ignoring minor subfloor slopes
4. Inconsistent tile spacers
5. Rushing cuts along perimeter edges

The biggest hidden problem is starting from the wrong reference point. A checkerboard pattern should almost always begin from the room's centerline so both directions remain symmetrical.

According to tile installation standards from the Tile Council of North America (TCNA), layout lines should always be snapped before installation begins. Unfortunately, DIY installs often skip this step.

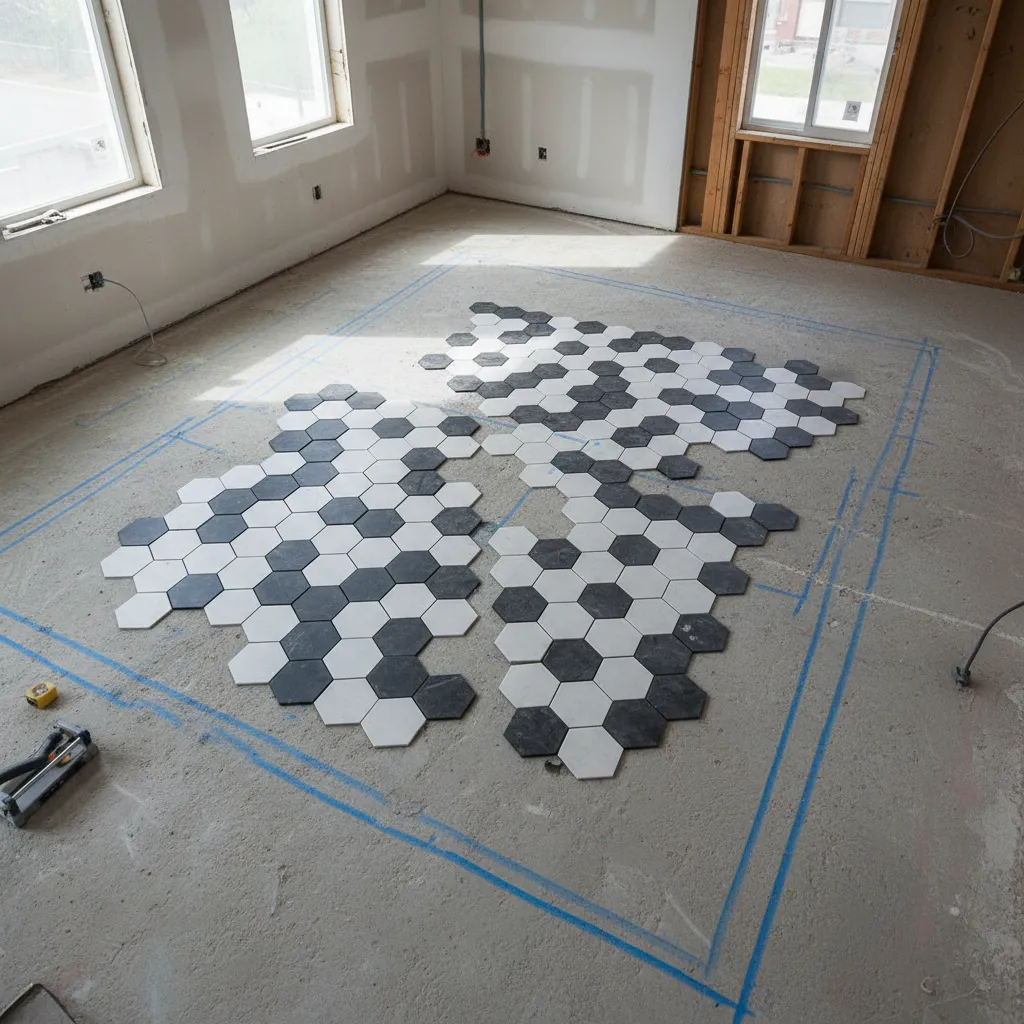

What a Correct Checkerboard Layout Should Look Like

Key Insight: A correct chess floor layout maintains perfect symmetry from the center of the room outward.

Professionally installed checkerboard floors rely on a geometric layout process rather than visual estimation.

Correct layout workflow:

1. Measure the exact center of the room
2. Snap perpendicular chalk reference lines
3. Dry‑place tiles along both axes
4. Adjust perimeter cuts evenly
5. Begin adhesive installation from the center

One technique I use frequently is placing four tiles at the intersection point first. That small cross becomes the control point for the entire floor.

If you're mapping layouts digitally before installation, tools that let you build a scaled floor plan and preview tile patternsmake it much easier to verify symmetry.

save pin

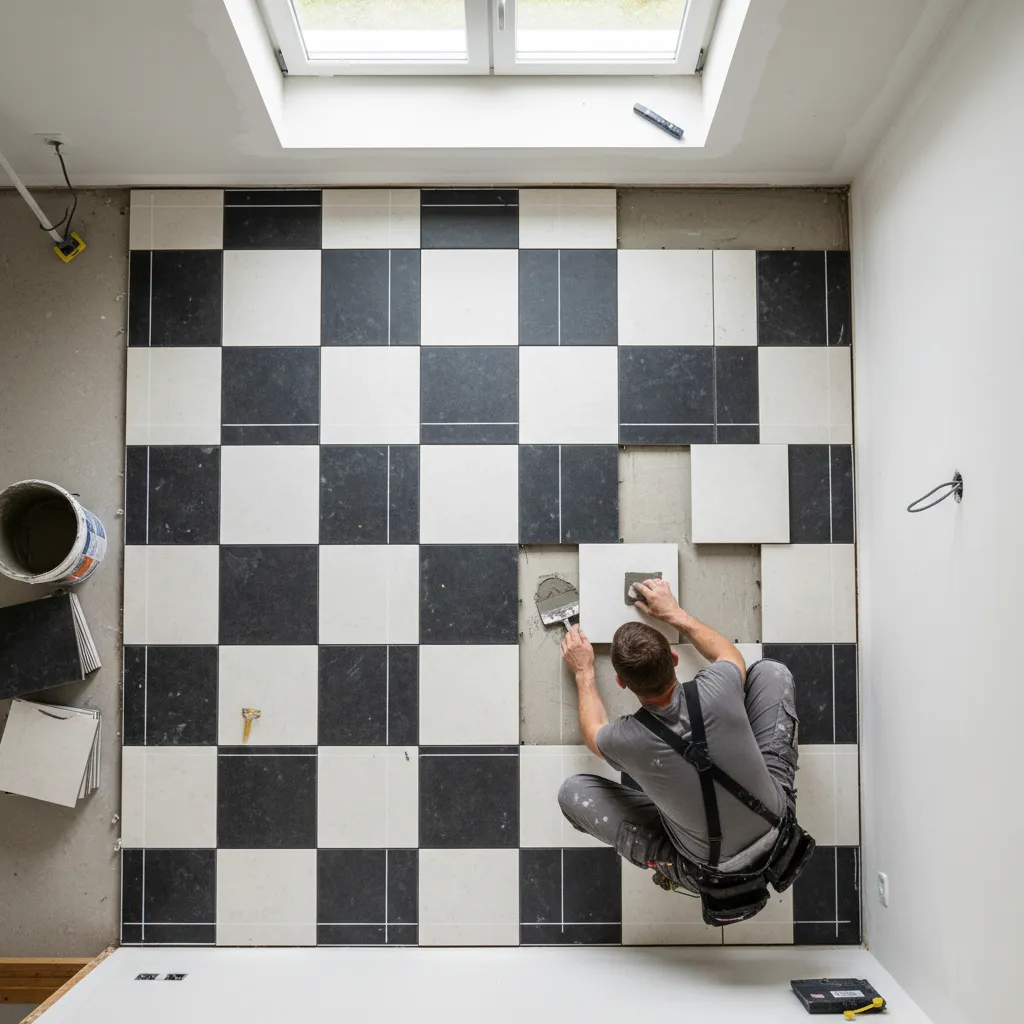

Tile Alignment: Wrong vs Correct Techniques

Key Insight: Alignment errors multiply across checkerboard patterns, turning tiny shifts into visible pattern distortion.

Unlike single‑color tile floors, checkerboard patterns exaggerate alignment problems because the contrast between tiles forms visual lines.

Comparison of alignment techniques:

1. Incorrect: Adjusting tiles visually while installing
2. Incorrect: Using inconsistent spacer sizes
3. Incorrect: Installing rows sequentially without checking square

Correct professional method:

1. Use laser or chalk grid lines
2. Place tiles in small controlled sections
3. Check alignment every 3–4 tiles
4. Use rigid spacers for consistent gaps

One trick many installers overlook: step back every few rows and visually inspect diagonal lines. Checkerboard floors reveal alignment errors diagonally before horizontal rows show problems.

save pin

Subfloor Preparation Comparison

Key Insight: Checkerboard floors require flatter subfloors than most standard tile installations.

A difference of even 3 mm across several feet can cause tiles to tilt slightly. When alternating colors are involved, those micro‑angles create visible shadows.

Subfloor condition comparison:

1. Poor preparationMinor dips left uncorrected
2. No leveling compound
3. Dust or debris under adhesive
4. Proper preparationSubfloor flattened within tolerance
5. Self‑leveling compound used when needed
6. Surface cleaned and primed

Industry guidelines generally recommend a maximum variation of 1/8 inch over 10 feet for tile installations. Checkerboard layouts perform best when floors are even flatter.

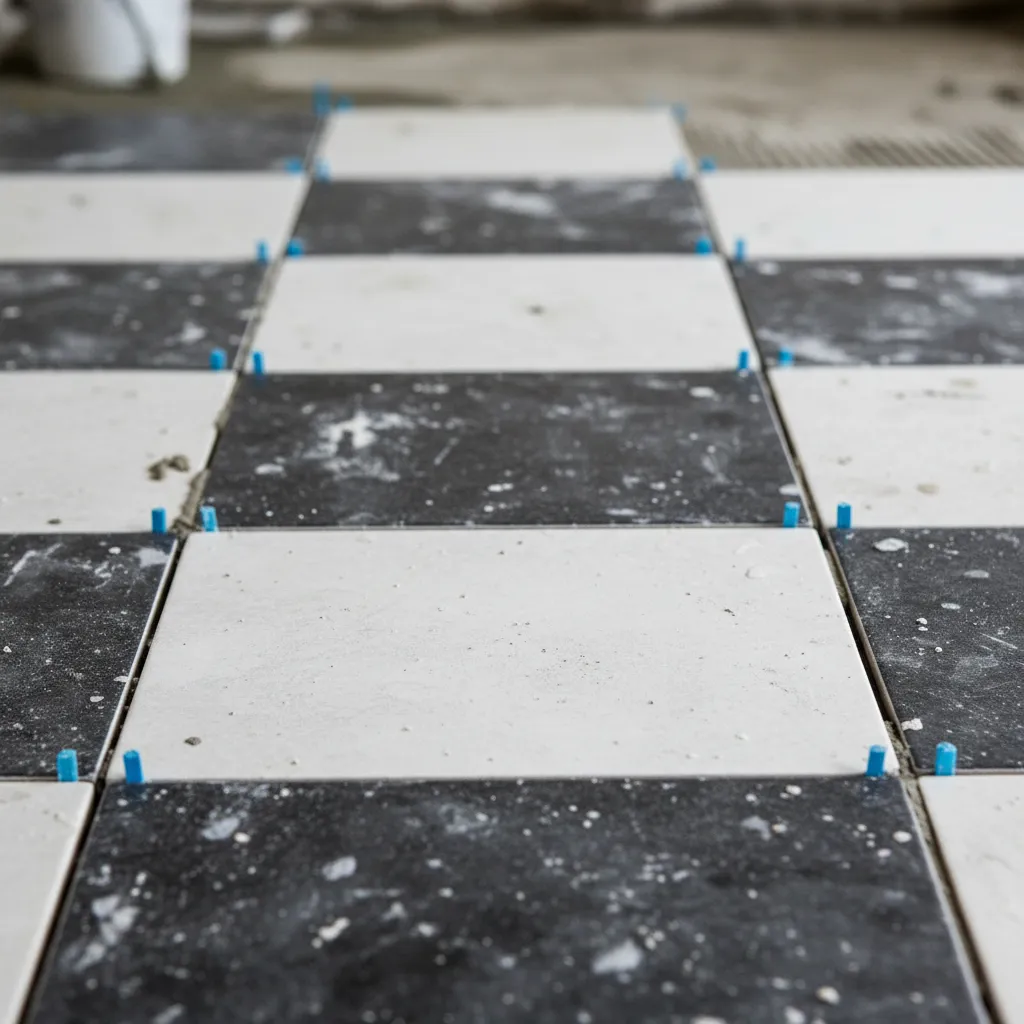

Adhesive and Spacing Differences

Key Insight: Consistent spacing is essential because checkerboard layouts amplify grout line variations.

Adhesive technique affects tile height and alignment. Inconsistent mortar thickness often causes subtle lippage between alternating tiles.

Installation comparison:

1. Mistake: Uneven mortar spread
2. Mistake: Switching spacer sizes mid‑installation
3. Mistake: Skipping leveling systems

Professional method:

1. Use consistent trowel notch size
2. Apply mortar in straight ridges
3. Use leveling clips for large tiles
4. Maintain identical spacers throughout

For large format checkerboard tiles, leveling clip systems significantly reduce lippage and keep color transitions crisp.

Answer Box

The biggest difference between bad and professional chess floor installation is layout control. Proper installations start from a center grid, use consistent spacing, and rely on precise subfloor leveling.

Without those three elements, even high‑quality tiles will produce a distorted checkerboard pattern.

Visual Impact of Correct vs Incorrect Installations

Key Insight: The visual difference between good and bad checkerboard flooring is immediately noticeable even to non‑designers.

When the pattern is installed correctly, the floor feels balanced and architectural. When mistakes occur, people sense something is wrong even if they can't identify the exact issue.

Visual comparison indicators:

1. Misaligned diagonal pattern lines
2. Uneven grout spacing
3. Tile height variations
4. Asymmetrical edge cuts

If you want to preview how the final checkerboard effect will look in your space, tools that allow you to visualize full interior layouts with flooring patternscan reveal visual balance issues before installation begins.

save pin

Final Summary

1. Most chess floor installation problems originate from poor layout planning.
2. Center‑based grid alignment prevents pattern distortion.
3. Subfloor flatness strongly affects checkerboard visual quality.
4. Consistent spacers and mortar thickness maintain clean lines.
5. Dry layouts help detect pattern errors before adhesive sets.

FAQ

What is the most common checkerboard floor installation mistake?

Starting tile placement from a wall instead of the room center is the most common mistake.

Why does my chess floor pattern look crooked?

Small alignment shifts during installation accumulate across the pattern, causing visible diagonal distortion.

How flat should the subfloor be for checkerboard tiles?

Ideally within 1/8 inch variation over 10 feet, though flatter surfaces produce better visual results.

Do checkerboard floors require spacers?

Yes. Consistent tile spacers ensure uniform grout lines and maintain the pattern grid.

Can uneven grout lines ruin a chess floor installation?

Yes. Checkerboard patterns exaggerate grout spacing differences, making irregular lines very noticeable.

What tile size works best for chess floor installation?

12×12 or 24×24 tiles are commonly used because they maintain a balanced visual grid.

Can DIY installers create a proper chess floor installation?

Yes, but only if they follow strict layout planning and dry‑fit tiles before installing.

Is a laser level useful for checkerboard tile installation?

Absolutely. Laser lines help maintain square alignment throughout the entire pattern.

References

1. Tile Council of North America Installation Handbook
2. National Tile Contractors Association Guidelines
3. Interior Design Institute Flooring Pattern Studies
