Choosing Fixtures That Fit a 4x8 Bathroom Without Crowding: A practical fixture sizing guide for toilets, vanities, and showers that actually work inside a tight 4x8 bathroom layout.

Direct Answer

The best fixtures for a 4x8 bathroom are compact toilets (24–26 inches deep), vanities under 24 inches wide, and corner or 32x32 inch showers. Wall‑mounted fixtures or narrow-profile models prevent circulation paths from being blocked. Choosing slightly smaller fixtures usually improves layout flexibility and prevents the cramped feeling most small bathrooms suffer from.

Quick Takeaways

1. A compact 24–26 inch toilet saves valuable walking space in a narrow 4x8 bathroom.
2. Vanities between 18 and 24 inches wide usually fit best without blocking the entry path.
3. Corner or 32x32 inch showers maximize usable floor area in tight layouts.
4. Wall‑mounted fixtures visually expand the room and improve cleaning access.
5. Fixture depth matters more than width in narrow bathroom layouts.

Introduction

After working on dozens of tight remodels, I can tell you one thing: most small bathrooms feel cramped not because of the room size, but because of the fixtures chosen. A 4x8 bathroom is actually workable if every element is scaled correctly. The challenge is that many homeowners buy standard fixtures without realizing they’re designed for larger bathrooms.

Choosing the right fixtures for a 4x8 bathroom requires thinking about depth, clearance, and traffic flow. A toilet that sticks out two extra inches or a vanity that’s slightly oversized can completely break the layout. I’ve seen projects where a simple fixture swap created nearly a foot of usable walking space.

If you're still experimenting with layouts, it helps to visualize everything together before buying. I often recommend using a visual bathroom layout planning approach for tight spacesso you can test fixture sizes before committing.

In this guide, I’ll walk through the exact fixture dimensions and choices that work best in a 4x8 bathroom, plus a few mistakes people make that cause layouts to fail.

save pin

Key Measurements to Know Before Buying Fixtures

Key Insight: In a 4x8 bathroom, clearance measurements matter more than fixture style.

Many homeowners focus on appearance first, but layout success depends on respecting a few critical spacing rules. When I evaluate small bathrooms, I always start with clearance rather than products.

Important measurements include:

1. Toilet clearance: At least 15 inches from the centerline to any wall.
2. Front clearance: Minimum 21 inches in front of toilets, sinks, or showers.
3. Walkway width: Ideally 30 inches, though tight bathrooms sometimes run closer to 24.
4. Door swing space: Often overlooked but critical in narrow layouts.

In my experience, the most common hidden mistake is ignoring fixture depth. A vanity that is 21 inches deep instead of 18 inches may push the toilet or shower into uncomfortable spacing.

Professional designers often test these measurements using digital mockups or a simple floor plan layout simulator for small bathrooms before ordering fixtures.

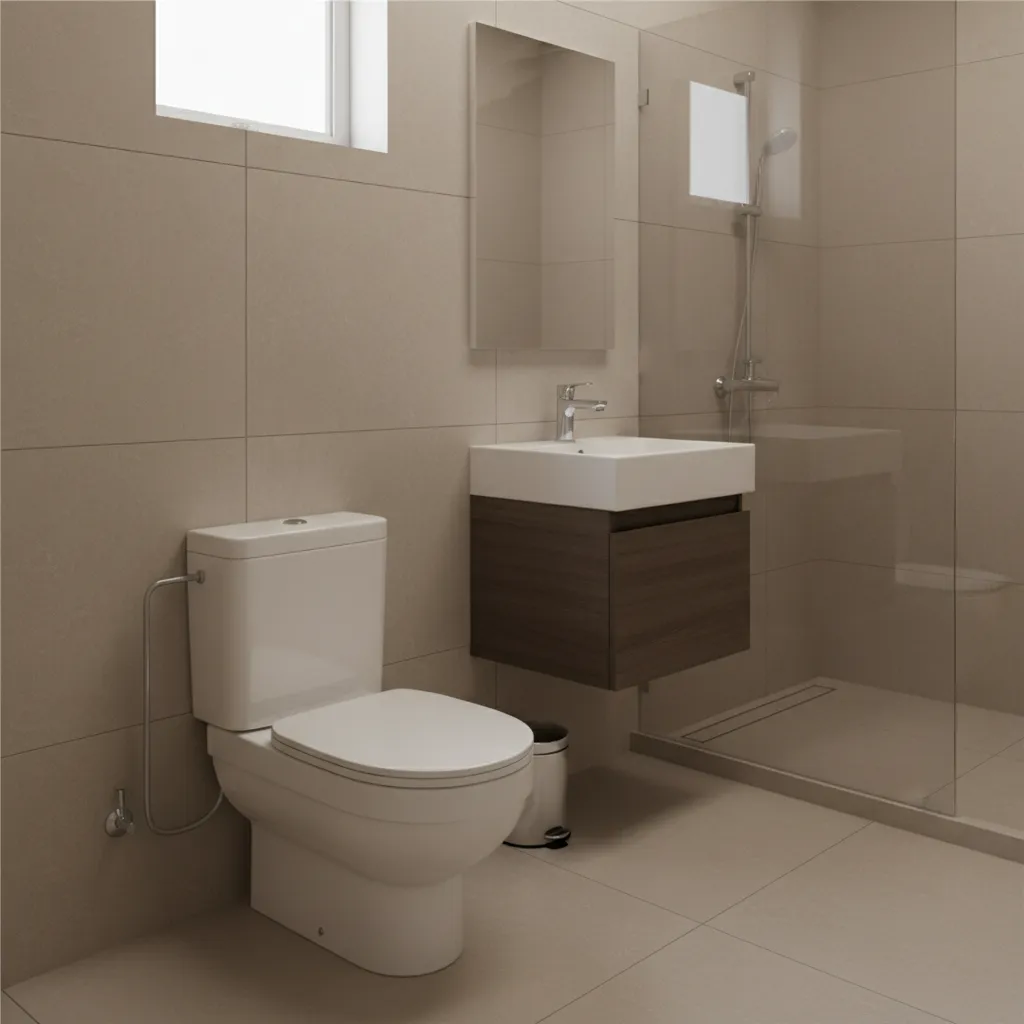

Best Toilet Sizes for Narrow Bathrooms

Key Insight: Compact or "short projection" toilets make the biggest difference in a 4x8 bathroom.

Standard toilets often extend 28–30 inches from the wall, which is excessive for narrow bathrooms. Compact models reduce that depth significantly without sacrificing comfort.

Common toilet sizes that work well:

1. Short projection toilets: 24–26 inches deep
2. Compact elongated toilets: about 26–27 inches deep
3. Round bowl toilets: around 25–26 inches deep

One surprising tradeoff I’ve noticed during remodels: elongated bowls are comfortable but can disrupt small layouts. In extremely tight bathrooms, round bowls often provide a better balance between comfort and space.

Wall‑hung toilets are another strong option. Because the tank sits inside the wall, the visible portion is shorter and visually lighter.

save pin

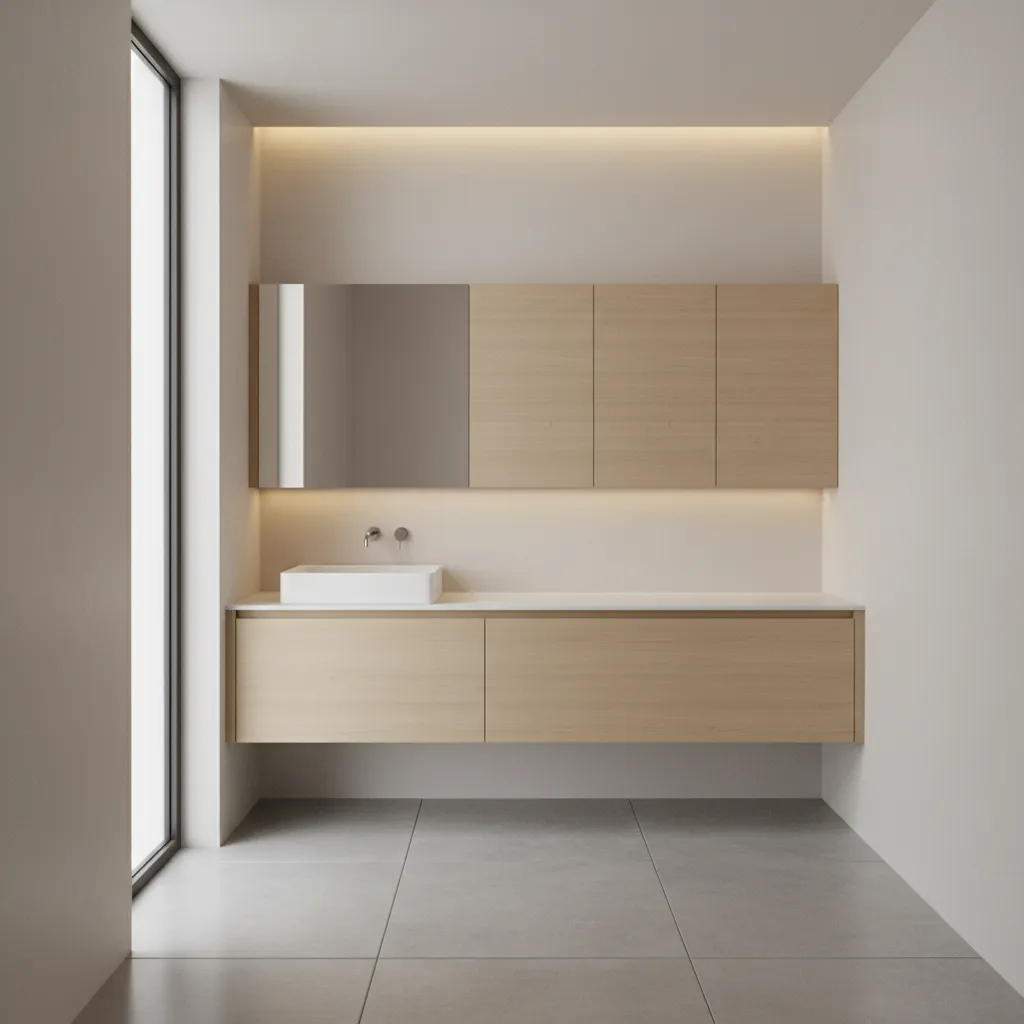

Compact Sink and Vanity Options

Key Insight: Narrow vanities improve circulation more than any other fixture change.

Vanities are often the biggest space offender in a 4x8 bathroom. Many retail models start at 30 inches wide, which is simply too large for most layouts.

Vanity sizes that work well:

1. 18 inch vanity: ideal for extremely narrow layouts
2. 20–24 inch vanity: best balance of storage and space
3. Corner vanity: useful when the door limits wall space
4. Wall mounted vanity: improves visual openness

Hidden design problem: bulky vanity legs and deep cabinet bases visually shrink the room. Floating vanities or open-frame models help the room feel wider.

When planning remodels, I usually render several vanity options to see how they affect visual balance and lighting using a realistic 3D bathroom visualization workflow.

save pin

Shower Types That Work in a 4x8 Layout

Key Insight: A compact square shower or corner unit almost always performs better than a narrow rectangular stall.

Showers are the second major space constraint in a 4x8 bathroom. The goal is to keep the footprint efficient while maintaining comfortable standing room.

Best shower configurations include:

1. 32x32 inch corner shower
2. 36x36 square shower
3. Neo‑angle corner shower
4. Glass walk‑in with linear drain

One counterintuitive lesson from renovation projects: sliding doors are often better than swing doors in ultra-small bathrooms. Hinged doors require clearance that small layouts simply don’t have.

Wall Mounted vs Floor Mounted Fixtures

Key Insight: Wall‑mounted fixtures create visual space even when the physical footprint is similar.

From a measurement perspective, wall-mounted fixtures don't always save a lot of square inches. But visually, they make the room feel significantly larger.

Advantages of wall-mounted fixtures:

1. Expose more floor area
2. Make cleaning easier
3. Create lighter visual weight
4. Allow adjustable installation heights

However, there are tradeoffs.

Wall-mounted systems require reinforced walls and sometimes in-wall carriers, which increases installation cost. For budget remodels, compact floor-mounted fixtures often provide nearly the same layout benefit.

How Fixture Choice Affects Layout Flexibility

Key Insight: Smaller fixtures increase the number of workable layout options dramatically.

In a 4x8 bathroom, even minor dimension changes can unlock completely different layout configurations. During planning, I often test two or three fixture sizes to see how circulation changes.

Examples:

1. Replacing a 30 inch vanity with a 20 inch vanity may allow a larger shower.
2. Using a compact toilet can create space for storage niches.
3. Wall-mounted sinks can improve door clearance.

Another overlooked benefit is resale flexibility. When fixtures leave more open floor space, future owners can adapt the layout more easily.

Answer Box

The best fixtures for a 4x8 bathroom prioritize compact depth, not just narrow width. Short‑projection toilets, vanities under 24 inches, and corner showers typically create the most balanced layout and comfortable circulation.

Final Summary

1. Fixture depth is the biggest factor in small bathroom comfort.
2. Short projection toilets improve walkway space dramatically.
3. Vanities under 24 inches wide work best in 4x8 bathrooms.
4. Corner showers maximize usable floor area.
5. Wall‑mounted fixtures visually expand small bathrooms.

FAQ

1. What size vanity works best in a 4x8 bathroom?

Most 4x8 bathrooms work best with vanities between 18 and 24 inches wide. Larger models often block circulation space.

2. What is the best toilet for a 4x8 bathroom?

A compact or short projection toilet around 24–26 inches deep is usually the best toilet for a 4x8 bathroom layout.

3. Can a bathtub fit in a 4x8 bathroom?

Yes, but it usually requires replacing the shower with a 60 inch alcove tub and minimizing vanity size.

4. What shower size fits in a 4x8 bathroom?

Common choices include 32x32 or 36x36 showers. Corner units often maximize available floor space.

5. Are wall-mounted toilets worth it in small bathrooms?

They can save several inches of depth and visually open the room, though installation costs are higher.

6. How much clearance should a toilet have?

At least 15 inches from the centerline to side walls and about 21 inches of front clearance.

7. What sink type works best in a narrow bathroom?

Wall-mounted sinks, pedestal sinks, or narrow floating vanities typically perform best.

8. How do you choose fixtures for a narrow bathroom?

Focus on compact depth, reduced vanity width, and efficient shower footprints to maintain comfortable movement space.
