Choosing the Best Modeling Method for 3D Floor Plans in AutoCAD: A practical decision guide for selecting the right AutoCAD modeling workflow based on project size, complexity, and architectural goals.

Direct Answer

The best method for modeling 3D floor plans in AutoCAD depends on project complexity and workflow goals. Simple residential layouts usually benefit from extrusion-based modeling, while larger architectural projects require solid modeling combined with reusable parametric components for efficiency and consistency.

Choosing the right modeling strategy early can dramatically reduce rework, improve rendering results, and keep large floor plan projects manageable.

Quick Takeaways

1. Extrusion-based modeling is the fastest method for simple residential floor plans.
2. Solid modeling provides better control for complex architectural geometry.
3. Blocks and parametric components dramatically reduce repetitive modeling work.
4. Large projects require workflow planning, not just modeling skills.
5. The wrong modeling method often causes performance problems later.

Introduction

After more than a decade working with architectural teams, one pattern appears again and again: most AutoCAD problems in 3D floor plan projects are not caused by lack of skill — they come from choosing the wrong modeling approach.

I have seen small residential projects modeled with overly complex solid workflows that took twice as long as necessary. On the other hand, I have also reviewed commercial floor plans built entirely with simple extrusions that later became impossible to edit when the design changed.

The challenge is that AutoCAD offers several ways to build a 3D floor plan: extrusion modeling, solid modeling, surface modeling, and parametric component workflows. Each has advantages, but each also introduces trade-offs in performance, flexibility, and editing speed.

If you are still learning the core process, it helps to first understand how professionals structure a complete 3D floor plan workflow from layout to visualization. Once that foundation is clear, selecting the right modeling method becomes much easier.

In this guide, I will break down how experienced designers choose the best AutoCAD modeling strategy depending on project size, geometry complexity, and future design revisions.

save pin

Understanding Different 3D Modeling Approaches in AutoCAD

Key Insight: AutoCAD supports multiple modeling methods, but each one favors different types of architectural work.

AutoCAD's flexibility is powerful, but it also creates confusion. Designers often mix modeling techniques without realizing how those decisions affect editing speed and file performance.

In architectural floor plan modeling, the three most common approaches are:

1. Extrusion Modeling – converting 2D floor plan shapes into walls and volumes.
2. Solid Modeling – constructing detailed architectural objects with Boolean operations.
3. Surface Modeling – building complex curved or non-standard geometry.

According to Autodesk's architectural workflow documentation, most building models start from 2D plans and are converted into 3D using extrusion and solid modeling tools.

From my experience reviewing hundreds of design files, the biggest hidden mistake is mixing surface modeling into projects that only require simple architectural volumes. It adds complexity without improving results.

Extrusion-Based Modeling for Floor Plans

Key Insight: Extrusion modeling is the fastest and most stable method for turning 2D architectural layouts into 3D floor plans.

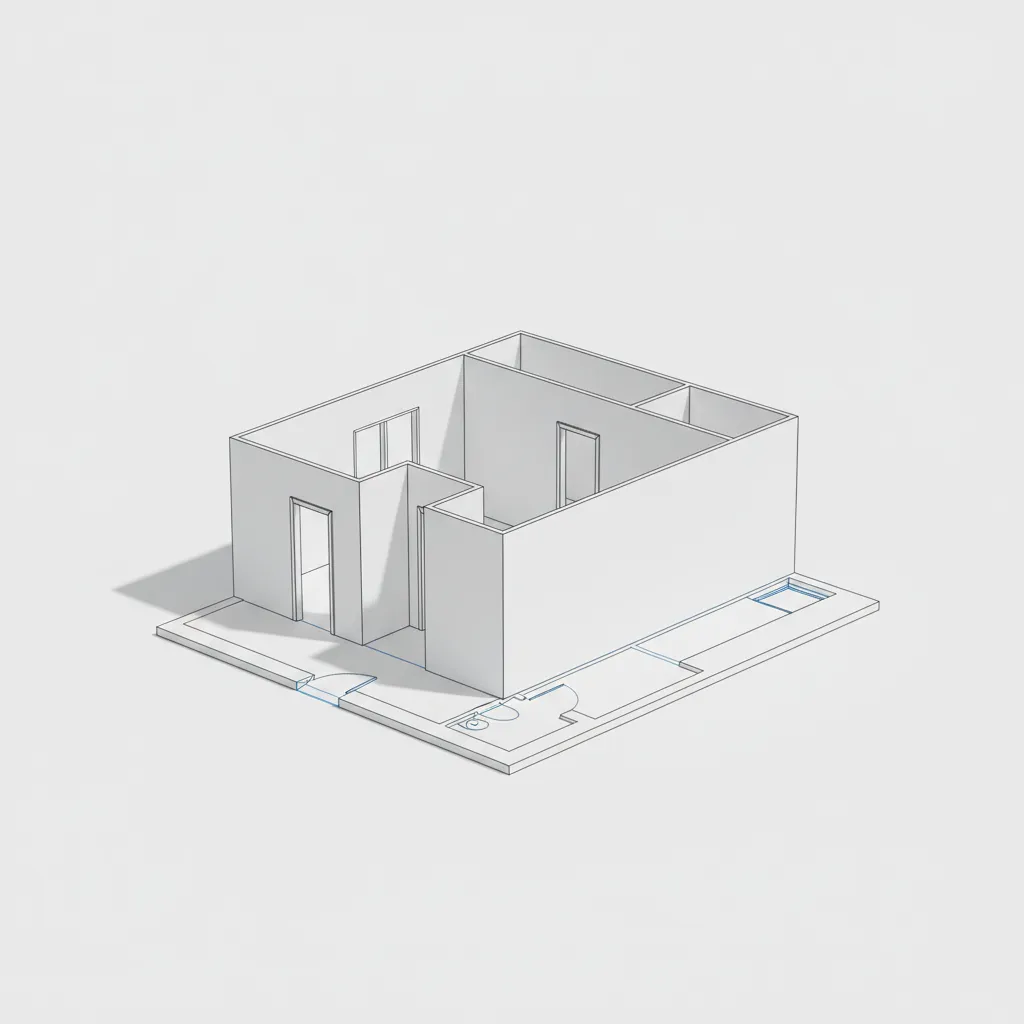

This method starts with a clean 2D floor plan. Walls, slabs, and structural elements are converted into 3D objects using the EXTRUDE command.

Typical workflow:

1. Create a clean 2D floor plan with closed polylines.
2. Use EXTRUDE to convert wall outlines into 3D volumes.
3. Subtract door and window openings.
4. Add slab thickness and ceiling height.

Advantages of extrusion modeling:

1. Extremely fast modeling speed
2. Clean geometry
3. Easy modifications when floor plans change
4. Low file size and better performance

This approach works particularly well for:

1. Residential homes
2. Apartment layouts
3. Real estate visualization
4. Interior design planning

One thing many tutorials skip: extrusion modeling breaks down when geometry becomes repetitive across many floors. That is where blocks and parametric systems become more efficient.

save pin

Solid Modeling vs Surface Modeling for Architecture

Key Insight: Solid modeling is the architectural standard for complex structures, while surface modeling is mostly reserved for advanced geometry.

Solid modeling allows designers to construct detailed building elements using Boolean operations such as UNION, SUBTRACT, and INTERSECT.

Typical uses of solid modeling include:

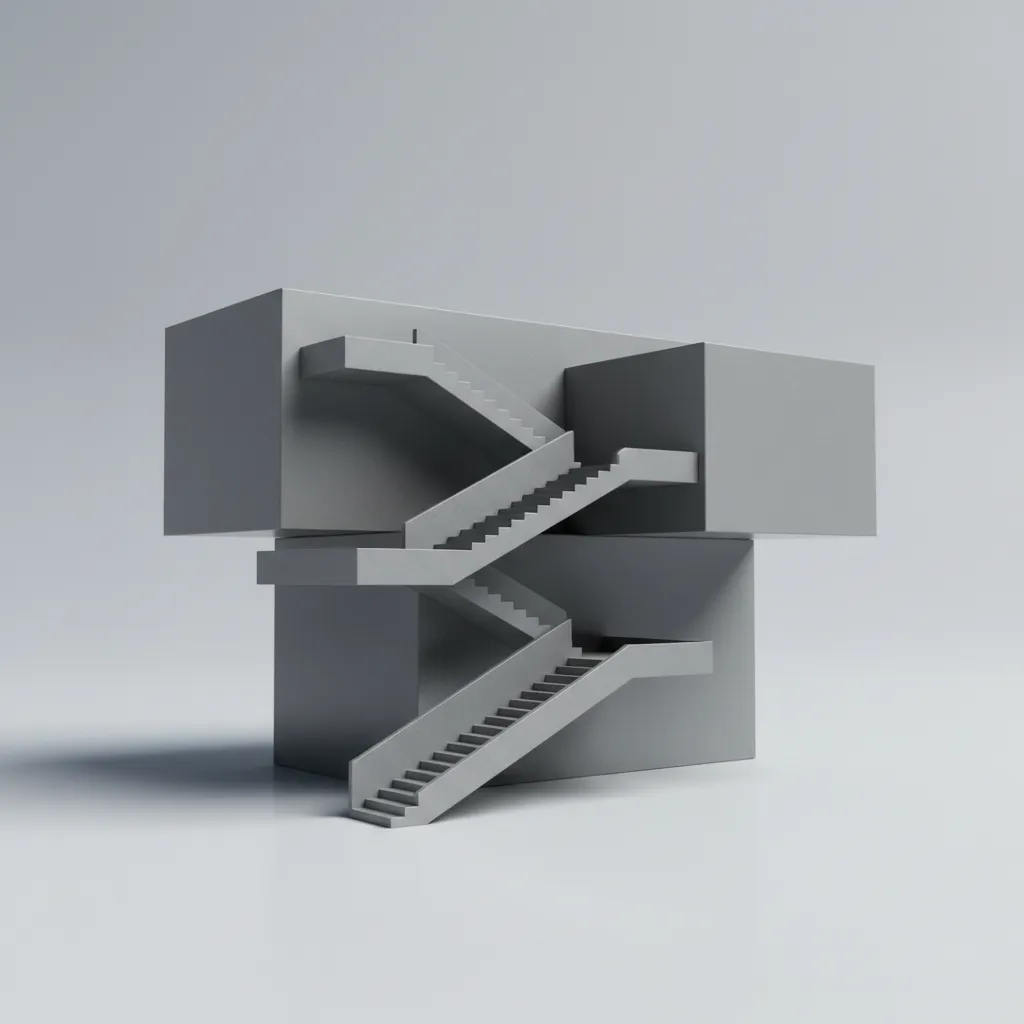

1. Custom staircases
2. Structural elements
3. Complex building intersections
4. Detailed architectural components

Surface modeling, on the other hand, is rarely required for standard building floor plans. It becomes useful when dealing with:

1. Curved roofs
2. Organic architectural forms
3. Parametric facade systems

Many architecture students assume surface modeling is "more advanced" and therefore better. In practice, it often creates unstable geometry that becomes difficult to edit later.

In real-world production workflows, most professional studios combine extrusion for walls with solid modeling for detailed elements.

When to Use Blocks and Parametric Components

Key Insight: Blocks and parametric components dramatically reduce modeling time in large architectural projects.

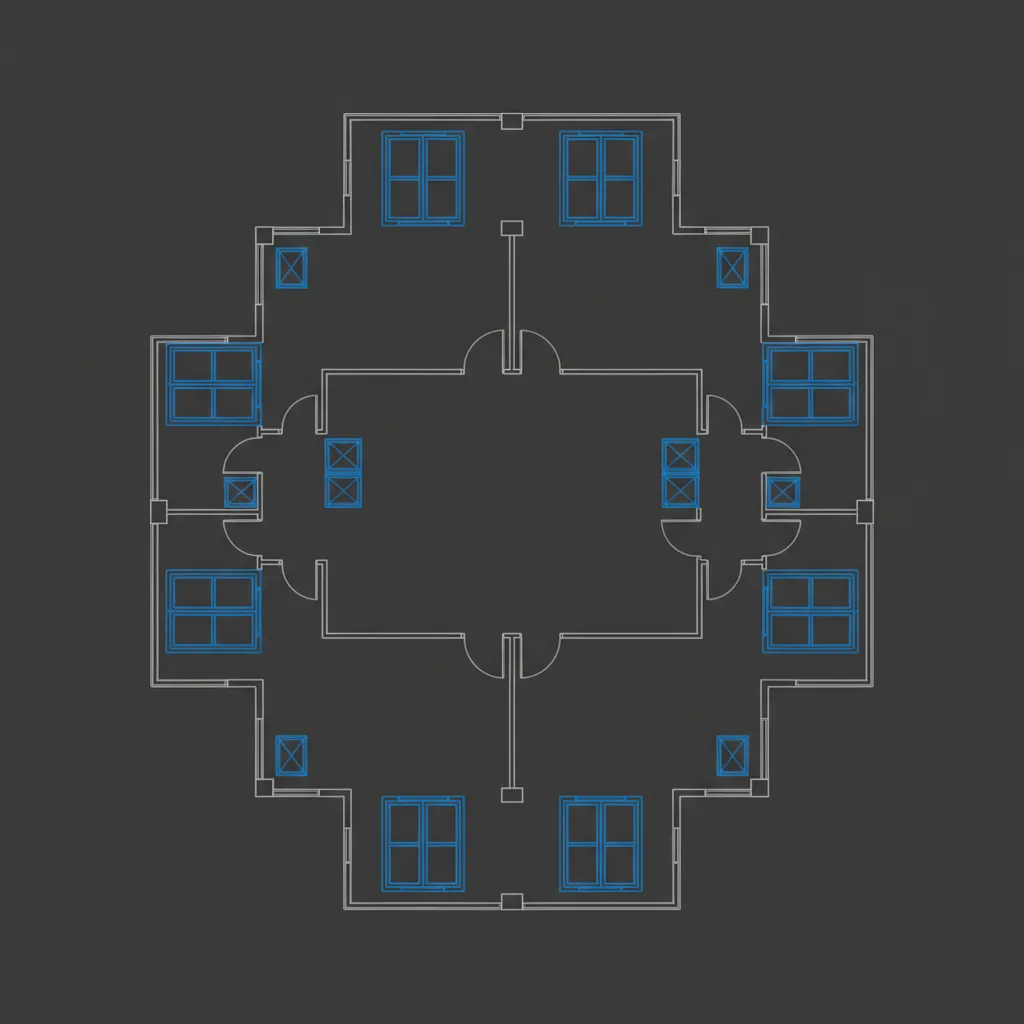

Once a floor plan includes dozens of repeated objects — doors, windows, furniture, fixtures — modeling each element individually becomes inefficient.

This is where blocks and parametric elements become essential.

Best candidates for reusable components:

1. Doors and windows
2. Furniture layouts
3. Bathroom fixtures
4. Office workstations
5. Lighting systems

Using reusable components can reduce modeling time by more than half on large commercial projects.

For example, many designers prefer planning workspaces with a dedicated workflow designed for organizing complex office floor layoutsbefore exporting or refining models in AutoCAD.

In several office projects I reviewed, teams that used structured component libraries finished modeling nearly twice as fast as teams building objects manually.

save pin

Choosing the Right Workflow for Small vs Large Projects

Key Insight: Project size determines modeling strategy more than software features.

One of the most overlooked design decisions is selecting a modeling workflow that matches project scale.

Recommended approach by project size:

Small Residential Projects

1. 2D floor plan drafting
2. Extrusion modeling for walls
3. Basic furniture blocks

Medium Projects (multi-unit housing)

1. Extrusion + solid modeling hybrid
2. Reusable blocks for units
3. Structured layer organization

Large Commercial Buildings

1. Parametric components
2. Block libraries
3. Solid modeling for complex intersections

Another modern approach many firms now use is generating early concepts with AI-assisted layout visualization for interior planning and space experimentationbefore refining the model in AutoCAD.

This hybrid workflow often speeds up early design exploration while keeping technical documentation precise.

save pin

Decision Framework for Efficient Floor Plan Modeling

Key Insight: The best AutoCAD modeling method is determined by three factors: geometry complexity, repetition level, and revision frequency.

When evaluating which workflow to use, I recommend asking three questions first.

1. How complex is the geometry?

1. Simple rectangular plans → extrusion modeling
2. Irregular shapes → solid modeling
3. Organic forms → surface modeling

2. How many repeated elements exist?

1. Few repeated objects → manual modeling
2. Many repeated objects → block libraries

3. How often will the design change?

1. Early concept phase → flexible extrusion modeling
2. Final documentation → structured solid models

Answer Box

The most efficient AutoCAD workflow for 3D floor plans usually combines extrusion modeling for structural elements with reusable blocks and solid modeling for complex components. The optimal method depends primarily on project scale and repetition.

Final Summary

1. Extrusion modeling is the fastest method for simple architectural floor plans.
2. Solid modeling provides better control for complex building geometry.
3. Blocks and parametric components save major time in large projects.
4. Project size should determine modeling strategy.
5. A hybrid workflow often produces the best results.

FAQ

What is the best method to model 3D floor plans in AutoCAD?

Extrusion modeling is typically the fastest method for most residential floor plans, while complex architecture benefits from solid modeling combined with reusable blocks.

Is extrusion modeling enough for architectural projects?

Yes for small projects. Larger buildings usually require a combination of extrusion and solid modeling for structural details.

Should architects use surface modeling for floor plans?

Surface modeling is rarely needed for standard buildings. It is mainly used for curved or organic architectural designs.

How do blocks improve AutoCAD workflows?

Blocks allow repeated elements like doors and furniture to be reused, reducing modeling time and keeping files consistent.

What causes slow AutoCAD performance in large floor plans?

Overly complex geometry, duplicated objects, and inefficient modeling methods often cause large files to slow down.

Can beginners create 3D floor plans in AutoCAD?

Yes. Many beginners start by extruding 2D floor plans, which is one of the easiest ways to build 3D building models.

What AutoCAD architectural modeling techniques are most efficient?

Combining extrusion for walls, blocks for repeating elements, and solid modeling for details creates an efficient architectural modeling workflow.

How do professionals choose an AutoCAD 3D modeling strategy for architects?

They evaluate geometry complexity, repetition level, and how frequently the design will change before selecting the modeling method.
