Choosing the Right Fonts and Formats for 3D Model Text: Practical guidelines to select fonts and prepare text so it converts into clean and reliable 3D geometry

Direct Answer

The best fonts for 3D model text are simple, well‑structured typefaces with clean curves and consistent stroke widths. Sans‑serif fonts such as Arial, Helvetica, and DIN convert to curves or meshes with fewer errors and produce cleaner extrusions. Preparing the text by converting it to vector curves before importing into 3D software prevents broken geometry and improves readability on the final model.

Quick Takeaways

1. Sans‑serif fonts usually convert into 3D geometry more reliably than decorative fonts.
2. Always convert text to curves before exporting to avoid missing font issues.
3. Avoid thin strokes and complex ligatures that break during mesh conversion.
4. Test readability after extrusion, especially for engraving or small prints.
5. Clean vector outlines lead to fewer mesh artifacts and faster modeling workflows.

Introduction

Choosing the right fonts for 3D model text sounds trivial until a project breaks because the geometry refuses to behave. After years working with 3D assets in design pipelines, I have seen perfectly good models ruined by messy typography conversions. The issue usually starts long before extrusion—it begins with font choice and how the text is prepared.

Many designers assume any font that looks good on screen will work in a 3D environment. That assumption causes problems like broken edges, self‑intersecting geometry, and unreadable engraving on prints. If you are trying to convert font to 3D model geometry, the structure of the letters matters as much as the design itself.

Interestingly, the same planning mindset used in spatial layout design applies here. When I work on digital interiors and layout simulations, tools used for planning a full room layout in 3D before buildingprevent structural problems later. Typography inside a 3D model works the same way—clean structure first, styling second.

This guide walks through the practical decisions professionals make when selecting fonts and preparing them for 3D workflows. You will see which font styles convert cleanly, what mistakes commonly break meshes, and how to prepare text files so your modeling software handles them without surprises.

save pin

Why Font Choice Matters in 3D Modeling

Key Insight: Fonts that look elegant in 2D often produce unstable geometry once converted into 3D shapes.

In typography, letters are defined by vector outlines. In 3D modeling, those outlines become polygons or curves that must maintain structural integrity. The more complex the outline, the more likely it will create topology issues.

Common geometry problems caused by poor font choices include:

1. Self‑intersecting curves that break extrusion
2. Thousands of unnecessary vertices slowing the mesh
3. Thin strokes disappearing during 3D printing
4. Overlapping paths causing holes in letters

Professional CAD workflows often limit fonts for this reason. Engineering software like SolidWorks or Fusion typically recommends simple fonts for engraving and embossing because they generate predictable geometry.

The rule I give junior designers is simple: the more decorative the font, the more work it takes to clean the geometry.

Best Font Styles for Clean 3D Geometry

Key Insight: Fonts with simple strokes and consistent spacing generate the cleanest 3D meshes.

Over time, a few font categories have proven extremely reliable for 3D modeling workflows. These fonts maintain balanced proportions and avoid unnecessary curve complexity.

Reliable font categories include:

1. Sans‑serif fonts (Arial, Helvetica, Roboto)
2. Industrial fonts (DIN, Eurostile)
3. Rounded geometric fonts
4. Monoline display fonts

These fonts work well because they:

1. Use consistent stroke thickness
2. Avoid overlapping shapes
3. Maintain readable forms when extruded

In product design and 3D printing communities, fonts like DIN and Helvetica are frequently recommended for labeling components and control panels because they remain readable even after extrusion or engraving.

Avoiding Fonts That Break During Mesh Conversion

Key Insight: Script, calligraphy, and ultra‑thin fonts are the most common cause of broken 3D text geometry.

Decorative typography introduces subtle vector problems that many modeling tools cannot resolve automatically.

Fonts that frequently cause issues include:

1. Handwriting or script fonts
2. Fonts with extreme stroke contrast
3. Highly decorative display fonts
4. Typefaces with complex ligatures

Typical failure points during mesh conversion:

1. Overlapping outlines that confuse extrusion algorithms
2. Micro gaps in curves creating holes
3. Very thin strokes collapsing during boolean operations

This problem becomes even more obvious when text is applied to curved surfaces. Designers working on spatial models or surfaces—similar to those created when mapping furniture layouts across a room planning environment—know that clean geometry dramatically improves rendering and processing performance.

save pin

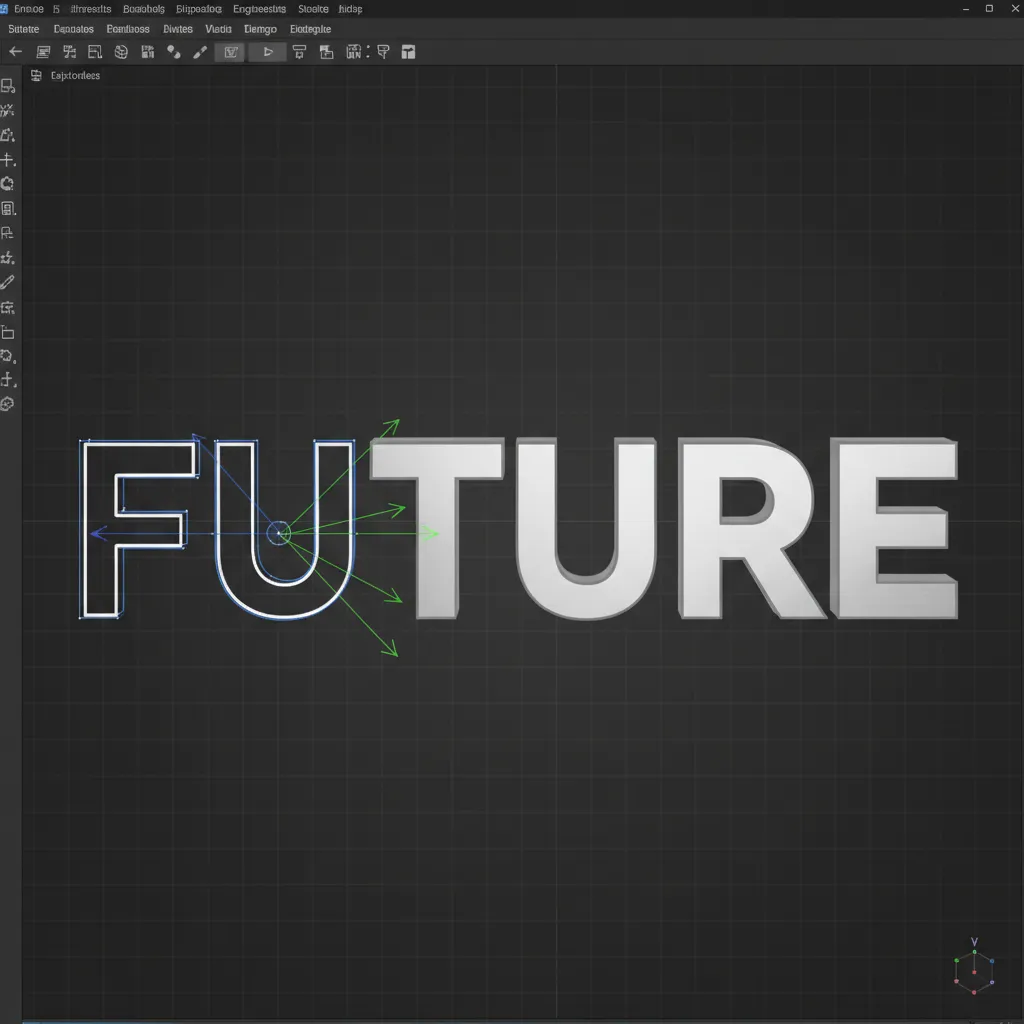

Converting Fonts to Curves or Mesh Safely

Key Insight: Converting text to vector curves before importing into 3D software eliminates missing font errors and stabilizes geometry.

The safest workflow is to convert fonts into outlines using vector software before they reach the modeling environment.

Typical workflow:

1. Create text in Illustrator, Figma, or similar vector software.
2. Convert text to outlines or curves.
3. Clean unnecessary anchor points.
4. Export as SVG, DXF, or EPS.
5. Import into 3D modeling software.

This step ensures the 3D application interprets the geometry as pure vectors instead of font data. Many modeling tools—including Blender, Fusion 360, and Rhino—handle SVG curves extremely well.

Industry practice also recommends checking curve direction and closing paths before extrusion to prevent inverted surfaces.

Preparing Text Files Before Importing to 3D Software

Key Insight: Properly prepared vector files reduce modeling errors more than any font choice alone.

Even the best fonts can fail if the vector file is messy. Before importing text into a 3D environment, designers should clean the outlines.

Pre‑import checklist:

1. Remove duplicate anchor points
2. Merge overlapping paths
3. Close open vector shapes
4. Simplify curves where possible
5. Ensure consistent scale

When geometry is clean, extrusion becomes predictable. This is especially important when the text is part of a larger model—such as signage, architectural visualization, or product labeling.

In spatial visualization pipelines, where teams often move from concept layout to final rendering using workflows like creating full home renders from spatial models, maintaining clean vector data prevents downstream rendering glitches.

save pin

Testing Font Readability on Different Model Surfaces

Key Insight: The surface where text appears matters as much as the font itself.

A font that reads perfectly on a flat plane may become illegible when wrapped onto curved geometry.

Designers typically test text on:

1. Flat surfaces
2. Cylindrical surfaces
3. Embossed surfaces
4. Engraved surfaces

Important readability checks:

1. Minimum stroke thickness after scaling
2. Spacing between letters after extrusion
3. Shadow and lighting interaction
4. Visibility after rendering or printing

For 3D printing workflows, engineers often run small test prints because even perfect screen previews cannot predict how small details behave in physical materials.

Answer Box

The safest fonts for 3D model text are simple sans‑serif typefaces with balanced strokes and minimal decorative details. Convert text to vector curves, clean the outlines, and test extrusion before applying it to final geometry. Clean vector structure prevents most 3D text failures.

Final Summary

1. Simple sans‑serif fonts produce the most stable 3D geometry.
2. Convert fonts to curves before importing into modeling software.
3. Decorative or script fonts frequently break mesh conversions.
4. Clean vector outlines reduce extrusion and rendering problems.
5. Always test readability after extrusion or surface mapping.

FAQ

What are the best fonts for 3D modeling text?

Sans‑serif fonts like Arial, Helvetica, DIN, and Roboto are widely considered the best fonts for 3D modeling text because they create simple, stable geometry.

Which fonts work best for 3D printing?

Fonts with thick strokes and simple outlines perform best for 3D printing. Avoid thin or decorative fonts that may disappear when printed.

Why does my 3D text extrusion break?

Extrusion often fails because of overlapping vector paths, complex curves, or open shapes inside the font outline.

Should I convert fonts to curves before modeling?

Yes. Converting fonts to curves ensures the geometry remains consistent across software and prevents missing font errors.

Can script fonts be used for 3D text?

They can, but they often require manual cleanup because script fonts contain complex overlapping curves.

How do I prepare fonts for 3D modeling?

Convert text to outlines, remove duplicate points, close paths, and export as SVG or DXF before importing.

What causes font problems in 3D text extrusion?

Most issues come from thin strokes, overlapping curves, and complex decorative shapes in the font design.

Is vector format required to convert font to 3D model geometry?

Yes. Vector formats such as SVG or DXF allow modeling software to interpret the outlines as curves for extrusion.
