Choosing the Right Hatch Settings in AutoCAD for Different Drawing Types: A practical guide to selecting hatch scale, angle, and configuration for architectural, mechanical, and technical drawings

Direct Answer

The right hatch settings in AutoCAD depend on drawing scale, drawing type, and visual clarity requirements. Architectural plans typically use larger hatch scales for readability, while mechanical drawings require tighter patterns and precise angles. Choosing the correct hatch scale and angle ensures drawings remain clear, lightweight, and compliant with industry standards.

Quick Takeaways

1. Hatch scale should match the drawing scale to avoid dense or unreadable patterns.
2. Architectural floor plans typically use larger hatch spacing for print clarity.
3. Mechanical drawings require smaller, consistent hatch patterns for material identification.
4. Overly dense hatches can slow AutoCAD performance in large drawings.
5. Most hatch issues can be corrected by adjusting scale and origin after placement.

Introduction

Choosing the right AutoCAD hatch scale settings sounds simple until a drawing becomes unreadable on paper. After working on dozens of residential layouts, commercial plans, and technical shop drawings, I’ve noticed that hatch problems are rarely about the pattern itself—they’re almost always about scale and context.

A hatch that looks perfect in model space can turn into visual noise once the sheet is plotted. This happens constantly in architectural floor plans, where dense patterns overwhelm room labels or dimensions. The opposite problem also appears in engineering drawings: hatch patterns become so large they stop communicating material differences.

When planning layouts, I often test pattern readability early in the workflow using tools that help visualize spatial structure first. A quick way to understand how patterns interact with walls and rooms is to explore layout examples such as visualizing interior layouts with an AI floor planning workflow, which helps confirm where hatching will appear before committing to settings.

In this guide, I’ll walk through how professionals choose hatch scale, angle, and placement depending on drawing type—and more importantly, the mistakes that quietly ruin otherwise good drawings.

save pin

Understanding Hatch Scale and Angle Settings

Key Insight: Hatch scale controls visual density, while hatch angle determines orientation—both must match the drawing's scale and purpose.

AutoCAD hatch patterns are essentially repeating geometry. The scale parameter enlarges or compresses that geometry, while the angle rotates it relative to the object.

The problem many beginners encounter is using default values. Default hatch settings rarely match real project scales.

How hatch settings affect drawings:

1. Scale: Controls spacing and density of the pattern.
2. Angle: Rotates the pattern to align with drawing geometry.
3. Pattern type: Determines visual meaning such as concrete, insulation, or metal.
4. Associativity: Allows hatches to update automatically when boundaries change.

For example, ANSI patterns used in engineering drawings often follow standardized angles such as 45° or 135° to represent materials. Architectural drawings, however, often rotate patterns to match building orientation.

Autodesk documentation and drafting standards emphasize that hatch readability should be evaluated at the final print scale rather than model space.

Selecting Hatch Settings for Architectural Plans

Key Insight:Architectural drawings prioritize readability over pattern precision, which means larger hatch scales and simpler patterns usually work best.

In residential and commercial floor plans, the main purpose of hatching is to differentiate materials or construction elements without overwhelming the drawing.

save pin

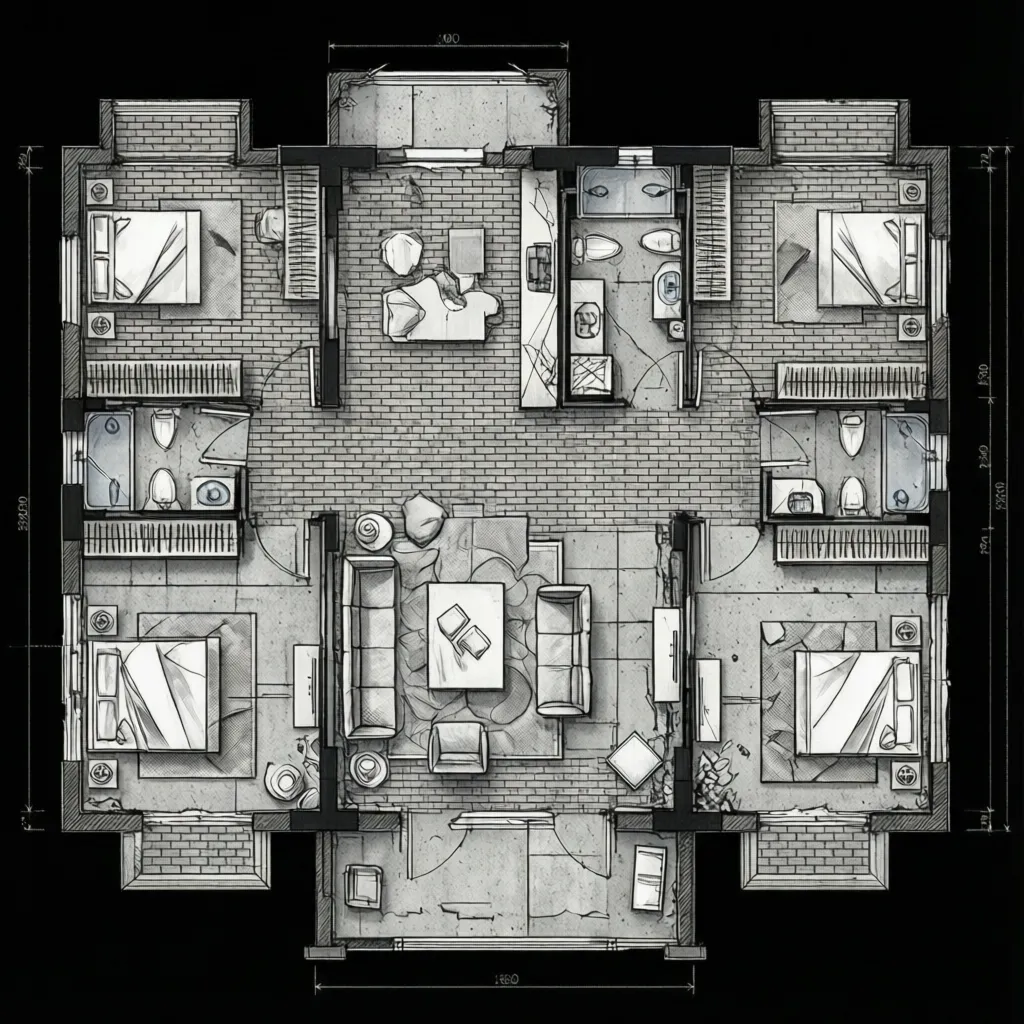

Typical architectural hatch uses:

1. Concrete slabs
2. Insulation
3. Section cuts
4. Floor material patterns
5. Masonry or brickwork

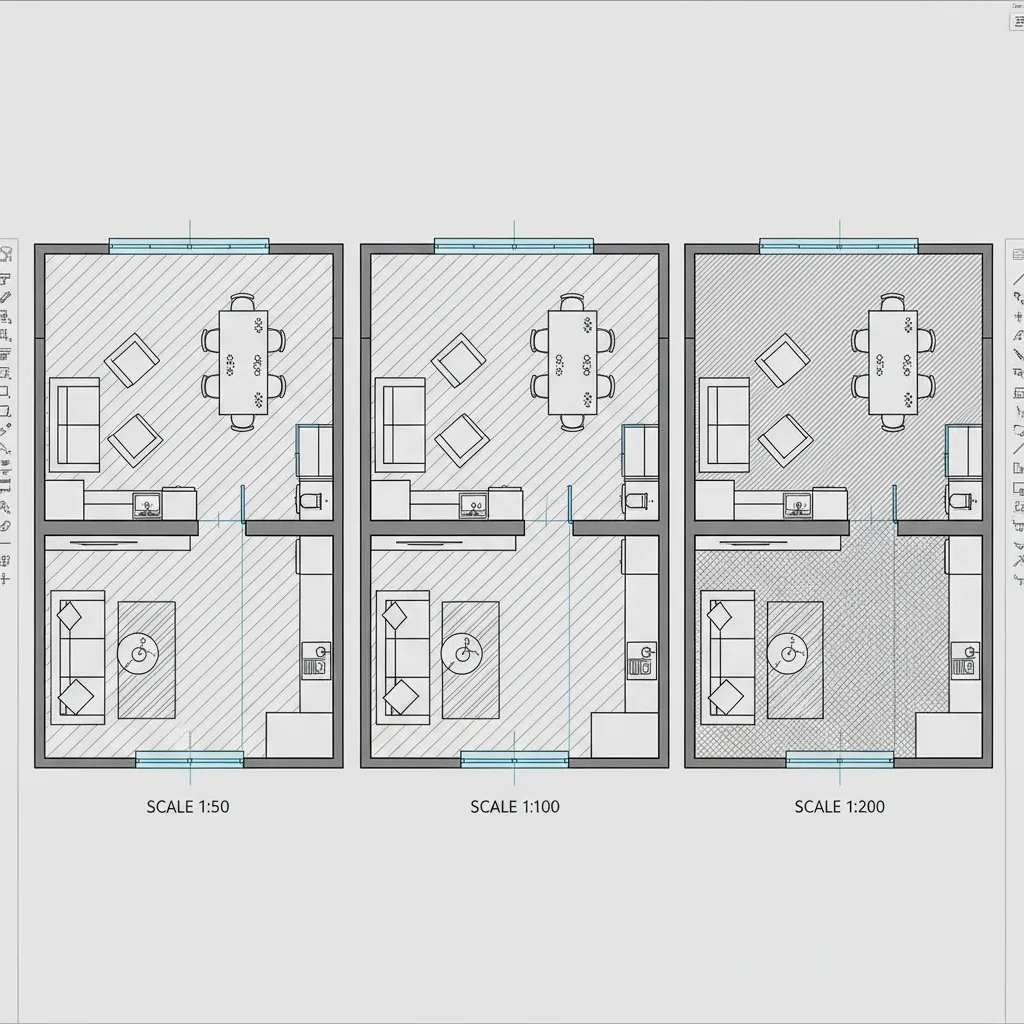

Common hatch scale guidelines for architecture:

1. Floor plans: larger scale for clear room readability
2. Wall sections: medium scale for material clarity
3. Detail drawings: smaller scale for realism

One hidden issue I often see is architects using detailed hatch patterns in early design phases. Those patterns dramatically slow down large drawings.

Instead, many professionals keep conceptual plans simple and refine hatch detail only when the construction drawings are finalized. When developing layouts or kitchen zones, reviewing spatial configurations through resources like exploring common kitchen layout planning examples can help determine where hatching adds clarity versus visual clutter.

Hatch Settings for Mechanical and Engineering Drawings

Key Insight: Mechanical drawings rely on standardized hatch patterns and tighter scales to clearly identify materials in sectional views.

Unlike architecture, engineering drawings use hatch patterns as technical indicators rather than decorative elements.

For example:

1. Steel
2. Aluminum
3. Cast iron
4. Rubber
5. Composite materials

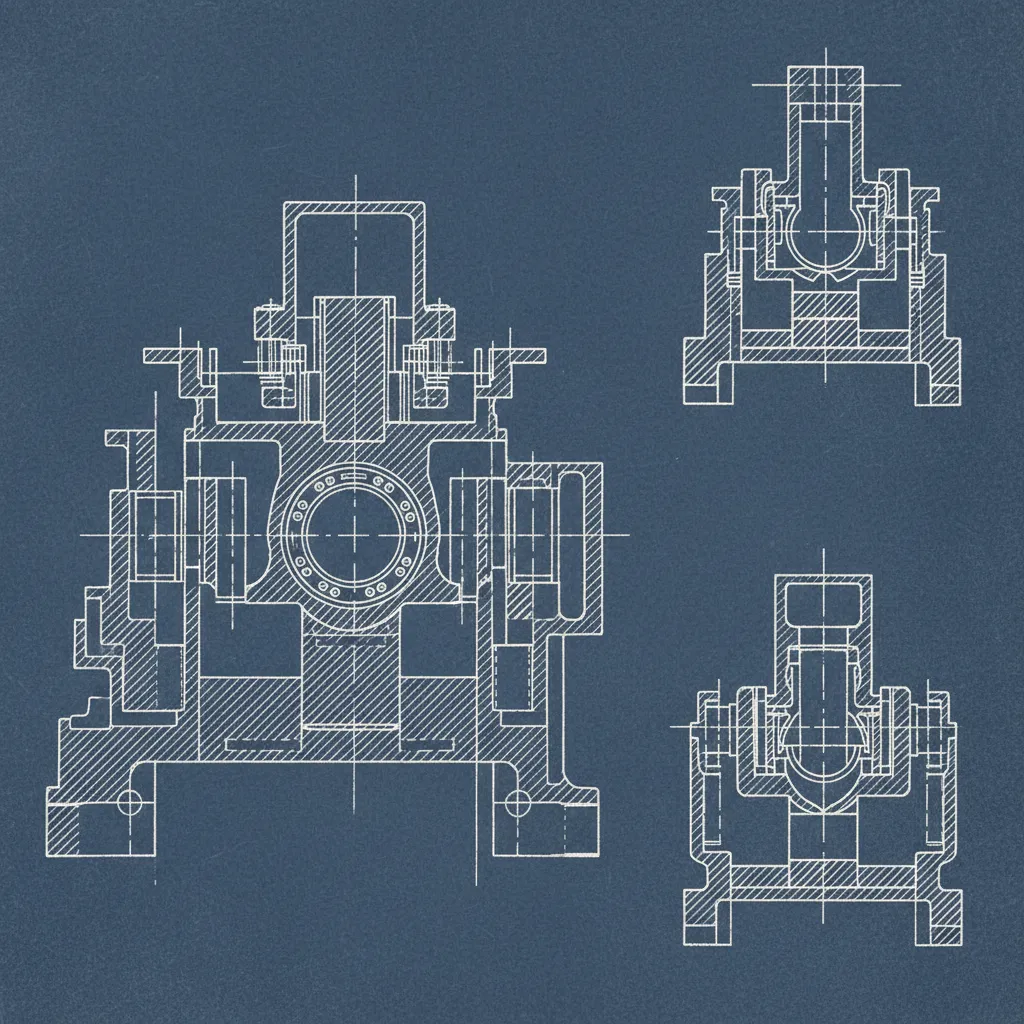

ANSI hatch standards define how these materials should appear in sectional views. The scale typically remains consistent across drawings so engineers can quickly recognize materials.

Recommended mechanical hatch approach:

1. Maintain consistent hatch scale across components.
2. Use standard ANSI patterns whenever possible.
3. Rotate patterns between adjacent parts for contrast.
4. Avoid overly dense patterns that obscure geometry.

Manufacturing drawings published by ASME and ISO drafting standards both emphasize clarity over decorative detail.

save pin

Balancing Visual Clarity and Drawing Performance

Key Insight: Dense hatch patterns are one of the most common causes of slow AutoCAD drawings.

Every hatch pattern increases the geometric complexity of a drawing. Multiply that across hundreds of rooms or components, and performance problems appear quickly.

Common performance issues caused by hatches:

1. Slow zoom and pan performance
2. Long regeneration times
3. Large file sizes
4. Plotting delays

Over the years I've learned that the real trick isn't just choosing the correct hatch scale—it's knowing when to simplify.

In large layout drawings, I often preview spatial clarity using simplified geometry models like those found in interactive 3D floor plan visualization examples. Once the structure reads clearly, hatch density can be applied strategically instead of everywhere.

Performance optimization checklist:

1. Use simple patterns during early drafting.
2. Limit detailed hatching to sections and details.
3. Turn off hatch layers when editing heavy files.
4. Avoid extremely small hatch scales.

Answer Box

The best AutoCAD hatch settings depend on drawing type and print scale. Architectural drawings benefit from larger, simpler patterns, while engineering drawings use tighter standardized hatches. Always evaluate hatch readability at final plot scale to maintain clarity and performance.

Adjusting Hatch Properties After Placement

Key Insight: Most hatch mistakes can be fixed quickly using the Hatch Editor without recreating the pattern.

One advantage of associative hatching in AutoCAD is that settings remain editable after placement.

Steps to modify hatch settings:

1. Select the hatch object.
2. Open the Hatch Editor panel.
3. Adjust scale or angle values.
4. Preview the changes.
5. Confirm once readability improves.

Key properties you can modify:

1. Pattern scale
2. Rotation angle
3. Transparency
4. Pattern type
5. Associativity

Professional drafters rarely redraw hatches from scratch. Adjusting properties is faster and preserves boundary relationships.

Recommended Hatch Configuration Workflow

Key Insight: A consistent hatch workflow prevents readability problems and reduces file complexity.

After managing multiple architectural and technical documentation sets, I’ve found that hatch issues usually come from applying patterns too early in the drafting process.

A reliable hatch workflow:

1. Create clean geometry and boundaries first.
2. Determine final drawing scale.
3. Apply simple hatch patterns.
4. Adjust scale for print readability.
5. Replace with detailed patterns only if required.

This approach keeps drawings responsive while maintaining professional presentation standards.

Final Summary

1. Hatch scale should always correspond to the final drawing scale.
2. Architectural drawings benefit from larger, simplified hatch patterns.
3. Mechanical drawings rely on standardized material hatch patterns.
4. Dense hatching can significantly slow AutoCAD performance.
5. Most hatch issues are solved by adjusting scale and angle settings.

FAQ

What is the best hatch scale in AutoCAD?

The best hatch scale depends on drawing scale. Floor plans often require larger scales, while detail drawings use smaller hatch spacing.

How do I choose hatch scale in AutoCAD?

Start by checking the final plot scale. Adjust hatch scale until the pattern remains readable without overpowering annotations.

What hatch angle should I use in AutoCAD?

Many technical drawings use 45° or 135°. Architectural drawings may rotate hatches to match wall or material orientation.

Why does my hatch look too dense?

The hatch scale is likely too small. Increase the scale value until pattern spacing improves.

Can I change hatch scale after placing it?

Yes. Select the hatch and edit the scale in the Hatch Editor panel.

Why does AutoCAD slow down when I add hatches?

Extremely dense patterns increase drawing complexity and regeneration time.

What hatch patterns are used for architectural floor plans?

Common patterns include concrete, insulation, brick, and floor material hatches. Correct hatch scale for architectural drawings ensures readability.

Do mechanical drawings require specific hatch standards?

Yes. Many engineering drawings follow ANSI or ISO hatch conventions to represent materials.
