Choosing the Right STL Export Settings for Different 3D Models: Practical guidance to balance detail, scale accuracy, and file size when exporting STL for printing, prototyping, or engineering work

Direct Answer

The right STL export settings depend on how the model will be used. For most cases, use medium‑high mesh resolution, a tolerance around 0.01–0.05 mm, and confirm units before export. Higher resolution improves curved surfaces but dramatically increases file size and processing time.

Quick Takeaways

1. Higher STL resolution improves curves but can inflate file size by 10× or more.
2. Export tolerance between 0.01–0.05 mm works for most 3D printing workflows.
3. Incorrect unit settings are the most common cause of STL scale problems.
4. Engineering simulations often require tighter tolerances than consumer printing.
5. Balancing mesh density and file size prevents slicer slowdowns.

Introduction

After exporting thousands of models over the past decade, I can confidently say that STL export settings are one of the most misunderstood steps in a 3D workflow. Many designers assume the highest resolution is always better. In reality, that decision often creates files so heavy that slicers struggle to process them.

The real challenge is choosing the right STL export settings for the job. A decorative 3D print, an engineering prototype, and a simulation model all require different tolerances and mesh densities.

Another issue I see constantly in client projects is scale mismatch. Someone exports in inches, the slicer interprets millimeters, and suddenly a chair model becomes the size of a skyscraper. When teams build layouts digitally first, especially with tools used for creating accurate spatial layouts before modeling furniture, scale consistency becomes much easier to manage before the STL stage.

In this guide, I’ll walk through the export parameters that actually matter—resolution, tolerance, and unit settings—and explain how professionals adjust them depending on the model type.

save pin

Key STL Export Settings Explained

Key Insight: Three settings determine STL quality: mesh resolution, chord tolerance, and export units.

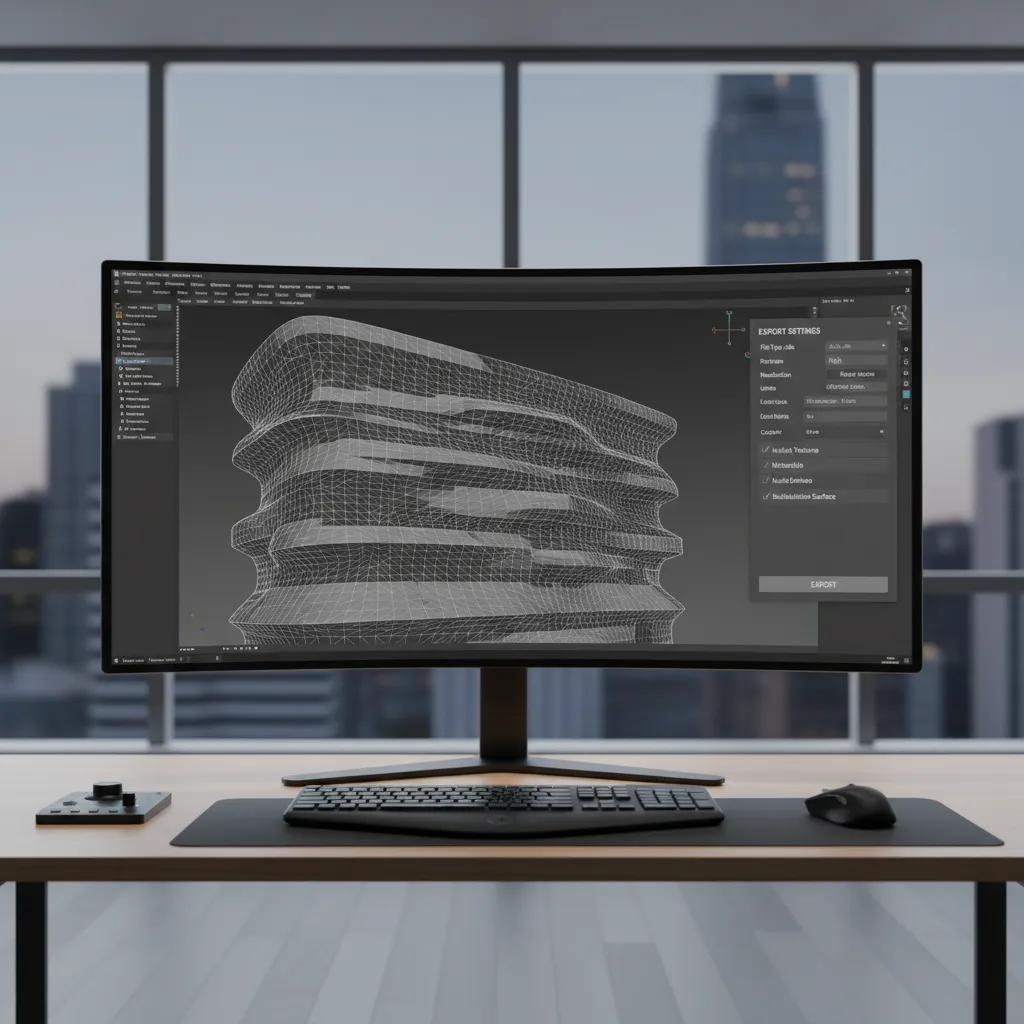

Most CAD programs hide STL settings behind technical terms, but the mechanics are straightforward. STL files approximate curved surfaces with triangular facets. The export parameters simply control how dense that triangle mesh becomes.

The three parameters that matter most:

1. Resolution or facet density – controls the number of triangles used.
2. Chord tolerance – the maximum distance between the original surface and the mesh.
3. Units and scale – determines real‑world size interpretation.

In professional workflows, engineers typically export preview meshes first. If the mesh looks faceted on curves, they increase resolution incrementally instead of jumping to maximum settings.

Organizations like ASTM International emphasize that STL is purely a surface description format. That means geometry accuracy depends entirely on export parameters rather than the original CAD precision.

Resolution and Tolerance Settings for STL

Key Insight: Tolerance controls geometric accuracy, while resolution controls visual smoothness.

Many designers confuse these two parameters. In practice, tolerance has a larger impact on accuracy than raw triangle count.

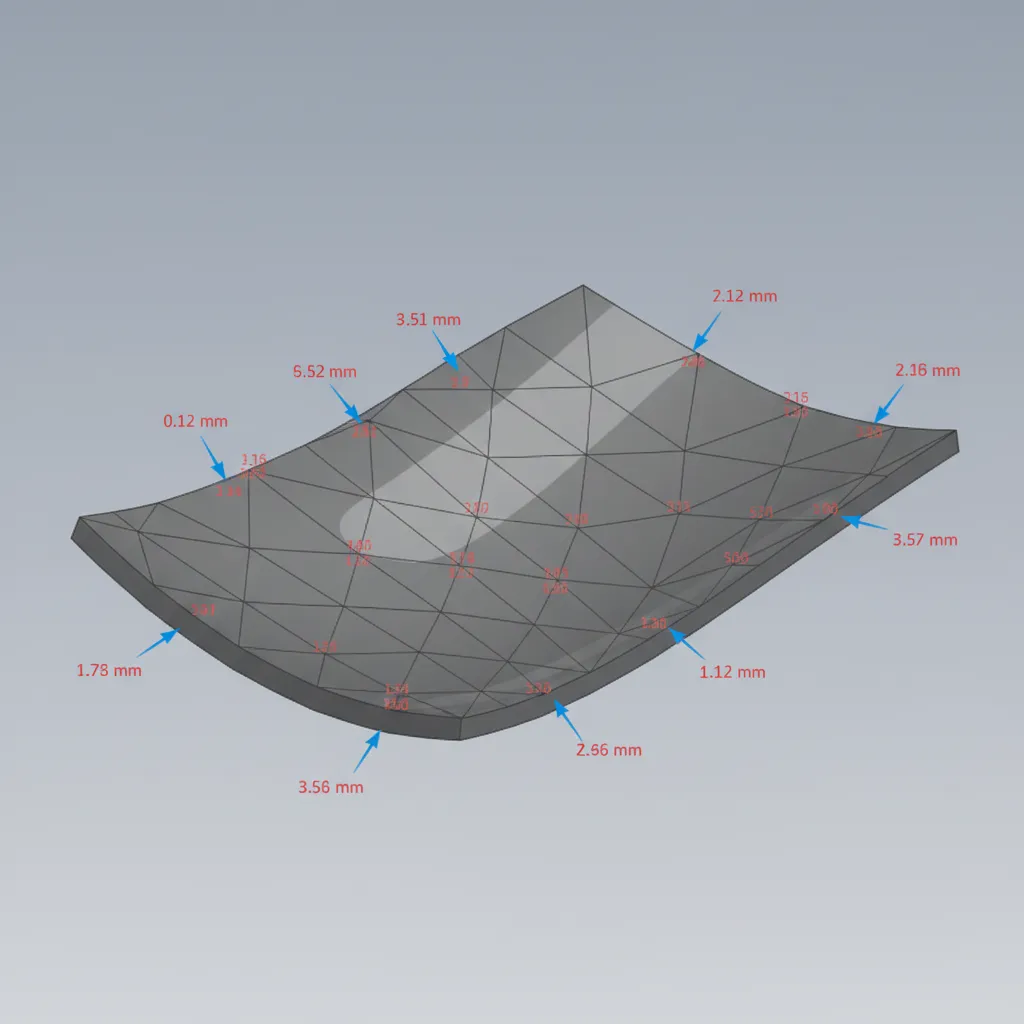

Typical professional ranges:

1. High precision engineering: 0.005–0.01 mm tolerance
2. Standard 3D printing: 0.01–0.05 mm tolerance
3. Concept models or previews: 0.1 mm tolerance

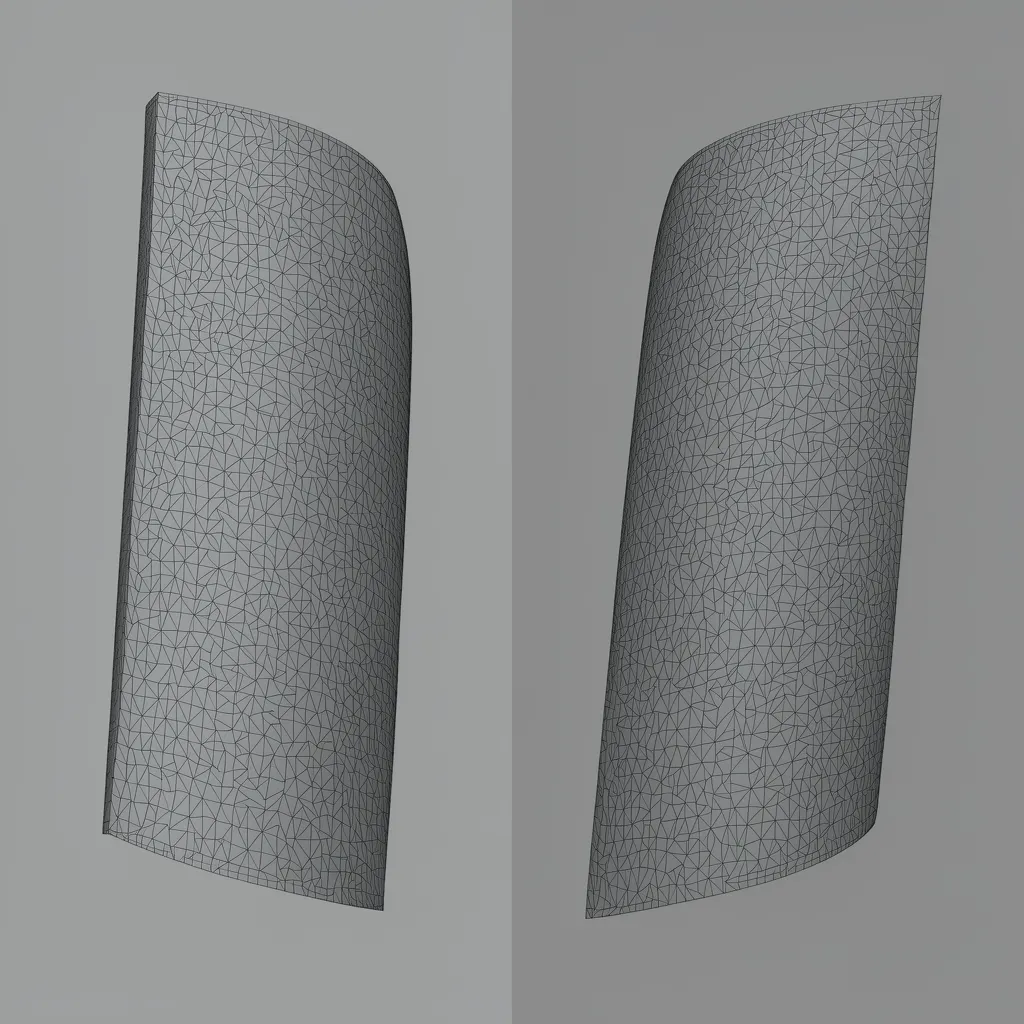

Increasing mesh resolution without adjusting tolerance can generate massive files without improving accuracy. I’ve seen decorative product models jump from 20 MB to 300 MB with almost no visible difference.

This is one of the hidden workflow costs rarely discussed in tutorials: oversized STL files slow down slicers, cloud processing, and version control systems.

save pin

How Units and Scale Affect STL Output

Key Insight: STL files do not store units, which is why scale problems are extremely common.

Unlike STEP or native CAD formats, STL geometry contains only coordinates. The receiving software decides whether those coordinates represent millimeters, inches, or meters.

This leads to several common mistakes:

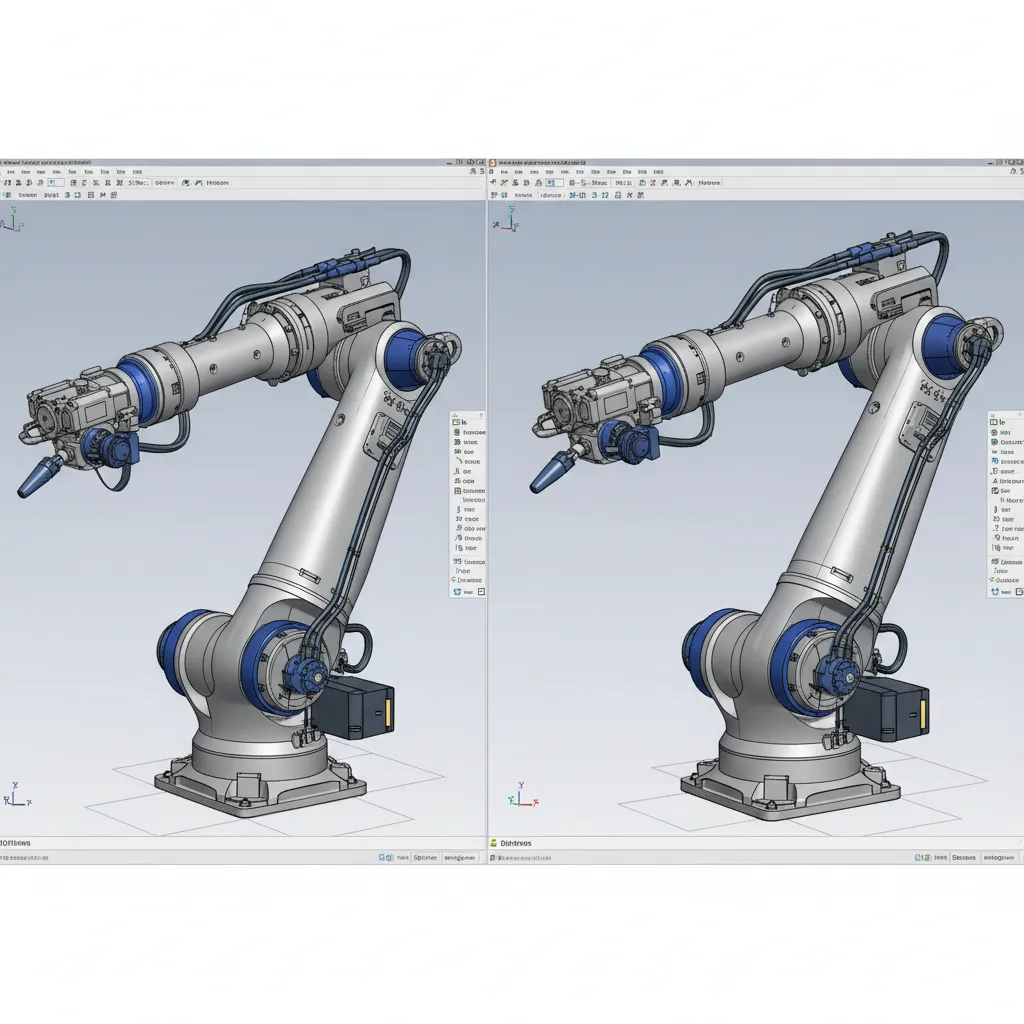

1. Exporting in inches but importing as millimeters
2. CAD models built in meters but printed in millimeters
3. Scaled assemblies breaking when merged

A reliable workflow looks like this:

1. Set modeling units explicitly before export.
2. Confirm slicer or target software uses the same units.
3. Run a quick dimensional check after importing.

When teams work on spatial models first—such as planning layouts using tools that generate precise room dimensions before modeling objects—they dramatically reduce scale issues later in the pipeline.

save pin

Balancing Detail vs File Size

Key Insight: The best STL export settings deliver just enough geometry to represent curves accurately—no more.

This tradeoff becomes obvious when exporting organic shapes like furniture legs or sculptural parts. Curves demand more triangles, but most printers and slicers cannot benefit from ultra‑dense meshes.

A practical decision framework:

1. Low detail – fast previews and concept iterations
2. Medium detail – most consumer 3D printing
3. High detail – complex surfaces or industrial prototyping

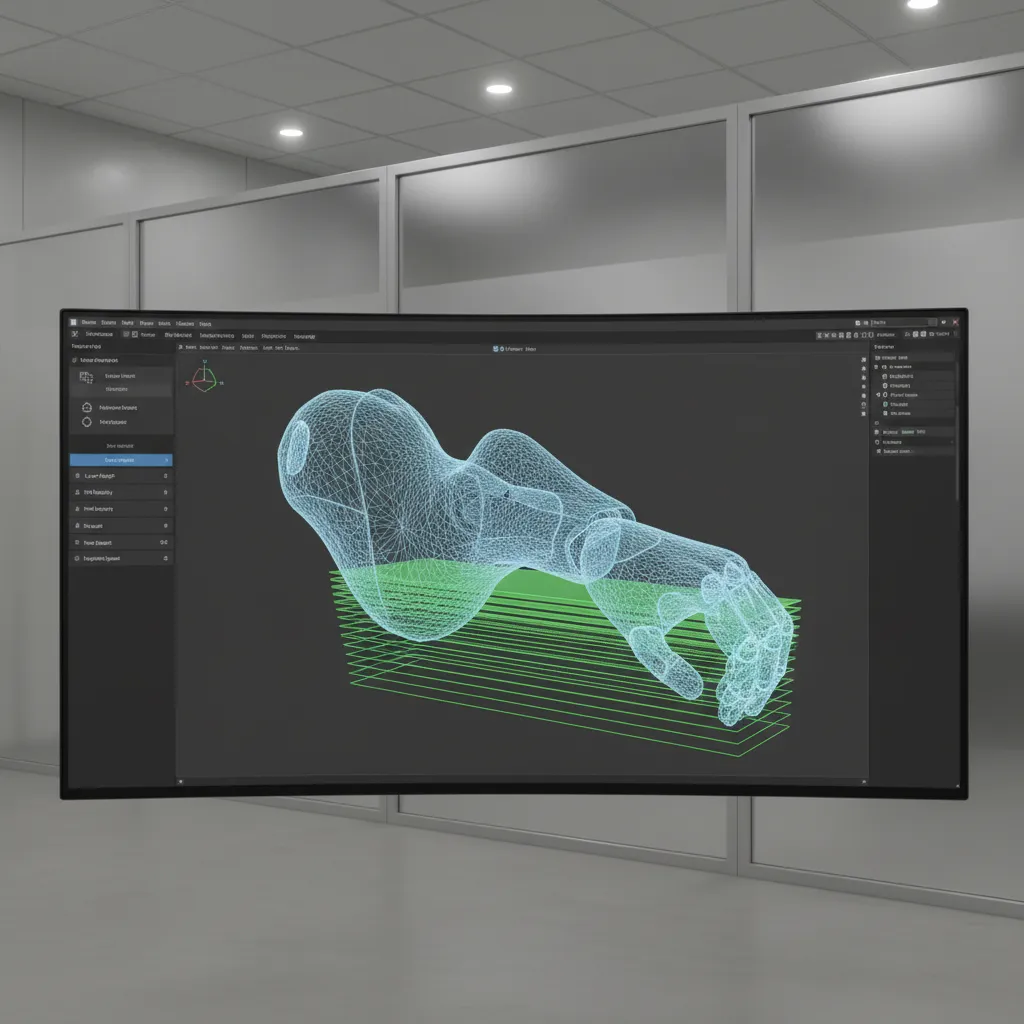

One overlooked factor is slicing software performance. Extremely dense meshes increase slicing time significantly. Some desktop slicers struggle with models exceeding several million triangles.

Experienced designers usually export a medium mesh first, inspect curved surfaces visually, and only increase density where needed.

Answer Box

The best STL export settings balance tolerance accuracy and mesh density. For most models, a tolerance of 0.01–0.05 mm and moderate resolution produce accurate geometry without oversized files.

Recommended Settings for 3D Printing

Key Insight: Most consumer 3D printers cannot reproduce extremely fine mesh detail, so moderate STL settings are usually optimal.

Typical recommendations used in professional prototyping studios:

1. Tolerance: 0.01–0.05 mm
2. Angular deviation: 5–10 degrees
3. Binary STL format for smaller file size

Why not go higher?

Because printer resolution often becomes the bottleneck. A desktop FDM printer with a 0.4 mm nozzle simply cannot reproduce micrometer‑level surface fidelity.

Instead of maximizing mesh density, designers often focus on improving model structure before export. For example, when teams build environment context first using visualizing a full space in realistic 3D scenes before fabrication, they catch proportion issues long before the STL stage.

save pin

Recommended Settings for Engineering Models

Key Insight: Engineering analysis and high‑precision manufacturing require tighter STL tolerances than visual models.

Typical engineering export ranges:

1. Tolerance: 0.005–0.01 mm
2. High mesh density on curved surfaces
3. Verification of manifold geometry

Industries such as aerospace and medical device prototyping frequently use higher‑precision exports because surface deviation directly affects downstream analysis.

However, engineers rarely export STL until the final step. Earlier stages typically rely on STEP or native CAD formats that maintain parametric accuracy.

Final Summary

1. STL tolerance determines geometric accuracy more than triangle count.
2. Most 3D printing workflows work best with 0.01–0.05 mm tolerance.
3. STL files contain no units, so scale verification is essential.
4. Excessively dense meshes increase file size without improving prints.
5. Export settings should match the final manufacturing or analysis goal.

FAQ

What are the best STL export settings for 3D printing?

Most prints work well with 0.01–0.05 mm tolerance, medium resolution, and binary STL format. These settings balance accuracy and manageable file size.

Why does my STL file look faceted?

Low mesh resolution or high tolerance can cause visible triangles on curved surfaces. Increasing resolution or reducing tolerance improves smoothness.

Why is my STL model the wrong size?

STL files do not store units. If export and import units differ, the model will appear incorrectly scaled.

How do I set STL mesh resolution?

Adjust chord tolerance and angular deviation in your export settings. Lower tolerance values create denser meshes and smoother curves.

What tolerance should I use for engineering STL files?

Engineering models often require 0.005–0.01 mm tolerance to maintain geometric accuracy.

Is higher STL resolution always better?

No. Higher resolution increases file size dramatically and often provides no practical benefit for most printers.

What causes STL export scale problems?

Mismatched units between modeling software and slicers are the most common cause.

Can STL settings affect print quality?

Yes. Poor STL resolution can create faceted surfaces, while excessive resolution can slow slicing without improving results.
