Commercial Kitchen Chimney Design: Space-Savvy Expert Tips: 1 Minute to Elevate Your Kitchen With Efficient Chimney Design

Efficient chimney design is the backbone of any commercial kitchen, especially where square footage is tight and heat loads are high. In my projects, performance hinges on capturing contaminants at the source, sizing the system for peak demand, and threading duct runs through limited space without compromising workflow. Data consistently shows the stakes: according to WELL v2 Air concept guidance, kitchens should minimize particulate matter and volatile organic compounds through effective source capture and filtration; Steelcase research also correlates environmental quality with cognitive performance, which translates into fewer errors and safer operations in high‑pressure kitchens. The Illuminating Engineering Society (IES) recommends adequate task illuminance around 500–1000 lux for food prep areas—critical because poor visibility near hoods and chimneys increases accident risk and impedes cleaning.

Heat and contaminant loads rise sharply with cooking power. Herman Miller research on workplace comfort reports that thermal stress elevates fatigue and reduces precision, reinforcing the need to evacuate convective heat swiftly above high‑BTU appliances. Gensler’s research on performance environments highlights environmental clarity—clean air and clear sightlines—as drivers of productivity. These findings, together with WELL’s emphasis on ventilation effectiveness, frame a practical imperative: even in compact kitchens, the chimney stack, hood capture area, and extraction rate must be treated as a single, integrated system.

Right-Sizing the Chimney and Extraction Rate

The chimney is only as good as the airflow it supports. For canopy hoods over heavy‑duty appliances (charbroilers, woks, fryers), target 250–400 CFM per linear foot of hood; light‑ to medium‑duty lines can often perform at 150–250 CFM per linear foot. Confirm with local codes and manufacturer specs. Aim for face velocities around 90–150 ft/min at the hood aperture; higher isn’t always better—excess velocity can pull in cross‑drafts and reduce capture effectiveness.

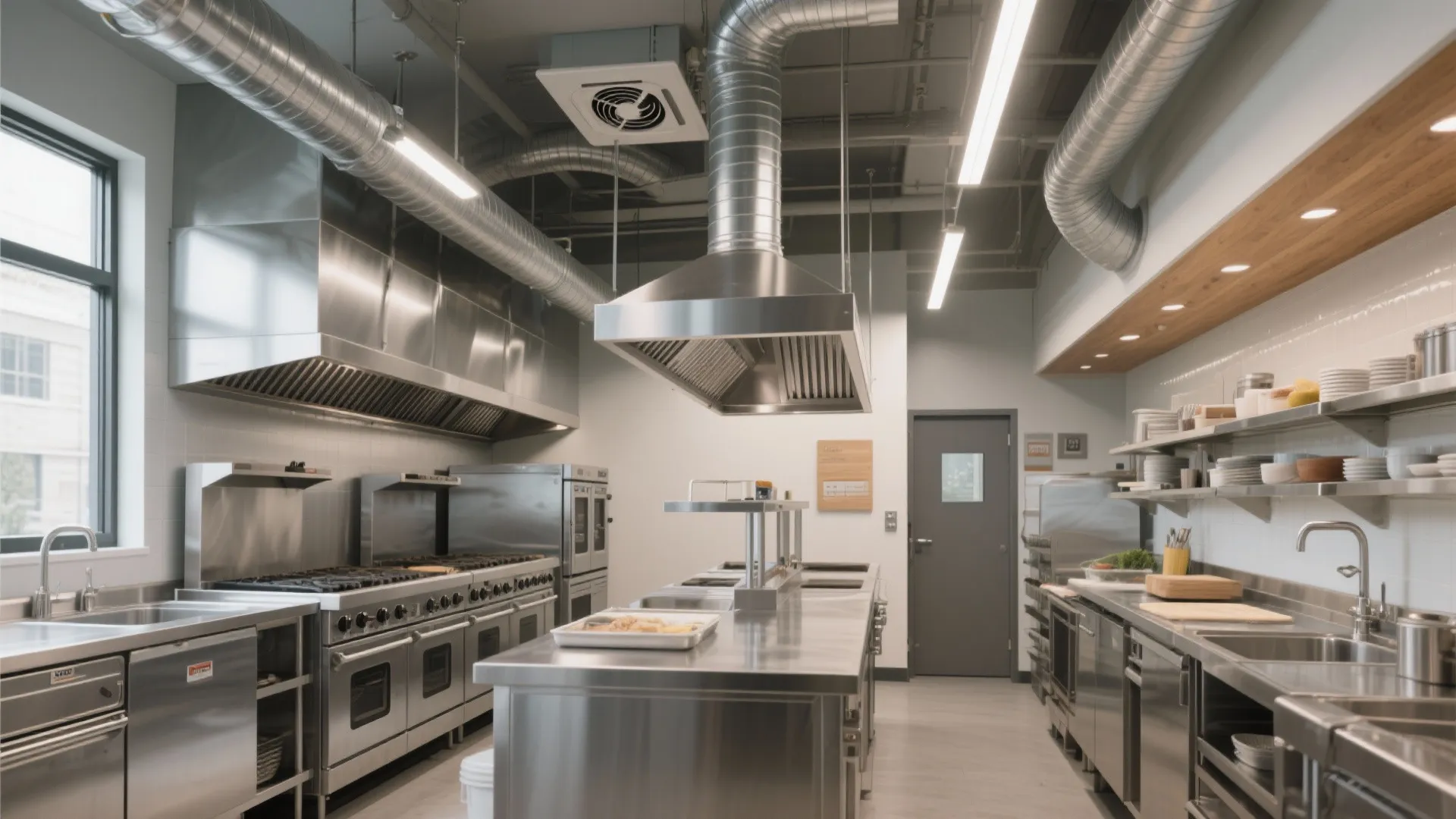

Capture and Containment: Hood Geometry Matters

Deep canopies with an overhang of 6–12 inches beyond the appliance footprint improve plume capture, while side panels help contain lateral turbulence. Maintain the hood as close as code allows, typically 24–30 inches above the cooking surface for wall‑mounted canopy hoods and 30–36 inches for island configurations. In very tight kitchens, a short‑circuit hood isn’t a shortcut—misapplied short‑circuit designs can recirculate contaminants; use only as engineered by the manufacturer for specific lineups.

Duct Routing in Small Footprints

Space‑savvy routing starts at the hood collar. Keep duct runs straight and vertical to promote buoyancy-driven flow; if offsets are unavoidable, use smooth-radius elbows and minimal transitions. Avoid sharp turns near the hood where velocity is highest. Preserve cross-sectional area through the stack; necking down increases static pressure and fan energy while risking backspill at peak service.

Make-Up Air: Balance or Fail

Exhaust without properly tempered make‑up air leads to negative pressure, door slam, and smoke migration into dining areas. A balanced system supplies make‑up air near the hood—ideally diffused above the cookline to avoid disrupting capture. As a rule of thumb, provide 80–95% of exhaust volume via dedicated make‑up air and allow the remainder from adjacent spaces to maintain slight negative pressure. Coordinate with HVAC to temper supply air and manage humidity so staff stay within comfort ranges.

Grease and Filtration Strategy

Grease baffles are the frontline. Opt for UL‑listed baffle filters with simple removal for nightly cleaning. For heavy smoke (solid fuel or high‑temperature wok), consider multi‑stage filtration with electrostatic precipitators or cartridge systems—as approved by local authority—upstream of the chimney to reduce emissions and maintain duct hygiene. Install grease-rated access doors at intervals to support quarterly inspection.

Acoustics and Fan Selection

Noise fatigue is real in compact kitchens. Choose backward‑inclined centrifugal fans for robust static pressure with lower tonal noise. Decouple fans from structure with vibration isolators and flexible connectors; line select duct sections with acoustic insulation where permitted. Keep total system static pressure reasonable by limiting fittings and preserving duct diameter.

Thermal, Light, and Visual Comfort

Design for thermal zoning—highest extraction above heat-intensive equipment, and locally conditioned make‑up air to prevent hot spots. Provide glare-free, high-CRI task lighting near hoods to reach the IES-recommended 500–1000 lux for prep and inspection. Neutral, matte finishes reduce visual strain; color accents should aid wayfinding rather than add visual noise.

Materials, Fire Safety, and Code

Use grease-rated, welded steel ductwork with liquid-tight seams for horizontal runs; maintain clearances and fire wrap per local code. Hood fire suppression (wet chemical) must be coordinated with hood geometry and appliance types. Keep the path to the roof free of combustible storage, and specify an external discharge point that avoids re-entrainment into air intakes.

Layout Integration in Tight Kitchens

Successful compact designs align the cookline, prep, and pass to minimize cross traffic under the hood. When testing adjacency and clearances, a layout simulation tool like a room layout tool can help visualize canopy overhangs, access doors, and duct footprints without disrupting workflow. Prioritize straight hood lines over fragmented islands; fewer breaks mean simpler ducting and stronger capture.

Commissioning and Maintenance

Commission airflow with anemometers and hood face velocity checks, verify pressure balance, and document filter access. Train staff on daily baffle cleaning and weekly grease channel inspection. Schedule quarterly duct inspections and semiannual filter media replacements for multi‑stage systems.

Design Checks I Never Skip

- Does the hood overhang cover every steam and grease source?

- Is make‑up air delivered without creating cross‑drafts?

- Are duct transitions smooth, with minimal elbows?

- Is lighting glare-free, hitting 500–1000 lux on task surfaces (IES guidance)?

- Are acoustic controls preventing fan drone in the 250–500 Hz range?

- Are access panels placed at code intervals for cleaning?

- Is discharge location compliant and away from air intakes?

Authority References

For ventilation effectiveness and environmental quality benchmarks, WELL v2 resources provide clear criteria under the Air concept. For performance and human comfort in work environments, Steelcase research offers insights on environmental factors tied to productivity.

FAQ

Q1. How do I calculate the right exhaust airflow for my hood?

A1. Start with the linear footage of the hood and apply duty-based ranges: 150–250 CFM/ft for light–medium duty, 250–400 CFM/ft for heavy duty. Verify with equipment specs and local code.

Q2. What’s the ideal hood height above the cookline?

A2. Typically 24–30 inches for wall-mounted canopy hoods and 30–36 inches for island hoods, balancing capture efficiency and operator visibility.

Q3. Do I really need dedicated make‑up air?

A3. Yes. Provide about 80–95% of the exhaust rate as tempered make‑up air to maintain slight negative pressure and prevent smoke migration and door pressure issues.

Q4. How can I keep noise under control?

A4. Select fans with good static efficiency, isolate them from structure, use flexible connectors, and minimize high-resistance fittings. Consider acoustic lining where permitted.

Q5. Which filters are best for grease and smoke?

A5. UL-listed baffle filters for general grease; add multi‑stage filtration (electrostatic or cartridge) for heavy smoke applications as approved by local codes.

Q6. What lighting levels should I target around hoods?

A6. Follow IES guidance for 500–1000 lux on task areas, using glare-free, high‑CRI fixtures to improve visibility and inspection quality.

Q7. How does color and finish selection affect kitchen performance?

A7. Matte, neutral surfaces reduce glare and visual fatigue; strategic color accents assist wayfinding and zone distinction without overstimulation.

Q8. Is a short‑circuit hood a good fit for small kitchens?

A8. Only when specified by the manufacturer for particular equipment and airflow patterns; misapplication can degrade capture and recirculate contaminants.

Q9. Where should the chimney discharge be located?

A9. Above roof level, away from outdoor air intakes and public areas, per local code. Maintain adequate vertical distance to prevent re‑entrainment.

Q10. How often should ducts be cleaned?

A10. Inspect quarterly in heavy-use kitchens; clean per findings and local code. Maintain daily baffle cleaning and weekly grease channel checks.

Q11. What’s the impact of negative pressure on kitchen operations?

A11. It can cause smoke migration to dining areas, slamming doors, and reduced hood capture. Proper make‑up air balances pressure and stabilizes performance.

Q12. Can I route ducts horizontally to save space?

A12. Yes, with welded grease-rated ducts and minimal elbows. Keep runs as straight as possible and preserve cross-section to control static pressure.
