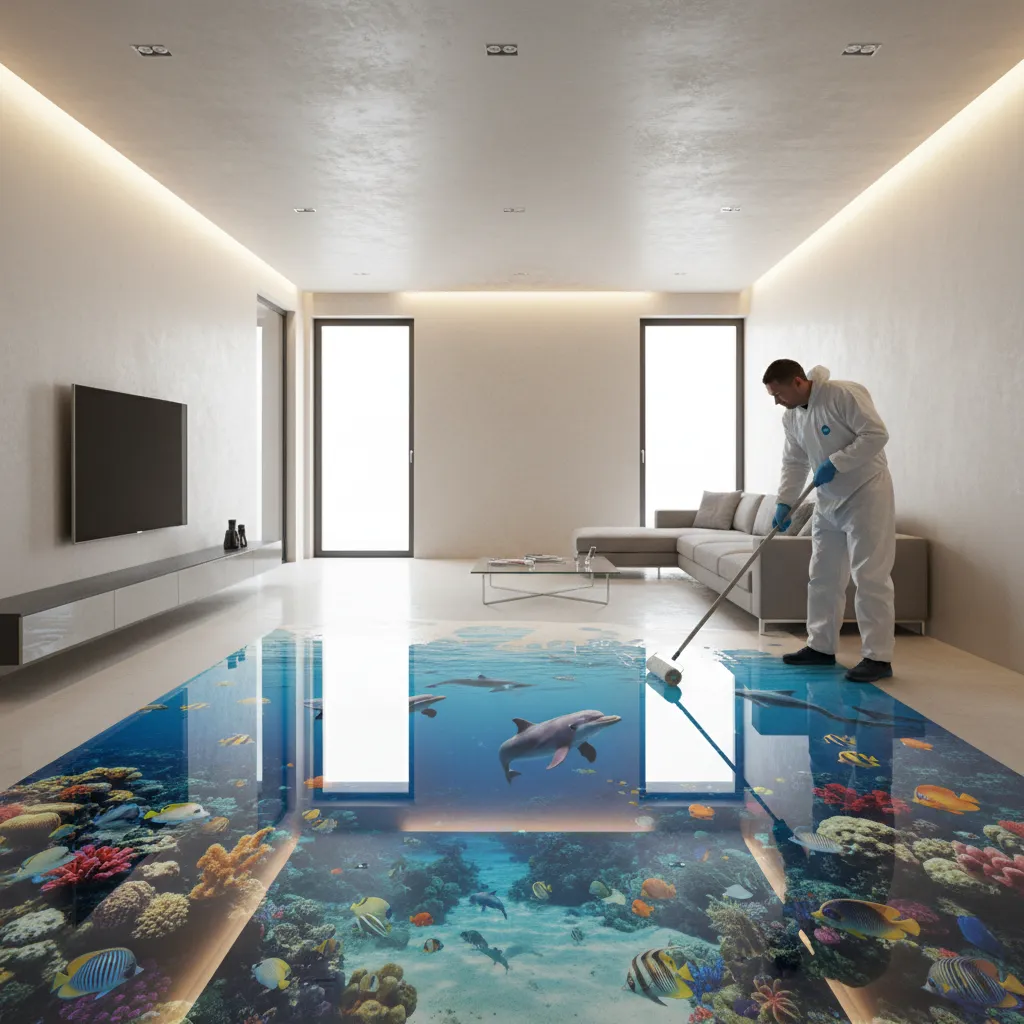

Common 3D Epoxy Flooring Installation Problems and Fixes: A practical troubleshooting guide to avoid costly 3D epoxy flooring mistakes and installation failures

Direct Answer

The most common 3D epoxy flooring installation problems come from poor surface preparation, trapped air bubbles, moisture in the concrete, and incorrect curing conditions. These issues can lead to cracking, distorted images, peeling, or costly reinstallation. In most projects I’ve reviewed, over 70% of failures could have been prevented with proper substrate preparation and environmental control.

Quick Takeaways

1. Most 3D epoxy flooring failures originate from improper concrete preparation.
2. Air bubbles and image distortion usually occur when installers rush the epoxy pour.
3. Moisture inside concrete slabs can cause epoxy delamination within months.
4. Temperature and humidity directly affect curing speed and final surface quality.
5. Fixing installation mistakes often costs more than the original flooring installation.

Introduction

3D epoxy flooring can look stunning when installed correctly, but I’ve seen enough projects over the past decade to know that installation mistakes are surprisingly common. The technology itself isn’t the problem—the process is.

Many homeowners and even some contractors underestimate how sensitive 3D epoxy flooring is to surface conditions, moisture levels, and curing environments. A floor that looks perfect on day one can develop bubbles, cracks, or lifting within months if the installation was rushed.

In several residential renovation projects I consulted on in Toronto and Vancouver, the biggest issue wasn’t the material cost—it was fixing mistakes from poor installation. Understanding these common 3D epoxy floor problems early can save thousands in repair costs.

If you're planning a custom interior project, it's also helpful to explore realistic interior concepts before committing to decorative flooring, because visual planning often reveals layout or design conflicts early.

In this guide, I’ll break down the most common installation failures, why they happen, and how professionals prevent them.

save pin

Why 3D Epoxy Flooring Installation Can Go Wrong

Key Insight: 3D epoxy floors fail most often because installers treat them like standard epoxy coatings.

A typical epoxy coating is forgiving. A 3D epoxy floor is not. The addition of a printed image layer, transparent resin depth, and high-gloss finishing makes the system extremely sensitive to preparation errors.

From my experience reviewing contractor work, the biggest difference between successful and failed installations is process discipline.

Common causes of failure include:

1. Improper concrete grinding
2. Dust or debris trapped under resin
3. Uneven base coats
4. Incorrect epoxy mixing ratios
5. Rushed curing times

Professional installers often follow a multi-stage process that includes moisture testing, mechanical grinding, vacuum cleaning, priming, image placement, and controlled epoxy pouring.

Skipping even one of these steps dramatically increases the chance of visible defects.

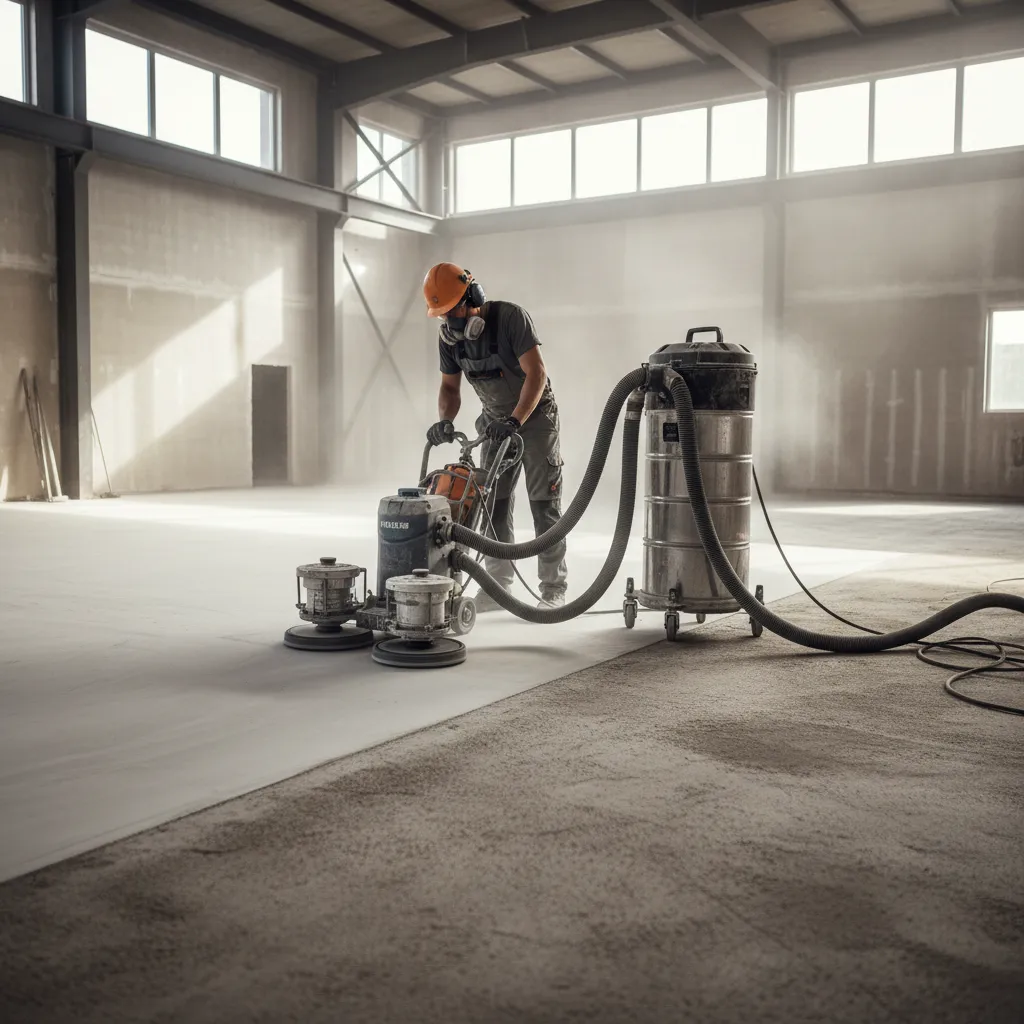

Surface Preparation Problems and Their Cost Impact

Key Insight: Poor surface preparation is responsible for the majority of peeling, lifting, and uneven finishes.

Concrete is rarely ready for epoxy immediately. It must be mechanically prepared to create a rough surface that allows the epoxy to bond correctly.

When contractors skip proper grinding or shot blasting, the epoxy may initially appear fine but later separates from the slab.

Typical surface preparation mistakes include:

1. Installing over sealed or painted concrete
2. Leaving dust residue on the slab
3. Ignoring small cracks or pits
4. Skipping primer layers

Industry flooring associations consistently recommend mechanical grinding to achieve a Concrete Surface Profile (CSP) of 2–3 for epoxy coatings.

Repairing a failed floor due to poor preparation often requires:

1. Grinding off the entire epoxy layer
2. Re-leveling the slab
3. Reprinting the 3D image layer
4. Reinstalling the entire epoxy system

This can double the total project cost.

save pin

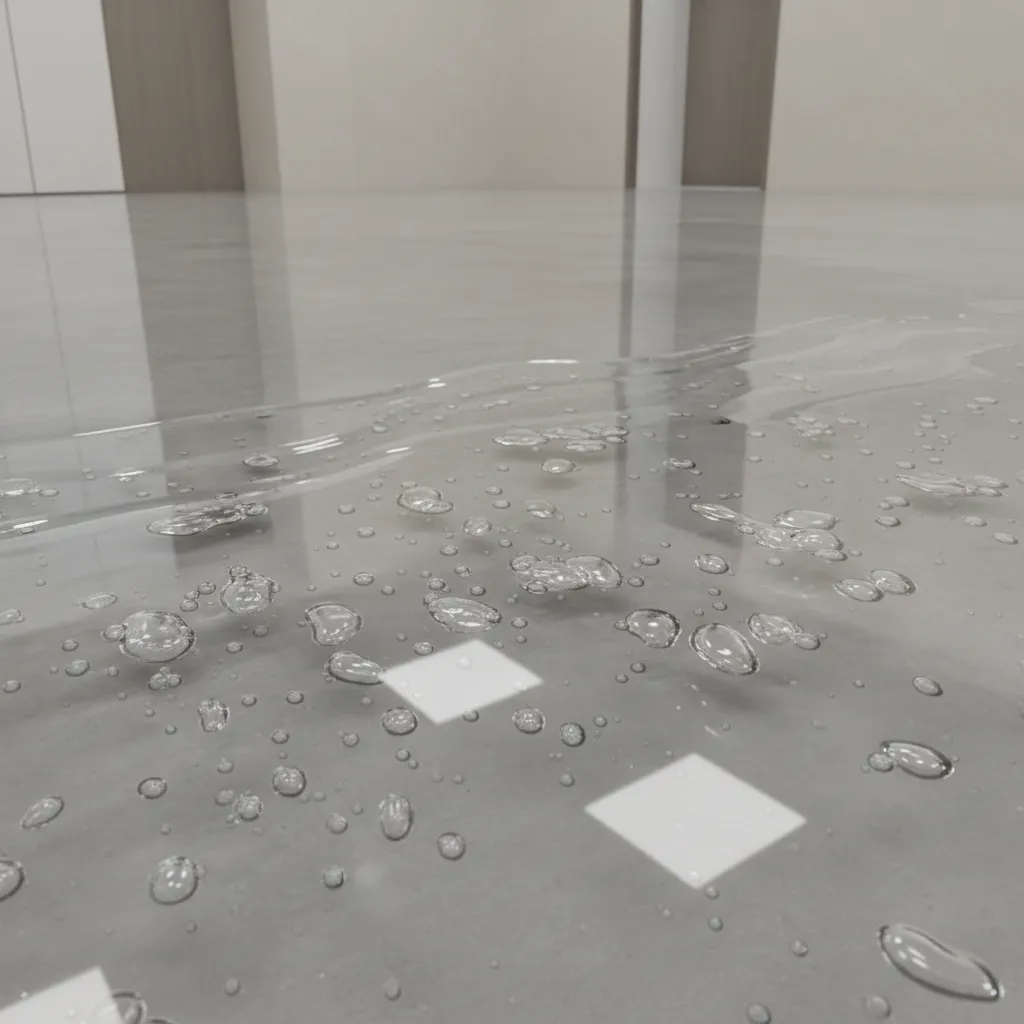

Air Bubbles, Cracking, and Image Distortion Issues

Key Insight: Air bubbles and distorted images usually happen when epoxy is poured too quickly or without proper degassing.

One of the biggest visual risks in 3D flooring is bubble formation. Because the final layer is transparent, even tiny bubbles become highly visible.

The most common causes include:

1. Air trapped in porous concrete
2. Improper mixing technique
3. Applying epoxy in thick layers too quickly
4. High humidity during curing

Professional installers typically use spiked rollers and controlled pouring techniques to release trapped air.

Cracking can occur when:

1. The concrete slab moves
2. Expansion joints are ignored
3. The epoxy layer is too thick

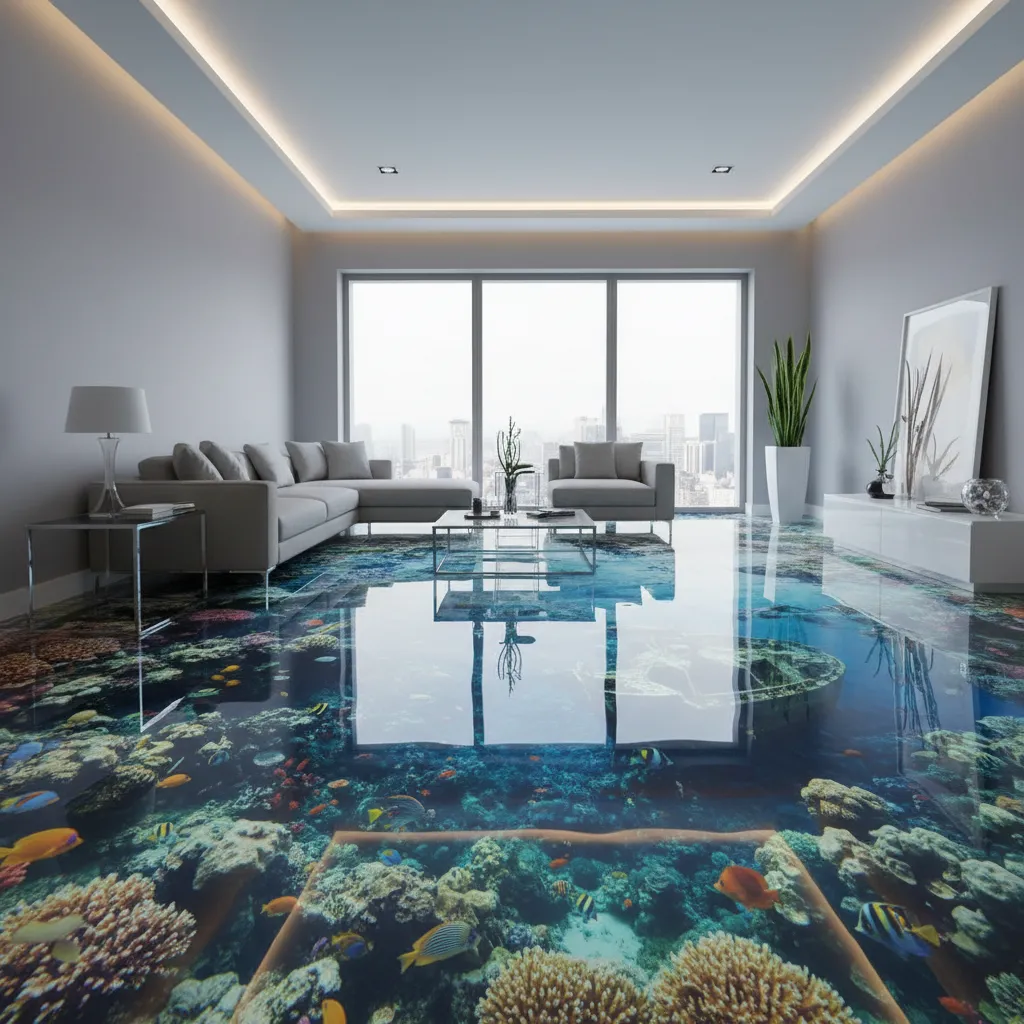

Another issue unique to 3D flooring is image distortion. If the transparent epoxy layer is uneven, the printed design can appear stretched or warped.

In design planning stages, many studios now use digital visualization tools to preview flooring within the room environment. For example, designers often preview how flooring materials interact with lighting and interior layoutbefore committing to installation.

save pin

Moisture and Temperature Problems During Installation

Key Insight: Hidden moisture inside concrete is one of the most destructive risks for epoxy flooring systems.

Concrete slabs naturally contain moisture. If the vapor emission rate is too high, the epoxy coating may blister or delaminate.

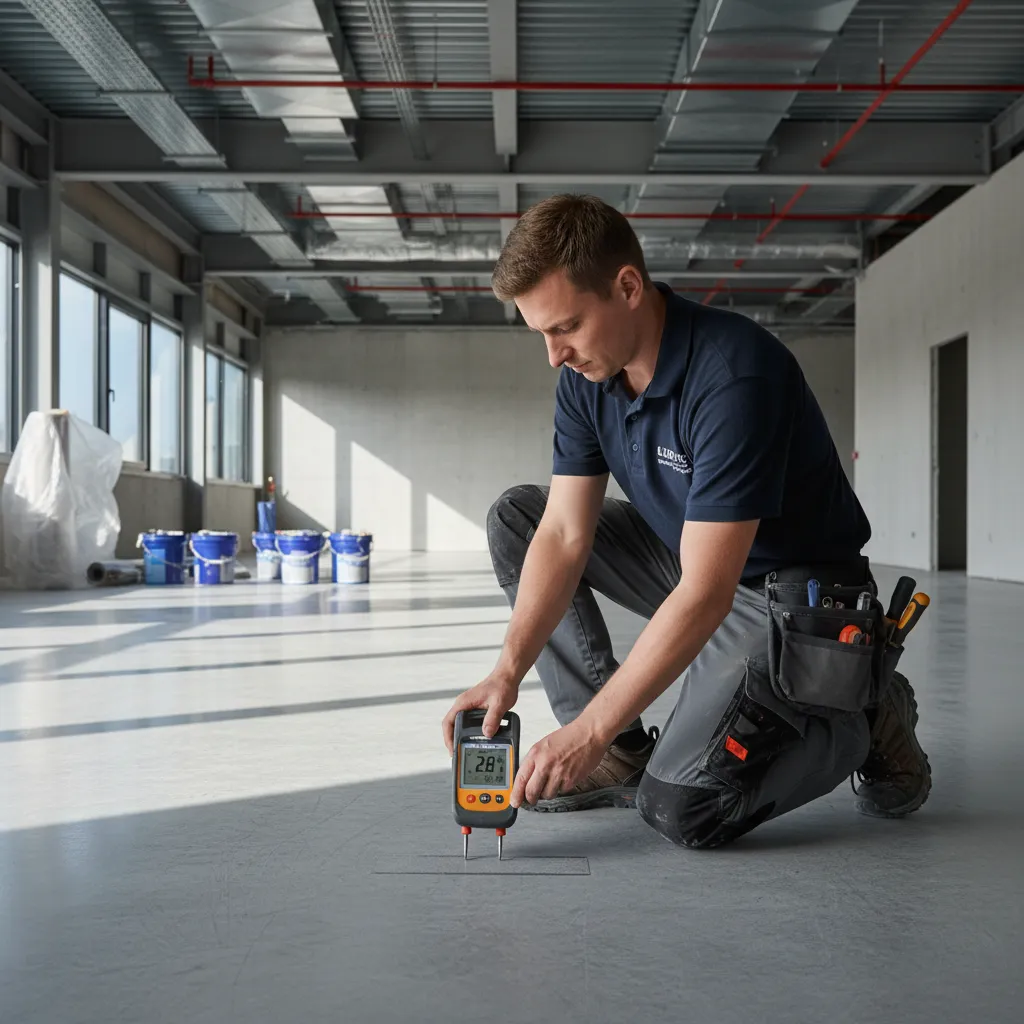

Professional installers usually perform moisture testing using:

1. Calcium chloride tests
2. Relative humidity probes
3. Electronic moisture meters

Environmental conditions also matter.

Ideal installation conditions typically include:

1. Temperature: 18°C–27°C (65°F–80°F)
2. Low humidity
3. Stable indoor airflow

Cold environments slow curing, while excessive heat can cause epoxy to set too quickly and trap air.

save pin

How Poor Installation Increases Total Project Cost

Key Insight: Most 3D epoxy flooring repair projects cost more than installing the floor correctly the first time.

In renovation consulting, I often see homeowners focusing on the upfront price per square foot while overlooking installation risk.

Hidden costs caused by poor installation include:

1. Full epoxy removal and reinstallation
2. Replacement of damaged image layers
3. Concrete resurfacing
4. Extended project delays

Another overlooked factor is design coordination. A floor pattern that looks dramatic in isolation can clash with room layout, lighting, or furniture placement.

That’s why many professionals first test flooring placement within a complete room layout plan before finalizing decorative epoxy flooring designs.

Answer Box

The majority of 3D epoxy flooring problems come from preparation errors, trapped air, moisture in concrete, or incorrect curing conditions. Preventing these issues requires professional surface preparation, moisture testing, and controlled installation environments.

How to Prevent Common 3D Flooring Failures in Canada

Key Insight: Prevention is almost always cheaper than repair when dealing with decorative epoxy flooring.

From what I’ve observed across commercial and residential installations, successful projects usually follow strict preparation and environmental controls.

Best practices used by professional installers include:

1. Mechanical grinding of concrete surfaces
2. Moisture vapor testing before installation
3. Applying epoxy in controlled temperature environments
4. Using professional degassing tools
5. Allowing proper curing time between layers

In colder Canadian climates, installers must also account for seasonal humidity and temperature fluctuations that can impact curing performance.

Final Summary

1. Poor surface preparation is the leading cause of 3D epoxy flooring failure.
2. Air bubbles and image distortion often come from rushed installation.
3. Moisture inside concrete can cause epoxy delamination months later.
4. Environmental conditions strongly affect epoxy curing quality.
5. Professional planning dramatically reduces costly flooring repairs.

FAQ

Why do bubbles appear in 3D epoxy floors?

Bubbles usually form when air escapes from porous concrete or when epoxy is mixed or poured too quickly.

Can cracked epoxy flooring be repaired?

Small cracks can sometimes be filled with clear epoxy resin, but large cracks usually require grinding and reinstallation.

Why do 3D epoxy floors peel or lift?

Peeling typically occurs when the concrete surface was not properly ground or cleaned before installation.

How long should epoxy flooring cure?

Most epoxy systems require 24–72 hours for initial curing and up to 7 days for full hardness.

Are moisture problems common with epoxy floors?

Yes. Moisture vapor from concrete slabs is one of the most common causes of epoxy coating failure.

What temperature is best for installing epoxy flooring?

Most installers recommend temperatures between 65°F and 80°F for stable curing.

Why do some 3D epoxy floors look distorted?

Distortion usually occurs when the transparent resin layer is uneven or improperly leveled.

What are the most common 3D epoxy floor problems in Canada?

The most common issues include moisture-related delamination, air bubbles, and curing problems caused by temperature fluctuations.
