Common 3D Epoxy Flooring Problems and How to Fix Them: A practical troubleshooting guide for bubbles, peeling, fading, and installation mistakes in 3D epoxy floors

Direct Answer

The most common 3D epoxy flooring problems include air bubbles, peeling layers, fading colors, and surface cracking. Most issues happen because of moisture, improper surface preparation, or incorrect curing conditions. The good news is that many of these problems can be repaired or prevented with proper installation techniques and maintenance.

Quick Takeaways

1. Most 3D epoxy floor failures start with poor surface preparation.
2. Air bubbles usually appear because moisture or trapped air escapes during curing.
3. Peeling epoxy layers often indicate bonding problems between the base and coating.
4. UV exposure can gradually fade pigments in decorative epoxy floors.
5. Professional planning and layout visualization significantly reduce installation mistakes.

Introduction

After working on residential and commercial interiors for more than a decade, I've seen a lot of excitement around 3D epoxy flooring. When installed properly, the results are stunning — ocean floors in bathrooms, marble illusions in living rooms, even immersive artwork in retail spaces.

But the reality is this: 3D epoxy flooring problems are more common than most installers admit. I’ve walked into projects where beautiful floors started bubbling within weeks, or where the printed design underneath began fading after a year.

The biggest mistake people make is assuming epoxy flooring is purely decorative. It’s actually a multi‑layer chemical system. If even one layer fails — moisture barrier, primer, image film, or topcoat — the entire floor can suffer.

Before installation, I often recommend homeowners experiment with layouts and spatial visuals using tools that help visualize flooring layouts and room proportions in 3D. Seeing how materials interact with lighting and scale helps prevent costly surprises later.

In this guide, I’ll walk through the most common failures I’ve encountered in real projects, explain why they happen, and share practical ways to fix or avoid them.

save pin

Why 3D Epoxy Flooring Problems Occur

Key Insight: Most epoxy flooring failures are not material defects—they result from installation mistakes or environmental conditions.

Epoxy flooring works through chemical bonding. The resin and hardener react to form a rigid surface, but that reaction is sensitive to moisture, temperature, and substrate condition.

In many of the failed installations I’ve inspected, the problem started before the epoxy was even poured.

Common root causes include:

1. Poor surface preparation
2. Moisture trapped in the concrete
3. Incorrect mixing ratios
4. Improper curing temperature
5. Low‑quality protective topcoat

The National Association of Corrosion Engineers notes that surface preparation can account for over 70% of coating failures in industrial environments. The same principle applies to decorative epoxy floors.

If the base layer isn’t stable, the decorative 3D layer will eventually fail.

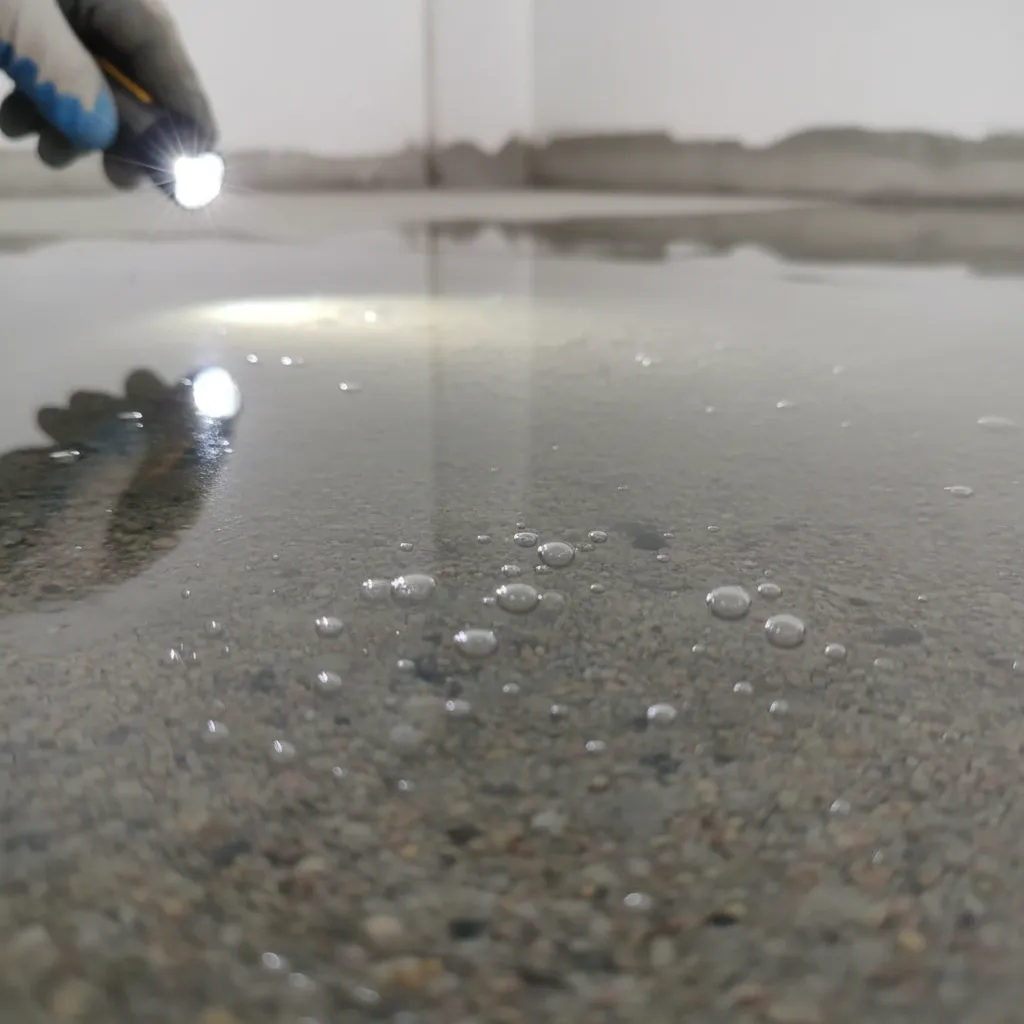

Air Bubbles and Surface Imperfections

Key Insight: Air bubbles usually form when moisture or trapped air escapes during curing.

This is one of the most frequent complaints homeowners have after installing 3D epoxy floors. The surface looks smooth on day one, but tiny bubbles appear as the floor cures.

In my experience, bubbles usually come from three sources:

1. Moisture vapor rising from concrete
2. Air trapped during epoxy mixing
3. Applying epoxy in high temperatures

How to fix minor bubbles:

1. Sand the affected area lightly.
2. Clean dust and debris.
3. Apply a new thin epoxy topcoat.

How professionals prevent bubbles:

1. Using moisture meters before installation
2. Applying primer and vapor barriers
3. Rolling epoxy with a spiked roller

save pin

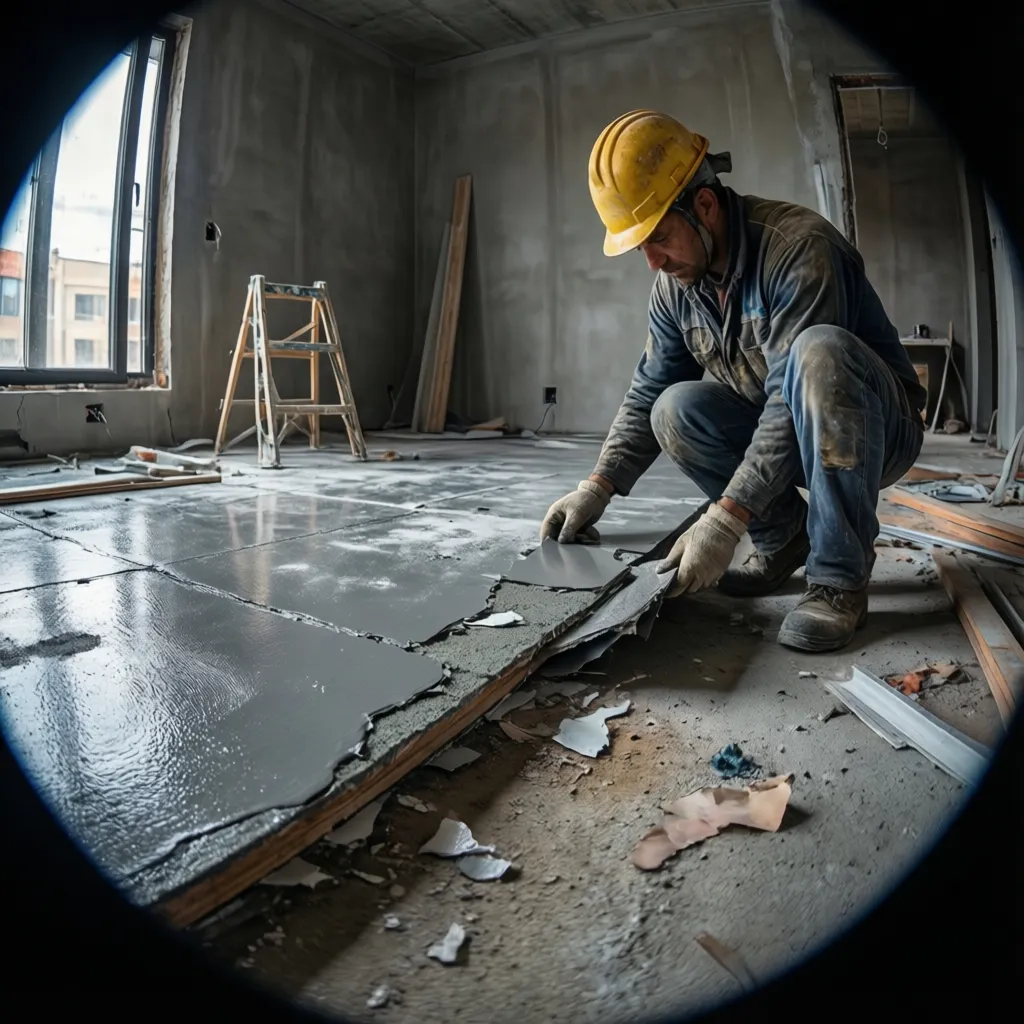

Peeling or Delamination Issues

Key Insight: Peeling epoxy almost always indicates weak bonding between the floor and the epoxy layer.

Delamination happens when epoxy loses adhesion and begins separating from the substrate. I’ve seen this in garages, bathrooms, and commercial lobbies.

The most common reasons include:

1. Dust or oil left on the concrete
2. Smooth surfaces not mechanically ground
3. Moisture pressure under the coating
4. Incorrect primer selection

Repair options depend on severity:

1. Small areas: grind and recoat.
2. Moderate areas: remove top layer and reapply epoxy.
3. Severe delamination: full floor removal and reinstall.

When planning new flooring projects, I often recommend homeowners first explore layout concepts using tools that create accurate room plans before flooring installation. It’s surprising how many flooring failures begin with poor planning rather than poor materials.

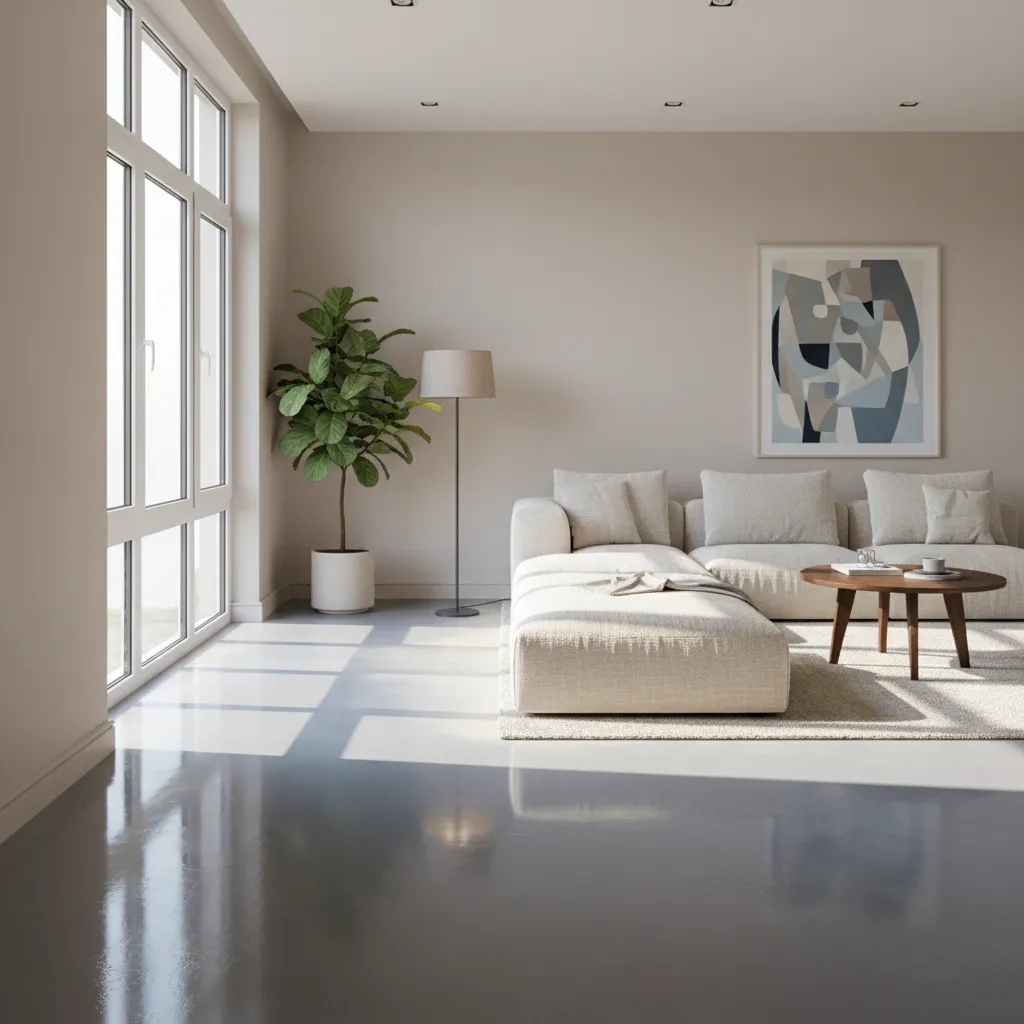

Color Fading and UV Damage

Key Insight: Decorative epoxy pigments can fade when exposed to sunlight without UV‑resistant coatings.

3D floors often rely on printed imagery or colored resin layers. Without UV protection, these pigments slowly degrade under sunlight.

This is especially common in:

1. Living rooms with large windows
2. Commercial storefronts
3. Outdoor epoxy installations

Prevention strategies:

1. Use UV‑resistant polyurethane topcoats
2. Install window UV films
3. Choose UV‑stable pigments

In higher‑end residential projects, we often add a protective clear coat every 5–7 years to maintain color depth.

save pin

Cracks or Uneven Surfaces After Installation

Key Insight: Epoxy doesn’t cause structural cracks—it simply reveals movement already present in the concrete.

This is a common misunderstanding. When cracks appear in epoxy floors, the epoxy is rarely the cause. Instead, the concrete underneath expands, contracts, or shifts.

Typical triggers include:

1. Foundation settling
2. Temperature expansion
3. Heavy structural loads
4. Poorly cured concrete slabs

Repair methods professionals use:

1. Inject epoxy crack filler.
2. Level the affected surface.
3. Apply a flexible epoxy overlay.

Flexible epoxy systems are becoming increasingly popular because they absorb minor structural movement without cracking.

Answer Box

Most 3D epoxy flooring problems stem from moisture, poor surface preparation, or inadequate protective coatings. Proper substrate preparation and UV‑resistant topcoats dramatically reduce failure rates and extend floor lifespan.

save pin

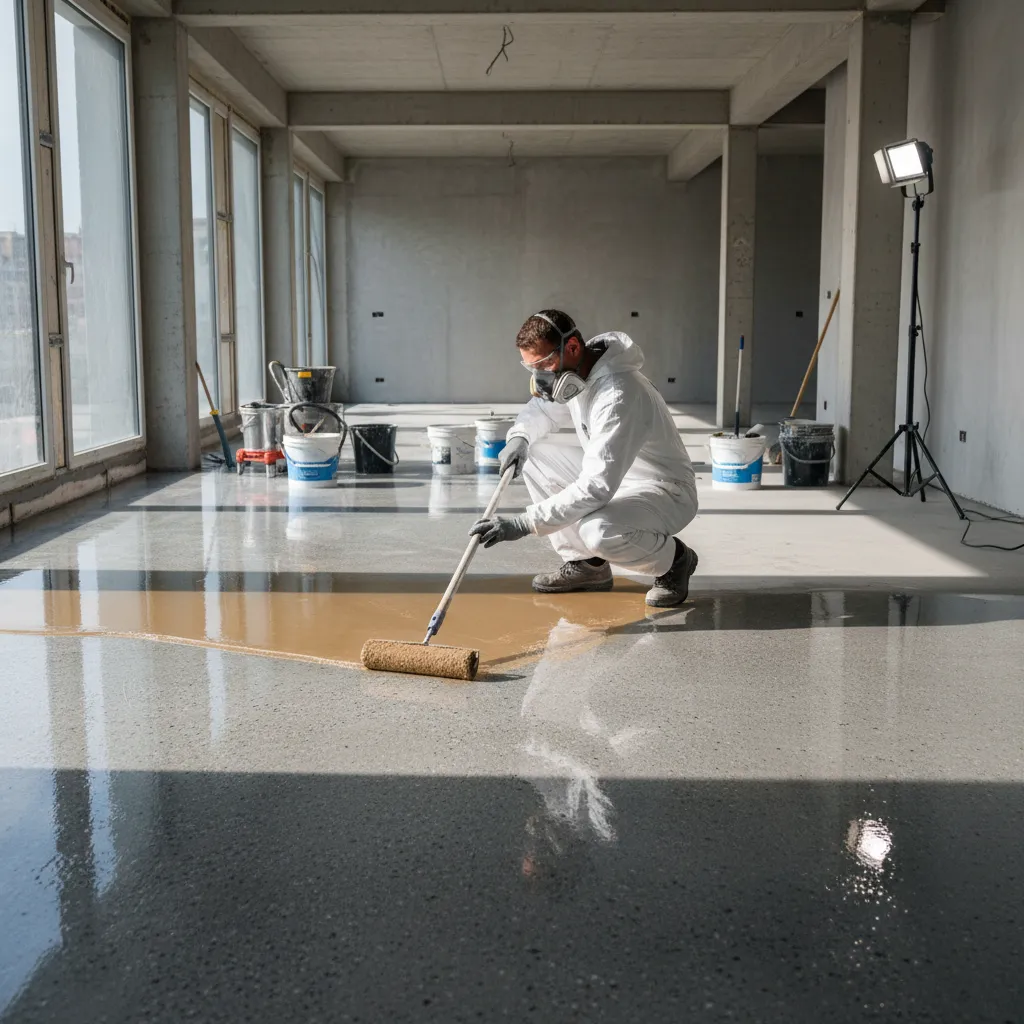

How to Prevent Problems During Installation

Key Insight: Prevention is significantly cheaper than repairing failed epoxy flooring.

Over the years, the most successful epoxy flooring projects followed a disciplined installation process rather than rushing decorative layers.

Professional installation checklist:

1. Moisture testing before installation
2. Mechanical grinding of concrete
3. High‑quality primer application
4. Controlled temperature during curing
5. Protective UV topcoat

Another underrated step is visualization. Before committing to complex decorative floors, I encourage clients to preview interior design concepts and flooring styles virtually. Seeing how patterns interact with lighting and furniture often prevents costly redesigns.

Final Summary

1. Most 3D epoxy flooring problems originate from installation errors.
2. Moisture and poor surface preparation cause bubbles and peeling.
3. UV exposure gradually fades decorative epoxy pigments.
4. Concrete movement can create cracks beneath epoxy coatings.
5. Proper planning and installation dramatically extend floor lifespan.

FAQ

Why do bubbles appear in 3D epoxy flooring?

Bubbles usually form when moisture or trapped air escapes during curing. High temperatures and improper mixing can also cause surface bubbles.

How do you fix peeling epoxy flooring?

Small peeling areas can be sanded and recoated. Severe delamination usually requires removing the epoxy layer and reinstalling it properly.

Do 3D epoxy floors fade over time?

Yes. Without UV‑resistant coatings, decorative pigments may fade when exposed to direct sunlight for extended periods.

How long should a 3D epoxy floor last?

A properly installed system typically lasts 10–20 years depending on traffic, maintenance, and environmental conditions.

Can cracked epoxy flooring be repaired?

Yes. Cracks can be filled with epoxy crack filler and resealed with a new protective coating.

What causes uneven epoxy floors?

Uneven surfaces often result from improper leveling, poor substrate preparation, or incorrect epoxy application techniques.

Are 3D epoxy flooring problems common?

They are uncommon with professional installation but can occur when moisture testing, surface grinding, or curing control is skipped.

Is 3D epoxy flooring difficult to maintain?

No. Routine cleaning with non‑abrasive cleaners and occasional resealing keeps the surface durable and glossy.
