Common Alias Rendering Problems and How to Fix Them: A practical troubleshooting guide to solve Alias model rendering errors, broken materials, lighting issues, and render artifacts.

Direct Answer

Most Alias rendering problems come from surface normals, broken material assignments, heavy geometry, or incorrect lighting setups during export. Fixing these issues usually involves cleaning geometry, reassigning materials, optimizing meshes, and verifying HDRI or light configurations before rendering.

In real production workflows, systematic troubleshooting—starting from geometry integrity and ending with lighting calibration—resolves the majority of Alias render failures.

Quick Takeaways

1. Surface normals and bad topology are the most common causes of Alias rendering artifacts.
2. Broken materials often appear after export due to incompatible shader systems.
3. Heavy NURBS geometry can crash render engines without optimization.
4. Incorrect HDRI intensity frequently causes flat or overexposed renders.
5. Cleaning the model before export prevents most rendering failures.

Introduction

If you've worked with Alias for product design or automotive surfaces, you already know that rendering Alias models can sometimes feel unpredictable. I’ve seen projects where the geometry looked flawless in the modeling viewport, but once exported to a renderer, surfaces turned black, reflections broke, or the render simply crashed.

These Alias model rendering problems are extremely common when moving models between tools like VRED, KeyShot, or Blender. After more than a decade working on visualization pipelines for industrial design teams, I’ve noticed that the issues almost always trace back to a few specific technical mistakes.

The tricky part is that most tutorials only talk about rendering settings. In practice, the root cause usually sits much earlier in the workflow—inside the model structure itself.

If you're trying to achieve high‑quality visualization similar to the workflows shown in professional 3D home rendering visualization pipelines, understanding how to troubleshoot Alias rendering is essential.

In this guide, I’ll walk through the real causes behind alias rendering troubleshooting cases I encounter most often—and how to fix them efficiently.

save pin

Why Alias Models Sometimes Fail to Render Correctly

Key Insight: Alias render failures usually start with geometry integrity problems rather than rendering software settings.

Alias relies heavily on precise NURBS surfaces. While that precision is excellent for industrial design, it can create issues when exported into polygon-based render engines.

Common geometry problems include:

1. Untrimmed surfaces
2. Reversed normals
3. Tiny surface gaps
4. Overlapping patches
5. Non-manifold geometry

When these problems exist, render engines struggle to interpret surface direction, which causes black surfaces, reflection errors, or shading artifacts.

In one automotive visualization project I worked on, a single reversed surface normal caused an entire car hood to render black in KeyShot. Fixing the normal orientation solved the issue instantly.

Recommended geometry cleanup workflow:

1. Run surface diagnostic tools inside Alias.
2. Check normals orientation.
3. Stitch adjacent surfaces.
4. Remove overlapping geometry.
5. Export clean tessellated meshes.

Fixing Surface Shading and Reflection Issues

Key Insight: Broken reflections usually indicate surface continuity issues rather than reflection settings.

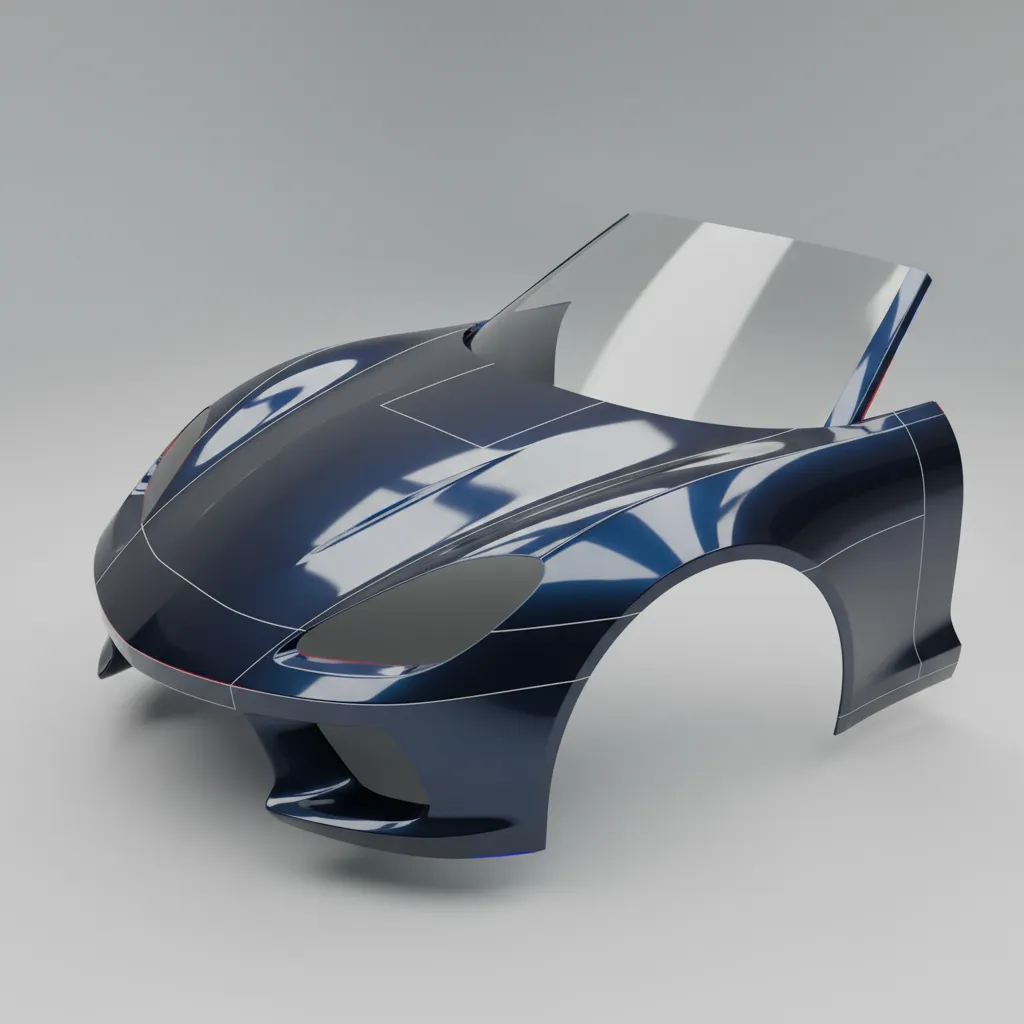

Reflection quality depends heavily on surface continuity levels (G0, G1, G2). If transitions between surfaces aren't smooth, reflections will appear distorted or broken.

Typical symptoms include:

1. Jagged reflections along edges
2. Sharp highlight breaks
3. Uneven gloss transitions

Solutions include:

1. Upgrade continuity between surfaces to G2 where possible.
2. Rebuild surfaces with consistent parameterization.

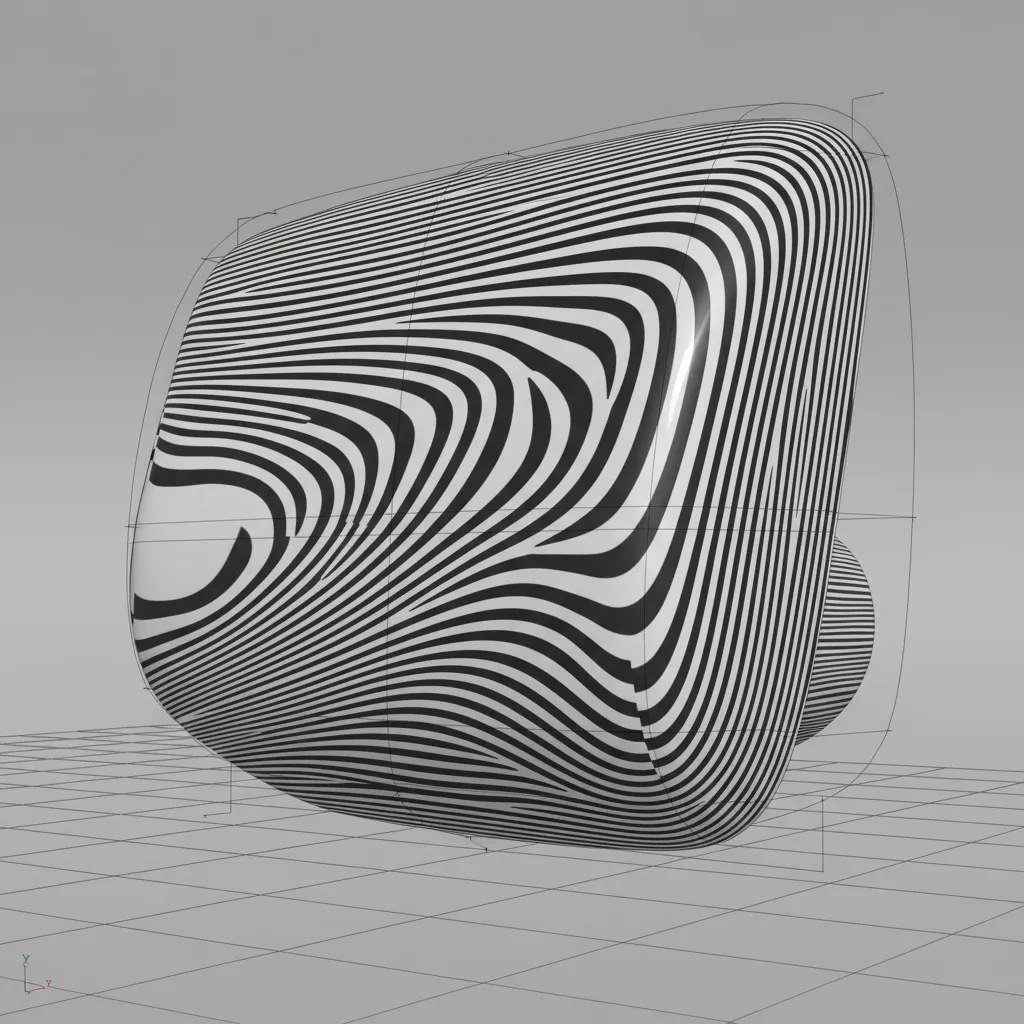

3. Use diagnostic reflection lines in Alias.

Professional studios often rely on reflection line analysis before rendering because it exposes continuity problems instantly.

save pin

Resolving Broken Materials After Export

Key Insight: Materials break during export because Alias shaders rarely translate perfectly between rendering engines.

This is one of the most frustrating alias model rendering problems for beginners.

Alias materials are primarily visualization previews, not production shaders. When exported to other renderers, material mapping often fails.

Common export issues include:

1. Missing textures
2. Incorrect UV mapping
3. Flattened materials
4. Wrong roughness values

Best practices for stable material transfer:

1. Export geometry first, materials second.
2. Rebuild materials inside the renderer.
3. Use standardized PBR material libraries.

If you're experimenting with modern rendering workflows similar to AI‑assisted interior visualization workflows used by designers, rebuilding materials inside the rendering engine almost always produces better results.

Handling Heavy Geometry and Scene Crashes

Key Insight: Alias scenes crash during rendering primarily due to excessive NURBS tessellation.

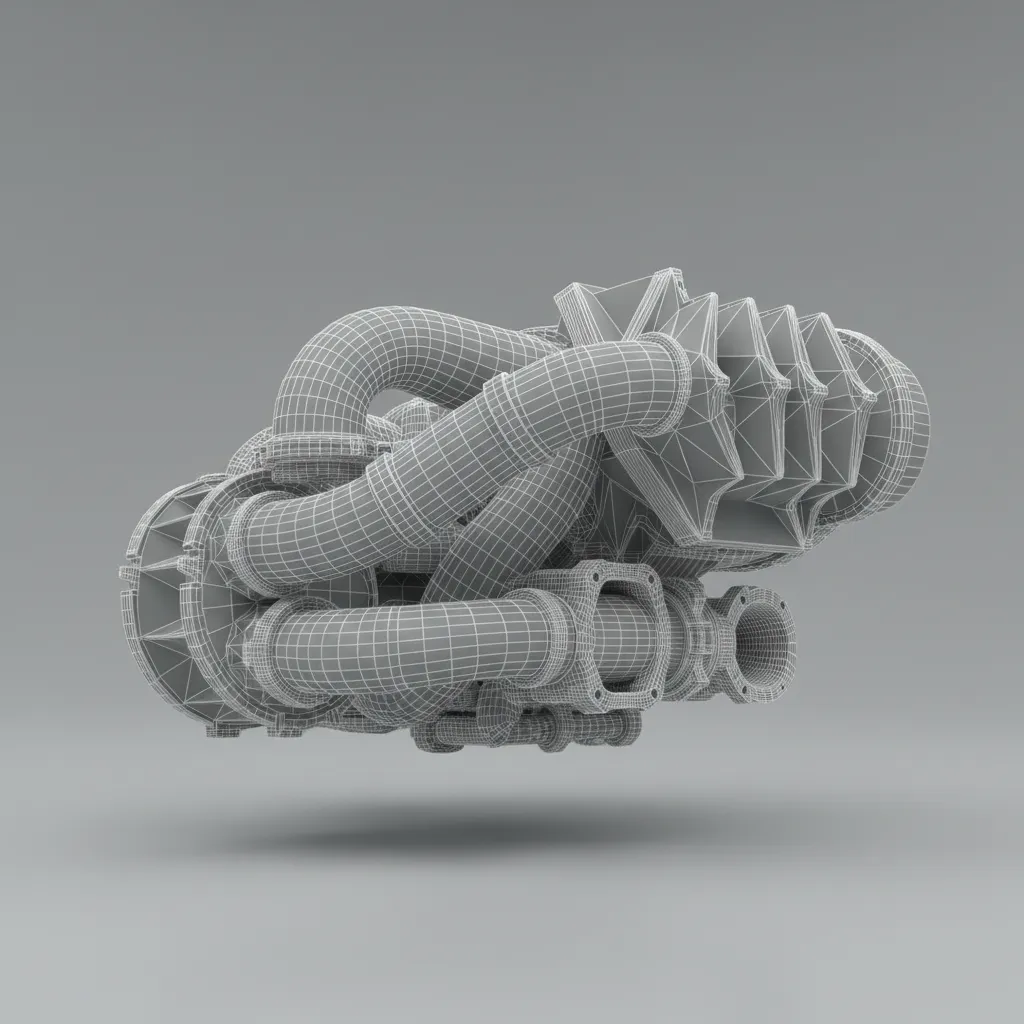

NURBS surfaces convert to polygons before rendering. If tessellation settings are too dense, the scene becomes extremely heavy.

I’ve seen product models explode from 20 MB in Alias to over 2 GB once converted into polygon meshes.

Optimization checklist:

1. Reduce tessellation density
2. Remove hidden surfaces
3. Merge duplicate geometry
4. Instance repeating components

For complex scenes like interior visualizations or full product environments, studying how designers structure complex room layout scenes for renderingcan help you organize geometry more efficiently.

save pin

Fixing Lighting and HDRI Problems

Key Insight: Lighting problems often come from HDRI misconfiguration rather than weak lighting setups.

HDRI environments are powerful but easy to misuse.

Common HDRI mistakes:

1. HDRI intensity set too high
2. Incorrect exposure compensation
3. Low‑resolution HDR maps
4. Poor environment rotation

Professional lighting workflow:

1. Start with HDRI exposure at neutral levels.
2. Adjust environment rotation for highlight control.
3. Add key lights only after base lighting works.

Many designers over-light scenes, which actually reduces realism.

Troubleshooting Rendering Artifacts

Key Insight: Most render artifacts are caused by overlapping surfaces or insufficient sampling.

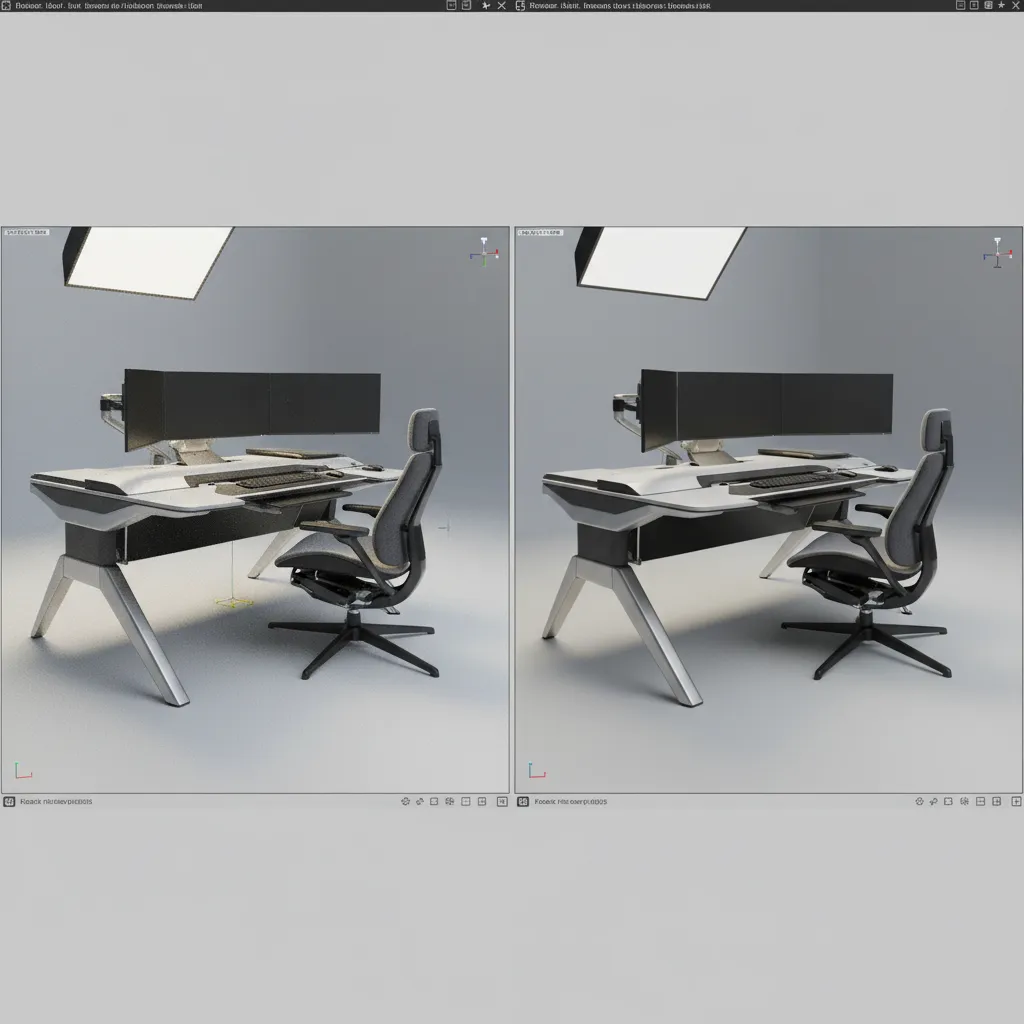

Artifacts can appear as:

1. Flickering edges
2. Shadow noise
3. Surface speckles
4. Light leaks

Practical fixes:

1. Increase render sampling.
2. Remove overlapping geometry.
3. Increase shadow bias settings.
4. Improve anti‑aliasing levels.

One overlooked mistake is stacking surfaces extremely close together. Even tiny overlaps can produce render artifacts that look like lighting problems.

save pin

Answer Box

The majority of alias rendering troubleshooting cases trace back to geometry issues, broken materials after export, or inefficient lighting setups. Cleaning surfaces, rebuilding materials in the renderer, and optimizing tessellation solve most rendering errors quickly.

Final Summary

1. Clean geometry before exporting Alias models.
2. Rebuild materials inside the render engine.
3. Optimize tessellation to avoid crashes.
4. Use HDRI carefully and avoid over-lighting.
5. Most artifacts come from overlapping surfaces.

FAQ

Why do Alias models render black?

Black surfaces usually indicate reversed normals or broken surface orientation after export.

Why are materials missing when rendering Alias models?

Alias shaders often don't translate to external render engines. Rebuilding materials inside the renderer usually fixes the issue.

How do I fix alias render artifacts?

Check for overlapping surfaces, increase render samples, and verify that surface normals are consistent.

What causes alias model rendering problems in KeyShot?

Most problems come from tessellation settings or broken surface continuity during export.

Why does my Alias render crash?

Heavy geometry and extremely dense tessellation are the most common causes of render crashes.

How do I improve reflections in Alias renders?

Ensure surface continuity is at least G1 or G2 and check reflections using diagnostic reflection lines.

Do I need to rebuild materials after exporting Alias?

Yes. For best results, recreate PBR materials inside the rendering software.

What is the best workflow for alias rendering troubleshooting?

Check geometry integrity first, then materials, then lighting, and finally render sampling settings.
