Common Appliance Fit Problems in 1960s Kitchen Remodels: Why modern appliances often fail to fit mid‑century kitchens—and practical solutions designers use to make them work.

Direct Answer

Modern appliances often do not fit 1960s kitchen layouts because cabinet dimensions, counter heights, electrical capacity, and ventilation standards have changed significantly since the mid‑century era. Many original kitchens were built around smaller appliances and non‑standard cabinet depths, creating conflicts when installing today’s larger refrigerators, dishwashers, and ranges.

Most installation problems can be solved with cabinet modifications, layout adjustments, or by choosing appliances designed for retro‑style kitchens.

Quick Takeaways

1. Most 1960s kitchens used narrower cabinets and shallower counters than modern standards.
2. Modern refrigerators and dishwashers are usually larger than mid‑century appliance spaces.
3. Electrical circuits and ventilation in older kitchens may not support current appliance requirements.
4. Cabinet modifications or retro‑sized appliances often solve installation conflicts.
5. Planning appliance placement early prevents costly remodel delays.

Introduction

During my early renovation projects in Los Angeles, I learned something the hard way: modern appliances and a 1960s kitchen rarely agree with each other on the first attempt. Homeowners assume appliances follow universal sizes—but mid‑century kitchens were designed around very different standards.

In fact, many 1960s kitchen appliance size problems appear only after cabinets are installed or appliances arrive on site. I’ve seen refrigerators sticking out six inches past the cabinets, dishwashers that physically cannot slide into the opening, and ranges that block drawers.

The good news is that these problems are predictable. Once you understand where the dimensional conflicts come from, the fixes become much easier.

When planning layouts, I often start with a digital layout test to visualize clearances before construction. A practical way to preview spacing is using tools that allow you to experiment with appliance spacing in a kitchen layout before renovation begins. Catching problems at this stage can save thousands in cabinet modifications.

save pin

Why Modern Appliances Often Do Not Fit 1960s Kitchen Layouts

Key Insight: Mid‑century kitchens were designed for smaller appliances and different workflow assumptions, which causes immediate compatibility problems with modern appliance dimensions.

In the 1960s, appliances were generally smaller and kitchens were not designed with today's "full‑depth" appliances in mind. Refrigerators were narrower, dishwashers were less common, and ovens were often separate wall units.

Three structural differences cause most conflicts:

1. Cabinet depth: Many 1960s base cabinets are 21–22 inches deep instead of today’s 24 inches.
2. Appliance width assumptions: Some homes were built for 30‑inch refrigerators rather than the 36‑inch standard today.
3. Workflow design: Kitchens often prioritized compact layouts rather than large appliances.

According to the National Kitchen & Bath Association (NKBA), modern kitchen design standards assume deeper cabinets, larger refrigeration units, and wider clearances than most mid‑century homes provide.

Cabinet Width and Depth Mismatches

Key Insight: Cabinet openings in 1960s kitchens frequently fall 1–3 inches short of modern appliance requirements.

This is probably the most common installation issue I encounter. Homeowners purchase appliances assuming "standard" sizing, only to discover the cabinet opening is slightly too small.

Typical mismatch examples include:

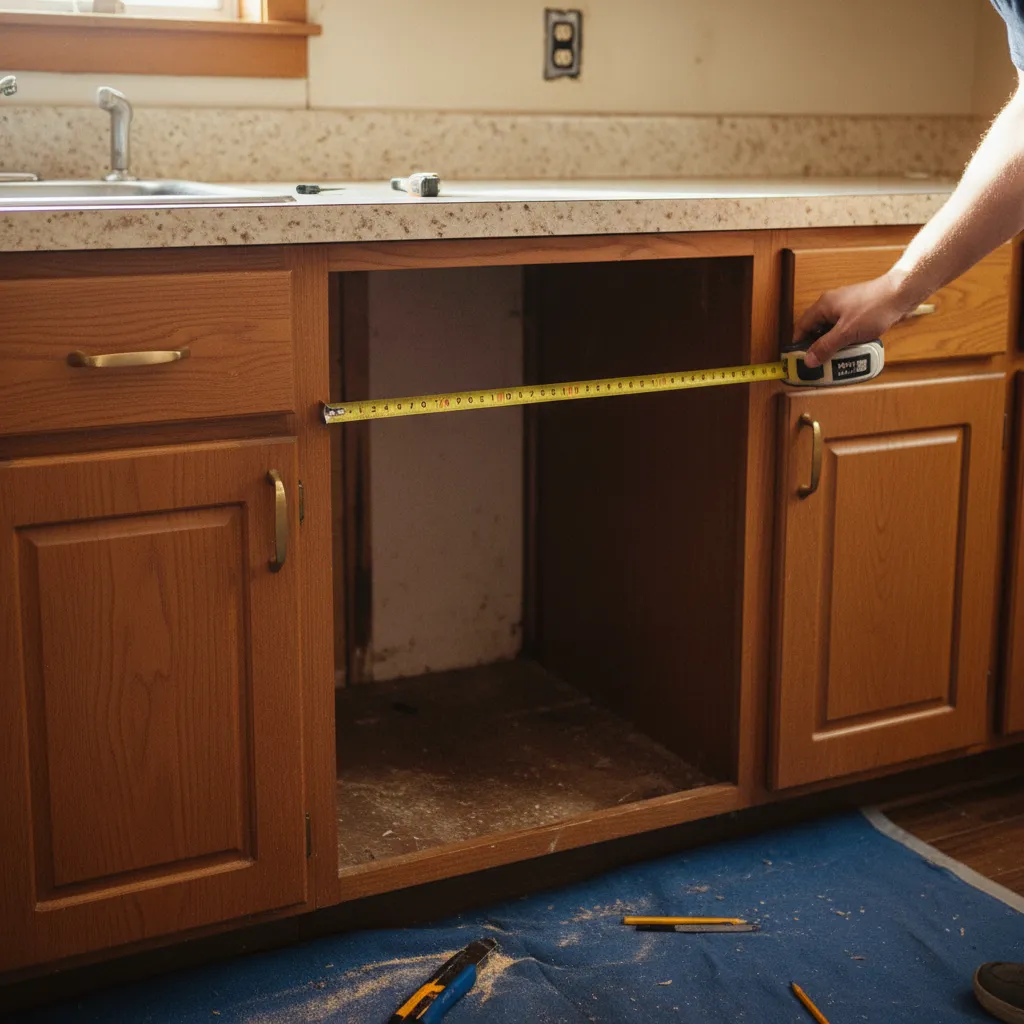

1. Dishwasher openings built at 23 inches wide instead of 24 inches.

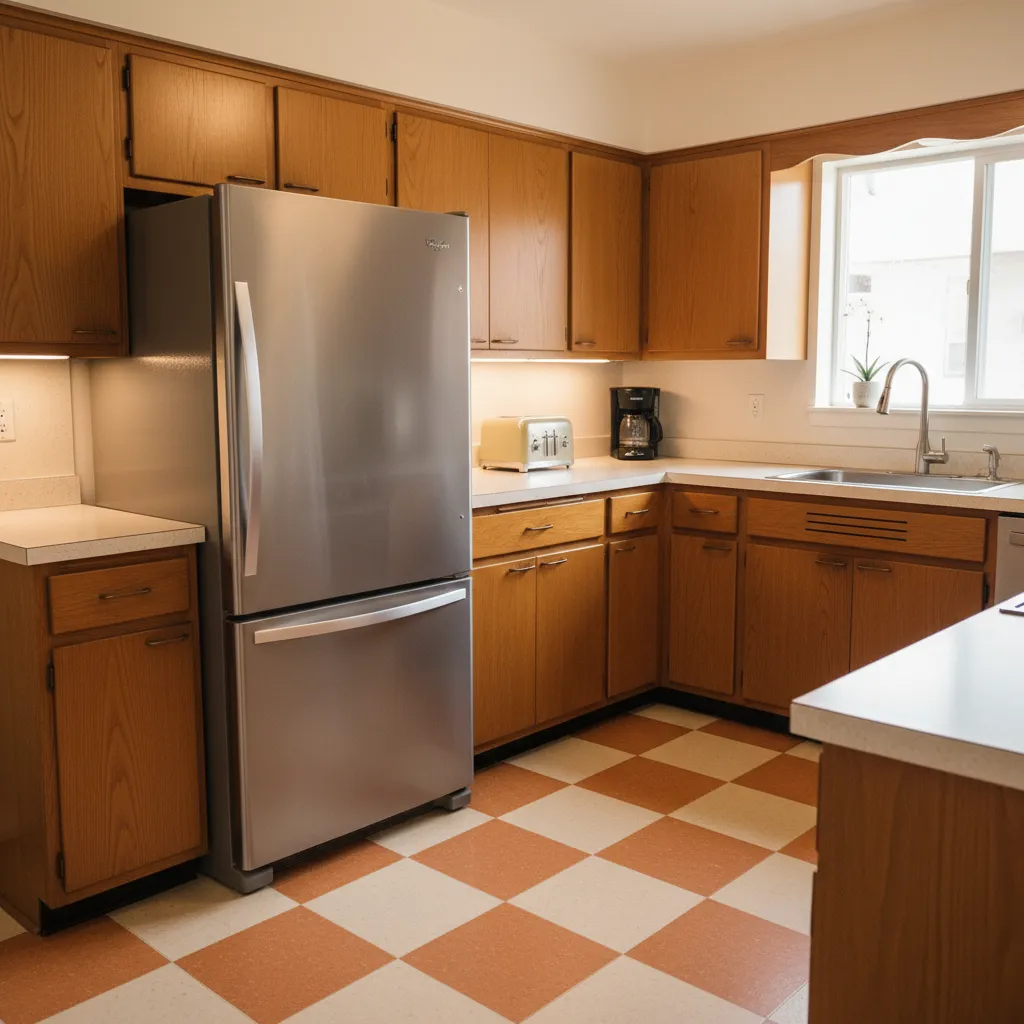

2. Refrigerator cavities designed for 30‑inch units.
3. Shallower cabinet depths that leave appliances protruding.

Common fixes include:

1. Removing or trimming cabinet side panels.
2. Replacing one cabinet with a narrower unit.
3. Installing counter‑depth appliances.

In several remodels I've worked on, adjusting just one cabinet solved what initially looked like a major appliance conflict.

save pin

Electrical and Ventilation Limitations in Older Kitchens

Key Insight: Appliance installation problems in older kitchens are often electrical—not spatial.

Many 1960s kitchens were wired for fewer appliances. Dishwashers, microwaves, and powerful range hoods were not standard in every home.

Typical electrical constraints include:

1. Limited dedicated appliance circuits
2. Insufficient amperage for modern ranges
3. Lack of grounded outlets

Ventilation also creates issues. Older kitchens frequently used recirculating range hoods rather than exterior venting. Modern gas ranges require stronger ventilation systems.

Before purchasing appliances, it’s wise to confirm:

1. Circuit capacity
2. Outlet placement
3. Vent duct availability

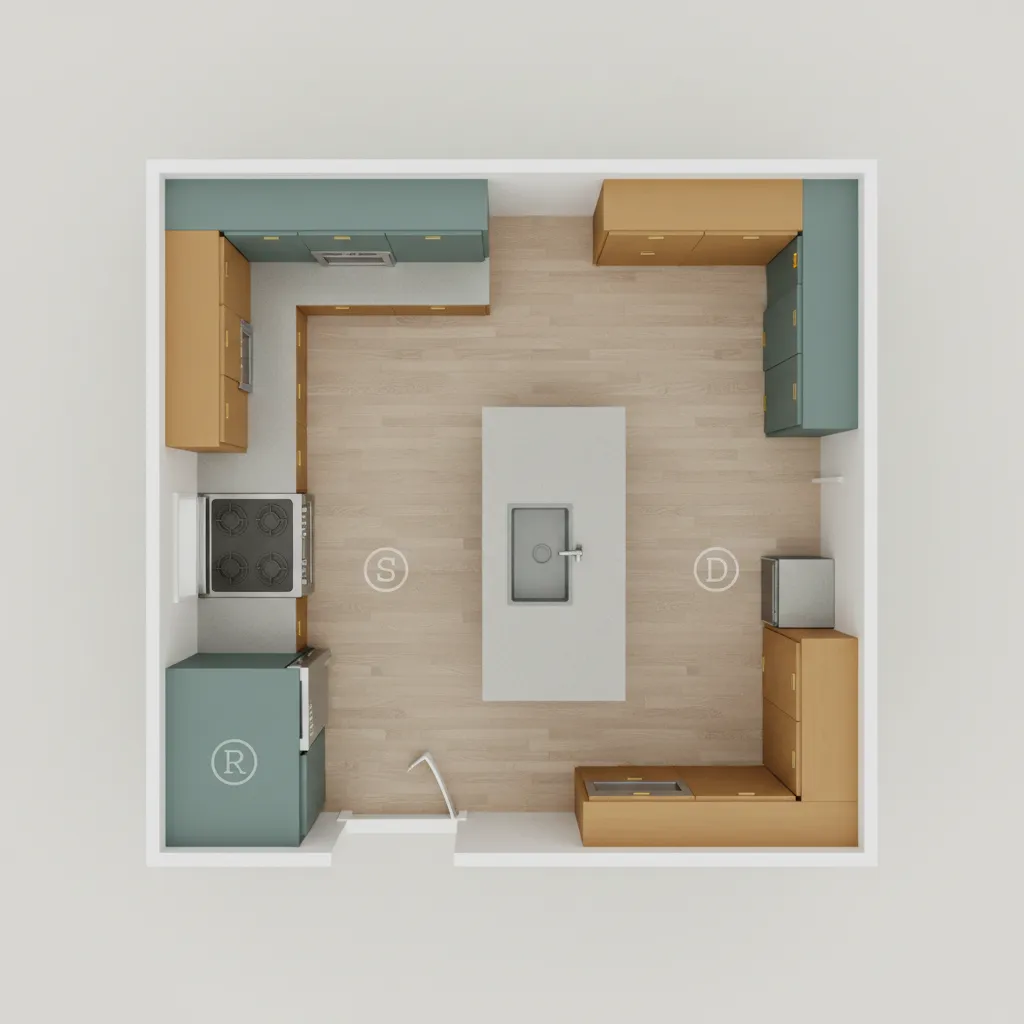

A layout simulation that allows you to visualize appliance clearances and cabinetry spacing in a 3D kitchen floor plan can also reveal where electrical access or ventilation routes might become difficult.

Counter Height and Appliance Clearance Issues

Key Insight: Even small differences in counter height or cabinet overhang can block appliance installation.

Modern appliances assume a counter height of about 36 inches. However, many mid‑century kitchens sit closer to 35 inches or even slightly lower.

This difference creates unexpected problems:

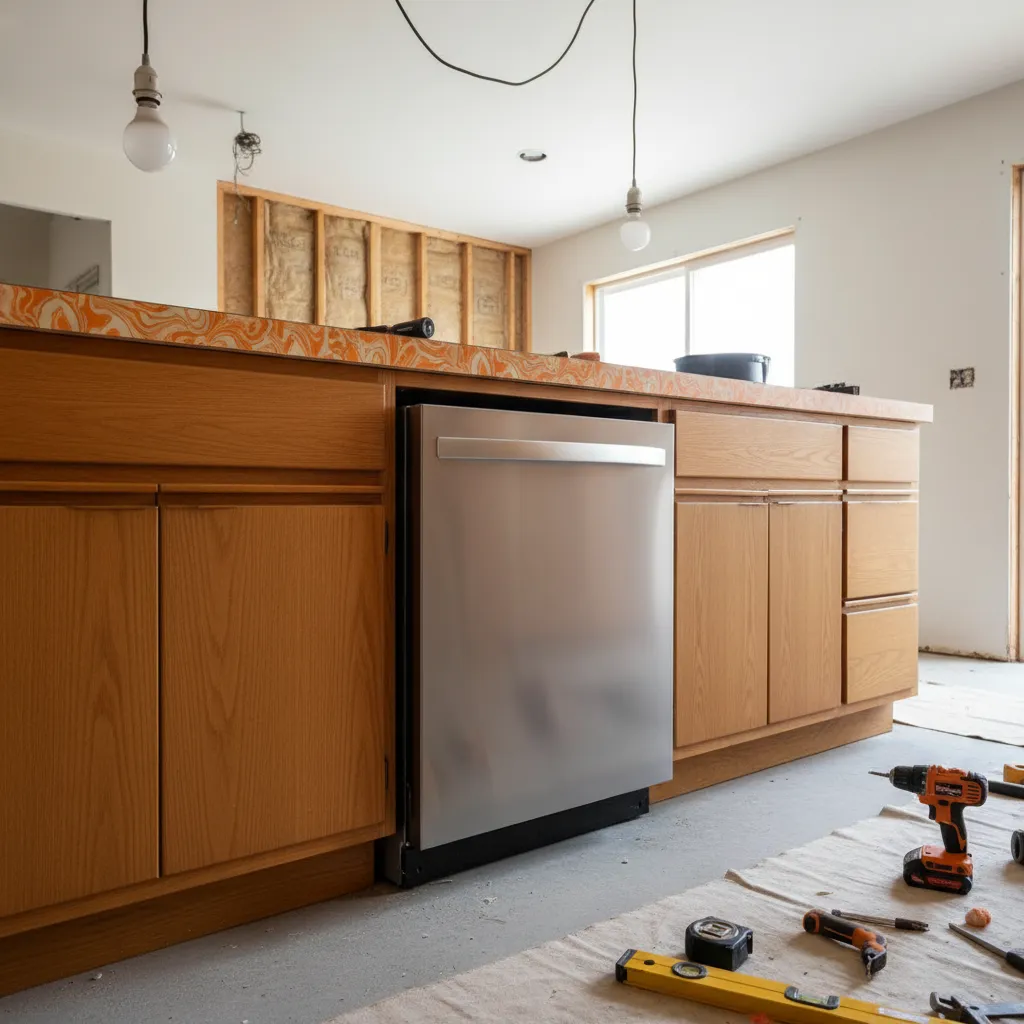

1. Dishwashers that cannot slide under the countertop
2. Ranges that sit higher than the surrounding surface
3. Microwaves that block cabinet doors

I’ve seen installers forced to remove countertops entirely just to install a dishwasher. The appliance technically fit the width—but not the height.

save pin

Solutions for Integrating Modern Appliances into Vintage Layouts

Key Insight: Most appliance fit problems can be solved by adjusting cabinets rather than redesigning the entire kitchen.

Based on renovation projects I've worked on, these strategies work best:

1. Modify cabinet openings
2. Small cabinet adjustments are usually cheaper than replacing appliances.
3. Use counter‑depth appliances
4. They align better with shallow mid‑century cabinetry.
5. Reconfigure appliance placement
6. Moving the refrigerator a few feet can eliminate clearance conflicts.
7. Plan appliance selection early
8. Never design cabinets before selecting appliances.

When evaluating changes, it helps to test different appliance layouts inside a digital floor plan before construction starts. Visualizing the kitchen early makes it much easier to identify clearance problems.

save pin

When Custom Panels or Retro Models Solve the Problem

Key Insight: Sometimes the easiest solution is choosing appliances designed for older kitchen dimensions.

A growing number of manufacturers now offer retro‑style appliances that match mid‑century sizing better than mainstream models.

Situations where retro appliances make sense:

1. Historic homes where cabinet replacement is undesirable
2. Kitchens with unusual cabinet spacing
3. Designs aiming to preserve authentic mid‑century aesthetics

Another effective option is using custom appliance panels. These allow modern dishwashers or refrigerators to visually blend with cabinetry while solving depth mismatches.

Answer Box

Most appliance installation problems in 1960s kitchens come from cabinet depth, narrow appliance openings, outdated electrical systems, and lower counter heights. With cabinet adjustments, counter‑depth appliances, or retro models, modern appliances can usually be integrated without rebuilding the entire kitchen.

Final Summary

1. 1960s kitchens were designed for smaller appliances.
2. Cabinet openings are often slightly narrower than modern standards.
3. Electrical and ventilation upgrades may be required.
4. Cabinet adjustments usually solve most appliance fit issues.
5. Retro appliances can simplify mid‑century kitchen remodels.

FAQ

Why don't modern appliances fit older kitchen cabinets?

Most older kitchens used shallower cabinets and smaller appliance openings. Modern appliances follow newer size standards.

What is the biggest appliance issue in 1960s kitchen remodels?

Refrigerator and dishwasher openings are usually too narrow or shallow for modern models.

Can you modify cabinets to fit modern appliances?

Yes. Many installers trim cabinet panels or adjust openings to accommodate appliances.

Do modern refrigerators fit mid century kitchens?

Often they do not without adjustments. Counter‑depth models usually fit better.

Are retro appliances smaller than modern ones?

Some retro‑style appliances follow mid‑century dimensions, making them easier to install in older kitchens.

What height were 1960s kitchen counters?

Many were slightly lower than the modern 36‑inch standard.

How do I solve appliance clearance problems in older kitchens?

Measure cabinet openings carefully, verify appliance specs, and consider layout adjustments before installation.

Can dishwashers fit in a 1960s kitchen remodel?

Yes, but cabinet width and counter height must be checked carefully before purchase.

References

National Kitchen & Bath Association (NKBA) Kitchen Planning Guidelines

U.S. Department of Energy Appliance Size Standards
